Xante Accel-a-Writer 8300 User manual

_________________________ Maintenance and Specifications 9-1
Chapter 9 - Maintenance and
Specifications
Chapter Overview
Introduction.....................................................................................9-3
Maintenance ....................................................................................9-3
Handling the Printer .................................................................9-3
Moving the Printer....................................................................9-4
Cleaning the Printer..................................................................9-5
Technical Specifications..................................................................9-7
Printer Memory Requirements .................................................9-9
Warranty and Service Options ......................................................9-10
Limited Warranty ..........................................................................9-11

9-2 Maintenance and Specificationsbb ________________________
Notes

_________________________ Maintenance and Specifications 9-3
Introduction
Your Accel-a-Writer 8300 is designed for minimal maintenance.
This chapter describes how to care for your printer and contains the
technical specifications and warranty for your printer.
Maintenance
Your printer requires minimal maintenance. Handling the printer
with care and regular cleaning should ensure that it remains in good
working order.
Handling the Printer
Always treat your printer with care. Proper care can extend the life
of the printer. When you are handling your printer, keep the
following things in mind:
•Never move the printer with the toner cartridge installed.
• Do not place anything on top of the printer.
• Always have someone help you lift the printer. It weighs
approximately 44 lbs (19.98 kg).
• Always lift the printer by the bottom—never by the cartridge
slot or manual feed tray.
• Only use media which meets all the printer’s requirements. See
“Media Specifications” in chapter 7 for details.
• Make sure the printer’s location meets the requirements listed in
“Printer Location” in chapter 2.
• Protect the printer from strong vibrations or jostling.
• Do not open the front cover while printing. This may cause a
paper jam.
• Never oil the printer.

9-4 Maintenance and Specificationsbb ________________________
• Make sure that air vents are not covered and that air can move
freely around them. Never insert anything into the vents.
• Make sure the output tray does not overfill. Overfilling can block
media as it comes out and cause a printer jam.
• If the printer will not be used for an extended period (over
several days), unplug the power cord from the power source,
close the manual feed tray, and cover the printer with protective
plastic or a cloth.
• Store the printer only in an area with a temperature of 32˚ to 95˚
F (0˚ to 35˚ C) and a relative humidity of 10% to 80% with no
condensation.
Moving the Printer
Use the following guidelines when moving the printer.
•Never move the printer with the toner cartridge installed.
Remove the cartridge and place it in its original bag to protect it
from light. If you no longer have this bag, place the cartridge in a
dark bag or wrap it in a dark cloth.
• Make sure the toner cartridge stays level during the move. Then,
rock it gently to redistribute toner before placing the cartridge
back in the printer. For details, see “Handling the Toner
Cartridge” in chapter 7.
• Make sure the top cover and manual feed tray are closed.
• Remove all interface cables and the power cord.
• If a SCSI disk is attached, remove it.
• Always have help when you lift the printer. It weighs
approximately 44 lbs. (19.98 kg).

_________________________ Maintenance and Specifications 9-5
Cleaning the Printer
Your printer requires minimal cleaning. The most convenient time to
clean the printer is when you install a new toner cartridge.
To clean your printer
1. Turn off your printer and disconnect it from the power source.
2. Remove the toner cartridge. (See “The Toner Cartridge” in
chapter 2 for details.)
3. Locate the static charge eliminator and clean any paper dust or
scrap residue from it using the green cleaning brush located
inside the top cover area on the left (fig. 10.1). To do this,
gently run the brush back and forth across the eliminator
several times.
Fig. 10.1 Clean the Static Charge Area

9-6 Maintenance and Specificationsbb ________________________
4. Locate the transfer guide and clean off any dust and paper
residue by wiping the area with a soft, dry, lint-free, clean
cloth (fig. 10.2).

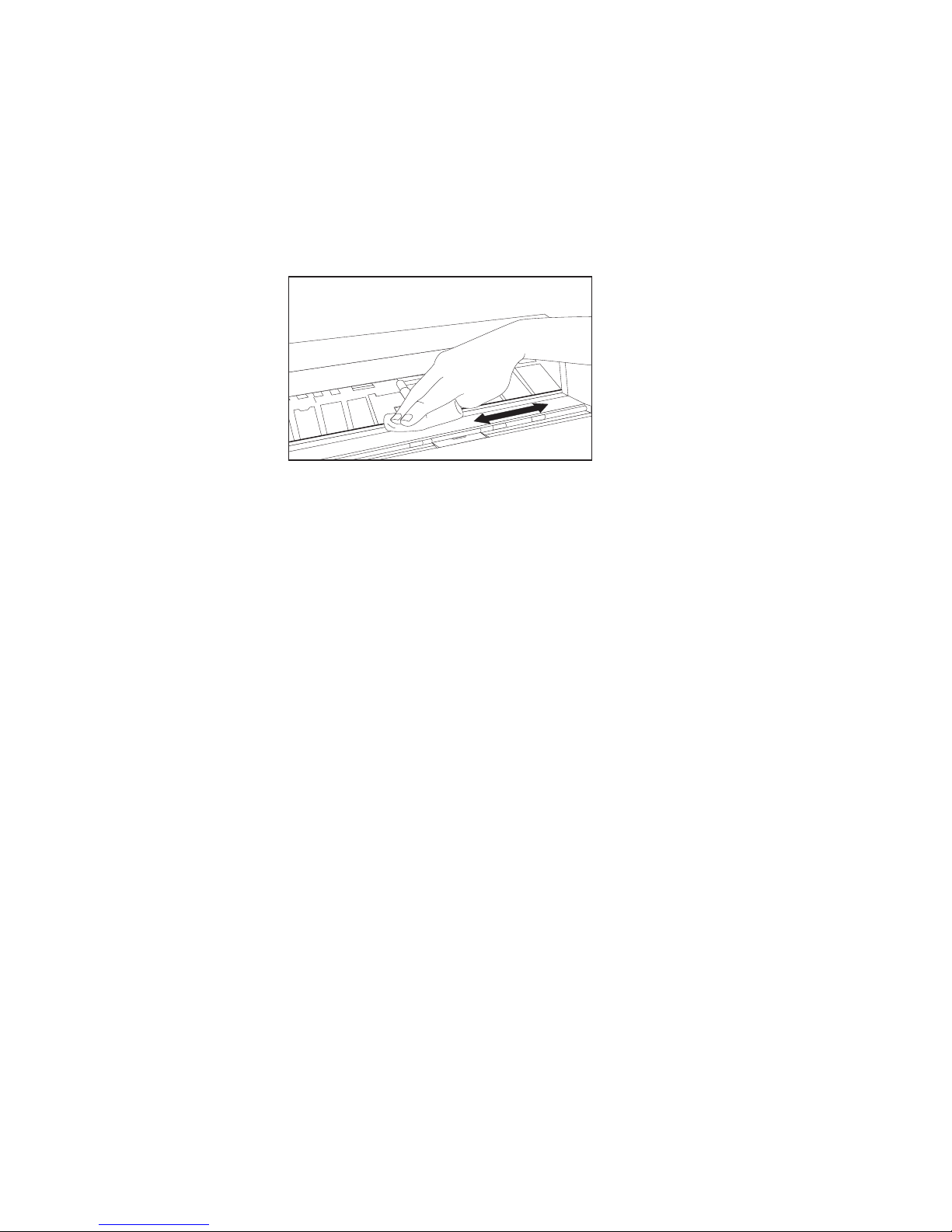

Fig. 10.2 Clean the Transfer Guide
5. Install the new toner cartridge and close the printer. (See “The
Toner Cartridge” in chapter 2 for details.)
6. Clean the printer’s exterior using a clean, lint-free cloth
dampened with water, denatured alcohol, or a mild,
water-based detergent.
Caution: Never use ammonia-based cleaners on or around
the printer. This may cause permanent damage to
the toner cartridge or to the printer’s plastic case.
Never spray or pour solutions directly on the
printer. Always put the solution on the cloth and
wipe the printer with the cloth. Make sure the
solution does not get inside the printer, ports, or
power cord areas.
7. Give the printer a few minutes for any damp areas to dry
thoroughly. Then, reconnect the printer to the power source.

_________________________ Maintenance and Specifications 9-7
Technical Specifications
Type: Laser printer; AMD 29040/33 MHz RISC
processor
Engine: Canon JX; 8 pages–per–minute (letter)
Power: Supply: 100-120 volts; 3.5 amps; 385 watts
Consumption: Max. 755 W
Noise Level: Printing: less than 49 dB
Standby: less than 37 dB
Dimensions: (W) 17.3" (440 mm)
(D) 17.9" (457 mm)
(H) 11.1" (282 mm)
(H) 14.9" (379 mm) with media feeder
Weight: 33 lbs (15 kg)
Environment: 50˚ to 90.5˚ Fahrenheit (10˚ to 32.5˚ Celsius)
and 20% to 80% relative humidity without
rapid changes; Air Pressure 760-1013 hpa
(570-760 mmHg)
Language: Adobe PostScript 3
Typefaces: 136 PostScript fonts
Types 1, 3, 4, 5, and 6 PostScript download
font support
Interfaces: Standard: LocalTalk, Centronics parallel,
RS232 serial, and SCSI disk interface
Optional: Ethernet (EtherTalk, Novell
NetWare, TCP/IP)
Resolutions: 600 x 600 dpi; (1200 x 1200 dpi upgrade)
Memory: 8 MB RAM (4, 16, and 32 MB SIMM
upgrades to 128 MB)

9-8 Maintenance and Specificationsbb ________________________
Media size: 3.90" x 5.80" (99 mm x 147 mm) up to 12.00"
x 25.00" (305 mm x 635 mm)
XANTÉ Features: XANTÉ Halftone Calibration Technology
XANTÉ Enhanced Screening Technology
XANTÉ Accurate Calibration Technology
(X•ACT), patent pending
XANTÉ Negative Enhanced Imaging
Technology (NEIT), patent pending
Toner cartridge: 8,000 sheets (letter; 4% coverage)

_________________________ Maintenance and Specifications 9-9
Printer Memory Requirements
Memory requirements vary depending on the print resolution, media
size, and duplexing mode. Negative image and NEIT printing require
full image buffering.
The following chart lists the minimum available memory required to
print typical configurations. Available memory is equal to the total
RAM installed minus the amount of RAM Disk enabled (see chapter
8 for details). Complex files, large files or those with heavy graphics
may require more than the standard memory to print.
Minimum Memory Requirements
Media Duplex Race Compress◊Full Image
600 dpi 1200 dpi†600 dpi 1200 dpi†600 dpi 1200 dpi†
COM10 Env. N/A N/A 8MB 20MB 8MB 20MB
C5 Env. N/A N/A 8MB 20MB 8MB 20MB
DL Env. N/A N/A 8MB 20MB 8MB 20MB
Monarch Env. N/A N/A 8MB 20MB 8MB 20MB
B5 12MB 28MB 8MB 20MB 8MB 20MB
Letter/A4 12MB 40MB 8MB 20MB 8MB 20MB
Executive 12MB 32MB 8MB 20MB 8MB 20MB
B4 16MB 52MB 8MB 20MB 12MB 28MB
Legal 16MB 48MB 8MB 20MB 12MB 28MB
11x17/Leger/A3 20MB 80MB 8MB 20MB 12MB 40MB
12" x 18" N/A N/A 8MB 20MB 16MB 40MB
12" x 19" N/A N/A 8MB 20MB 16MB 48MB
12" x 20" N/A N/A 16MB 28MB 16MB 48MB
12" x 21" N/A N/A 16MB 32MB 16MB 48MB
12" x 23" N/A N/A 16MB 32MB 16MB 52MB
12" x 25" N/A N/A 16MB 32MB 20MB 64MB
◊If your printer has enough RAM available for full frame imaging, race
compression is not used.
†1200 dpi is not available unless the resolution upgrade and a minimum of
20 MB of RAM is available.

9-10 Maintenance and Specificationsbb ________________________
Warranty and Service Options
We recommend that only XANTÉ trained service engineers perform
service on your printer. XANTÉ offers several service plans,
designed to meet your business needs. You can choose XANTÉ’s
Customer Return Service, which is an extension of the one year
limited warranty; Depot Service; Cross-Ship Service, or RightSite,
XANTÉ’s on-site service plan.
XANTÉ provides a one year limited warranty against defects in
material and workmanship on your printer (see “Limited Warranty”
later in this chapter). To obtain warranty service, call customer
support for an RGA (Return Goods Authorization) number and
return your printer to the XANTÉ Customer Repair Center, freight
prepaid. XANTÉ repairs or replaces your printer within five business
days, to locations within the United States and Canada. You may
purchase multiple year extensions to this plan.
The Depot Service plan allows you to drop off or ship your printer to
the designated Olivetti Customer Repair Center near you. Your
printer will be repaired and returned to you, freight prepaid, within
ten business days from the date of receipt.
With XANTÉ’s Cross-Ship Service, you receive a temporary
replacement printer via prepaid priority shipment. Your printer can
then be sent to XANTÉ, repaired, and returned to you, freight
prepaid. After you receive your repaired printer, you return the
replacement printer to XANTÉ.
XANTÉ’s RightSite is a comprehensive on-site service plan
provided by XANTÉ and Olivetti North America within the United
States and Canada. With this plan, if you are within 50 miles of the
nearest Olivetti Customer Repair Center, a trained service technician
is dispatched to your site by the end of the next business day to begin
servicing your printer.
To learn the details of these plans or to request service under one of
these plans, call XANTÉ Customer Support at 800-926-8839 in the
US and Canada or at 334-342-4846 elsewhere.

_________________________ Maintenance and Specifications 9-11
Limited Warranty
XANTÉ CORPORATION warrants this product against defects in material
and workmanship for a period of ONE (1) YEAR from the date of original
purchase of the Accel-a-Writer 8300 printer.
In case of defect, XANTÉ CORPORATION will, at its option, repair, or
replace this product at no charge to you provided you return the product,
freight prepaid, to us during the warranty period. Please attach your name,
address, telephone number, a description of the problem, and proof of date
of original purchase. This warranty does not apply if the product has been
damaged by accident, abuse, misuse, misapplication, or if the product has
been modified without the written permission of XANTÉ CORPORATION.
XANTÉ CORPORATION IS NOT RESPONSIBLE FOR SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING
FROM ANY BREACH OF WARRANTY, OR UNDER ANY OTHER
LEGAL THEORY, INCLUDING LOST PROFITS, DOWNTIME,
GOODWILL, DAMAGE TO OR REPLACEMENT OF EQUIPMENT
AND PROPERTY, AND ANY COSTS OF RECOVERING,
REPROGRAMMING, OR REPRODUCING ANY PROGRAM OR DATA
STORED IN OR USED WITH XANTÉ CORPORATION PRODUCTS.
Some states do not allow the exclusion or limitation of incidental or
consequential damages or limitations on how long an implied warranty
lasts, so the above limitation or exclusion may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.
ALL IMPLIED WARRANTIES, INCLUDING IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE LIMITED IN DURATION TO ONE (1) YEAR FROM
THE DATE OF ORIGINAL PURCHASE OF THE ACCEL-A-WRITER
8300.
THE WARRANTY SET FORTH ABOVE IS EXCLUSIVE AND IN LIEU
OF ALL OTHERS, ORAL OR WRITTEN, EXPRESS OR IMPLIED.

9-12 Maintenance and Specificationsbb ________________________
Effect of Consumables on Warranty
We recommend you use only XANTÉ parts and consumables in your
Accel-a-Writer 8300 printer. To order parts and consumables from
XANTÉ call Customer Support at 800-926-8393 in the US and
Canada or 334-342-4846 elsewhere.
Your warranty and maintenance contracts are not affected by using
non-XANTÉ products. However, any damages resulting from or
repairs required due to use of non-XANTÉ products are not covered;
if this happens, time and materials costs are charged.
◊◊◊
