Xantrex TM-XDSL-01XN User manual

Operating Manual
XDC 6000 Watt Series
Slave Power Supply
XDC 10-600SL
XDC 20-300SL
XDC 30-200SL
XDC 40-150SL
XDC 60-100SL
XDC 80-75SL
XDC 100-60SL
XDC 150-40SL
XDC 300-20SL
XDC 600-10SL
TM-XDSL-01XN.book Page i Tuesday, November 5, 2002 3:22 PM

TM-XDSL-01XN.book Page ii Tuesday, November 5, 2002 3:22 PM

Operating Manual for
XDC 6000 Watt Series
Slave Power Supply
TM-XDSL-01XN.book Page i Tuesday, November 5, 2002 3:22 PM

ii Operating Manual for XDC Series Slave Power Supply
Limited
Warranty
What does this warranty cover and how long does it last?
This Limited Warranty is provided by Xantrex Technology, Inc. (“Xantrex”) and
covers defects in workmanship and materials in your XDC 6000 Watt Series Slave
Power Supply. This warranty lasts for a Warranty Period of 5 years from the date
of purchase at point of sale to you, the original end user customer.
What will Xantrex do?
Xantrex will, at its option, repair or replace the defective product free of charge,
provided that you notify Xantrex of the product defect within the Warranty Period,
and provided that Xantrex through inspection establishes the existence of such a
defect and that it is covered by this Limited Warranty.
Xantrex will, at its option, use new and/or reconditioned parts in performing
warranty repair and building replacement products. Xantrex reserves the right to use
parts or products of original or improved design in the repair or replacement. If
Xantrex repairs or replaces a product, its warranty continues for the remaining
portion of the original Warranty Period or 90 days from the date of the return
shipment to the customer, whichever is greater. All replaced products and all parts
removed from repaired products become the property of Xantrex.
Xantrex covers both parts and labor necessary to repair the product, and return
shipment to the customer via a Xantrex-selected non-expedited surface freight
within the contiguous United States and Canada. Alaska and Hawaii are excluded.
Contact Xantrex Customer Service for details on freight policy for return shipments
outside of the contiguous United States and Canada.
How do you get service?
If your product requires troubleshooting or warranty service, contact your merchant.
If you are unable to contact your merchant, or the merchant is unable to provide
service, contact Xantrex directly at:
Phone: [phone]
Toll Free North America: 1 800 670 0707
Fax: [phone]
Email: [email protected]
TM-XDSL-01XN.book Page ii Tuesday, November 5, 2002 3:22 PM

Release 1.0 iii
Direct returns may be performed according to the Xantrex Return Material
Authorization Policy described in your front panel controlled XDC product manual.
For some products, Xantrex maintains a network of regional Authorized Service
Centers. Call Xantrex or check our website to see if your product can be repaired at
one of these facilities.
In any warranty claim, dated proof of purchase must accompany the product and the
product must not have been disassembled or modified without prior written
authorization by Xantrex.
Proof of purchase may be in any one of the following forms:
•The dated purchase receipt from the original purchase of the product at point of
sale to the end user, or
•The dated dealer invoice or purchase receipt showing original equipment
manufacturer (OEM) status, or
•The dated invoice or purchase receipt showing the product exchanged under
warranty
What does this warranty not cover?
This Limited Warranty does not cover normal wear and tear of the product or costs
related to the removal, installation, or troubleshooting of the customer’s electrical
systems. This warranty does not apply to and Xantrex will not be responsible for any
defect in or damage to:
a. the product if it has been misused, neglected, improperly installed, physically
damaged or altered, either internally or externally, or damaged from improper
use or use in an unsuitable environment;
b. the product if it has been subjected to fire, water, generalized corrosion,
biological infestations, and high input voltage from lightning strikes;
c. the product if repairs have been done to it other than by Xantrex or its authorized
service centers (hereafter “ASCs”);
d. the product if it is used as a component part of a product expressly warranted by
another manufacturer;
e. the product if its original identification (trade-mark, serial number) markings
have been defaced, altered, or removed.
TM-XDSL-01XN.book Page iii Tuesday, November 5, 2002 3:22 PM

iv Operating Manual for XDC Series Slave Power Supply
Disclaimer Product
THIS LIMITED WARRANTY IS THE SOLE AND EXCLUSIVE WARRANTY PROVIDED
BY XANTREX IN CONNECTION WITH YOUR XANTREX PRODUCT AND IS, WHERE
PERMITTED BY LAW, IN LIEU OF ALL OTHER WARRANTIES, CONDITIONS,
GUARANTEES, REPRESENTATIONS, OBLIGATIONS AND LIABILITIES, EXPRESS
OR IMPLIED, STATUTORY OR OTHERWISE IN CONNECTION WITH THE PRODUCT,
HOWEVER ARISING (WHETHER BY CONTRACT, TORT, NEGLIGENCE, PRINCIPLES
OF MANUFACTURER’S LIABILITY, OPERATION OF LAW, CONDUCT, STATEMENT
OR OTHERWISE), INCLUDING WITHOUT RESTRICTION ANY IMPLIED WARRANTY
OR CONDITION OF QUALITY, MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE TO THE EXTENT REQUIRED UNDER
APPLICABLE LAW TO APPLY TO THE PRODUCT SHALL BE LIMITED IN DURATION
TO THE PERIOD STIPULATED UNDER THIS LIMITED WARRANTY.
IN NO EVENT WILL XANTREX BE LIABLE FOR ANY SPECIAL, DIRECT, INDIRECT,
INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSSES, COSTS OR EXPENSES
HOWEVER ARISING WHETHER IN CONTRACT OR TORT INCLUDING WITHOUT
RESTRICTION ANY ECONOMIC LOSSES OF ANY KIND, ANY LOSS OR DAMAGE TO
PROPERTY, ANY PERSONAL INJURY, ANY DAMAGE OR INJURY ARISING FROM OR
AS A RESULT OF MISUSE OR ABUSE, OR THE INCORRECT INSTALLATION,
INTEGRATION OR OPERATION OF THE PRODUCT.
Exclusions If this product is a consumer product, federal law does not allow an exclusion of
implied warranties. To the extent you are entitled to implied warranties under federal
law, to the extent permitted by applicable law they are limited to the duration of this
Limited Warranty. Some states and provinces do not allow limitations or exclusions
on implied warranties or on the duration of an implied warranty or on the limitation
or exclusion of incidental or consequential damages, so the above limitation(s) or
exclusion(s) may not apply to you. This Limited Warranty gives you specific legal
rights. You may have other rights which may vary from state to state or province to
province.
TM-XDSL-01XN.book Page iv Tuesday, November 5, 2002 3:22 PM

Release 1.0 v
Information WITHOUT LIMITING THE GENERALITY OF THE FOREGOING, UNLESS
SPECIFICALLY AGREED TO BY IT IN WRITING, XANTREX
a. MAKES NO WARRANTY AS TO THE ACCURACY, SUFFICIENCY OR SUITABILITY
OF ANY TECHNICAL OR OTHER INFORMATION PROVIDED IN MANUALS OR
OTHER DOCUMENTATION PROVIDED BY IT IN CONNECTION WITH THE
PRODUCT; AND
b. ASSUMES NO RESPONSIBILITY OR LIABILITY FOR LOSSES, DAMAGES,
COSTS OR EXPENSES, WHETHER SPECIAL, DIRECT, INDIRECT,
CONSEQUENTIAL OR INCIDENTAL, WHICH MIGHT ARISE OUT OF THE USE OF
SUCH INFORMATION.
THE USE OF ANY SUCH INFORMATION WILL BE ENTIRELY AT THE USER’S RISK.
WARNING:
Limitations
on Use
Please refer to your product user manual for limitations on uses of the product.
Specifically, please note that this power supply is not intended for use in connection
with life support systems and Xantrex makes no warranty or representation in
connection with any use of the product for such purposes.
Xantrex Technology, Inc.
8999 Nelson Way
Burnaby, British Columbia
Canada V5A 4B5
Information
About Your
Power
Supply
Please record the following information when you first open your Power Supply
package:
Release Release 1.0 (2002-09)
Copyright © 2002 Xantrex Technology Inc. All rights reserved.
Printed in Canada
Model Number ______________________________________________
Serial Number ______________________________________________
Purchased From ______________________________________________
Purchase Date ______________________________________________
TM-XDSL-01XN.book Page v Tuesday, November 5, 2002 3:22 PM

vi Operating Manual for XDC Series Slave Power Supply
Warnings
and
Cautions
Warnings and cautions are defined and formatted in this manual as shown below.
Power
Supply
Safety
WARNING
Describes a potential hazard which could result in injury or death, or, a procedure
which, if not performed correctly, could result in injury or death.
!
CAUTION
Describes a procedure which, if not performed correctly, could result in damage
to data, equipment, or systems.
WARNING—High Energy and High Voltage
Exercise caution when using and calibrating a power supply. High energy levels
can be stored at the output voltage terminals on a power supply in normal
operation. In addition, potentially lethal voltages exist in the power circuit and on
the output and sense connectors of a power supply with a rated output greater
than 40 V. Filter capacitors store potentially dangerous energy for some time after
power is removed.
!
CAUTION
Operate the power supply in an environment free of flammable gases or fumes. To
ensure that the power supply’s safety features are not compromised, use the
power supply as specified in this manual and do not substitute parts or make any
unauthorized modifications. Contact the service technician for service and repair
help. Repairs must be made by experienced service technicians only.
!
CAUTION
For Use as a Battery Charger
When you are using any of these power supplies for battery charging applications,
it is essential to provide an appropriately sized fuse or circuit breaker in series
between the power supply output and the battery.
Installation of a protector (fuse or DC circuit breaker) rated for about 115% of the
maximum current rating of the power supply and designed specifically to interrupt
the DC voltage of the battery, will provide adequate reverse polarity current
protection. Where several power supplies are in parallel, it is best to fuse each one,
rather than one large fuse for all.
TM-XDSL-01XN.book Page vi Tuesday, November 5, 2002 3:22 PM

Release 1.0 vii
Approvals CE Mark
CE-marked units meet the following standards:
•IEC 1010-1-92 including Amendments 1 and 2:
•Overvoltage Category II
•Permanently Connected Equipment
•Pollution Degree 2
•EN50081-2-1996 Electromagnetic Generic Emission - Industrial Equivalent
•EN50082-2-1995 Electromagnetic Compatibility Generic Immunity - Industrial
Environment
CSA Certified
CSA C22.2 No. 1010.1-92
UL Listed (pending)
Meets UL3101-1 Electrical Equipment for Laboratory Use; Part 1: General
Requirements
General safety requirements for electrical equipment intended for professional,
industrial process, and educational use, including equipment and computing devices
for: measurement and test; control; laboratory use; and accessories intended for use
with the above.
FCC Compliance
FCC Part 15 - Radio Frequency Devices - Class A Limits
Canadian EMC Requirements
The unit complies with Canadian EMC requirements of ICES-001.
TM-XDSL-01XN.book Page vii Tuesday, November 5, 2002 3:22 PM

viii Operating Manual for XDC Series Slave Power Supply
TM-XDSL-01XN.book Page viii Tuesday, November 5, 2002 3:22 PM

Release 1.0 ix
About This Manual
This Operating Manual contains operating instructions for the XDC Series Slave
power supplies. This power supply is based on the XDC Series of digital,
programmable power supplies, with the same high level of accuracy and reliability,
but specifically designed with no front panel interface for use as a slave unit
controlled via CANbus (Control Area Network bus).
Who Should Use This Manual
This manual is designed for users who understand basic electrical theory, especially
as applied to the operation of power supplies. This implies a recognition of constant
voltage and constant current operating modes and the control of input and output
power, as well as the observance of safe techniques while making connections to the
supply and any changes in settings.
This manual is intended to be used in conjunction with the full digital front panel
XDC Series Operating manual. If you do not plan to use this power supply in a
system with a full digital front panel XDC Series power supply, please contact the
manufacturer for additional application data.
Revisions
The current release of this manual is listed in the right-hand page footer. Insert pages
may update already-printed manuals.
Release 1.0 (2002-09)
TM-XDSL-01XN.book Page ix Tuesday, November 5, 2002 3:22 PM

About This Manual
x Operating Manual for XDC Series Slave Power Supply
TM-XDSL-01XN.book Page x Tuesday, November 5, 2002 3:22 PM

Release 1.0 xi
Table of Contents
About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ix
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xi
Section 1. Overview
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Section 2. AC Input Power
AC Input Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
AC Input Wire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
AC Wire Input Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Section 3. Current Sharing
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Theory of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
CANbus Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Current Share Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Setup Current Sharing Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Appendix A. Specifications and Characteristics
Electrical Specifications—Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
AC Line Input Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
AC Line Input Voltage Operating Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Output Performance Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Environmental Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Thermal Specification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Humidity Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
International Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Mechanical Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
TM-XDSL-01XN.book Page xi Tuesday, November 5, 2002 3:22 PM

Table of Contents
xii Operating Manual for XDC Series Slave Power Supply
TM-XDSL-01XN.book Page xii Tuesday, November 5, 2002 3:22 PM

Release 1.0 13
Section 1. Overview
The XDC series Slave power supply is designed for use in current sharing systems
as a slave module connected in parallel with an XDC 6000 Watt series full digital
controlled front panel unit. In such a configuration, the XDC full digital controlled
front panel unit is acting as the master of the current sharing system. The
communication between the master and slave is made via a CANbus digital interface
to control all the parameters needed for proper current sharing.
The XDC 6000 Watt series full digital controlled front panel unit used as a master
needs to be the same model as the slave module (i.e. Voltage-Current), and be
equipped with the CANbus digital interface (optional on the XDC 6000 Watt series).
It also needs the proper firmware version for the control mother board (see page 19).
Features
•Supports up to five XDC units in current sharing configuration (one master and
four slaves)
•Front panel with the standard rack mount brackets, handles, ON/OFF switch and
two status LEDs (one green for POWER ON and one red for OUTPUT OFF - lit
when the output is off)
•Standard CANbus and RS-232 digital remote control
•Auto Addressing in current share initialization
•Digital processing for accurate control
•CE mark, UL and CSA Approvals, FCC compliant
TM-XDSL-01XN.book Page 13 Tuesday, November 5, 2002 3:22 PM

Overview
Front Panel
14 Operating Manual for XDC Series Slave Power Supply
Front Panel

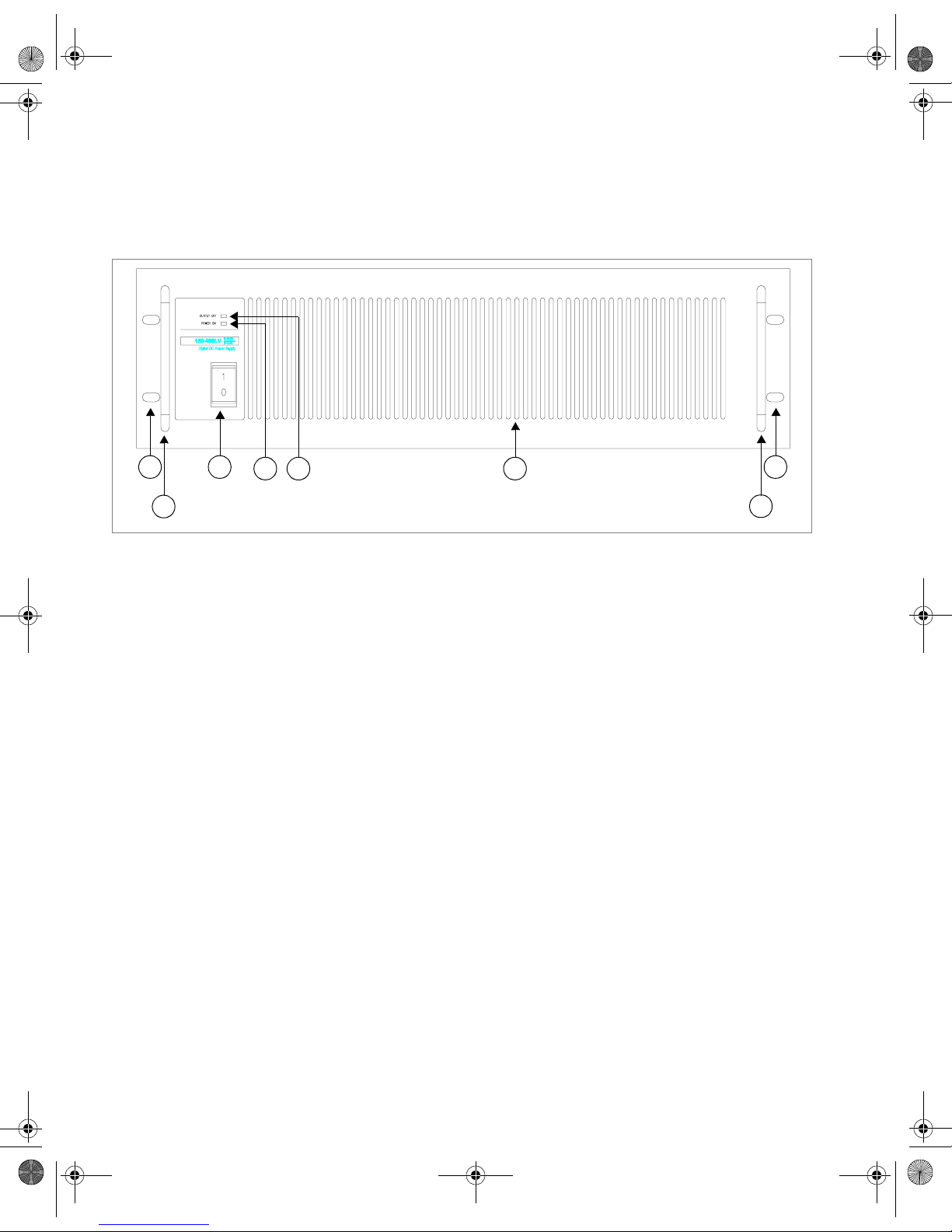

Figure 1.1 Slave Front Panel
1. Rack mount brackets
2. Handles
3. ON/OFF Switch
4. Power On status LED (green)
5. Ouput Off status LED (red) Lit when the output is disabled
6. Front panel display (vacuum fluorescent display)
1
2
34 5 6 1
2
TM-XDSL-01XN.book Page 14 Tuesday, November 5, 2002 3:22 PM

AC Input Power
Front Panel
Release 1.0 15
Section 2. AC Input Power
WARN ING
Disconnect AC power from the unit before removing the connector cover. Live line
voltages may be exposed when the cover is removed.
WARN ING
A safety ground wire must be connected to the unit as shown in Figure 2.1 to ensure
operator safety.
!
CAUTION
When the power switch is turned on, output voltage or current previously set may be
applied to loads, depending on the supply configuration.
TM-XDSL-01XN.book Page 15 Tuesday, November 5, 2002 3:22 PM

AC Input Power
AC Input Connector
16 Operating Manual for XDC Series Slave Power Supply
AC Input Connector
The AC input connector is a standard wire clamp terminal block with 3-phase
connectors and a chassis ground connector. The safety ground wire, alternatively,
may be connected to the chassis using a ring tongue on the ground stud as shown in
Figure 2.1.

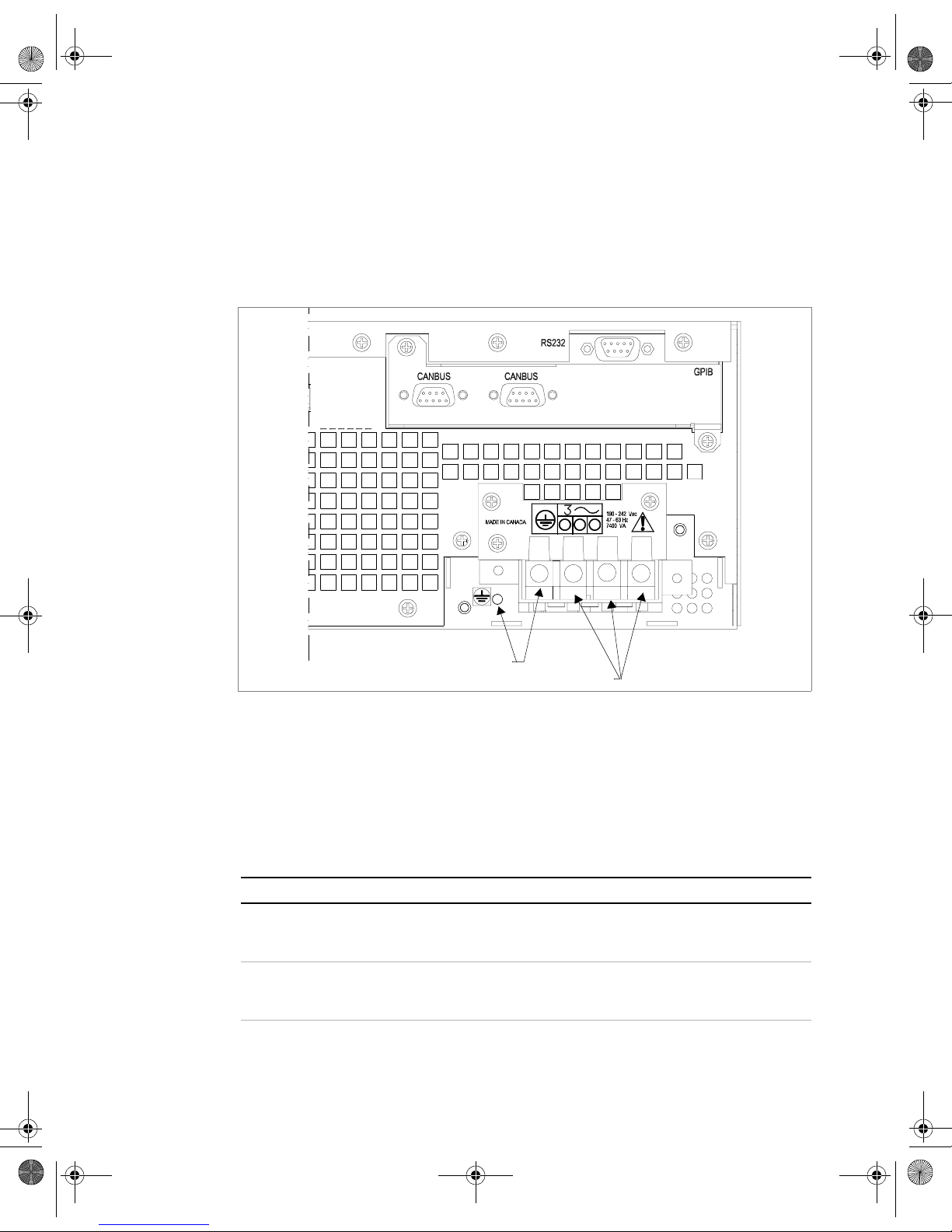

Figure 2.1 AC Input Connector
AC Input Wire
The manufacturer recommends the AC input wire specified in Table 2.1. This must
be permanently connected to an approved AC distribution box with suitably rated
over-current protection. If you require a special cord, contact the manufacturer.
Table 2.1 AC Wire Specification for 6000 Watt units
Ground Connection
3-Phase Terminal Block Connectors
AC Input Voltage Range Wire
190–242Vac, 47–63Hz,
3-phase, 4 wire (standard)
4 x 10 AWG (3 wire plus safety ground), stranded
copper, 60°C minimum, 300V, 0.800 in. maximum
cable diameter, rated for 25A.
342–500Vac, 47–63Hz,
3-phase, 4 wire (HV-Input)
4 x 14 AWG (3 wire plus safety ground), stranded
copper, 60°C minimum, 600V, 0.800 in. maximum
cable diameter, rated for 13A.
TM-XDSL-01XN.book Page 16 Tuesday, November 5, 2002 3:22 PM

AC Input Power
AC Wire Input Connection
Release 1.0 17
AC Wire Input Connection
See Figure 2.2, on page 18.
To connect the AC input wires:
1. Ensure that the AC input cord is de-energized, and that the power switch on the
front of the power supply is OFF.
2. Strip approximately 6.25 in. (160 mm) from the jacket of the AC wire. Strip
0.55 in. (14 mm) at the end of each wire.
3. Undo the 2 screws for the AC wiring strain relief/cover on the rear panel.
Remove the cover.
4. Undo the strain relief screws. Insert the AC input cable through the strain relief
until the outer cable jacket is flush with the inside of the strain relief. Tighten the
strain relief cable clamp screws.
5. Insert the ground wire (green) 0.55 in. (14 mm) into the left-most terminal
location, and tighten securely1. (The safety ground wire may alternatively be
connected to the chassis ground stud next to the terminal block, using a suitably
sized ring terminal).
6. Route the AC wires to the input terminal block by connecting the red, black, and
white wires to the remaining 3 cable clamp connectors. There is no set order for
connecting the wires. Any of the 3-phase wires can be connected to any of the 3
line input connectors. To connect each wire, loosen the terminal screw, insert the
stripped wire 0.55 in. (14 mm) into the terminal, and tighten the screw securely1.
7. Reinstall the AC input strain relief/cover, routing wires inside the cover to
prevent pinching.
8. Connect the free end of the cable to the AC source, checking that the voltage is
within the approved input range for the supply.
9. Energize the AC input.
It is now safe to turn the power supply on.
1. Torque maximum 2 Nm/16 lb. in.
TM-XDSL-01XN.book Page 17 Tuesday, November 5, 2002 3:22 PM

AC Input Power
AC Wire Input Connection
18 Operating Manual for XDC Series Slave Power Supply
Figure 2.2 Attaching the AC Input Wires
TM-XDSL-01XN.book Page 18 Tuesday, November 5, 2002 3:22 PM
