Xiaomi Segway KIDS BIKE User manual

Manual
Сontents
1. Product Overview…………………………………………………...…...... .......….01
2. Preparing for installation………………………………………………............…..01
3. Equipment………….……………………………………………...........................02
4. Screw fastening standards during installation…..….…....................................03
5. Build a bicycle………………………………………………............…..................03
6. Precautionary measures………………………………………....….....................11
7. Parameter table…………………………………………..…….............................12
8. Daily maintenance…...…………………............................................................13
9. Trademark and legal notice………………….....…............................................13
10. Segway and Ninebot…………………………………...………….......................14
11. After-sales service………………………..............….........................................14

Name: Segway Kids BIKE
This is a 14-inch children’s bicycle for children aged 4-6 years (the length of the foot
on the inside should exceed 40 cm).
* Put your feet on the width of the shoulders, the length of the
foot on the inside should be more than 40 cm.

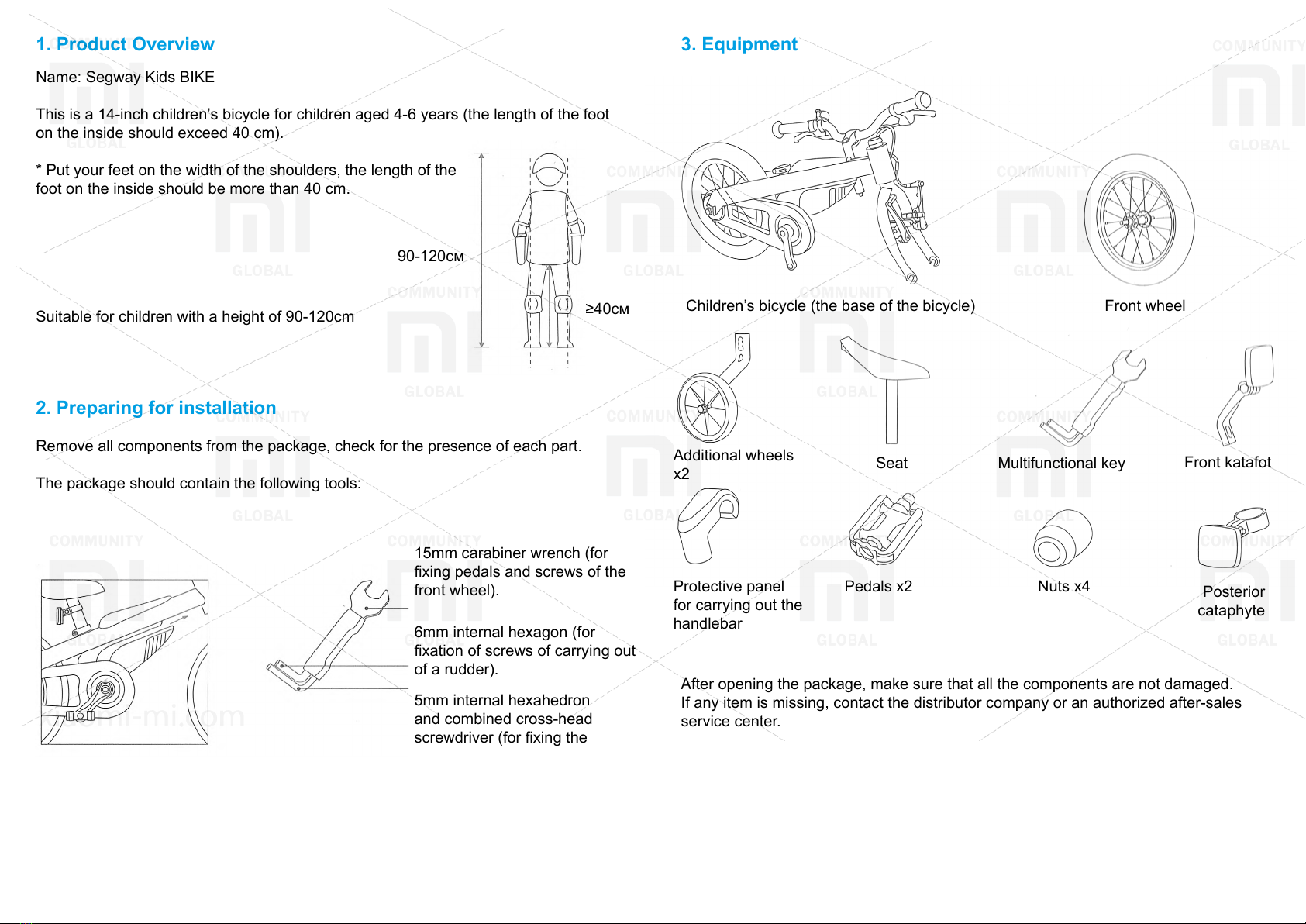

1. Product Overview
Suitable for children with a height of 90-120cm
90-120см
≥40см
2. Preparing for installation
Remove all components from the package, check for the presence of each part.
The package should contain the following tools:
15mm carabiner wrench (for
xing pedals and screws of the
front wheel).
6mm internal hexagon (for
xation of screws of carrying out
of a rudder).
5mm internal hexahedron
and combined cross-head
screwdriver (for xing the
seatpost and front fascia screws)
In this manual, there are many images of the bicycle and its structures. There may be
some di󰀨erences between images and a real product.
3. Equipment
Children’s bicycle (the base of the bicycle) Front wheel
Additional wheels
x2 Seat Multifunctional key Front katafot
Protective panel
for carrying out the
handlebar
Pedals x2 Nuts x4 Posterior
cataphyte
After opening the package, make sure that all the components are not damaged.
If any item is missing, contact the distributor company or an authorized after-sales
service center.
Attention: each case has an individual number. Often used parts: tire, camera
(tires), brake shoe.
01 02

4. Screw fastening standards during installation
Assembly and adjustment of the bicycle must be performed
by adults. During installation, all screws and nuts must be
tightened.
We recommend to scan the QR-code to see the video with
detailed instructions for assembling the bicycle.
Easy installation instructions:
1. Seat installation
Tighten the screws
When installing, the security
mark should not be in sight.
1. Place the front catheter on the seat post as shown in the gure, tighten the screw.
2. Insert the seatpost into the frame, adjust it to the required height (for safe use, the
security mark should not be in sight).
3. Adjust the direction and angle of the seat and tighten the screw (screwing force
must be at least 15N.m).
2. Installing the handlebar
5. Build a bicycle
When installing,
the security
mark should not
be in sight.
Insert and tighten
the screw Brake cables must not be
intertwined with each other
Twist the handlebars to adjust the location of the brake cables so that they do not
intertwine (see the gure). Insert the handlebar extension into the front fork, adjust
the required length according to the child’s growth (for safety use the safety mark
should not be in sight), then tighten the xing screw (the screwing force must be at
least 18N.m).
03 04

3. Handlebar adjustment
Adjusting screw
Divisions for adjusting
the height of the
handlebar
Loosen the adjusting screw, rotate the wheel, adjust
the required height.
4. Adjusting the brake lever
Screw setting
Divisions for
installing the brake
lever
Loosen the adjusting screw, turn the brake handle and adjust it according to the
special divisions, as shown in the picture on the left. Then tighten the adjusting
screw (the illustration shows an example of setting the brake handle only on one
side of the handlebar, in the same way, adjust the brake knob on the other side).
5. Installing the rudder control
panel
6. Front cataphot installation
7. Turn the bicycle over
To make sure that the bike is stable by placing it upside down, the
brake pads and bell should not touch the surface.
8. Fitting the front wheel
Unscrew the nut
When installing, pay
attention to the direction
of the front wheel, the tire
protector indicates the
direction of the wheel.
The direction of the tread
must match the direction
indicator on the sticker.
The direction of the tread
must match the direction
indicator on the sticker.
Insert the front wheel into the
front fork, securely tighten
the nut.
05 06

9. Turn the body of the bicycle 10. Installing an additional wheel
Nut A
First unscrew the
nut from the rear
wheel axle, install
the additional wheel,
guided by the image in
the picture.
11. Installation of V-shaped brakes
Adjust the V-shaped brakes according to the image or scan the QR code to view
the detailed video of installing and assembling the bicycle.
12. Fine adjustment of a brake rope
Adjusting the
nut
Adjusting the
screw
Precise adjustment of the
nut and screw from the initial
state
Synchronously rotate the screw
and nut to 2-3mm, as shown in
the gure.
When the adjustment is
complete, rotate the screw and
nut in the opposite direction until
the initial state.
13. Adjusting the brake lever
Adjusting cross-head
screwdriver
If the amplitude of the back stroke of the left
lever is small, tighten the screw more, using
a cross-head screwdriver, as in the gure.
Increase the stability of the left brake lever
spring.
At the same time, you can loosen the adjusting screw of the right brake lever, reduce
the stability of the right spring.
In accordance with the above actions, the amplitude of the back stroke of the left and
right arms should be approximately the same.
14. Adjustment of the tilt of the bell
Adjust the slope of the
bell according to the
picture in the picture,
tighten the bottom cross
screw.
15. Setting the right pedal
R mark - right pedal
Clockwise
07 08

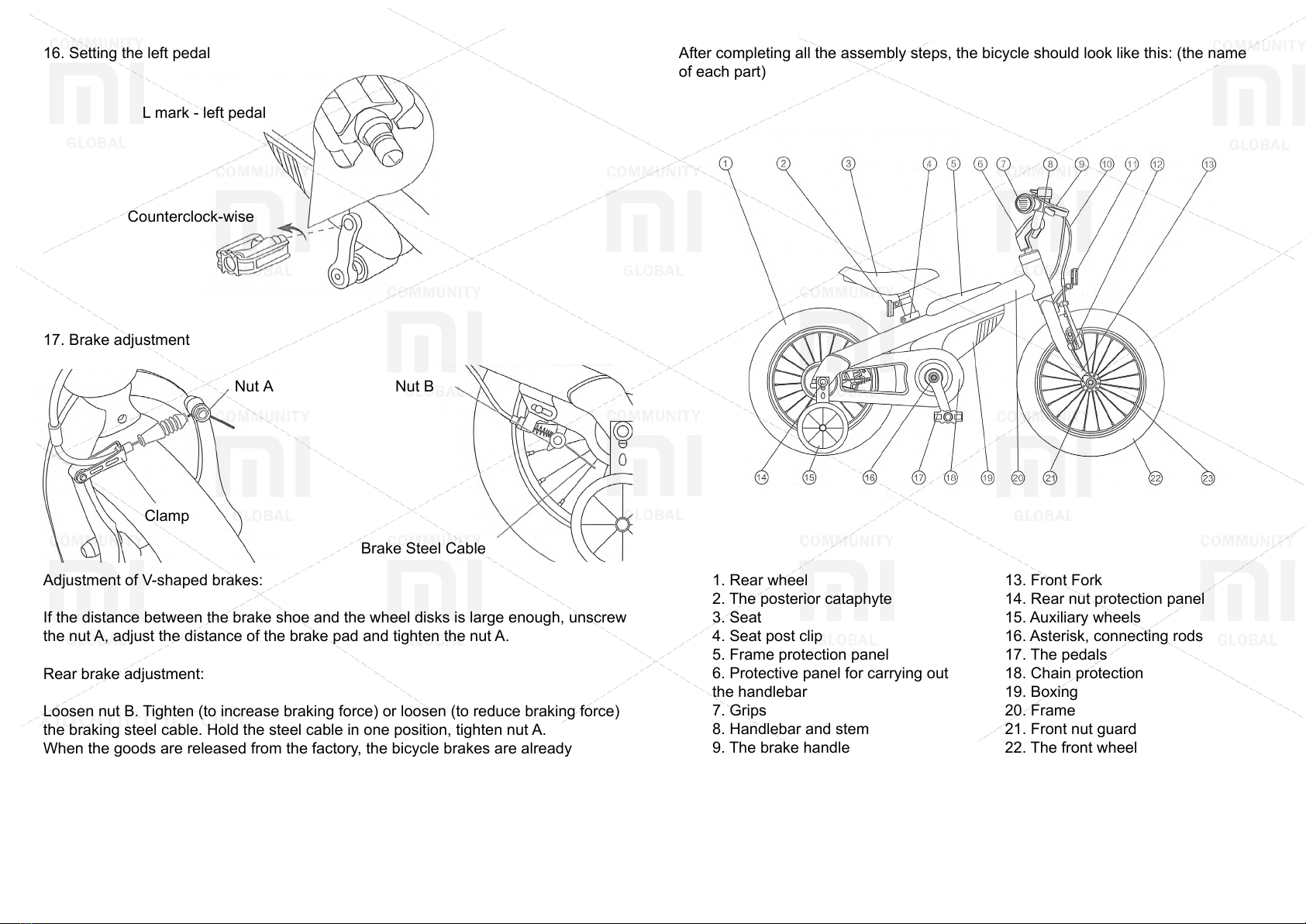

16. Setting the left pedal
L mark - left pedal
Counterclock-wise
17. Brake adjustment
Nut А
Clamp
Nut В
Adjustment of V-shaped brakes:
If the distance between the brake shoe and the wheel disks is large enough, unscrew
the nut A, adjust the distance of the brake pad and tighten the nut A.
Rear brake adjustment:
Loosen nut B. Tighten (to increase braking force) or loosen (to reduce braking force)
the braking steel cable. Hold the steel cable in one position, tighten nut A.
When the goods are released from the factory, the bicycle brakes are already
adjusted. If you need to change the settings, we recommend contacting the
corresponding repair shops, it is not recommended to perform these settings by
yourself.
Brake Steel Cable
After completing all the assembly steps, the bicycle should look like this: (the name
of each part)
1. Rear wheel
2. The posterior cataphyte
3. Seat
4. Seat post clip
5. Frame protection panel
6. Protective panel for carrying out
the handlebar
7. Grips
8. Handlebar and stem
9. The brake handle
10. Brake cable
11. Front katafot
12. The front brake
13. Front Fork
14. Rear nut protection panel
15. Auxiliary wheels
16. Asterisk, connecting rods
17. The pedals
18. Chain protection
19. Boxing
20. Frame
21. Front nut guard
22. The front wheel
23. Wheel rim
09 10

6. Precautions
- Read the instructions carefully before using this product. When assembling and
adjusting the bike, follow the instructions carefully to prevent accidents and injuries to
children. Only adults can perform assembly and adjustment of the bike, and special
additional wheels can also be installed and dismantled.
- Children can ride a bicycle under the supervision of adults. When traveling together,
adults should stay at a safe distance to prevent the occurrence of an accident.
- For cycling, it is recommended that children wear helmet, knee pads, elbow pads and
other protective equipment.
- There are a lot of small parts in the package of this bicycle. It is strongly recommended
that small children are not allowed to pack.
- This bicycle belongs to the category of children’s toys and does not have all the
attributes of the vehicle. It is forbidden to ride a bicycle on roads, streets, sidewalks and
in places with a large crowd of people.
- It is recommended to ride on at surfaces. It is not recommended to drive on slippery
roads, roads with holes and potholes, sewers, staircases, on roads covered with snow,
along the coast, ower beds, on roads where construction work is carried out, over
fragments and debris, etc. Adults should constantly look after the child, control the
speed of his movement. If the child moves too fast on a bicycle, an accident or exit to
the roadway may occur.
- It is not recommended to ride a bicycle in bad weather and in conditions of poor
visibility.
- It is not recommended to hang heavy ornaments or a load on the steering wheel,
this negatively a󰀨ects the balance of the bicycle, and may also interfere with the good
visibility of the road.
- Before each trip, adults should check the tire pressure level (240-310KRa), the degree
of tension of the brake cables, the strength and xation of all screws and nuts, make
sure that there are no loose parts anywhere (see section «Daily maintenance»).
- Avoid emergency braking, this can lead to overturning of the vehicle and injury to the
child.
- Children should not put their hands in the wheel while cycling.
- To prevent child su󰀨ocation, keep all packing bags and boxes out of the reach of
children.
- Regularly check the brakes, tire pressure and bicycle handlebars.
- If the chain is loose: check the chain tension. If the chain is too loose, unscrew the rear
nut, pull the chain; In addition, check the sprocket for irregularities and bends. You can
use a wooden hammer to align it.
- The rotating and moving parts of the bicycle must be permanently lubricated with oil to
prolong the life of the bicycle.
- When installing the seatpost and removing the steering wheel, it is necessary to pay
attention to the safety mark.
7. Parameter table
11 12

8. Daily maintenance
When leaving the factory, the bicycle and all its parts are carefully checked and
adjusted. But with daily use of the vehicle parts wear out, therefore it is necessary to
perform regular maintenance.
1. Before departure check up reliability of xing of all details, level of pressure in tires,
normal functioning of transfers.
2. It is necessary to lubricate the chain regularly with oil in order to prolong the use of
the chain. Every six months it is recommended to contact authorized service centers
in order to perform a complete dismantling of the vehicle, check and clean all the
details.
3. If the rear wheel nut loosens, you can tighten it with a special wrench.
4. Possible damage to parts:
Tires (chambers), wheel pair, brake cable, chain, cassette, u, brake shoe.
5. When the wheel rim wears out, it is necessary to replace the disc. New parts must
be purchased at a specialized store.
9. Trademark and legal notice
Segway is a registered trademark of Segway LLC. The company retains all rights to
own, use and dispose of the trademark «Segway». Other individuals or companies
have no right without the written permission of the patent holder to unauthorized use,
production, copying, making changes, distribution of the goods.
Ninebot (Beijing) Technology Co., Ltd. has a patent for Segway Kids Bike products.
Without our permission, other companies or third parties do not have the right to
perform any actions with respect to this product.
In the event of violation of the intellectual property rights of the rightholder company,
the company or individual will be legally liable in accordance with the law.
This manual contains information to familiarize yourself with the various functions
and instructions for using the device. But in connection with continuous updates,
constructive changes, etc., when purchasing a product, you may nd some
discrepancy between the goods and the images in the instruction. Please register on
the o󰀩cial website http://www.ninebot.cn for updated operating manuals.
Standard: GB 14746-2006 «Safety requirements for children’s bicycles».
10. Segway and Ninebot
Segway is a world-renowned robotics manufacturing company, established in 1999 in
the eastern United States, Bedford. 03/31/2015 Ninebot Limited acquired the rights of
Segway Inc. And turned it into a world-famous enterprise. This company focused on
the creation of Segway Personal Transportation and Segway Robotics, continuously
using all the innovative technologies to create a high-quality product.
Segway and Ninebot have users around the world. Currently, the company has
three strategic business areas: the Asia-Pacic region, America and EMEA;
Regional centers - Beijing, Bedford and Amsterdam. Around the world, in more
than 100 countries and regions there is a distribution network of the enterprise. The
shareholders of the company are Sequoia Capital, Mi Technology, Intel, GIC and
other companies.
11. After Sales Service
Warranty service is carried out in accordance with the law on «Consumer Rights
of the People’s Republic of China» and «Law on the quality of China’s products.»
Warranty service includes:
1. Warranty
- Within 7 days from the date of purchase, in case of a problem, the service center
determines the cause of the problem, after which you can choose a free replacement
of the product or a refund.
- Within 15 days from the date of purchase, in case of a problem, the service center
determines the problem, after which you choose a free replacement of goods or
repairs.
- Within 7 days an unreasonable return of the goods is possible only to the o󰀩cial
site of Ninebot, Ninebot Tianmao, to the main store of the Ninebot Beijing network
and other o󰀩cial online stores of this vehicle. In the case of an unreasonable return
of the goods within 7 days after the purchase, the buyer incurs the costs for his
transportation. Return of goods is possible in two cases:
1. Upon receipt, the goods were not opened, the packaging and the bicycle
undamaged;
2. The packing of the goods has already been opened, but the bicycle is not
assembled yet, all the accessories (warranty card, accessories, etc.) are completely
intact, there are no signs of using the bicycle, which in no way will a󰀨ect the further
sale of the goods, while the representative of the company Ninebot must conrm
compliance with all return conditions (within 7 days).
Customer support is 400-607-0001.
The warranty period begins from the moment of purchase of the goods and receipt
of the commodity receipt, Ninebot company provides the order number and species
the date of the beginning of the warranty service.
13 14

Recommendation: Since packaging is necessary for the safe transport of the goods,
we recommend that you store it for 15 days after the purchase.
Conditions that are not included in the warranty service:
1. Completion of maintenance, dropping, negligence, abuse, liquid ingress, accident
if the label and labeling of the device are torn or smeared;
2. The warranty has expired;
3. Damage caused by force majeure;
4. Breakdowns that have occurred as a result of improper use of the goods;
5. Breakdowns that have occurred due to a human factor (including, but not limited
to, collision with a car, falls or other damage);
6. Wear, damage and aging of the product as a result of its long stay in the rain.
Rules of warranty service:
Attention: rst the user must contact the seller and submit an application.
Customer support - 400-607-0001
The company-manufacturer: Segwaylnc.
Address: 1209 Orange Street Wilmington Delaware 19801 New Castle County
XIAOMI-MI.COM
15 16
