Hercules FUTURA SPORT 8.4 26 Quick guide

TRANSLATION OF THE ORIGINAL OPERATING INSTRUCTIONS
IMPORTANT
READ CAREFULLY BEFORE USE
KEEP SAFE TO CONSULT AT A LATER DATE
Electric bicycle with Purion display
FUTURA COMPACT 10, FUTURA COMPACT F8, FUTURA COMPACT R8,
FUTURA SPORT 8.4, LYON F7, LYON R7, MONTFOORT CRUISE F7, NIZZA F7 NL,
ROB FOLD F7, ROB FOLD R7, ROBERT/A R7
21-Q-0016, 21-Q-0050, 21-Q-0070 - 21-Q-0073, 21-Q-0075 - 21-Q-0078, 21-Q-0083,
21-Y-0012, 21-Y-0013
MY21H01 - 22 • 1.0 • 30. August 2020
WALK
WALK
WALK
W
AL
W
W
W
W
W
W
A
A
L
K
K
K
K
K
W
W
W
W
W
W
W
W
WWWW
WW
W
W
W
W
W
W
W
W
W
W
WW
W
W
W
W
A
A
W
W
W
A
W
W
W
W
W
WW
W
W
W
W
A
WW
AAAA
AA
A
A
A
A
A
A
A
A
A
A
A
A
LLLL
LL
L
AA
A
A
A
A
L
L
L
L
L
L
L
K
KKKK
KK
K
K
K
K
K
KK
K
K
K
K
K
K
K
K
K
K
K
K
K
K

MY21H01 - 22_1.0_30.08.2020 2
Contents
Contents
1 About these operating instructions 7
1.1 Manufacturer 7
1.2 Language 7
1.3 Laws, standards and directives 7
1.4 For your information 7
1.4.1 Warnings 7
1.4.2 Markups 8

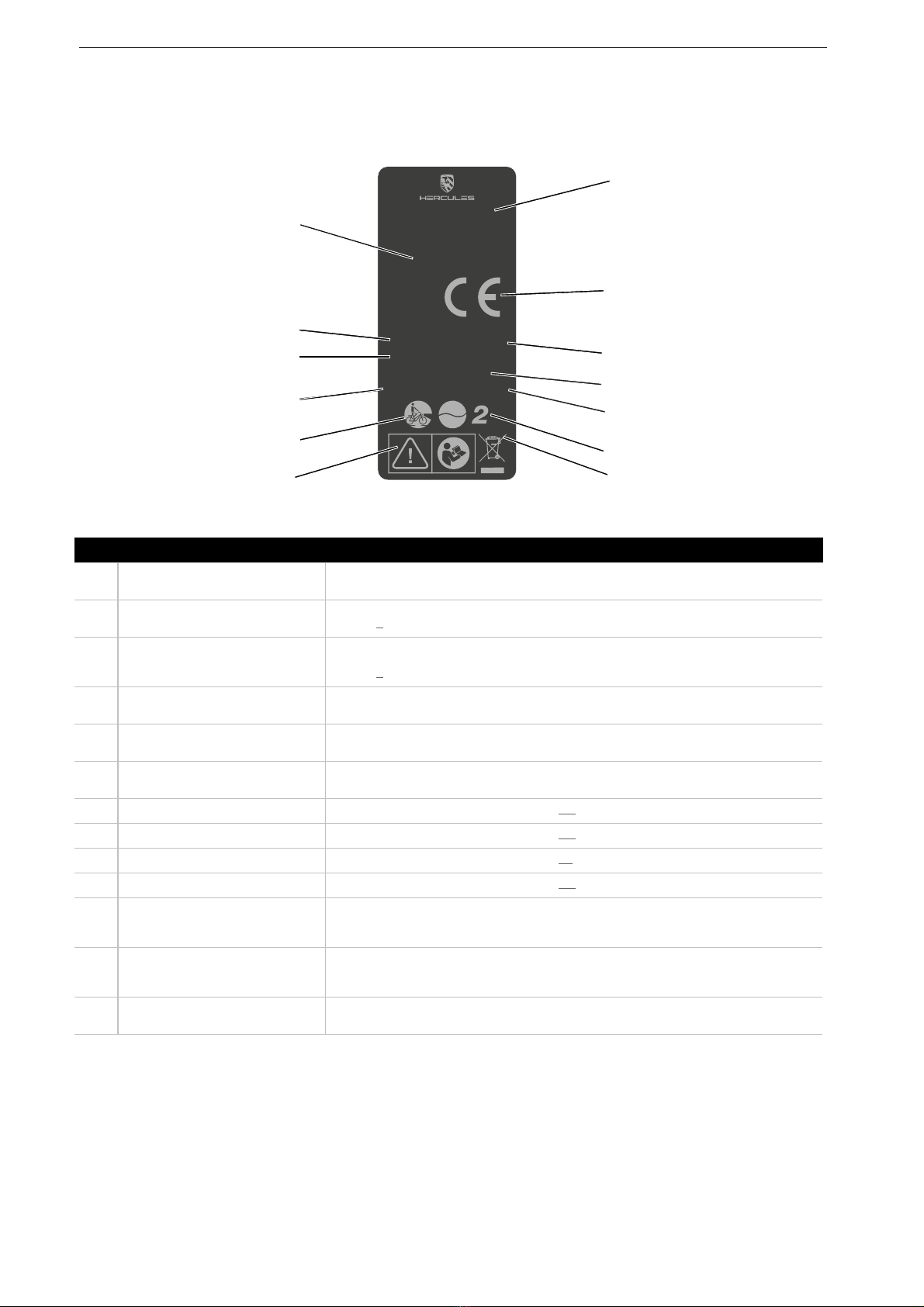

1.5 Nameplate 9
1.6 Type number and model 10
1.7 Identifying the operating instructions 10
2 Safety 11
2.1 Residual risks 11
2.1.1 Risk of battery fire and explosion 11
2.1.2 Risk of fire and explosion due to short
circuit in the battery 11
2.1.3 Fire hazard caused by overheated
charger 11
2.1.4 Electric shock caused by electric drive
system 11
2.1.5 Risk of a fall due to incorrectly set quick
releases 12
2.1.6 Risk of fire and burns due to hot motor 12
2.1.7 Key breaking off 12
2.2 Toxic substances 12
2.2.1 Brake fluid 12
2.2.2 Suspension oil 12
2.2.3 Defective battery 12
2.3 Requirements for the rider 12
2.4 Vulnerable groups 12
2.5 Personal protective equipment 12

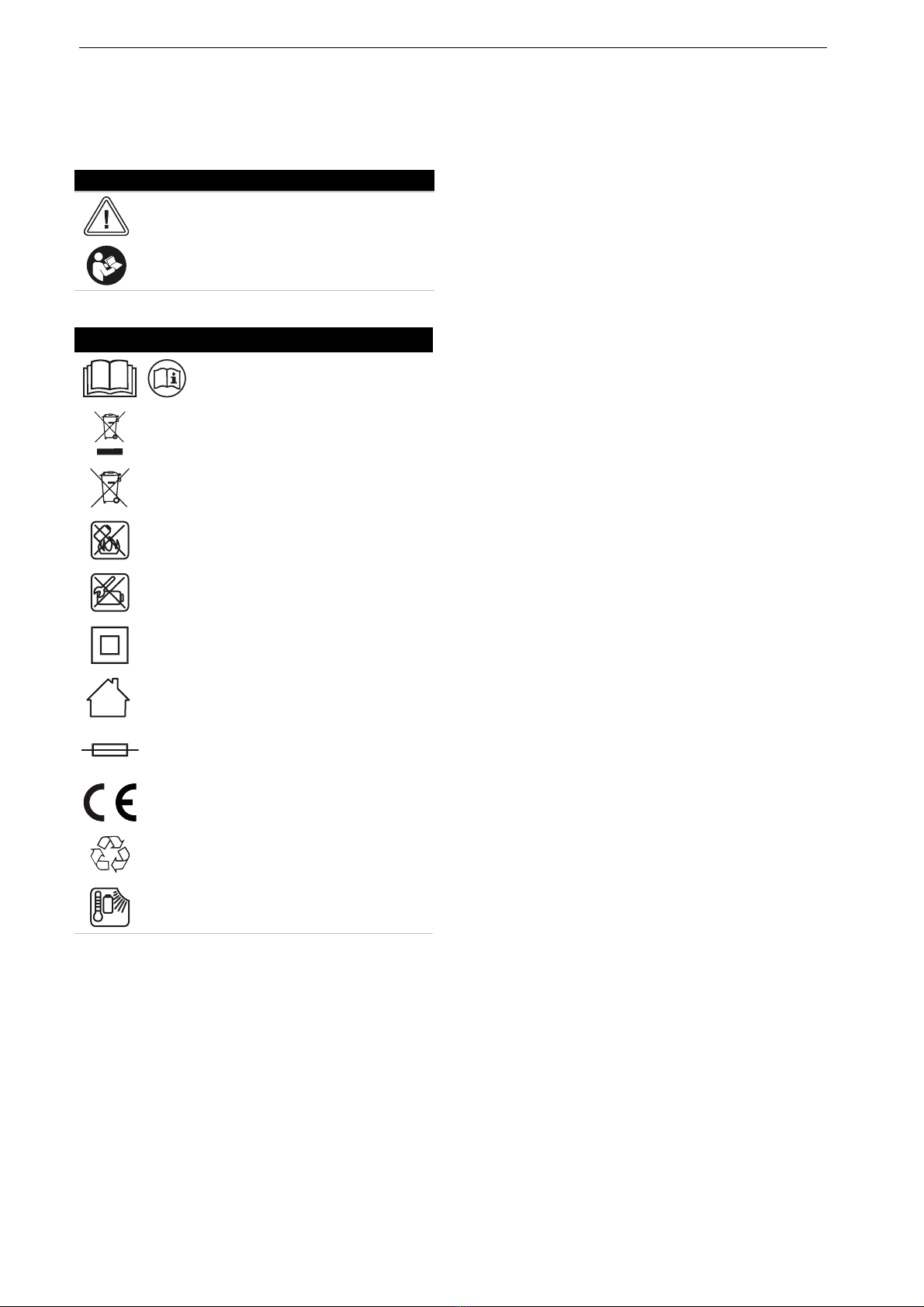

2.6 Safety markings and safety instructions 13
2.7 What to do in an emergency 13
2.7.1 Dangerous situation in road traffic 13
2.7.2 Leaked brake fluid 13
2.7.3 Battery vapours emitted 14
2.7.4 Battery fire 14
2.7.5 Leaked brake fluid 14
2.7.6 Oil and lubricant leaks from the fork 14
2.7.7 Oil and lubricant leaks from the rear
frame damper 14
3Overview 15
3.1 Description 16
3.1.1 Wheel 16
3.1.1.1 Valve 16
3.1.2 Suspension 16
3.1.2.1 Rigid fork 16
3.1.2.2 Suspension fork 16
3.1.2.3 Steel suspension fork 17
3.1.2.4 Air suspension fork 17
3.1.3 Brake system 18
3.1.3.1 Disc brake 18
3.1.3.2 Rim brake 18
3.1.3.3 Back-pedal brake 19
3.1.4 Electric drive system 20
3.1.5 Rechargeable battery 20
3.1.5.1 Frame battery 21
3.1.5.2 Pannier rack battery 22
3.1.5.3 Integrated battery 22
3.1.6 Display 23
3.1.7 Riding light 23
3.1.8 Charger 23
3.2 Proper use 24
3.3 Improper use 25
3.3.1 Maximum permitted total weight 26
3.3.2 Data privacy information 26
3.4 Technical data 27
3.4.1 Pedelec 27
3.4.2 Emissions 27
3.4.3 Tightening torque 27
3.4.4 Bicycle lighting 27
3.4.5 Purion display 27
3.4.6 Active Line motor 27
3.4.7 Active Line Plus motor 27
3.4.8 Performance Line motor 28
3.4.9 PowerPack 400 battery 28
3.4.10 PowerPack 500 battery 28
3.5 Description of controls and screens 29
3.5.1 Handlebars 29
3.5.2 Battery level indicator 29
3.5.3 Display 29
3.5.3.1 Indicator unit km/h or mph 29
3.5.3.2 Tachometer screen 29
3.5.3.3 Information display 29
3.5.4 System message 30
3.5.5 ABS indicator lamp 30
3.6 Environmental requirements 31
4 Transporting and storing 33
4.1 Physical transport characteristics 33
4.1.1 Designated handles/lifting points 33
4.2 Transporting 34
4.2.1 Using the brake transport securing
system 34
4.2.2 Transporting the pedelec 34
4.2.3 Shipping a pedelec 34
4.2.4 Transporting the battery 34
4.2.5 Shipping the battery 34
4.3 Storing 35
4.3.1 Break in operation 35
4.3.1.1 Preparing a break in operation 35
4.3.1.2 Carrying out a break in operation 35

MY21H01 - 22_1.0_30.08.2020 3
Contents
5 Assembly 36
5.1 Required tools 36
5.2 Unpacking 36
5.2.1 Scope of delivery 36
5.3 Preparing the battery 36
5.3.1 Checking the battery 36
5.4 Commissioning 37
5.4.1 Installing the wheel in the Suntour fork 37
5.4.2 Checking the stem and handlebars 38
5.4.2.1 Checking the connections 38
5.4.2.2 Firm hold 38
5.4.2.3 Checking the headset backlash 38
5.5 Pedelec sale 39
6 Operation 40
6.1 Risks and hazards 40
6.1.1 Personal protective equipment 41
6.2 Tips for a greater range 41
6.3 Error message 43
6.3.1 Display 43
6.3.2 Rechargeable battery 45
6.4 Instruction and customer service 46
6.5 Adjusting the pedelec 46
6.5.1 Adjusting the saddle 46
6.5.1.1 Adjusting the saddle tilt 46
6.5.1.2 Determining the seat height 46
6.5.1.3 Adjusting the seat height with quick
release 47
6.5.1.4 Adjusting the seat position 47
6.5.2 Adjusting the handlebars 48
6.5.3 Adjusting the stem 48
6.5.3.1 Adjusting the height of the handlebars 48
6.5.3.2 Adjusting the quick release clamping
force 48
6.5.4 Setting the brake 48
6.5.4.1 Setting the grip distance on a
Magura HS33 brake lever 49
6.5.4.2 Setting the grip distance on a
Magura HS22 brake lever 49
6.5.4.3 Setting the grip distance on a
Magura disc brake lever 50
6.5.4.4 Setting the pressure point on a
Magura brake lever 50
6.5.5 Retracting the brake linings 51
6.5.6 Adjusting the Suntour fork 51
6.5.6.1 Adjusting the negative deflection 51
6.5.6.2 Adjusting the steel suspension fork
negative deflection 51
6.5.6.3 Adjusting the air suspension fork
negative deflection 52
6.5.6.4 Adjusting the air suspension fork
rebound 52
6.5.7 Adjusting the FOX fork 53
6.5.7.1 Adjusting the negative deflection 53
6.5.7.2 Adjusting the rebound 54
6.5.8 Setting the Suntour rear frame damper 54
6.5.8.1 Adjusting the negative deflection 54
6.5.8.2 Adjusting the rebound 55
6.5.8.3 Setting the compression 55
6.5.9 Setting the FOX rear frame damper 55
6.5.9.1 Adjusting the negative deflection 55
6.5.9.2 Adjusting the rebound 56
6.6 Accessories 57
6.6.1 Child seat 57
6.6.2 Trailer 58
6.6.3 Pannier rack 58
6.7 Check list before each ride 59
6.8 Using the kickstand 60
6.8.1 Raising the kickstand 60
6.9 Using the pannier rack 60
6.10 Using the saddle 60
6.11 Rechargeable battery 61
6.11.1 Frame battery 61
6.11.1.1 Removing the frame battery 61
6.11.1.2 Inserting the frame battery 61
6.11.2 Pannier rack battery 61
6.11.2.1 Removing the pannier rack battery 61
6.11.2.2 Inserting the pannier rack battery 61
6.11.3 Charging the battery 62
6.12 Electric drive system 63
6.12.1 Switching on the electric drive system 63
6.12.2 Switching off the drive system 63
6.13 Display 64
6.13.1 Overview of actions on the display
screen 64
6.13.2 Switching on the display 64
6.13.3 Switching off the display 64
6.14 Using the push assist system 65
6.14.1 Using the riding light 65
6.14.2 Selecting the level of assistance 65
6.14.3 Journey information 65
6.14.3.1 Switching the journey information 65
6.14.3.2 Resetting the trip distance 65
6.14.3.3 Resetting the range 66
6.14.3.4 Changing the tachometer unit 66
6.14.3.5 Displaying versions and type numbers 66
6.14.3.6 Set display screen brightness 66
6.14.4 Using the USB port 66
6.14.5 Replacing the battery 66
6.15 Brake 67
6.15.1 Using the brake lever 68
6.15.2 Using the back-pedal brake 68
6.16 Suspension and damping 69
6.16.1 Adjusting the compression in the
Suntour fork 69
6.17 Gear shift 70
6.17.1 Using the derailleur gears 70
6.17.2 Using a hub gear 70
6.17.3 Using eShift 71

MY21H01 - 22_1.0_30.08.2020 4
Contents
6.17.3.1 eShift with Shimano DI2 automatic hub
gears 71
6.17.3.2 eShift with manual Shimano DI2 hub
gears 71
6.17.3.3 eShift with Shimano DI2 automatic hub
gears 71
6.18 Folding 72
6.18.1 Folding up your pedelec 72
6.18.1.1 Folding up the pedal 72
6.18.1.2 Folding up the stem, version I 72
6.18.1.3 Folding up the stem, version II 72
6.18.1.4 Pushing in the seat post 73
6.18.1.5 Folding up the frame 73
6.18.2 Preparing the bicycle so that it is
ready to ride again 73
6.18.2.1 Folding out the frame 73
6.18.2.2 Folding out the pedal 74
6.19 Parking the pedelec 75
7 Cleaning and servicing 76
7.1 Cleaning after each ride 76
7.1.1 Cleaning the suspension fork 76
7.1.2 Cleaning the rear frame damper 76
7.1.3 Cleaning the pedals 76
7.2 Basic cleaning 77
7.2.1 Cleaning the frame 77
7.2.2 Cleaning the stem 77
7.2.3 Cleaning the wheel 77
7.2.4 Cleaning the drive elements 77
7.2.5 Cleaning the rear frame damper 77
7.2.6 Cleaning the chain 78
7.2.7 Cleaning the battery 78
7.2.8 Cleaning the display 78
7.2.9 Cleaning the motor 78
7.2.10 Cleaning the brake 79
7.3 Servicing 79
7.3.1 Servicing the frame 79
7.3.2 Servicing the stem 79
7.3.3 Servicing the fork 79
7.3.4 Servicing the drive elements 79
7.3.5 Servicing the pedals 79
7.3.6 Servicing the chain 79
7.4 Maintenance 80
7.4.1 Wheel 80
7.4.1.1 Checking the tyres 80
7.4.1.2 Checking the rims 80
7.4.1.3 Checking and adjusting the tyre
pressure – Dunlop valve 80
7.4.1.4 Checking and adjusting the tyre
pressure – Presta valve 81
7.4.1.5 Checking and adjusting the tyre
pressure – Schrader valve 81
7.4.2 Brake system 81
7.4.3 Checking the brake linings for wear 81
7.4.4 Checking the pressure point 81
7.4.5 Checking the brake discs for wear 81
7.4.6 Checking the electrical cables and
brake cables 82
7.4.7 Checking the gear shift 82
7.4.8 Checking the stem 82
7.4.9 Checking the USB port 82
7.4.10 Checking the belt and chain tension 82
8 Maintenance 83
8.1 Suspension system 84
8.1.1 Rear frame damper 84
8.1.2 Suspension fork 85
8.1.3 Suspension seat post 86
8.2 Axle with quick release 86
8.2.1 Checking the quick release 87
8.3 Maintaining the stem 87
8.4 Adjusting the gear shift 87
8.4.1 Cable-operated gear shift,
single-cable 88
8.4.2 Cable-operated gear shift,
dual-cable 88
8.4.3 Cable-operated twist grip,
dual-cable 88
9 Troubleshooting, fault clearance
and repair 89
9.1 Troubleshooting and fault clearance 89
9.1.1 The drive system or display do not
start up 89
9.1.2 Error message 89
9.1.3 Assistance function errors 90
9.1.4 Battery error 91
9.1.5 Display errors 92
9.1.6 Lighting does not work 92
9.1.7 Other errors 92
9.2 Repair 93
9.2.1 Original parts and lubricants 93
9.2.2 Replacing the lighting 93
9.2.3 Adjusting the headlight 93
9.2.4 Tyre clearance check 93
10 Recycling and disposal 94
11 Documents 95
11.1 Parts list 95
11.1.1 FUTURA COMPACT F8 95
11.1.2 FUTURA COMPACT R8 96
11.1.3 FUTURA SPORT 8.4 26 97
11.1.4 FUTURA COMPACT 10 98
11.1.5 LYON F7 99
11.1.6 LYON R7 100
11.1.7 MONTFOORT CRUISE F7 101
11.1.8 NIZZA F7 NL 102
11.1.9 ROBERT/A R7 26 103
11.1.10 ROB FOLD F7 104
11.1.11 ROB FOLD R7 105

MY21H01 - 22_1.0_30.08.2020 5
Contents
11.2 Assembly report 106
11.3 Maintenance instructions 108
11.4 Charger operating instructions 112
12 Glossary 120
12.1 Abbreviations 122
12.2 Simplified terms 122
13 Appendix 123
I. Translation of the original EC/EU
Declaration of Conformity 123
II Declaration of conformity for
incomplete machine 124
14 Keyword index 127

MY21H01 - 22_1.0_30.08.2020 6
About these operating instructions
Thank you for your trust!
HERCULES pedelecs are premium quality
bicycles. You have made an excellent choice.
Your specialist dealer will provide you with
guidance and instruction and assemble your
product. Your specialist dealer will also be happy
to assist you in the future whether you require
maintenance, conversion or repair.
You are receiving these operating instructions
with your new pedelec. Please take time to
become familiar with your new pedelec and follow
the tips and suggestions in the operating
instructions. They will help you to enjoy your
pedelec for a long time to come. We hope you
have fun and wish you well on all of your rides!
These operating instructions are mainly designed
for the rider or the operator. They aim to ensure
that non-professionals can use the pedelec safely.
Download the operating
instructions onto your
phone at the following link,
so that you can use them
when you are out riding:
https://www.hercules-bikes.de/de/de/index/
downloads.html.
Copyright
© HERCULES GmbH
Distribution or reproduction of these operating
instructions and utilisation or communication of
their content is prohibited unless expressly
approved. Any infringement will render the
offender liable for compensation. All rights
reserved in the event that a patent, utility model or
industrial design is registered.
Editing
Text and images:
HERCULES GmbH
Longericher Strasse 2
50739 Köln, Germany
Translation:
RKT Übersetzungs- und Dokumentations-GmbH
Markenstrasse 7
40227 Düsseldorf, Germany
Notice
These operating instructions are not a substitute
for personal instruction by the supplying specialist
dealer.
These operating instructions are an integral part
of the pedelec. Therefore, if it is re-sold at a later
time, they must be handed over to the subsequent
owner.
Sections are also designed especially for the
specialist dealer. These sections aim to ensure
that specialist dealers complete initial assembly
and maintenance safely and reliably. The
sections for specialist dealers are highlighted in
grey and marked with a spanner symbol.

MY21H01 - 22_1.0_30.08.2020 7
About these operating instructions
1 About these operating
instructions
1.1 Manufacturer
The pedelec manufacturer is:
HERCULES GmbH
Longericher Strasse 2
50739 Köln, Germany
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]
Internet: www.hercules-bikes.de
Subject to internal changes
The information contained in these operating
instructions are the approved technical
specifications at the time of printing. Any
significant changes are included in a new
published version of the operating instructions.
You will find any modifications to these operating
instructions at:
https://www.hercules-bikes.de/de/de/index/
downloads.htm
1.2 Language
The original operating instructions are written in
German. A translation is invalid without the
original operating instructions.
1.3 Laws, standards and directives
The operating instructions comply with the
essential requirements specified in:
• Machinery Directive 2006/42/EC
• Electromagnetic Compatibility Directive
2014/30/EU
• ISO 20607:2018 Safety of machinery –
Instruction handbook – General drafting
principles
• EN 15194:2018 Cycles – Electrically power
assisted cycles – pedelec bicycles
• EN 11243:2016, Cycles – Luggage carriers for
bicycles – Requirements and test methods
• ISO 17100:2016-05 Translation Services –
Requirements for translation services.
1.4 For your information
Different markings are used in the operating
instructions to make them easier to read.
1.4.1 Warnings
Warnings indicate hazardous situations and
actions. You will find warnings in the operating
instructions:
Will lead to serious or even fatal injuries if
ignored. High-risk hazard.
May lead to serious or even fatal injuries if
ignored. Medium-risk hazard.
May lead to minor or moderate injuries if ignored.
Low-risk hazard.
Notice
May lead to material damage if ignored.
DANGER
!
WARNING
!
CAUTION
!

MY21H01 - 22_1.0_30.08.2020 8
About these operating instructions
1.4.2 Markups
You will find stylised forms of typeface in the
operating instructions:
Instructions for specialist dealers are highlighted
in grey. They are indicated by a screwdriver
symbol. Information for specialist dealers does
not require non-professionals to take any action.
Stylised form Use
Italics Glossary term
Underlined in blue Link
Underlined in grey Cross references
Check marks Requirements
Triangle Instruction for action
1Instruction for
action
Several instructions for
action in specified order
Result of the action
SPACED Indicators on the display
screen
• Bulleted lists
Only applies to
pedelecs with this
equipment
Each type has a different
kind of equipment. A
note beneath the
heading indicates
components which can
be used as an
alternative.
Table 1: Markups

MY21H01 - 22_1.0_30.08.2020 9
About these operating instructions
1.5 Nameplate
The nameplate is situated on the frame. You can
see the exact position of the nameplate in Figure 2.
You will find thirteen pieces of information on the
nameplate.
Figure 1: Example Nameplate
No. Designation Description
1CEmarking The manufacturer uses the CE marking to declare that the pedelec complies with
applicable requirements.
2 Manufacturer's contact details You can contact the manufacturer at the address. You can find more information in
Section 1.
3 Type number All pedelec models have an eight-digit type number, which is used to specify the design model year, the type of pedelec and the version. You can find more information in
Section 1.
4 Maximum continuous power The maximum continuous power is the greatest possible power for the electric motor
output shaft over 30 minutes.
5 Maximum permitted total weight The maximum permitted total weight is the weight of the fully assembled pedelec with the
rider and baggage.
6 Year of manufacture The year of manufacture is the year in which the pedelec was manufactured. The
production period is from August 2019 to July 2020.
7 Pedelec type You can find more information in Section 3.2.
8 Safety markings You can find more information in Section 1.4.
9 Disposal instructions You can find more information in Section 10.
10 Area of use You can find more information in Section 3.6.
11 Model year The model year refers to the first production year that the series-manufactured pedelec was produced in the version concerned. The year of manufacture is different to the model
year in some cases.
12 Weight of the ready-to-ride pedelec The weight of the ready-to-ride pedelec is specified as a weight of 25 kg or above and refers to its weight at the time of purchase. You must add each additional accessory to
the weight.
13 Shut-off speed The speed that the pedelec reaches at the moment when the current has dropped to zero
or to the no-load current value.
Table 2: Nameplate details
Typ:
21-17-1017
0,25 kW / 25 km/h
zGG 150 kg
EPAC 25 kg
BJ 2020 / MJ 2021
EN 15194
nach
EPAC
2
3
1
4
5
6
7
89
12
13
10
11
Hercules GmbH
Longericher Str. 2
50739 Köln, Germany

MY21H01 - 22_1.0_30.08.2020 10
About these operating instructions
1.6 Type number and model
These operating instructions are an integral part of
pedelecs with the type numbers:
1.7 Identifying the operating
instructions
The Identification number position is located on
bottom left-hand side on each page. The
identification number is composed of the
document number, the version number and the
release date.
Type no. Model Pedelec type
21-Q-0016 FUTURA SPORT 8.4 26 City and trekking
bicycle
21-Q-0050 MONTFOORT CRUISE
F7 City and trekking bicycle
21-Q-0070 ROBERT/A R7 26 City and trekking
bicycle
21-Q-0071 ROBERT/A R7 28 City and trekking
bicycle
21-Q-0072 LYON F7 City and trekking
bicycle
21-Q-0073 NIZZA F7 NL City and trekking
bicycle
21-Q-0075 FUTURA COMPACT R8 Folding bicycle
21-Q-0076 FUTURA COMPACT F8 Folding bicycle
21-Q-0077 FUTURA COMPACT 10 Folding bicycle
21-Q-0078 FUTURA SPORT 8.4 28 City and trekking
bicycle
21-Q-0083 LYON R7 City and trekking
bicycle
21-Y-0012 ROB FOLD R7 Folding bicycle
21-Y-0013 ROB FOLD F7 Folding bicycle
Table 3: Type number, model and pedelec type
Identification number MY21H01 - 22_1.0_30.08.2020

MY21H01 - 22_1.0_30.08.2020 11
Safety
2 Safety
2.1 Residual risks
2.1.1 Risk of battery fire and explosion
The safety electronics may fail if the batteries are
damaged or faulty. The residual voltage can
cause a short circuit. The battery may self-ignite
and explode.
Only use and charge the battery and
accessories if they are in perfect condition.
Never open or repair the battery.
Batteries with external damage must be
removed from service immediately.
If a battery is dropped or struck, remove it from
service and observe it for at least 24 hours.
Faulty batteries are hazardous goods. Dispose
of faulty batteries in the correct manner. Store
battery in a dry place until disposal. Never
store in the vicinity of flammable substances.
The battery is only protected from spray water.
Penetration by water can cause a short circuit.
The battery may self-ignite and explode.
Never immerse the battery in water.
Put battery out of service if you suspect water
has penetrated it.
Temperatures over 60 °C can also cause liquid to
leak from the battery and the battery will become
damaged. The battery may self-ignite and
explode.
Protect the battery against heat.
Never store next to hot objects.
Never expose the battery to sustained direct
sunlight.
Avoid wide temperature fluctuations.
2.1.2 Risk of fire and explosion due to
short circuit in the battery
Metal objects may connect the battery's electrical
terminals. The battery may self-ignite and
explode.
Never insert paper clips, screws, coins, keys
and other small parts into the battery.
Chargers with excessive voltage damage
batteries. This may result in fire or an explosion.
Only use batteries approved for the pedelec.
Clearly label the supplied charger.
2.1.3 Fire hazard caused by overheated
charger
The charger heats up when charging the battery.
In case of insufficient cooling, this can result in fire
or burns to the hands.
Never use charger on a highly flammable
surface.
Never cover the charger during charging.
Never leave the battery unattended during
charging.
2.1.4 Electric shock caused by electric
drive system
Damaged chargers, cables and plug connectors
increase the risk of electric shock.
Check the charger, cable and plug connector
before each use. Never use a damaged
charger.
If water penetrates into the charger, there is a risk
of electric shock.
Never charge the battery outdoors.

MY21H01 - 22_1.0_30.08.2020 12
Safety
2.1.5 Risk of a fall due to incorrectly set
quick releases
Excessively high clamping force will damage the
quick release and cause it to lose its function.
Insufficient clamping force will result in
unfavourable transmission of force. This can
cause components to break. This will cause a
crash with injuries.
Never fasten a quick release using a tool (e.g.
hammer or pliers).
Only use the clamping lever with the specified
set clamping force.
2.1.6 Risk of fire and burns due to hot
motor
The motor housing becomes hot when riding.
Touching it may cause burns to the skin or other
objects.
Never touch the motor housing directly after
riding.
Never place the pedelec on a flammable
surface, such as grass or wood, directly after
use.
2.1.7 Key breaking off
If you leave a key inserted when riding or
transporting the pedelec, it may break off or the
locking system may open accidentally.
Remove the key to the battery lock.
2.2 Toxic substances
2.2.1 Brake fluid
Brake fluid may leak out after an accident or due
to material fatigue. Brake fluid can be fatal if
swallowed or inhaled.
Never dismantle the brake system.
Avoid contact with skin.
Do not inhale vapours.
2.2.2 Suspension oil
Suspension oil in the fork and the rear frame
damper is toxic to the touch, irritates respiratory
tracts and causes cancer, sterility and mutation in
germ cells.
Never dismantle the rear frame damper or the
suspension fork.
Avoid contact with skin.
2.2.3 Defective battery
Liquids and vapours may leak from damaged or
faulty batteries. Excessively high temperatures
may also cause liquids and vapours to leak from
the battery. Such liquids and vapours can irritate
the airways and cause burns.
Never dismantle the battery.
Avoid contact with skin.
Do not inhale vapours.
2.3 Requirements for the rider
The rider must demonstrate adequate physical,
motor and mental abilities to ride on public roads.
A minimum age of 14 years is recommended.
2.4 Vulnerable groups
Keep batteries and charger away from children
and people with reduced physical, sensory or
mental capabilities or lacking in experience and
knowledge.
If minors use the pedelec, a legal guardian must
should provide them with comprehensive
instructions.
2.5 Personal protective equipment
Wear a suitable cycling helmet, sturdy footwear
and typical close-fitting clothing to provide
protection.

MY21H01 - 22_1.0_30.08.2020 13
Safety
2.6 Safety markings and safety
instructions
The nameplate contains these safety markings
and safety instructions:
2.7 What to do in an emergency
2.7.1 Dangerous situation in road traffic
In the event of any hazards or dangers in road
traffic, apply the brakes on the pedelec until it
comes to a halt. The brake acts as an
emergency stop system in such cases.
2.7.2 Leaked brake fluid
Remove those affected from the danger area to
fresh air.
Never leave those affected unattended.
Immediately remove any clothing items
contaminated with brake fluid.
Never inhale vapours. Ensure sufficient
ventilation.
Wear gloves and safety gloves as protective
equipment.
Keep unprotected persons away.
Take care with leaked brake fluid as it poses a
slip hazard.
Keep leaked brake fluid away from naked
flames, hot surfaces and sources of ignition.
Avoid contact with skin and eyes.
After inhalation
Take in fresh air. Immediately consult a doctor
in case of any discomfort.
After skin contact
Wash affected skin with soap and water and
rinse well. Remove contaminated clothing.
Consult doctor in the event of pain or
discomfort.
After contact with eyes
Rinse eyes under flowing water for at least ten
minutes with the lids open; also rinse under
lids. Immediately consult a doctor in case of
any pain or discomfort.
Symbol Explanation
General warning
Adhere to the instructions for use
Table 4: Meaning of safety markings
Symbol Explanation
Read the instructions
Separate collection of electrical
and electronic devices
Separate collection of ordinary
and rechargeable batteries
Must not be thrown into fire
(burning prohibited)
It is forbidden to open any
batteries
Device of protection class II
Only suitable for use indoors
Fuse (device fuse)
EU conformity
Recyclable material
Protect from temperatures
above 50 °C and direct sunlight
Table 5: Safety instructions
max. 50°C

MY21H01 - 22_1.0_30.08.2020 14
Safety
After swallowing
Rinse out mouth with water. Never induce
vomiting. Risk of aspiration!
If a person is lying on their back and vomiting,
place them in the recovery position. Seek
medical advice immediately.
Environmental protection measures
Never allow brake fluid to flow into the sewage
system, water courses or groundwater.
Notify the relevant authorities if fluid
penetrates the ground, water courses or the
sewage system.
Consult a doctor immediately in the event of
any pain or discomfort caused by combustion
gas or leaking fluids.
2.7.3 Battery vapours emitted
Vapours may be emitted if the battery is damaged
or used improperly. The vapours may cause
respiratory tract irritation.
Get into fresh air.
Consult doctor in the event of pain or
discomfort.
After contact with eyes
Carefully rinse eyes with plenty of water for at
least 15 minutes. Protect unaffected eye. Seek
medical advice immediately.
After skin contact
Remove any solid particles immediately.
Rinse the affected area with plenty of water for
at least 15 minutes. Then dab the affected skin
gently. Do not rub dry.
Remove contaminated clothing immediately.
Immediately consult a doctor if there is any
redness, pain or discomfort.
2.7.4 Battery fire
The safety electronics may fail if the battery is
damaged or faulty. The residual voltage can
cause a short circuit. The battery may self-ignite
and explode.
1Keep your distance if the battery becomes
deformed or starts to emit smoke.
2If charging, remove the plug connector from
the socket.
3Contact the fire service immediately.
Use Class fire extinguishers to put out the fire.
Never extinguish damaged batteries with water
or allow them to come into contact with water.
Inhaling vapours can cause intoxication.
Stand on the side of the fire where the wind is
blowing from.
Use breathing apparatus if possible.
2.7.5 Leaked brake fluid
The brake system must be repaired immediately if
brake fluid leaks out. Dispose of leaking brake
fluid in an environmentally responsible way in
accordance with statutory regulations.
Contact your specialist dealer.
2.7.6 Oil and lubricant leaks from the fork
Dispose of oils and lubricants which have leaked
from the rear frame damper in an environmentally
responsible way in compliance with statutory
regulations.
Contact your specialist dealer.
2.7.7 Oil and lubricant leaks from the rear
frame damper
Dispose of oils and lubricants which have leaked
from the rear frame damper in an environmentally
responsible way in accordance with statutory
regulations.
Contact your specialist dealer.

MY21H01 - 22_1.0_30.08.2020 15
Overview
3Overview
Figure 2: Pedelec viewed from right, HERCULES Futura Sport I 9 used as example
1 Front wheel
2Fork
3 Front guard
4 Headlight
5 Handlebars
6Stem
7Frame
8 Seat post
9 Saddle
10 Nameplate
11 Rechargeable battery
12 Pannier rack
13 Rear light
14 Reflector
15 Rear guard
16 Kickstand
17 Rear wheel
18 Chain
19 Chain guard
20 Motor
21 Pedals
1
2
3
7910111214
4
5
13
15
16
17
21
6
8
18 19 20

MY21H01 - 22_1.0_30.08.2020 16
Overview
3.1 Description
3.1.1 Wheel
Figure 3: Visible wheel components
1Tyres
2 Rim
3 Spoke
4 Spoke nipples
5Hub
6Valve
The wheel comprises the wheel itself, an inner
tube with a valve and a tyre.
3.1.1.1 Valve
Each wheel has a valve. It is used to fill the tyre
with air. There is a valve cap on each valve. The
screw-on valve cap keeps out dust and dirt.
The pedelec has either
• a classic Dunlop valve,
• a French valve (also known as a Sclaverand or
Presta valve) or
• a Schrader valve.
3.1.2 Suspension
Both forks and suspension forks are fitted in this
model series.
3.1.2.1 Rigid fork
Rigid forks do not feature suspension. They transfer
the used muscle and motor power to the road to
optimum effect. Pedelecs with rigid forks consume
less energy on steep roads and have a greater range
than pedelecs with adjusted suspension.
3.1.2.2 Suspension fork
A suspension fork is based either on a steel spring or
air suspension.
Unlike a rigid fork, a suspension fork has two
functions which improve floor contact and comfort:
suspension and damping. The suspension prevents
an impact, such as one caused by a stone lying in the
pedelec's path, from being channelled directly into
the rider's body via the fork. The impact is absorbed
by the suspension system instead. This causes the
suspension fork to compress.
Figure 4: Pedelec without suspension (1) and with
suspension (2)
After compressing, the suspension fork returns to
its original position. If there is a damper, it
decelerates movement, preventing the
suspension system from springing back in an
uncontrolled manner and stopping the fork from
vibrating up and down. Dampers which dampen
compressive deflection movements, i.e. a
compression load, are called compression
dampers or compression dashpots.
Dampers which dampen rebound deflection
movements, i.e. a rebound load, are called
rebound dampers or dashpots.
The compression can be disabled in any suspension
fork. A suspension fork will then behave like a rigid
fork.
1
2
3
6
5
4
12

MY21H01 - 22_1.0_30.08.2020 17
Overview
3.1.2.3 Steel suspension fork
The stem and handlebars are fastened to the fork
steerer (1). The wheel is fastened to the quick
release axle (6).
Figure 5: Example showing Suntour fork
Other elements: the setting wheel for negative
deflection (9), crown (3), Q-Loc (5), dust seal (4),
fork end (7) and stanchion (8)
3.1.2.4 Air suspension fork
The air suspension fork features air suspension and
a compression damper plus a rebound damper in
some cases.
Figure 6: Example showing Yari fork
You can see the following components in the
diagram: Air valve (1), valve cap (2) fork lock (3),
quick release (4) and rebound damper
adjuster (5) and the assembly groups: Air
suspension fork (A), compression damper
assembly group (B) and rebound damper
assembly group (C)
1
1
2
3
4
5
6
8
9
7
A
B
C
1
2
3
4
5
A
B
C

MY21H01 - 22_1.0_30.08.2020 18
Overview
3.1.3 Brake system
Every pedelec has a hydraulic brake system. The
brake fluid is in a closed hose system. If the rider
pushes the brake lever, the brake fluid activates
the brake on the wheel.
The pedelec has either:
• a rim brake on the front and rear wheels
• a disc brake on the front and rear wheels or
• a rim brake on the front and rear wheels and an
additional back-pedal brake.
The mechanical brakes are used as an
emergency stop system and bring the bicycle to a
halt quickly and safely in the event of an
emergency.
3.1.3.1 Disc brake
Figure 7: Brake system with disc brake – example
1 Brake disc
2 Brake calliper with brake linings
3Handlebars with brake lever
4 Front wheel brake disc
5 Rear wheel brake disc
On a pedelec with a disc brake, the brake disc is
screwed permanently to the wheel hub. The brake
lever is pushed to increase brake pressure. The
brake fluid is used to transfer pressure through
the brake lines to the cylinders in the brake
calliper. The braking force is boosted by a speed
reduction and applied to the brake linings. These
apply the brake disc mechanically. If the brake
lever is pushed, the brake linings are pressed
against the brake disc and the wheel movement is
decelerated until it comes to a stop.
3.1.3.2 Rim brake
Figure 8: Brake system with rim brake in detail – Magura
HS22 used as an example
1 Rear wheel rim brake
2 Brake booster
3 Brake lining
4Handlebars with brake lever
5 Front wheel rim brake
Figure 9: Rim brake locking lever, closed (1) and open (2)
The rim brake stops the wheel moving when the
rider pushes the brake lever, causing two brake
linings, positioned opposite one another, to be
pressed onto the rims. The hydraulic rim brake
features a locking lever. The rim brake locking
lever is not marked with any lettering. Only a
specialist dealer may set the rim brake locking
lever.
1
2
3
4
5
1
2
3
4
5
21

MY21H01 - 22_1.0_30.08.2020 19
Overview
3.1.3.3 Back-pedal brake
Figure 10: Pedelec brake system with a back-pedal
brake – example
1 Rear wheel rim brake
2Handlebars with brake lever
3 Front wheel rim brake
4Pedal
5 Back-pedal brake
The back-pedal brake stops the movement of the
rear wheel when the rider pedals in the opposite
direction to the direction of travel.
5
2
3
4
1

MY21H01 - 22_1.0_30.08.2020 20
Overview
3.1.4 Electric drive system
The pedelec is driven by muscle power applied to
the chain drive. The force which is applied by
pedalling in the direction of travel drives the front
chain wheel. The chain transmits the force onto
the rear chain wheel and then onto the rear wheel.

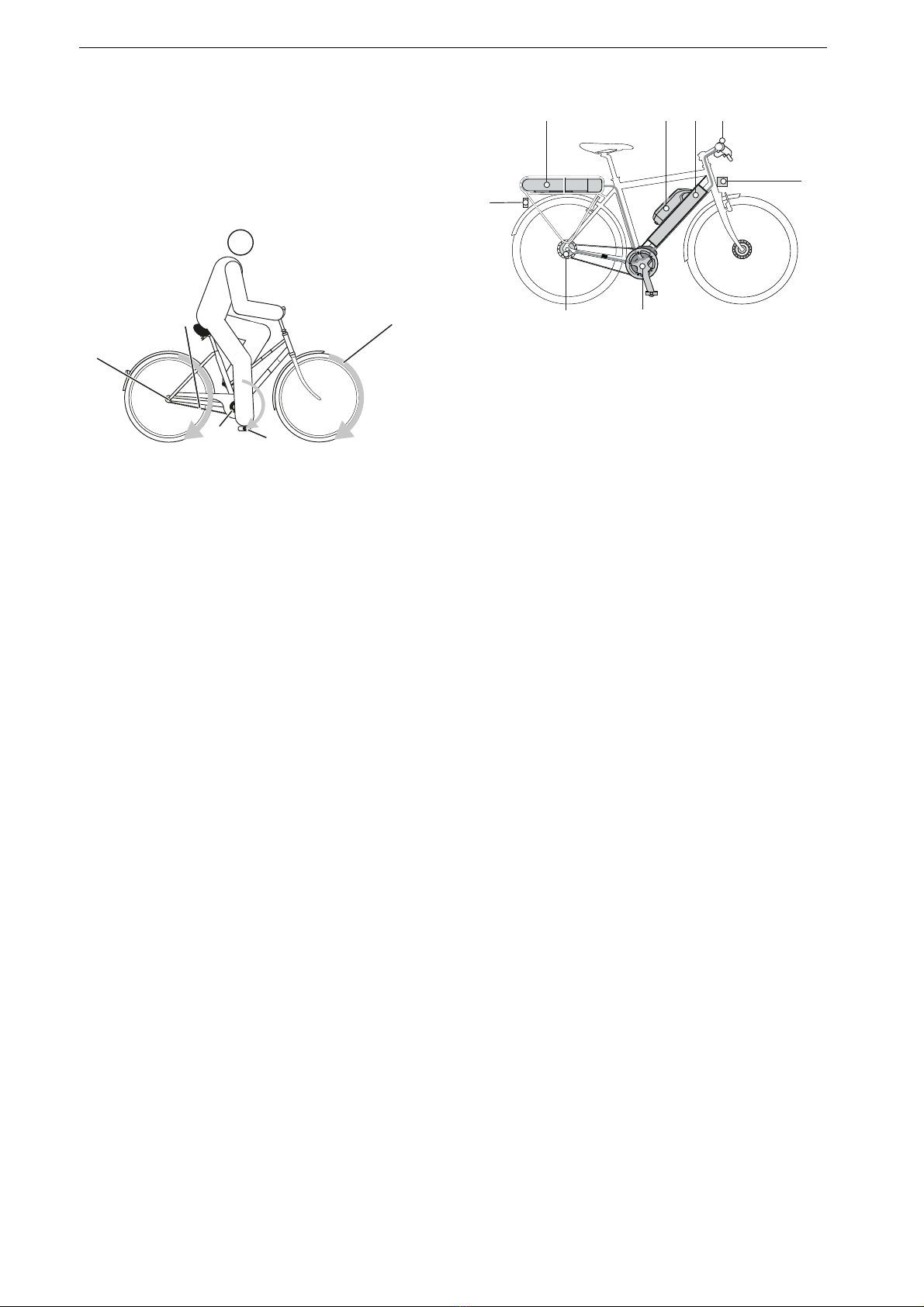

Figure 11: Diagram of mechanical drive system
1 Direction of travel
2 Chain
3 Rear chain wheel
4 Front chain wheel
5 Pedal
The pedelec also has an integrated electric drive
system.
As soon as the required muscle power from the
rider pedalling passes a certain level, the motor is
activated gently and assists the rider’s pedalling
motion. The pre-set level of assistance
determines the motor output.
The pedelec does not have a separate emergency
shut-off button. The mechanical brakes are used
as an emergency stop system and bring the
bicycle to a halt quickly and safely in the event of
an emergency.
The motor switches off automatically as soon as
the rider no longer pedals, the temperature is
outside the permitted range, there is an overload
or the shut-off speed of 25 km/h has been
reached.
The electric drive system is made up of
7 components:
Figure 12: Diagram of electric drive system
1Headlight
2Display
3.1 Integrated battery
3.2 Frame battery and/or
3.3 Pannier rack battery
4 Rear light
5Electric gear shift (alternative)
6Motor
7 A charger which is designed for the battery.
A push assist system can be activated. The speed
depends on the selected gear. The push assist
continues to drive the pedelec as long as the rider
presses the push assist button on the handlebars
The speed can be a maximum of 6 km/h in this
case. The electric drive system stops when the
push assist button is released.
3.1.5 Rechargeable battery
Bosch batteries are lithium ion batteries which are
developed and manufactured to the latest
technical standards. Each individual cell is
protected by a steel cup and encased in a plastic
battery housing. These batteries meet and exceed
applicable industrial safety standards. The battery
has an internal electronic protection circuit, which
is specifically designed for the charger and the
pedelec. The battery temperature is monitored at
all times. The battery is protected against deep
discharge, overcharging, overheating and short
circuit. In the event of a hazard, a protective circuit
switches the battery off automatically.
5
2
3
4
1
B
1
23.13.3 3.2
4
56
