Xiaomi S1 Active User manual

Xiaomi Watch S1 Active User Manual

01
Read this manual carefully before use, and retain it for future reference.
Watch Charging Cable
Product Overview
Note: Illustrations of product, accessories, and user interface in the user manual are for reference purposes only. Actual product and functions may vary due to product
enhancements.
① Power Button
② Display
③ Shortcut Button
④ Speaker
⑤ Microphone
⑥ Barometric Pressure Sensor
⑦ Contact Point
⑧ Heart Rate Sensor Area
⑨ USB Connector

02
Connecting the Watch
Scan the QR code, and
download the proper app
version according to your
phone's system.
Notes:
●Make sure the Bluetooth on your phone is enabled and the watch is well connected with your phone.
●During pairing, make sure the identical pairing code is displayed on both the phone and the watch.
●If the pairing code appears on the watch but not on the phone, please check whether there is a pairing request in the notifications of
the phone.
Download and install the app to better manage your watch, and log in to your Xiaomi account for more services.
1. Press and hold the power button to turn on the watch.
2. Use your phone to scan the QR code on the screen to download and install the app. You can also download and install the
app from the app stores, or scan the QR code listed here.
Note: The operations described here might slightly differ from the app due to its update, please follow the on-screen instructions.
3. Open the app, and log in to your Xiaomi account. Select the watch to be added and follow the instructions to pair it with
your phone.

03
①① Press and hold the home screen: SwitchPress and hold the home screen: Switch
the watch face.the watch face.
②② Swipe up: Open the control panel whenSwipe up: Open the control panel when
on the home screen.on the home screen.
③③ Swipe down: View notifications when onSwipe down: View notifications when on
the home screen.the home screen.
④④ Swipe left/right: Switch widget when onSwipe left/right: Switch widget when on
the home screen.the home screen.
⑤⑤ Swipe right: Go back when on a pageSwipe right: Go back when on a page
other than the home screen.other than the home screen.
Power Button
●Press and hold for about 3 seconds: Turn on the watch.
When the watch is on, the screen will show the options to
turn off, restart and restore to the factory settings.
●Press and hold for about 15 seconds: Force restart.
●Press when on the home screen: Enter the function list.
●Press when on other pages: Go back to the home screen.
Shortcut Button
●Press when on the home screen: Enter the shortcut
function (workout list by default).
How to Use

04

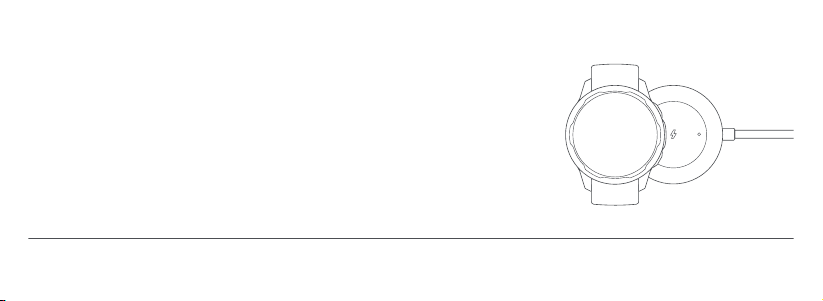

Charging the Watch
Notes:
●If the watch is unable to turn on after it has not been used for a while, it needs to be charged for about 1 minute
before the charging icon is displayed.
●Wipe the watch's contact points clean before charging so as to avoid residual sweat or moisture.
1. Place the watch on the charging cable. Make sure the contact points both on the back of the
watch and the charging cable are making contact with each other.
2. Connect the USB connector of the charging cable to a standard adapter purchased from a
qualified manufacturer at an output voltage of 5 V or higher.
3. The screen of the watch will light up and show the charging icon.
Functions
For more detailed information about the watch, please connect to the app and view the instructions.

05
●Comfortably tighten the watch around your wrist about one-finger width away from your wrist bone. Wearing the straps too loosely may impact the data collection by the
heart rate sensor.
●When using the watch to measure your heart rate, please hold your wrist still.
●The watch has a water resistance rating of 5ATM (50 meters in depth). It can be worn in the swimming pool, while swimming near the shore, or during other shallow-water
activities. However, It cannot be used in hot showers, sauna, or diving. Furthermore, remember to avoid the watch being directly impacted by swift currents during water
sports. The water-resistant function is not permanent and may decline over time.
●The screen of the watch does not support underwater operations. When the watch comes into contact with water, use a soft cloth to wipe away excess water from its
surface before use.
●During daily use, avoid wearing the watch too tightly. Keep its contact area dry and regularly clean the strap with water. Immediately stop using the watch and seek
medical assistance if the contact area on your skin shows signs of redness or swelling. Due to friction, wearing the watch for a long time during high-intensity exercise
may cause skin irritation. If this is the case, please stop wearing the watch.
●Use the included charging cable to charge the watch. Only use a certified power adapter supplied by qualified manufacturers.
●Make sure the power adapter, the charging cable, and the watch are in a dry environment while charging. Do not touch them with wet hands and do not expose them to
rain or other liquids.
●When the magnetic charging cable is connected to the power, make sure the conductive substances are not absorbed on it. Otherwise, it may cause a short circuit.
●Please use the watch within a temperature range of -10°C to 45°C. When the ambient temperature is too high or too low, the watch may malfunction.
Safety Precautions

06
●This watch is equipped with a built-in battery that cannot be removed. Do not disassemble the watch. Do not expose batteries or battery packs to sunlight, fire, or
environments where the ambient temperature is extreme heat. There is a risk of explosion if the battery is incorrectly installed, therefore only use and replace with the
same or an equivalent type of battery. Do not dispose of used batteries with household waste. Dispose of this watch and used batteries as per local laws and regulations.
●Do not disassemble, strike or crush the battery. Stop using the battery immediately if there is any swelling or fluid leakage.
●Never throw the watch or its battery into the fire so as to avoid an explosion.
●This watch is not a medical device, any data or information provided by the watch should not be used as a basis for diagnosis, treatment, and prevention of diseases.
●The watch and its accessories may contain small parts. To avoid choking or other hazards to children, or damages caused by children, keep the watch and its accessories
out of the reach of children.
●The watch is not a toy. Keep it out of reach of children.
Specifications
Product: Smart Watch
Model: M2116W1
Device Type: 2.4 GHz Wi-Fi Network/Bluetooth Device
Wireless Connectivity: Wi-Fi IEEE 802.11 b/g/n 2.4 GHz, Bluetooth® 5.2
Battery Capacity: 470 mAh
Input Voltage: DC 5.0 V
Input Current: 500 mA Max.
Compatible with: This watch only supports certain Android or iOS systems. For detailed
information, please check this watch's product page on www.mi.com or consult sales/
customer service staff before purchasing.

07
Regulatory Compliance Information
WEEE Information
All products bearing this symbol are waste electrical and electronic
equipment (WEEE as in directive 2012/19/EU) which should not be
mixed with unsorted household waste. Instead, you should protect
human health and the environment by handing over your waste
equipment to a designated collection point for the recycling of waste
electrical and electronic equipment, appointed by the government
or local authorities. Correct disposal and recycling will help prevent
potential negative consequences to the environment and human
health. Please contact the installer or local authorities for more
information about the location as well as terms and conditions of
such collection points.
EU Declaration of Conformity
Hereby, 70mai Co., Ltd. declares that the radio equipment type
M2116W1 is in compliance with Directive 2014/53/EU. The full text of
the EU declaration of conformity is available at the following internet
address: http://www.mi.com/global/service/support/declaration.html
Bluetooth/Wi-Fi Operation Frequency: 2400–2483.5 MHz
GPS/GLONASS/BDS/GALILEO Operation Frequency: 1559–1610 MHz
NFC Operation Frequency: 13.56 MHz
Bluetooth Maximum Output: < 13 dBm
Wi-Fi Maximum Output: < 20 dBm

08
Caution
●Disposal of a battery into fire or a hot oven, or mechanically crushing or
cutting of a battery, that can result in an explosion.
●Leaving a battery in an extremely high temperature surrounding environment
that can result in an explosion or the leakage of flammable liquid or gas.
●A battery subjected to extremely low air pressure that may result in an
explosion or the leakage of flammable liquid or gas.
●This device is equipped with a built-in battery that cannot be removed or
replaced. Do not disassemble or modify the battery by yourself.
●Replacement of a battery with an incorrect type can defeat a safeguard (for
example, in the case of some lithium battery types).
Battery Safety
Battery abuse or mishandling can cause overheat, liquid leakage, or an explosion.
To avoid possible injury, do the following:
●Do not open, disassemble, or service any battery.
●Do not attempt to replace the internal rechargeable lithium batteries.
●Do not crush or puncture the battery.
●Do not short-circuit the battery, or expose it to water or other liquids.
●Keep the battery away from children.
●Keep the battery away from fire.
●Do not leave the battery in an extremely high-temperature environment or an
extremely low air pressure environment.
●Stop using the battery if it is damaged, or if you notice any discharge or the
buildup of foreign materials on the battery leads.
●Do not put the battery in trash that is disposed of in landfills. When disposing
of the battery, comply with local laws or regulations.
Safety Information

09
This equipment has been tested and meets applicable limits for radio frequency (RF) exposure.
Specific Absorption Rate (SAR) refers to the rate at which the body absorbs RF energy. SAR limits depend on whether this equipment is used against the head or on the
wrist. The SAR limit is 2.0 watts per kilogram averaged over 10 grams of tissue for use against the head and 4.0 watts per kilogram averaged over 10 grams of tissue for use on
the wrist.
During testing, this equipment radios are set to their highest transmission levels and placed in positions that simulate use next to the mouth, with 5 mm separation, and on
the wrist, with no separation.
When placing this equipment near your mouth, keep at least 5 mm of separation to ensure exposure levels remain at or below the as-tested levels.
After testing, the highest SAR values are as follows:
Next to the mouth: 0.153 W/kg
Wrist: 0.214 W/kg
For regulatory information, product certification, and compliance logos related to the Xiaomi Watch S1 Active, please go to Settings > About watch > Regulatory.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Xiaomi Inc. is under license. Other trademarks
and trade names are those of their respective owners.
For the information not covered in this user manual, please go to www.mi.com

●Manufactured for: Xiaomi Communications Co., Ltd.
Address: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian
District, Beijing, China, 100085
Manufactured by: 70mai Co., Ltd.
(a Mi Ecosystem company)
Address: Room 2220, Building 2, No. 588, Zixing Road, Minhang
District, Shanghai, China
For further information, please go to www.mi.com
Importer:
Beryko s.r.o.
Na Roudné 1162/76, 301 00 Plzeň
www.beryko.cz
