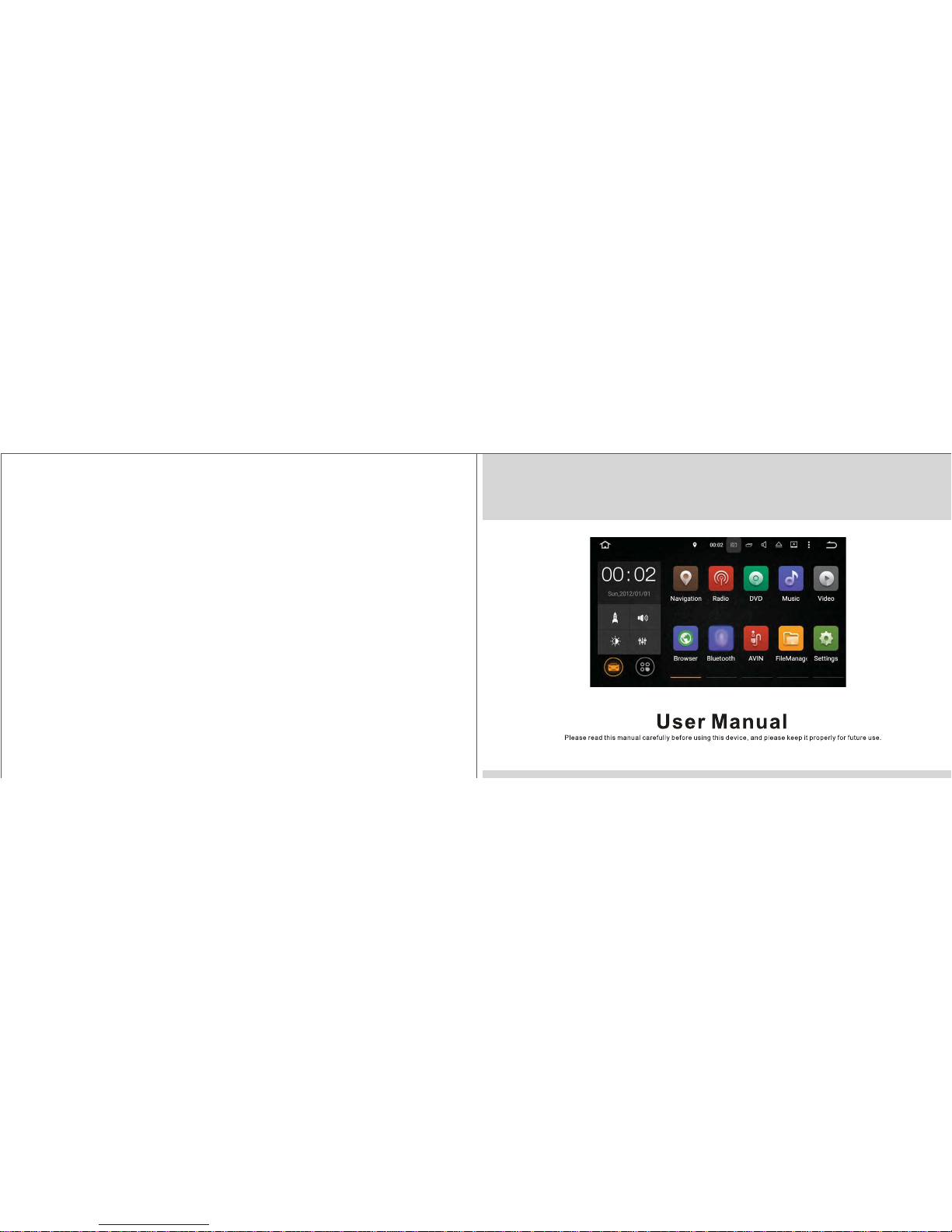

Xomax XM-04ZA User manual

1 2
When unit first starts, it will enter the main UI every time. UI could be slided left and right. Press icon in any setting
will return to the main UI. Scroll down from top, system notice section will appear. Press icon, user could clear the running operations.
Press icon will enter the picture gallery section.
1.Main User Interface

3 4
This multi-media system provides DVD, radio, Wifi, Bluetooth, video, music, navigation and audio input functions.
Press the icon on the bottom left of Main UI to enter the Main Menu UI. Press the icon of the function that you want
to enter. Press the Menu button or press the icon on the top right to return to the Main Menu UI anytime.
Main functions:
1.DVD
2.AV IN
3.Bluetooth
4.Radio
5.Digital TV
6.Photo
7.Music
8.Video
9.iPod
10.AP (install)
11.Setting
12.File management
13.DVR
Change page
Previous
Rewind
Play / Pause
Stop
Forward
Next
2. Main Menu User Interface Insert the disc into the disc slot under any mode, disc will go in and play automatically. While disc is playing, touch any
point of the screen, the playback control menu will appear on screen.
DVD player interface
3. DVD

5 6
Under any mode, press the BAND button on front panel, or press the radio icon in Main Menu will enter radio mode.
4. Radio Under any mode, press the BAND button on front panel, or press the radio icon in Main Menu will enter radio mode.
5. CAR DVR
Search: press once to search all available channels
automatically, press again to stop the search;
Stereo
Loud
Short press to move 0.1M forward, press and
hold to move one channel forward
Short press to move 0.1M backward, press
and hold to move one channel backward
AM could store 12 stations
FM could store 18 stations
Radio interface

7 8
To switch to Bluetooth dialing page
To switch to Bluetooth phonebook page
To switch to Bluetooth dialogue history page
To switch to Bluetooth pairing page,
press this to search
Bluetooth setting page
Delete number input, press and hold
could delete all
Receive / Dial calls
End calls
To switch Bluetooth between the cellphone
and head unit
Quick search of name
To call the number that is chosen
Download the phonebook from the cell phone
To search cell phone to pair with
To connect the chosen cell phone
To cut off the paired unit
To delete the paired unit
Press the Bluetooth button on front panel or press the Bluetooth icon on Main Menu to enter Bluetooth mode.
After your cellphone is paired with the unit successfully, all icons will be light up and icon will appear on top of screen.
6. Bluetooth
Bluetooth dial-up page
Bluetooth Phonebook Page Bluetooth Pairing Page

910
Play / Pause
Previous track
Next track
Enlarge screen
Play mode
Previous track
Play / Pause
Stop
Next track
Video playlist
1. Setup the name of the Bluetooth device
2. Setup the password
1.Press the Video icon to play the video files from inside the unit or from external SD card and USB. Supports H.263 P3,
MPEG 4 Simple Profile, H. 264 / AVC formats.
2.Slide the screen from right to left, the video playlist will appear.
7. Video Playback
Press the icon to enter Bluetooth music streaming
Bluetooth Setting Page

11 12
Music mode switch
Previous track
Play / Pause
Next track
Songs playlist
Lyrics switch
Songs playlist
1.Press the Music icon to play the music inside the unit or external SD card and USB. Supports WMA, MP3 format.
2. Slide the screen from right to left to display the Playlist, slide screen from left to right to display the file management.
8. Music Playback
Press the photo icon to enter the photo gallery. Users could see the photos stored in units or from external SD card
and USB.
9. Photo Gallery

13 14
memory of head unit
copy files
paste files
delete files
Press the AV IN icon to play the video or music files from external sources.
10. AV IN Copy the files from external devices such as SD card and USB into the head unit memory.
11. File Management

15 16
Press Setting icon to enter Setting page. User could modify setups of Wifi, audio, application, GPS, input method,
date, time … etc settings.
1.GPS: to adjust the sound ratio of GPS and music
2.Video: to allow or disallow video playback while driving
12. Setting

17 18
GPS NAVIGATION APK FILE INSTALLATION SETTING Select the GPS Card slot path,then click the APK installation
files to install the map,as the below picture: When you need use the navigation,you must click “SD”at firstˈclick
“primo_800*480” “IGO”and install the”APK”file. When you install finished map,you can open the map，
GPS navigation .
13. GPS
Plug in the 3G dongle, after 30 seconds icon will appear on top, unit is connected to 3G internet.
14. 3G Internet

19 20
Press AirPin icon, turn ON the Hotspot of iPhone. Pair the head unit through Wifi with your iPhone. Restart
the head unit, choose AirPlay from your iPhone, choose ITV@3 and turn ON the lens.
15. Air Pin Connection

21 22
Press icon, turn ON the of your Android cell phone. Connect your Android phone to the
head unit with the USB cable, after Bluetooth is successfully paired, two way control is successful.
16. Android Connection

23 24
Press icon to enter APK, choose installation and the files, follow the steps.
17. APK software installation Press icon to enter OEM menu. Install the torque.apk file, search the OBD name and connect it through Bluetooth.
Press icon on Main Menu to enter OBD and setup the OBD type and Bluetooth setting, the connection is successful.
18. OBD Connection

25 26
●WIFI Setting WIFI Connecting:Touch thesetting icon to enter wireless network. Turn on theWIFI function,and then
enter WIFI-setting,the system will automatically search,select the WIFI name,click it then input password.The WIFI icon
will appears at the top of notification bar after the connection is successful.
3G Internate connection: Plug the USB 3G device into the player,enter into the wireless network, Turn on the WIFI
function,after 15 seconds when WIFI icon appears at the top of notification bar,the connection is successful.
●Sound Setting: Different notification ringtones are optional
●Display Setting: Adjust screen brightness,dynamic screen and background 23
Touch the Main system icon to enter the main setting interface,as the below picture:
System Setting

27 28
●Printscreen Setting: Select 15 seconds,30seconds,1 minute 2 minute,3 minute tocapture the
image of screen and Storage Setting: Storage location.
●Storage Setting: Check SD card (option) capacity and uninstall it at any time.
●Application Setting: Check running status,space usage,installation and unloading of software
●Security Setting: All the Programs to factory reset.
●Language and input method setting: The player supports multi-language.End user can choose
different language and input method.
●Backup and Reset Backup theinstallation data, application data,other settings and account
information to Google server.If the system problem happens,end user can choose automatic
reduction or restore the factory settings.
●Add Account: Register mailbox or set up E-mail,send
and receive mails conveniently.check E-mail information easily.

29 30
●
Date and Time Setting Select and set time and time display formate according to time zone.
●
Auxilary Function Select and set the text to speech function,time of touching.shorcut key of
auxiliary function.
●
GPS Setting Select and set GPS navigation sound mode and GPS running status display.
●
Color setting of button light Select and set GPS navigation sound mode and GPS running status diplay.
●
Driving Setting Select and set multimedia playing when safe driving
●
Amplifier Sound Setting
Enter into sound setting interface,then choose one from the following sound effects:Standard,
Pop,Rock and Roll,Jazz,Class,Soft,ect to set or customize sound effect.
●Steering Wheel Learning Click on the “steering wheel”icon in the system settings interface
to enter steering wheel button settings interface,as shown in the below instruction.
●Factory Set Click on factory setting,prompt box of entering password appears.Please enter
“126” ,then select your car models logo and radio area. Please do not change and set other
application information.
●About the player(Device) Display product information such as:Android version and kernel
information
System updates,Status,Legal information,Model number,Android version,Baseband version,
Kernal Version,Build number.
●About tablet

31 32
The video of car DVR are stored in TF card and most files are big, so please use at least 8GB TF
card to record the video for long time automatically.
The product can automatically detect the car DVR when it is connected vis USB interface.
Click the icon to select the files to remove,select the copy icon ,then the paste icon to copy and paste
files,When you don’t need the file,press the delecting icon to delete it.
SOFWARE INSTALLATION MANAGEMENT
You can download the application software from PC or Internet through the network connection,Copy the download software
to SD card or USB disc,then insert it into the card slot of the player or connect it.
Then click on the file management to select the software from SD card or USB downloaded application via USB connection.
Long press the APK installation package to install the software.
Browser After you connecting “hard driver”, “SD ”,“USB”ˈ“photos”, “movie”and “Tool”,connect ,then Click “File Manager”,
you will read the content .
Click“Browser”Open“ Google”inter pageˈYou can enter into different websites ˈthen web searchingˈread newsˈknow
the newest current eventsˈstock inquiries.
Enter into file management operation interface,as the below picture:
CAR DVR OPERATION(optional)
FILES MANAGEMENT OPERATION
Click the icon to start recording vido,the files can be stored automatically after stop recording.
Click the icom to check the recorded vido list.
The displays time,longitude,latitude and speed are displayed on the left side of video playing interface.
Click the icon to switch multi-cameras video recording.

33 34
STEERING WHEEL LEARNING
The steering wheel buttons of the product are appropriate for the original car steering wheel with non-bus control mode.
The original car’s steering wheel buttons should be voltage input control,that is ,when operating each button,the
corresponding inputs of original car audio input different voltage. Before installation,find out the ground wire,original car
steering wheel cables(Caution: some cars have three wires and others have two),and the steering wheel button power
supply line(+5v),then connect with the corresponding steering wheel buttons power line still have power,no need to
connect power line again,Otherwise,please connect it with the “+5v output of our product’s steering wheel buttons
function to use.)
Click the “steering wheel learning” icon on system setting interface to enter steering wheel buttons
setting interface,as the shown picture:
Wiring Diagram
Steering Wheel Control Buttons Setting Enter the setting interface to select key learning, “steering wheel control reset”
firstly, then long press the buttons on the steering wheel,select the corresponding keys in the interface, When the setting
is successful,the corresponding buttons of interface will light up.
