Nuna Bugaboo turtle User manual

IMPORTANT: KEEP THIS INSTRUCTION BOOKLET IN THE
PLACE PROVIDED ON THE CHILD RESTRAINT
Bugaboo child restraint in
collaboration with Nuna
Bugaboo Turtle by Nuna
INSTRUCTIONS FOR USE
BUGABOO SEAT AND BASE ITEM NUMBER 84701ZW01
/ BASE ONLY 84702ZW01
NUNA SEAT AND BASE MODEL NUMBER CF05703
/ BASE ONLY IF05701

bugaboo cameleonbugaboo fox bugaboo bee bugaboo donkey bugaboo lynx
when used with additional Bugaboo adapters for
designated bugaboo strollers, compatible with:
nothing like a Bugaboo
Bugaboo turtle by Nuna is based on the Nuna KLIK plus model

1
USE
IMPORTANT: This is a rear facing child restraint. Do not face forward.
IMPORTANT:
Before installation and use of this child restraint
check that it is suitable for the size of your child.
See pages 4 & 7 for more information.
Quick Reference 2
WARNINGS 3
Additional Warnings 4
Features 6
Child Size 7
Shoulder Strap Height 8
Crotch Strap Position 9
Securing Child in the Restraint 10
Accessories 13
Canopy 14
Seat Cover Removal 15
Extra Padding 16
Infant Insert 17
Carry Handle 18
The Next Restraint 19
Use with Strollers 20
Cleaning and Maintenance 21
Contents
DO NOT USE THIS CHILD RESTRAINT UNTIL YOU HAVE
READ AND UNDERSTOOD THE INSTRUCTIONS IN THIS
USER GUIDE AND IN YOUR VEHICLE OWNERS MANUAL
Distributor: Bugaboo Australia Pty Limited,
suite 2, level 2, 156 Edgecliff Road, Woollahra, NSW 2025
For after sales service: Bugaboo.com/support
[email protected] 02 9091 0322

32
USE
USE
WARNING
DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR
This Child Restraint is suitable for children up to
approximately 12 months of age. See page 7 for more
detailed information.

54
USE
USE
ADDITIONAL WARNINGS
Always check child restraint
to base connection.
CLICK
1
2
CHECK
This Child Restraint is:
To be used only in a rearward-facing position until the
infant's shoulders reach the shoulder height marker (ap-
proximately 12 months of age).
Continue to use this infant restraint until the child reaches
this limit.
Infants are at risk of serious injury if they face forward too
early.
Ensure that children have adequate ventilation and shade
when in the vehicle.
Aftermarket accessories (i.e. items not provided in the box
with the child restraint), may not have been tested for use
with this child restraint and if used, may lower the level of
protection offered possibly leading to injury or death.
Any aftermarket accessory used should be compliant with
AS/NZS 8005 (Accessories for child restraints for use in
motor vehicles) and stated as suitable for use with this
child restraint.
When baby is in the restraint, ALWAYS secure the harness
and adjust to a rm t.
Always check buckle and other parts for hot surfaces. A child
restraint left uncovered in the sun could burn a child. Cover
with blanket if leaving in car.
Fall hazard: Child’s movement can slide carrier. NEVER place
child restraint near edges of countertops, tables or other
high surfaces. Always stay within arms reach whenever child
restraint is not on oor/ground.
Suffocation hazard: child restraint can roll over on soft sur-
faces and suffocate child. Never place child restraint on beds,
sofas, or other soft surfaces.
Strangulation hazard: Child can strangle in loose child
restraint straps. Always use harness. Never leave child in the
child restraint when straps are loose or undone.
Never place the child restraint on top of a shopping cart. The
child restraint will not be properly secured and could fall.
Do not use the child restraint if it is damaged or broken.
Only use with Bugaboo strollers or appropriate Bugaboo
adapters designed for use with other strollers.
ADDITIONAL WARNINGS

76
USE
USE
13
5
69
12
1
10
11
8
7
Features
13
1 Carry Handle
2 Headrest
3 Infant Insert
4 Shoulder Pads
5 Buckle and Crotch Pad
6 Harness Adjuster Button
7 Harness Adjuster Strap
8 Canopy
9 Carry Handle Lock
10 Harness Straps
11 Seat Cover
12 Stroller Release Handle
13 Base Attachment Bars
3
4
2
This restraint has a shoulder height level label. Use this to
know when your child is too big for the restraint.
Child Size
Once your child's shoulders reach the dotted line, it is time
to move to a bigger restraint. See page 19.

98
USE
USE
There are two positions
available for the crotch
strap.
The rear position is recom-
mended for normal
use and the front position
with a bigger child.
The steel buckle must be
fully through the slot.
View from underneath the
shell—check the buckle is
fully through the slot.
Buckle
Slot
IMPORTANT: After
changing the strap
position pull firmly
upward on the crotch
strap to check the
buckle is securely
fitted.
Crotch Strap Position
Shoulder Strap Height
Correct positioning of the shoulder straps is essential for
your baby's safety.
TO CHECK:
1 With child placed in the
restraint, note where
the shoulder straps are
relative to the child's
shoulders.
2 Refer to the requirements
above.
Requirement:
The shoulder strap slots must be in the first
adjustment position above the child's shoulders,
and not lower than the child's shoulders.
IMPORTANT: Always
adjust the height of the
shoulder straps as the
child grows
TO ADJUST:
3 The shoulder straps
move with the headrest.
Adjust the headrest
height by squeezing
the release lever at the
back of the headrest and
raising or lowering it as
required.
1
2
3

1110
USE
USE
Securing Child in the Restraint
4 Place buckle tongues into
the quick release buckle.
IMPORTANT: Both buckle
tongues should "CLICK"
into place. If they do
not click, try again or try
cleaning the buckle. See
page 21.
5 Tighten harness by
pulling on the adjuster
strap at the front of the
restraint.
Note: you may need to
pull excess shoulder
strap webbing through
the Quick Release Buckle
Tongues upward towards
the child’s shoulder and
then pull on the adjuster
strap.
This may need to be
repeated several times
to get the webbing tting
snugly.
"CLICK"
WARNING
DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR
1
2
3
4
5
1 Loosen harness by
pressing on adjuster but-
ton while pulling on the
harness straps.
2 Press button to open
the quick release buckle.
Spread harness straps
apart.
3 Place child in restraint in
seated position.
Child's back must be
rmly against both the
back and bottom of the
restraint.
First check shoulder strap
height and adjust if neces-
sary.
See pages 7 & 8

1312
USE
USE
- Harness is snug around the
child’s waist and shoulders.
- Shoulder Straps must not
be twisted.
CHECK
- Strap tension:
Put nger under strap and
pull out.
NO
GAP
IMPORTANT
Child must be dressed in clothing that allows the har-
ness to rmly secure them.
Blankets
Never use blankets or clothing that interfere with the
harness as a poorly secured child can come out of the
restraint during a crash. Only place blankets over child
AFTER harness has been properly tightened.
Swaddling
Infants need to be securely held by the harness. An
infant wrapped in a blanket or swaddled will not be
securely held and may be ejected and killed in an ac-
cident
Do not bind or wrap the infants arms or legs together.
GAP
Accessories
DO NOT add accessories, toys, padding or other items to
the child restraint unless provided by Bugaboo.
Aftermarket accessories (i.e. items not provided in the box
with the child restraint), may not have been tested for use
with this child restraint and if used, may lower the level of
protection offered possibly leading to injury or death.
Any aftermarket accessory used should be compliant with
AS/NZS 8005 (Accessories for child restraints for use in
motor vehicles) and stated as suitable for use with this
child restraint.

1514
USE
USE

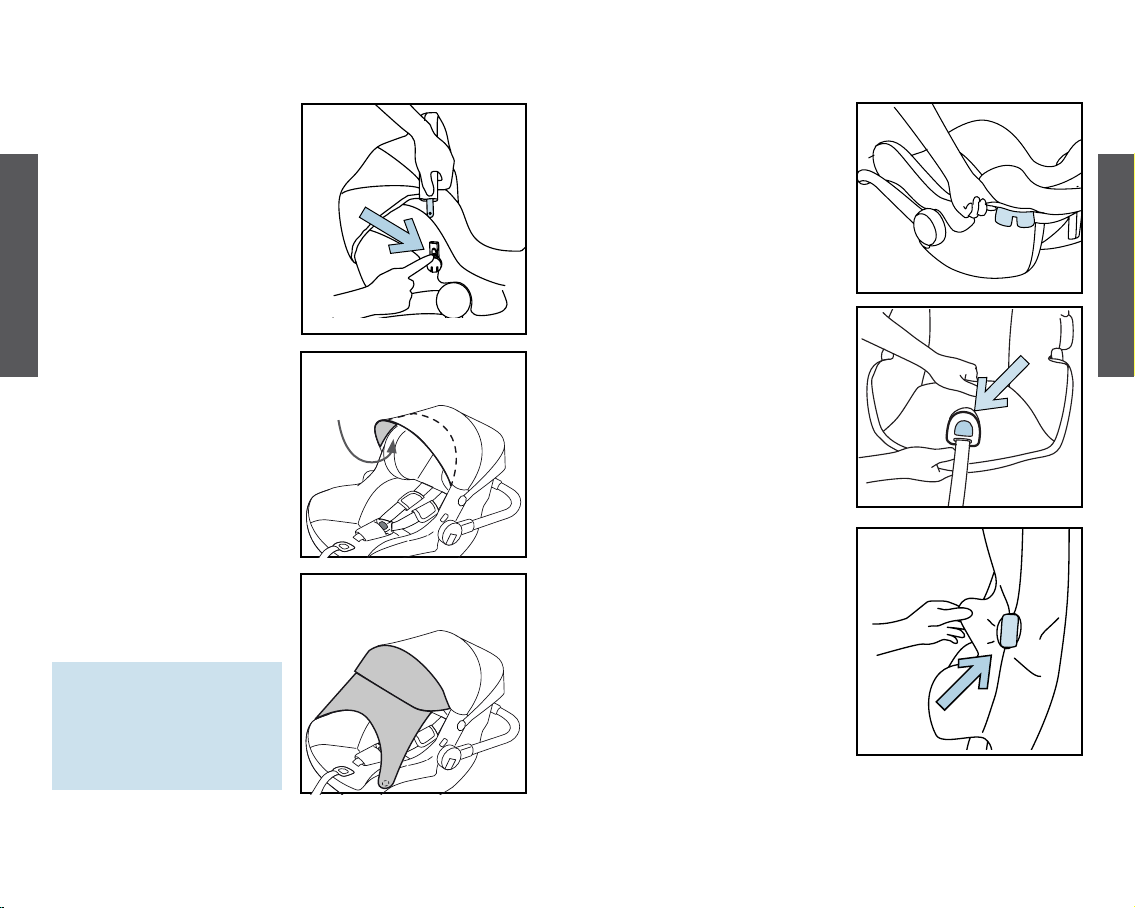

1 Pull the fastening pieces
underneath the edge of
the seat out.
2 Remove the seat cover
from the adjustment but-
ton as shown.
4 Remove the seat pad
from the stroller release
button as shown.
Lift cover off seat starting
from the back.
Seat Cover Removal
The Canopy has a Smart
Visor that can be folded out
for more protection.
There is a sunscreen at-
tached to the front of the
visor.
This sunscreen can be xed
to magnetic anchor points
at the front corners of the
restraint.
Smart Visor is stored
under front of canopy
To use Smart Visor, grip
rmly and fold out.
IMPORTANT: Do not use
the visor and sunscreen
in a vehicle as it will
interfere with the tether
strap.
Canopy
To remove the canopy,
release the press studs,
and press the buttons in the
canopy mounts.
Then pull the canopy bow
out.
To replace simply plug the
canopy bows in until they
click and refastern the press
studs.

1716
USE
USE
Infant Insert
The infant insert can be
used to provide a snug t for
smaller babies.
Only use the infant insert for
smaller babies.
When the child is bigger and
the headrest is moved up
remove the Insert.
Extra Padding
Shoulder pads and the
crotch strap pad are not
necessary for safety and are
removable.
VERY IMPORTANT: Only replace the cover
with a Bugaboo supplied replacement cover
with identical shoulder height markers or a
replacement cover meeting AS/NZS 8005.
Crotch Pad Removal
The crotch pad is secured
by a small strap that passes
through the slot at the bot-
tom of the buckle.
1 - Unbuckle the harness
and locate the crotch pad
strap.
2 - Keep the tab at the end
of the crotch pad strap at
against the strap and pull
it through the slot in the
buckle.
3 - Pull the crotch pad off the
buckle.

1918
USE
USE
Carry Handle
The carry handle can be
adjusted to 3 positions.
1 To adjust the handle
position, squeeze handle
buttons on both sides
and rotate.
2 Rotate handle until it
clicks into any of the 3
positions.
The carry handle can be
used in a vehicle in any
locked position.
The Next Restraint
This restraint is suitable for a baby up to approximately 12
months of age.
When the baby’s shoulders are level with the shoulder
height marker (see page 7) they should move to a bigger
restraint.
The next category of
restraint is forward facing
and has a six point harness
and will be suitable for
the child until they are
approximately 4 years of
age.
IMPORTANT: if the
baby's neck muscles are
unable to support their
head, they should remain
rear facing.
Be sure handle is locked
in the carry position
before lifting carrier by
handle. An unlocked
handle could move unex-
pectedly, causing injury
to child.

2120
USE
USE
Use with Strollers
This child restraint can attach to Bugaboo strollers using
adapters. Instructions are included with the adapters, which
are sold separately.
Cleaning and Maintenance
Seat Cover
Use mild soap or upholstery shampoo.
Wash separately.
Do not bleach.
Do not soak.
Do not tumble dry.
Dry at in the shade thououghly before reuse and avoid
direct heat and sunlight.
Do not dry clean.
Plastic and Metal Parts
Use only mild detergent, water and a soft cloth to clean the
car seat shell, handle and harness straps. Air dry.
Do not use undiluted detergent, or other solvents to clean -
these may cause damage.
Harness Buckle
To clean the buckle: rinse using warm water. DO NOT use
any soaps, solvents or lubricants. Using anything other than
water can cause the buckle to malfunction. Air dry.
When the buckle is operating correctly the tongues will push
in easily and will CLICK when they latch into place.
If the buckle does not appear to be working correctly get it
checked or replaced by contacting the retailer from where it
was purchased.
Harness Straps
Spot clean. If damaged contact the retailer from where the
restraint was purchased to have them replaced.
Storage
Remove the child restraint from the vehicle seat if not in use
for a long period of time. Put the child restraint in a cool, dry
place and somewhere your child cannot access it.

2322
USE
USE
The information contained herein is subject to change without notice. Bugaboo
International BV shall not be liable for technical errors or omissions contained
herein. The purchased product may differ from the product as described in this user
guide. Our most rnt user guides can be requested at our service departments or
at www.bugaboo.com. © 2019 Bugaboo International BV. BUGABOO, BUGABOO
FOX, BUGABOO CAMELEON, BUGABOO BEE, BUGABOO DONKEY, BUGABOO
BUFFALO, RUNNER, BUGABOO BOXER and the Bugaboo logos are registered
trademarks. The Bugaboo® strollers are patented and design protected.
©2019 Nuna International B.V. Nuna and all associated logos are trademarks.
