Xoop Lighting B150 User manual

1
( 4 in 1)
USER MANUAL
LED BAR

2
1.BEFORE YOU BEGIN
What is included
ò1 x Fixture
ò1 x Power cable with plug
ò1 x User Manual
Unpacking Instructions
Immediately upon receiving a fixture, carefully unpack the carton; check the
contents to ensure that all parts are present, and have been received in good
condition. Notify the shipper immediately and retain packing material for
inspection if any parts appear damaged from shipping or the carton itself shows
signs of mishandling. Save the carton and all packing materials. In the event that
a fixture must be returned to the factory, it is important that the fixture be returned
in the original factory box and packing.
AC POWER
This fixture has an auto-switching switch-mode power supply that can
accommodate a wide range of input voltages. The only thing necessary to do
before powering on the unit is to make sure the line voltage you are applying is
within the range of accepted voltages. This fixture will accommodate between
100V and 240V AC 50-60 Hz. Each light is connected end to end by the power
socket “POWER IN” and “POWER OUT” on the light, or use the waterproof power
cord. Please ensure the head and the tail tightening when connect the lights, to
prevent the power leakage occurred by water seepage to the plug.
Help preserve the environment! Ensure that this product is
recycled at the end of its life. Your supplier can give details
of local arrangements for the disposal of products.

3
Safety Instructions
!
WARNING!
Please read these instructions carefully, which includes
important information about the installation, usage and
maintenance of this product..
The following symbols are used to identify important safety information on the
product and in this manual:
!
DANGER!
Safety hazard.
Risk of severe
injury or death
DANGER!
Hazardous
Voltage. Risk of
lethal or severe
electric shock.
WARNING!
Fire hazard
WARNING!
LED light
emission. Risk
of eye injury.
WARNING!
Refer to user
=
to the earth excellently. And the power connection must be operated by the
professional technician.
=Make sure that the working voltage will not higher or lower than the rated
value.
=Make sure that the cable didn't be damage or lacerated by sharp.
=The light must be power off when it's standing idle or before clearing.
=The cable must with plug, and you must pull out the cable by handle the plug.
=Please be careful when installing the lighting. Never touch the bared cable, or
it will cause the deadly electric shock.
=Please use the suitable and safe cable to connect the light.
=Please never remodel the light randomly, we will not take the guarantee for the
faulty and damage which caused by dismantle、repair or remodel of the
nonprofessional person.
=Maximum ambient temperature 40°C. Do not operate fixture at temperatures
higher than this.
=Never connect the device to a dimmer pack.
=Do not daisy chain power to more than 8 units @ 120V and 12 units @ 230V.
This light belongs to grade I protection device, therefore the light must connect

4
2.INTRODUCTION
Specifications
lVoltage Rating: AC100V～240V 50-60Hz
lPower Rating: 110W
lLED Quantity: 15X4-in-1(RGBW)
lLED: 380mA
lBeam Angle: 20°/30° /40°(option)
lIngress Protection: IP65 /indoor(option)
lProduct Size: 990X120X145mm
lPackage Size:1070X160X170 mm
lN/W:5.7Kg
Features
lRGBW color mixing with or without DMX controller
lspecial effect (minimum 16psc one group)
l5 distinct dimming curves
lLED display with password protection
lOperating Modes: DMX512 Connection /Master & Slave...
lDMX Channels: 11/04/06/15/17/21/60 channels

5
Product Overview
MAINS IN
MAINS IN
DMX OUT
MAINS OUT
LED SIGNAL
LED SIGNAL
MAINS OUT
DMX IN
DMX IN
DMX OUT
Dimensions
INDOOR
OUTDOOR
990
145 1 0 0
1 2 0

6
3.SETUP
Installation Requirement
lThis product can be used in a variety of situations, can hang and put on
the ground.
lIf hanging the fixture for over head use, then please follow the below steps.
lPlease choose the suitable location to put or hang the light when installing
it. You must use the exclusive clamp hanger and screw when hanging it, and
make sure the weight of the light is within limits of the hanger.
lPlease make sure without any flammable objects within 0.5m when
installing the light.
lThe installation should be operated by professional person; any irregular
installation will cause the body injury or equipment damage.
lBlock access below the work area and use suitable and stable platform
when installing or servicing fixture.
Hanging Clamp
No te : s ol d
separately
Safety Cable
No te : t he c ab l e mu st b e
se cu r ed t hr o ug h th e h e a t
si nk v e nt il a ti on
passageway.

7

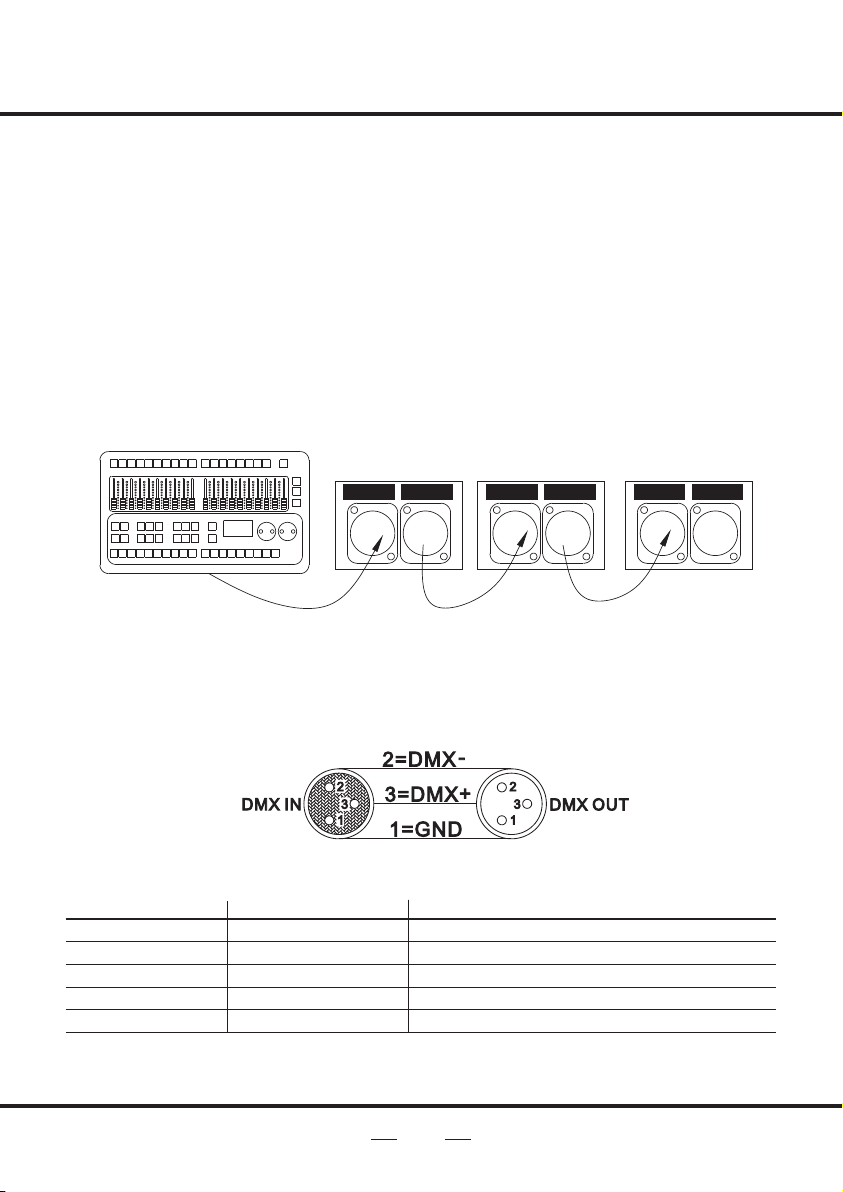

Connection of DMX Signal Wire
1Please use the fixture controller wire specially when use the DMX512
Controller. Connect the (male) 3 pin connector side of the DMX cable to
the output (female) 3 pin connector of the first fixture.
2Connect the end of the cable coming from the first fixture which will have
a (male) 3 pin connector to the input connector of the next fixture
consisting of a (female) 3 pin connector. Then, proceed to connect from
the output as stated above to the input of the following fixture and so on.
3This product can be connected numerous lamps in series without the
need for the signal amplifier; the signal will not be weakened.
DMX IN DMXOU DMX IN DMXOU DMX IN DMXOU
3-PIN TO 5-PIN CONVERSION CHART
Note! If you use a controller with a 5 pin DMX output connector, you will
need to use a 5 pin to 3 pin adapter.
Conductor
Ground/Shield
Data ( - ) signal
Data ( + ) signal
Do not use
Do not use
3 Pin Female(output)
Pin 1
Pin2
Pin 3
5 Pin Male (Input)
Pin 1
Pin2
Pin 3
Do not use
Do not use
3 PIN TO 5 PIN CONVERSION CHART

BUTTON
MODE
ENTER
UP
DOWN
FUNCTION
Exits from the current menu or function
Enables the currently displayed menu or sets the currently selected
value in to the selected function
Navigates upwards through the menu list and increases the numeric
value when in a function
Navigates downwards through the menu list and decreases the numeric
value when in a function
4.OPERATING INSTRUCTIONS
Control Panel Functions
MAIN
FUNCTION
SUB-
FUNCTION SELECTION
001~512
000~255
(0 ~ 100%)
00~20
SP00-20
SP00-20
01~25
INSTRUCTION
Set DMX start address
User can combine RED, GREEN, BLUE
and WHITE to generate a custom color
Select strobe frequency
auto programs available
combine auto program
combine cartoon effects
Menu Map
8
(01~50)
(01~50)

9
MAIN
FUNCTION
SUB-
FUNCTION SELECTION
11CH
04CH
06CH
15CH
17CH
21CH
60CH
OFF
DIM1/2/3/4
ON~OFF
01~16
01~16
INSTRUCTION
Slaves
Select 11/04/06/15/17/21/60 channel
setting
"Off" means select linear dimming, or
choose dimmer 1-4 to control the dimming
speed, dimming 1 of the fastest dimming
curves, 4 for the most slowly dimming curve
Version number
Enables or Disables password lockout
amount set of combined lights.
number set of combined lights
Operating instructions
1 Enable password lock
【 】【ON】/【OFF】{ENTER}
【ON】enable lock， 【OFF】disable lock
Enable the password lock, control panel in the boot or go into standby automatically
take effect, this time to operate lamps need to enter your password. { MODE、UP、
MODE、DOWN、MODE、UP、MODE、DOWN }{ENTER}

10
DMX512 Controller Mode
1、Setting DMX512 Address
【 】【001--512】
Access control panel function by pressing MODE until 【 】 is displayed.
Press ENTER, add or reduce channels by pressing UP/DOWN between 001 and 512.
Press MODE to exit.
3、Setting Channels
【 】【11CH/04CH /06CH /15 CH /17 CH /21 CH /60 CH】
Access control panel function by prekssing MODE until 【 】 is displayed.
Press ENTER button, select DMX channel by pressing UP/DOWN,
Press MODE to exit.
DMX512 Channel Values
4 channels：
Channel
1
2
3
4
Channel
1
2
3
4
5
6
Value
000~255
000~255
000~255
000~255
Value
000~255
000~255
000~255
000~255
000~005
006~255
000~005
006~255
Description
Red
Green
Blue
White
Description
Red
Green
Blue
White
No Function
strobe/auto speed
No Function
AUTO (AT01~50)
6 channels：
Channel 6 has priority over channels 1-5.
When activating the Auto programs, then it is possible to control the auto speed by using
Channels 5

11
Channel
1、LED 1
2、LED 2
3、LED 3
4、LED 4
5、LED 5
6、LED 6
7、LED 7
8、LED 8
9、LED 9
10、LED 10
11、LED 11
12、LED 12
13、LED 13
14、LED 14
15、LED 15
Value
000 ~015
016 ~031
032 ~047
048 ~063
064 ~079
080 ~095
096 ~111
112 ~127
128 ~143
144 ~159
160 ~175
176 ~191
192 ~207
208 ~223
224 ~239
240 ~255
Description
No Function
R
G
B
R+G
G+B
R+B
R+G+B
W
R+W
G+W
B+W
R+G+W
G+B+W
R+B+W
R+G+B+W
15 channels：

12
Channel
1、LED 1
2、LED 2
3、LED 3
4、LED 4
5、LED 5
6、LED 6
7、LED 7
8、LED 8
9、LED 9
10、LED 10
11、LED 11
12、LED 12
13、LED 13
14、LED 14
15、LED 15
16、 strobe
17、FADE
Value
000 ~015
016 ~031
032 ~047
048 ~063
064 ~079
080 ~095
096 ~111
112 ~127
128 ~143
144 ~159
160 ~175
176 ~191
192 ~207
208 ~223
224 ~239
240 ~255
000 ~255
000 ~255
Description
No Function
R
G
B
R+G
G+B
R+B
R+G+B
W
R+W
G+W
B+W
R+G+W
G+B+W
R+B+W
R+G+B+W
strobe（0～20HZ）
Dimmer speed(fast to slow)
17 channels：

Channel
1
2、RED
3、Green
4、Blue
5、white
6、Macro color
control
7、Strobe
8、Module
Selection
9、AUTO
10、
11
、Dimming
Value
000~255
000~255
000~255
000~255
000~255
000~009
010~255
000~255
000～004
005～034
035～064
065～094
095～124
125～154
155～184
185～214
215～244
245～255
000～005
006～025
000～255
000～255
Description
0-100%
0-100%
0-100%
0-100%
0-100%
No Function
Macro color control
Strobe(00~20Hz)
#1=ON, #2=ON, #3=ON,
#1=ON
#2=ON
#3=ON
#1=ON, #2=ON
#1=ON, #3=ON
#2=ON, #3=ON
#1=ON, #2=ON, #3=ON ,
#1=OFF, #2=OFF, #3=OFF,
Convert to 11CH-2
No Function
AUTO (AT01~50)
Auto speed
Dimmer speed
11 channels：
13
MASTER DIMMER
Channels 1 controls the intensity of the currently projected color
When the slider is at the highest position (255), then the intensity of the output is at
themaximum.
RED, GREEN BLUE AND WHITE COLOR SELECTION
Channels 2, 3,4 and 5 control the intensity ratio of each of the Red, Green, Blue&white
LEDs.
1,2,3,4 and 5 channel can be used in combinationr

14
COLOR MACROS
Channel 6 selects the required Color Macro.
Channel 6 has priority over Channels 2, 3, 4 & 5.
Channel 1 is used to control the intensity of the current Color Macro.
STROBE
Channel 7 controls the strobe of Channels 1 through 6.
Channel 7 has priority over Channels 2, 3, 4,5 & 6.
Speed of the strobe is adjustable from 0 to 20 Hz.
MODULE SELECTION
Channel 8 provides individual control of the three LED modules in each fixture.
245 ~255 switch to the 11CH-2 mode
AUTO PROGRAMS
Chanel 9 selects the preset Auto programs 1~50
When activating the Auto programs, then it is possible to control
the auto speed by using Channels 10
Channel 9 has priority over channels 2-8.
DIMMER SPEED
Channel 11 is for selecting the dimmer mode and dimmer speed.
When channel 11 is not activated, then RGBW and Master
Dimmer are linear.The dimmer modes 1, 2, 3, and 4 are different
speeds of the nonlinear dimming curves

15
Channel
1、LED 1
2、LED 2
3、LED 3
4、LED 4
5、LED 5
6、LED 6
7、LED 7
8、LED 8
9、LED 9
10、LED 10
11、LED 11
12、LED 12
13、LED 13
14、LED 14
15、LED 15
16、Module 1
17、Module 2
18、Module3
19、Module 1 fade
20、Module 2 fade
21、Module 3 fade
Value
000～015
016 ～031
032～047
048～063
064～079
080～095
096～111
112～127
128～143
144～159
160～175
176～191
192～207
208～223
224～239
240～255
000～005
006~255
000～255
000～255
000～255
Description
No Function
R
G
B
R+G
G+B
R+B
R+G+B
W
R+W
G+W
B+W
R+G+W
G+B+W
R+B+W
R+G+B+W
No Function
strobe（0～20HZ）
DIMMER SPEED
DIMMER SPEED
DIMMER SPEED
21 channels：
Att：Module 1 is composed of 1-5 LED；
Module 2 is composed of 6-10 LED；
Module 3is composed of 11-15 LED.

Channel
1、LED1
2、LED1
3、LED1
4、LED1
5、LED2
...
57、LED15
58、LED15
59、LED15
60、LED15
Value
000~255
000~255
000~255
000~255
000~255
000~255
000~255
000~255
000~255
Description
RED(0~100%)
GREEN(0~100%)
BLUE(0~100%)
WHITE(0~100%)
RED(0~100%)
...
RED(0~100%)
GREEN(0~100%)
BLUE(0~100%)
WHITE(0~100%)
60 channels：
16
Master/Slave Control Mode
1、Setting master machine
Access control panel function by pressing MODE until 【 】 is displayed.
Press ENTER, select 【 】 /【 】/ 【 】by pressing UP/DOWN buttons.
Press ENTER, and then press MODE to exit.
You can choose 【 】pre-set programs, the range is 【o1--50】.
Or you can choose 【 】custom programs, the range is 【o1--50】.
2、Setting slave machine
Access control panel function by pressing MODE until 【 】 is displayed.
Press ENTER,

17
GROUP WORKING
1、Amount set of combined lights.
Access control panel function by pressing MODE until 【COMP】 is displayed
Press ENTER, select 【C.SUM】by pressing UP/DOWN buttons.
Press ENTER, Amount set of combined lights. by pressing UP/DOWN between 01 and 16
Press MODE to exit.
2、Number set of combined lights
Access control panel function by pressing MODE until 【COMP】 is displayed
Press ENTER, select 【C.ID】by pressing UP/DOWN buttons.
Press ENTER, Amount set of combined lights. by pressing UP/DOWN between 01 and 16
Press MODE to exit.
Att: the number of the light could not bigger than the amount of the combined lights
3、Setting master machine
Access control panel function by pressing MODE until 【AUTO】 is displayed.
Press ENTER, select 【AT】、【AP】or【CP】by pressing UP/DOWN buttons.
Setting slave machine
Access control panel function by pressing MODE until 【SLAV】 is displayed.
Press ENTER,
1 2 3 45678 9 10 11 12 13 14 15 16

Channel
1、Module 1
2、Module 2
3、Module 3
4
5
6
7、
8、Mode selection
9
10
11
18
GROUP WORKING (DMX512 MODE)
11CH-2
Value
000～015
016～031
032～047
048～063
064～079
080～095
096～111
112～127
128～143
144～159
160～175
176 ～191
192～207
208～223
224～239
240～255
000～005
006～255
000～005
006～255
000～009
010～255
000～255
000～244
245～255
000～005
006～255
000～255
000～255
Description
No Function
R
G
B
R+G
G+B
R+B
R+G+B
W
R+W
G+W
B+W
R+G+W
G+B+W
R+B+W
R+G+B+W
No Function
strobe（0～20HZ）
No Function
combine auto program (AP 1~50)
No Function
combine cartoon effects(CP 1~25)
No Function
Convert to 11CH-1
Convert to 11CH-2
No Function
AUTO(AT 1~50)
CH5/6/9 auto speed
Dimmer speed

19
Symptom(s)
1 or more LED's are
not illuminating
Possible Solution(s)
Clean the fixture regularly to avoid any such failure. This fixture is
convection cooled, which means that if the surface is kept clean
and free of debris, then proper cooling will be allowed to occur
An LED may have failed, resulting in an open circuit. In this
event, all of the red, green, or blue in a single module will no
longer illuminate. This does not mean that all of the LEDs have
failed, but the circuit is wired in series.
An LED may have failed, resulting in a short circuit. In this event, only
the single LED which has failed will no longer function. This does not
mean that all of the LEDs have failed, but the circuit is wired in series.
-Note: In the event of LED failure, a replacement LED PCB
assembly may be purchased directly from Our company
AUTO PROGRAMS
Chanel 5 selects the preset combine auto program (AP 1~50)
Chanel 6 selects the preset combine cartoon effects(CP 1~25)
Chanel 9 selects the preset Auto program (AT 1~50)
When activating the Auto programs, then it is possible to control the auto speed
by using Channels 10
Channel 9 has priority over channels 2-8.
Channel 5 has priority over channels 2-6.
Channel 6 has priority over channels 2-4.
5. APPENDIX
Service Maintenance Guide

20
Symptom(s)
Breaker/Fuse keeps
blowing
Device has no power
Fixture is not
responding to DMX
Loss of signal
COLOR-CON
Controller does not
function, or does not
function properly
Stand alone
operation
The display is only
showing: ####
Possible Solution(s)
Check total load placed on the electrical circuit
Check for a short in the electrical wiring: internal and/or external
Check for power on Mains
-Note: In the event of autoswitching transformer failure, the unit
can be sent in for repair; however, a replacement part can be
ordered directly from Our company
Check Control Panel settings for correct addressing
Check DMX cables
Check polarity switch settings on the controller
Check cable connections
Call service technician
-Note: In the event of Display PCB failure, a replacement PCB
can be ordered directly from Our company
Use only DMX cables
Install terminator
Note: Keep DMX cables separated from power cables or black
lights
Make sure connector is firmly connected to device
This fixture must be in the correct mode in order to properly
respond to the COLOR-CON controller. The correct mode is
“DMX” in the onboard Control Panel
This fixture has built-in, automatic programs that may be
triggered from the onboard Control Board
The password lockout has been enabled. you can use the
password: { MODE、UP、MODE、DOWN、MODE、UP、
MODE、DOWN }
