XPOtool 62822 User manual

Operation Manual
Outdoor socket
Item number 62822 - 62829

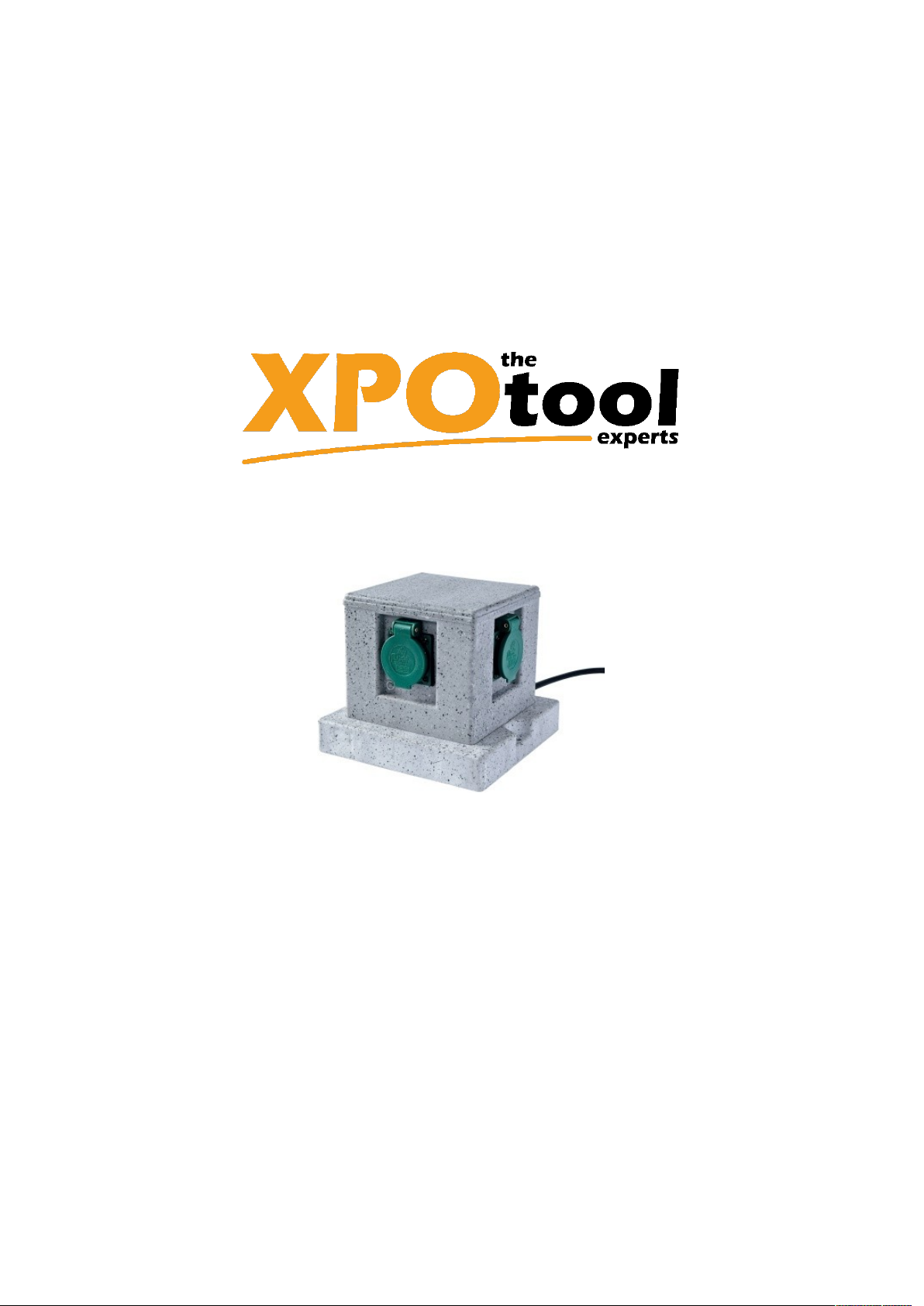

Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ insignific-
antly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.

The information contained in this document may alter at any time without previous notice. It is prohib-
ited to copy or spread any parts of this document in any way without prior written allowance. ll rights
reserved.
The WilTec Wildanger Technik GmbH cannot be held accountable for any possible mistakes in this
operating manual, nor in the diagrams and figures shown.
Even though, the WilTec Wildanger Technik GmbH has undergone biggest possible efforts to ensure
that the operating manual is complete, faultless and up to date, mistakes cannot be entirely avoided.
If you should find a mistake or wish to make a suggestion for improvement, we look forward to hearing
from you.
Send an e-mail to:
or use our contact form:
https://www.wiltec.de/contacts/
The most recent version of this manual in various languages can be found in our online shop via:
https://www.wiltec.de/docsearch
Our postal address is:
WilTec Wildanger Technik GmbH
Königsbenden 12
52249 Eschweiler
Germany
Do you wish to pick goods up? Our pick-up address is:
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler
Germany
To shorten the waiting time and allow for a rapid on-site transaction, we ask you to call us previously
or placing your order via the webshop.
E-mail: [email protected]
Tel:+49 2403 55592-0
Fax: +49 2403 55592-15
To return orders for exchange, repair or for other purposes, please use the following address. tten -
tion! To allow for a smooth execution of your complaint or return, it is important to contact our cus -
tomer service team before returning the goods.
Returns Department
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler
E-mail: [email protected]
Tel:+49 2403 55592-0
Fax: +49 2403 55592-15
https://www.XPOtool.com rtikel 62822 - 62829 Seite 2
The Tool Experts
02 2021-1

Introduction
Thank you for purchasing this quality product. To minimi e the risk of injury we urge that our cli-
ents take some basic safety precautions when using this device. Please read the operation in-
structions carefully and make sure you have understood its content.
Keep these operation instructions safe.
Safety informations and instructions
fter receiving the product, make sure that there are no damaged parts and that all parts
are present. Read the instructions carefully, especially the safety instructions, before oper-
ating the appliance.
This product can only be connected to a grounded socket that is earthed.
The socket must be placed in a stable location and horizontally or vertically.
Make sure that the socket is not inserted into a hollow. Rain might cause the socket to be
under water which must be avoided.
The socket must be installed at least 0.5 m away from any water place.
This socket has been designed to prevent it from spray water.
If you want to move the socket, it must be interrupted from the power supply before discon-
necting it.
If the product's housing is damaged (e.g. by impact) and the product cannot meet the re-
quirements of IP44, it must not be used.
The socket must only be used in an upright position. If this is not the case, you must check
whether water has already penetrated the product before using it. If water has penetrated
the socket, it must not be used.
Technical Data
Voltage: C250V, 50 Hz
Nominal Current: 16 , 3680W
Protection Type: IP44
https://www.XPOtool.com rtikel 62822 - 62829 Seite 3
The Tool Experts
02 2021-1

General description
This socket outlet is designed for household use. It meets the requirements of splash water protection
(protection class IP44). This product is not suitable for use on construction sites or other harsh envir-
onments.
The outdoor socket outlet has 2 switches, each of which can be switched on or off for two sockets via
the corresponding switch (switch position I/O).
1. Insert the appliance plug into one of the sockets of the outdoor socket.
2. If continuous current is required, the toggle switch must be set to "I".
3. Set the switch to "O". The two associated sockets are de-energised.
Operating instructions
1. Connect the cable of the product to the input power.
2. Switch on the corresponding switches for the sockets and select the desired function. If the
switch of a socket is set to "I", the socket is switched on (keep energised). If the switch of a
socket is set to "O", the socket is switched off.
Twilight Sensor
Depending on the model, the outdoor socket is equipped with a twilight sensor that can be switched on
for two sockets at a time via the corresponding switch (switch position " UTO"). The sensor reacts to
the nearest light conditions and switches the switched sockets on and off again in brightness. In gen-
eral, such a sensor should never be placed next to another light source, as it will affect it and thus may
not function properly.
1. Insert the appliance plug into one of the sockets of the outdoor socket.
2. Set the corresponding toggle switch to " UTO". The two associated sockets are no longer
supplied with continuous current. They are switched on with corresponding darkness and
switched off again with corresponding brightness.
3. If continuous current is required, the toggle switch must be set to "ON".
https://www.XPOtool.com rtikel 62822 - 62829 Seite 4
The Tool Experts
02 2021-1

Disposal regulations
EU guidelines regarding the disposal of scrap electric appliances (WEEE, 2012/19/EU) were imple-
mented in the law related to electrical and electronic equipment and appliances.
ll WilTec electric devices that fall under the WEEE regulations are labelled with the crossed-out
wheeled waste bin logo. This logo indicates that this electric equipment must not be disposed with the
domestic waste.
The company WilTec Technik GmbH has been registrated in the German registry E R under the
WEEE-registration number DE45283704.
Disposal of used electrical and electronic appliances
(intended for use in the countries of the European
Union and other European countries with a separate
collection system for these appliances).
The logo on the article or on its packaging points out
that this article must not be treated as normal house-
hold waste but must be disposed to a recycling collec-
tion point for electronic and electrical waste equip-
ment. By contributing to the correct disposal of this art-
icle you protect the environment and the health of your
fellow men. Environment and health are threatened by
inappropriate disposal.
Materials’ recycling helps reduce the consumption of raw materials.
dditional information on recycling this article can be provided by your local community, municipal
waste disposal facilities or the store where you purchased the article.
ddress:
WilTec Wildanger Technik GmbH
Königsbenden 12 / 28
D-52249 Eschweiler
Important notice:
The reprint or reproduction, even of excerpts, and any commercial use, even in part of this instructions
manual require the written permission of WilTec Wildanger Technik GmbH.
https://www.XPOtool.com rtikel 62822 - 62829 Seite 5
The Tool Experts
02 2021-1
