User Manual
G960, Q1S & Q1M

１
℃
℃

２
Contents
I.Product Overview
Overview
II. Driver Installation
Windows
Mac
III. Driver Settings UI
Windows
Mac
V. Driver Uninstall
Windows
Mac
VI. FAQ

３
Thank you for purchasing the XP-Pen tablet. Our product user manual currently supports English,
Russian, Japanese, German, Korean, Chinese, Italian, Spanish, and French. We apologize if your
preferred language is not supported
{ I. Product Overview}
Overview
Image 1-1: Overview
(1). Status indicator light
a. Blinking: Tablet connects to computer; indicator light will blink about every 3 seconds.
b. Solid: Stylus is in range.
c. No light: Stylus is out of detection range.
(2). Express keys
(3). USB cable
(4). Active work area
(5). Battery free stylus

４
{ II. Driver Installation }
Supported operating systems:
Windows 10, 8 or 7
Mac OS X 10.10 or above
NOTES：
(1). Uninstall any existing tablet software before attempting to install the G960, Q1S & Q1M’s driver. Other
tablet drivers may conflict with the G960, Q1S & Q1M’s driver or prevent installation entirely.
(2). You can download the latest driver version from the XP-Pen website (www.xp-pen.com) and be sure to
extract the “.zip” file contents before running “.exe” or “.pkg.”
Windows
(1).Connect the G960, Q1S & Q1M USB cable into your computers USB port.
(2).Please download the G960, Q1S & Q1M latest driver from the support section of our website, (www.xp-
pen.com)
(3).Extract the “.zip” file contents before running the “.exe” file.
(4).After a successful installation, the driver’s icon ( ) will appear in your system tray and on your desktop.
If the icon is not present, uninstall the driver, reboot, and repeat step 2.
Mac
(1).Connect the G960, Q1S & Q1M USB cable into your computers USB port.
(2).Please download the G960, Q1S & Q1M latest driver from the support section of our website, (www.xp-
pen.com)
(3).Extract the “.zip” file contents before running “.pkg”.
Image 2-1: Mac driver

５
{ III. Driver Settings UI }
Windows
The G960, Q1S & Q1M’s driver settings can be opened in two ways:
Double-click the driver’s icon ( ) in system tray or your desktop.
Driver UI

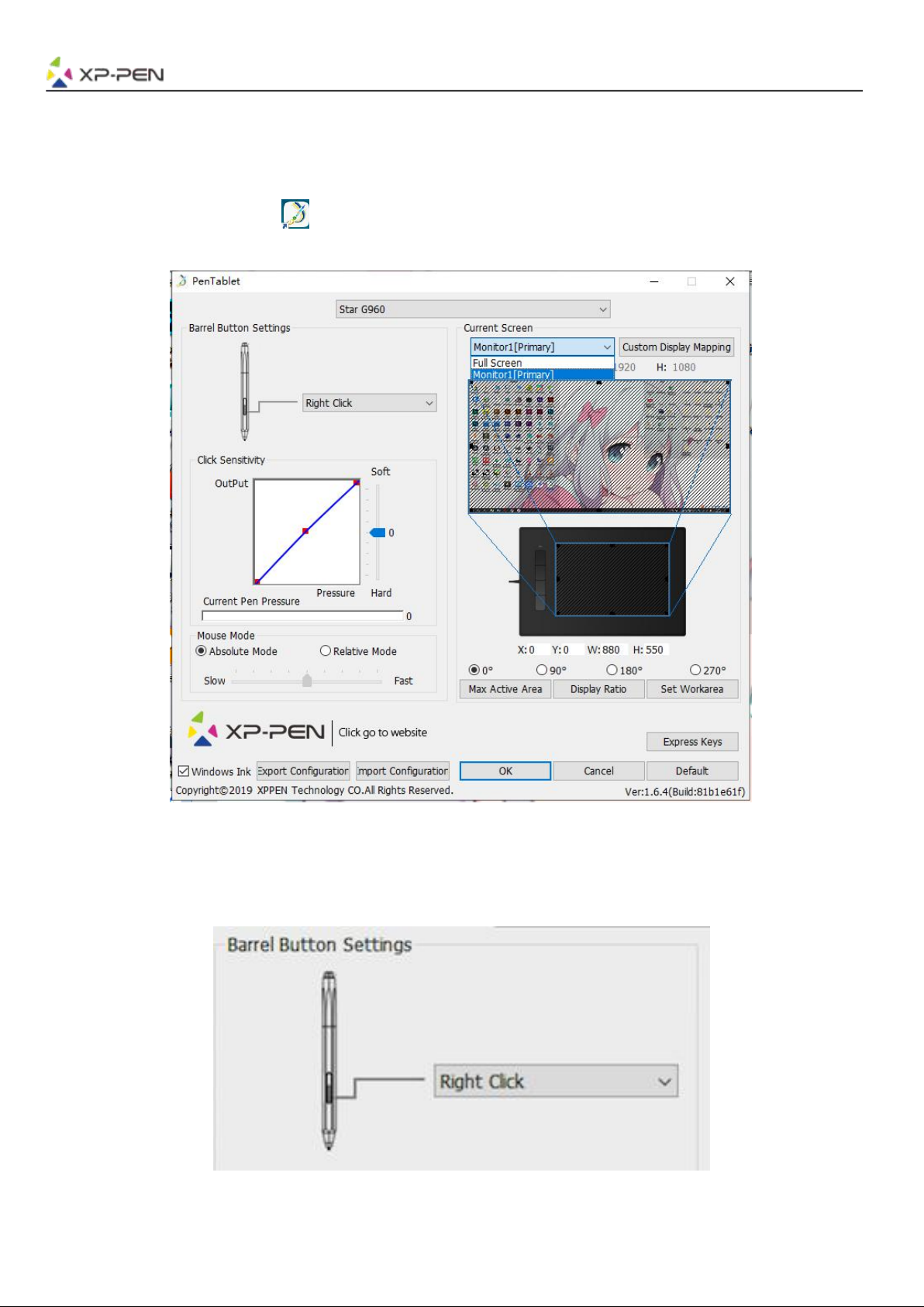

Image 3-1: UI
1.1. Pen Function Settings
You may customize the functions of your tablet pen’s barrel button here. Use the “Function Key” option
to program custom keystrokes.
Image 3-2: Pen Functions Setting
Note:
Only the top side of the Q1S & Q1M stylus can support eraser function.

６
1.2. Click Sensitivity & Current Pen Pressure
You can adjust the “Output” of the pen pressure to “Press” “Soft” or “Hard” in this section.
Current Pen Pressure shows the current pressure level being exerted on your tablet and can be used to
test pen pressure.

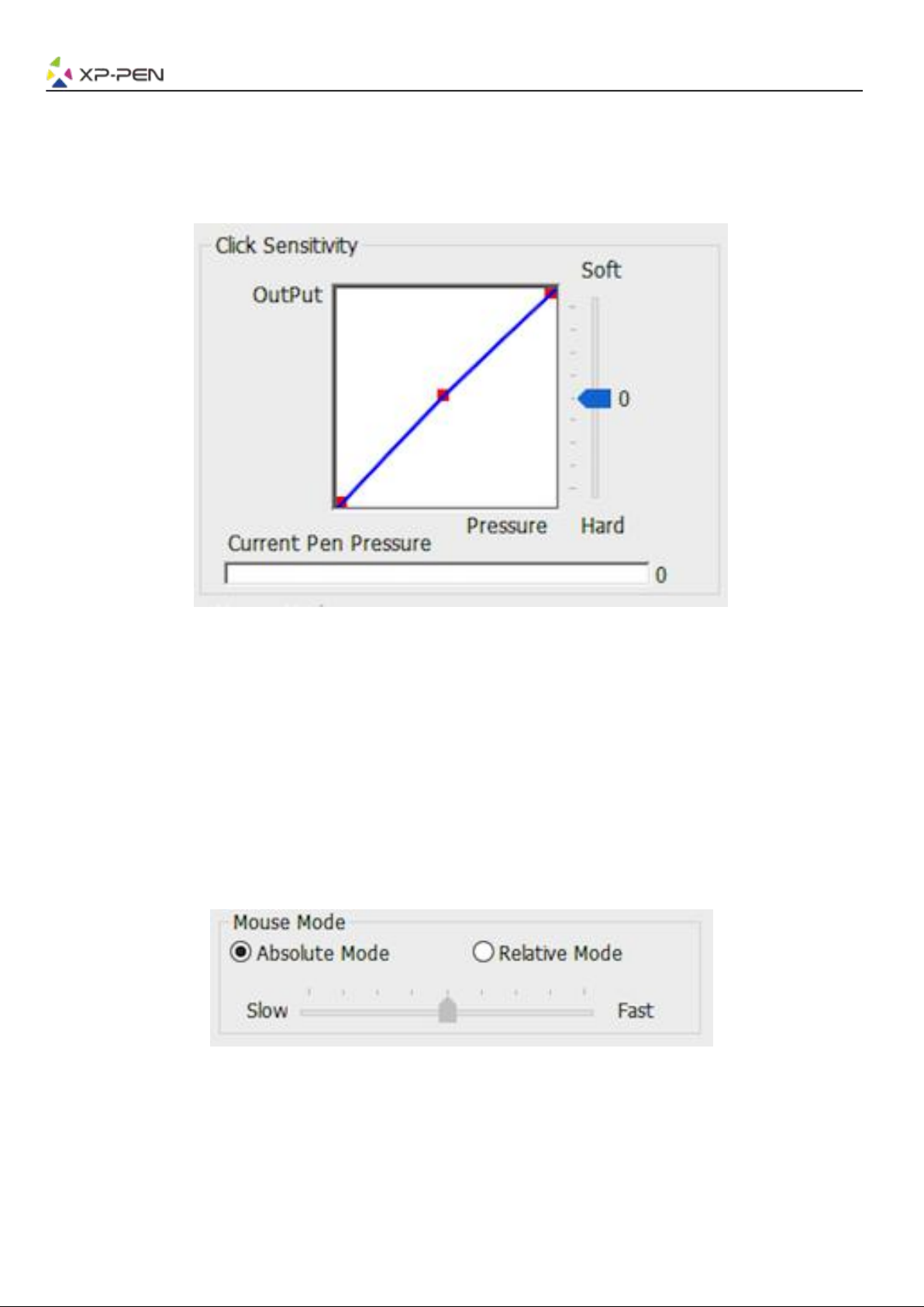

Image 3-3: Click Sensitivity & Current Pen Pressure
1.3. Mouse Mode
Absolute (Pen) Mode: Standard tablet mode; Each point of the tablet’s work area corresponds to an
absolute point on your computer display.
Relative (Mouse) Mode: Mouse mode; The tablet’s work area does not correspond to absolute points
on your computer display and your pen works as a standard mouse.
Note:
Only when you are in Relative Mode can you adjust the cursor’s speed.
Image 3-4: Mouse Mode

７
1.4. Current Screen
The G960, Q1S & Q1M may be configured for use with single or dual monitors.
If only one monitor is selected, your tablet input will be limited to that particular monitor.
Custom Display Mapping:
The dimensions of your tablet’s on-screen work area can be changed here. Please click the top-left and
bottom-right to customize.
0、90、180 & 270 angles:
The G960, Q1S & Q1M are set up for 0, 90, 180 and 270 angles and when you set it, you must also rotate
your G960, Q1S & Q1M.
Left hand is 180 angles.
You may adjust your tablet’s on-screen working area in this tab.
Set Work area:
When you click the “Set Work area” button, you can use the stylus pen to customize the G960, Q1S &
Q1M work area. Please click the top-left and bottom-right to customize.
Display Ratio:
You can set your G960, Q1S & Q1M work area adjusts the tablet’s on-screen working area to match
your monitor’s resolution.
Max Active Area:
You can set your G960, Q1S & Q1M work area to the max.
Image 3-5: Current Screen

８
1.5. Import & Export Profiles
You can use the Import & Export Profile function to save/load your barrel buttons and shortcut key
settings.
Note:
When you finish setting up your barrel buttons and shortcut keys, click the OK button to save and exit the
tablet settings menu.
Image 3-6: Export Profile
Image 3-7: Import Profile

９
1.6. Windows Ink
This capability can be toggled on and off here. Enabling this will allow support for Windows Ink and
applications that run using Windows Ink.
Image 3-8: Windows Ink
1.7. Express Keys Setting
Notes:
(a). The G960, Q1S & Q1M’s shortcut keys are designed to work with US English keyboards. Keys may not
function correctly with the other keyboard languages.
(b). By default, the G960, Q1S & Q1M express keys are mapped to standard Photoshop keyboard shortcuts.
Keys can be customized to function efficiently in other software.
Image 3-9. Keyboard
Disable express keys: When you enable it, all of the express keys function will be disabled.
Hide hints: When you enable it and press any express key, the message will not popup on the bottom of
your screen.
Image 3-10: Keys

１０
In this tab, you may edit the functions of the G960, Q1S & Q1M’s shortcut keys. Use the “Definition” option
to program custom keystrokes.
Image 3-11: Function Key
Note:
You can set each shortcut key for different software.
a. Click the “+” button to go to Select Program tab.
Image 3-12: Select Program

１１
b. You can choose Default or use Browse to select your choice of software.
Image 3-13: Select Program
c. Return to the shortcut key settings tab, click the tablet icon, and then customize the shortcut keys. When
you are finished, click “OK” and exit the tablet settings menu.
1.8. Default
You can click the Default button to restore default settings.
1.9. XP-Pen Logo
Click our logo to visit our website.
Mac
To open the G960, Q1S & Q1M’s driver settings, open Finder > Applications > PenTabletSetting.
Driver UI

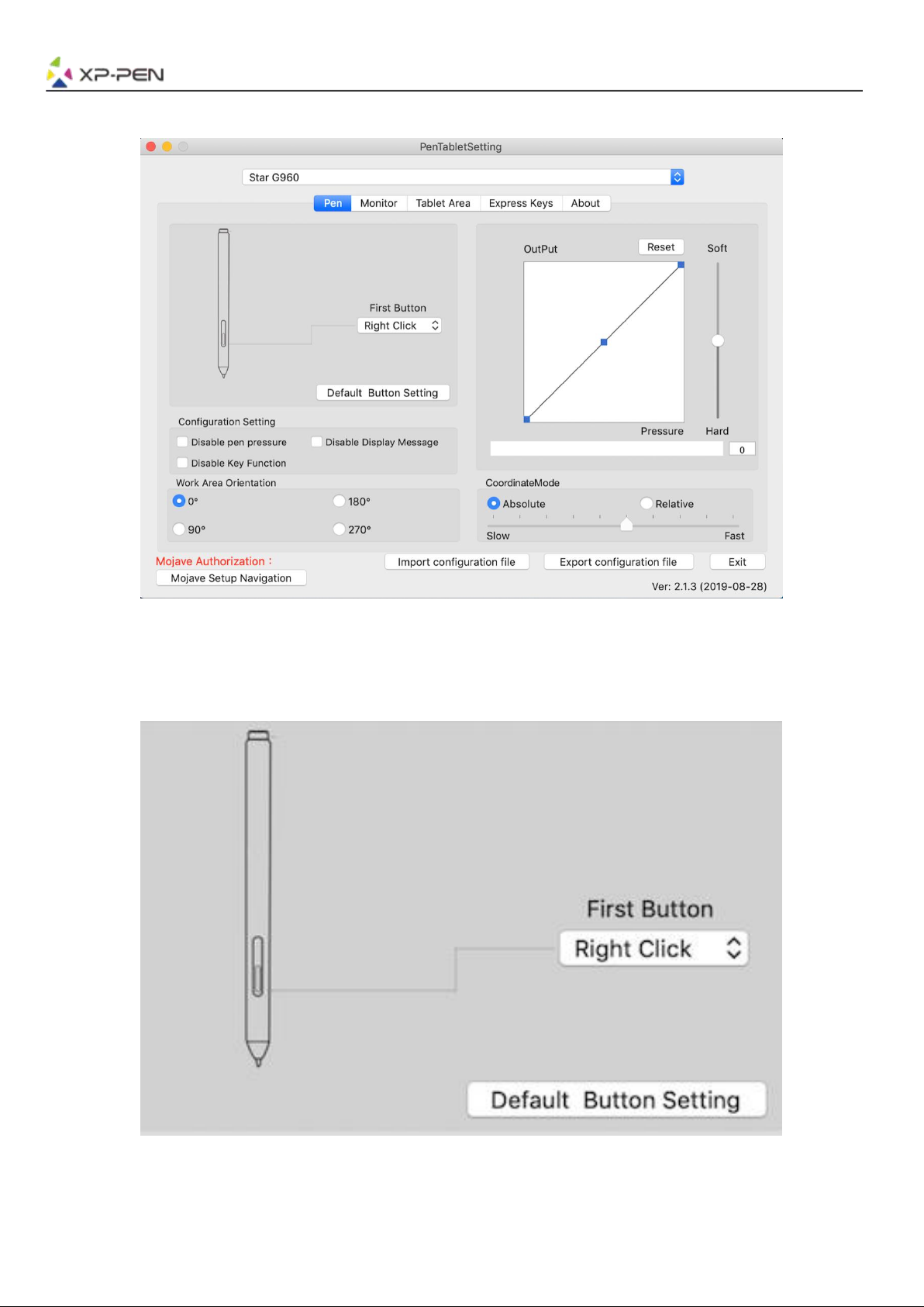

Image 3-14: Tablet Setting

１２
1. Pen
Image 3-15: Pen
1.1. In this tab, you may customize the functions of your stylus’s barrel buttons and click “Default
Button Setting” to revert to manufacturer settings.
Image 3-16: Pen
Note:
Only the top side of the Q1S & Q1M stylus can support eraser function.

１３
1.2. Configuration Setting:
Disable pen pressure: When the “Disable pen pressure” function is enabled, you can disable the pen
pressure function.
Disable Key Function: When you enable it, all of the express keys function will be disabled.
Disable Display Message: When you enable it and press any express key, the message will not popup
on the bottom of your screen.
Image 3-17: Configuration Setting
1.3. Work Area Orientation:
0, 90, 180 & 270:
The G960, Q1S & Q1M can also be configured for 0, 90, 180 & 270 angles.
Be sure to rotate the actual physical tablet as well.
Left hand is 180 angles.
Image 3-18: Work Area Orientation
1.4. Output:
You can adjust pen pressure to “Output” 、“Press” or “Soft” 、“Hard” sensitivity on here.
It shows the current pressure level being exerted on your tablet and can be used to test pen pressure.
Image 3-19: Output

１４

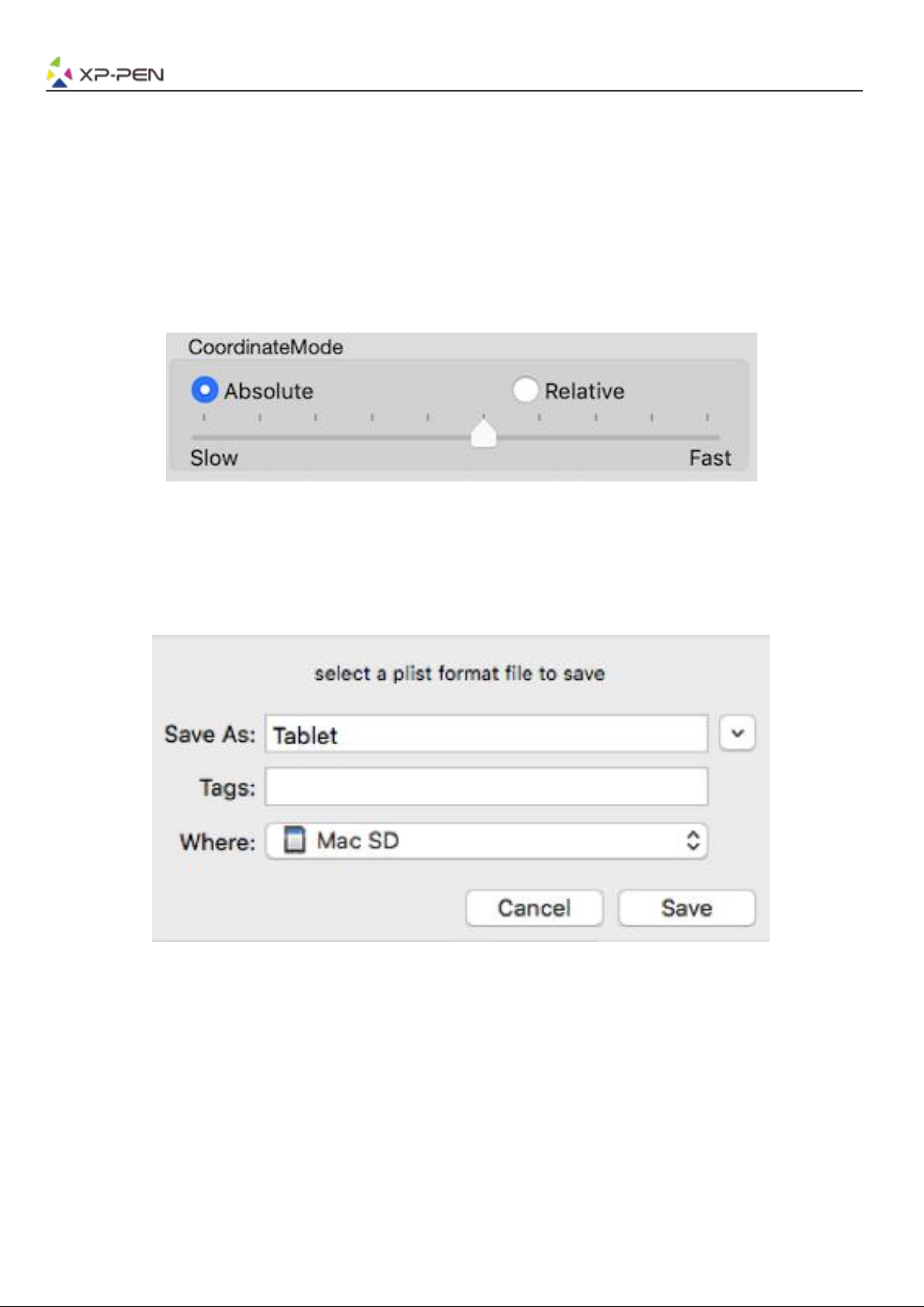

1.5. Coordinate Mode:
Absolute (Pen) Mode: Standard tablet mode; Each point of the tablet’s work area corresponds to an
absolute point on your computer display.
Relative (Mouse) Mode: Mouse mode; The tablet’s work area does not correspond to absolute points
on your computer display and works as a standard mouse.
Note:
Only when in Relative Mode can you adjust the cursor’s speed.
Image 3-20: Coordinate Mode
1.6. Import & Export Profiles
You can use the Import & Export Profile function to save/load your barrel buttons and shortcut keys
setting.
Image 3-21: Export configuration file

１５

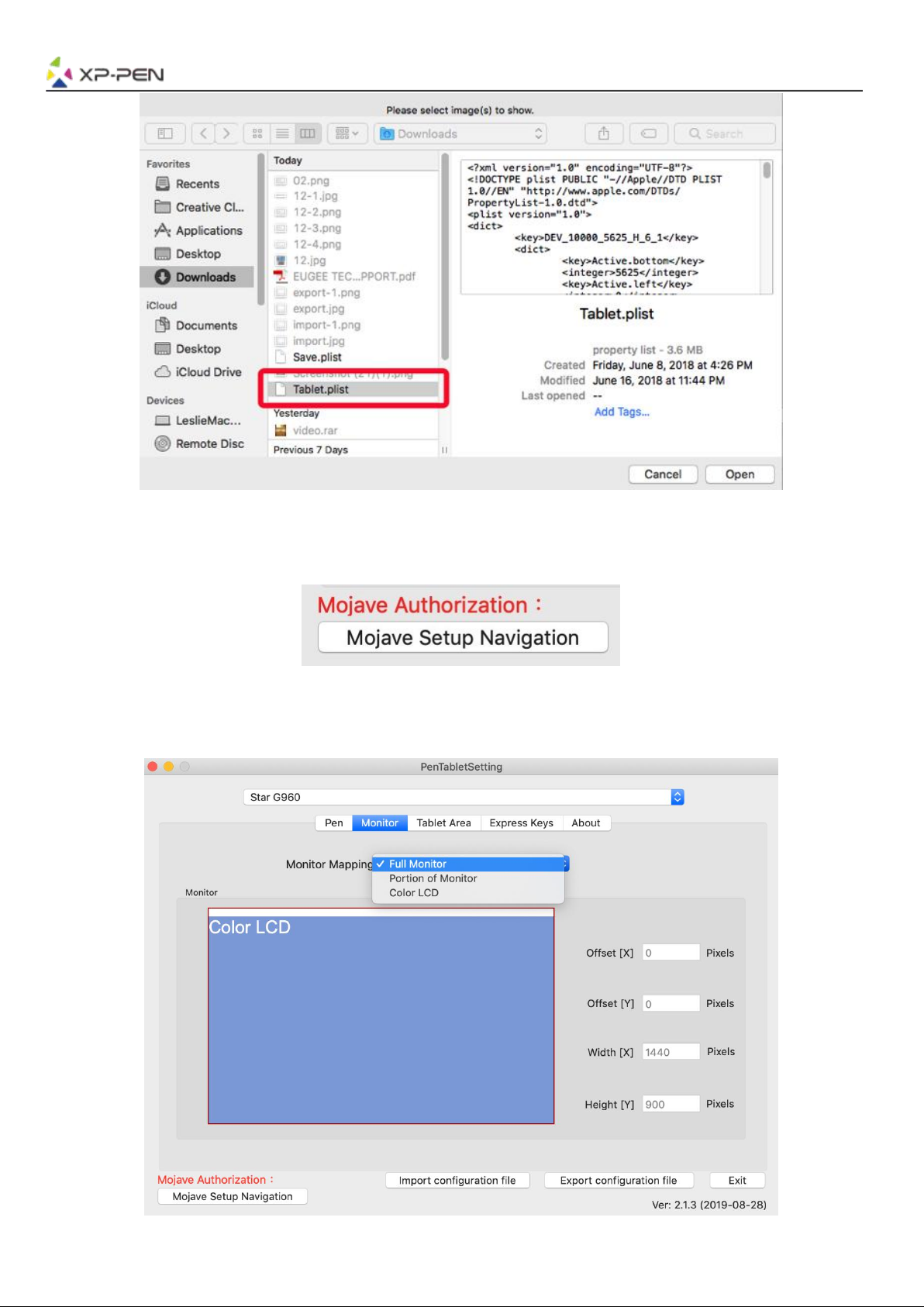

Image 3-22: Import configuration file
1.7. Mojave Setup Navigation
If your system Mojave, please click this button to setup your tablet and reboot.
Image 3-23: Mojave Setup Navigation
2. Monitor
The “Monitor” tab allows you to configure G960, Q1S & Q1M for use with single or dual monitors. The
tablet can also be configured to use only a portion of your display.
Image 3-24: Monitor

１６
3. Tablet Area
You may adjust your tablet’s on-screen working area in this tab.
3.1. Full Area automatically selects the largest possible working area.
3.2. Screen Ratio adjusts the tablet’s on-screen working area to match your monitor’s resolution.
Image 3-25: Full Area
4. Express Keys
Notes:
(a). The G960, Q1S & Q1M’s shortcut keys are designed to work with US English keyboards. Keys may not
function correctly with the other keyboard languages.
(b). By default, the G960, Q1S & Q1M’s express keys are mapped to standard Photoshop keyboard shortcuts.
Keys can be customized to function efficiently in other software.
4.1. In the Express Keys tab, each express key has default.

１７

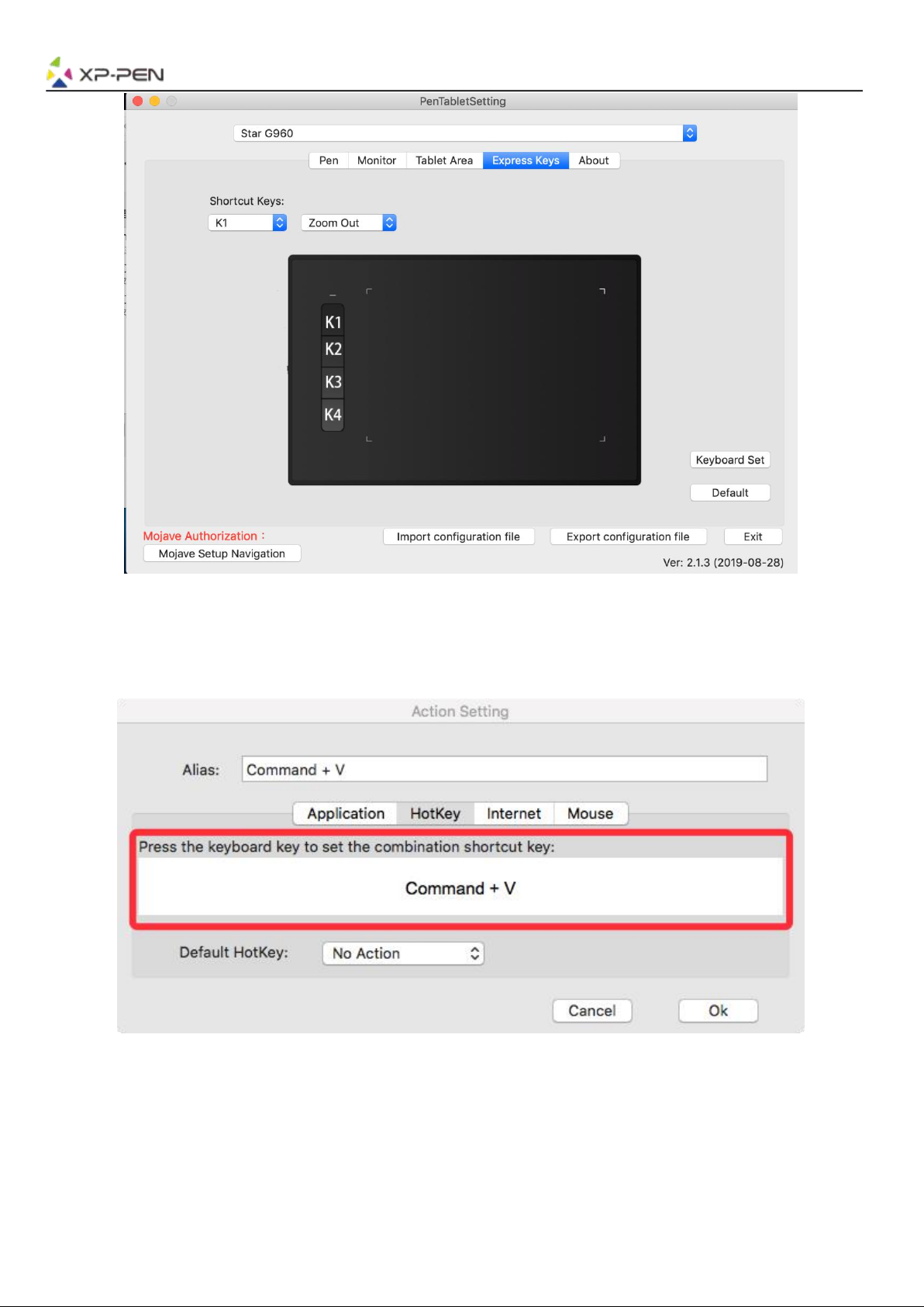

Image 3-26: Express keys
You may choose your preferred functions for the G960, Q1S & Q1M’s shortcut keys. Use the “Reset Customer
Defined” option to program custom keystrokes.
Image 3-27: Action Setting

１８
You can set each shortcut key for different software.
a. Click the “+” button to go to Select Program tab.
Image 3-28: Select Program
b. Your choice of software.

１９

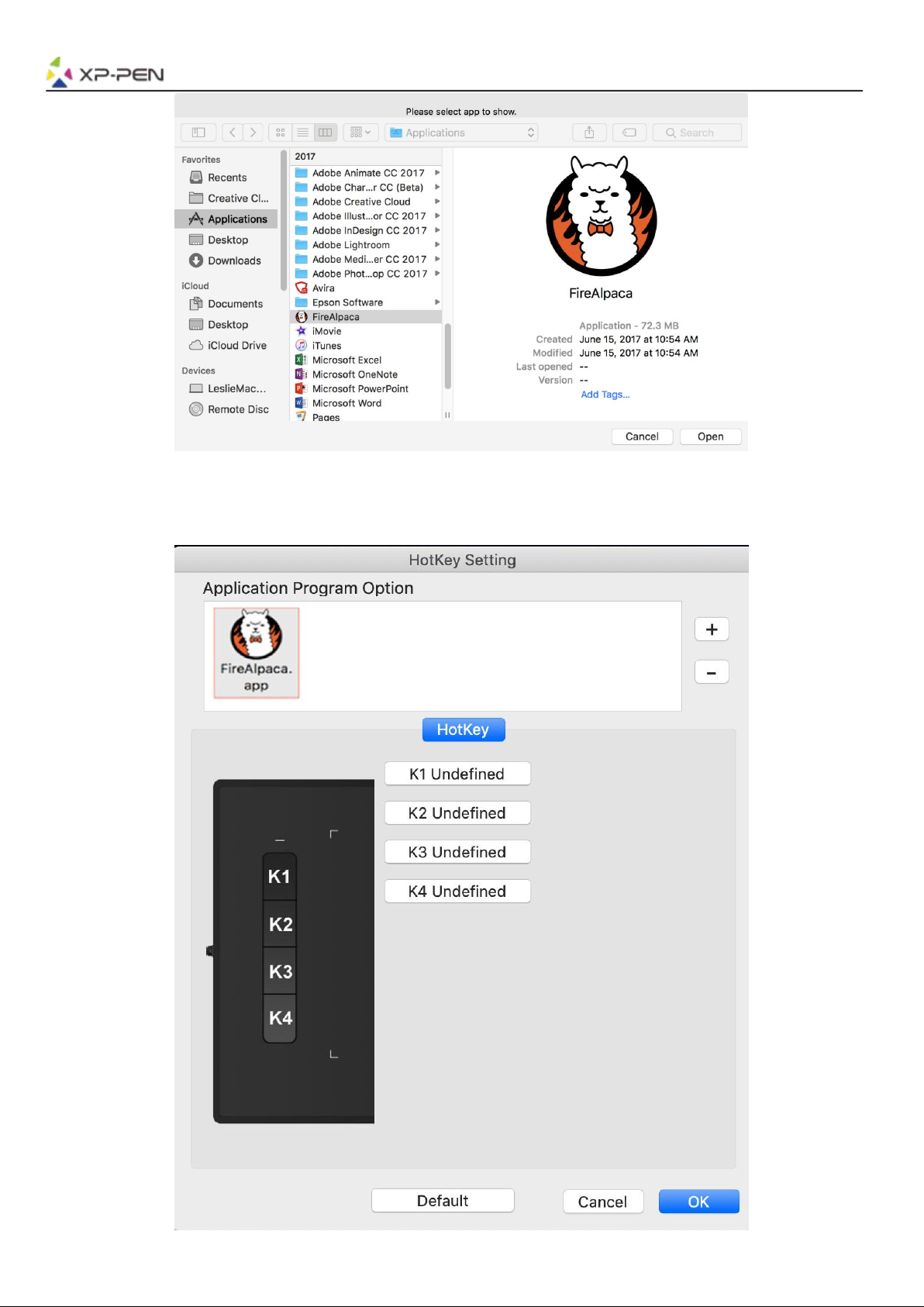

Image 3-29: Select Program
c. Return to the shortcut key settings tab, click the tablet icon then customize the shortcut keys. When you
are finished, click the OK button and exit the tablet settings menu.
Image 3-30: Hot Key
