XPPen Artist 12 Pro User manual

User Manual
Artist 12 Pro, 13.3 Pro & 15.6 Pro

１
℃
℃

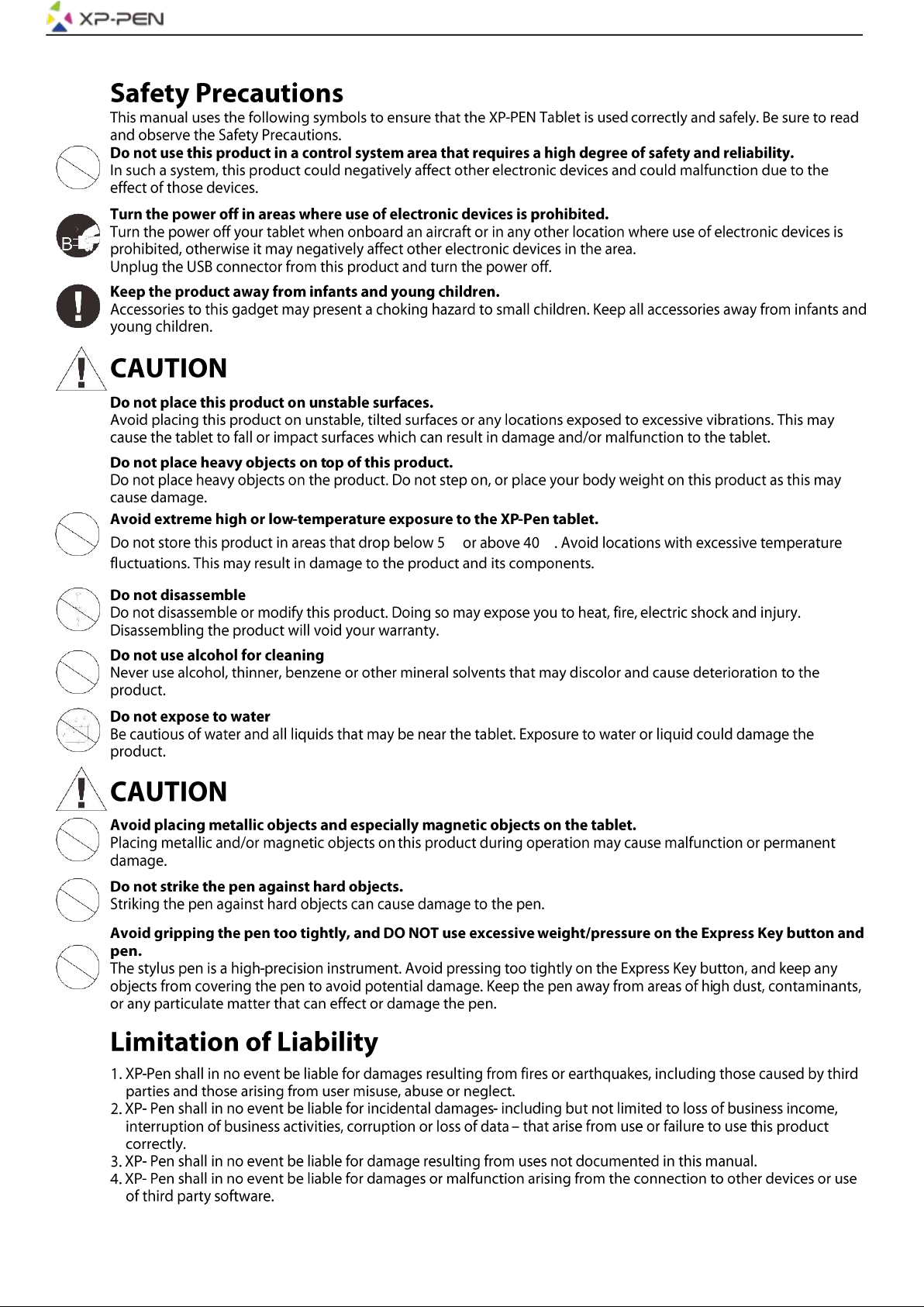

２
Contents
I. Product Overview
Overview
II. Connecting the Artist 12 Pro, 13.3 Pro & 15.6 Pro
III. Driver Installation
Windows
Mac
IV. Driver Settings UI
Windows
Mac
V. Driver Uninstall
Windows
Mac
VI. FAQ

３
Thank you for purchasing the XP-Pen Artist 12 Pro, 13.3 Pro & 15.6 Pro. Our product user manual
currently supports English, Russian, Japanese, German, Korean, Chinese, Italian, Spanish, and French.
We apologize if your preferred language is not supported.
{ I. Product Overview }
Overview

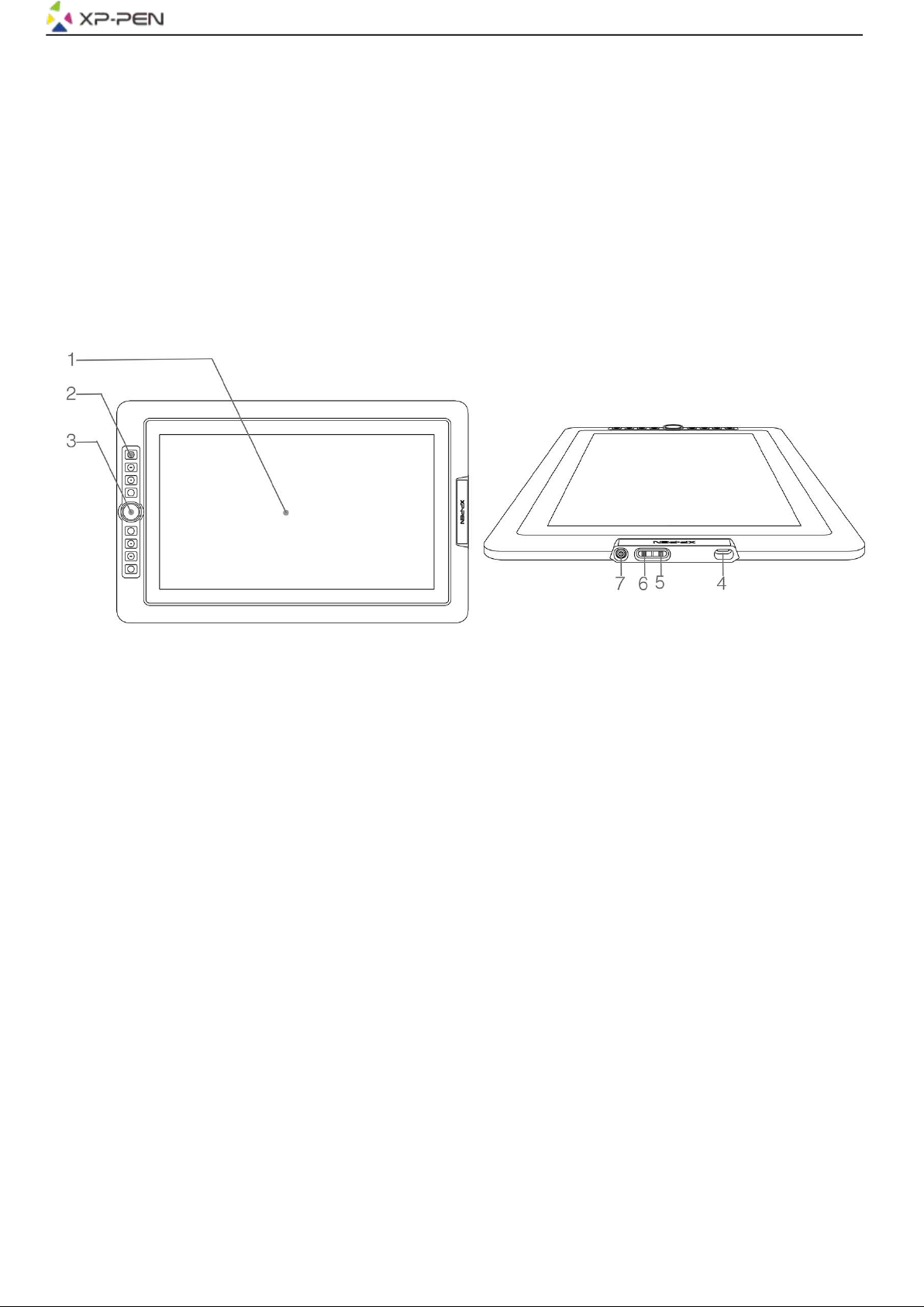

Image 1-1. Overview
(1). Display/Working area
(2). Express keys
(3). Roller key
(4). USB port
(5). Brightness up
(6). Brightness down
(7). Status indicator light
a. Blue: The Artist 12 Pro, 13.3 Pro & 15.6 Pro is connected to your computer and powered on.
b. No Light: The Artist 12 Pro, 13.3 Pro & 15.6 Pro is powered off.
、

４
{ II.Connecting the Artist 12 Pro,
13.3 Pro & 15.6 Pro }
1.Connect to the internet.
2.Close any open applications.
3.Connect the Artist 12 Pro, 13.3 Pro & 15.6 Pro to your computer, using one of either of the two methods
below:
a. Plug the USB cable into the Artist 12 Pro, 13.3 Pro & 15.6 Pro first and then connect
the HDMI and black and red USB cords into your computer.
Image 2-1. Connection
b. Plug USB cable into Artist 12 Pro, 13.3 Pro & 15.6 Pro first, then connect the HDMI and black USB cords
into the computer. Plug the red USB cord into the extender cable, USB adapter, and wall outlet.
Image 2-2. Connection
Notes:
a. Do not use a type-C to type-C USB cable to connect the Artist 12 Pro, 13.3 Pro & 15.6 Pro.
b. If your computer is a desktop, please connect the Artist 12 Pro, 13.3 Pro & 15.6 Pro HDMI cable into the
same video card as your general monitor.

５
{ III. Driver Installation }
Supported operating systems:
Windows 10, 8 or 7
Mac OS X 10.10 or above
NOTES：
(1). Disable any antivirus or firewall software and close any non-essential background software before
beginning the installation. Some software, such as OneDrive and Dropbox, may monopolize important
files and prevent a successful installation. On Windows computers, check the system tray on the bottom-
right of the screen and close any software unrelated to your computer hardware.
(2). Uninstall any existing tablet software before attempting to install the Artist 12 Pro, 13.3 Pro & 15.6 Pro
driver. Other tablet drivers may conflict with the Artist 12 Pro, 13.3 Pro & 15.6 Pro driver or prevent
installation entirely.
(3). Visit the XP-Pen official website and then download and install the latest driver for your tablet. When
download complete, be sure to extract the “.zip” file contents before running “.exe” or “.pkg.”
(4). The Artist 12 Pro, 13.3 Pro & 15.6 Pro resolution size is 1920x1080 (max).
Windows
1. Connect the Artist 12 Pro, 13.3 Pro & 15.6 Pro to your computer as per the diagram on p. 4
2. Visit the XP-Pen website - https://www.xp-pen.com/download/index/id/65.html and download the most
recent driver release for your tablet model.
3. Once the zip file is downloaded, please open your Downloads folder and find the zip file.
4. Open that zip folder - You should see a folder inside with the same name as the zip file.
5. Extract that folder from within the zip folder onto your desktop by left clicking and dragging it from the zip
folder and onto your desktop.
a. It is very important that file is extracted to the desktop or else the program will not install properly.
6. Open the extracted folder by double clicking, right click the .exe file found inside, and choose "Run as
Administrator". When the system prompts you if you want to allow this file to make changes select "Yes"
7. Follow the prompts from the installation program to install the driver.
8. When the driver has finished installing, restart your computer
9. After a successful installation, the driver’s icon ( ) will appear in your system tray. If the icon is not
present, uninstall the driver, reboot, and repeat step 2.
Right click your desktop and choose “Display Settings.” Set monitor’s “Size to text, apps, etc.” to 100%.
Image 3-1. Text

６
1. On the display setting, you can set your monitors to “Extend these displays” or “Duplicate these displays”.
2. In Extend mode, set your Artist 12 Pro, 13.3 Pro & 15.6 Pro to monitor 2 and choose a resolution of
1920x1080.
3. In Duplicate mode, set both of your monitors to the same resolutions.
Image 3-2. Display setting
4. Click OK button to exit.
5. Double-click the tablet driver’s system tray icon to open your tablet settings. Set your Artist 12 Pro, 13.3 Pro
& 15.6 Pro’s “Current Screen” to Monitor 2, then click Apply and exit.
Image 3-3. Current Screen

７
Mac
1. Plug USB cable into Artist 12 Pro, 13.3 Pro & 15.6 Pro first then connects HDMI and USB codes (Black & Red)
into your computer.
2. Download the latest driver version from the XP-Pen website and be sure to extract the “.zip” file contents
onto your desktop before running “.pkg”.

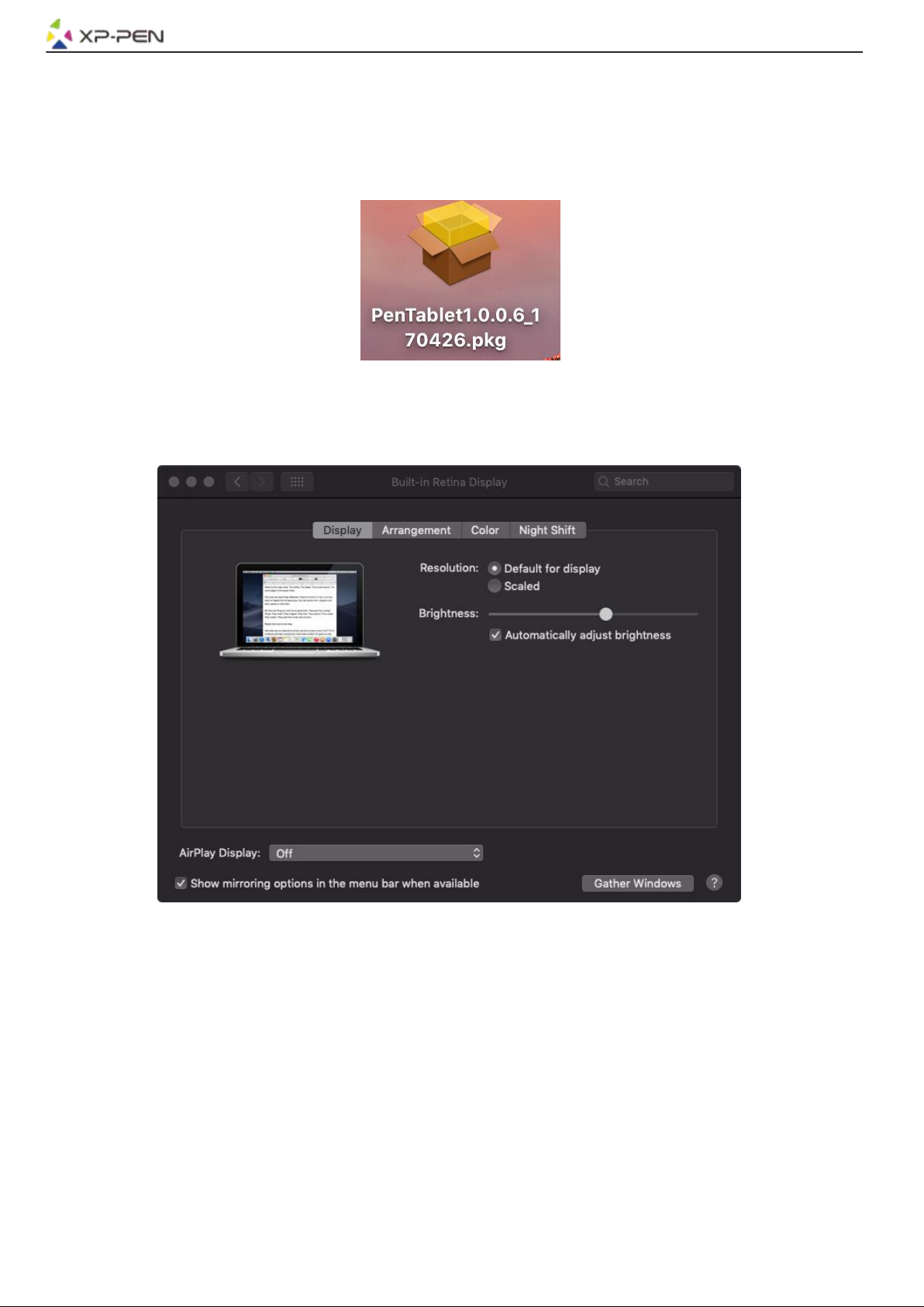

Image 3-4. Mac driver
3. Follow the on-screen instructions until complete.
4. Open“System preferences”–“Display” then set Resolutions to“Default for display”.
Image 3-5. Display

８
Image 3-6. Arrangement
5. In the Arrangement tab, you may choose to Mirror Displays. With Mirror Displays enabled, both monitors’
resolutions should be the same.
(5.1) Open “Finder” – “Applications” – “PenTable” – “Pen Tablet Setting”.
(5.2) In the Monitor tab, set Monitor Mapping to iMac/Color LCD.
6. With Mirror Displays disabled, set your Artist 12 Pro, 13.3 Pro & 15.6 Pro’s resolution to 1920x1080.
(6.1) Open “Finder” – “Applications” – “PenTable” – “Pen Tablet Setting”.
(6.2) In the monitor tab, set Monitor Mapping to Artist 12 Pro, 13.3 Pro & 15.6 Pro.
Image 3-7. Monitor

９
{ IV. Driver Settings UI }
Windows
Double-click the driver’s icon ( ) in the system tray.
Driver UI
Image 4-1. Image 4-1. UI
1.1. Pen Function Settings
You may customize the functions of your tablet pen’s barrel buttons here. Use the “Function Key”
option to program custom keystrokes.
Image 4-2. Pen Functions Setting
Note:
Pen/Eraser Toggle
With the stylus in range of the Artist12 Pro, 13.3 Pro & 15.6 Pro’s working area, press the assigned barrel
button to toggle between pen and eraser modes in compatible drawing software. The current mode will be
displayed briefly on your monitor.

１０

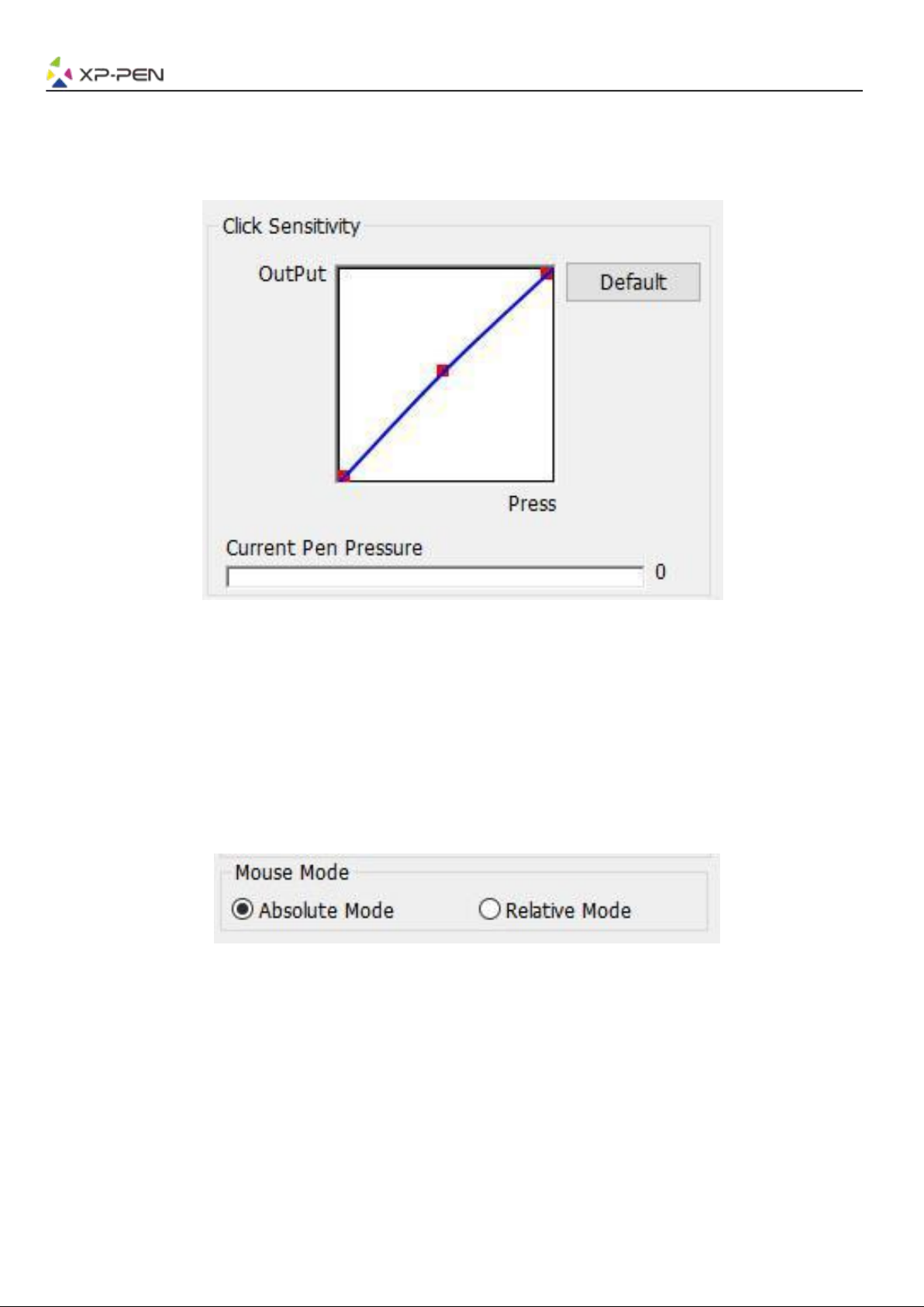

1.2. Click Sensitivity & Current Pen Pressure
You can adjust pen pressure to “Output” or “Press” sensitivity on here.
Current Pen Pressure shows the current pressure level being exerted on your tablet and can be used to
test pen pressure.
Image 4-3. Click Sensitivity & Current Pen Pressure
1.3. Mouse Mode
Absolute (Pen) Mode: Standard tablet mode; Each point of the tablet’s work area corresponds to an
absolute point on your computer display.
Relative (Mouse) Mode: Mouse mode; The tablet’s work area does not correspond to absolute points on
your computer display and your pen works as a standard mouse.
Note:
Artist 12 Pro, 13.3 Pro & 15.6 Pro is a graphic tablet monitor so please set it to Absolute mode to avoid stylus
and cursor offset issue.
Image 4-4. Mouse Mode
1.4. Current Screen
The Artist 12 Pro, 13.3 Pro & 15.6 Pro may be configured for use with single or dual monitors. Generally,
this should be set to “Monitor 1” or Monitor 2.”

１１
Image 4-5. Current Screen
1.5. Windows Ink
This capability can be toggled on and off here. Enabling this will allow support for Windows Ink and
applications that run using Windows Ink.
Image 4-6. Windows Ink
1.6. Import & Export Profiles
Image 4-7. Export & Import
You can use the Import & Export Profile function to save/load your barrel buttons and shortcut keys setting.
Note:
When you finish setting up your barrel buttons and shortcut keys, click the OK button to save and exit the
tablet settings menu. Open tablet setting again and click Export Configuration.

１２
Image 4-8. Export Profile
Image 4-9. Import Profile

１３
1.7. Calibration
The Calibration tab allows you to set up calibration for your tablet.
Image 4-10. Calibration
1.8. Display Setting
a. Color Temperature: Use to adjust the Artist 12 Pro, 13.3 Pro & 15.6 Pro’s color balance.
b. User: Use to adjust red, green, and blue color levels on the Artist 12 Pro, 13.3 Pro & 15.6 Pro’s display.
Brightness and contrast can also be adjusted here.
c. Rotate: You may rotate the Artist 12 Pro, 13.3 Pro & 15.6 Pro’s display in this tab.
Image 4-11. Display Setting
Note:
a. When you set the rotate function, you must also rotate your Artist 12 Pro, 13.3 Pro & 15.6 Pro.
b. You must set the Artist 12 Pro, 13.3 Pro & 15.6 Pro to Extend These Displays first, after which you can
change the rotation.

１４
1.9. Express Keys Setting
Notes:
(a). The Artist 12 Pro, 13.3 Pro & 15.6 Pro’s shortcut keys are designed to work with US English keyboards.
Keys may not function correctly with the other keyboard languages.
(b). By default, the Artist 12 Pro, 13.3 Pro & 15.6 Pro express keys are mapped to standard Photoshop
keyboard shortcuts. Keys can be customized to function efficiently in other software.
(c). You must set one express key from the Switch function to switch dial.
Image 4-12. Keyboard
Image 4-13. Keys
You may edit the functions of the Artist 12 Pro, 13.3 Pro & 15.6 Pro’s shortcut keys. Use the “Definition”
option to program custom keystrokes.

１５

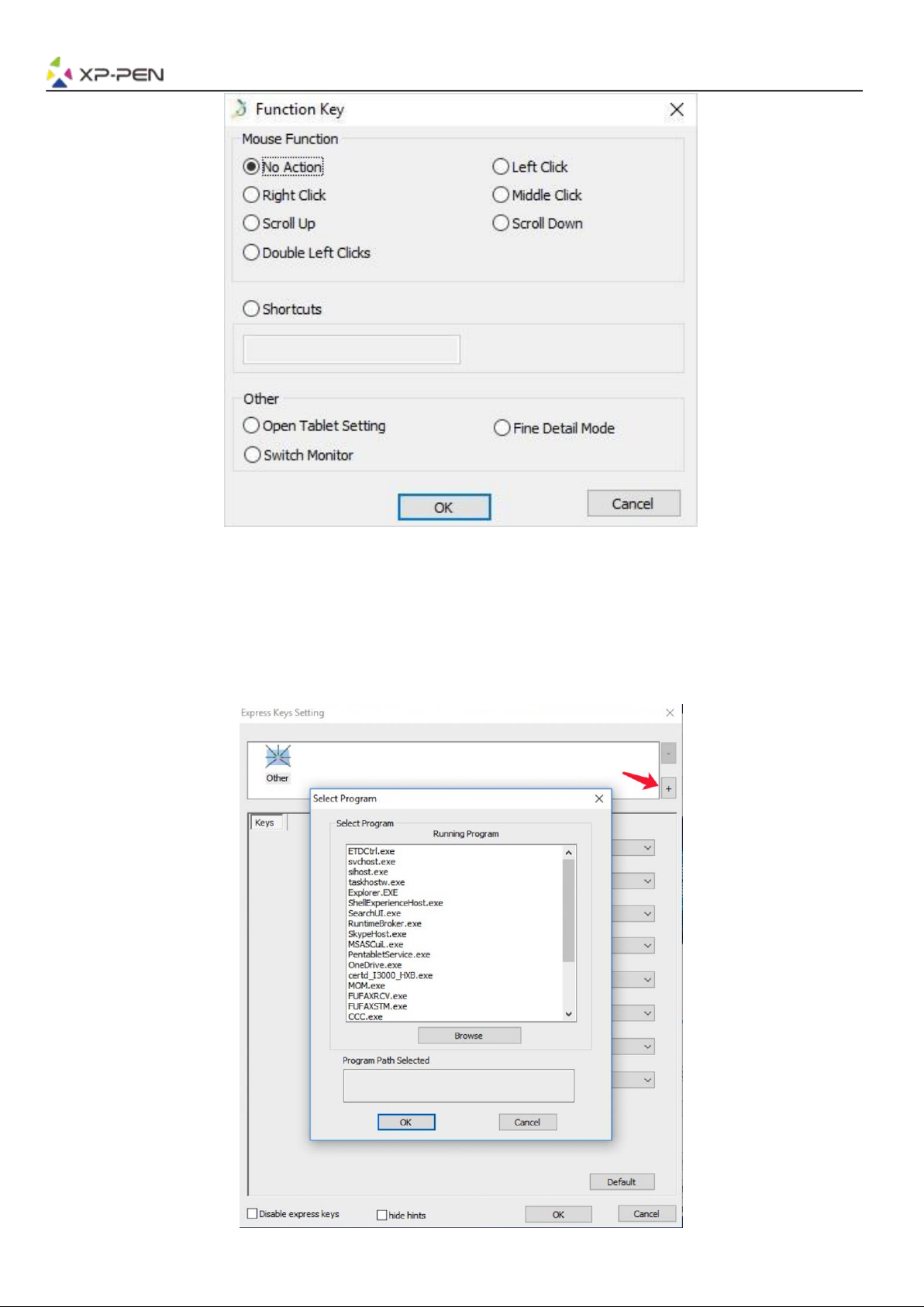

Image 4-14. Function Key
Note:
Find Detail Mode allow your Artist 12 Pro, 13.3 Pro & 15.6 Pro work area focus on the small size scope to do
detail drawing & editing.
You can set each shortcut key for different software.
a. Click the “+” button to go to Select Program tab.
Image 4-15. Select Program

１６

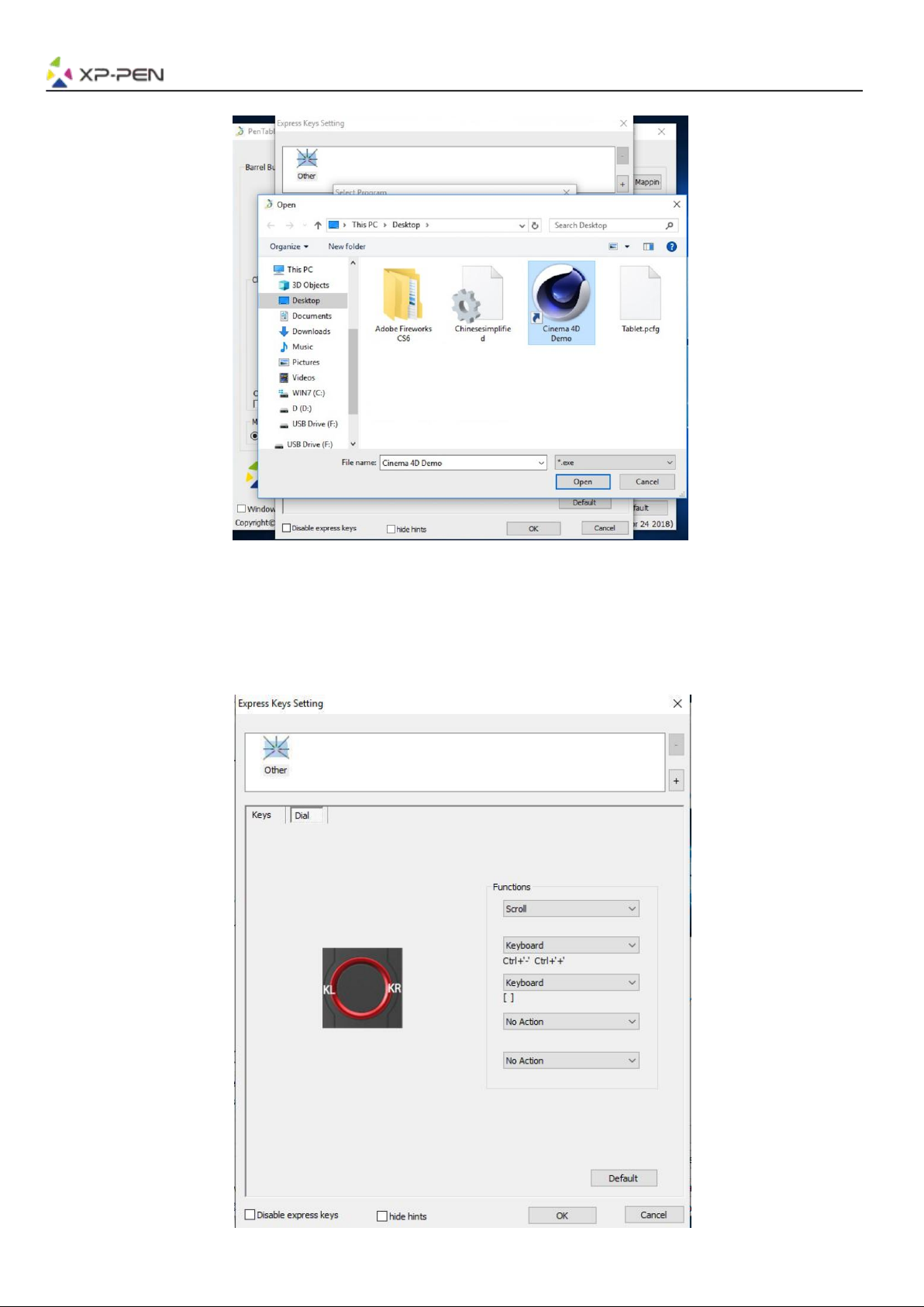

b. You can choose Default or use Browse to select your choice of software.
Image 4-16. Select Program
c. Return to the shortcut key settings tab, click the tablet icon, and then customize the shortcut keys. When
you are finished, click the OK button and exit the tablet settings menu.
You can set each dial for different software.
a.Click software icon first then go to Dial tab.
Image 4-17. Dial

１７

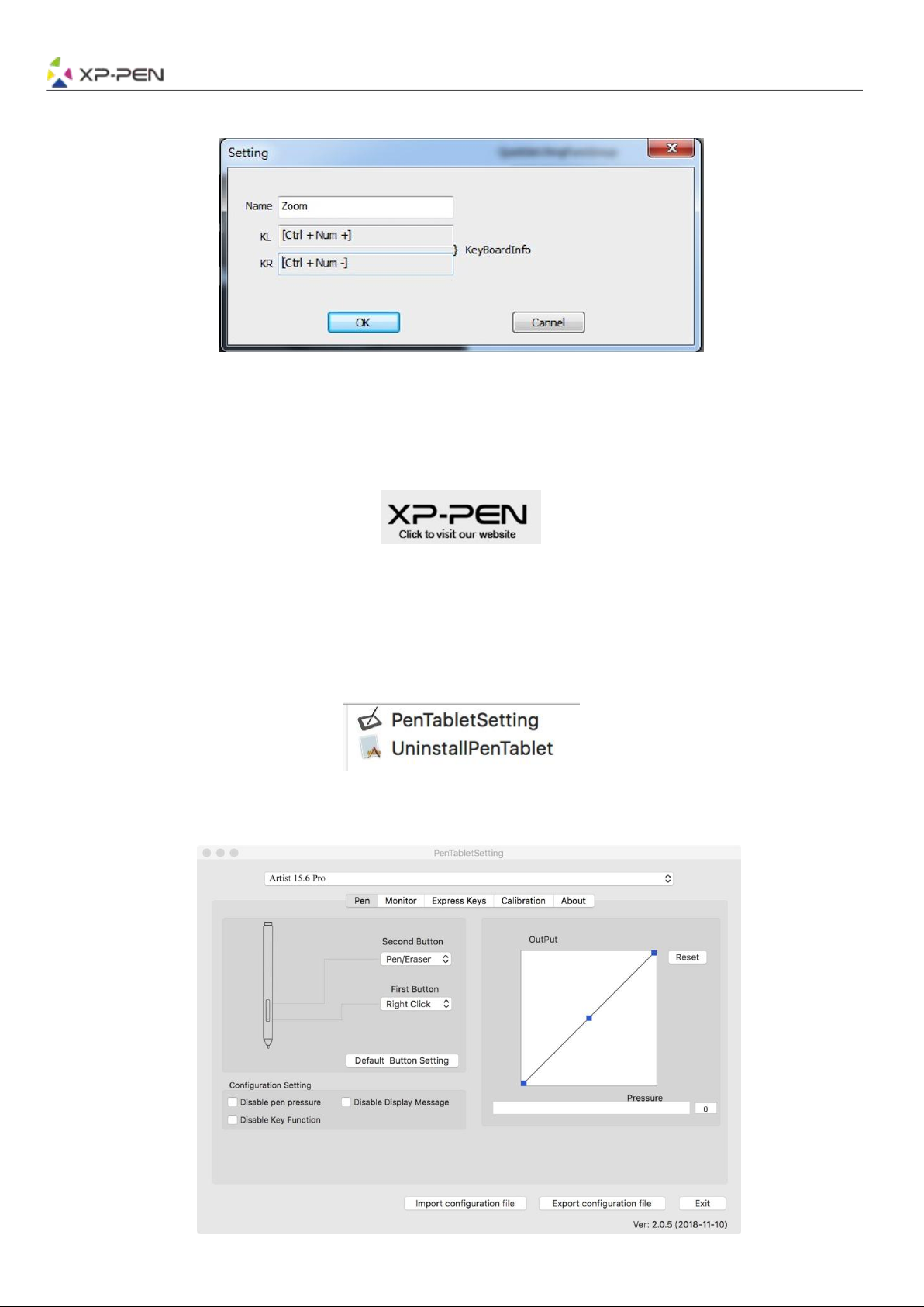

b. Click each dial function to “Function key”.
c. On the setting tab, you can customize “KL” and “KR” to different shortcuts like Ctrl+ & Ctrl-.
Image 4-18. Setting
1.10. Default
You can click the Default button to restore default settings.
1.11. XP-Pen Logo
Click our logo to visit our website.
Image 4-19. XP-Pen logo
Mac
To open the Artist 12 Pro, 13.3 Pro & 15.6 Pro’s driver settings, open Finder - Applications - PenTabletSetting.
Image 4-20. Tablet Setting
1.1. Pen
Image 4-21. Mac UI

１８

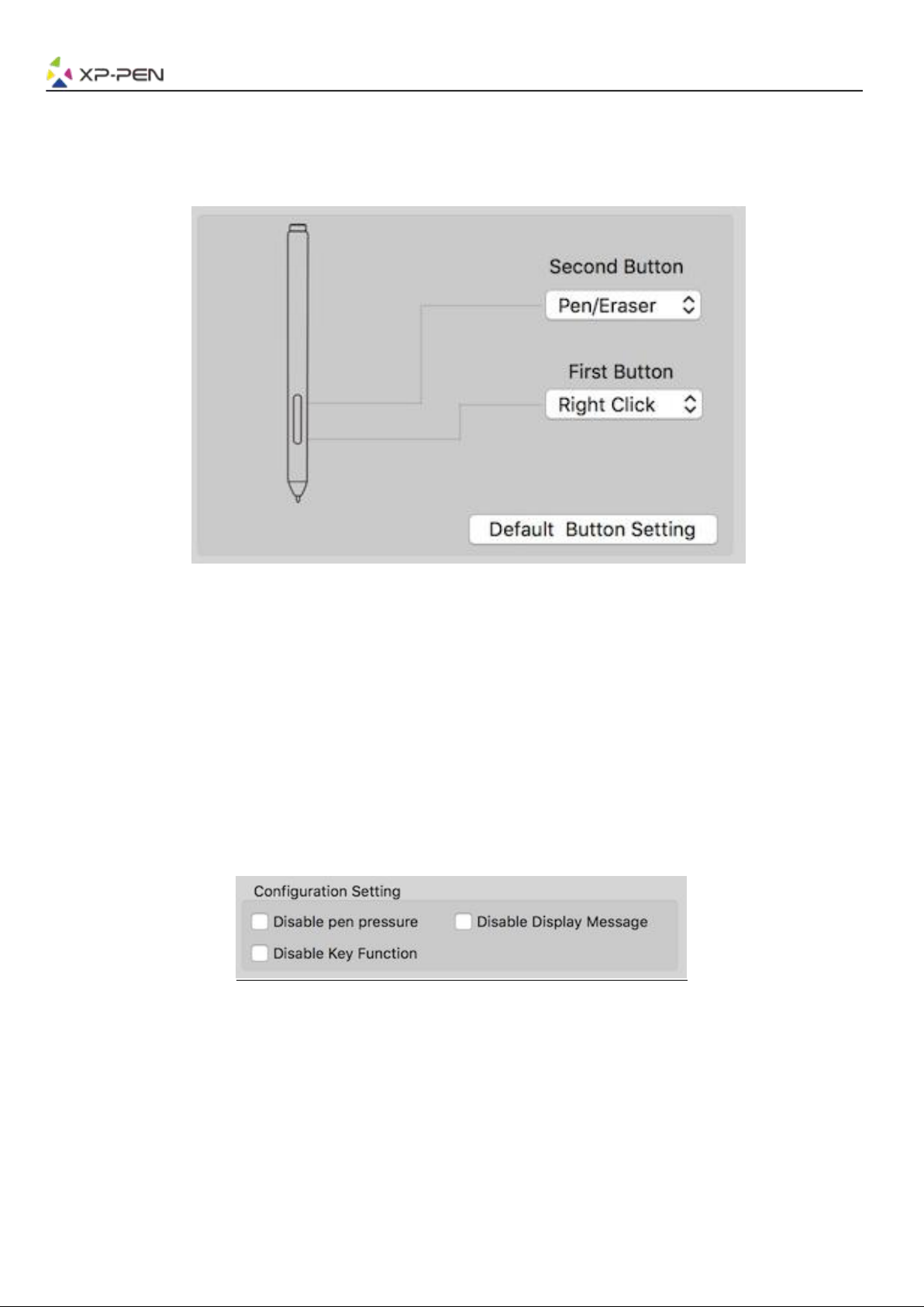

a. In this tab, you may customize the functions of your stylus’s barrel buttons, adjust pressure sensitivity,
and test your pen pressure.
b. Click “Default Button Setting” to revert to manufacturer settings.
Image 4-22. Pen
Note:
Pen/Eraser Toggle
With the stylus in range of the Artist12 Pro, 13.3 Pro & 15.6 Pro’s working area, press the assigned barrel
button to toggle between pen and eraser modes in compatible drawing software. The current mode will
briefly be displayed on your monitor.
c. Disable pen pressure: When the “Disable pen pressure” function is enabled, you can disable the pen
pressure function.
d. Disable Key Function: When you enable it, all of the express keys function will be disabled.
e. Disable Display Message: When you enable it and press any express key, the message will not popup on
the bottom of your screen.
Image 4-23. Configuration Setting

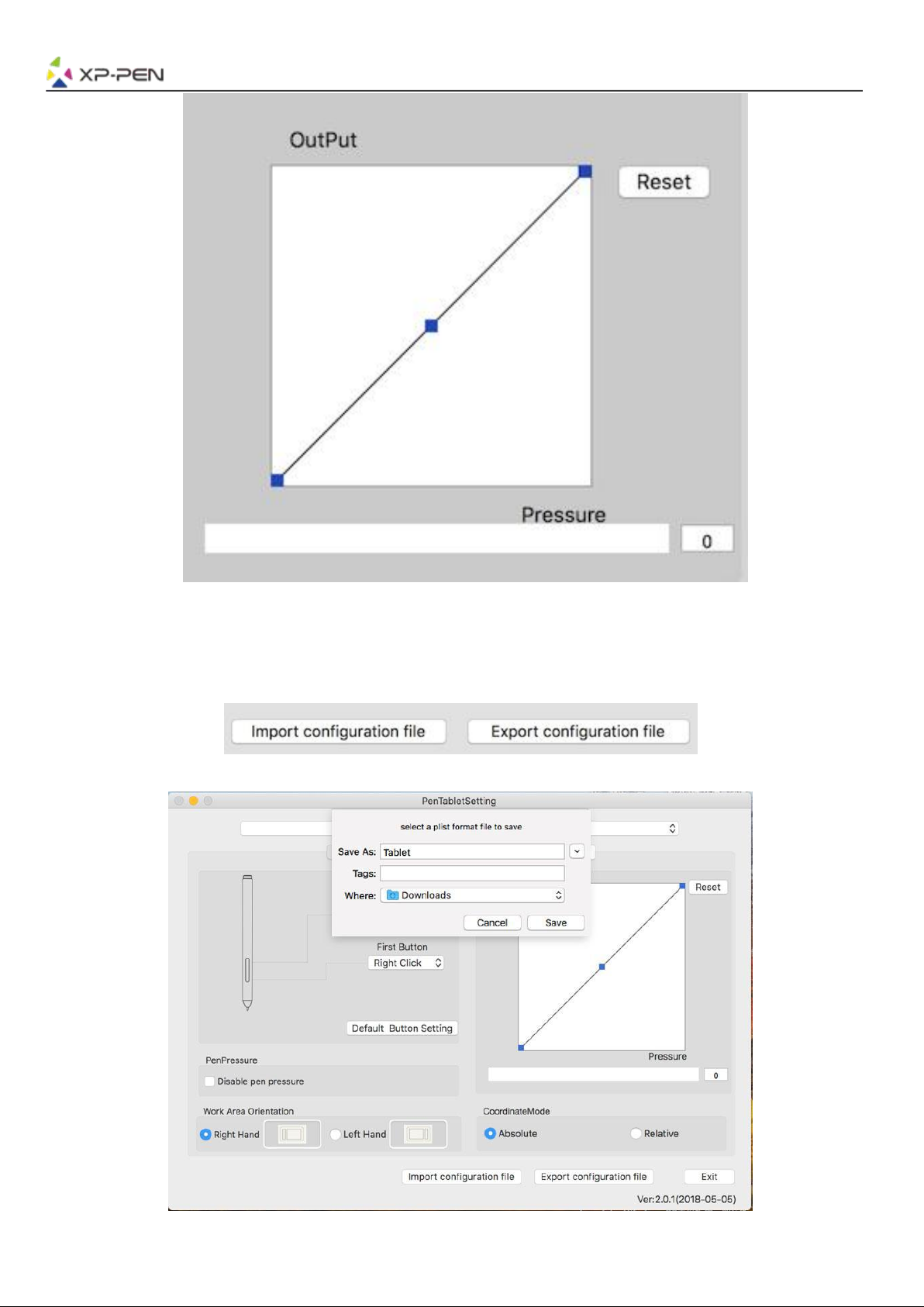

f . Output: You can adjust pen pressure to “Output” or “Press” sensitivity on here.
It shows the current pressure level being exerted on your tablet and can be used to test pen pressure.

１９
Image 4-24. Output
g .Import & Export Profiles: You can use the Import & Export Profile function to save/load your barrel
buttons and shortcut keys setting.
Image 4-25. Import & Export Profiles
Image 4-26. Export configuration file
