XPPen Deco 01 V2 User manual

User Manual
Deco 01 V2

１
℃
℃

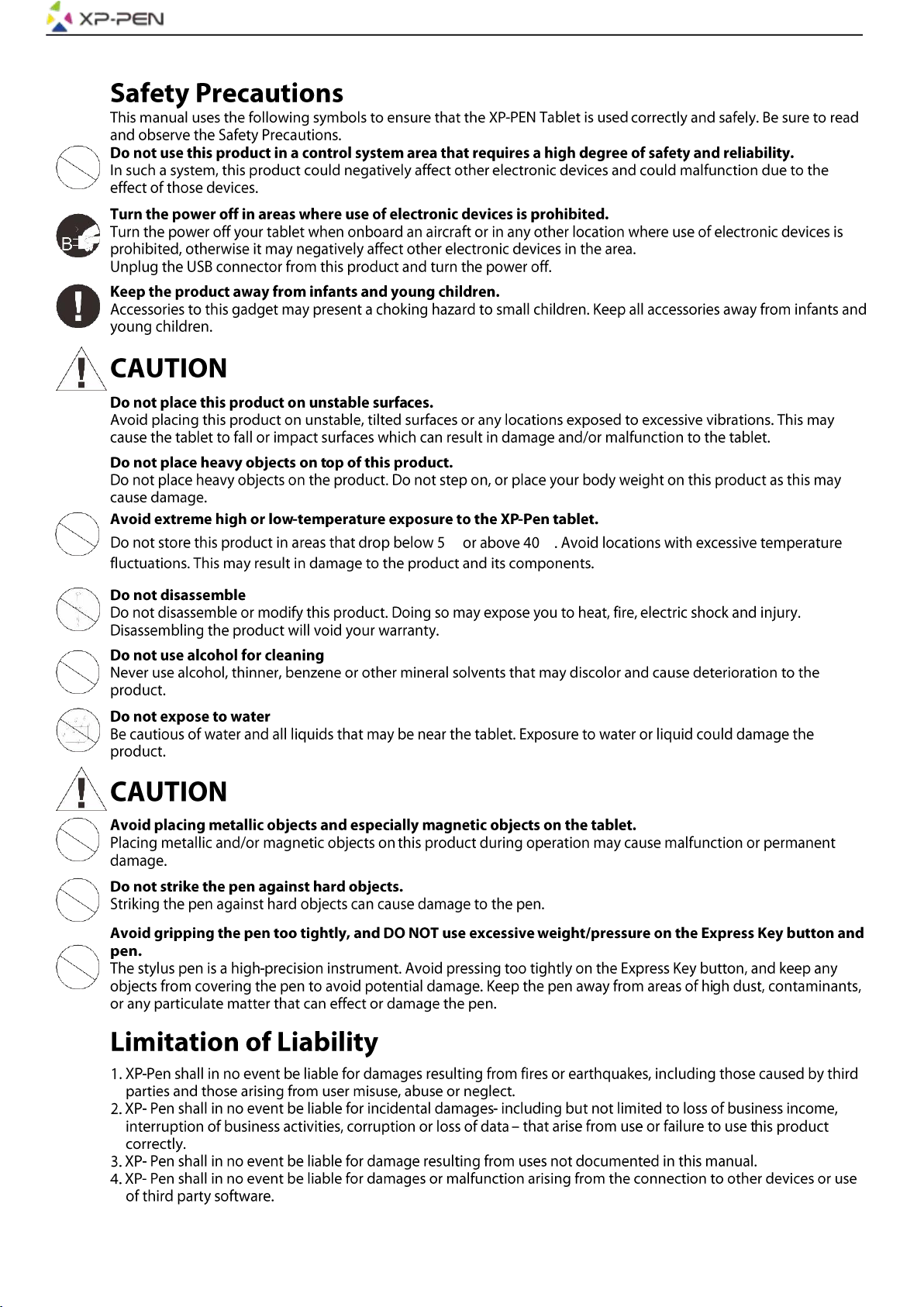

２
Contents
I. Product Overview
Overview
II. Driver Installation
Windows
Mac
III. Driver Settings UI
Windows
Mac
IV. Driver Uninstall
Windows
Mac
V. FAQ

３
Thank you for purchasing the XP-Pen tablet. Our product user manual currently supports English,
Russian, Japanese, German, Korean, Chinese, Italian, Spanish, and French. We apologize if your
preferred language is not supported.
{ I. Product Overview}
Overview
Image 1-1. Overview
1. Express keys
2. Status indicator light
a. Blue, blinking: Stylus is in range, but not touching the working area.
b. Blue, solid: Stylus is touching the working area.
c. No light: Stylus is out of detection range.
3. USB port
4. Working area
5. Working area indicator light

４
{II. Driver Installation}
Supported operating systems:
Windows 10, 8 or 7
Mac OS X 10.10 or above
Notes：
(1). Uninstall any existing tablet software before attempting to install the Deco 01 V2’s driver. Other tablet
drivers may conflict with the Deco 01 V2’s driver or prevent installation entirely.
(2). You can download the latest driver version from the XP-Pen website (www.xp-pen.com) and be sure to
extract the “.zip” file contents before running “.exe” or “.pkg.”
Windows
(1).Connect the Deco 01 V2 to your computer using the included USB cable.
(2).Please download the Deco 01 V2 latest driver from the support section of our website, (www.xp-
pen.com)
(3).Extract the “.zip” file contents before running the “.exe” file.
(4).After a successful installation, the driver’s icon ( ) will appear in your system tray and on your desktop.
If the icon is not present, uninstall the driver, reboot, and repeat step 2.
Mac
(1).Connect the Deco 01 V2 to your computer using the included USB cable.
(2).Please download the Deco 01 V2 latest driver from the support section of our website, (www.xp-
pen.com)
(3).Extract the “.zip” file contents before running “.pkg”.
Image 2-1: Mac driver

５
{III. Driver Settings UI}
Windows
The Deco 01 V2’s driver settings can be opened in two ways:
Double-click the driver’s icon ( ) in system tray or your desktop.
Driver UI
Image 3-1: UI
1.1. Pen Function Settings
You may customize the functions of your tablet pen’s barrel buttons here. Use the “Function Key”
option to program custom keystrokes.

６

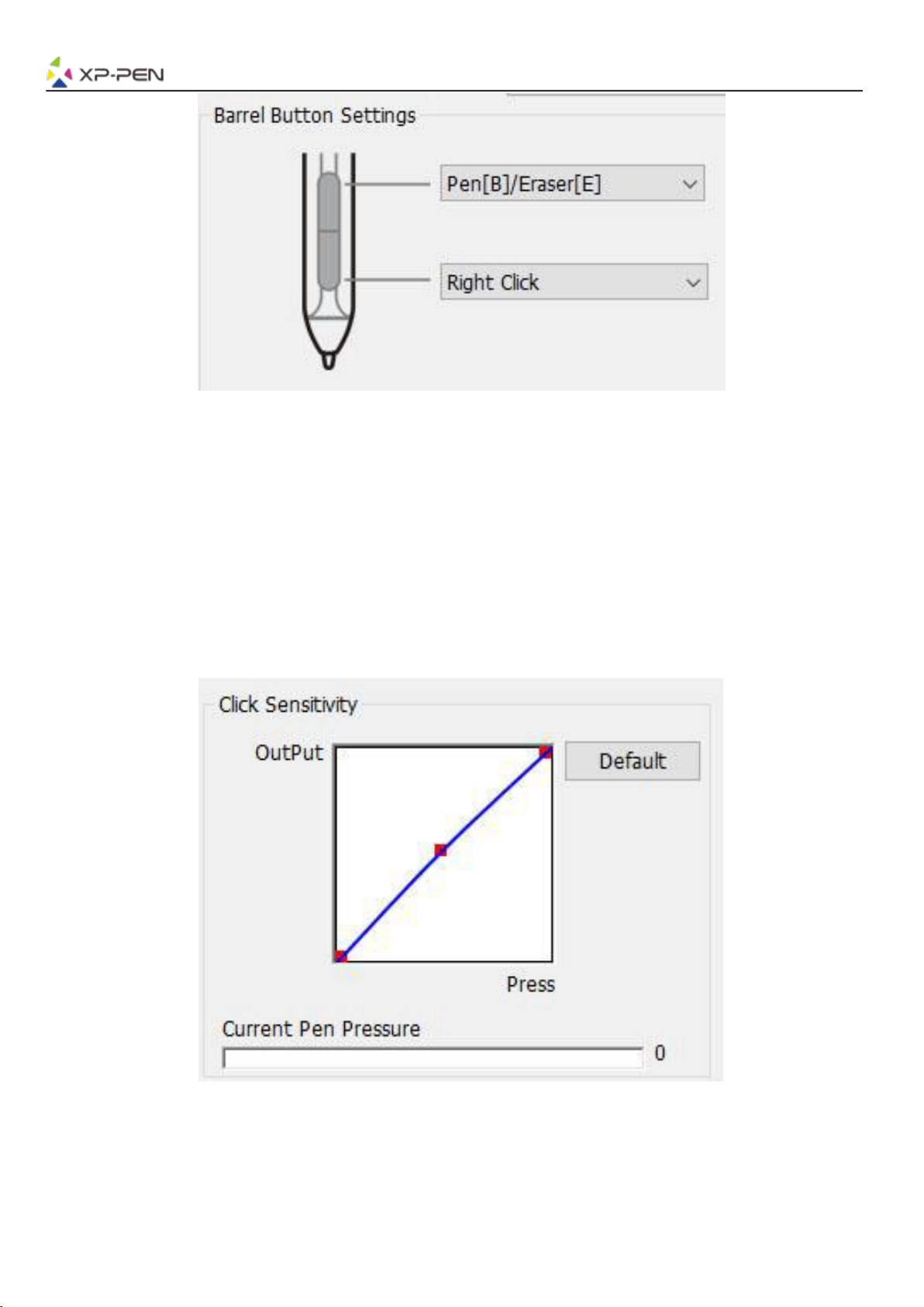

Image 3-2: Pen Functions Setting
Note:
Pen/Eraser Toggle
With the stylus in range working area, press the assigned barrel button to toggle between pen and eraser
modes in compatible drawing software. The current mode will briefly be displayed on your monitor.
1.2. Click Sensitivity & Current Pen Pressure
You can adjust pen pressure to “Output” or “Press” sensitivity on here.
Current Pen Pressure shows the current pressure level being exerted on your tablet and can be used to
test pen pressure.
Image 3-3: Click Sensitivity & Current Pen Pressure
1.3. Mouse Mode
Absolute (Pen) Mode: Standard tablet mode; Each point of the tablet’s work area corresponds to an
absolute point on your computer display.

７
Relative (Mouse) Mode: Mouse mode; The tablet’s work area does not correspond to absolute points on
your computer display and your pen works as a standard mouse.

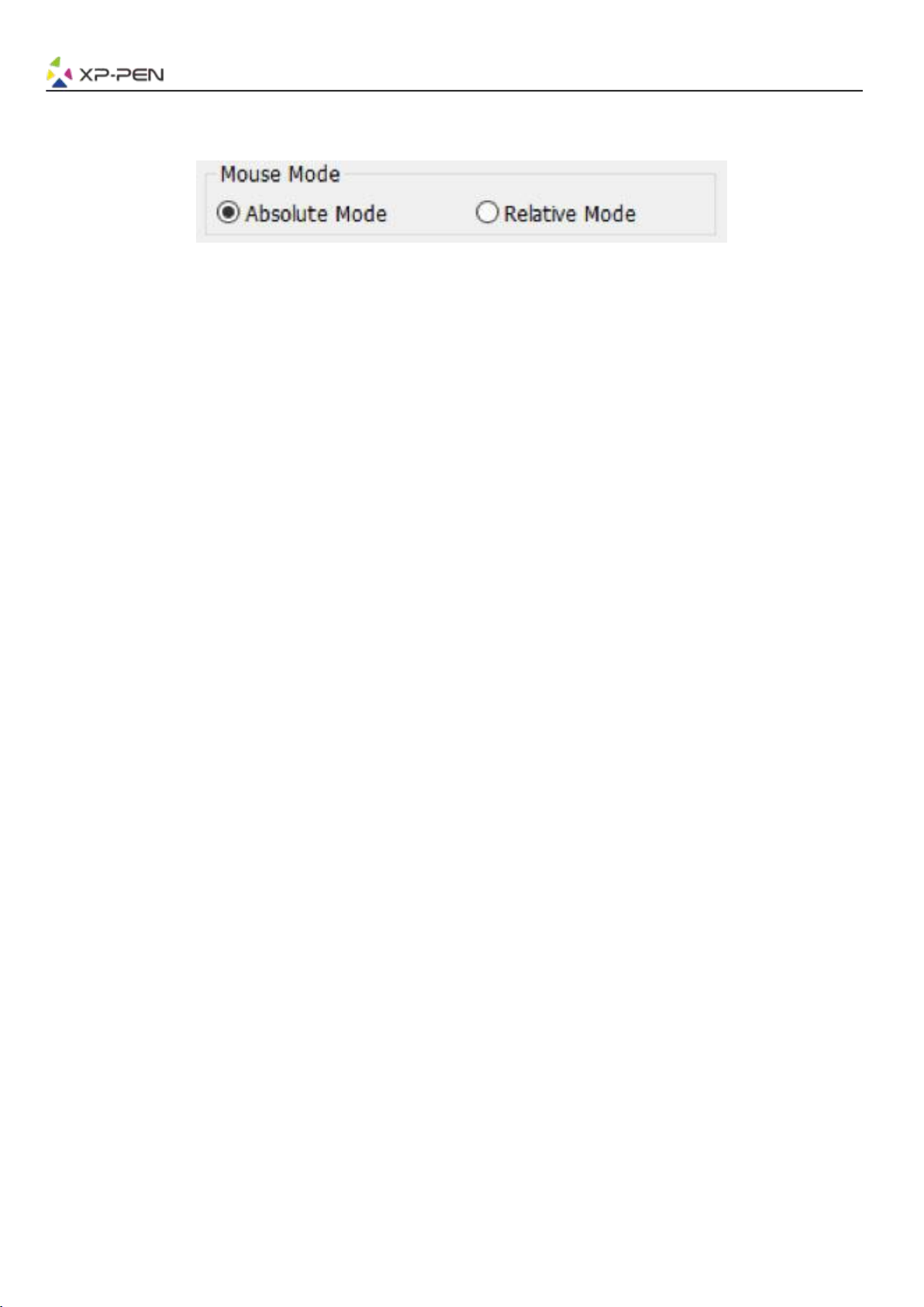

Image 3-4: Mouse Mode
1.4.Current Screen
The Deco 01 V2 may be configured for use with single or dual monitors.
If only one monitor is selected, your tablet input will be limited to that particular monitor.
Custom Display Mapping:
The dimensions of your tablet’s on-screen work area can be changed here. Please click the top-left and
bottom-right to customize.
0、90、180 & 270 angles:
The Deco 01 V2 are set up for 0, 90, 180 and 270 angles and when you set it, you must also rotate your
Deco 01 V2.
Left hand is 180 angles.
You may adjust your tablet’s on-screen working area in this tab.
Set Work area:
When you click the “Set Work area” button, you can use the stylus pen to customize the Deco 01 V2
work area. Please click the top-left and bottom-right to customize.
Display Ratio:
You can set your Deco 01 V2 work area adjusts the tablet’s on-screen working area to match your
monitor’s resolution.
Max Active Area:
You can set your Deco 01 V2 work area to the max.

８

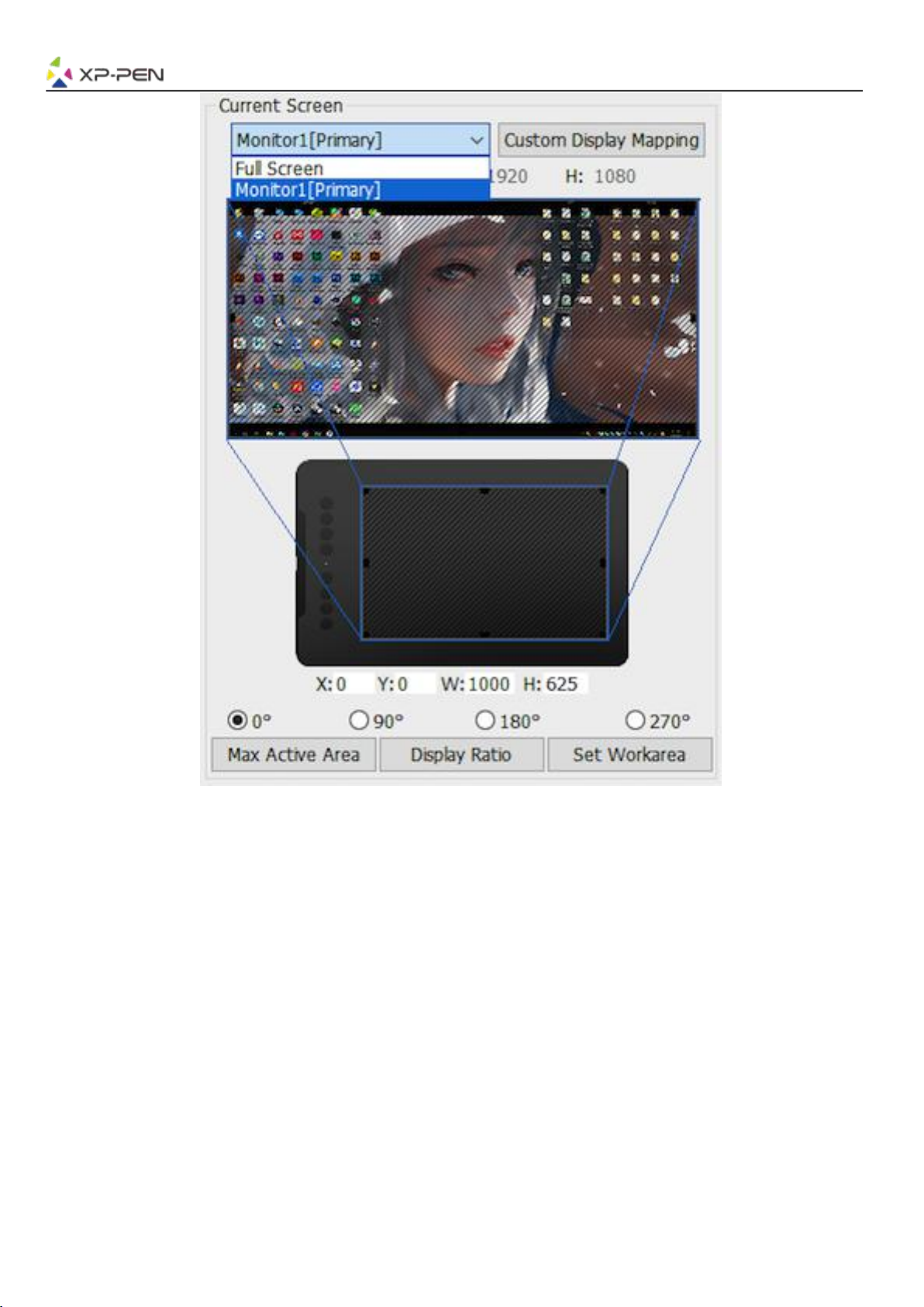

Image 3-5: Current Screen
1.5. Import & Export Profiles
You can use the Import & Export Profile function to save/load your barrel buttons and shortcut key
settings.
Note:
When you finish setting up your barrel buttons and shortcut keys, click the OK button to save and exit the
tablet settings menu.

９
Image 3-6: Export Profile
Image 3-7: Import Profile

１０
1.6. Windows Ink
This capability can be toggled on and off here. Enabling this will allow support for Windows Ink and
applications that run using Windows Ink.
Image 3-8: Windows Ink
1.7. Express Keys Setting
Notes:
(a). The Deco 01 V2’s shortcut keys are designed to work with US English keyboards. Keys may not function
correctly with the other keyboard languages.
(b). By default, the Deco 01 V2 express keys are mapped to standard Photoshop keyboard shortcuts. Keys
can be customized to function efficiently in other software.
Image 3-9. Keyboard
Disable express keys: When you enable it, all of the express keys function will be disabled.
Hide hints: When you enable it and press any express key, the message will not popup on the bottom of
your screen.
Image 3-10: Keys

１１
In this tab, you may edit the functions of the Deco 01 V2’s shortcut keys. Use the “Definition” option to
program custom keystrokes.

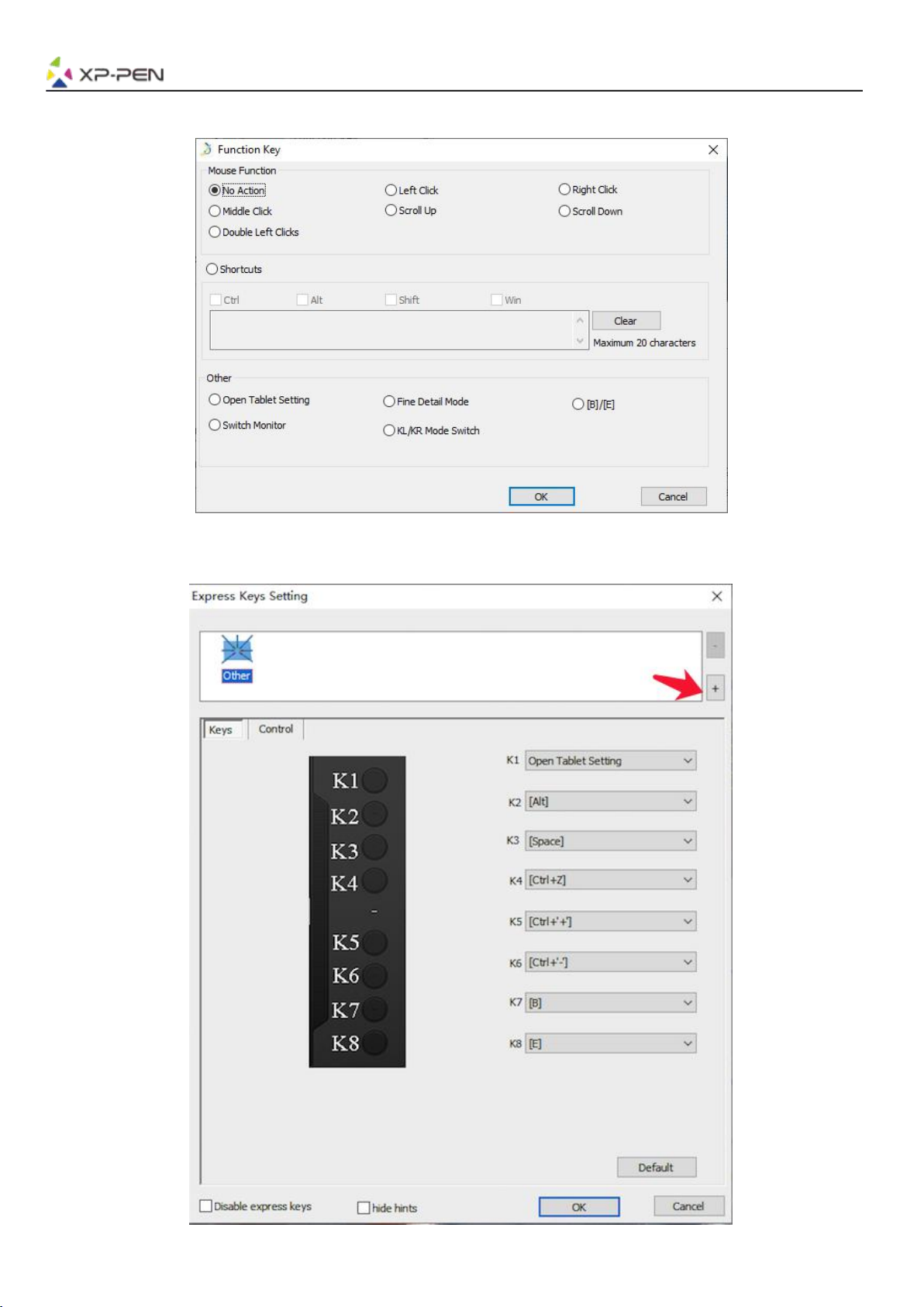

Image 3-11: Function Key
You can set each shortcut key for different software.
a. Click the “+” button to go to Select Program tab.
Image 3-12: Select Program

１２
b. You can choose Default or use Browse to select your choice of software.
Image 3-13: Select Program
c. Return to the shortcut key settings tab, click the tablet icon, and then customize the shortcut keys. When
you are finished, click “OK” and exit the tablet settings menu.
Control: You can adjust “Tablet Light” lights.
Image 3-14: Control

１３
1.8. Default
You can click the Default button to restore default settings.
1.9. XP-Pen Logo
Click our logo to visit our website.
Mac
To open the Deco 01 V2’s driver settings, open Finder > Applications > PenTabletSetting.
Driver UI
Image 3-15: Tablet Setting
1. Pen
Image 3-16: Pen
1.1. In this tab, you may customize the functions of your stylus’s barrel buttons and click “Default
Button Setting” to revert to manufacturer settings.

１４

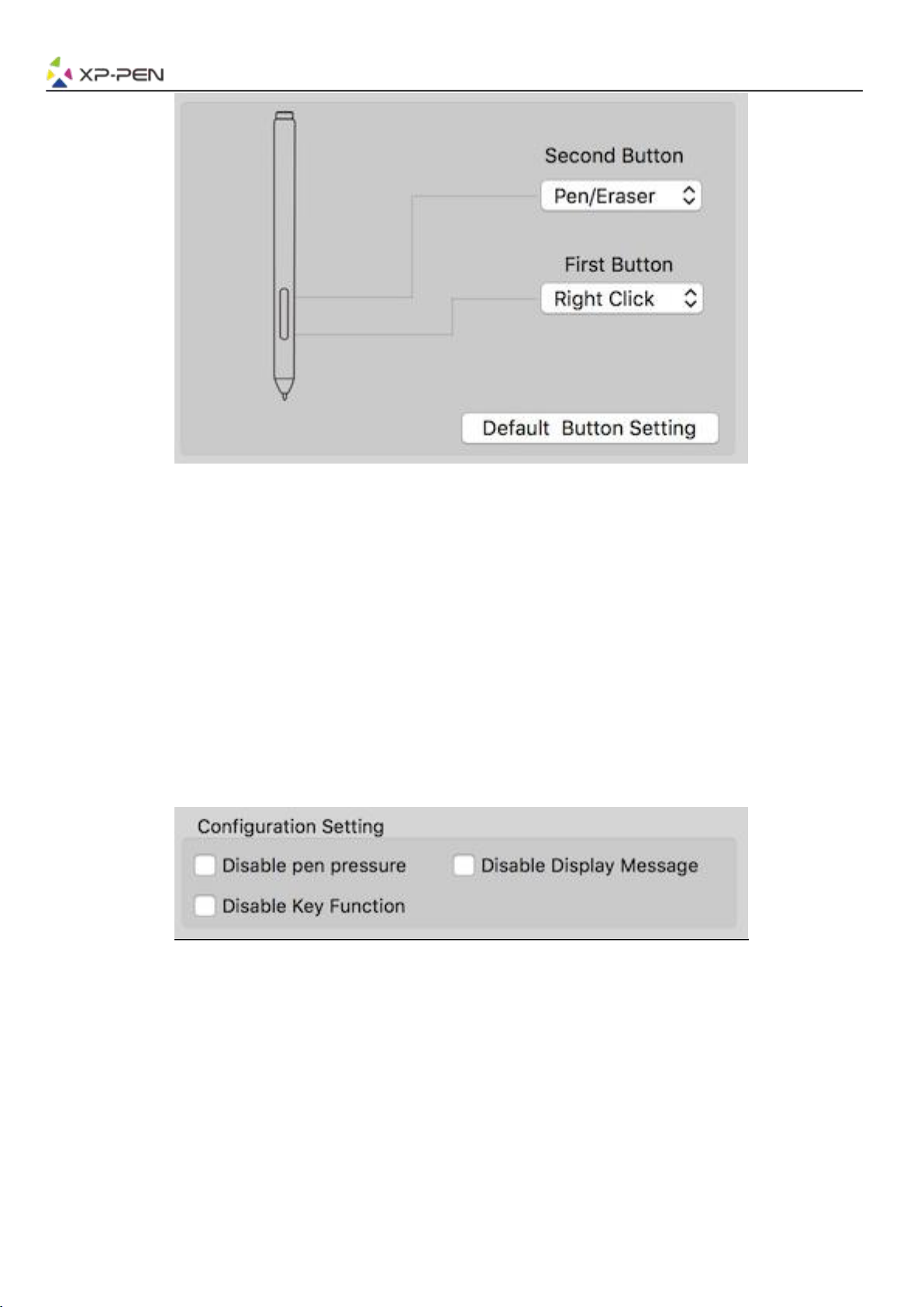

Image 3-17 Pen
Note:
Pen/Eraser Toggle
With the stylus in range working area, press the assigned barrel button to toggle between pen and eraser
modes in compatible drawing software. The current mode will briefly be displayed on your monitor.
1.2.Configuration Setting:
Disable pen pressure: When the “Disable pen pressure” function is enabled, you can disable the pen
pressure function.
Disable Key Function: When you enable it, all of the express keys function will be disabled.
Disable Display Message: When you enable it and press any express key, the message will not popup on
the bottom of your screen.
Image 3-18: Configuration Setting

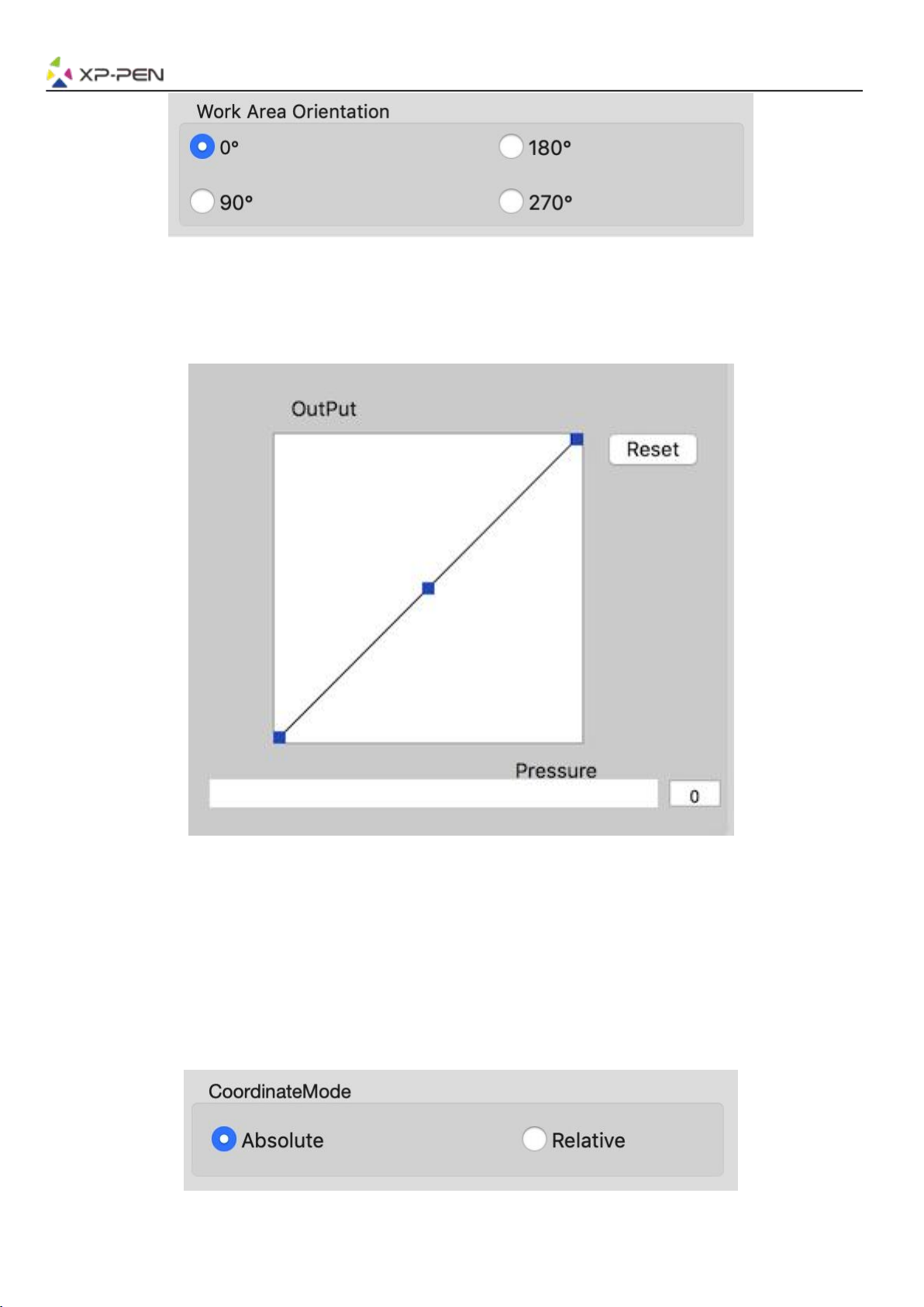

1.3. Work Area Orientation:
0, 90, 180 & 270:
The Deco 01 V2 can also be configured for 0, 90, 180 & 270 angles.
Be sure to rotate the actual physical tablet as well.

１５
Image 3-19: Work Area Orientation
1.4.Output: You can adjust pen pressure to “Output” or “Press” sensitivity on here.
It shows the current pressure level being exerted on your tablet and can be used to test pen pressure.
Image 3-20: Output
1.5. Coordinate Mode:
Absolute (Pen) Mode: Standard tablet mode; Each point of the tablet’s work area corresponds to an
absolute point on your computer display.
Relative (Mouse) Mode: Mouse mode; The tablet’s work area does not correspond to absolute points
on your computer display and works as a standard mouse.
Image 3-21: Coordinate Mode

１６

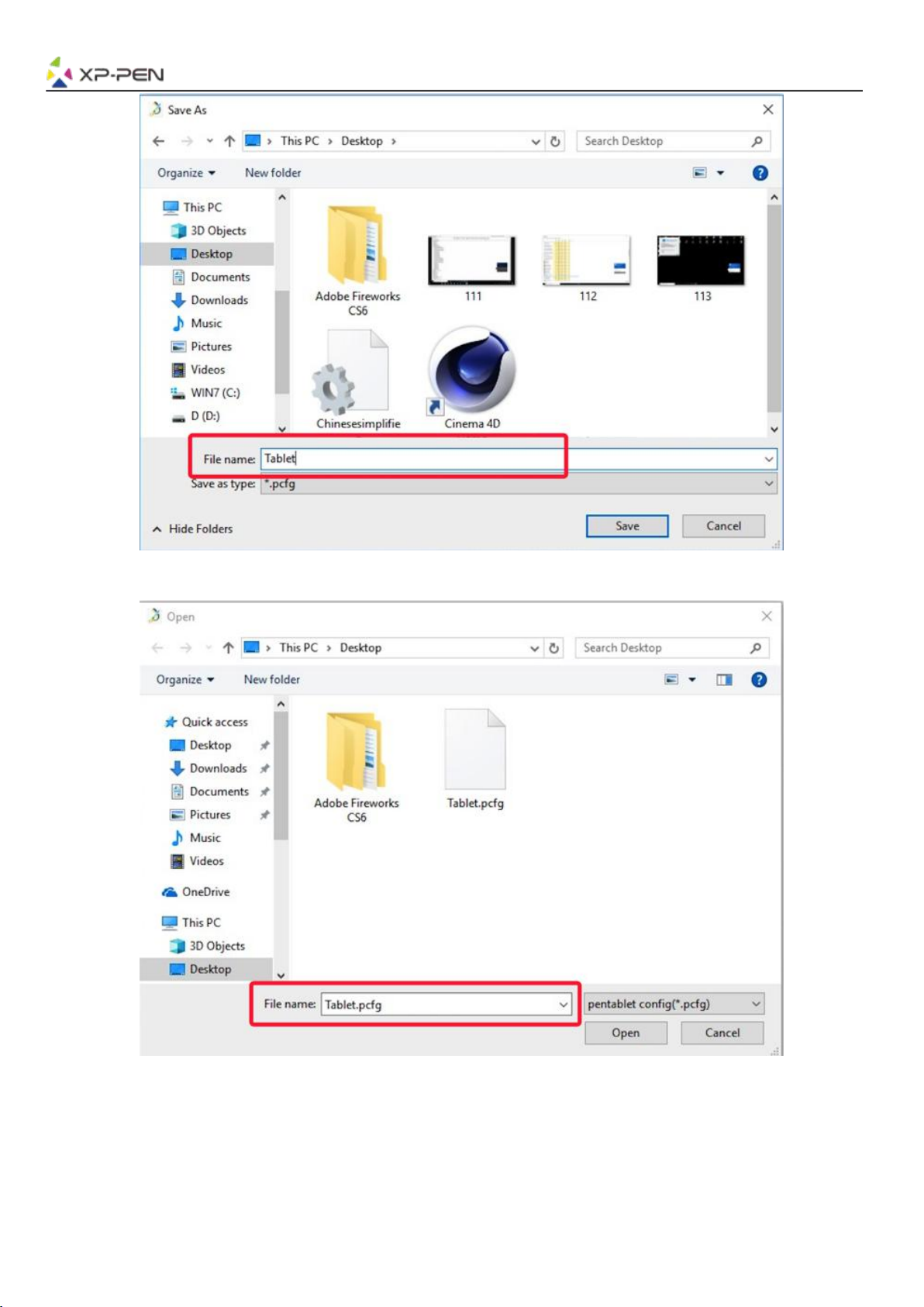

1.6. Import & Export Profiles
You can use the Import & Export Profile function to save/load your barrel buttons and shortcut keys
setting.
Image 3-22: Export configuration file
Image 3-23: Import configuration file
1.7Mojave Setup Navigation
If your system Mojave, please click this button to setup your tablet and reboot.

１７
Image 3-24: Mojave Setup Navigation
2.Monitor
The “Monitor” tab allows you to configure Deco 01 V2 for use with single or dual monitors. The tablet can
also be configured to use only a portion of your display.
Image 3-25: Monitor
3. Tablet Area
You may adjust your tablet’s on-screen working area in this tab.
3.1. Full Area automatically selects the largest possible working area.
3.2. Screen Ratio adjusts the tablet’s on-screen working area to match your monitor’s resolution.
3.3. Tablet LED can let you adjust Tablet lights.

１８
Image 3-26: Full Area
4. Express Keys
Notes:
(a). The Deco 01 V2’s shortcut keys are designed to work with US English keyboards. Keys may not function
correctly with the other keyboard languages.
(b). By default, the Deco 01 V2’s express keys are mapped to standard Photoshop keyboard shortcuts. Keys
can be customized to function efficiently in other software.
4.1. In the Express Keys tab, each express key has default.
Image 3-27: Express keys

１９
You may choose your preferred functions for the Deco 01 V2’s shortcut keys. Use the “Reset Customer
Defined” option to program custom keystrokes.

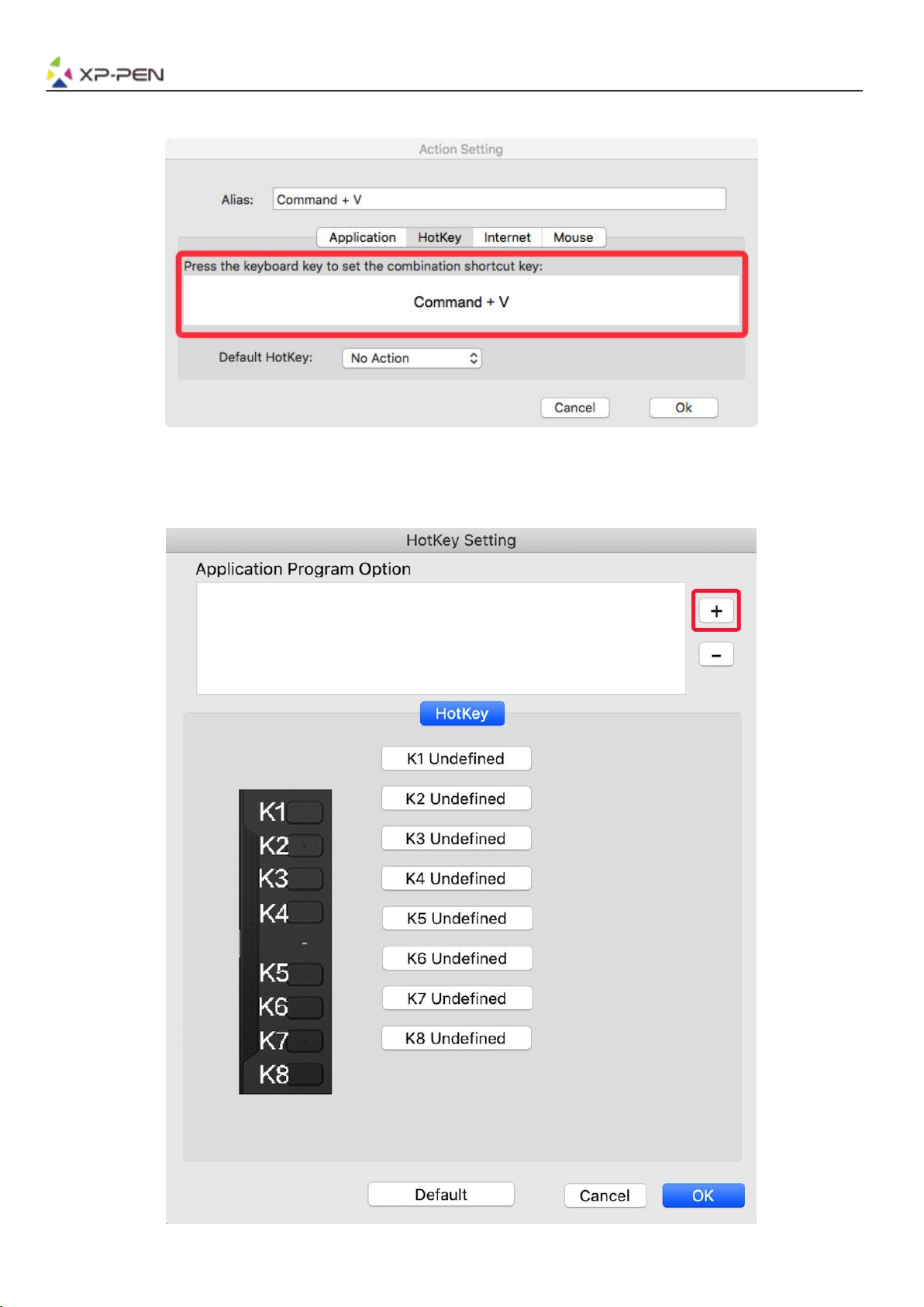

Image 3-28: Action Setting
You can set each shortcut key for different software.
a. Click the “+” button to go to Select Program tab.
Image 3-29: Select Program
