Q: What is VESDA Sensepoint XCL – Micro Bore ASD Detector?
A: VESDA Sensepoint XCL – Micro Bore is an aspirated gas detector that connects to VEA tube
networks and provides single point gas detection.
Q: What is VESDA Sensepoint XCL – Large Bore ASD Detector?
A: VESDA Sensepoint XCL – Large Bore is an aspirated gas detector that connects to pipe networks
and provides multi-point gas detection.
Q: What gases does VESDA Sensepoint XCL – Micro / Large Bore detect?
A:
Gases Micro Bore Large Bore
Carbon Monoxide (CO, ppm) 

Flammable gases (CH4, H2, etc. % LEL) 

Carbon Dioxide (CO2, % v/v, ppm) 

Hydrogen (H2, ppm) 

Oxygen (O2, % v/v)

Hydrogen Sulphide (H2S, ppm)

Nitrogen Dioxide (NO2, ppm)

Ammonia (NH3, ppm)*

* Check with your local sales office for availability.
Q: What outputs versions are supported by VESDA Sensepoint XCL – Micro / Large Bore?
A:
•Relay output:
o2x Relays @ 5A (250vAC / 24VDC)
Fault
Alarm
•Analog output:
oCurrent loop output; supporting signals in the range 0 to 22mA.
•Digital output:
oModbus RTU digital communications.
Q: What approvals are available for VESDA Sensepoint XCL – Micro / Large Bore?
A:
•Electrical safety:
oEN/UL/IEC61010-1
oCSA-C22.2 No. 61010-1-12
•CE – EMC: EN 50270
•RADIO: RED, FCC, BT SIG
•UL2075 (CO and CH4), AS 1668.2
www.acornfiresecurity.com
www.acornfiresecurity.com

Frequently Asked Questions VESDA Sensepoint XCL – Micro / Large Bore Gas Detectors
Doc. 35229_02
Q: What are the visual status indicators on VESDA Sensepoint XCL
– Micro / Large Bore?
A:
•Green: Normal (gas concentration is within normal range).
•Red (flashes): Alarm (gas concentration is beyond the alarm
threshold).
•Yellow (flashes): Fault state.
•Blue (flashes): Bluetooth pairing between detector and smart device
is in progress.
•Blue (steady): Bluetooth connection is established.
Q: How does VESDA Sensepoint XCL – Micro Bore connect to a VEA tube?
A: VESDA Sensepoint XCL – Micro Bore connects to VEA tubes 6mm (1/4”) OD using flexible
tubes (supplied).
Q: How does VESDA Sensepoint XCL – Large Bore connect to a pipe?
A: VESDA Sensepoint XCL – Large Bore connects to pipes using 60° elbows (supplied).
Q: Where does VESDA Sensepoint XCL – Micro Bore connect on a VEA tube?
A: VESDA Sensepoint XCL – Micro Bore can connect at any point along the length of the VEA
tube.
Q: Where does VESDA Sensepoint XCL – Large Bore connect on a pipe?
A: VESDA Sensepoint XCL – Large Bore can connect at any point of the pipe network. Use
ASPIRE pipe modelling tool to validate pipe network performance (transport time, hole
pressure/flow) under such conditions.
Q: How many VESDA Sensepoint XCL – Micro Bore detectors can connect to a single VEA
tube?
A: x2 VESDA Sensepoint XCL – Micro Bore detectors per tube, total of 80 per VEA unit.
Q: How many VESDA Sensepoint XCL – Large Bore detectors can connect to a single pipe?
A: Multiple VESDA Sensepoint XCL – Large Bore detectors can connect on a single pipe. Use
ASPIRE pipe modelling tool to validate pipe network performance (transport time, hole
pressure/flow) under such conditions.
Q: What is the flow orientation for the VESDA Sensepoint XCL – Micro / Large Bore detectors?
A:
•VESDA Sensepoint XCL – Micro Bore can operate in any flow orientation.

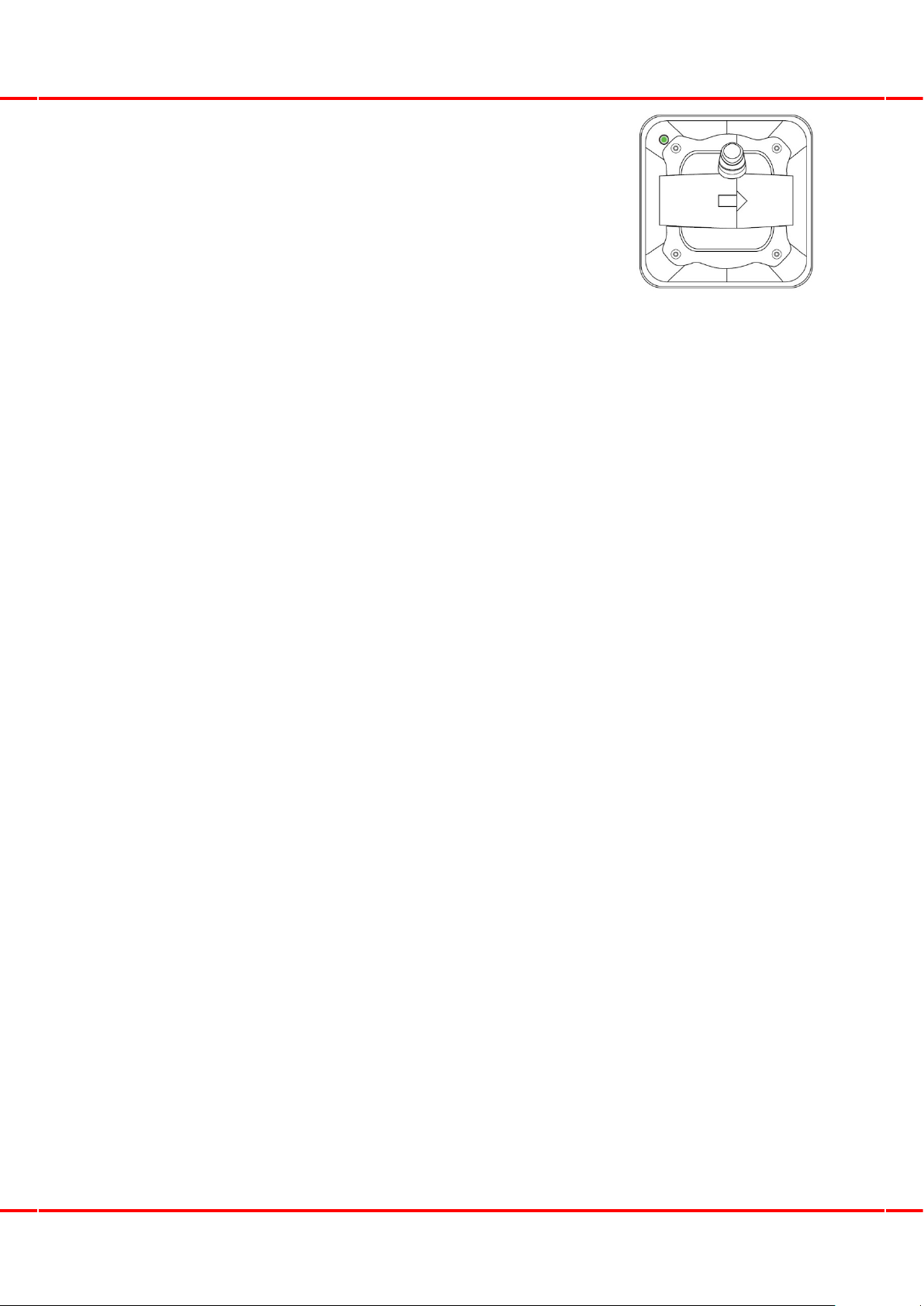

•VESDA Sensepoint XCL – Large Bore flow orientation is marked on the flow cap.
Q: Why do you bump test the VESDA Sensepoint XCL detectors?
A: To verify:
•Accuracy of gas reporting
•Activation of output signals
•Integrity of VESDA Sensepoint XCL – Micro Bore and VEA tube connections
Q: How often do you bump test the VESDA Sensepoint XCL detectors?
A: In between calibration
Q: When do you calibrate VESDA Sensepoint XCL detectors?
A:
•After installation
•After gas sensor replacement
•Every 6 months
www.acornfiresecurity.com
www.acornfiresecurity.com

Frequently Asked Questions VESDA Sensepoint XCL – Micro / Large Bore Gas Detectors
Doc. 35229_02
•When bump test fails
Q: Where can I get information for the installation, commissioning and servicing of VESDA
Sensepoint XCL – Micro / Large Bore gas detectors?
A:
•VESDA Sensepoint XCL – Micro Bore Installation Manual: Doc. No: 33889.
•VESDA Sensepoint XCL – Large Bore Installation Manual: Doc. No: 35563.
Q: What is Sensepoint App?
A: Sensepoint App is a smart device app that is used to connect and interact with VESDA
Sensepoint XCL detectors for commissioning, maintenance and general operation without the
need to open the detector. For details on Sensepoint App, refer to Sensepoint App User Manual
(Doc. No: 35245).
Q: What activities are performed through the Sensepoint App?
A:
•View / configure general settings.
•View / adjust alarm settings.
•Perform calibration.
•Replace sensor.
Q: Where can I find the Sensepoint App?
A: The Sensepoint App can be obtained free-of-charge from Google Play Store and Apple App
Store.
Q: What is the smart device requirement for installing Sensepoint App?
A:
•Android 4.3 (Jelly Bean) / iOS 10 or above.
•Bluetooth 4.0 wireless interface
Q: What is the max distance covered by Wireless interface?
A :10m (33ft) – smart device dependent.
Q: What value do VESDA Sensepoint XCL gas detectors bring to customers?
A:
•Lower Installation Cost: Leverages multi-hole ASD pipe networks to replace multiple fixed spot
gas detectors reducing installation costs.
•Lower Commissioning Cost: Allows quick and simple configuration using smart devices via
Bluetooth to reduce commissioning and setup costs.
•Lower Maintenance Cost: Eliminates the need to enter the detection zone allowing for accessible,
efficient and cost-effective service and maintenance.
•Cumulative Sampling: Mitigates the effects of gas dispersion using multi-hole cumulative
sampling for reliable gas detection.
•Detector Longevity: Capitalizes on ASD Application Engineering techniques to ensure reliable
long-term performance in harsh environments.
Q: What are the benefits of remote gas sampling?
A:
•For routine detector service / maintenance no need to:
•Use special equipment to access high ceilings
•Enter areas of high risk or undergo training for access (machinery, high voltage, confined spaces)
•Access restricted areas (battery rooms)
•Access concealed spaces (ducts, shafts)
•Access secure areas (military)
•Access 24x7 service areas (hospitals)
www.acornfiresecurity.com
www.acornfiresecurity.com

Frequently Asked Questions VESDA Sensepoint XCL – Micro / Large Bore Gas Detectors
Doc. 35229_02
Q: What are the benefits of multi-point aspirated gas sampling?
A:
•Greater area coverage than a spot (point) point gas detector – cost effective solution.
•Increases confidence level where gas source is not precisely known or where environments have
variable airflows.
•Reliable detection of gas dispersed under airflow conditions.
•Single detector can simultaneously protect compartmentalised spaces.
•Reliable performance in a wide range of environments – air drawn to the detector can be
conditioned to remove moisture, particulates and other contaminates that would otherwise impact
detector performance.
Q: How many sample holes does the VESDA Sensepoint XCL – Large Bore support?
A: This will vary depending on:
•Target gas concentration.
•Number of sample holes upstream the VESDA Sensepoint XCL detector.
•Dilution of gas in the pipe.
•VESDA Sensepoint XCL lower alarm level (LAL).
•For calculating the number of sample holes VESDA Sensepoint XCL – Large Bore can support for
a given gas hazard refer to the Application Note Doc No: 35616.
Q: What are the key applications areas for VESDA Sensepoint XCL?
A:
Gas Offering Key Application Areas
Flammable Gases (% LEL)
(methane, propane, ethanol,
hydrogen, etc.)
Fuel storage / distribution lines
Food / beverage industry
High-tech manufacturing
IAQ
Confined spaces
Agriculture / Livestock
Water treatment plants
Hydrogen (ppm)
Energy storage spaces (batteries)
Fuel storage / distribution lines
Laboratories
Food industry
Chemical industry
Carbon Monoxide (ppm)
Residential / commercial heating plants
Road tunnels
Confined spaces
IAQ
Car parks / loading bays
Vehicle test facilities
Carbon Dioxide (ppm, % v/v) Industrial processes
Storage / distribution lines
IAQ
Artificial atmospheres
(greenhouses)
Food / beverage industry
Hospitals
Hydrogen Sulphide (ppm)
Underground areas (tunnels, chambers)
Landfill sites
Confined spaces
Water treatment plants
Nitrogen Dioxide (ppm)
Parking garages / loading bays
Vehicle test facilities
Petroleum / metal refining industries
Road tunnels
Confined spaces
Water treatment plants
Oxygen Depletion (% v/v) MRI rooms (helium escape)
Food / beverage industry
Underground areas (tunnels, chambers)
Confined spaces
Water treatment plants
Laboratories
(biotechnology, forensic)
Oxygen Enrichment (% v/v)
Pharmaceuticals / Chemical Laboratories
Hospitals
Ammonia (ppm)*
Agriculture
Petroleum / Chemical industries
Hospitals
Refrigerated plants
Pulp and Paper industry
Food / beverage industry
* Check with your local sales office for availability.
www.acornfiresecurity.com
www.acornfiresecurity.com

Frequently Asked Questions VESDA Sensepoint XCL – Micro / Large Bore Gas Detectors
Doc. 35229_02
Q: Who do I contact for VESDA Sensepoint XCL enquiries?
A: If you have any questions on VESDA Sensepoint XCL – Large Bore gas detectors, please contact
your Xtralis regional Sales and Technical teams.
