XTRONIC 6020-PRO-X User manual

- 1 -
SPECIFICATIONS
Model XTR-6020-PRO-X
Power Consumption 750 Watts
Voltage AC 110V 60Hz
Power Cord Type USA Type B - 3-Pin Grounded Plug
Current ≤ 8 Amps
Fuse 10 Amp
Dimensions 7.0” L x 6.75” W x 6.25” H
Weight 7.5 lbs
Working Environment 32°F ~ 104°F / 0°C ~ 40°C
Storage Environment -4°F ~ 176°F / -20°C ~ 80°C
Storage Humidity 35% - 45%
Airflow Type Brushless DC Fan
Airflow Velocity 1.5 M/S
Air Volume 31 L/Min
Programmable Air Flow 20-100
Temperature Range 212°F ~ 932°F / 100°C ~ 500°C
Temperature Stability ± 1°C
Cable Length ≥ 33.2 in
Cable Material Silicone
Noise ≤ 67dB

- 2 -
PACKAGE CONTENTS
• 750 Watt Main Power Unit
• Brushless Vortex Fan Hot Air Gun
• Hot Air Gun Holder (attached to side of main unit)
• Patented Hot Air Nozzle Holder (attached to side of unit)
• 5 - Sizes/Styles of Hot Air Gun Nozzles
• 3 Straight Air - 5mm, 7mm, & 10mm
• 2 Spiral/Cyclone Air - 8mm & 10mm
SAFETY PRECAUTIONS
1. Always use a grounded outlet for the unit.
2. Always turn the power off and unplug the unit when not in use.
3. Never use the hot air gun near any flammable substance, material,
or gas.
4. Never touch the metallic components of the hot air gun while the
unit is on. They are extremely hot and will cause serious burns
instantly.
5. Always turn the power off, unplug the unit, and let it fully cool down
before attempting to replace any parts (nozzles, heating element,
fan, etc.)
6. Do not use the unit for any application other than its intended use.
7. Do not modify the unit in any way.
8. When replacing consumable parts, only use approved
manufacturer parts.
9. Do not get the unit wet or use when your hands are wet.
10. The soldering process will produce smoke - ensure the area is well
ventilated.

- 3 -

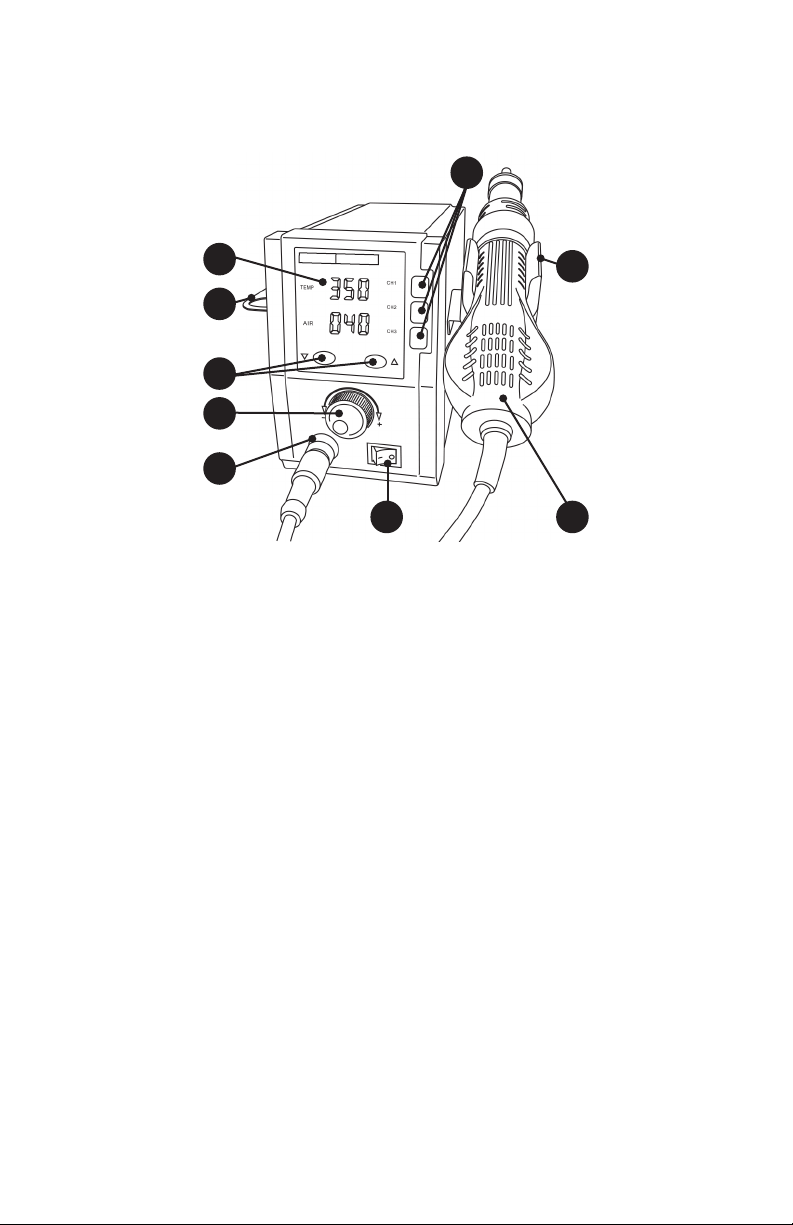

PANEL DIAGRAM
ESD
SAFE
X-TRONIC 6020-PRO-X
1
2
3
4
5
6 7
8
9
1. Temperature Display
2. Patented Quick Change Nozzle Rack
3. Temperature Adjustment Buttons
4. Air Flow Control Knob
5. Hot Air Gun Cord Receptical
6. Hot Air Gun Power Switch
7. Hot Air Gun
8. Hot Air Gun Holder
9. 3 Memory Preset Channels

- 4 -
INITIAL SET-UP
1. Plug the Hot Air Gun into the front cord receptacle on the lower left
side of the unit and tighten the ring nut.
2. Place the hot air gun into the holder on the right side of the unit.
3. Plug the 3-Prong AC cord into a 110/120V grounded outlet to
prevent electric shock or injury.
4. Turn on the power switch for the hot air gun in the lower right on
the front of the unit. When the unit is first turned on “C - C” or “F -
F” will briefly show on the top display to indicate if the unit readouts
are in Celsius or Fahrenheit respectively. Then both LED displays
will show “---”.
5. The top display will show “---” when the hot air gun is in its holder
and in standby mode.
6. Push the Hot Air Temperature Adjustment Buttons (▲ or ▼ ) in the
middle of the unit to set the temperature.
7. Turn the Air Flow Control Knob to adjust the airflow for the hot air
gun. This can be set from 20 - 100.
CAUTION
When using a temperature higher than 300°C on the hot air gun the
air flow should be set at 45 or higher. This will prevent damage to
the hot air gun and increase the life of the heating element.
8. When the hot air gun is removed from the holder it will start
blowing air and ramp up to the programmed temperature and air
speed quickly.
9. When the hot air gun is not in use always place it back in the
holder. When the hot air gun is placed in the holder, it will start
going into the Auto Cool Down and Standby mode immediately.
The hot air gun will continue blowing air until the temperature gets
back down to 100°C and then the airflow will stop and the hot air
gun will go into standby mode.
Note: When the hot air gun is initially returned to the holder, the air flow
may increase noticeably while the hot air gun is cooling down and
going into standby mode. This is a safety feature built into the
unit.

- 5 -
10. When the hot air gun is removed again from the holder it will start
blowing air and ramp up to the programmed temperature and air
speed again quickly.
11. To turn the hot air gun completely off, turn off the power switch on
the lower right hand side of the unit.
Note: Do not unplug the unit or shut off the Power Switch until you
have placed the hot air gun in the holder and it has cooled down
and the air has stopped blowing automatically.
When the unit is not in operation, turn the entire unit off with the power
switch on the front of the unit and unplug from the outlet.
NOZZLES INCLUDED
• 3 Straight Air Nozzles - used for components that needs to be
quickly disassembled
- 5mm
- 7mm
- 10mm
• 2 Spiral / Cyclone Air Nozzles - used to disassemble fragile
equipment
- 8mm
- 10mm

- 6 -
QUICK CHANGE NOZZLE RACK
With the patented Quick Change Nozzle Rack that is included,
changing out hot air nozzles is quick and efficient.

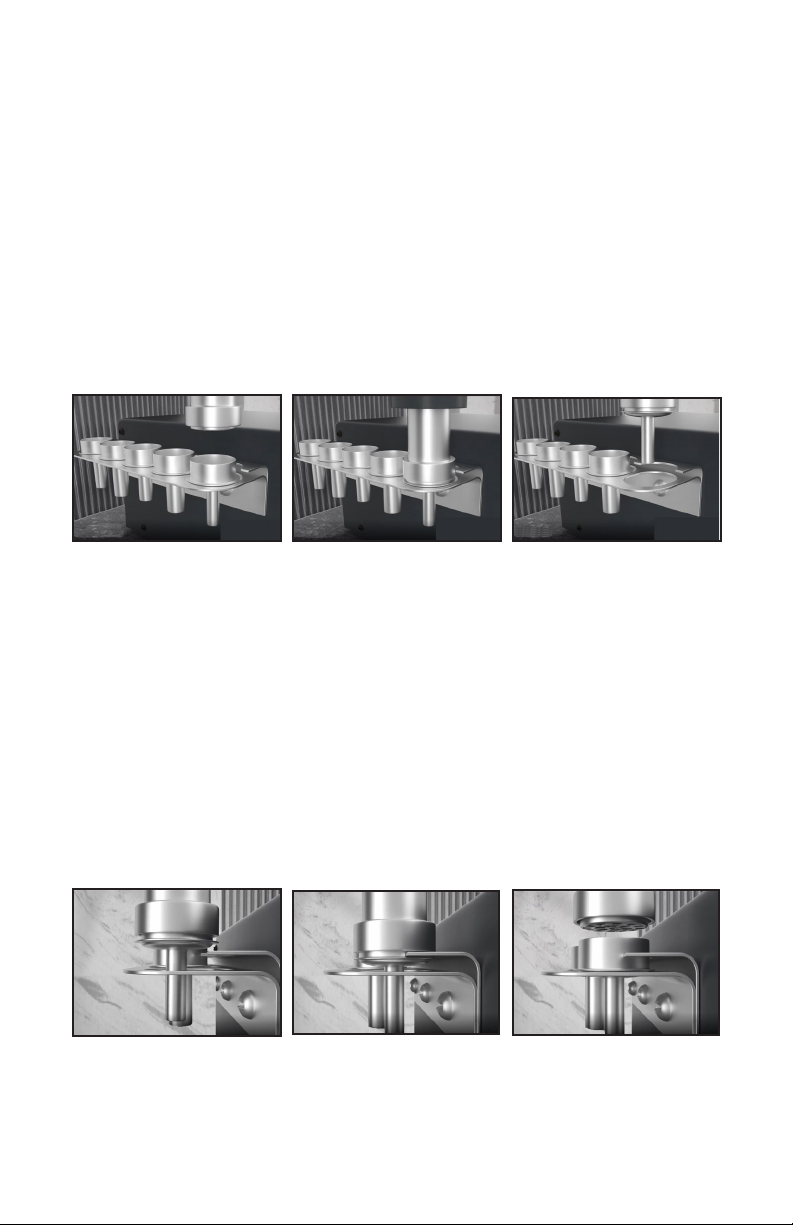

To Install a Nozzle
1. Center the hot air gun over the chosen nozzle in the Quick Change
Nozzle Rack. See Figure 1 below.
2. Firmly press the hot air gun down on the nozzle until it snaps into
position. There will be approximately a 3mm gap when it is secured
on the tip of the hot air gun. See Figure 2 below.
3. The nozzle is then secured on the hot air gun and ready to use.
See Figure 3 below.
Figure 1 Figure 2 Figure 3
To Remove a Nozzle
1. Choose an open nozzle space on the Quick Change Nozzle Rack.
See Figure 4 below.
2. Placing the nozzle tip into the opening, tilt the nozzle so that the
3mm of space between the gun and the nozzle are against the
fingers of the rack, then use the rack to pull the nozzle free from
the hot air gun. See Figure 5 below.
WARNING: Do NOT touch the hot nozzle!
3. Pull the hot air gun away from the nozzle while the Quick Change
Rack holds the nozzle in place. See Figure 6 below.
Figure 4 Figure 5 Figure 6

- 7 -
FEATURES
AUTO COOL DOWN AND STANDBY MODE
When the hot air gun is placed in the holder, the hot air gun will go
into Auto Cool Down and Standby mode immediately. The display
will show the temperature as it cools down. Once it has cooled
down, the display will show “---” for both temperature and air flow
indicating it is now safe to shut the unit off.
Note: The unit will NOT go into standby mode unless the hot air gun is
in the holder.
TEMPERATURE CONVERSION
1. Press and hold both ▲ and ▼ buttons.
2. The top display will say C - C or F - F to indicate that the unit is
now in Celsius or Fahrenheit respectively.
MUTE / UNMUTE FUNCTION
The unit beeps when buttons are pushed, knobs are turned and
when it goes into standby mode.
1. Ensure the hot air gun is in the holder.
2. Press and hold both the CH1 and CH2 buttons.
3. The bottom display will say “on” or “off” to indicate that the sounds
for the unit are unmuted or muted accordingly.
SETTING MEMORY PRESETS
1. When the temperature and air flow are set, press and hold any one
of the three memory preset buttons for approximately 5 seconds.
2. These settings are now programmed into that memory preset.
3. To quickly change to any of the presets, just briefly touch the
preset while the hot air gun is in use and it will start to change to
the appropriate settings.
4. To re-program one of the presets, set the temperature and air flow
parameters to the new settings and then press and hold the preset
to be programmed for approximately 5 seconds.

- 8-
CALIBRATION FUNCTION
When is it time to Calibrate your Hot Air Station?
All X-Tronic Stations come with a high quality heating element
in the hot air gun that is calibrated to within ±3.6°F/2.0°C of the
temperature that is shown on the LED Display. While calibrating
to the exact temperature is the ultimate goal, this heating element
and nozzle design is as close as can be achieved with this
technology.
The age of the heating element, the hours of use, and the
temperature at which the hot air gun is regularly used will affect
the life of the heating element and can cause fatigue. When a
heating element begins to fatigue, the heat that is transferred to
the blowing air from the heating element will begin to drop. If the
typical temperature used to desolder is not working as well as
when it was new, then it might be time to calibrate the unit.
Note: The heating elements a consumable part for hot air rework
stations. There will come a time when the heating element stops
working due to age and/or too much deterioration. At this point,
it will need to be replaced and cannot be calibrated. Heating
elements for this unit can be found on our website (XTronicUSA.
com).

- 9 -
CALIBRATION INSTRUCTIONS
Remove any nozzle from the hot air gun before measuring the
temperature or calibrating the unit. Once the desired temperature
has been set and the temperature of the unit stabilizes, measure
the heat at the hot air using a high quality and well calibrated
hot air tester or an infrared thermometer. If using the infrared
thermometer, aim it approximately three inches away from the end
of the hot air gun. If the temperature shown on the unit’s display
does not reflect the temperature shown on the tester, the unit can
be calibrated.
1. While the hot air gun is NOT in the holder, press and hold the CH1
& CH3 buttons for approximately 3 seconds.
2. The temperature display will flash and the bottom display will show
the offset degrees - the first time this is done it will display 00.
3. Press the ▲ or ▼ buttons to change the temperature offset. The
top display will show the new temperature and the bottom display
will show how many degrees the calibration has been offset.
4. When the proper temperature offset has been achieved, press the
CH2 button to save the setting.
5. When going back in to the calibration mode, the memory will show
how many degrees the unit has been offset with the past setting.
Setting it to 00 will reset it to factory settings.

- 10 -
MAINTENANCE

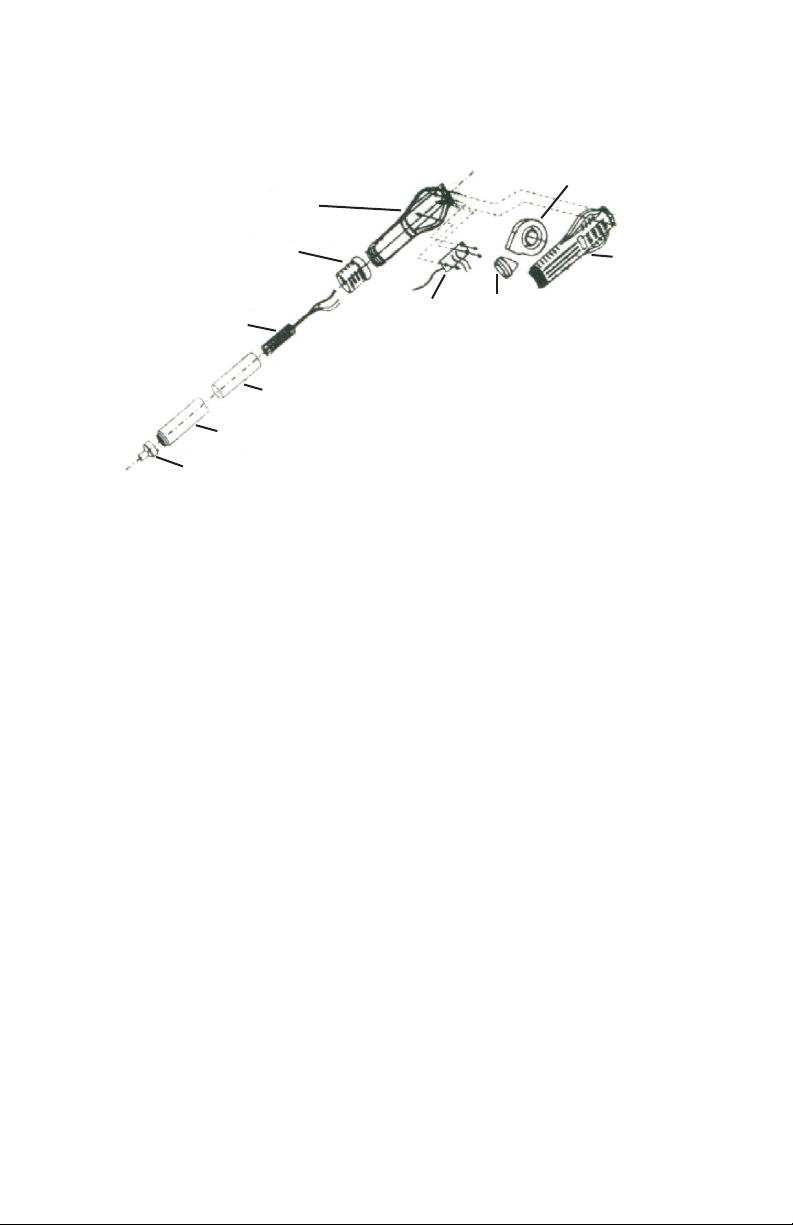

REPLACING THE HOT AIR GUN HEATING ELEMENT
Handle Cover -
Side 1
Heating
Element
Handle
Cover -
Side 2
Mica Paper
Discharge Tube
Nozzle
Retaining Cap
Circuit
Board
Fan
Reducer
Fan
1. Turn off the unit and unplug it from the outlet. Allow the hot air gun
to cool down to room temperature.
Never attempt to handle the gun while the it is hot.
2. Slide the ergonomic grip up and unscrew the retaining cap, pull the
ergonomic grip down off the handle.
3. Unscrew both of the screws at the base of the handle and separate
the two handle sides.
4. Pull the heating element out of the Mica Paper and Discharge
Tube, being careful not to disconnect grounding wire.
5. Unscrew the two screws holding the circuit board in place.
6. Desolder the four wires to the heating element - Please take note
of the location of the 4 wires thickness/color for installation of new
heating element.
7. Solder the new heating element into place.
8. Reassemble the hot air gun.

- 11 -
REPLACING THE FUSE
1. Unplug the power cord from the outlet.
2. Remove the fuse compartment by using a Phillips head
screwdriver to unscrew the fuse holder (found right above the
power receptical on the back of the unit).
3. The fuse that is in use will be in the fuse clip. If the fuse is
damaged, replace it with the new fuse.
4. Insert the fuse compartment back into the unit and tighten with the
Phillips screwdriver.
TROUBLESHOOTING
ISSUE POSSIBLE SOLUTIONS
Unit does not
have power
• Ensure the power cord is securely plugged into the
outlet.
• Ensure that the outlet is functional.
• Contact X-Tronic International for assistance -
Contact information on back of manual
Soldering Iron
“Rattles”
• This is expected behavior. The “rattle” is a small ball
that allows the unit to determine when the soldering
iron is not in use and it should go into Sleep Mode.
S-E Error • Ensure the hot air gun is securely plugged into the
front of the unit.
• The heating element may need to be replaced.
• Contact X-Tronic International for assistance -
Contact information on back of manual
Note: When using a temperature higher than 300°C/572°F on the
hot air gun the air flow should be set at 45 or higher. This
will prevent damage to the hot air gun and increase the life
of the heating element.

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU
MAY ALSO HAVE OTHER RIGHTS, AS THEY VARY FROM STATE TO STATE.
THIS LIMITED WARRANTY CAN ALSO BE FOUND ON OUR WEBSITE AT
WWW.XTRONICUSA.COM/SUPPORT/WARRANTY.
WE WARRANT THAT DURING THE WARRANTY PERIOD, THE PRODUCT
WILL BE FREE FROM DEFECTS IN MATERIALS AND WORKMANSHIP.
WE LIMIT THE DURATION AND REMEDIES OF ALL IMPLIED
WARRANTIES, INCLUDING WITHOUT LIMITATION THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE TO THE
DURATION OF THIS EXPRESS LIMITED WARRANTY.
SOME STATES HAVE DIFFERENT LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY
TO YOU.
OUR RESPONSIBILITY FOR DEFECTIVE GOODS IS LIMITED TO REPAIR,
REPLACEMENT OR REFUND AS DESCRIBED BELOW IN THIS WARRANTY
STATEMENT.
WHO MAY USE THIS WARRANTY?
X-Tronic International Inc. located at 2159 Magnum Circle, Lincoln, Nebraska
68522 (“we”) extend this limited warranty only to the consumer who originally
purchased the product in the United States, the District of Columbia or Canada
(“you”). It does not extend to (a) any subsequent owner or other transferee of
the product, (b) any product shipped outside of the United States, the District of
Columbia or Canada, or (c) anyone who may have purchased it from someone
other than X-Tronic International Inc.. Proof of purchase is required for in-
warranty service. We recommend you promptly register this product on our
website (www.XTronicUSA.com) to facilitate verification of the date of the original
purchase. Keep the product manual and your sales receipt together for future
reference.
WHAT DOES THIS WARRANTY COVER?
This limited warranty covers defects in materials and workmanship of the product
for the Warranty Period as defined below. In addition, during the Initial Warranty
Period, this limited warranty also covers defects occurring in the initial shipment
of the product to you.
3-YEAR LIMITED
WARRANTY

WHAT DOES THIS WARRANTY NOT COVER?
This limited warranty during the Warranty Period does not cover any damage due
to: (a) improper use; (b) failure to follow the product instructions or to perform any
preventive maintenance; (c) modifications; (d) unauthorized repair; (e) normal
wear and tear that comes with household use; or (f) external causes such as
accidents, abuse, or other actions or events beyond our reasonable control. It
also does not cover consumable parts.
WHAT IS THE PERIOD OF COVERAGE?
This limited warranty starts on the date of your purchase and lasts for 3 years
(“The Warranty Period”), which shall be divided into two periods: (1) the first
30 days from the date of your purchase (“Initial Warranty Period”); and (2) the
remainder of the 3 year period after the Initial Warranty Period has expired (the
“Remainder Warranty Period”). The Warranty Period is not extended if we repair
or replace the product. We may change the availability of this limited warranty at
our discretion, but any changes will not be retroactive.
WHAT ARE YOUR REMEDIES UNDER THIS WARRANTY?
With respect to any defective product during the Initial Warranty Period, we will,
in our sole discretion either (a) replace such product (or the defective part) free of
charge, or (b) refund the purchase price of such product.
With respect to any defective product during the Remaining Warranty Period,
we will repair such product free of charge and provide a full-service inspection
of your product. You will be responsible for all shipping and handling fees to and
from our facility.
HOW DO YOU OBTAIN WARRANTY SERVICE?
To obtain warranty service, you must call 844-861-4762 or email us at Info@
XTronicUSA.com during the Warranty Period to open a service request. Proof of
purchase will be required to open a service request.
LIMITATION OF LIABILITY
THE REMEDIES DESCRIBED ABOVE ARE YOUR SOLE AND EXCLUSIVE
REMEDIES AND OUR ENTIRE LIABILITY FOR ANY BREACH OF THIS
LIMITED WARRANTY. OUR LIABILITY SHALL UNDER NO CIRCUMSTANCES
EXCEED THE ACTUAL AMOUNT PAID BY YOU FOR THE DEFECTIVE
PRODUCT, NOR SHALL WE UNDER ANY CIRCUMSTANCES BE LIABLE FOR
ANY CONSEQUENTIAL, INCIDENTAL, SPECIAL OR PUNITIVE DAMAGES OR
LOSSES, WHETHER DIRECT OR INDIRECT.
SOME STATES HAVE DIFFERENT LIMITATIONS OF LIABILITY AND
EXCLUSIONS, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT
APPLY TO YOU.

QUESTIONS, PROBLEMS
OR COMPLIMENTS?
Thank You for purchasing this
X-Tronic International Product!
We are grateful for your business!
All of our X-Tronic International Products are inspected
then sealed with our NEW Product Seal prior to
shipment. Our goal is to ensure Quality, Completeness,
and Satisfaction for your order.
For Any Questions, Problems, or
Compliments please call or email us.
If you would like to shop for other X-Tronic International Products
Please visit our website
www.XTronicUSA.com
Toll Free: 844-861-4762
[e-mail]
Our Business Hours are:
Monday - Thursday: 8am - 4pm CST
Friday: 8am - Noon CST


