INSTRUCTION
The 3D printer adopts the principle of fused deposition molding and can print
the designed three-dimensional model diagram into a real object.
Features: Full metal frame structure; 2.4 inch touch screen operation;
removable hot bed; high printing accuracy;low noise.
Special Note：
1. All statement included in this Instructions have been checked carefully , if any
typographical errors or misunderstanding , we have the final interpretation .
2. No noification if any update .

Security Considerations
◆To avoid danger when using 3D printer , please pay attention to precautions
below !
1. During Operation , the maximum temeprature of nozzle can be 260 ℃while hotbed can be 100 ℃. For your
safety , during printing or cooling down , do not touch the nozzle , hotbed and models under printing .
2. During the operation of the machine, it is forbidden to reach into the machine to prevent the injury.
3. Power works at 110V/220V 50HZ AC and supply ground needed . Do not use other power supply , or it may cause
components damage , fire or electric shock .
4. We suggest wering protective goggles when removing auxiliary support materials .
5. Some filaments will emit slight irritant gases , so we suggest to use 3D printer in a ventilated environment .
6. ABS filament will emit a bit toxic gases when it melts .

Product Details
Specification
Model：pioneer
Nozzle diameter：0.4mm (Standar configuration)
Layer thickness：0.1-0.3mm
Machine size：390 *410 x*490 mm
Printing speed:10-120mm/s
Machine weight：7kg
X Y axis position accuracy：0.012mm
Packing size：470 * 390 * 215mm
Z axis position accuracy：0.004mm
Gross weight：8kg
Printing material：PLA,ABS
Build size：220mm*220mm*240mm
Material tendency：PLA
LCD screen：2.4 inch touch screen
Filament diameter：1.75mm
Offline printing：Yes
Software language：Chinese, English, Korean, German,
Spanish, Russian, French, Italian, Portuguese
File format：STL、G-Code、OBJ
Function of support：automatically
OS：windows(Linux、MAC)
Software：Cura
Working condition：10-30℃，Humidity 20-50%

Printing Operation
1. Main interface（This interface is the main interface when it is not printed）
The Home page contains loading and unloading filament, applications, systems and prints, and displays temperature
and SD card status in real time.
2.Extruder preheat interface
⚫On the Home page，click enter into“loading and unloading filament”interface，allows manual control
of print head temperature and extruder.
⚫Nozzle heating：real-time display “current temperature”/ “target temperature”， touch to
manually enter the target temperature value。
Heating status touch to turn off heating
Unheated status When the target temperature is not 0, touch to turn on heating.
⚫Extruder operation
Extuder real-time
temperature/preset
temperature
Hot bed real-time
temperature/preset
temperature
SD card
status

Retraction button: The extruder performs a single retraction operation.
Extrude button：The extruder performs a single extrusion operation.
Note: If you do not reach 175°C, the inputs of the [ Retraction button] and [Extruded button] are invalid. If
the extruder moves in the opposite direction, you can modify the direction of the E -axis motor in the
machine parameter configuration file and print it for modification. 。
3.Keyboard input interface

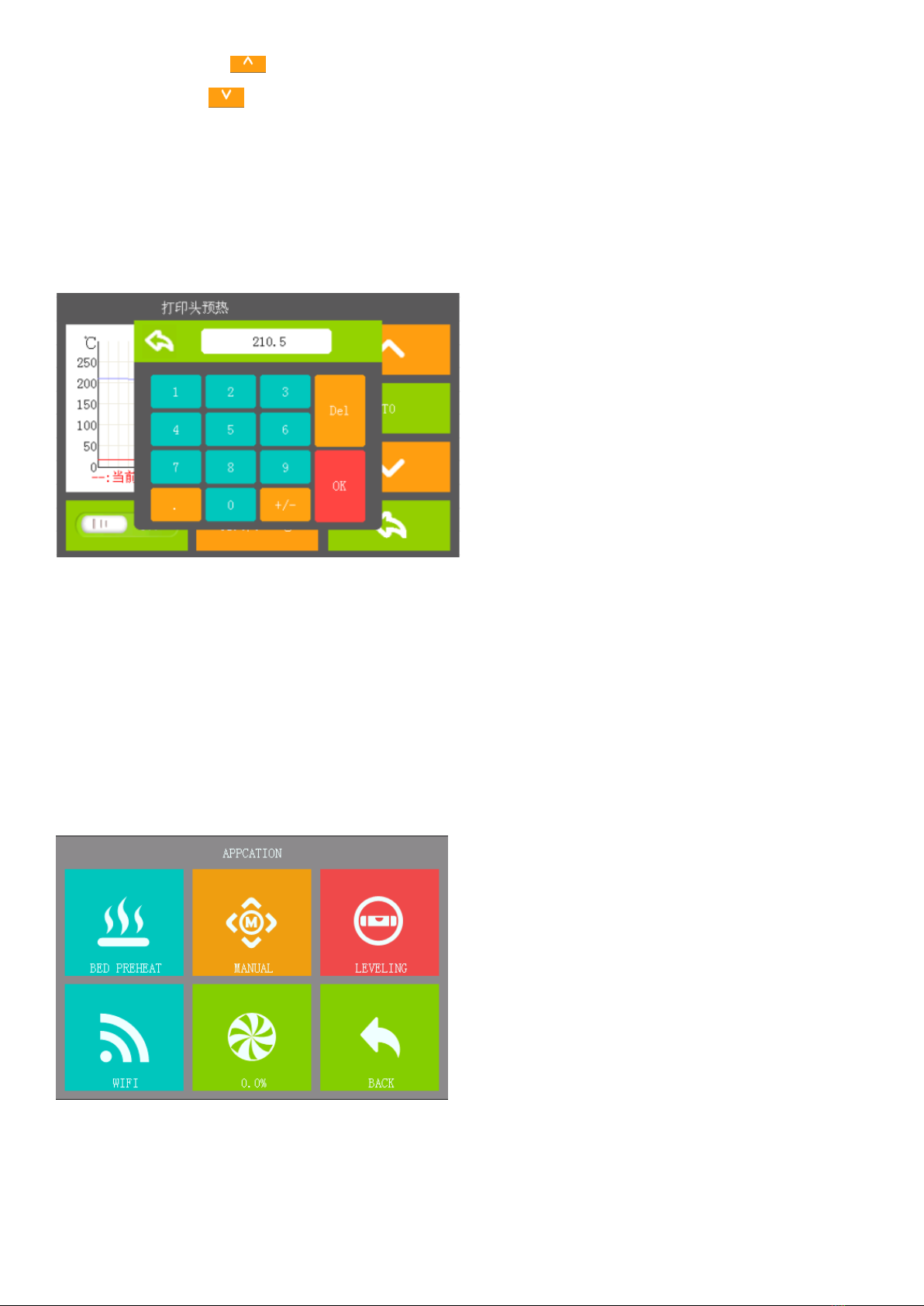

Keyboard input can be used in many places, as long as there are values to be set, it will pop up the keyboard interface, such as
the setting of the temperature target value under the loading and unloading filament interface, the debugging of the fan speed
under the application interface, and the adjustment of the nozzle and the hot bed temperature under the printing interface all
need the keyboard input interface.
4.Application interface
Application interface includes: hot bed preheating, manual operation, one-key leveling, interface update and fan speed five
modules

⚫Hot bed preheating：
Real-time display “current temperature”/ “target temperature”， touch to
manually enter the target temperature value。
Heating status touch to turn off heating。
Unheated status When the target temperature is not 0, touch to turn on
heating.

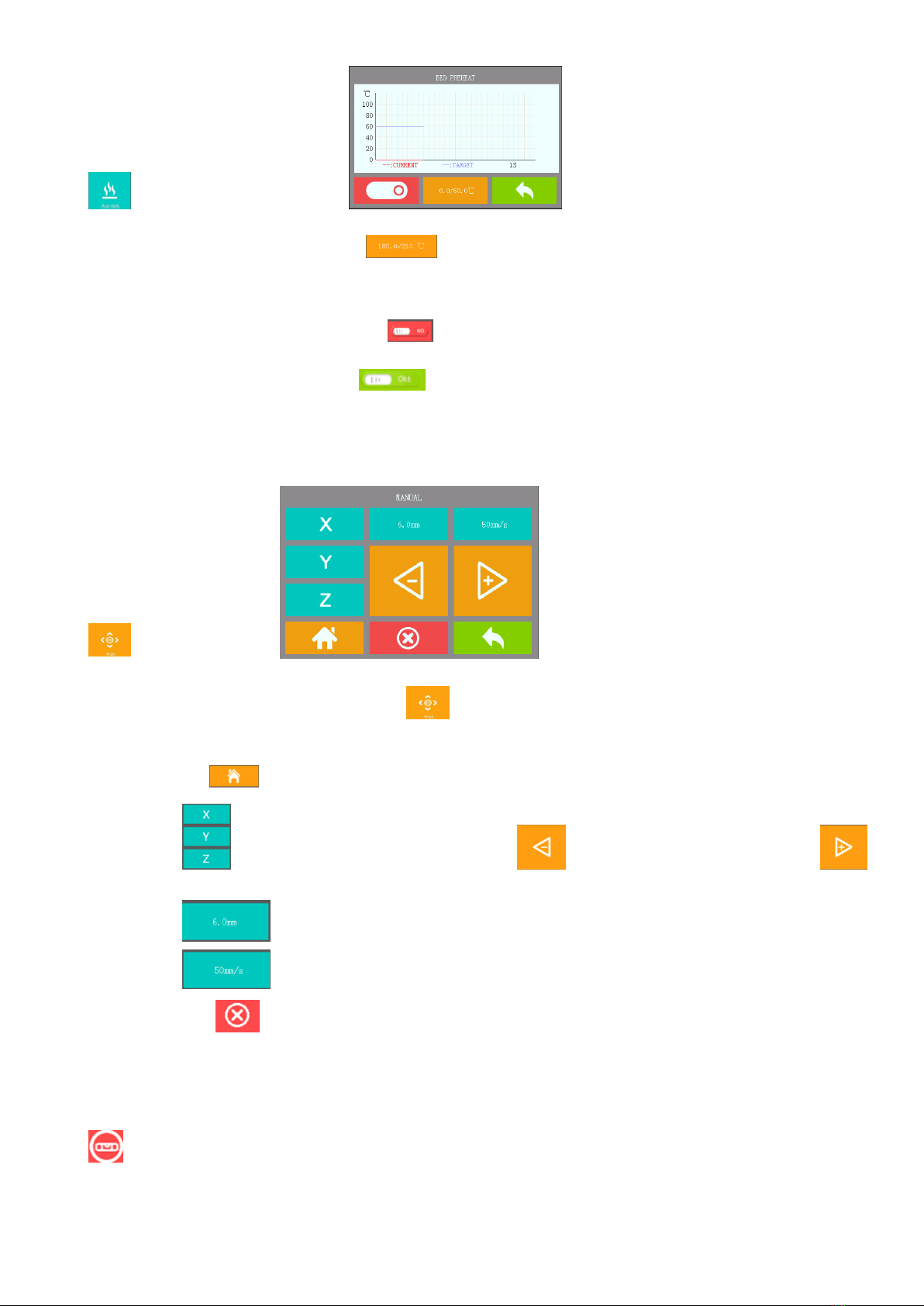

⚫manual operation：
1) In the "System" interface，click icon enter into“manual operation” interface，printer
motion can be controlled manually.
2) click machine can be automatically zeroed
3) is for manual control of XYZ motors，click move in the opposite direction，click
move in positive direction
4) control moving distance of motor，click to set the moving distance.
5) control moving speed od motor，click to set the moving speed.
6) click emergency stop and motor unlock.

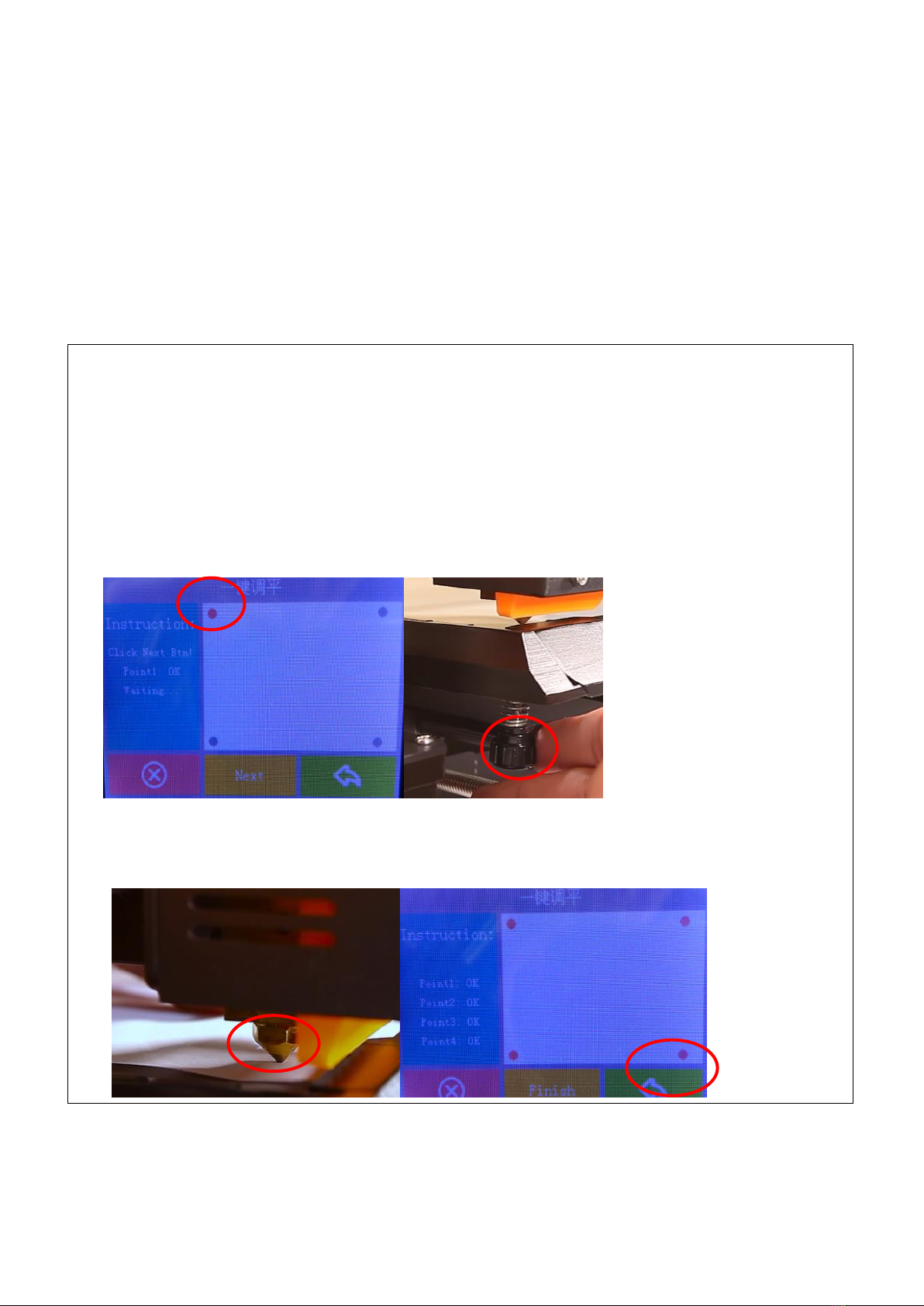

⚫One-key leveling：Leveling the print platform

⚫Interface update：update interface，before clicking this button, make sure that the new interface file
"SYSTEM" folder is placed in the SD card.
⚫Fan PWM speed regulation：Click this button will pop up the keyboard, enter the corresponding value, the
fan will turn. Pwm range: 1-100 (100 means 100% full speed rotation)
5.System interface
⚫“system”interface contains information ，click can see the current firmware
version number。
⚫click can switch System language。
⚫click Can restore the system to the factory settings.

Filament installation
1.Extruder preheating：click on “loading and unloading filament”on the
main interface enter into extruder heating interface，click
setting extruder temperature，then click heating the extruder。（ Note:
PLA filament temperature setting 190-240 °C; ABS filament temperature
setting: 220-260 °C.）

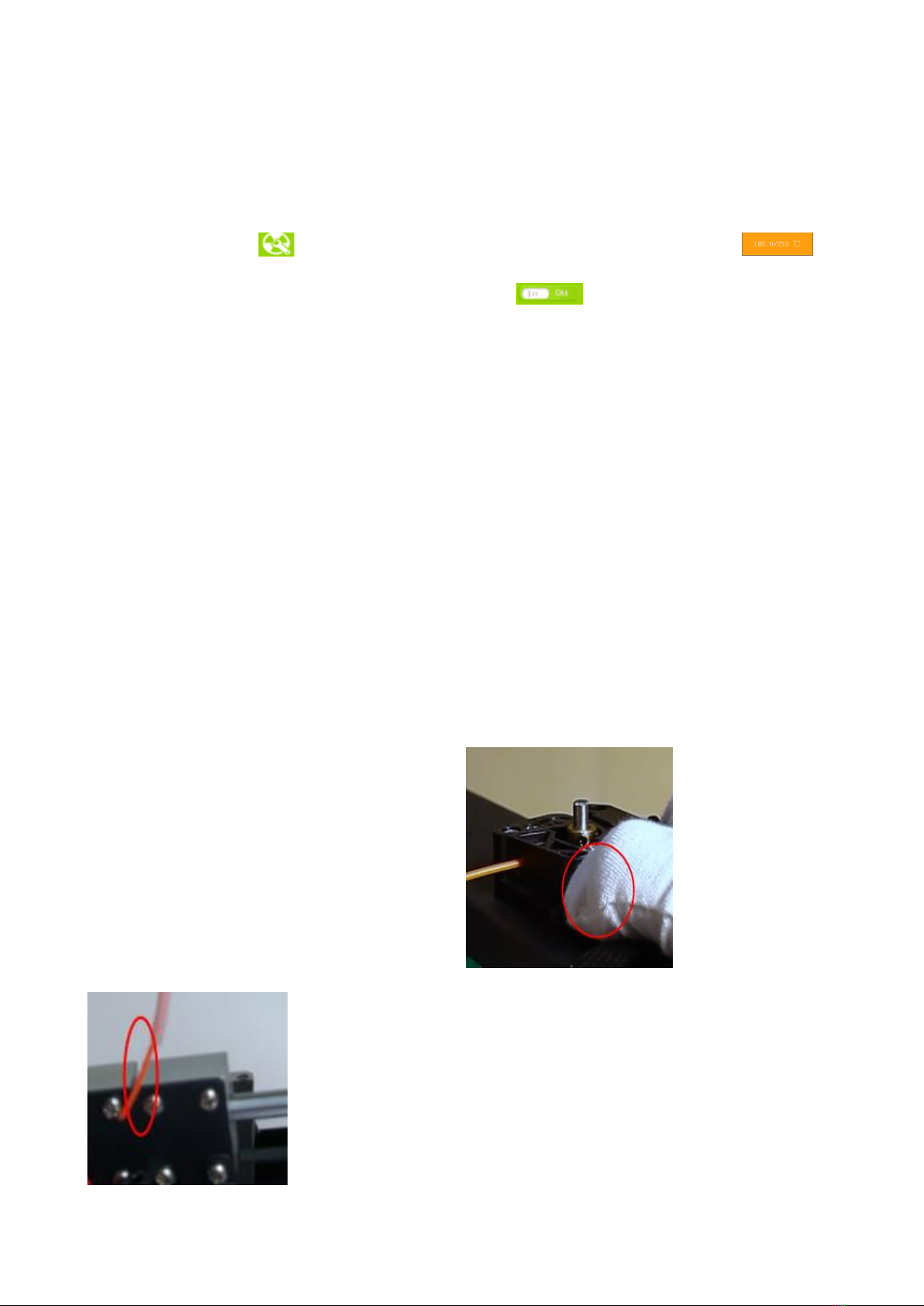

2．Install filament：
Press the feeding handle and send the filament down until the filament
come out of the back end of the Teflon tube and insert the filament into the extruder.
When the size of the material coming out of the extruder is uniform, the filaments are
installed successfully, and then the white Teflon tube is inserted into the rear of the
black trachea connector until it cannot be pushed. (Note: The extruder needs to be
heated to the filament print temperature)
