Xylem Rule 56D User manual

Standard Bilge Pump
INSTRUCTION MANUAL
FR
DE
IT
NL
SE
ES
Manuel d’utilisation pour pompe de cale standard
Bedienungsanleitung für die Standard-Bilgenpumpe
Manuale delle istruzioni per la pompa di sentina
standard
Manual de instrucciones de la bomba de achique
estándar
Användarhandbok för standard länspump
Handleiding voor standaard lenspomp

Purpose of this manual
The purpose of this manual is to provide necessary information for product installation, operation
and maintenance.
CAUTION: Read this manual carefully before installing, using or servicing this
product. Failure to follow the instructions within this manual could result in explosion,
property damage, severe personal injury and/or death.
DANGER: Failure to follow this instruction manual may lead to signicant property
damage or may result in serious injury or death.
About safety messages
It is extremely important that you read,understand and follow the safety messages and regulations
carefully before handling the product.They are published to help prevent these hazards:
WARNING:
• The operator must be aware of safety precautions to prevent physical injury.
• Operating, installing or maintaining the unit in any way that is not covered
in this manual could cause death, serious personal injury or damage to the
equipment. This includes any modication to the equipment or use of parts
not provided by Xylem.If there is a question regarding the intended use of
equipment, please contactXylem representative before proceeding.
• Do not change the service application without the approval of a authorized
Xylem representative.
• Personal accidents and health problems
• Damage to the product
• Product malfunction
NOTICE: Save this manual for future reference, and keep it readily available at the
location of the unit.
Safety
Safety terminology and symbols
Hazard Level:
DANGER
WARNING
CAUTION
NOTICE
Indication:
Ahazardous situation which,if not avoided,will result indeath orserious injury.
Ahazardous situation which,if not avoided,could result indeath orserious injury.
Ahazardoussituationwhich,if notavoided,could resultinminor ormoderateinjury.
Apotential situation which,if not avoided,could result in undesirable conditions.
Apractice notrelatedto personal injury.
2

ELECTRICAL HAZARD:
Hazard categories can either fall under hazard levels or let specic symbols replace the ordinary
hazard levels symbols. Electrical hazards are indicated by the following specic symbols:
These are examples of other categories that can occur.They fall under the ordinary hazard
levels and may use complementing symbols:
Hazard categories
• Crush hazard
• Cutting hazard
• Arc ash hazard
General safety rules
These are safety rules apply:
• Always keep work area clean
• Pay attention to the risks presented by gas and vapors in the work area.
• Avoid all electrical dangers. Pay attention to the risks of electric shock or arc ash hazards
• Always bear in mind the risk of drowning, electrical accidents and burn injuries
User safety
Safety equipment
Usesafetyequipment according tothecompany regulations.Use this safety equipmentwithin the work area:
Electrical connections
Electrical connections must be made by certied electricians in compliance with all
international, national,state and local regulations. For more information about requirements,
see sections dealing specically with electrical connections.
• Hard hat
• Safety goggles, preferably with side shields
• Protective shoes
• Protective gloves
• Gas mask
• Hearing protection
• First-aid kit
• Safety devices
NOTICE: Never operate a unit unless safety devices are installed.
Precautions before work
Observe these safety precautions before you work with the product or are in connection with the product:
• Provide a suitable barrier around the work area, for example, a guard rail
• Make sure that all safety guards are in place and secure
• Make sure that you have a clear path of retreat
• Make sure that the product cannot roll or fall over and injure people or damage property
3

The work area
Always keep the station clean
Waste and emissions regulations
Observethesesafety regulations regardingwaste and emissions:
Wash the skin and eyes
Followthese proceduresfor chemicals or hazardousfluids that have come intocontact with your eyes orskin:
• Make sure that the lifting equipment is in good condition
• Use a lifting harness,a safety line and a breathing device as required
• Allow all system and pump components to cool before you handle them
• Make sure that the product has been thoroughly cleaned
• Disconnect and lock out power before you service the pump
• Check the explosion risk before you weld or use electric hand tools
• Appropriately dispose of all waste
• Handle and dispose of the processed liquid in compliance with applicable
environmental regulations
• Clean up all spills in accordance with safety and environmental procedures
• Report all environmental emissions to the appropriate authorities
Environmental safety
Electrical installation
For electrical installation recycling requirements, consult your local electric utility
Recycling guidelines
Always follow local laws and regulations regarding recycling
WARNING: Radiation Hazard.Do NOT send the product to Xylem if it has been
exposed to any nuclear radiation
Condition
Chemicals or
hazardous uids
in eyes
Chemicals or
hazardous uids
on skin
Action
1. Hold your eyelids apart forcibly with your ngers
2. Rinse the eyes with eyewash or running water for al least 15 minutes
3. Seek medical attention
1. Remove contaminated clothing
2.Wash the skin with soap and water for a least 1 minute
3. Seek medical attention, if necessary
4

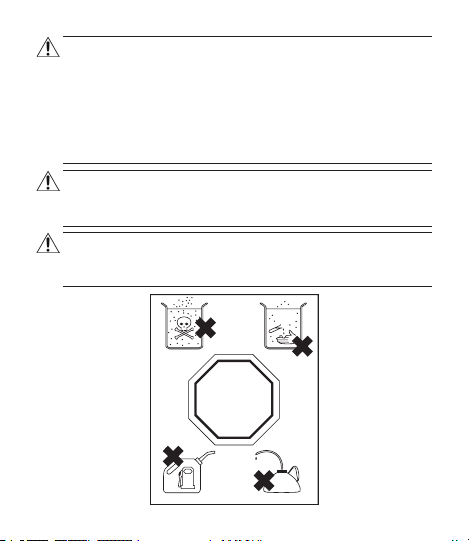

DANGER: This product is not intended for damage control or to deal with ooding result-
ing from hull damage.This product is intended to be used in Bilge Pumping Systems for small
craft with a hull length up to 24 meters,as described within the introduction and scope of ISO
15083. Bilge Pumping Systems, as specied in ISO 15083, are limited to normal amounts of
water in an intact boat due to spray, rain,seepage, spillage, and occasional small amounts of
water shipped from boat movements in heavy weather. Use of product in any other way could
result in ooding, catastrophic damage to craft, serious personal injury, or death.
WARNING: This pump is designed for use with fresh water and salt water ONLY. Use with
any other hazardous, caustic,or corrosive material could result in damage to the pump and
the surrounding environment,possible exposure to hazardous substances and injury.
WARNING: Check the function of all bilge pumps at regular intervals. Clear pump
inlets from debris. If seacocks are tted in the fore and aft peak bulkheads, they shall be
kept closed and shall only be opened to let water drain into the main bilges.
STOP
C
STOP
ARRÊT
STOPP
ALTO
5

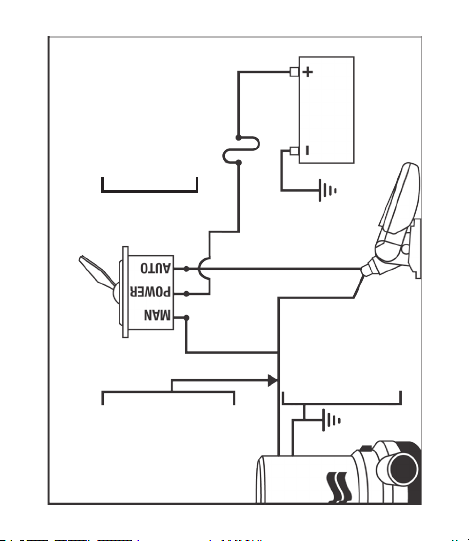

11
2
11
2
6

Rated Flow Open Flow Output @ 0ft/0m
(0 kPa) GPH (LPH)
Open Flow
Output @ 3.35ft/1m
(10 kPa) GPH (LPH)
Open Flow
Output @ 6.7ft/2m
(20 kPa) GPH (LPH)
FR
Débit nominal
Débit libre
Sortie à 0 pied/0m
(0 kPa) GPH (LPH)
Débit libre
Sortie à 3,35 pieds/1m
(10 kPa) GPH (LPH)
Débit libre
Sortie à 6,7 pieds/2m
(20 kPa) GPH (LPH)
DE
Gemessener
Durchuss
Offener Durchuss
Pumpleistung bei 0m
(0kPa) GPH (LPH)
Offener Durchuss
Pumpleistung bei 1m
(10kPa) GPH (LPH)
Offener Durchuss
Pumpleistung bei 2m
(20kPa) GPH (LPH)
IT
Flusso
nominale
Flusso aperto
Uscita @ 0ft/0m
(0 kPa) GPH (LPH)
Flusso aperto
Uscita @ 3,35ft/1m
(10 kPa) GPH (LPH)
Flusso aperto
Uscita @ 6,7ft/2m
(20 kPa) GPH (LPH)
NL
Nominaal
debiet
Open debiet
Uitvoer @ 0ft/0m
(0 kPa) GPH (LPH)
Open debiet
Uitvoer @ 3,35ft/1m
(10 kPa) GPH (LPH)
Open debiet
Uitvoer @ 6,7ft/2m
(20 kPa) GPH (LPH)
SE
Nominellt öde
Öppet öde
Effekt @ 0ft/0m
(0 kPa) GPH (LPH)
Öppet öde
Effekt @ 102,11cm/1m
(10 kPa) GPH (LPH)
Öppet öde
Effekt @ 204,22cm/2m
(20 kPa) GPH (LPH)
ES
Caudal Nominal
CaudalAbierto
Salida @ 0 pies/0 m
(0 kPa) GPH (LPH)
Caudal Abierto
Salida @ 3.35 pies/1 m
(10 kPa) GPH (LPH)
Caudal Abierto
Salida @ 6.7 pies/2 m
(20 kPa) GPH (LPH)
360 360 (1362) 265 (1003) 190 (719)
500 500 (1892) 360 (1362) 260 (984)
700 700 (2649) 562 (2127) 330 (1249)
800 800 (3028) 615 (2328) 425 (1608)
1000 1000 (3785) 725 (2744) 450 (1703)
1100 1100 (4164) 860 (3255) 550 (2081)
1500 1500 (5678) 1200 (4542) 680 (2574)
2000 2000 (7570) 1620 (6132) 1300 (4921)
3700 3700 (14006) 2900 (10977) 2450 (9274)
4000 4000 (15142) 3527 (13351) 2952 (11174)

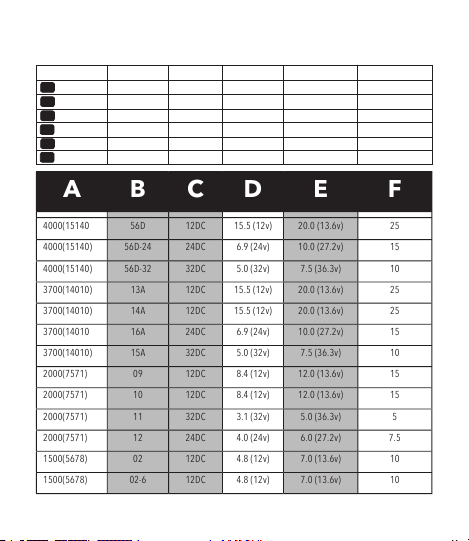

Note: Output is based on 10 hour break-in period and at 13.6V(12V models) or 27.2V (24Vmodels)
7

3800 GPH (14384 LPH)
(14006 LPH)
(15141 LPH)
(30283 LPH)
Pump Performance - Large RULE Pumps
(15141) (22712) (30283)
3785
Pump Performance - Small RULE Pumps
360
1000 GPH (3785 LPH)
Pump Performance - Small RULE Pumps
Pump Performance - Large RULE Pumps
8

+12"
(+30cm)
