Foreword
To OWNERS, USERS, and OPERATORS:
The safe and efficient operation of a lift truck requires
skill and alertness on the part of the operator. To develop
the skill required, the operator must:
•Receive training, pursuant to OSHA 1910.178(1) dated
12/98, in the proper operation of THIS lift truck.
•Understand the capabilities and limitations of the lift
truck.
•Become familiar with the construction of the lift truck and
see that it is maintained in good condition.
•Read and properly understand the warnings, instruc-
tions, and operating procedures in this manual.
In addition, a qualified person, experienced in lift truck
operation, must guide a new operator through several driv-
ing and load handling operations before the new operator
attempts to operate the lift truck alone.
It is the responsibility of the employer to make sure that the
operator can see, hear, and has the physical and mental
ability to operate the equipment safely.
Various laws and regulations require the employer to train
lift truck operators. These laws and regulations include:
•Occupational Safety and Health Act (OSHA) (USA)
•Canada Material Handling Regulations
NOTE: A comprehensive operator training program is avail-
able from Yale Company. For further details, contact your
dealer for Yale Company lift trucks.
This Operating Manual. Read and understand this manual
before operating the lift truck. This is a permanent refer-
ence and must be available for use at all times.
Some of the components and systems described in this
Operating Manual will NOT be installed on your unit. If you
have a question about any item described, contact your
dealer for Yale Company lift trucks.
This Operating Manual is the original instruction and con-
tains information necessary for the operation and mainte-
nance of a basic fork lift truck. Optional equipment is
Foreword
©YALE MATERIALS HANDLING CORP. 2019 550068167 - ENGLISH-US 1

sometimes installed that can change some operating char-
acteristics described in this manual. Make sure the neces-
sary instructions are available and understood before
operating the lift truck.
Additional information that describes the safe operation
and use of lift trucks is available from the following sources:
•Employment safety and health standards or regulations
(Examples: "Occupational Safety and Health Standards
(USA)," "Canada Material Handling Regulations."
•Safety codes and standards (Example: Industrial Truck
Standards Development Foundation, ANSI/ITSDF
B56.1, Safety Standard for Low Lift and High Lift
Trucks).
•Publications from government safety agencies, govern-
ment insurers, private insurers, and private organizations
(Example: Accident Prevention Manual for Industrial
Operations, from the National Safety Council).
•Guide for Users of Industrial Lift Trucks (Yale Part No.
550038777) describes lift truck safety, good mainte-
nance practices, and training programs and is available
from your dealer for Yale Company lift trucks.
NOTE: Yale Company lift trucks are not intended for use
on public roads.
NOTE: Throughout this manual, the terms right, left, front,
and rear relate to the viewpoint of an operator standing at
the control handle or delivery handle facing the forks.
NOTE: The following symbols and words indicate safety
information in this manual:
WARNING
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury and property
damage.
On the lift truck, the WARNING symbol and word are on
orange background. The CAUTION symbol and word
are on yellow background.
Foreword
2

Contents
Foreword ...................................................................... 1
TO OWNERS, USERS, AND OPERATORS: ............. 1
Warning ........................................................................ 4
Model Description ....................................................... 7
GENERAL ................................................................... 7
NAMEPLATE .............................................................. 10
SAFETY LABELS ....................................................... 10
INSTRUMENTS AND CONTROLS ............................ 13
Operating Procedures ................................................ 34
RULES FOR SAFE OPERATION ............................... 34
INSPECTION BEFORE OPERATION ........................ 40
Checks With the Key Switch OFF ............................. 40
Checks With the Key Switch ON .............................. 41
OPERATING TECHNIQUES ...................................... 41
Selectable Performance Modes ................................ 41
Traveling ................................................................... 42
Steering .................................................................... 42
Turning ...................................................................... 42
Standard Truck Braking ............................................ 43
Delivery Truck Braking .............................................. 44
Coasting .................................................................... 44
Stopping .................................................................... 44
Load Handling ........................................................... 45
Maintenance ................................................................ 46
HOW TO MOVE A DISABLED LIFT TRUCK .............. 46
HOW TO PUT A LIFT TRUCK ON BLOCKS .............. 47
Maintenance Schedule ............................................... 48
Checks and Inspection Procedures .......................... 53
HYDRAULIC SYSTEM ............................................... 53
LIFTING MECHANISM ............................................... 55
CONTROLS ................................................................ 55
WHEELS AND TIRES ................................................. 57
ELECTRICAL AND BATTERY ................................... 57
CHARGING THE BATTERY ....................................... 58
LED Status Display ................................................... 60
Specific Gravity Corrections ..................................... 63
CHECKING THE BATTERY ....................................... 65
CHANGING THE BATTERY ....................................... 66
BATTERY SPECIFICATIONS .................................... 69
LITHIUM-ION BATTERY ............................................ 69
Charging Lithium-Ion Battery .................................... 69
Troubleshooting Charger ........................................ 70
Knowing When Battery Is Fully Charged ................ 70
Where To Charge Batteries .................................... 70
Lithium-Ion Battery Care ........................................... 71
Contents
3

KNOW YOUR TRUCK:
•Do not operate or repair truck unless trained and author-
ized.
•Know all warnings and instructions on truck and in Oper-
ating Manual.
CHECK YOUR TRUCK:
•Do not operate or repair truck unless trained and author-
ized.
•Check truck before use.
•If repairs are needed, tag truck and do not operate.
•Have repaired before using.
PROTECT OTHERS AND YOURSELF:
•Do not transport people on any portion of truck.
•Allow no one on truck, battery, forks, or load.
•Do not ride truck unless it is designated as a rider type
truck by manufacturer.
•Do not move truck if anyone is between truck and sta-
tionary object.
•Keep hands within handle guards and feet clear of truck.
•Do not handle loads taller than load backrest or exten-
sion unless load is secured so that no part of it can move
toward the operator.
KNOW THE AREA:
•Check dockboard or bridgeplate width, capacity, and
security.
•Never enter a trailer or railcar unless its wheels are
blocked. Watch floor strength.
KNOW YOUR LOAD:
•Never overload.
Warning
WARNING
FAILURE TO FOLLOW THESE INSTRUCTIONS CAN CAUSE SERIOUS INJURY OR DEATH!
AUTHORIZED, TRAINED OPERATOR ONLY!
4

•Handle loads only within capacity and load center shown
on the Nameplate.
•Do not handle unstable or loosely stacked loads.
•Use special care when handling long, high, or wide
loads.
DRIVE CAREFULLY:
•Use common sense.
•Obey all traffic rules.
•Yield right-of-way to pedestrians.
•Avoid bumps, holes, slick spots, and loose material.
•Slow down and sound horn at cross aisles and where
vision is obstructed.
•Watch side clearance when turning corners.
•Operate truck with forks trailing whenever possible.
•Always face direction of travel.
•WHEN WALKING, control truck with one hand, using
steer handle.
•Walk to the side of the steer handle.
•When truck is operated forks first, use two hands on
steer handle.
•WHEN RIDING, operate from operator's position only.
DON'T GO IF YOU CAN'T SEE:
•Always look in direction of travel.
•Keep a clear view.
AVOID SUDDEN MOVEMENT:
•Start, stop, travel, steer, and brake smoothly.
•Avoid bumps, holes, and loose material.
•Side tipover can occur even when unloaded.
Warning
WARNING
FAILURE TO FOLLOW THESE INSTRUCTIONS CAN CAUSE SERIOUS INJURY OR DEATH!
AUTHORIZED, TRAINED OPERATOR ONLY!
5

USE SPECIAL CARE WHEN OPERATING ON RAMPS:
•Travel slowly and do not angle or turn. Always travel with
lifting mechanism downhill.
SHUTDOWN COMPLETELY:
•When leaving truck unattended, fully lower lifting mecha-
nism, shut off power, set brakes, remove key, and dis-
connect battery.
•Block wheels if truck is parked on an incline.
TAKE CARE WHEN CHARGING:
•Charge battery only in designated area.
•When charging battery, keep vent caps clear. Avoid
sparks or open flame.
•Provide ventilation.
•Disconnect battery during servicing.
Warning
WARNING
FAILURE TO FOLLOW THESE INSTRUCTIONS CAN CAUSE SERIOUS INJURY OR DEATH!
AUTHORIZED, TRAINED OPERATOR ONLY!
6

Model Description
General
The Yale MPB045VG lift trucks are pedestrian-operated lift
trucks with lifting capacities of 2,041 kg (4,500 lb).
These lift trucks are electric power vehicles. A battery pro-
vides the electric power for travel and hoist functions. The
battery is located on the fork frame and moves with the
forks. The battery/battery compartment also acts as a load
backrest and helps to steady the load.
The control handle or delivery handle is used to select the
various functions of the truck, including: steering, selecta-
ble performance modes, braking, direction and speed con-
trol, lifting, lowering, and horn. See Figure 1 and Figure 2.
This lift truck can be stopped by one of three methods of
braking:
1. Plugging
2. Neutral Braking
3. Returning the control handle or delivery handle to the
brake ON position
A detailed operating instruction is provided in the Operat-
ing Procedures section of this manual.
The operator has a choice of three performance modes
that are selectable through the control handle or delivery
handle. The mode selection is made at startup or key ON.
Performance parameters that vary are:
1. Acceleration
2. Deceleration (neutral braking)
3. Top travel speed
A detailed operating instruction is provided in the Operat-
ing Procedures section of this manual.
The Operating Manual is stored in the container on the
drive compartment. This is a permanent reference and
must be available for use at all times.
Model Description
7

1. CONTROL HANDLE
2. CENTER COVER
3. EMERGENCY POWER DISCONNECT
4. FORK
5. BATTERY COMPARTMENT
6. DRIVE COMPARTMENT COVER
7. OPERATING MANUAL
Figure 1. Standard Model View Showing Major Components
Model Description
8

1. DELIVERY HANDLE
2. OPERATING MANUAL
3. CENTER COVER
4. EMERGENCY POWER DISCONNECT
5. DRIVE COMPARTMENT COVER
6. MOVEABLE LOAD BACKREST
7. LOAD RETENTION STRAP
8. BATTERY COMPARTMENT
9. FORK
Figure 2. Retail Delivery Model View Showing Major Components
Model Description
9

Nameplate
WARNING
Any change to the lift truck or its equipment can
change the lifting capacity. If the Nameplate does not
show the maximum capacity, or if the lift truck equip-
ment, including the battery, does not match that shown
on the Nameplate, then the lift truck must NOT be oper-
ated.
The Nameplate for the lift truck is found on the frame. The
capacity shown is for a lift truck equipped as shown on the
nameplate. The capacity is specified in kilograms (kg). The
capacity is the maximum load that the lift truck can handle
for the load condition shown on the Nameplate. See Fig-
ure 3.
The maximum capacity for the lift truck must be shown on
the Nameplate. If the lift truck Nameplate already has a
capacity for special load handling equipment, it will be lis-
ted. Make sure the Nameplate data is complete and fully
understood before operating the lift truck.
The lift truck serial number code is on the Nameplate. The
serial number code is also stamped on the lift truck frame.
Figure 3. Nameplate and Label
Safety Labels
Safety labels are installed on the lift truck to give informa-
tion about possible hazards. It is important that all safety
labels are installed on the lift truck and can be read. See
Figure 4.
Model Description
10

Figure 4. Warning and Safety Labels
Model Description
11

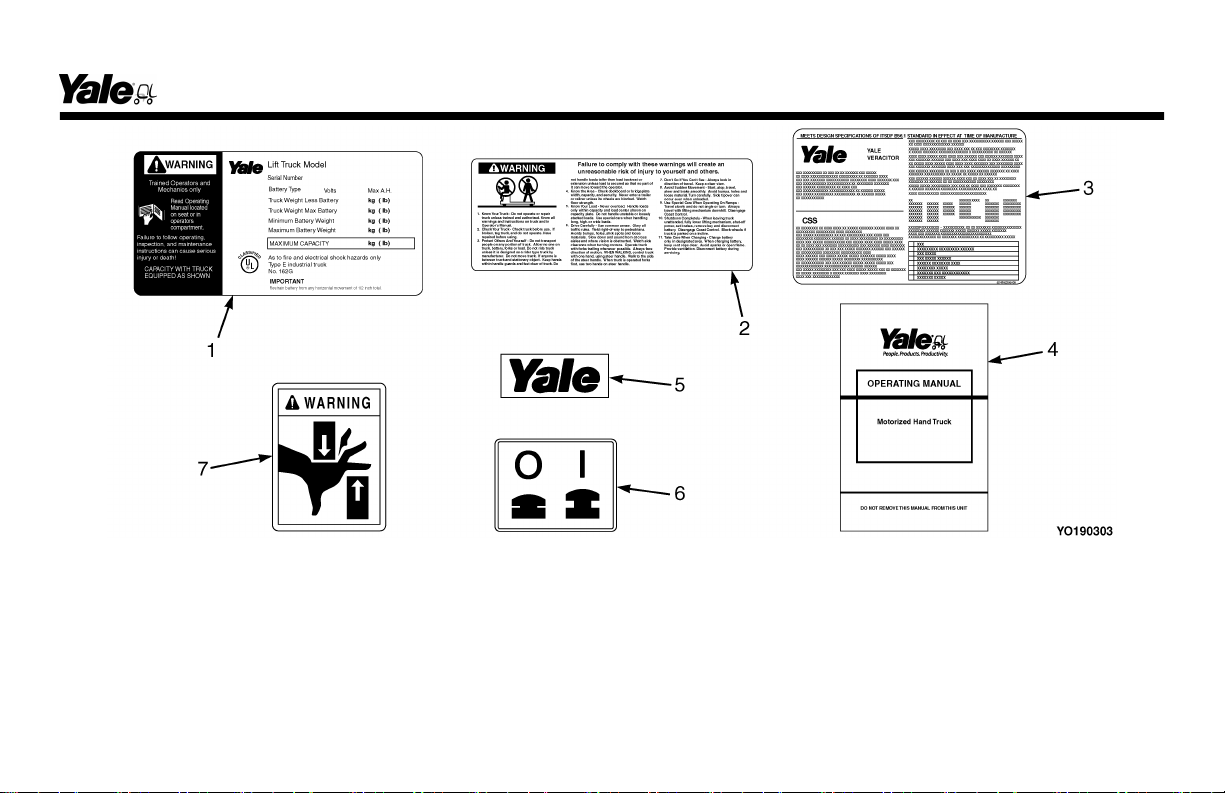

Legend for Figure 4
1. NAMEPLATE
2. DECAL WARNING
3. PATENTS & TRADEMARKS LABEL
4. OPERATING MANUAL
5. YALE BLACK DECAL
6. E-STOP LABEL
7. WARNING LABEL
Model Description
12

Instruments and Controls
Figure 5. Instruments and Controls
Model Description
13

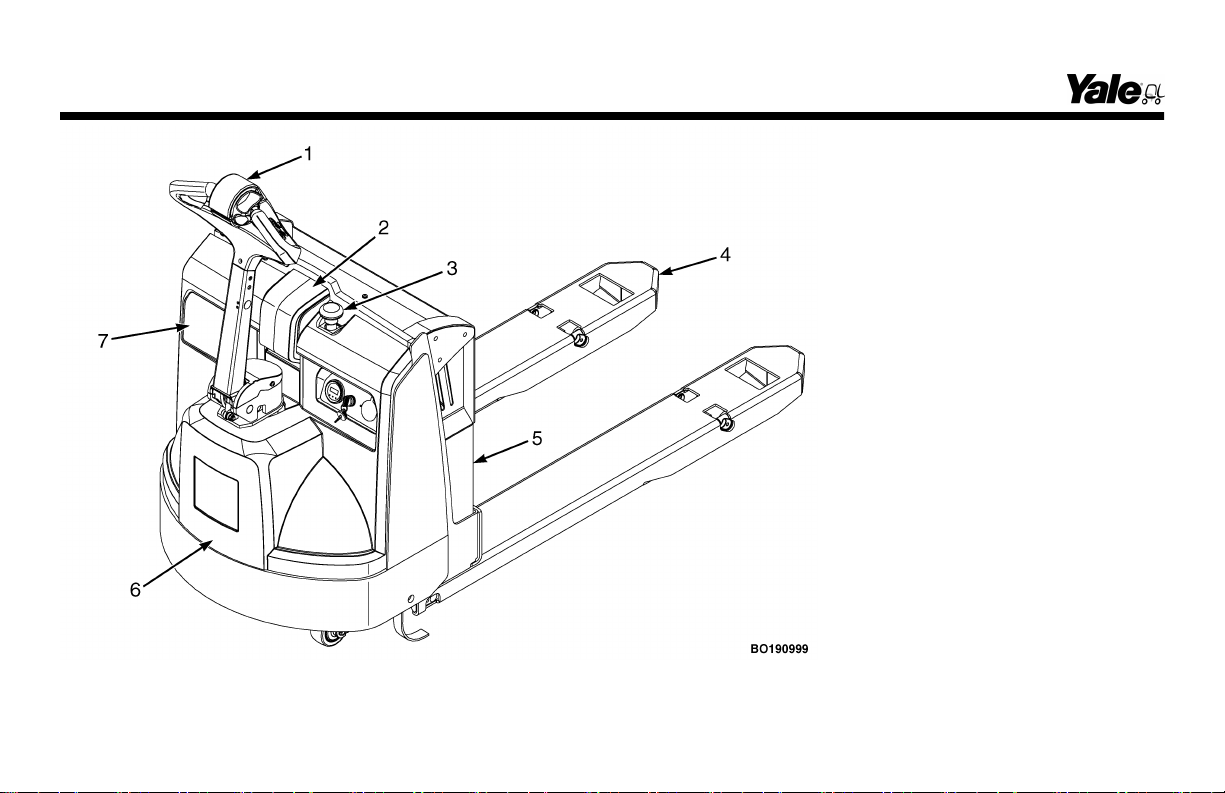

Legend for Figure 5
A. STANDARD TRUCK B. RETAIL DELIVERY TRUCK
1. CONTROL HANDLE ARM
2. CONTROL HEAD ASSEMBLY
3. EMERGENCY POWER DISCONNECT
4. KEY SWITCH
5. DISPLAY - BATTERY INDICATOR/HOURMETER
6. DELIVERY HANDLE ARM
7. DELIVERY CONTROL HEAD ASSEMBLY
8. MOVABLE LOAD BACKREST
Model Description
14

Table 1. Instruments and Controls (See Figure 5)
Item
No.
Item Function

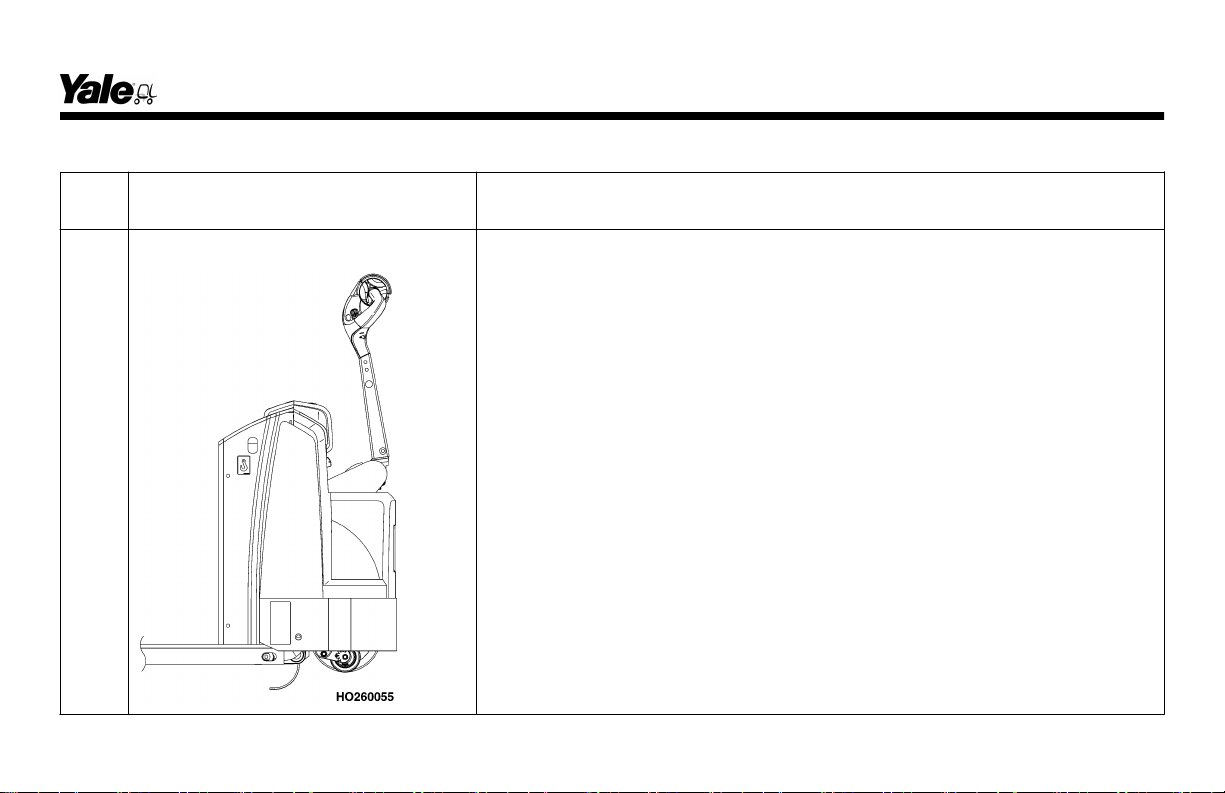

1 Control Handle Move the control handle to the right or left to steer the truck. Fully raise or
fully lower the control handle to engage the brake. When the control handle
is released from the operating position, it will automatically return to the ver-
tical position and engage the brake. Arrows on the butterfly-type knobs,
speed/direction control, indicate the direction of travel of the lift truck. Lift,
lower, traction reverse, and the horn are controlled by separate buttons on
the control handle.
Model Description
15

Table 1. Instruments and Controls (See Figure 5) (Continued)
Item
No.
Item Function
1 Selectable Performance Modes The user has a choice of three performance modes that are selectable
through the control handle. The mode selection is made at startup, or key
ON. Performance parameters that vary are: Acceleration, Deceleration (neu-
tral braking), and Top Travel Speed.
The three user selectable performance modes are factory programmed per
the following:
Mode 1: Soft Acceleration
Acceleration - Soft
Top Speed - 90% of full speed
Neutral Braking - Soft
Mode 2: Medium Acceleration
Acceleration - Medium
Top Speed - 90% of full speed
Neutral Braking - Medium level
Mode 3: Maximum Acceleration
Acceleration - maximum
Top Speed - 100% of full speed
Neutral Braking - Maximum
Model Description
16

Table 1. Instruments and Controls (See Figure 5) (Continued)
Item
No.
Item Function
1 Selectable Performance Modes
(Continued)
NOTE: See the section Operating Techniques for instructions on changing
performance mode setting.
Model Description
17

Table 1. Instruments and Controls (See Figure 5) (Continued)
Item
No.
Item Function

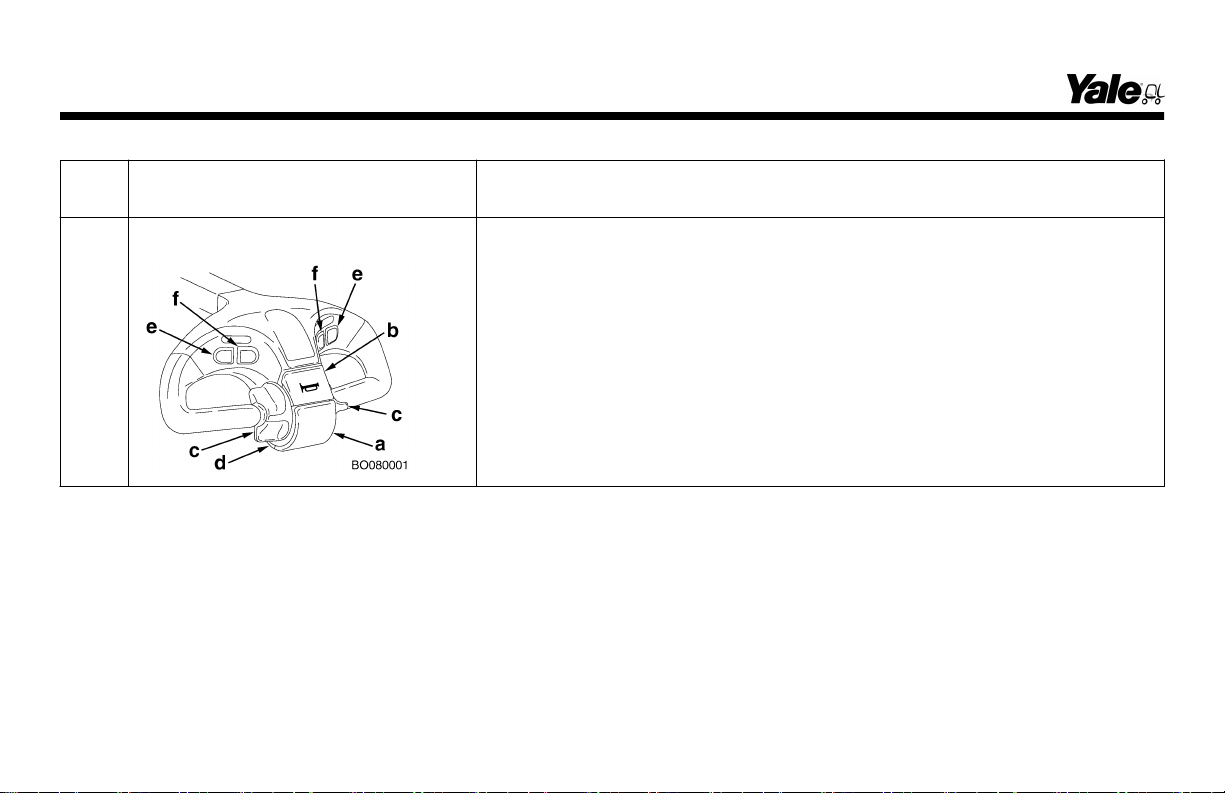

2 Control Head Assembly The control handle assembly has the following controls:
(a) Traction Reverse button
(b) Horn button
(c) Direction and speed control
(d) Slow speed button
(e) Lower button
(f) Lift button
NOTE: Operation of these controls is described in the following paragraphs.
Model Description
18
