Introduction
Thank youfor purchasing the Music
Laboratory System. In order to make full use
of thisproduct’s functions, we recommend
that youread thisOwner’s Manual
thoroughly before use. Also, keep thisguide
in asafe place for reference after youhave
finished reading it.
Items included
•Owner’s Manual (thisdocument)
•Mounting bracket
•Mounting screws(4 for installing the
bracket, 2 for installing the product)
Use when mounting the instrument.
(Page 10)
•4 Rubber feet
Use when placing the instrument on aflat
surface. (Page 11)
Manual types
The following manualsare available for this
system.
•MLA-200 Owner’s Manual (this
document)
Thisprovidesgeneral information such
as safety precautionsas well as part
namesand functions.
•Setup Guide
Thisprovidesdetailson the installation,
connection and setup of the system. This
information isintended mainly for
designersand installersof the system.
•ML Touch User’s Guide
Thisprovidesdetailson the operating
proceduresfor the “ML Touch”
application that controlsthe system. This
information isintended mainly for
instructorsusing the application.
Contents
Introduction................................ 3
Items included ........................... 3
Manual types.............................. 3
PRECAUTIONS .......................... 4
Part names and functions......... 7
Front panel................................................. 7
Side panel.................................................. 7
Rear panel ................................................. 8

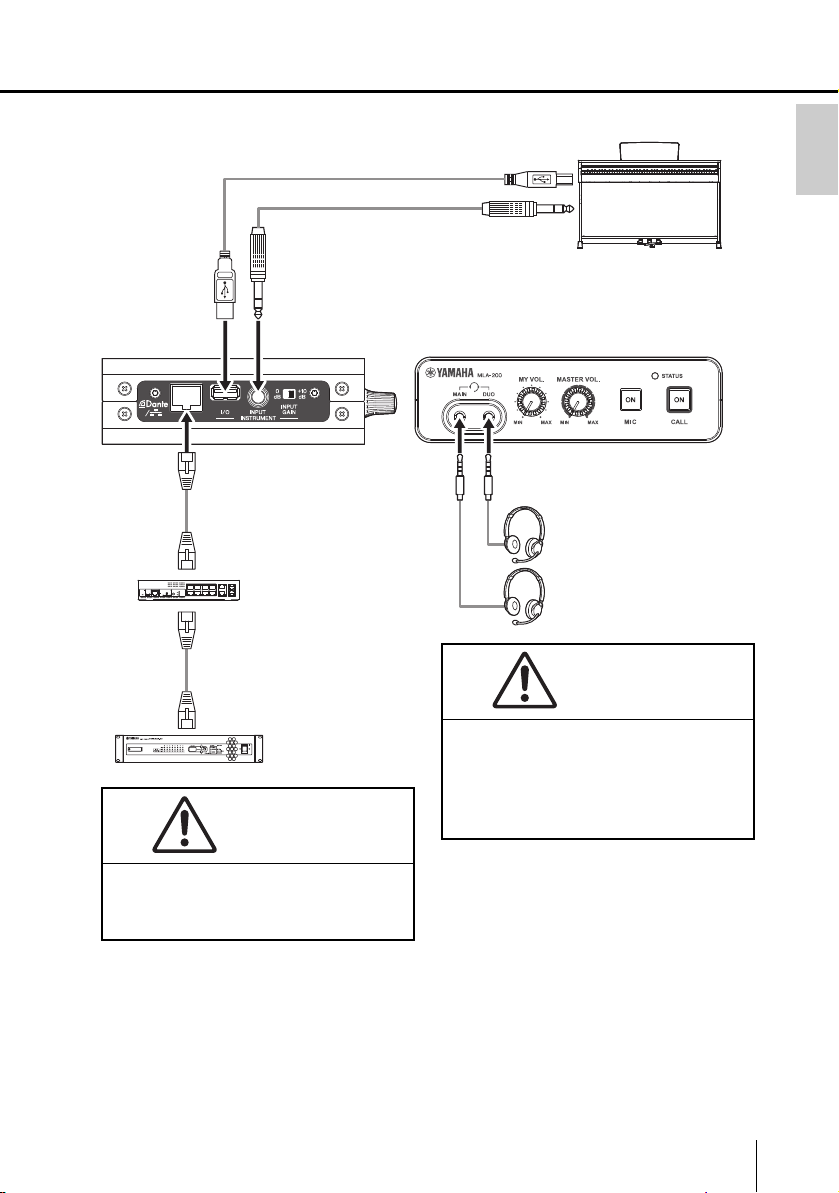

Sample setup ............................. 9
Installing onto an
instrument ................................ 10
Installation conditions.............................. 10
Installation examples............................... 10
General specifications ............ 12

4MLA-200 Owner’s Manual
PRECAUTIONS
PLEASE READ CAREFULLY
BEFORE PROCEEDING
Please keep thismanual in asafe place for future
reference.
WARNING
Always follow the basic precautions
listed below to avoid the possibility of
serious injury or even death from
electrical shock, short-circuiting,
damages, fire or other hazards. These
precautions include, but are not limited
to, the following:
If you notice any abnormality
•Ifany of the following problemsoccur, immedi-
ately disconnect the Ethernet cable from this
product.
- The Ethernet cable becomesfrayed or dam-
aged.
-Unusual smellsor smoke are emitted.
- Some object, or water has been dropped into
the product.
- There isasudden loss of sound during use
of the product.
-Cracksor other visible damage appear on
the product.
Then have the product inspected or repaired by
qualified Yamahaservice personnel.
Power supply
•Use aCAT5e or higher grade cable.
Failure to observe thisprecaution could result in
afire or malfunction.
Do not open
•Thisproduct containsno user-serviceable parts.
Do not attempt to disassemble the internal parts
or modify them in any way.
Water warning/Fire warning
• Do not expose the product to rain, use it near
water or in damp or wet conditions, or place on
it any containers(such as vases, bottlesor
glasses) containing liquidswhich might spill into
any openings.
•Neverinsert or remove an electric plug with wet
hands.
• Do not place any burning itemsor open flames
near the product, since they may cause afire.
Hearing loss
• Before connecting the product to other devices,
make sure that all volume levelsare set to the
minimum. Failing to do so may result in hearing
loss, electric shock, or device damage.
• Do not use headphonesfor along period of time
at ahigh or uncomfortable volume level, since
thiscan cause permanent hearing loss. If you
experience any hearing loss or ringing in the
ears, consult aphysician.
•Use headphoneswith an impedance of 40Ωor
more. Using headphoneswith an impedance of
less than 40Ωmay cause oscillation, extremely
loud noisesor hearing loss.
(PA_en_10 1/2)

MLA-200 Owner’s Manual5
English
CAUTION
Always follow the basic precautions
listed below to avoid the possibility of
physical injury to you or others. These
precautions include, but are not limited
to, the following:
Location and connection
• Do not place the product in an unstable position
where it might accidentally fall over and cause
injuries.
• Do not place the product in alocation where it
may come into contact with corrosive gasesor
salt air. Doing so may result in malfunction.
• Before moving the product, remove all con-
nected cables.
Maintenance
• Remove the Ethernet cable from thisproduct
when cleaning the product.
Otherwise, electric shocksmay occur.
Handling caution
• Do not apply excessive force to switchesor con-
nectors.
• Do not rest your weight on the product or place
heavy objectson it.
(PA_en_10 2/2)
(rear_en_01)
Yamahacannot be held responsible for damage
caused by improper use or modificationsto the
product.

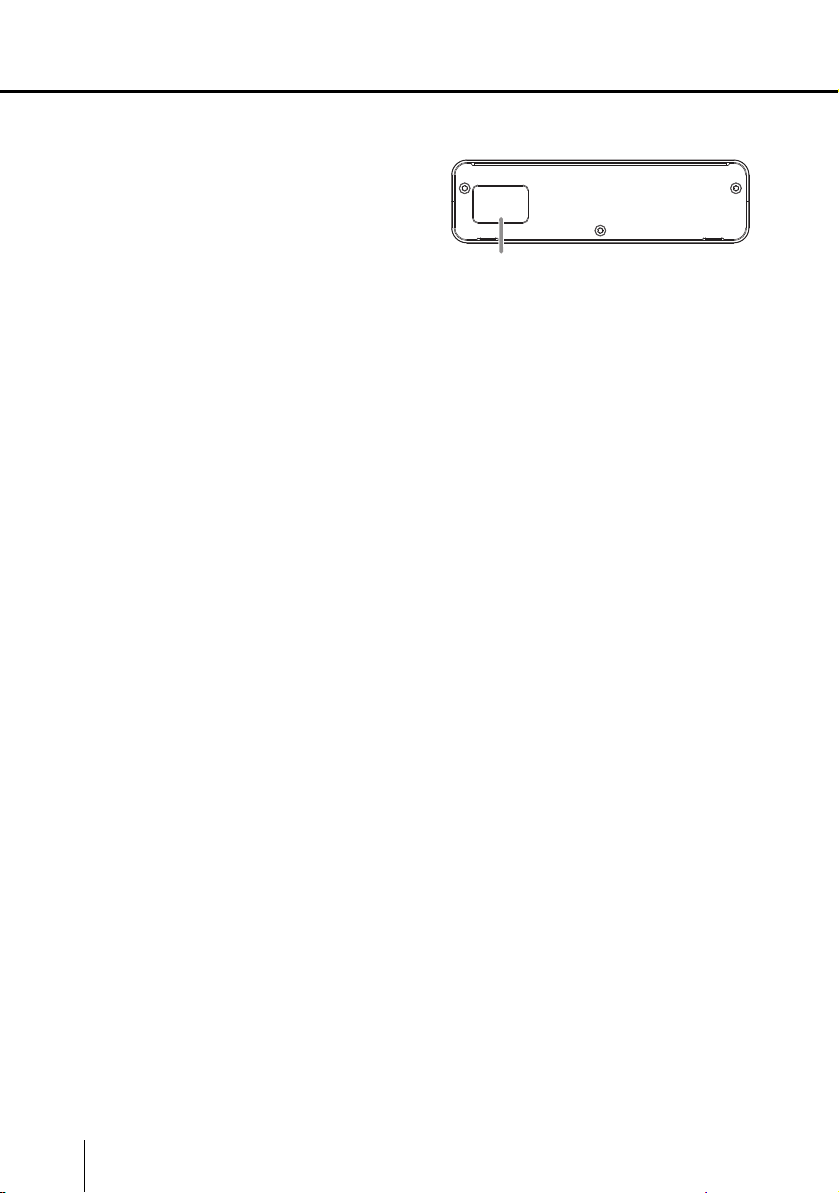

The model number, serial number, power
requirements, etc., may be found on or near the
name plate, which isat the rear of the unit. You
should note thisserial number in the space
provided below and retain thismanual as a
permanent record of your purchase to aid
identification in the event of theft.
Model No.
Serial No.

6MLA-200 Owner’s Manual
NOTICE
Handling and maintenance
•Do not use the product in the vicinity of aTV, radio, or other electric products. Otherwise, the
product, TV, or radio may generate noise.
•Do not expose the product to excessive dust or vibration, or extreme cold or heat (such as in
direct sunlight, near aheater, or in acar during the day), in order to prevent the possibility of
panel disfiguration, unstable operation, or damage to the internal components.
•Do not install in locationswhere temperature changesare severe. Otherwise, condensation
may form on the inside or the surface of the product, causing it to break.
•If there isreason to believe that condensation might have occurred, leave the product for
several hourswithout turning on the power until the condensation has completely dried out,
in order to prevent possible damage.
•Do not place vinyl, plastic or rubber objectson the product, since thismight cause alteration
or discoloration of the panel.
•When cleaning the product, use adry and soft cloth. Do not use paint thinners, solvents,
cleaning fluids, or chemical-impregnated wiping cloths, since thismight cause alteration or
discoloration.
Information
About functions/data bundled with the product
•Thisproduct usesDante Ultimo.
Refer to the Audinate website (English) for detailson the open-source licensesfor the
particular software.
https://www.audinate.com/software-licensing
•A 1000BASE-T connection will require an Enhanced Category 5 (CAT5e) or better LAN
cable.
About this manual
•The illustrationsas shown in thismanual are for instructional purposesonly.
•The company namesand product namesin thismanual are the trademarksor registered
trademarksof their respective companies.
About disposal
•Thisproduct containsrecyclable components.
When disposing of thisproduct, please contact the appropriate local authorities.
European models
•Purchaser/User Information specified in EN55103-2:2009.
Conformsto Environments: E1, E2, E3 and E4

MLA-200 Owner’s Manual7
English
Part names and functions
Front panel
q[MAIN] jack/[DUO] jack
Connect amicrophone headset or
headphones. When used by one
person, use only the MAIN jack.
w[MY VOL.] knob
Adjust the volume of your instrument or
microphone. The more the knob is
turned to the right, the louder your
volume will be. When the knob is
turned to the 3 o’clock position, your
volume will be the same as that of other
instruments.
e[MASTER VOL.] knob
Adjust the overall volume.
NOTE
A faint sound may be heard even when
the [MY VOL.] knob (w) and [MASTER
VOL.] knob (e) are set to “MIN”.
r[MIC] button
Turn on/off the microphone of the
microphone headset. When turned on,
the button lightsup. Automatically
turned on during conversationswith the
instructor.
t[CALL] button
Press to call the instructor. When the
button ispressed, the instructor is
called, and the button flashes. While
the instructor isbeing called, press the
button again to stop calling. When the
instructor answersand during the
conversation, the button lightsup. The
conversation isended from the
instructor'sapplication.
y[STATUS] indicator
Displaysthe operating status of the
MLA-200. Lightsup during normal
operation. Flashesor goesoff if an
error occurred. In that case,
immediately contact the instructor or
person in charge of the system.
Side panel
u[Dante] port
Connect to anetwork. The MLA-200 is
supplied power from the PoE Ethernet
switch or injector.
In order to prevent electromagnetic
interference, use STP (Shielded
Twisted Pair) cables.
NOTE
Unplugging and plugging in the Ethernet
cable in rapid succession may cause a
malfunction. After unplugging the Ethernet
cable and turning off the MLA-200, wait at
least 5 secondsbefore plugging in the
cable again.
q w e r ty
u i o !0

Part names and functions
8MLA-200 Owner’s Manual
i[I/O] port
Connect an instrument. MIDI
information issent to and received from
the application and other instruments.
Use for the guide lamp feature with
model songsand for receiving song
datafrom the application.
NOTE
Use aUSB cable of 3 m or less.
o[INPUT] jack
Connect with the PHONES
(headphones) jack on the instrument.
Thisisastandard stereo headphones
input.
!0 [INPUT GAIN] switch
Switch the input gain for the [INPUT]
jack to one of two settings. Thisswitch
isnormally set to “0 dB”. When
connecting an instrument with alow
output, set the switch to “+10 dB”.
Rear panel
!1 DIP switch
Set the unit ID for the MLA-200. Also
use to initialize the MLA-200.
Be careful not to change the DIP switch
settingsexcept when configuring or
changing system settings.
Be sure to consult with asystem
installer before operating the DIP
switch. For detailson the setting
procedures, refer to the Setup Guide.
!1

MLA-200 Owner’s Manual9
English
Sample setup
88
TO HOST jack on the instrument
PHONES jack on the instrument
PoE powered Ethernet
switch
(Dante network)
MRX7-D
Headset-type headphones
(When used by two people)
Headset-type headphones
NOTE
If the output jack on the instrument
isstereo, use aconversion cable.
NOTE
• When used by one person, use the MAIN
jack.
•Use headset-type headphonesthat are
compatible with the CTIA standard.
WARNING
Use headphones with an impedance of
40Ωor more. Using headphones with
an impedance of less than 40Ωmay
cause oscillation, extremely loud
noises or hearing loss.
WARNING
Use a CAT5e or higher grade STP cable
to connect the MLA-200 to the Ethernet
switch.

10 MLA-200 Owner’s Manual
Installing onto an instrument
Installation conditions
•Install so that the cableson the side
panel face downward.
•Install so that there isno interference
with headphonesor connectorson the
instrument.
•Be sure to use the included screwsfor
the installation.
•Install the screwsat least 15 mm inside
the edge of the leg or stand of the
instrument onto which the MLA-200 is
mounted.
Installation examples
Mounted with screws at the top
Mounted with screws on the side
Mounted with screws at the
bottom
CAUTION
Make sure that installation of the
MLA-200 onto the instrument is
performed by a professional installer.
For the installer:
For detailson installing, be sure to refer to
the Setup Guide.
15 mm
or more
15 mm or more

Installing onto an instrument
MLA-200 Owner’s Manual11
English
When placed on a flat surface
When placed on aflat surface of the
instrument, be sure to attach the included
rubber feet to prevent slipping. The
installation positionsshould be about 15 mm
inside each edge as shown below. Be sure
to attach all four.
Less than
15 mm
Less than
15 mm

12 MLA-200 Owner’s Manual
General specifications
* The contentsof thismanual apply to the latest specificationsas of the publishing date.
To obtain the latest manual, access the Yamahawebsite then download the manual file.
ControlsMIC button
CALL button
MASTER VOL. knob
MY VOL. knob
INPUT GAIN switch (0 dB and +10 dB)
Analog inputStandard stereo jack × 1
Headset input/outputTRRSminijack (CTIA compliant) × 2
Headphonescompatible
impedance 40Ω
Maximum output level 79 mW
Network input/output RJ-45 (Dante, 1000BASE-T) × 1
MIDI input/output USB 1.1 (A type)
Power supply voltage PoE (IEEE 802.3af compliant)
Power consumption 6 W
Dimensions(W × H × D) 158 × 44 × 152 mm
Weight 1.0 kg
Operating environment
temperature 0 to 40 °C
Itemsincluded Owner’s Manual (thisdocument)
Mounting bracket
Mounting screws(4 for installing the bracket, 2 for installing
the product)
4 Rubber feet

106
(weeeeuen02)
(weeeeude02)
(weeeeufr02)
Information for users on collection and disposal of old equipment:
This symbol on the products, packaging, and/or accompanying documents means that used
electrical and electronic products should not be mixed with general household waste.
For proper treatment, recovery and recycling of old products, please take them to applicable
collection points, in accordance with your national legislation.
By disposing of these products correctly, you will help to save valuable resources and prevent
any potential negative effects on human health and the environment which could otherwise
arise from inappropriate waste handling.
For more information about collection and recycling of old products, please contact your local
municipality, your waste disposal service or the point of sale where you purchased the items.
For business users in the European Union:
If you wish to discard electrical and electronic equipment, please contact your dealer or sup-
plier for further information.
Information on Disposal in other Countries outside the European Union:
This symbol is only valid in the European Union. If you wish to discard these items, please
contact your local authorities or dealer and ask for the correct method of disposal.
Verbraucherinformation zur Sammlung und Entsorgung alter Elektrogeräte
Befindet sich dieses Symbol auf den Produkten, der Verpackung und/oder beiliegenden
Unterlagen, so sollten benutzte elektrische Geräte nicht mit dem normalen Haushaltsabfall
entsorgt werden.
In Übereinstimmung mit Ihren nationalen Bestimmungen bringen Sie alte Geräte bitte zur
fachgerechten Entsorgung, Wiederaufbereitung und Wiederverwendung zu den entspre-
chenden Sammelstellen.
Durch die fachgerechte Entsorgung der Elektrogeräte helfen Sie, wertvolle Ressourcen zu
schützen, und verhindern mögliche negative Auswirkungen auf die menschliche Gesundheit
und die Umwelt, die andernfalls durch unsachgerechte Müllentsorgung auftreten könnten.
Für weitere Informationen zum Sammeln und Wiederaufbereiten alter Elektrogeräte kontak-
tieren Sie bitte Ihre örtliche Stadt- oder Gemeindeverwaltung, Ihren Abfallentsorgungsdienst
oder die Verkaufsstelle der Artikel.
Information für geschäftliche Anwender in der Europäischen Union:
Wenn Sie Elektrogeräte ausrangieren möchten, kontaktieren Sie bitte Ihren Händler oder
Zulieferer für weitere Informationen.
Entsorgungsinformation für Länder außerhalb der Europäischen Union:
Dieses Symbol gilt nur innerhalb der Europäischen Union. Wenn Sie solche Artikel ausran-
gieren möchten, kontaktieren Sie bitte Ihre örtlichen Behörden oder Ihren Händler und fragen
Sie nach der sachgerechten Entsorgungsmethode.
Informations concernant la collecte et le traitement des déchets d’équipements électriques et électroniques
Le symbole sur les produits, l'emballage et/ou les documents joints signifie que les produits
électriques ou électroniques usagés ne doivent pas être mélangés avec les déchets domes-
tiques habituels.
Pour un traitement, une récupération et un recyclage appropriés des déchets d’équipements
électriques et électroniques, veuillez les déposer aux points de collecte prévus à cet effet,
conformément à la réglementation nationale.
En vous débarrassant correctement des déchets d’équipements électriques et électroniques,
vous contribuerez à la sauvegarde de précieuses ressources et à la prévention de potentiels
effets négatifs sur la santé humaine qui pourraient advenir lors d'un traitement inapproprié
des déchets.
Pour plus d'informations à propos de la collecte et du recyclage des déchets d’équipements
électriques et électroniques, veuillez contacter votre municipalité, votre service de traitement
des déchets ou le point de vente où vous avez acheté les produits.
Pour les professionnels dans l'Union européenne :
Si vous souhaitez vous débarrasser des déchets d’équipements électriques et électroniques,
veuillez contacter votre vendeur ou fournisseur pour plus d'informations.
Informations sur la mise au rebut dans d'autres pays en dehors de l'Union européenne :
Ce symbole est seulement valable dans l'Union européenne. Si vous souhaitez vous débar-
rasser de déchets d’équipements électriques et électroniques, veuillez contacter les autorités
locales ou votre fournisseur et demander la méthode de traitement appropriée.

107
EnglishDeutschFrançaisEnglishPortuguêsItaliano Español
(weeeeues02)
(weeeeupt02a)
(weeeeuit02)
Información para usuarios sobre la recogida y eliminación de los equipos antiguos
Este símbolo en los productos, embalajes y documentos anexos significa que los productos
eléctricos y electrónicos no deben mezclarse con los desperdicios domésticos normales.
Para el tratamiento, recuperación y reciclaje apropiados de los productos antiguos, llévelos a
puntos de reciclaje correspondientes, de acuerdo con la legislación nacional.
Al deshacerse de estos productos de forma correcta, ayudará a ahorrar recursos valiosos y a
impedir los posibles efectos desfavorables en la salud humana y en el entorno que de otro
modo se producirían si se trataran los desperdicios de modo inapropiado.
Para obtener más información acerca de la recogida y el reciclaje de los productos antiguos,
póngase en contacto con las autoridades locales, con el servicio de eliminación de basuras
o con el punto de venta donde adquirió los artículos.
Para los usuarios empresariales de la Unión Europea:
Si desea desechar equipos eléctricos y electrónicos, póngase en contacto con su vendedor
o proveedor para obtener más información.
Información sobre la eliminación en otros países fuera de la Unión Europea:
Este símbolo solo es válido en la Unión Europea. Si desea desechar estos artículos, pón-
gase en contacto con las autoridades locales o con el vendedor y pregúnteles el método
correcto.
Informações para os utilizadores relativas à recolha e eliminação de equipamentos usados
Este símbolo, presente em produtos, embalagens e/ou incluído na documentação asso-
ciada, indica que os produtos elétricos e eletrónicos usados não devem ser eliminados junta-
mente com os resíduos domésticos em geral.
O procedimento correto consiste no tratamento, recuperação e reciclagem de produtos usa-
dos, pelo que deve proceder à respetiva entrega nos pontos de recolha adequados, em con-
formidade com a legislação nacional em vigor.
A eliminação destes produtos de forma adequada permite poupar recursos valiosos e evitar
potenciais efeitos prejudiciais para a saúde pública e para o ambiente, associados ao pro-
cessamento incorreto dos resíduos.
Para mais informações relativas à recolha e reciclagem de produtos usados, contacte as
autoridades locais, o serviço de eliminação de resíduos ou o ponto de venda onde foram
adquiridos os itens relevantes.
Informações para utilizadores empresariais na União Europeia:
Para proceder à eliminação de equipamento elétrico e eletrónico, contacte o seu revendedor
ou fornecedor para obter informações adicionais.
Informações relativas à eliminação em países não pertencentes à União Europeia:
Este símbolo é válido exclusivamente na União Europeia. Caso pretenda eliminar este tipo
de itens, contacte as autoridades locais ou o seu revendedor e informe-se acerca do proce-
dimento correto para proceder à respetiva eliminação.
Informazioni per gli utenti sulla raccolta e lo smaltimento di vecchia attrezzatura
Questi simboli sui prodotti, sull'imballaggio e/o sui documenti che li accompagnano, indicano
che i prodotti elettrici ed elettronici non devono essere mischiati con i rifiuti generici.
Per il trattamento, il recupero e il riciclaggio appropriato di vecchi prodotti, si prega di portarli
ai punti di raccolta designati, in accordo con la legislazione locale.
Smaltendo correttamente questi prodotti si potranno recuperare risorse preziose, oltre a pre-
venire potenziali effetti negativi sulla salute e l'ambiente che potrebbero sorgere a causa del
trattamento improprio dei rifiuti.
Per ulteriori informazioni sulla raccolta e il riciclaggio di vecchi prodotti, si prega di contattare
l’amministrazione comunale locale, il servizio di smaltimento dei rifiuti o il punto vendita dove
sono stati acquistati gli articoli.
Per utenti imprenditori dell'Unione europea:
Se si desidera scartare attrezzatura elettrica ed elettronica, si prega di contattare il proprio
rivenditore o il proprio fornitore per ulteriori informazioni.
Informazioni sullo smaltimento negli altri Paesi al di fuori dell'Unione europea:
Questi simboli sono validi solamente nell'Unione Europea; se si desidera scartare questi arti-
coli, si prega di contattare le autorità locali o il rivenditore e richiedere informazioni sulla cor-
retta modalità di smaltimento.

108
Important Notice: Guarantee Information for customers in European
Economic Area (EEA) and Switzerland
Important Notice: Guarantee Information for customers in EEA* and Switzerland English
For detailed guarantee information about this Yamaha product, and Pan-EEA* and Switzerland warranty service, please
either visit the website address below (Printable file is available at our website) or contact the Yamaha representative office
for your country. * EEA: European Economic Area
Wichtiger Hinweis: Garantie-Information für Kunden in der EWR* und der Schweiz Deutsch
Für nähere Garantie-Information über dieses Produkt von Yamaha, sowie über den Pan-EWR*- und Schweizer
Garantieservice, besuchen Sie bitte entweder die folgend angegebene Internetadresse (eine druckfähige Version befindet
sich auch auf unserer Webseite), oder wenden Sie sich an den für Ihr Land zuständigen Yamaha-Vertrieb. *EWR:
Europäischer Wirtschaftsraum
Remarque importante: informations de garantie pour les clients de l’EEE et la Suisse Français
Pour des informations plus détaillées sur la garantie de ce produit Yamaha et sur le service de garantie applicable dans
l’ensemble de l’EEE ainsi qu’en Suisse, consultez notre site Web à l’adresse ci-dessous (le fichier imprimable est disponible
sur notre site Web) ou contactez directement Yamaha dans votre pays de résidence. * EEE : Espace Economique Européen
Belangrijke mededeling: Garantie-informatie voor klanten in de EER* en Zwitserland Nederlands
Voor gedetailleerde garantie-informatie over dit Yamaha-product en de garantieservice in heel de EER* en Zwitserland, gaat
u naar de onderstaande website (u vind een afdrukbaar bestand op onze website) of neemt u contact op met de
vertegenwoordiging van Yamaha in uw land. * EER: Europese Economische Ruimte
Aviso importante: información sobre la garantía para los clientes del EEE* y Suiza Español
Para una información detallada sobre este producto Yamaha y sobre el soporte de garantía en la zona EEE* y Suiza, visite
la dirección web que se incluye más abajo (la version del archivo para imprimir esta disponible en nuestro sitio web) o
póngase en contacto con el representante de Yamaha en su país. * EEE: Espacio Económico Europeo
Avviso importante: informazioni sulla garanzia per i clienti residenti nell’EEA* e in Svizzera Italiano
Per informazioni dettagliate sulla garanzia relativa a questo prodotto Yamaha e l’assistenza in garanzia nei paesi EEA* e in
Svizzera, potete consultare il sito Web all’indirizzo riportato di seguito (è disponibile il file in formato stampabile) oppure
contattare l’ufficio di rappresentanza locale della Yamaha. * EEA: Area Economica Europea
Aviso importante: informações sobre as garantias para clientes da AEE* e da Suíça Português
Para obter uma informação pormenorizada sobre este produto da Yamaha e sobre o serviço de garantia na AEE* e na
Suíça, visite o site a seguir (o arquivo para impressão está disponível no nosso site) ou entre em contato com o escritório de
representação da Yamaha no seu país. * AEE: Área Econômica Européia
Σημαντική σημείωση: Πληροφορίες εγγύησης για τους πελάτες στον ΕΟΧ* και Ελβετία Ελληνικά
Για λεπτομερείς πληροφορίες εγγύησης σχετικά με το παρόν προϊόν της Yamaha και την κάλυψη εγγύησης σε όλες τις χώρες
του ΕΟΧ και την Ελβετία, επισκεφτείτε την παρακάτω ιστοσελίδα (Εκτυπώσιμη μορφή είναι διαθέσιμη στην ιστοσελίδα μας) ή
απευθυνθείτε στην αντιπροσωπεία της Yamaha στη χώρα σας. * ΕΟΧ: Ευρωπαϊκός Οικονομικός Χώρος
Viktigt: Garantiinformation för kunder i EES-området* och Schweiz Svenska
För detaljerad information om denna Yamahaprodukt samt garantiservice i hela EES-området* och Schweiz kan du antingen
besöka nedanstående webbaddress (en utskriftsvänlig fil finns på webbplatsen) eller kontakta Yamahas officiella
representant i ditt land. * EES: Europeiska Ekonomiska Samarbetsområdet
Viktig merknad: Garantiinformasjon for kunder i EØS* og Sveits Norsk
Detaljert garantiinformasjon om dette Yamaha-produktet og garantiservice for hele EØS-området* og Sveits kan fås enten
ved å besøke nettadressen nedenfor (utskriftsversjon finnes på våre nettsider) eller kontakte kontakte Yamaha-kontoret i
landet der du bor. *EØS: Det europeiske økonomiske samarbeidsområdet
Vigtig oplysning: Garantioplysninger til kunder i EØO* og Schweiz Dansk
De kan finde detaljerede garantioplysninger om dette Yamaha-produkt og den fælles garantiserviceordning for EØO* (og Schweiz)
ved at besøge det websted, der er angivet nedenfor (der findes en fil, som kan udskrives, på vores websted), eller ved at kontakte
Yamahas nationale repræsentationskontor i det land, hvor De bor. * EØO: Det Europæiske Økonomiske Område
Tärkeä ilmoitus: Takuutiedot Euroopan talousalueen (ETA)* ja Sveitsin asiakkaille Suomi
Tämän Yamaha-tuotteen sekä ETA-alueen ja Sveitsin takuuta koskevat yksityiskohtaiset tiedot saatte alla olevasta
nettiosoitteesta. (Tulostettava tiedosto saatavissa sivustollamme.) Voitte myös ottaa yhteyttä paikalliseen Yamaha-
edustajaan. *ETA: Euroopan talousalue

109
EnglishDeutschFrançaisEnglishPortuguêsItaliano Español
Ważne: Warunki gwarancyjne obowiązujące w EOG* i Szwajcarii Polski
Aby dowiedziećsięwięcej na temat warunków gwarancyjnych tego produktu firmy Yamaha i serwisu gwarancyjnego w całym EOG* i
Szwajcarii, należy odwiedzićwskazanąponiżej stronęinternetową(Plik gotowy do wydruku znajduje sięna naszej stronie
internetowej) lub skontaktowaćsięz przedstawicielstwem firmy Yamaha w swoim kraju. * EOG — Europejski Obszar Gospodarczy
Důležité oznámení: Záruční informace pro zákazníky v EHS* a ve Švýcarsku Česky
Podrobné záruční informace o tomto produktu Yamaha a záručním servisu v celém EHS* a ve Švýcarsku naleznete na níže
uvedené webové adrese (soubor k tisku je dostupný na našich webových stránkách) nebo se můžete obrátit na zastoupení
firmy Yamaha ve své zemi. * EHS: Evropský hospodářský prostor
Fontos figyelmeztetés: Garancia-információk az EGT* területén és Svájcban élővásárlók számára Magyar
A jelen Yamaha termékre vonatkozó részletes garancia-információk, valamint az EGT*-re és Svájcra kiterjedőgaranciális
szolgáltatás tekintetében keresse fel webhelyünket az alábbi címen (a webhelyen nyomtatható fájlt is talál), vagy pedig
lépjen kapcsolatba az országában működőYamaha képviseleti irodával. * EGT: Európai Gazdasági Térség
Oluline märkus: Garantiiteave Euroopa Majanduspiirkonna (EMP)* ja Šveitsi klientidele Eesti keel
Täpsema teabe saamiseks selle Yamaha toote garantii ning kogu Euroopa Majanduspiirkonna ja Šveitsi garantiiteeninduse
kohta, külastage palun veebisaiti alljärgneval aadressil (meie saidil on saadaval prinditav fail) või pöörduge Teie regiooni
Yamaha esinduse poole. * EMP: Euroopa Majanduspiirkond
Svarīgs paziņojums: garantijas informācija klientiem EEZ* un ŠveicēLatviešu
Lai saņemtu detalizētu garantijas informāciju par šo Yamaha produktu, kāarīgarantijas apkalpošanu EEZ* un Šveicē, lūdzu,
apmeklējiet zemāk norādīto tīmekļa vietnes adresi (tīmekļa vietnēir pieejams drukājams fails) vai sazinieties ar jūsu valsti
apkalpojošo Yamaha pārstāvniecību. * EEZ: Eiropas Ekonomikas zona
Dėmesio: informacija dėl garantijos pirkėjams EEE* ir Šveicarijoje Lietuviųkalba
Jei reikia išsamios informacijos apie šį„Yamaha“ produktąir jo techninępriežiūrąvisoje EEE* ir Šveicarijoje, apsilankykite
mūsųsvetainėje toliau nurodytu adresu (svetainėje yra spausdintinas failas) arba kreipkitės į„Yamaha“ atstovybęsavo
šaliai. *EEE – Europos ekonominėerdvė
Dôležité upozornenie: Informácie o záruke pre zákazníkov v EHP* a Švajčiarsku Slovenčina
Podrobné informácie o záruke týkajúce sa tohto produktu od spoločnosti Yamaha a garančnom servise v EHP* a
Švajčiarsku nájdete na webovej stránke uvedenej nižšie (na našej webovej stránke je k dispozícii súbor na tlač) alebo sa
obráťte na zástupcu spoločnosti Yamaha vo svojej krajine. * EHP: Európsky hospodársky priestor
Pomembno obvestilo: Informacije o garanciji za kupce v EGP* in Švici Slovenščina
Za podrobnejše informacije o tem Yamahinem izdelku ter garancijskem servisu v celotnem EGP in Švici, obiščite spletno
mesto, ki je navedeno spodaj (natisljiva datoteka je na voljo na našem spletnem mestu), ali se obrnite na Yamahinega
predstavnika v svoji državi. * EGP: Evropski gospodarski prostor
Важно съобщение: Информация за гаранцията за клиенти вЕИП* иШвейцария Български език
За подробна информация за гаранцията за този продукт на Yamaha игаранционното обслужване впаневропейската
зона на ЕИП* иШвейцария или посетете посочения по-долу уеб сайт (на нашия уеб сайт има файл за печат), или се
свържете спредставителния офис на Yamaha във вашата страна. * ЕИП: Европейско икономическо пространство
Notificare importantă: Informaţii despre garanţie pentru clienţii din SEE* şi Elveţia Limba română
Pentru informaţii detaliate privind acest produs Yamaha şi serviciul de garanţie Pan-SEE* şi Elveţia, vizitaţi site-ul la adresa
de mai jos (fişierul imprimabil este disponibil pe site-ul nostru) sau contactaţi biroul reprezentanţei Yamaha din ţara
dumneavoastră. * SEE: Spaţiul Economic European
Važna obavijest: Informacije o jamstvu za države EGP-a i Švicarske Hrvatski
Za detaljne informacije o jamstvu za ovaj Yamahin proizvod te jamstvenom servisu za cijeli EGP i Švicarsku, molimo Vas da
posjetite web-stranicu navedenu u nastavku ili kontaktirate ovlaštenog Yamahinog dobavljača u svojoj zemlji. * EGP:
Europski gospodarski prostor
http://europe.yamaha.com/warranty/

110
For details of products, please contact your nearest Yamaha
representative or the authorized distributor listed below.
Pour plus de détails sur les produits, veuillez-vous adresser à
Yamaha ou au distributeur le plus proche de vous figurant dans la
liste suivante.
Die Einzelheiten zu Produkten sind bei Ihrer unten aufgeführten
Niederlassung und bei Yamaha Vertragshändlern in den jeweiligen
Bestimmungsländern erhältlich.
Para detalles sobre productos, contacte su tienda Yamaha más
cercana o el distribuidor autorizado que se lista debajo.
CANADA
Yamaha Canada Music Ltd.
135 Milner Avenue, Toronto, Ontario
M1S 3R1, Canada
Tel: [phone]
U.S.A.
Yamaha Corporation of America
6600 Orangethorpe Avenue, Buena Park,
CA 90620, U.S.A.
Tel: [phone]
MEXICO
Yamaha de México, S.A. de C.V.
Av. Insurgentes Sur 1647 Piso 9, Col.
San José Insurgentes, Delegación Benito
Juárez, México, D.F., C.P. 03900,
México
Tel: [phone]
BRAZIL
Yamaha Musical do Brasil Ltda.
Rua Fidêncio Ramos, 302 – Cj 52 e 54 –
Torre B – Vila Olímpia – CEP 04551-
010 – São Paulo/SP, Brazil
Tel: [phone]
ARGENTINA
Yamaha Music Latin America, S.A.,
Sucursal Argentina
Olga Cossettini 1553, Piso 4 Norte,
Madero Este-C1107CEK,
Buenos Aires, Argentina
Tel: [phone]
PANAMA AND OTHER LATIN
AMERICAN COUNTRIES/
CARIBBEAN COUNTRIES
Yamaha Music Latin America, S.A.
Edificio Torre Davivienda, Piso: 20
Avenida Balboa, Marbella,
Corregimiento de Bella Vista, Ciudad de
Panamá, Rep. de Panamá
Tel: [phone]
THE UNITED KINGDOM/IRELAND
Yamaha Music Europe GmbH (UK)
Sherbourne Drive, Tilbrook, Milton
Keynes,
MK7 8BL, U.K.
Tel: [phone]
GERMANY
Yamaha Music Europe GmbH
Siemensstrasse 22-34, 25462 Rellingen,
Germany
Tel: [phone]
SWITZERLAND/LIECHTENSTEIN
Yamaha Music Europe GmbH, Branch
Switzerland in Thalwil
Seestrasse 18a, 8800 Thalwil,
Switzerland
Tel: [phone]
AUSTRIA/CROATIA/CZECH
REPUBLIC/HUNGARY/ROMANIA/
SLOVAKIA/SLOVENIA
Yamaha Music Europe GmbH, Branch
Austria
Schleiergasse 20, 1100 Wien, Austria
Tel: [phone]
POLAND
Yamaha Music Europe GmbH
Sp.z o.o. Oddziałw Polsce
ul. Wielicka 52, 02-657 Warszawa,
Poland
Tel: [phone]
BULGARIA
Dinacord Bulgaria LTD.
Bul.Iskarsko Schose 7 Targowski Zentar
Ewropa
1528 Sofia, Bulgaria
Tel: [phone]
MALTA
Olimpus Music Ltd.
Valletta Road, Mosta MST9010, Malta
Tel: [phone]
NETHERLANDS/BELGIUM/
LUXEMBOURG
Yamaha Music Europe, Branch Benelux
Clarissenhof 5b, 4133 AB Vianen, The
Netherlands
Tel: [phone]
FRANCE
Yamaha Music Europe
7 rue Ambroise Croizat, Zone d'activités
de Pariest,
77183 Croissy-Beaubourg, France
Tel: [phone]
ITALY
Yamaha Music Europe GmbH, Branch
Italy
Via Tinelli N.67/69 20855 Gerno di
Lesmo (MB), Italy
Tel: [phone]
SPAIN/PORTUGAL
Yamaha Music Europe GmbH Ibérica,
Sucursal en España
Ctra. de la Coruña km. 17,200, 28231
Las Rozas de Madrid, Spain
Tel: [phone]
GREECE
Philippos Nakas S.A. The Music House
19th klm. Leof. Lavriou 190 02 Peania –
Attiki, Greece
Tel: [phone]
SWEDEN
Yamaha Music Europe GmbH Germany
filial
Scandinavia
JA Wettergrensgata 1, 400 43 Göteborg,
Sweden
Tel: [phone]
DENMARK
Yamaha Music Denmark,
Fillial of Yamaha Music Europe GmbH,
Tyskland
Generatorvej 8C, ST. TH., 2860 Søborg,
Denmark
Tel: [phone]
FINLAND
F-Musiikki Oy
Antaksentie 4
FI-01510 Vantaa, Finland
Tel: [phone]
NORWAY
Yamaha Music Europe GmbH Germany
- Norwegian Branch
Grini Næringspark 1, 1332 Østerås,
Norway
Tel: [phone]
ICELAND
Hljodfaerahusid Ehf.
Sidumula 20
IS-108 Reykjavik, Iceland
Tel: [phone]
CYPRUS
Nakas Music Cyprus Ltd.
Nikis Ave 2k
1086 Nicosia
Tel: + 357-22-511080
Major Music Center
21 Ali Riza Ave. Ortakoy
P.O.Box 475 Lefkoşa, Cyprus
Tel: [phone]
RUSSIA
Yamaha Music (Russia) LLC.
Room 37, entrance 7, bld. 7, Kievskaya
street, Moscow, 121059, Russia
Tel: [phone]
OTHER EUROPEAN COUNTRIES
Yamaha Music Europe GmbH
Siemensstrasse 22-34, 25462 Rellingen,
Germany
Tel: [phone]
Yamaha Music Gulf FZE
JAFZA-16, Office 512, P.O.Box 17328,
Jebel Ali FZE, Dubai, UAE
Tel: [phone]
NORTH AMERICA
CENTRAL & SOUTH AMERICA
EUROPE
AFRICA

111
TURKEY
Yamaha Music Europe GmbH
Merkezi Almanya Türkiye İstanbul
Şubesi
Mor Sumbul Sokak Varyap Meridian
Business 1.Blok No:1 113-114-115
Bati Atasehir Istanbul, Turkey
Tel: [phone]
ISRAEL
RBX International Co., Ltd.
P.O Box 10245, Petach-Tikva, 49002
Tel: [phone]
OTHER COUNTRIES
Yamaha Music Gulf FZE
JAFZA-16, Office 512, P.O.Box 17328,
Jebel Ali FZE, Dubai, UAE
Tel: [phone]
THE PEOPLE’S REPUBLIC OF
CHINA
Yamaha Music & Electronics (China)
Co., Ltd.
2F, Yunhedasha, 1818 Xinzha-lu, Jingan-
qu, Shanghai, China
Tel: [phone]
HONG KONG
Tom Lee Music Co., Ltd.
11/F., Silvercord Tower 1, 30 Canton
Road,
Tsimshatsui, Kowloon, Hong Kong
Tel: [phone]
INDIA
Yamaha Music India Private Limited
P-401, JMD Megapolis, Sector-48,
Sohna Road,
Gurgaon-122018, Haryana, India
Tel: [phone]
INDONESIA
PT. Yamaha Musik Indonesia
(Distributor)
Yamaha Music Center Bldg. Jalan Jend.
Gatot Subroto Kav. 4, Jakarta 12930,
Indonesia
Tel: [phone]
KOREA
Yamaha Music Korea Ltd.
11F, Prudential Tower, 298, Gangnam-
daero, Gangnam-gu, Seoul, 06253,
Korea
Tel: [phone]
MALAYSIA
Yamaha Music (Malaysia) Sdn. Bhd.
No.8, Jalan Perbandaran, Kelana Jaya,
47301
Petaling Jaya, Selangor, Malaysia
Tel: [phone]
SINGAPORE
Yamaha Music (Asia) Private Limited
Block 202 Hougang Street 21, #02-00,
Singapore 530202, Singapore
Tel: [phone]
TAIWAN
Yamaha Music & Electronics Taiwan
Co., Ltd.
2F., No.1, Yuandong Rd., Banqiao Dist.,
New Taipei City 22063, Taiwan (R.O.C.)
Tel: [phone]
THAILAND
Siam Music Yamaha Co., Ltd.
3, 4, 15, 16th Fl., Siam Motors Building,
891/1 Rama 1 Road, Wangmai,
Pathumwan, Bangkok 10330, Thailand
Tel: [phone]
VIETNAM
Yamaha Music Vietnam Company
Limited
15th Floor, Nam A Bank Tower, 201-203
Cach Mang Thang Tam St., Ward 4,
Dist.3,
Ho Chi Minh City, Vietnam
Tel: [phone]
OTHER ASIAN COUNTRIES
https://asia-latinamerica-
mea.yamaha.com/index.html
AUSTRALIA
Yamaha Music Australia Pty. Ltd.
Level 1, 80 Market Street, South
Melbourne,
VIC 3205 Australia
Tel: [phone]
NEW ZEALAND
Music Works LTD
P.O.BOX 6246 Wellesley, Auckland
4680,
New Zealand
Tel: [phone]
COUNTRIES AND TRUST
TERRITORIES IN PACIFIC OCEAN
https://asia-latinamerica-
mea.yamaha.com/index.html
MIDDLE EAST
ASIA
OCEANIA
DMI26 Head Office/Manufacturer: Yamaha Corporation 10-1, Nakazawa-cho, Naka-ku, Hamamatsu, 430-8650, Japan
(For European Countries) Importer: Yamaha Music Europe GmbH Siemensstrasse 22-34, 25462 Rellingen, Germany

Manual Development Group
© 2018 Yamaha Corporation
Published 02/2019 发行 CREM-A1
Yamaha Global Site
https://www.yamaha.com/
Yamaha Downloads
https://download.yamaha.com/
VAY7010
10-1 Nakazawa-cho, Naka-ku, Hamamatsu, 430-8650 Japan
〒430-8650静岡県浜松市中区中沢町10-1
雅马哈乐器音响 （中国）投资有限公司
上海市静安区新闸路1818号云和大厦2楼
客户服务热线：4000517700
公司网址：https://www.yamaha.com.cn
制造商：雅马哈株式会社
制造商地址：日本静冈县滨松市中区中泽町10-1
进口商：雅马哈乐器音响 （中国）投资有限公司
进口商地址：上海市静安区新闸路1818号云和大厦2楼
原产地：马来西亚
