NOTICE
This manual has been prepared by Yamaha primarily for use by Yamaha dealers and their trained
mechanics when performing maintenance procedures and repairs to Yamaha equipment. It has
been written to suit the needs of persons who have a basic understanding of the mechanical and
electrical concepts and procedures inherent in the work, for without such knowledge attempted
repairs or service to the equipment could render it unsafe or unfit for use.
Because Yamaha has a policy of continuously improving its products, models may differ in detail
from the descriptions and illustrations given in this publication. Use only the latest edition of this
manual. Authorized Yamaha dealers are notified periodically of modifications and significant
changes in specifications and procedures, and these are incorporated in successive editions of this
manual.
Important information
Particularly important information is distinguished in this manual by the following notations:
QThe Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED!
w
Failure to follow WARNING instructions could result in severe injury or death to the machine
operator, a bystander, or a person inspecting or repairing the outboard motor.
cC
A CAUTION indicates special precautions that must be taken to avoid damage to the out-
board motor.
NOTE:
A NOTE provides key information to make procedures easier or clearer.
F15B
SERVICE MANUAL
©2003 by Yamaha Motor Co., Ltd.
1st Edition, October 2003
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in Japan
6D4Cover 03.10.9 20:48 Page 2

Specifications
General information
Periodic checks and adjustments
Fuel system
Power unit
Bracket unit
Electrical systems
Troubleshooting
Index
Contents
Lower unit
9
8
7
6
2
1
GEN
INFO
SPEC
CHK
ADJ
FUEL
POWR
LOWR
BRKT
ELEC
TRBL
SHTG
3
4
5
6D45F11-01 03.10.9 20:41 Page 1

6D45F11-01 03.10.9 20:41 Page 2

6D45F11 1-
9
8
7
6
5
4
3
2
1
General information
How to use this manual.................................................................................1-1
Manual format............................................................................................1-1
Symbols .....................................................................................................1-2
Safety while working......................................................................................1-3
Fire prevention...........................................................................................1-3
Ventilation ..................................................................................................1-3
Self-protection............................................................................................1-3
Parts, lubricants, and sealants ..................................................................1-3
Good working practices .............................................................................1-4
Disassembly and assembly .......................................................................1-4
Identification ...................................................................................................1-5
Applicable model .......................................................................................1-5
Serial number ............................................................................................1-5
Propeller selection .........................................................................................1-5
Propeller size .............................................................................................1-5
Selection ....................................................................................................1-5
Predelivery checks.........................................................................................1-6
Checking the fuel system ..........................................................................1-6
Checking the engine oil level.....................................................................1-6
Checking the gear oil.................................................................................1-6
Checking the outboard motor mounting height .........................................1-6
Checking the steering system ...................................................................1-7
Checking the remote control cables ..........................................................1-7
Checking the gearshift and throttle operation............................................1-7
Checking the engine stop lanyard switch ..................................................1-8
Checking the cooling water pilot hole........................................................1-8
Test run ......................................................................................................1-8
Break-in .....................................................................................................1-9
After test run ..............................................................................................1-9
GEN
INFO
6D45F11-01 03.10.9 20:41 Page 3

1-1
GEN
INFO
6D45F11
General information
How to use this manual
Manual format
The format of this manual has been designed to make service procedures clear and easy to under-
stand. Use the information below as a guide for effective and quality service.
1Parts are shown and detailed in an exploded diagram and are listed in the components list.
2Tightening torque specifications are provided in the exploded diagrams and after a numbered
step with tightening instructions.
3Symbols are used to indicate important aspects of a procedure, such as the grade of lubricant
and lubrication point.
4The components list consists of part names and part quantities, as well as bolt and screw dimen-
sions.
5Service points regarding removal, checking, and installation are shown in individual illustrations
to explain the relevant procedure.
NOTE:
For troubleshooting procedures, see Chapter 9, “Troubleshooting.”
LOWR Lower unit
6-5 62Y5A11
Lower unit
No. Part name Q’ty Remarks
1 Lower unit 1
2 Plastic tie 1 Not reusable
3Hose 1
4 Check screw 1
5 Gasket 2 Not reusable
6 Dowel pin 2
7 Bolt 4 M10 40 mm
8 Drain screw 1
9Grommet 1
10 Bolt 1 M10 45 mm
11 Bolt 1 M8 60 mm
12 Thrust washer 1
13 Propeller 1
14 Washer 1
15 Washer 1
16 Cotter pin 1 Not reusable
17 Propeller nut 1
18 Trim tab 1
LOWR Lower unit
6-19 62Y5A11
Removing the drive shaft
1. Remove the drive shaft assembly and
pinion, and then pull out the forward
gear.
Disassembling the drive shaft
1. Install the pinion nut , tighten it finger
tight, and then remove the drive shaft
bearing using a press.
CAUTION:
• Do not press the drive shaft threads
directly.
Do not reuse the bearing, always
replace it with a new one.
Disassembling the forward gear
1. Remove the taper roller bearing from the
forward gear using a press.
CAUTION:
Do not reuse the bearing, always replace
it with a new one.
2. Remove the needle bearing from the for-
ward gear.
CAUTION:
Do not reuse the bearing, always replace
it with a new one.
Drive shaft holder 4 : 90890-06518
Pinion nut holder : 90890-06505
Socket adapter 2 : 90890-06507
Bearing inner race attachment :
90890-06639
S62Y6850K
Bearing separator : 90890-06534
Stopper guide plate : 90890-06501
Stopper guide stand :
90890-06538
Bearing puller : 90890-06535
Bearing puller claw 1 :
90890-06536
S62Y6740K
321
1
2
3
3
2
3
4
5
1
4
5
a
×
×
×
1
2
6D45F11-01 03.10.9 20:41 Page 4

6D45F11
9
8
7
6
5
4
3
2
1
1-2
GEN
INFO
Symbols
The symbols below indicate the content of a chapter.
General information Fuel system Bracket unit
Specifications Power unit Electrical systems
Periodic checks and adjustments Lower unit Troubleshooting
Symbols 1to 6indicate specific data.
1Special tool
2Specified oil or fluid
3Specified engine speed
4Specified tightening torque
5Specified measurement
6Specified electrical value
(resistance, voltage, electric current)
Symbols 7to ein an exploded diagram or illustration indicate the grade of lubricant and the lubri-
cation point.
7Apply Yamaha 4-stroke motor oil
8Apply gear oil
9Apply water resistant grease (Yamaha grease A)
0Apply molybdenum disulfide grease
qApply corrosion resistant grease
(Yamaha grease D)
wApply low temperature resistant grease
(Yamaha grease C)
eApply injector grease
Symbols rto oin an exploded diagram or illustration indicate the type of sealant or locking agent
and the application point.
rApply Gasket Maker
tApply Yamabond No. 4
yApply LOCTITE 271 (red)
uApply LOCTITE 242 (blue)
iApply LOCTITE 572
oApply silicon sealant
FUEL BRKT
SPEC POWR ELEC
CHK
ADJ LOWR TRBL
SHTG
123456
C
78 0qwe
rtyuio
How to use this manual
9
6D45F11-01 03.10.9 20:41 Page 5

1-3
GEN
INFO
6D45F11
General information
Safety while working
To prevent an accident or injury and to ensure
quality service, follow the safety procedures
provided below.
Fire prevention
Gasoline is highly flammable.
Keep gasoline and all flammable products
away from heat, sparks, and open flames.
Ventilation
Gasoline vapor and exhaust gas are heavier
than air and extremely poisonous. If inhaled
in large quantities they may cause loss of
consciousness and death within a short time.
When test running an engine indoors (e.g., in
a water tank) be sure to do so where ade-
quate ventilation can be maintained.
Self-protection
Protect your eyes by wearing safety glasses
or safety goggles during all operations involv-
ing drilling and grinding, or when using an air
compressor.
Protect your hands and feet by wearing pro-
tective gloves and safety shoes when neces-
sary.
Parts, lubricants, and sealants
Use only genuine Yamaha parts, lubricants,
and sealants or those recommended by
Yamaha, when servicing or repairing the out-
board motor.
Under normal conditions, the lubricants men-
tioned in this manual should not harm or be
hazardous to your skin. However, you should
follow these precautions to minimize any risk
when working with lubricants.
1. Maintain good standards of personal and
industrial hygiene.
2. Change and wash clothing as soon as
possible if soiled with lubricants.
3. Avoid contact with skin. Do not, for exam-
ple, place a soiled rag in your pocket.
4. Wash hands and any other part of the
body thoroughly with soap and hot water
after contact with a lubricant or lubricant
soiled clothing has been made.
5. To protect your skin, apply a protective
cream to your hands before working on
the outboard motor.
6D45F11-01 03.10.9 20:41 Page 6

1-4
6D45F11
9
8
7
6
5
4
3
2
1
6. Keep a supply of clean, lint-free cloths for
wiping up spills, etc.
Good working practices
Special service tools
Use the recommended special service tools
to protect parts from damage. Use the right
tool in the right manner–do not improvise.
Tightening torques
Follow the tightening torque specifications
provided throughout the manual. When tight-
ening nuts, bolts, and screws, tighten the
large sizes first, and tighten fasteners starting
in the center and moving outward.
Non-reusable parts
Always use new gaskets, seals, O-rings, cot-
ter pins, circlips, etc., when installing or
assembling parts.
Disassembly and assembly
1. Use compressed air to remove dust and
dirt during disassembly.
2. Apply engine oil to the contact surfaces
of moving parts before assembly.
3. Install bearings with the manufacture
identification mark in the direction indicat-
ed in the installation procedure. In addi-
tion, be sure to lubricate the bearings lib-
erally.
4. Apply a thin coat of water-resistant
grease to the lip and periphery of an oil
seal before installation.
5. Check that moving parts operate normal-
ly after assembly.
Safety while working
6D45F11-01 03.10.9 20:41 Page 7

Propeller selection
The performance of a boat and outboard
motor will be critically affected by the size and
type of propeller you choose. Propellers
greatly affect boat speed, acceleration,
engine life, fuel economy, and even boating
and steering capabilities. An incorrect choice
could adversely affect performance and could
also seriously damage the engine.
Use the following information as a guide for
selecting a propeller that meets the operating
conditions of the boat and the outboard
motor.
Propeller size
The size of the propeller is indicated on the
outside of the propeller boss.
aPropeller diameter (in inches)
bPropeller pitch (in inches)
cPropeller type (propeller mark)
Selection
When the engine speed is at the full throttle
operating range (4,500–5,500 r/min), the
ideal propeller for the boat is one that pro-
vides maximum performance in relation to
boat speed and fuel consumption.
Propeller size (in) Material
9 1/4 ×8 - J
9 1/4 ×9 - J
9 1/4 ×9 3/4 - J
9 1/4 ×10 - J Aluminum
9 1/4 ×10 1/2 - J
9 1/4 ×11 - J
9 1/4 ×12 - J
6B410030
-
abc
1-5
GEN
INFO
6D45F11
General information
Identification
Applicable model
This manual covers the following models.
Serial number
The outboard motor serial number is
stamped on a label attached to the port clamp
bracket.
1Model name
2Approved model code
3Transom height
4Serial number
Applicable models
F15BMH, F15BM
Model name Approved Starting
model code serial No.
F15BMH S: 1000001–
6D4 L: 1000001–
F15BM L: 1000001–
6B410010
YAMAHA MOTOR CO., LTD.
MADE IN JAPAN
PAYS D'ORIGINE JAPON
1
3
2
4
6B410020
6D45F11-01 03.10.9 20:41 Page 8

1-6
6D45F11
9
8
7
6
5
4
3
2
1
Predelivery checks
To make the delivery process smooth and
efficient, the predelivery checks should be
completed as explained below.
Checking the fuel system
1. Check that the fuel hose is securely con-
nected and that the fuel tank is filled with
fuel.
cC
This is a 4-stroke engine. Never use pre-
mixed fuel.
Checking the engine oil level
1. Check the oil level.
NOTE:
9If the engine oil is above the maximum level
mark a, drain sufficient oil until the level is
between aand b.
9If the engine oil is below the minimum level
mark b, add sufficient oil until the level is
between aand b.
6D410040
a
b
6D410060
Identification/Propeller selection/Predelivery checks
Checking the gear oil
1. Check the gear oil level.
NOTE:
The gear oil level should be at the brim of the
check hole.
Checking the outboard motor
mounting height
1. Check that the anti-cavitation plate is
between the bottom of the boat and a
maximum of 25 mm (1 in) abelow it. If
the mounting height is too high, cavitation
will occur and propulsion will be reduced.
Also, the engine speed will increase
abnormally and cause the engine to over-
heat. If the mounting height is too low,
water resistance will increase and reduce
engine efficiency.
0—25mm
(0—1in.) 6B410060
a
Recommended engine oil:
4-stroke outboard motor oil
API: SE, SF, SG, SH or SJ
SAE: 10W-30 or 10W-40
Oil quantity:
(without oil filter replacement)
1.0 L (1.06 US qt, 0.88 Imp qt)
6D410050
Recommended gear oil:
Hypoid gear oil
SAE: 90
Oil quantity:
0.25 L (8.45 US oz, 8.82 Imp oz)
6D45F11-01 03.10.9 20:41 Page 9

1-7
NOTE:
The optimum mounting height is affected by
the combination of the boat and the outboard
motor. To determine the optimum mounting
height, test run the outboard motor at differ-
ent heights.
2. Check that the clamp brackets are
secured with the clamp screws.
Checking the steering system
1. Check the steering friction for proper
adjustment.
2. Check that the steering operates smooth-
ly.
3. Check that there is no interference with
wires or hoses when the outboard motors
steered.
Checking the remote control cables
1. Check that the remote control cable prop-
er position.
2. Set the remote control lever to the neu-
tral position and fully close the throttle
lever. Adjust if necessary.
Checking the gearshift and throttle
operation
1. Check that the gearshift operates
smoothly when the shift lever and or
remote control lever is shifted from neu-
tral into forward or reverse.
2. Check that the throttle operates smooth-
ly when the throttle grip is turned from the
fully closed position to the fully open posi-
tion and or remote control lever is shifted

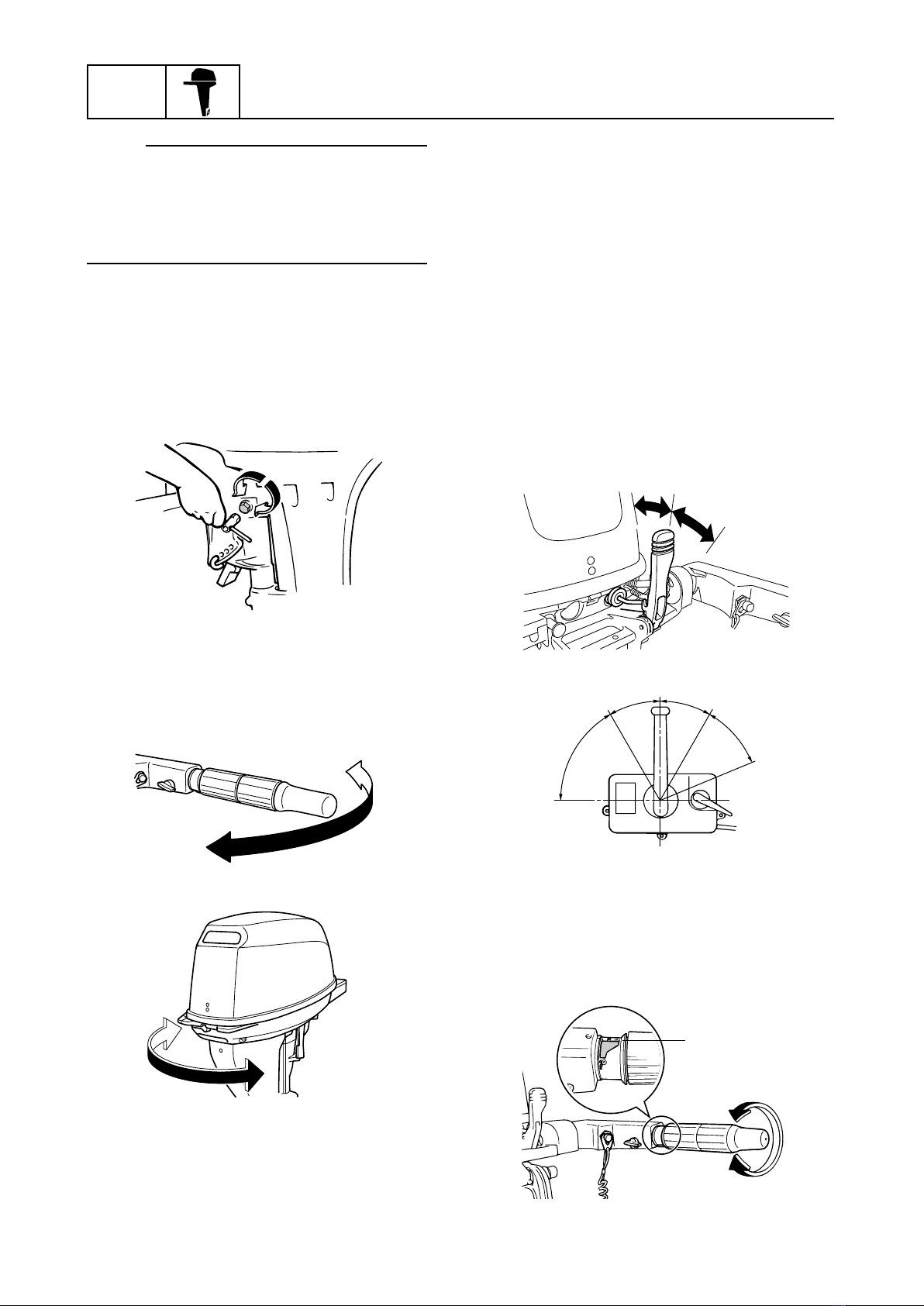

from the fully closed position to the fully
open position a.
GEN
INFO
6D45F11
General information
6B410070
N
F
R
6D410120
N
FR
6D410130
a
a
6D410140
a
6D410080
6D410090
6D45F11-01 03.10.9 20:41 Page 10

1-8
6D45F11
9
8
7
6
5
4
3
2
1

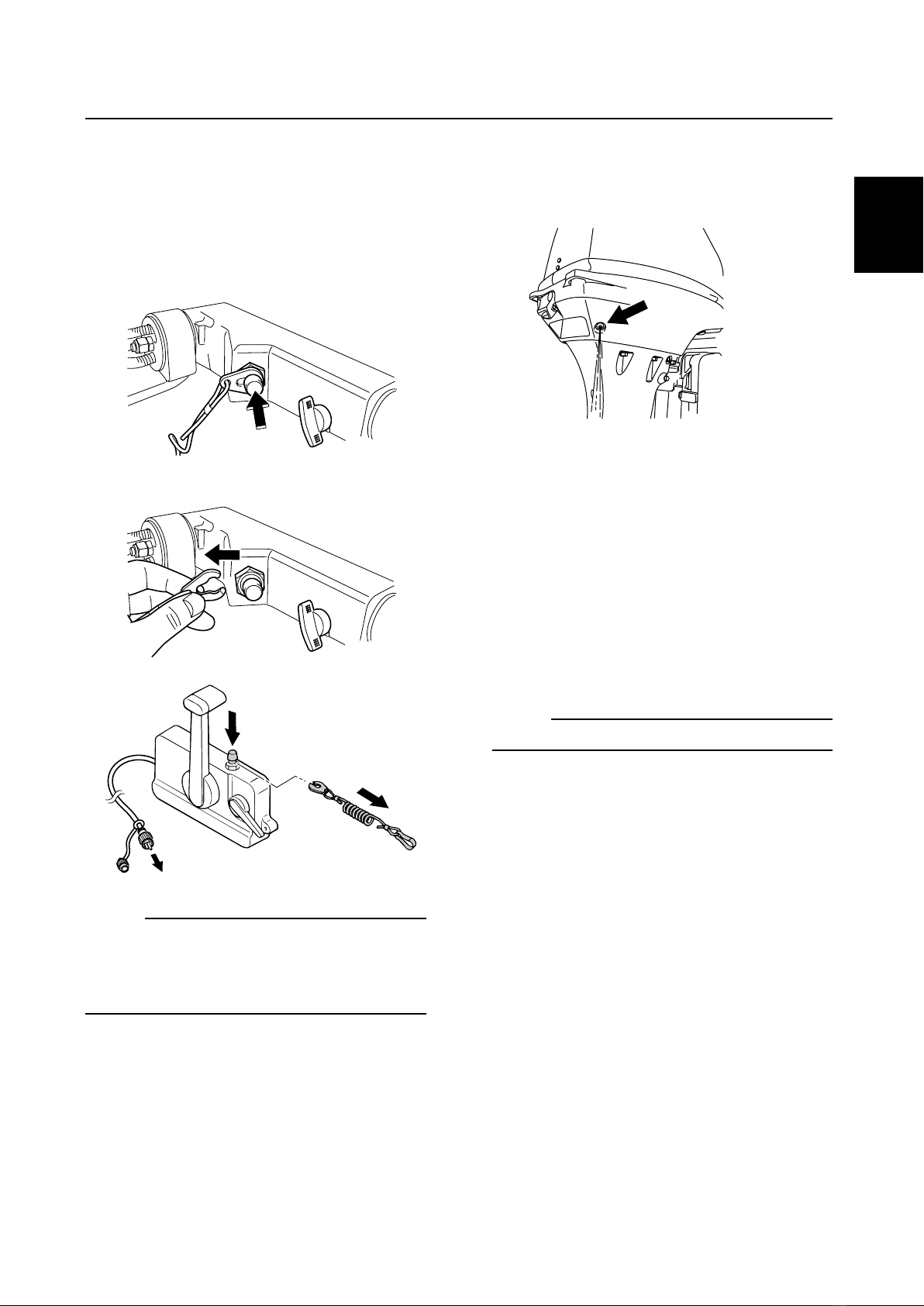

Checking the engine stop lanyard
switch
1. Check that the engine turns off when the
engine stop lanyard switch is pushed or
the engine stop lanyard is pulled from the
engine stop lanyard switch.
NOTE:
For remote control model. Be sure to connect
the engine stop lanyard switch connector
from the power unit side to the remote con-
trol box side.
6D410150
6D410160
E/G 6D410170
Predelivery checks
Checking the cooling water pilot
hole
1. Check that cooling water is discharged
from the cooling water pilot hole.
Test run
1. Start the engine, then check that the gear
shift operates smoothly.
2. Check the engine idle speed after the
engine has been warmed up.
3. Operate at trolling speed.
4. Perform the break-in procedure up to
step 3 as listed below.
NOTE:
The test run is part of the break-in operation.
6B410130
6D45F11-01 03.10.9 20:41 Page 11

1-9
GEN
INFO
6D45F11
General information

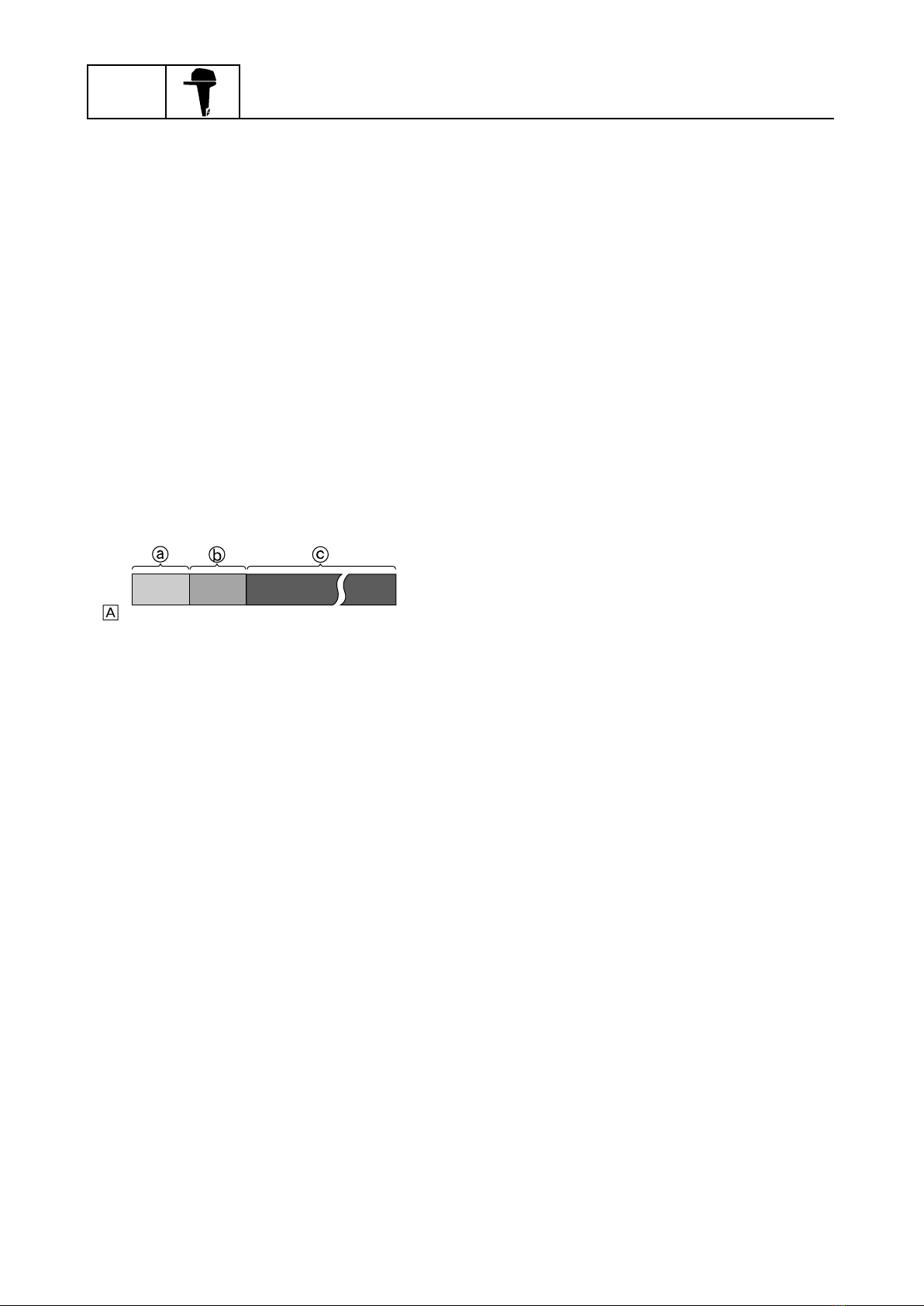

Break-in
During the test run, perform the break-in
operation in the following 4 stages.
1. For the first hour of operation a: Run the
engine at 2000 r/min or at approximately
half throttle.
2. For the second hour of operation b: Run
the engine at 3000 r/min or at approxi-
mately three-quarter throttle.
3. For the next eight hours of operation c:
Avoid continuous operation at full throttle
for more than five minutes at a time.
4. After the first 10 hours: Operate the
engine normally.
åHours
After test run
1. Check for water in the gear oil.
2. Check for fuel leakage in the cowling.
3. After a test run and while the engine is at
idle, flush the cooling water passages
with fresh water using the flushing kit.
6D410190
01210
6D45F11-01 03.10.9 20:41 Page 12

6D45F11
9
8
7
6
5
4
3
2
1
SPEC
Specifications
General specifications...................................................................................2-1
Maintenance specifications ..........................................................................2-3
Power unit .................................................................................................2-3
Lower unit ..................................................................................................2-6
Electrical ....................................................................................................2-7
Dimensions ................................................................................................2-8
Tightening torques.......................................................................................2-10
Specified torques .....................................................................................2-10
General torques .......................................................................................2-11
6D45F11-02 03.10.9 20:42 Page 1

SPEC
2-1 6D45F11
Specifications
General specifications
Item Unit Model
F15BMH F15BM
Dimensions
Overall length mm (in) 1,001 (39.4) 643 (25.3)
Overall width mm (in) 427.5 (16.8) 369 (14.5)
Overall height
(S) mm (in) 1,080 (42.5) —
(L) mm (in) 1,207 (47.5)
Transom height
(S) mm (in) 440 (17.3) —
(L) mm (in) 567 (22.3)
Boat transom height
(S) mm (in) 381 (15.0) —
(L) mm (in) 508 (20.0)
Dry weight
(S) kg (lb) 45.0 (99) —
(L) kg (lb) 47.0 (104) 46.0 (101)
Performance
Maximum output kW (hp) 11.0 (15.0)
@
5,000 r/min
Full throttle operating range r/min 4,500–5,500
Maximum fuel consumption L (US gal,lmp gal)/hr 5.3 (1.4, 1.2) @ 5,500 r/min
Power unit
Engine type 4-stroke, OHC, Twin
Total displacement cm3(cu. in) 323.0 (19.71)
Bore x stroke mm (in) 59.0 ×59.0 (2.32 ×2.32)
Compression ratio 9.19:1
Control system Tiller handle Remote control
Starting system Manual starter
Enrichment system Choke valve
Ignition control system CDI
Ignition timing Degree BTDC 5–30
Maximum generator output V-W 12–80
Spark plug (NGK) DPR6EA–9
Cooling system Water
Exhaust system Propeller boss
Lubrication system Wet sump
6D45F11-02 03.10.9 20:42 Page 2

6D45F11 2-2
9
8
7
6
5
4
3
2
1
General specifications
Item Unit Model
F15BMH F15BM
Fuel and oil
Fuel type Unleaded regular gasoline
Engine oil type 4-stroke outboard motor oil
Engine oil grade API SE, SF, SG, SH or SJ
SAE 10W-30 or 10W-40
Engine oil quantity
(with oil filter replacement) L 1.2 (1.27, 1.06)
(US qt, lmp qt)
(without oil filter replacement) L 1.0 (1.06, 0.88)
(US qt, lmp qt)
Gear oil type Hypoid gear oil
Gear oil grade SAE 90
Gear oil quantity L 0.25 (8.45, 8.82)
(US oz, lmp oz)
Bracket unit
Trim angle (*1) Degree 8.0, 12.0, 16.0, 20.0
Tilt-up angle Degree 63.0
Steering angle Degree 45.0 + 40.0
Drive unit
Gear shift positions F-N-R
Gear ratio 2.08 (27/13)
Reduction gear type Spiral bevel gear
Clutch type Dog clutch
Propeller shaft type Spline
Propeller direction (rear view) Clockwise
Propeller ID mark J
(*1) At 12–degree boat transom
6D45F11-02 03.10.9 20:42 Page 3

Item Unit Model
F15BMH F15BM
Power unit
Minimum compression kPa 765 (7.8, 111)
pressure (*1) (kgf/cm2, psi)
Lubrication oil pressure (*2) kPa 330 (3.36, 48)
at idle speed (kgf/cm2, psi)
Cylinder head
Warpage limit mm (in) 0.10 (0.0039)
(lines indicate straightedge
position)
Camshaft journal inside diameter mm (in) 35.000–35.012 (1.3780–1.3784)
Cylinder
Bore size mm (in) 59.000–59.015 (2.3228–2.3234)
Wear limit mm (in) 59.1 (2.33)
Taper limit mm (in) 0.08 (0.0032)
Out-of-round limit mm (in) 0.05 (0.0020)
Pistons
Piston diameter (D) mm (in) 58.950–58.965 (2.3209–2.3215)
Measuring point (H) mm (in) 5.0 (0.20)
Piston-to-cylinder clearance mm (in) 0.035–0.065 (0.0014–0.0026)
Piston pin boss bore mm (in) 14.004–14.015 (0.5513–0.5518)
Oversize piston diameter
1 st mm (in) 59.2 (2.33)
2 nd mm (in) 59.5 (2.34)
Piston pins
Outside diameter mm (in) 13.996–14.000 (0.5510–0.5512)
Piston rings
Top ring
Dimension B mm (in) 1.17–1.19 (0.0461–0.0469)
Dimension T mm (in) 2.00–2.20 (0.0787–0.0866)
End gap mm (in) 0.15–0.30 (0.0059–0.0118)
Side clearance mm (in) 0.04–0.08 (0.0016–0.0032)
Over size
1 st mm (in) 59.25 (2.33)
2 nd mm (in) 59.50 (2.34)
SPEC
2-3 6D45F11
Specifications
Maintenance specifications
Power unit
(*1) Measuring conditions:
Ambient temperature 20°C (68°F), wide open throttle, with spark plugs removed from all cylinders.
The figures are for reference only.
Since this outboard motor is equipped with an automatic decompression mechanism, accurate data may be difficult
to obtain due to differences in the way the starter rope is pulled.
(*2) The figures are for reference only.
6D45F11-02 03.10.9 20:42 Page 4

6D45F11 2-4
9
8
7
6
5
4
3
2
1
Maintenance specifications
Item Unit Model
F15BMH F15BM
2 nd ring
Dimension B mm (in) 1.47–1.49 (0.0579–0.0590)
Dimension T mm (in) 2.50–2.70 (0.0984–0.1063)
End gap mm (in) 0.30–0.50 (0.0118–0.0197)
Side clearance mm (in) 0.02–0.04 (0.0008–0.0016)
Over size
1 st mm (in) 59.25 (2.33)
2 nd mm (in) 59.50 (2.34)
Oil ring
Dimension B mm (in) 2.31–2.51 (0.0909–0.0988)
Dimension T mm (in) 2.30–2.60 (0.0906–0.1024)
End gap mm (in) 0.20–0.70 (0.0079–0.0276)
Side clearance mm (in) 0–0.22 (0–0.0087)
Over size
1 st mm (in) 59.25 (2.33)
2 nd mm (in) 59.50 (2.34)
Camshaft
Intake (A) mm (in) 27.596–27.696 (1.0865–1.0904)
Exhaust (A) mm (in) 27.616–27.716 (1.0872–1.0912)
Intake and (B) mm (in) 23.950–24.050 (0.9429–0.9468)
exhaust
Camshaft journal diameter mm (in) 34.935–34.955 (1.3754–1.3762)
Camshaft journal oil clearance mm (in) 0.050–0.080 (0.0020–0.0032)
Camshaft run-out limit mm (in) 0.03 (0.0012)
Rocker arm shafts
Outside diameter mm (in) 12.941–12.951 (0.5095–0.5099)
Rocker arms
Inside diameter mm (in) 13.000–13.018 (0.5118–0.5125)
Valves
Valve clearance (cold)
Intake mm (in) 0.15–0.25 (0.0059–0.0098)
Exhaust mm (in) 0.20–0.30 (0.0079–0.0118)
Head diameter (A)
Intake mm (in) 27.9–28.1 (1.10–1.11)
Exhaust mm (in) 21.9–22.1 (0.86–0.87)
Face width (B)
Intake and mm (in) 1.98–3.11 (0.0780–0.1224)
exhaust
Seat contact width (C)
Intake and mm (in) 0.60–0.80 (0.0236–0.0315)
exhaust
Margin thickness (D)
Intake and mm (in) 0.50–0.90 (0.0197–0.0354)
exhaust
6D45F11-02 03.10.9 20:42 Page 5

SPEC
2-5 6D45F11
Specifications
Item Unit Model
F15BMH F15BM
Stem diameter
Intake mm (in) 5.475–5.490 (0.2156–0.2161)
Exhaust mm (in) 5.460–5.475 (0.2150–0.2156)
Guide inside diameter
Intake and exhaust mm (in) 5.500–5.512 (0.2165–0.2170)
Stem-to-guide clearance
Intake and exhaust mm (in) 0.025–0.052 (0.0010–0.0020)
Stem run-out limit mm (in) 0.01 (0.0004)
Valve springs
Free length mm (in) 34.40 (1.3543)
Minimum free length mm (in) 32.68 (1.2866)
Tilt limit mm (in) 1.5 (0.06)
Connecting rods
Small-end inside diameter mm (in) 14.015–14.029 (0.5518–0.5523)
Big-end inside diameter mm (in) 31.030–31.042 (1.2217–1.2221)
Crankpin oil clearance mm (in) 0.021–0.045 (0.0008–0.0018)
Crankshaft
Crankshaft journal diameter mm (in) 34.997–35.009 (1.3778–1.3783)
Crankpin diameter mm (in) 30.997–31.009 (1.2204–1.2208)
Crankpin width mm (in) 21.000–21.070 (0.8268–0.8295)
Run-out limit mm (in) 0.05 (0.0020)
Big end side clearance mm (in) 0.050–0.220 (0.0020–0.0087)
Crankcase
Crankshaft main journal oil mm (in) 0.012–0.045 (0.0005–0.0018)
clearance
Upper and lower crankcase
main journal bearing thickness
A - (Blue) mm (in) 1.494–1.498 (0.0588–0.0590)
B - (Black) mm (in) 1.498–1.502 (0.0590–0.0591)
C - (Brown) mm (in) 1.502–1.506 (0.0591–0.0593)
Oil pump
Type Trochoid
Outer rotor-to-housing mm (in) 0.100–0.150 (0.0039–0.0059)
clearance (A)
Outer rotor-to-inner rotor mm (in) 0.040–0.140 (0.0016–0.0055)
clearance (B)
Rotor-to-cover clearance (C) mm (in) 0.030–0.090 (0.0012–0.0035)
Discharge L (US gal, 5.70 (1.506, 1.254)
lmp gal)/min
Relief valve opening pressure kPa 388.0–450.0
(kgf/cm2, psi) (3.88–4.50, 56.3–65.3)
6D45F11-02 03.10.9 20:42 Page 6
