RM-TT Reference Manual
1
INTRODUCTION....................................................................................................................................................................1
Information............................................................................................................................................................................................... 1
CONTROLS AND FUNCTIONS ............................................................................................................................................2
Top panel/side panel ............................................................................................................................................................................... 2
Bottom panel............................................................................................................................................................................................ 3
WEB GUI................................................................................................................................................................................4
Starting Peripheral Detail / RM-TT........................................................................................................................................................... 4
Functions of Peripheral Detail / RM-TT ................................................................................................................................................... 5
Thank you for purchasing the Yamaha RM-TT boundary microphone. This document provides detailed information on the product
functions and specifications as well as the Web GUI. For correct and safe use of this product, be sure to first read this manual carefully
together with the RM-TT Installation Manual (included with the product).
Information
• The illustrations and images shown in this manual are for instructional purposes only.
• The company names and product names in this manual are trademarks or registered trademarks of their respective companies.
• We are continuously improving the software for our products. The latest version can be downloaded from the Yamaha website.
• This document is based on the latest specifications at the time of publication. The latest version can be downloaded from the Yamaha
website.
• Reproduction of this manual in whole or in part without permission is prohibited.
CONTENTS
INTRODUCTION
Boundary Microphone
RM-TT
Reference Manual

RM-TT Reference Manual
2
Top panel/side panel
1(Mic) buttons/indicators
2STATUS indicator
3RESET button
NOTE: Use a fine-tipped object such as an ejector pin to press the RESET button.
CONTROLS AND FUNCTIONS
Condition Mic indicator Unit status
Mic button touched Lit green Microphone on
Mic button touched Lit red
(Flashes every 2 seconds) Microphone off
Condition STATUS indicator Unit status
Mic button touched Lit green Microphone on
Mic button touched Lit red Microphone off
LAN cable plugged into Dante/PoE port Flashes green Starting up
Identify button in Web GUI clicked Flashes white Responding (to Identify function)
Updating firmware Flashes white quickly Firmware being updated
Updating firmware (After flashing white quickly)
Flashes green quickly Firmware updated successfully
– Flashes red Error occurring
– Flashes red quickly Severe error occurring
Condition STATUS indicator Unit status
RESET button long-pressed for 4 seconds to
less than 8 seconds, then released
Flashes blue twice per second
(during long-pressing/resetting)
Network-related settings
Waiting for resetting/Resetting
RESET button long-pressed for 8 seconds to
less than 12 seconds, then released
Flashes blue three times per second
(during long-pressing/resetting)
All settings
Waiting for resetting/Resetting
1
2
3

RM-TT Reference Manual
3
Bottom panel
1Network port indicators (Dante/PoE port)
NOTICE: • When disconnecting the LAN cable from the Dante/PoE port, wait at least five seconds before reconnecting the cable.
Otherwise, damage or malfunctions may result.
• With a Dante network, do not use the EEE function* of the network switch. Although mutual power consumption settings
are automatically adjusted between switches that support the EEE function, some switches do not perform that properly.
As a result, the switch’s EEE function may be enabled inappropriately in the Dante network, possibly degrading clock
synchronization performance and interrupting audio. Therefore, please note the following.
- When using managed switches, turn off the EEE function on all ports used for Dante. Do not use a switch that does not
allow the EEE function to be turned off.
- When using unmanaged switches, do not use switches that support the EEE function. In such switches, the EEE
function cannot be turned off.
* EEE (Energy-Efficient Ethernet) function: Technology that reduces the power consumption of Ethernet devices during
periods of low network traffic; also known as Green Ethernet or IEEE802.3az.
Network port indicator Unit status
Left indicator lit green Link up
Left indicator flashes green Transferring data
Left indicator unlit Link down
Right indicator lit green Operating on word clock of peripheral device (master)
Right indicator flashes green Acting as word-clock master
Right indicator flashes orange Word clock unlocked
1

RM-TT Reference Manual
4
The Web GUI “Peripheral Detail / RM-TT” can be used to check/change the settings of this unit.
IMPORTANT: The setup of the ADECIA tabletop solution must be completed in advance. For details, refer to the RM-CR Reference
Manual.
Starting Peripheral Detail / RM-TT
1. Log in to the Web GUI “RM-CR Device Manager”.
2. Click [SETTINGS], and then click [Peripheral].
3. Check that the information for this unit appears in the [REGISTRATION SETTINGS] list, and then click its
[VIEW] button below [Details].
Peripheral Detail / RM-TT starts up.
WEB GUI

RM-TT Reference Manual
5
Functions of Peripheral Detail / RM-TT
The following icons/buttons are used in Peripheral Detail / RM-TT.
(Information icon): Move the pointer over this icon to see more information about the item.
(Identify button): Click to cause the indicator of the corresponding device to flash.
IMPORTANT: Be sure to click the [SUBMIT] button after changing settings in Peripheral Detail / RM-TT. The [SUBMIT] button
always appears in the upper-right corner of the window.

RM-TT Reference Manual
6
1[SYSTEM STATUS]
Allows you to check basic information on this unit.
2[LED INDICATION STATUS]
Allows you to check the status of the indicators.
3[LED INDICATION SETTINGS]
Allows you to check/adjust the brightness of the indicators.
4[IP ADDRESS SETTINGS]
Allows you to select whether to use DHCP.
1
2
3
4

RM-TT Reference Manual
7

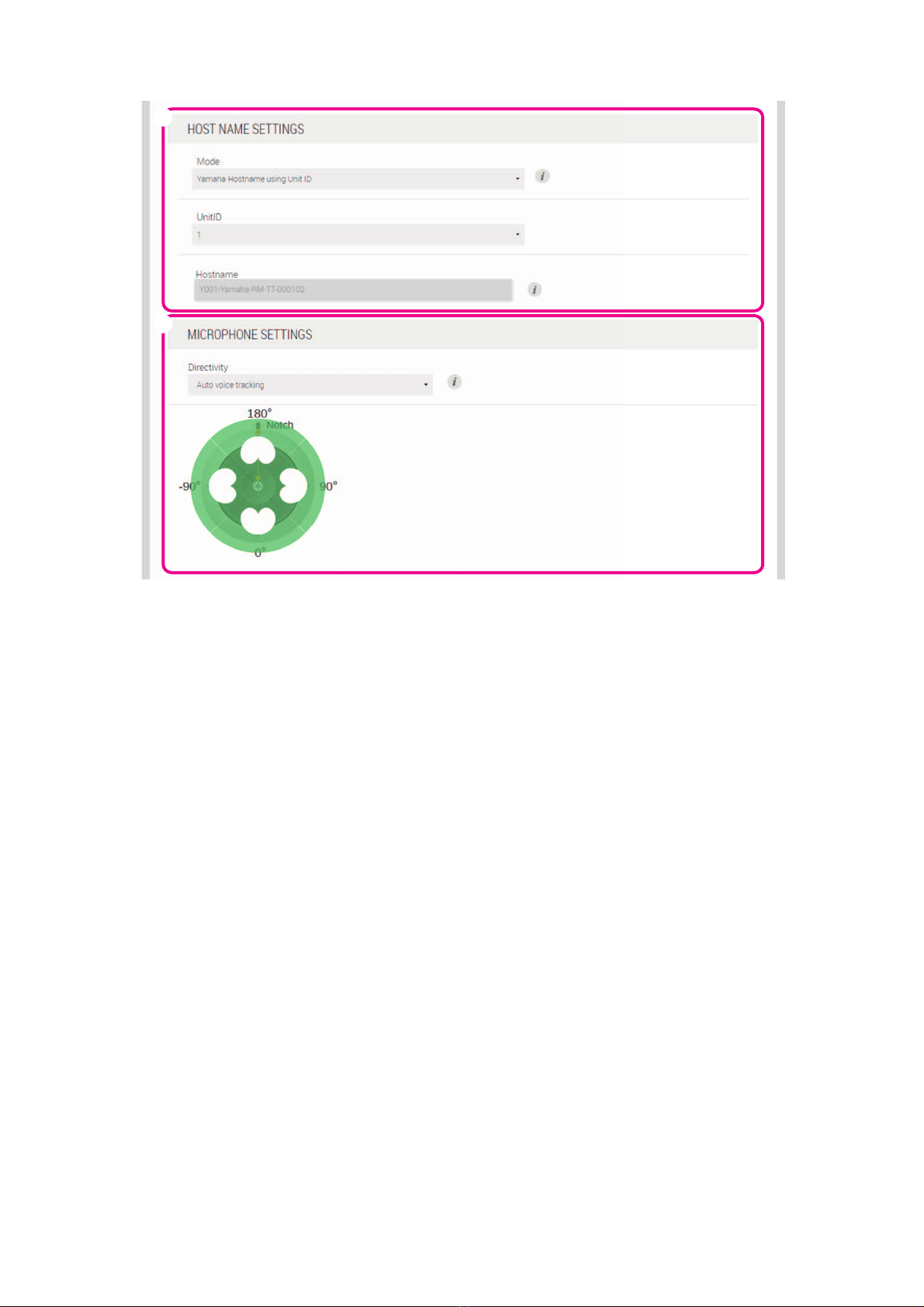

5[HOST NAME SETTINGS]
Allows you to select whether to specify the hostname of this unit automatically or manually.
6[MICROPHONE SETTINGS]
Allows you to set the directivity of the microphone to one of the following.
• Auto voice tracking
• Cardioid
• Hypercardioid
• Supercardioid
• Omnidirectional
• Bidirectional
• Toroid
NOTE: When the directivity of the microphone is set to cardioid, hypercardioid or supercardioid, you can check/change auto
mix settings.
5
6

RM-TT Reference Manual
8
7[DIGITAL SIGNAL PROCESSING SETTINGS]
Allows you to check/change settings for the following.
• Input gain
• Adaptive echo canceller
• Noise reduction
• Dereverberation
• Auto gain control (type and speed)
8[FIRMWARE UPDATE]
Allows you to update the firmware from the [Update] window of RM-CR Device Manager. For details, refer to the RM-CR Reference
Manual.
9[EXPORT CONFIGURATION]
Allows you to export the settings of this unit by clicking the [EXPORT] button.
7
8
9

RM-TT Reference Manual
9
0[IMPORT CONFIGURATION]
Allows you to import settings into this unit by dragging and dropping the settings file into the box, then clicking the [IMPORT] button.
NOTE: Create the settings file to be imported by editing the one exported in 9.
A[RESET DEFAULTS]
Allows you to reset the settings of this unit by clicking the [RESET] button.
IMPORTANT: Be sure to check what is to be reset before doing it.
B[DOWNLOAD LOGS]
Allows you to update the download log from the [Logs] window of RM-CR Device Manager. For details, refer to the RM-CR
Reference Manual.
0
A
B
