RM-WAP-16 RM-WAP-8 Owner’s Manual
PLEASE READ CAREFULLY BEFORE PROCEEDING
Please keep this manual in a safe place for future reference.
WARNING
Always follow the basic precautions listed below to avoid the possibility of serious
injury or even death from electrical shock, short-circuiting, damages, fire or other
hazards.These precautions include, but are not limited to, the following:
Fire warning
• Do not place any burning items or open flames near the product, since they may cause a fire.
Wireless unit
• Do not use this product near medical devices or inside medical facilities. Radio waves from
this product may affect electro-medical devices.
• Do not use this product within 15 cm (6 in) of persons with a heart pacemaker implant or a
defibrillator implant. Radio waves from this product may affect electro-medical devices, such
as a heart pacemaker implant or defibrillator implant.
Location
• Install in the manner instructed in the manual. Falling may result in injury or damage.
• Confirm that the finished installation is safe and secure. Also, carry out safety inspections
periodically. Failure to observe this may cause devices to fall and result in injury.
PRECAUTIONS
Yamaha cannot be held responsible for damage caused by improper use or modifications to the
product, or data that is lost or destroyed.
RM-WAP-16_RM-WAP-8_om_7multi_A0.book 3 ページ ２０２１年２月５日 金曜日 午後３時２８分

4RM-WAP-16 RM-WAP-8 Owner’s Manual
CAUTION
Always follow the basic precautions listed below to avoid the possibility of physical
injury to you or others.These precautions include, but are not limited to, the following:
If you notice any abnormality
• If any of the following problems occur, immediately disconnect the LAN cable from the product.
- The LAN cable becomes frayed or damaged.
- Unusual smells or smoke are emitted.
- Some object, or water has been dropped into the product.
- Cracks or other visible damage appear on the product.
Then have the product inspected or repaired by qualified Yamaha service personnel.
Do not open
• This product contains no user-serviceable parts. Do not attempt to disassemble the internal
parts or modify them in any way.
Water caution
• Do not expose the product to rain, use it near water or in damp or wet conditions, or place on
it any containers (such as vases, bottles or glasses) containing liquids which might spill into
any openings.
Location and connection
• When connecting this product with a PoE injector or a PoE network switch, use a LAN cable
which supports PoE. If you connect a cable that does not comply with specifications, or
connect a flat type or slim type cable, fire or malfunctions might occur.
• Do not damage the LAN cable. Failure to observe this precaution could result in fire, electric
shock, or damage to the product.
- Do not place heavy objects on the cable.
- Do not process the cable in any way.
- Do not use staples to fix the cable in place.
- Do not apply excessive force to the cable.
- Be sure to keep the cable away from anything hot.
• Do not place the product in an unstable position or a location with excessive vibration, where
it might accidentally fall and cause injury.
• Keep this product out of reach of children. This product is not suitable for use in locations
where children are likely to be present.
• Do not place the product in a location where it may come into contact with corrosive gases or
salt air. Doing so may result in malfunction.
• Do not route a LAN cable where someone might trip over them, such as in a location where
people pass. Tripping on a cable may cause a person or this product to fall down, resulting in
personal injury or damage to the product.
• Before moving the product, remove the connected LAN cable.
Handling caution
• Do not rest your weight on the product or place heavy objects on it.
RM-WAP-16_RM-WAP-8_om_7multi_A0.book 4 ページ ２０２１年２月５日 金曜日 午後３時２８分

English
5
RM-WAP-16 RM-WAP-8 Owner’s Manual
To avoid the possibility of malfunction/damage to the product, damage to data, or damage to other
property, follow the notices below.
Handling and maintenance
• Use the product at a distance of at least 20 cm away from the human body. This product
complies with international electromagnetic exposure limits set forth for a normal environment.
• Do not use the product in the vicinity of a TV, radio, or other electric products. Otherwise, the
product, TV, or radio may generate noise.
• Do not use the product in the vicinity of a microwave oven. Otherwise, there is a risk of
electromagnetic interference with wireless communication.
• Install the product in a location away from other electronic devices. Installing this product near
other electronic devices may cause the quality of received radio waves to suffer and
communication to become unstable.
• Do not install the product in a location where magnetic fields are strong. Otherwise, it might
cause the product to malfunction.
• Do not expose the product to excessive dust or vibration, or extreme cold or heat, in order to
prevent the possibility of disfiguration, unstable operation, or damage to the internal
components.
• Do not install in locations where temperature changes are severe. Otherwise, condensation
may form on the inside or the surface of the product, causing it to break.
• If there is reason to believe that condensation might have occurred, leave the product for
several hours without turning on the power until the condensation has completely dried out, in
order to prevent possible damage.
• Do not use a LAN cable that comes into contact with the product case or applies excessive
force to the connector.
• Do not touch the interior of a port with your fingers or any metallic object.
• Do not place vinyl, plastic or rubber objects on the product, since this might cause alteration
or discoloration.
• When cleaning the product, use a dry and soft cloth. Do not use paint thinners, solvents,
cleaning fluids, or chemical-impregnated wiping cloths, since this might cause alteration or
discoloration.
NOTICE
RM-WAP-16_RM-WAP-8_om_7multi_A0.book 5 ページ ２０２１年２月５日 金曜日 午後３時２８分

6RM-WAP-16 RM-WAP-8 Owner’s Manual
About functions/data bundled with the product
• Warning: This is a class A product. Operation of this product in a residential environment
could cause radio interference.
• This product is compatible with the 1.9 GHz DECT standard. If the product is used in an
environment where CS digital broadcasting is being received or PHS is used, radio waves
may interfere with each other, affecting broadcasting and communication.
• This product uses Dante Broadway. Refer to the Audinate website (English) for details on the
open-source licenses for the particular software.
https://www.audinate.com/software-licensing
• Refer to the website below for the licensing terms of the open source software used in this
product.
U.S.A. and Canada
https://uc.yamaha.com/support/
Other countries
https://download.yamaha.com/
About this manual
• This Manual uses the following signal words for the important information:
• The illustrations as shown in this manual are for instructional purposes only.
• The company names and product names in this manual are the trademarks or registered
trademarks of their respective companies.
• Yamaha continuously makes improvements and updates to the software included in this
product. You can download the latest software from the Yamaha website.
• Warning: Unauthorized copying of this document in part or in its entirety is prohibited.
INFORMATION
WARNING This content indicates “risk of serious injury or death.”
CAUTION This content indicates “risk of injury.”
NOTICE Indicates content that you must observe in order to prevent the
product from malfunctioning, being damaged, or operating
incorrectly, and to avoid data loss.
IMPORTANT Indicates content that you must know in order to operate and use the
product correctly.
NOTE Indicates information that is related to operation and use. Read this
for your reference.
RM-WAP-16_RM-WAP-8_om_7multi_A0.book 6 ページ ２０２１年２月５日 金曜日 午後３時２８分

English
7
RM-WAP-16 RM-WAP-8 Owner’s Manual
About transfer/disposal
• If you transfer the product to a third party, pass this manual and accessories along with it.
• Before you transfer ownership or dispose of this product, initialize the product settings to
default. If you transfer ownership or dispose of this product without initializing the settings,
your personal data may be stolen by a third party.
• This product contains recyclable components. When disposing of this product, please
contact the appropriate local authorities.
RM-WAP-16_RM-WAP-8_om_7multi_A0.book 7 ページ ２０２１年２月５日 金曜日 午後３時２８分

8RM-WAP-16 RM-WAP-8 Owner’s Manual
Thank you for purchasing the Yamaha RM-WAP-16/RM-WAP-8 microphone access point.
This unit is a PoE-powered access point. It is compatible with the 1.9 GHz DECT standard
and Dante, and can be used in combination with a dedicated wireless microphone. Be
sure to read this manual before using the unit.
Included items
• Mounting bracket : 1
• Owner’s Manual (this document) : 1
Reference manuals
In order to use this unit, initial settings, such as pairing with a wireless microphone, are
required. For details on the initial setting procedure, functions, and specifications, read the
Reference Manual for the RM Series Wireless Microphone System. This publication is
available on the Yamaha website.
U.S.A. and Canada
https://uc.yamaha.com/support/
Other countries
https://download.yamaha.com/
INTRODUCTION
RM-WAP-16_RM-WAP-8_om_7multi_A0.book 8 ページ ２０２１年２月５日 金曜日 午後３時２８分

English
9
RM-WAP-16 RM-WAP-8 Owner’s Manual
Front panel
1(Power) indicator
2(Status) indicator
Indicates the status of this unit using a color and flashing pattern. For details, refer to
the Reference Manual.
3RESET button
Use to reset the settings by long-pressing with a fine-tipped object, then releasing it.
Rear panel
1UNLOCK switch
Use to remove this unit from the mounting bracket. For details, refer to page 13.
CONTROLS AND FUNCTIONS
Long press Status indicator Reset target
4 seconds to less
than 8 seconds
Flashes blue twice per second
(during long-pressing/resetting)
Network-related settings
8 seconds to less
than 12 seconds
Flashes blue three times per second
(during long-pressing/resetting) All settings (Automatically restarts after reset)
1 2 3
1
RM-WAP-16_RM-WAP-8_om_7multi_A0.book 9 ページ ２０２１年２月５日 金曜日 午後３時２８分

10 RM-WAP-16 RM-WAP-8 Owner’s Manual
Bottom panel
1Dante/PoE port
This is an RJ-45 port to which you can connect an LAN cable (CAT5e or higher) via an
IEEE802.3af compliant a PoE injector or the PoE network switch to a Dante unit.
For details on injectors, refer to the Reference Manual.
NOTICE : Do not connect this product to a public Wi-Fi and/or Internet service directly. Only
connect this product to the Internet through a router with strong password
protections. Consult your router manufacturer for information on optimum security
practices.
: Do not connect any device here other than a Dante-compatible device or a
device (including a computer) that supports gigabit Ethernet.
2Mounting cutouts
Use to hook onto the mounting bracket.
3Cable slots
Use for routing the LAN cable if necessary.
4Safety wire mounting holes
Use to attach a commercially available safety wire.
5Heatsinks
Allow internal heat to escape.
NOTICE : Since the heatsinks collect heat, do not directly touch them with your hands. In
addition, avoid direct contact with heat-sensitive objects.
6Product label
Provides information about this unit and marks of conformity with various standards.
2
5
4
6
2
3
1
RM-WAP-16_RM-WAP-8_om_7multi_A0.book 10 ページ ２０２１年２月５日 金曜日 午後３時２８分

English
11
RM-WAP-16 RM-WAP-8 Owner’s Manual
This unit can be mounted on a wall or ceiling by using the mounting bracket.
Prepare the following.
• This unit
• Mounting bracket (included)
• Commercially available screws × 4
• Commercially available safety wire

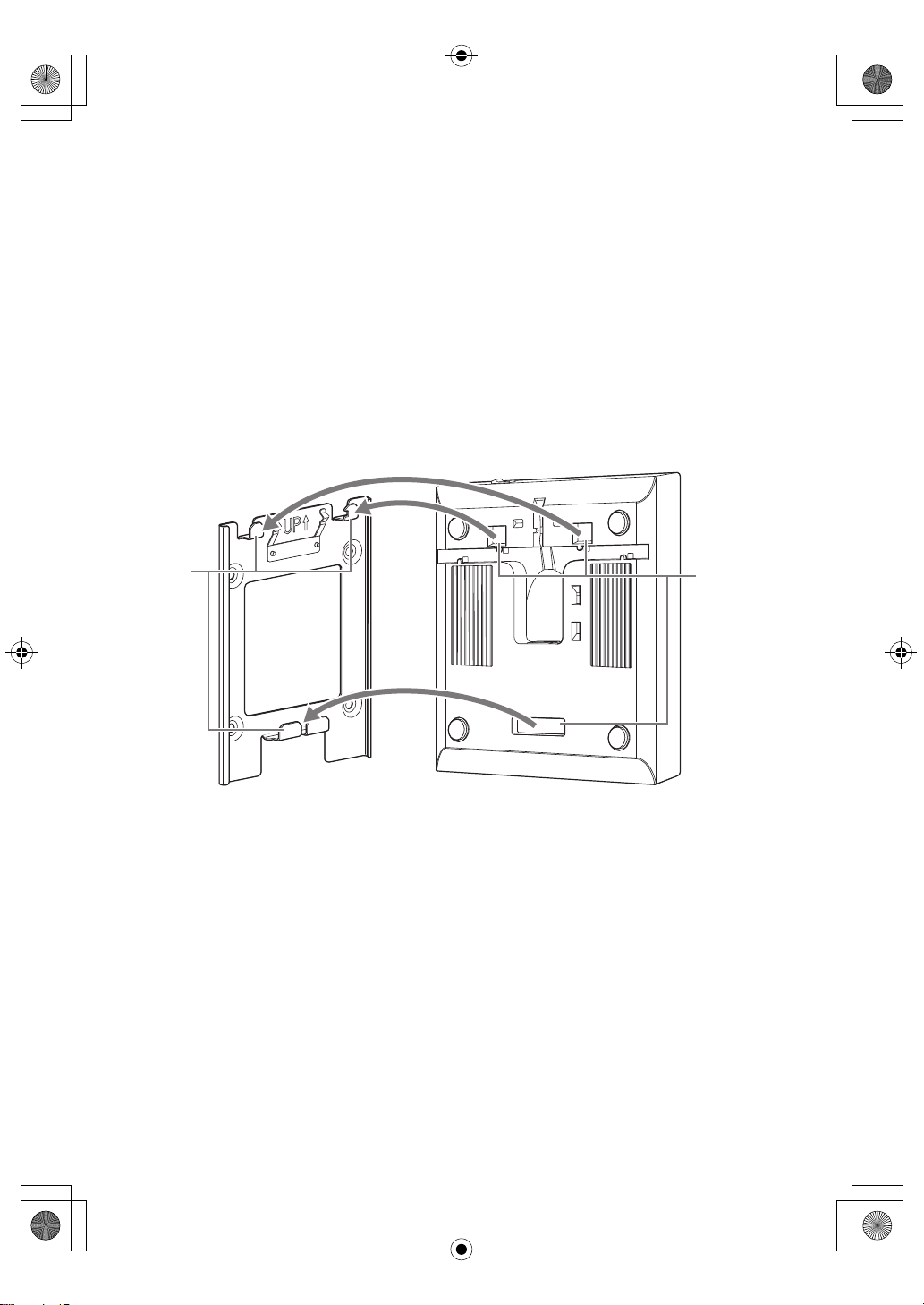

1. Attach the mounting bracket to the wall or ceiling with four commercially
available screws.
The diameter of the screw holes is five mm.
INSTALLING ON A WALL OR CEILING
CAUTION : Be sure to use screws and safety wires that are appropriate for the
material of the wall or ceiling.
Using inappropriate hardware may cause the unit or mounting bracket
to fall, resulting in injuries or malfunctions.
CAUTION : When attaching to a wall, make sure that the side marked “UP” is at
the top.
If it is at the bottom, the unit may fall, causing injuries or malfunctions.
Screw
RM-WAP-16_RM-WAP-8_om_7multi_A0.book 11 ページ ２０２１年２月５日 金曜日 午後３時２８分

12 RM-WAP-16 RM-WAP-8 Owner’s Manual
2. Plug the LAN cable into the Dante/PoE port.
NOTICE : Use STP (Shielded Twisted Pair) cable to prevent electromagnetic interference.
: When disconnecting the LAN cable from the Dante/PoE port, wait at least
five seconds before reconnecting the cable. Otherwise, damage or malfunctions
may result.
NOTE : We recommend using single-pair Ethernet cables in order to stabilize power
supply via PoE.
: If necessary, route the LAN cable through the cable slots.
3. Attach a commercially available safety wire.
4. Align the hooks on the mounting bracket with the mounting cutouts
(holes) in this unit.
Hook Mounting
cutouts
RM-WAP-16_RM-WAP-8_om_7multi_A0.book 12 ページ ２０２１年２月５日 金曜日 午後３時２８分

English
13
RM-WAP-16 RM-WAP-8 Owner’s Manual
5. Slide this unit to engage the hooks.
This completes the installation. For safety, make sure that the unit does not come off the
mounting bracket, even when a force is applied to the unit.
NOTE : To remove this unit from the mounting bracket, slide the unit in the opposite
direction of installation while moving the UNLOCK switch on the rear panel (top
edge in the illustration above) in the direction shown below.
NOTE : This unit can also be placed on a flat surface. Install it on an open area such as a
desk or shelf. Do not install it inside a shelf or where airflow is blocked by
obstructions and do not place it on heat-sensitive objects.
UNLOCK switch
RM-WAP-16_RM-WAP-8_om_7multi_A0.book 13 ページ ２０２１年２月５日 金曜日 午後３時２８分

14 RM-WAP-16 RM-WAP-8 Owner’s Manual
General specifications
Network specifications
MAIN SPECIFICATIONS
Dimensions W 171.0 mm × D 172.5 mm × H 43.0 mm
Weight 650 g (including mounting bracket)
Power requirements PoE (IEEE802.3af), 48 V DC
Maximum power consumption 48 V, 0.2 A
In operation Temperature 0°C–40°C
Humidity 20% – 85% (no condensation)
Storage Temperature −20 °C – 60 °C
Humidity 10% – 90% (no condensation)
Indicators
• Power
• Status
•Networkport
Maximum device
number with RM-CR
RM-WAP-16 1
RM-WAP-8 2
Accessories • Mounting bracket : 1
• Owner’s Manual (this document) : 1
Dante/PoE port
• Dante audio/Dante control
• External control
•PoE
• Cable requirements: CAT5e or higher, STP
RM-WAP-16_RM-WAP-8_om_7multi_A0.book 14 ページ ２０２１年２月５日 金曜日 午後３時２８分

English
15
RM-WAP-16 RM-WAP-8 Owner’s Manual
Audio specifications
Wireless specifications
The contents of this manual apply to the latest specifications as of the publishing date. To
obtain the latest manual, access the Yamaha website then download the manual file.
Sampling rate 48 kHz
Bit depth 24-bit
Latency 30 [ms] (DECT high quality mode, no sound
processing)
Audio input/output
(Dante)
RM-WAP-16 16 out
out1–out16 : Mic input signals (maximum 16)
RM-WAP-8 8 out
out1–out8 : Mic input signals (maximum 8)
Supported standard 1.9 GHz DECT standard
Radio frequency
• USA/Canada: 1920.0 MHz – 1930.0 MHz
• Europe/Northern Europe/UK/Australia/New Zealand:
1880.0 MHz – 1900.0 MHz
• Japan: 1893.5 MHz – 1906.1 MHz
Maximum output
power (EIRP)
• USA/Canada: 23.5 dBm
• Europe/Northern Europe/UK/Australia/New Zealand/Japan:
26.5 dBm
Antenna (built-in) Supports space diversity
Use
• Audio communication and control between access point and
microphone
• Control between access point and charger
Maximum coverage
distance 50 m (depends on the usage environment)
Encryption method AES (256-bit)
RM-WAP-16_RM-WAP-8_om_7multi_A0.book 15 ページ ２０２１年２月５日 金曜日 午後３時２８分

16 RM-WAP-16 RM-WAP-8 Owner’s Manual
Dimensional diagram
This unit
172.5
43.0
171.0
Units: mm
RM-WAP-16_RM-WAP-8_om_7multi_A0.book 16 ページ ２０２１年２月５日 金曜日 午後３時２８分

English
17
RM-WAP-16 RM-WAP-8 Owner’s Manual
Mounting bracket
135.0
13.2
100.0
Units: mm
RM-WAP-16_RM-WAP-8_om_7multi_A0.book 17 ページ ２０２１年２月５日 金曜日 午後３時２８分

18 RM-WAP-16 RM-WAP-8 Owner’s Manual
Information for users on collection and disposal of old equipment:
This symbol on the products, packaging, and/or accompanying documents means
that used electrical and electronic products should not be mixed with general
household waste.
For proper treatment, recovery and recycling of old products, please take them to
applicable collection points, in accordance with your national legislation.
By disposing of these products correctly, you will help to save valuable resources
and prevent any potential negative effects on human health and the environment
which could otherwise arise from inappropriate waste handling.
For more information about collection and recycling of old products, please
contact your local municipality, your waste disposal service or the point of sale
where you purchased the items.
For business users in the European Union:
If you wish to discard electrical and electronic equipment, please contact your
dealer or supplier for further information.
Information on Disposal in other Countries outside the European Union:
This symbol is only valid in the European Union. If you wish to discard these items,
please contact your local authorities or dealer and ask for the correct method of
disposal.
This transmitter must not be co-located or operated in conjunction with any other antenna or
transmitter.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment should
be installed and operated keeping the radiator at least 20cm or more away from person’s body.
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled
environment and meets RSS-102 of the ISED radio frequency (RF) Exposure rules. This equipment
should be installed and operated keeping the radiator at least 20 cm or more away from person’s
body.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science
and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired
operation of the device.
RM-WAP-16_RM-WAP-8_om_7multi_A0.book 18 ページ ２０２１年２月５日 金曜日 午後３時２８分

English
19
RM-WAP-16 RM-WAP-8 Owner’s Manual
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following conditions:
1) this device may not cause harmful interference, and
2) this device must accept any interference received including interference that may cause
undesired operation.
COMPLIANCE INFORMATION STATEMENT
(Supplier’s declaration of conformity procedure)
Responsible Party: Yamaha Unified Communications, Inc.
Address: 144 North Rd, Suite 3250 Sudbury, MA 01776
Telephone: [phone]
Type of Equipment: Microphone Access Point
Model Name: RM-WAP-16, RM-WAP-8
1. IMPORTANT NOTICE:
DO NOT MODIFY THIS UNIT!
This product, when installed as indicated
in the instructions contained in this
manual, meets FCC requirements.
Modifications not expressly approved by
Yamaha may void your authority, granted
by the FCC, to use the product.
2. IMPORTANT: When connecting this
product to accessories and/or another
product use only high quality shielded
cables. Cable/s supplied with this product
MUST be used. Follow all installation
instructions. Failure to follow instructions
could void your FCC authorization to use
this product in the USA.
3. NOTE: This equipment has been tested
and found to comply with the limits for a
Class A digital device, pursuant to Part 15
of the FCC rules. These limits are
designed to provide reasonable protection
against harmful interference when the
equipment is operated in a commercial
environment. This equipment generates,
uses and can radiate radio frequency
energy and, if not installed and used in
accordance with the instruction manual,
may cause harmful interference to radio
communications. Operation of this
equipment in a residential area is likely to
cause harmful interference in which case
the user will be required to correct the
interference at his own expense.
FCC INFORMATION (U.S.A.)
RM-WAP-16_RM-WAP-8_om_7multi_A0.book 19 ページ ２０２１年２月５日 金曜日 午後３時２８分

20 RM-WAP-16 RM-WAP-8 Benutzerhandbuch
VORSICHTSMAßNAHMEN ................................................................................. 21
ACHTUNG ........................................................................................................... 23
INFORMATION .................................................................................................... 24
EINLEITUNG........................................................................................................ 26
Lieferumfang....................................................................................................................26
Referenzhandbücher ....................................................................................................... 26
BEDIENUNGSELEMENTE UND DEREN FUNKTION........................................ 27
Frontblende...................................................................................................................... 27
Rückseite ......................................................................................................................... 27
Unterseite......................................................................................................................... 28
MONTAGE AN EINER WAND ODER DECKE .................................................... 29
TECHNISCHE DATEN ......................................................................................... 32
Maßbild............................................................................................................................ 34
INHALTSVERZEICHNIS
Die Nummer des Modells, die Seriennummer, der Leistungsbedarf usw. sind auf dem Typenschild,
das sich auf der Unterseite des Geräts befindet, oder in der Nähe davon angegeben. Sie sollten diese
Seriennummer an der unten vorgesehenen Stelle eintragen und dieses Handbuch als dauerhaften
Beleg für Ihren Kauf aufbewahren, um im Fall eines Diebstahls die Identifikation zu erleichtern.
Modell Nr.
Seriennr.
RM-WAP-16_RM-WAP-8_om_7multi_A0.book 20 ページ ２０２１年２月５日 金曜日 午後３時２８分

21
RM-WAP-16 RM-WAP-8 Benutzerhandbuch
Deutsch
EMPFOHLENE LEKTÜRE VOR DEM WEITERFAHREN
Vorliegendes Handbuch für spätere Nachschlagzwecke sorgfältig aufbewahren.
WARNUNG
Beachten Sie stets die nachfolgend aufgeführten Vorsichtsmaßnahmen, um schwere
Verletzungen oder tödliche Unfälle durch elektrischen Schlag, Kurzschluss, Brand
oder andere Gefahren zu vermeiden. Folgende Vorsichtsmaßregeln stellen keine
vollständige Aufzählung dar.
Brandschutz
• Halten Sie brennende Gegenstände und offene Flammen vom Gerät fern, um einen Brand zu
vermeiden.
Kabellose Komponenten
• Verwenden Sie dieses Gerät nicht in der Nähe von medizinischen Geräten oder in
medizinischen Einrichtungen. Funkwellen von diesem Gerät können medizinische Geräte stören.
• Personen mit Herzschrittmacher- oder Defibrillator-Implantat müssen mindestens 15 cm von
diesem Gerät entfernt bleiben. Funkwellen von diesem Gerät können medizinische Geräte wie
Herzschrittmacher- oder Defibrillator-Implantate stören.
Einsatzort
• Das Gerät wie in der Anleitung beschrieben aufstellen. Anderenfalls können Verletzungen
oder Schäden verursachen.
• Bestätigen Sie, dass die abgeschlossene Aufstellung sicher ist. Führen Sie außerdem
regelmäßige Sicherheitskontrollen durch. Andernfalls könnten Geräte abstürzen und
Verletzungen verursachen.
VORSICHTSMAßNAHMEN
Yamaha haftet weder für Schäden, die auf unsachgemäße Benutzung oder Veränderungen des
Geräts zurückzuführen sind, noch für den Verlust oder die Zerstörung von Daten.
RM-WAP-16_RM-WAP-8_om_7multi_A0.book 21 ページ ２０２１年２月５日 金曜日 午後３時２８分

22 RM-WAP-16 RM-WAP-8 Benutzerhandbuch
VORSICHT
Befolgen Sie stets die unten aufgeführten Grundvorsichtsmaßnahmen, um mögliche
Verletzungen der eigenen oder anderer Personen zu vermeiden. Folgende
Vorsichtsmaßregeln stellen keine vollständige Aufzählung dar.
Ungewöhnliche Vorkommnisse
• Tritt eines der folgenden Probleme auf, trennen Sie sofort das LAN-Kabel vom Gerät.
- Das LAN-Kabel ist ausgefranst oder beschädigt.
- Das Gerät erzeugt einen ungewöhnlichen Geruch oder Rauch.
- Ein Gegenstand oder Wasser ist in das Gerät eingedrungen.
- Das Gerät weist Risse oder andere sichtbare Schäden auf.
Das Gerät anschließend von qualifiziertem Yamaha Kundendienstpersonal prüfen oder
reparieren lassen.
Nicht öffnen
• Dieses Gerät enthält keine vom Benutzer zu wartenden Teile. Die inneren Bauteile weder
zerlegen noch in irgendeiner Weise modifizieren.
Gefahr durch Wasser
• Schützen Sie das Gerät vor Regen, Wasser und Feuchtigkeit, und stellen Sie keine mit
Flüssigkeiten befüllten Behälter (wie Vasen, Flaschen oder Gläser) darauf ab, deren Inhalt in
die Öffnungen auslaufen könnte.
Einsatzort und Verbindungen
• Zum Verbinden dieses Geräts mit einem PoE-Injektor oder -Netzwerk-Switch ein PoE-fähiges
LAN-Kabel einsetzen. Wird ein Kabel, das dieser Spezifikationen nicht entspricht, oder ein
flaches bzw. dünnes Kabel eingesetzt, könnte ein Brand oder eine Störung erfolgen.
• Das LAN-Kabel nicht beschädigen. Andernfalls könnte ein Brand, elektrischer Schlag oder
Beschädigung des Geräts erfolgen.
- Keine schweren Gegenstände auf das Kabel setzen.
- Das Kabel in keiner Weise umrüsten.
- Das Kabel nicht anheften.
- Das Kabel nicht strapazieren.
- Das Kabel von Hitzequellen fernhalten.
• Stellen Sie das Gerät nicht in eine unstabile Lage oder an einem Ort mit übermäßigen
Vibrationen, an dem es versehentlich abstürzen und Verletzungen verursachen könnte.
• Halten Sie dieses Gerät außer Reichweite von Kindern. Dieses Gerät eignet sich nicht für den
Einsatz an Orten, wo sich Kinder aufhalten könnten.
• Setzen Sie das Gerät nicht an einem Ort ein, wo es korrosiven Gasen oder salzhaltiger Luft
ausgesetzt sein könnte. Dadurch kann es zu Fehlfunktionen kommen.
• Verlegen Sie keine LAN-Kabel in Durchgangsbereichen, wo Personen stolpern könnten. Beim
Stolpern über ein Kabel könnte eine Person fallen und sich verletzen oder das Gerät stürzen
und beschädigt werden.
• Ziehen Sie das LAN-Kabel ab, bevor Sie das Gerät versetzen.
Vorsichtsmaßnahmen während der Benutzung
• Sie sollten sich weder auf das Gerät abstützen noch schwere Gegenstände darauf abstellen.
RM-WAP-16_RM-WAP-8_om_7multi_A0.book 22 ページ ２０２１年２月５日 金曜日 午後３時２８分
