Chiayo SQ-1016 User manual

Operation manual
CHIAYO ELECTRONICS CO.,LTD.
SQ-1016 / SQ-1016V
UHF Handheld Microphone
SM-2016 / SM-1016
UHF Belt-pack Transmitter

1
UHF Handheld Microphone / Belt-pack Transmitter
Parts and functions
SQ-1016 / SQ-1016V handheld microphone
1.Cartridge
2.Battery weak/power LED
3.Power switch
4.Channel switch
5.Battery compartment
6.Bottom cap
7.Charging port
8.Volume control of SQ-1016V
2 3 5 7 4 6 8 1
1
234
5
10 10
6
7 8
9
1
2 2 43 5
6
78910
SM-1016 Belt-pack transmitter
1.
Antenna
2.
Battery power LED
3.
Power switch
4.
Audio input connector
5.
Cover release button
6.
Channel switch
7.
High-impedance gain control (GT)
8.
Low-impedance gain control (MT)
9.
Battery compartment
10.
Charging contacts
SM-2016 Belt-pack transmitter
1.
Antenna
2.
Cover release button
3.
High-impedance gain control (GT)
4.
Low-impedance gain control (MT)
5.
Channel switch
6.
Battery compartment
7.
Power switch
8.
Battery power LED
9.
Audio input connector
10.Charging contacts

2
Instructions
Battery installation & indicator
●►○
●
When the transmitter is switched ON, a red
LED will blink once to denote the batteries
installed are in good condition.
If the LED remains illuminated, it means the
batteries are weak and require replacement.
This transmitter requires 2 x AA batteries to
operate.
To install, remove the battery cover and slide
the batteries into the battery compartment &
replace the battery cover.
Note: Batteries contain a corrosive acid that may leak and damage the microphone when stored for a long
period. Batteries should be removed from the microphone before storing without use for more than 4 weeks.
Channel setting

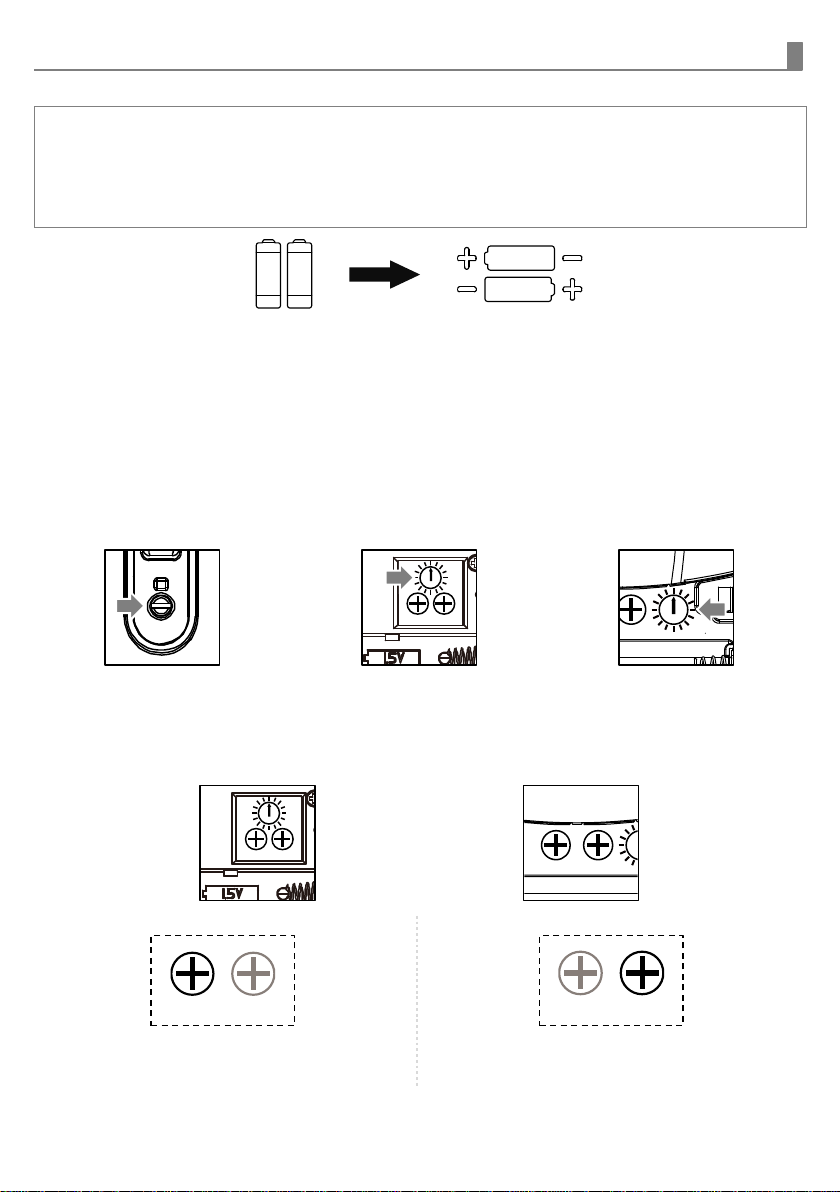

Please use the attached small screw driver to set the channel
SQ-1016 / SQ-1016V
SM-1016
SM-2016
GAIN setting (SM-1016｜SM-2016)
Gain control enables the user to set different output levels.
SM-1016 SM-2016
GT (LEFT) is for the use of instrument with
high impedance, such as guitar.
MT (RIGHT)is for the use of low impedance
such as lapel or headset microphones
GT MT
GT MT
GT MT
GT MT
GT MT
GT MT
