Shaker
Model SA400
Instruction Manual
- First Edition -
Yamato Scientific Co. LTD.
This paper has been printed on recycled paper.
Thank you for purchasing "Shaker, SA400" of
Yamato Scientific Co., Ltd.
To use this unit properly, read this "Instruction
Manual" thoroughly before using this unit.
Keep this instruction manual around this unit for
referring at anytime.
WARNING!:
Carefully read and thoroughly understand the
important warning items described in this manual
before using this unit.

Contents
Cautions in Using with Safety...............................................................1
Explanation..................................................................................................................1
Table of Illustrated Symbols.........................................................................................2
Fundamental Matters of “WARNING!” and “CAUTION!”...............................................3
Before Using this unit............................................................................4
Requirements for Installation .......................................................................................4
Description and Function of Each Part ................................................7
Main Unit.....................................................................................................................7
Control Panel...............................................................................................................8
Operation Method ..................................................................................2
Sequence of Operation................................................................................................2
Handling Precautions ............................................................................3
Maintenance Method..............................................................................5
Daily Inspection and Maintenance...............................................................................5
Long storage and disposal....................................................................6
When not using this unit for long term / When disposing..............................................6
In the Event of Failure… ........................................................................7
Trouble Shooting .........................................................................................................7
After Service and Warranty ...................................................................8
Specification...........................................................................................9
Wiring Diagram ....................................................................................10
Replacement Parts Table.....................................................................11
Reference .............................................................................................12
List of Dangerous Substances...................................................................................12

1
Cautions in Using with Safety
Explanation
MEANING OF ILLUSTRATED SYMBOLS
Varioussymbols are used in thissafety manual in order to use the unit without
danger of injury and damage of the unit. A list of problems caused by ignoring
the warningsand improper handling is divided asshown below.Be sure that you
understand the warnings and cautions in thismanual before operating the unit.
WARNING! If the warning is ignored, there is the danger of a problem that
may cause a serious accident or even fatality.
CAUTION! If the caution is ignored, there is the danger of a problem that may
cause injury/damage to property or the unit itself.
Meaning of Symbols
This symbol indicates items that urge the warning (including the caution).
A detailed warning message is shown adjacent to the symbol.
This symbol indicates items that are strictly prohibited.
A detailed message is shown adjacent to the symbol with specific actions not to
perform.
This symbol indicates items that should be always performed.
A detailed message with instructions is shown adjacent to the symbol.
Illustrated Symbols

2
Cautions in Using with Safety

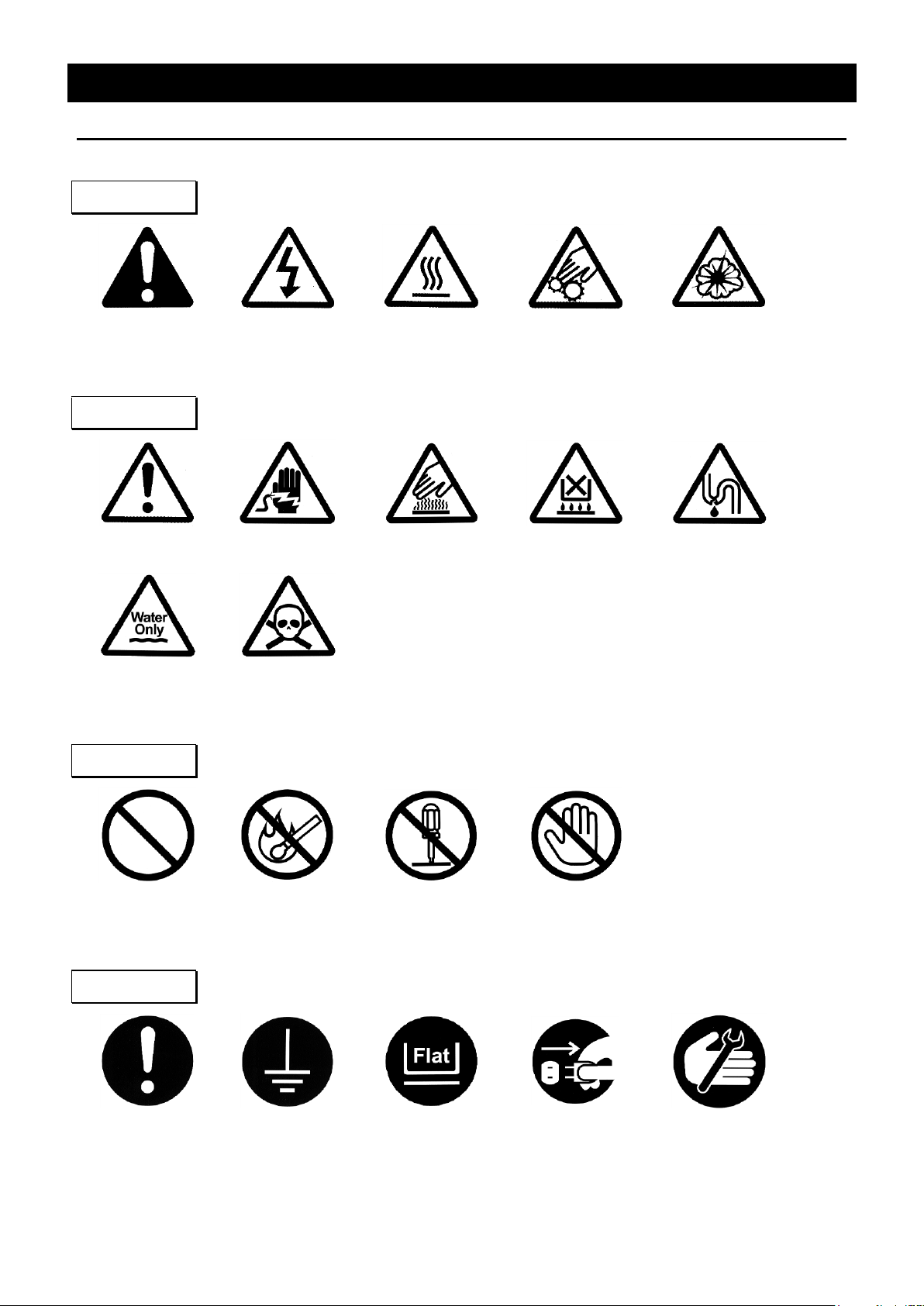

Table of Illustrated Symbols
Warning
Warning,
generally
Warning,
high voltage
Warning,
high temperature
Warning,
drive train
Warning,
explosive
Caution
Caution,
generally
Caution,
electrical shock
Caution,
scald
Caution,
no road heating
Caution,
not to drench
Caution,
water only
Caution,
deadly poison
Prohibit
Prohibit,
generally
Prohibit,
inflammable
Prohibit,
to disassemble
Prohibit,
to touch
Compulsion
Compulsion,
generally
Compulsion,
connect to the
grounding
terminal
Compulsion,
install on a flat
surface
Compulsion,
disconnectthe
powerplug
Compulsion,
periodical
inspection

3
Cautions in Using with Safety
Fundamental Matters of “WARNING!”and “CAUTION!”
WARNING!
Do not use this unit in an area where there is flammable or explosive gas
Never use this unit in an area where there is flammable or explosive gas.
This unit is not explosion-proof. An arc may be generated when the power switch is turned on or off,
and fire/explosion may result. (Refer to page12 “List of Dangerous Substances”.)
Always ground this unit
Always ground this unit on the power equipment side in order to avoid electrical shock due to a power
surge.
If a problem occurs
If smoke or strange odor should come out of this unit for some reason, turn off the power key right
away, and then turn off the circuit breaker and the main power. Immediately contact a service
technician for inspection. If this procedure is not followed, fire or electrical shock may result. Never
perform repair work yourself, since it is dangerous and not recommended.
Do not use the power cord if it is bundled or tangled
Do not use the power cord if it is bundled or tangled. If it is used in this manner, it can overheat and
fire may be caused.
Do not process, bend, wring, or stretch the power cord forcibly
Do not process, bend, wring, or stretch the power cord forcibly. Fire or electrical shock may result.
Substances that can not be used
Never use explosive substances, flammable substances and substances that include explosive or
flammable ingredients in this unit. Explosion or fire may occur.
Do not disassemble or modify this unit
Do not disassemble or modify this unit. Fire or electrical shock or failure may be caused.
CAUTION!
During a thunder storm
During a thunderstorm, turn off the power key immediately, then turn off the circuit breaker and the main
power. If this procedure is not followed, fire or electrical shock may be caused.

4
Before Using this unit

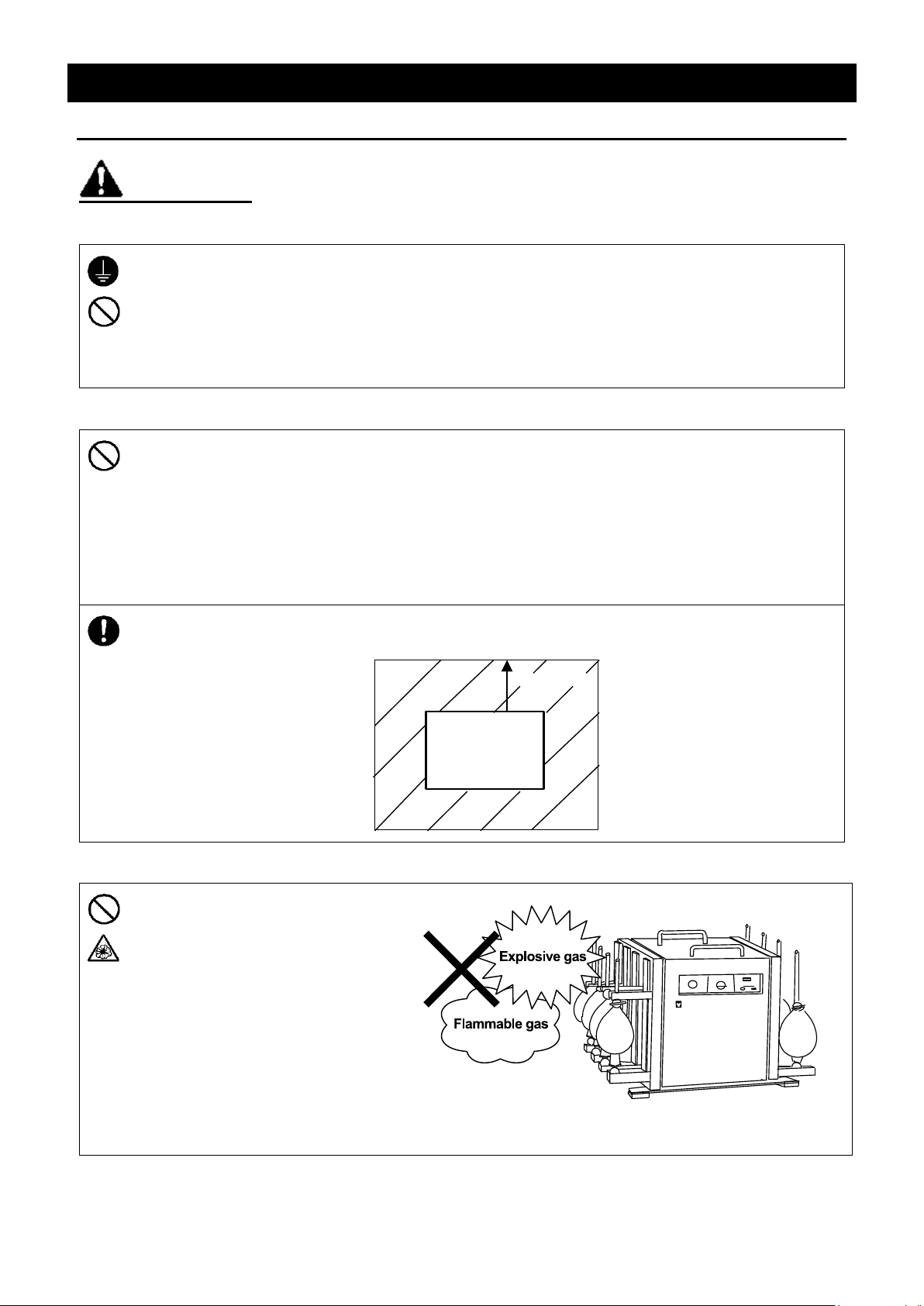

Requirements for Installation
WARNING!
1. Always ground this unit
Be sure to connect the earth wire (the green cable of power cord) to the grounding conductor
or ground terminal to prevent accidents caused by electric leakage.
Do not connect the earth wire to gas or water pipes. If not, fire disaster may be caused.
Do not connect the earth wire to the ground for telephone wire or lightning conductor. If not,
fire disaster or electric shock may be caused.
Do not use a branching receptacle, which may cause the heat generation.
2. Choose a proper place for installation
Do not install this unit in a place where:
Rough or dirty surface.
Flammable gas or corrosive gas is generated.
Ambient temperature exceeds 35C.
Ambient temperature fluctuates violently.
There is direct sunlight.
There is excessive humidity and dust.
There is a constant vibration.
Driving parts are exposed. Do not install this unit to busy place.
Install this unit on a stable place with the space as shown below.
Main Unit
More than 50cm
Front side
3. Do not use this unit in an area where there is flammable or explosive gas
Never use this unit in an area where
there is flammable or explosive gas.
This unit is not explosion-proof. An
arc may be generated when the
power switch is turned ON or OFF,
and fire/explosion may result.
SA400
爆発性ガス
×
可燃性ガス
yamato
NOTE) Glass tools and holders are optional accessories.

5
Before Using this unit
Requirements for Installation

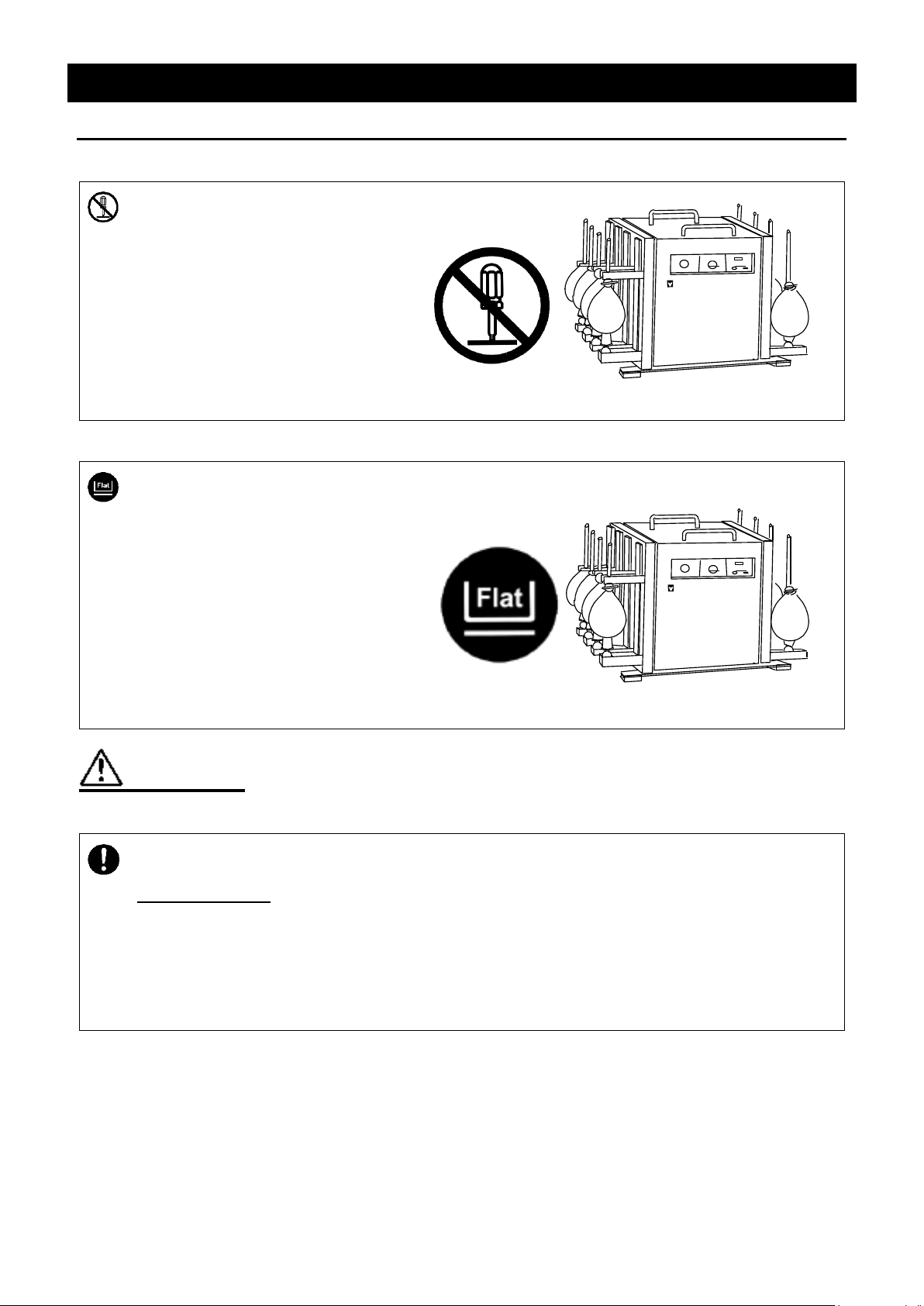

4. Do not modify
Modification of this unit is strictly
prohibited. This could cause a
failure.
SA400
yamato
NOTE) Glass tools and holders are optional accessories.
5. Installation on horizontal surface
Set this unit to the flattest place.
Not setting this unit with its 4 legs
covered with rubber contacted to
the setting place surface evenly
could cause the vibration or noise,
or cause the unexpectible trouble
or malfunction.
SA400
yamato
NOTE) Glass tools and holders are optional accessories.
CAUTION!
6. Choose a correct power distribution board or receptacle
Choose a correct power distribution board or receptacle that meets the unit’s rated electric
capacity.
Electric capacity:
100V AC, 2.5A
NOTE)
There could be the case that the unit does not run even after turning ON the power. Inspect
whether the voltage of the main power is lowered than the specified value, or whether other
device(s) uses the same power line of this unit. If the phenomena might be found, change the
power line of this unit to the other power line.
Do not modify
To the flattest place

6
Before Using this unit
Requirements for Installation
7. Before/after installing
It may cause injure to a person if this unit falls down or moves by the earthquake and the
impact. etc..To prevent, take measures that the unit cannot fall down, and not install to busy
place.
Touching the shaking parts may cause injure to a person during the operation. To prevent,
take measures that putting up a notice of operating, making an enclosure etc..
8. Handling of power cord
Do not entangle the power cord. This will cause overheating and possibly a fire.
Do not bend or twist the power cord, or apply excessive tension to it. This may cause a fire
and electrical shock.
Do not lay the power cord under a desk or chair, and do not allow it to be pinched in order to
prevent it from being damaged and to avoid a fire or electrical shock.
Keep the power cord away from any heating equipment such as a room heater. The cord's
insulation may melt and cause a fire or electrical shock.
If the power cord becomes damaged (wiring exposed, breakage, etc.), immediately turn off the
power at the rear of this unit and shut off the main supply power. Then contact your nearest
dealer for replacement of the power cord. Leaving it may cause a fire or electrical shock.
Connect the power plug to the outlet which is supplied appropriate power and voltage.
