Yard Works 060-0194-4 User manual

Lawn Roller
Rouleau à gazon
model number / nºde modèle 060-0194-4 | contact us / communiquez avec nous au: 1.866.523.5218
IMPORTANT:
Read and understand all safety rules and operating
instructions before using this product.
Instruction
Manual
IMPORTANT:
Lisez et comprenez toutes les règles de sécurité et les
instructions de fonctionnement avant d'utiliser ce produit.
Guide
d’utilisation

DD
For problems or questions, DO
NOT RETURN TO STORE. Please
contact one of our Customer
Service Agents who would be
happy to assist you.
En cas de problèmes ou si vous avez des questions, NE
RETOURNEZ PAS L’ARTICLE AU MAGASIN. Contactez
plutôt un de nos agents du service à la clientèle, qui se
fera un plaisir de vous aider.
For Customer Assistance Please Call:
Pour le service à la clientèle, veuillez composer :
CANADA: 1-866-523-5218

model number 060-0547-6 | contact us: 1.866.523.5218
2
SPECIFICATIONS 2
KNOW YOUR LAWN ROLLER 3
EXPLODED VIEW 4
PARTS LIST 5
ASSEMBLY 6
OPERATION AND MAINTENANCE 9
TROUBLESHOOTING 10
RECYCLING AND DISPOSAL 11
WARRANTY 12
Table Contents
Roller width: 24" (61 cm)
Roller diameter: 18" (46 cm)
Volume: 26 gal (100 L)
Total height with handle: 41 3/4" (106 cm)
KNOW YOUR LAWN ROLLER
Always take care when removing the packaging to prevent damage to
you or to the lawn roller.
NOTE! You will need 8 mm open-ended and hexagon wrenches for
the assembly work.
• Remove all parts of the lawn roller from the box and carefully
remove all packaging. Take care not to lose any instructions which
may be affixed to the parts. These provide important information
which will be required while assembling the lawn roller.
• Keep all packaging until the lawn roller is fully assembled and has
been operated successfully.
Specifications
!

model number 060-0547-6 | contact us: 1.866.523.5218
3
Know Your Lawn Roller
1. Roller
2. Dirt wiper
3. Bottom shaft
4. Push bar
5. Bolt
6. Nut
7. Pin
8. Sealing cap
4
1
3
2
5
8
6
7

model number 060-0547-6 | contact us: 1.866.523.5218
4
Exploded View

model number 060-0547-6 | contact us: 1.866.523.5218
5
Parts List
Item Description Qty. Item Description Qty.
1 Top Handle 1
2 M8 Hex-head Bolt 4
3 Washer 4
4 M8 Nut 4
5 Bottom Handle 2
6 Mud-scraping Board 1
7 Washer 2
8 R-type Pin 2
9 Weed Breaker Assembly 1
10 O-type Sealing Ring 2
11 M30 Hex-head Bolt 1

model number 060-0547-6 | contact us: 1.866.523.5218
6
ASSEMBLE THE LOWER HANDLES
Before using the lawn roller, a one-time assembly is required.
1. Insert the left lower handle (3) onto the shaft (1) of roller as illustrated
in Fig. A., and use washer (7) and R-type pin (8) to attach the lower
handle securely.
2. Do the same on the other side.
!NOTE: before using the roller, read the instruction
book carefully.
Fig. A
1
Assembly
3

model number 060-0547-6 | contact us: 1.866.523.5218
7
CONNECT THE DIRT WIPER WITH LOWER HANDLES

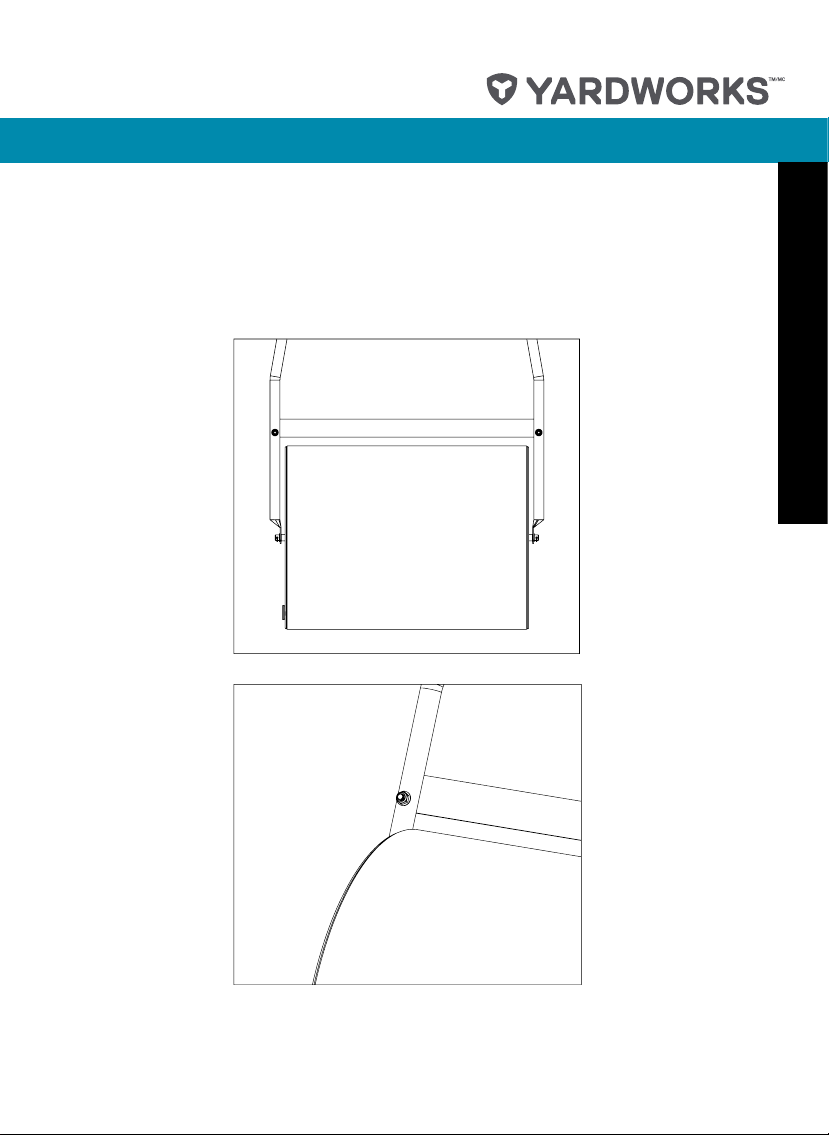

Connect the dirt wiper with the right and left handles using M8 hex-head
bolts (2), washers (3) and M8 nuts (4) as illustrated in Fig. B.
Fig. B
Assembly

model number 060-0547-6 | contact us: 1.866.523.5218
8
CONNECT THE UPPER HANDLES

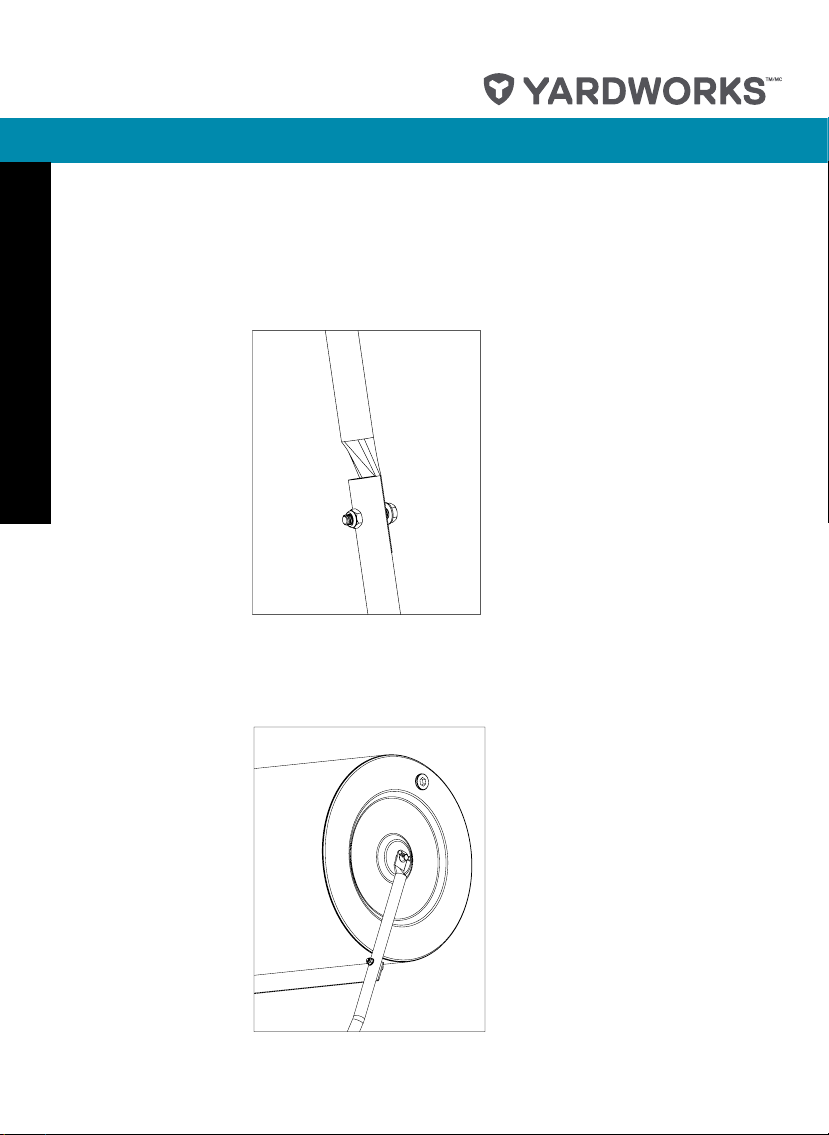

Connect the upper handles with lower handles using M8 hex-head bolts
(2), washers (3) and M8 nuts (4) as illustrated in Fig. C.
FILL THE ROLLER WITH WATER OR SAND
Tilt the roller so that the sealing cap faces up. Fill with water or sand.
Tighten the sealing cap with wrench.
Fig. C
Fig. D
Assembly

model number 060-0547-6 | contact us: 1.866.523.5218
9
OPERATION
Pull the roller over the ground you wish to roll in even strips. Only roll dry
ground.
MAINTENANCE
To ensure long and reliable service carry out in an environmentally
friendly manner.
Regularly check for obvious defects such as loose, loose fixings, and
worn or damaged components. Check that parts are undamaged and
correctly fitted. Carry out necessary maintenance or repairs before using.
If the roller should happen to fail despite the care taken in manufacture
and testing, repair should be carried out by an authorized service agent.
After working/storage clean the exterior of the machine thoroughly using
a soft brush and cloth. Do not use water, solvents or polishes. Store the
roller in a dry place. Do not place other objects on top of the machine.
!WARNING: Always wear safety gloves when doing any work on
the lawn roller.
Operation and Maintenance

model number 060-0547-6 | contact us: 1.866.523.5218
10
TROUBLESHOOTING
WARNING! Only perform the steps described within these instructions.
All further inspection, maintenance and repair work must be performed
by an authorised service centre or a similarly qualified specialist if you
cannot solve the problem yourself.
Suspected malfunctions, disturbances or damages are often due to
causes that the user can fix themselves. Therefore check the product
using this section. In most cases the problem can be solved quickly.
Problem Possible cause Solution
Unsatisfying result 1. Handle doesn't
assemble well.
2. Bolts loosen.
1. Refer to handle
connection.
2. Tighten the bolts.
Troubleshooting

model number 060-0547-6 | contact us: 1.866.523.5218
11
RECYCLING AND DISPOSAL
1. Recycle unwanted materials instead of disposing of them as waste.
All tools, hoses and packaging should be sorted, taken to the local
recycling centre and disposed of in an environmentally safe way.
2. Recycle rather than dispose of unwanted material in landfill whenever
possible. The machine must be delivered in rigid packaging to avoid
damage during transportation. The packaging, roller, and the machine
itself are manufactured from recyclable materials and should be
disposed of accordingly.
3. Do not throw your clippings into a rubbish bin where it will be disposed
of in landfill. You can dispose of clippings on your compost heap,
alternating them with other garden material. Alternatively, many
communities provide a public collection point where you can dispose
of your garden waste in an environmentally friendly manner.
4. Recycle packaging where facilities exist.
Disposal

model number 060-0547-6 | contact us: 1.866.523.5218
12
Warranty
2-YEAR LIMITED WARRANTY
For TWO YEARS from the date of
purchase within Canada, YARDWORKS
CANADA will, at its option, repair or
replace for the original purchaser, free
of charge, any part or parts found to be
defective in materials or workmanship.
THIS WARRANTY DOES NOT COVER:
1. Any part that has become inoperative
due to misuse, commercial use,
abuse, neglect, accident, improper
maintenance, or alteration;
2. The unit, if it has not been operated
and/or maintained in accordance with
the owner’s manual;
3. Normal wear, except as noted below;
4. Routine maintenance items such as
sealing cap, sealing ring; or
5. Normal deterioration of the exterior
finish due to use or exposure.
HOW TO OBTAIN SERVICE:
Warranty service is available by calling
the toll-free helpline at 1.866.523.5218.
The factory will not accept the return
of a complete unit unless prior written
permission has been extended by
YARDWORKS CANADA.
TRANSPORTATION CHARGES:
Transportation charges for the movement
of any power equipment unit or
attachment are the responsibility
of the purchaser. The purchaser must
pay transportation charges for any part
submitted for replacement under this
warranty unless such return is requested
in writing by YARDWORKS CANADA.
OTHER WARRANTIES:
All other warranties, express or implied,
including any implied warranty of
merchantability is limited in its duration
to that set forth in this express limited
warranty. The provisions as set forth
in this warranty provide the sole and
exclusive remedy of YARDWORKS
CANADA obligations arising from the
sale of its products.
YARDWORKS CANADA will not be liable for incidental or
consequential loss or damage.
Made in China
Imported by Yardworks Canada Toronto, Canada M4S 2B8

model number 060-0547-6 | contact us: 1.866.523.5218
13

Nºde modèle: 060-0547-6 | Communiquez avec nous au 1.866.523.5218
14
FICHE TECHNIQUE 14
DÉCOUVREZ VOTRE ROULEAU À GAZON 15
VUE ÉCLATÉE 16
LISTE DES PIÈCES 17
ASSEMBLAGE 18
FONCTIONNEMENT 20
ENTRETIEN 22
DÉPANNAGE 23
RECYCLAGE ET ÉLIMINATION 24
GARANTIE 25
Table des matières
Largeur du rouleau: 24po (61 cm)
Diamètre du rouleau: 18po (46 cm)
Volume: 26 gal (100 L)
Hauteur totale avec poignée: 41 3/4po(106 cm)
DÉCOUVREZ VOTRE ROULEAU À GAZON
Faites attention lors du retrait de l'emballage pour éviter de vous
blesser ou d’endommager le rouleau.
REMARQUE! Vous aurez besoin d’une clé à fourche de 8mm et d’une
clé hexagonale pour les travaux d'assemblage.
• Retirez toutes les pièces du rouleau à gazon de la boîte et retirez
soigneusement les matériaux d’emballage. Veillez à ne pas
perdre les consignes qui peuvent être apposées sur les pièces.
Celles-ci fournissent des avis importants qui seront nécessaires
lors de l'assemblage du rouleau de pelouse.
• Conservez tous les matériaux d’emballage jusqu'à ce que le
rouleau à gazon soit complètement assemblé et assurez-vous
qu’elle fonctionne correctement.
Fiche technique
!

Nºde modèle: 060-0547-6 | Communiquez avec nous au 1.866.523.5218
15
4
1
3
2
5
8
6
7
Découvrez votre rouleau à gazon
1. Rouleau
2. Décrottoir
3. Tige inférieure
4. Barre de poussée
5. Boulon
6. Écrou
7. Goupille
8. Bouchon d’étanchéité

Nºde modèle: 060-0547-6 | Communiquez avec nous au 1.866.523.5218
16
Vue éclatée

Nºde modèle: 060-0547-6 | Communiquez avec nous au 1.866.523.5218
17
Liste des pièces
Pièce Description Qté
1 Partie supérieure de la poignée 1
2 Boulon à tête hexagonale M8 4
3 Rondelle 4
4 Écrou M8 4
5 Partie inférieure de la poignée 2
6 Décrottoir 1
7 Rondelle 2
8 Goupille bêta 2
9 Briseur de mauvaises herbes 1
10 Joint torique 2
11 Boulon à tête hexagonale M30 1

Nºde modèle: 060-0547-6 | Communiquez avec nous au 1.866.523.5218
18
ASSEMBLER LES PARTIES INFÉRIEURES DE LA POIGNÉE
Assemblage
Avant de pouvoir utiliser le rouleau à gazon, vous devez d’abord
l’assembler.
1. Insérez la partie inférieure gauche (3) sur l'axe (1) du rouleau comme
illustré à la figure A, et utilisez la rondelle (7) et la goupille bêta (8)
pour fixer solidement la partie inférieure de la poignée.
2. Répétez l’étape ci-haut pour l’autre côté.
!REMARQUE: Avant d'utiliser le rouleau, lisez
attentivement le guide d'utilisation.
Fig. A
1
Assemblage
3

Nºde modèle: 060-0547-6 | Communiquez avec nous au 1.866.523.5218
19
FIXER LE DÉCROTTOIR AUX PARTIES INFÉRIEURES DE LA
POIGNÉE
Fixez le décrottoir aux côtés droit et gauche de la poignée au moyen des
boulons à tête hexagonale M8 (2), des rondelles (3) et des écrous M8 (4)
comme illustré à la figure B.
Fig. B
Assemblage
