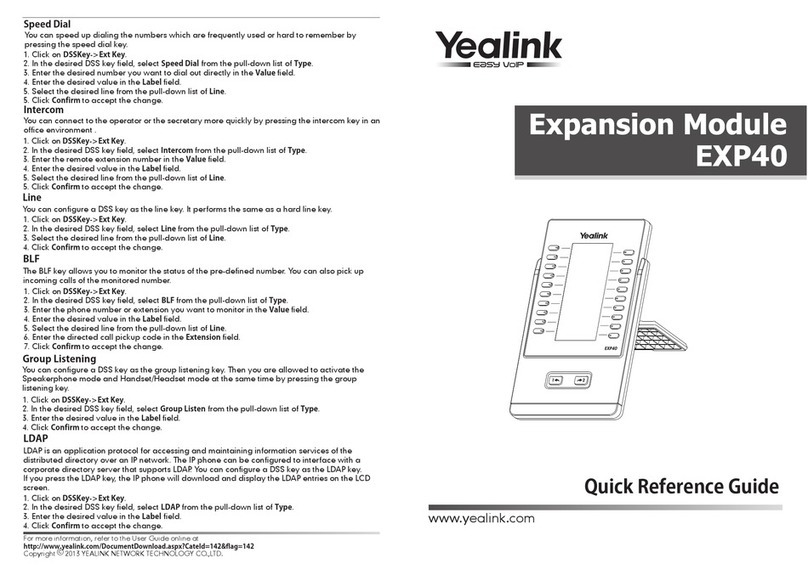

Yealink EXP40 User manual

Note: You can connect six modules at most. You just need to connect the Ext in jack of the previous
module and the Ext out jack of the next module using a connecting cord.
Quick Installation Guide
www.yealink.com
Then you can attach the stand, the power adapter and the Ethernet cable to the
phone, connect the handset and headset to use.
As shown below:
Connecting Cord
For more information, refer to the User Guide online at
http://www.yealink.com/DocumentDownload.aspx?CateId=142&flag=142
Copyright 2013 YEALINK NETWORK TECHNOLOGY CO.,LTD.
c

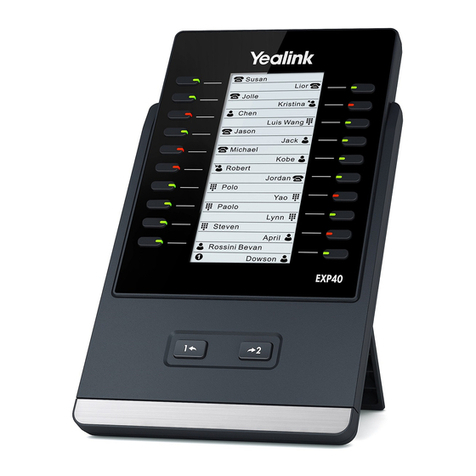

EXP40
Assembling the EXP40
Attach the stand or the optional wall mount bracket, as shown below:
Note: Yealink provides the wall mount drilling template, which locates and marks the position for the
mounting screws on the wall. You can download it at: http://www.yealink.com/Support.aspx.
Desk Mount Method
Wall Mount Method(Optional)
All manuals and user guides at all-guides.com
all-guides.com

2. Follow the same step to connect two expansion modules:
Expansion Module Stand Connecting Sheet Connecting Cord
Screw
The following items are included in your package. If you find anything missing, contact your
system administrator.
Note: The T46G IP phone can support six expansion modules at most. But if you use more
than two expansion modules, you need to connect an additional power adapter to
any one of the expansion modules.
EXP40 Quick Installation Guide www.yealink.com
Your phone and the expansion module will be connected as shown below:
1. Connect the EXP40 and the phone using the supplied screws and connecting
sheet, as shown below: Your phone and the two expansion modules will be connected as shown
below:
3. Connect the Ext jack of the IP phone and the Ext in jack of the first module
using a connecting cord. If you want to connect another module, connect the
Ext out jack of the first module and the Ext in jack of the second module using
a connecting cord.
Packaging Contents
Connecting to the Phone
Connecting to two Modules
Connecting the Cords
Wallmount
Bracket
(Optional)
