Yellobrik OBD 1410 User manual
We are constantly adding additional yellobrik modules.
Please visit our website for the latest product updates.
www.lynx-technik.com
LYNXTechnik AG Broadcast Television Equipment
®
yellobrik Quick
Reference
yellobrik ®
®
12V 0V
О
Power
WARNING
CLASS 1
Laser Product
IN OUT
RX/TX
Multiplex RX / TX
LYNXTechnik AG
12G
6G/3G/1.5G
Fiber Optic / SDI
Transceiver
BTYPE
Connect
to TYPE A
12V 0V
О
Power
WARNING
CLASS 1
Laser Product
IN OUT
RX/TX
Multiplex RX / TX
LYNXTechnik AG
12G
6G/3G/1.5G
Fiber Optic / SDI
Transceiver
ATYPE
Connect
to TYPE B
OBD 1410
12G Bidirectional SDI/Fiber Transceiver
Technical Specifications
SDI Video
SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M
Multi-standard operation from 270Mbit/s to 12Gbit/s
Return Loss: > 15dB up to 1.5GHz ; > 10dB up to 3GHz
> 7dB up to 6GHz ; >4dB up to 12GHz
Automatic cable EQ
260m @ 1.5Gbit/s, 150m @ 3Gbit/s (Belden 1694A cable)
90m @ 6Gbit/s, 80m @ 12 Gbit/s (Belden 4794A cable)
Fiber Optic 1 x Bidirectional ber connection (LC/PC Connection)
SMPTE 2082, SMPTE 2081, SMPTE 424M, and SMPTE 292M
Type A: OH-BD-12G-1270-LC
TX: 1270nm | Optical Power: -3dBm to +3dBm | Max. 10km
RX: 1330nm | Sensitivity : -14dBm @1.5G to -10dBm @12G
Type B: OH-BD-12G-1330-LC
TX: 1330nm| Optical Power: -3dBm to +3dBm | Max. 10km
RX: 1270nm | Sensitivity : -14dBm @1.5G to -10dBm @12G
TX and RX active LEDs on side of module
Power
DC Power Input
LC Fiber Optic
In-/Output
SDI Video Input
SDI Video Output
WARNING
LASER RADIATION
Do not view directly with
optical instruments
CLASS 1M LASER PRODUCT
1 x SDI video input on 75 Ohm BNC connector
1 x SDI video output on 75 Ohm BNC connector
+12V DC @ 1.9W nominal - (power supply included)
(supports 7 - 24V DC input range)
Power LED on side of module
TX Data
Present
RX Data
Present
Power
WARNING: Module laser is active
as soon as power is connected,
regardless of LED indication
Note: OBD 1410 is identical in terms of mounting and securing
Connections
The SDI video in- and outputs are connected to the corresponding 75
Ohm BNC connections provided.
The ber connection is made to the LC

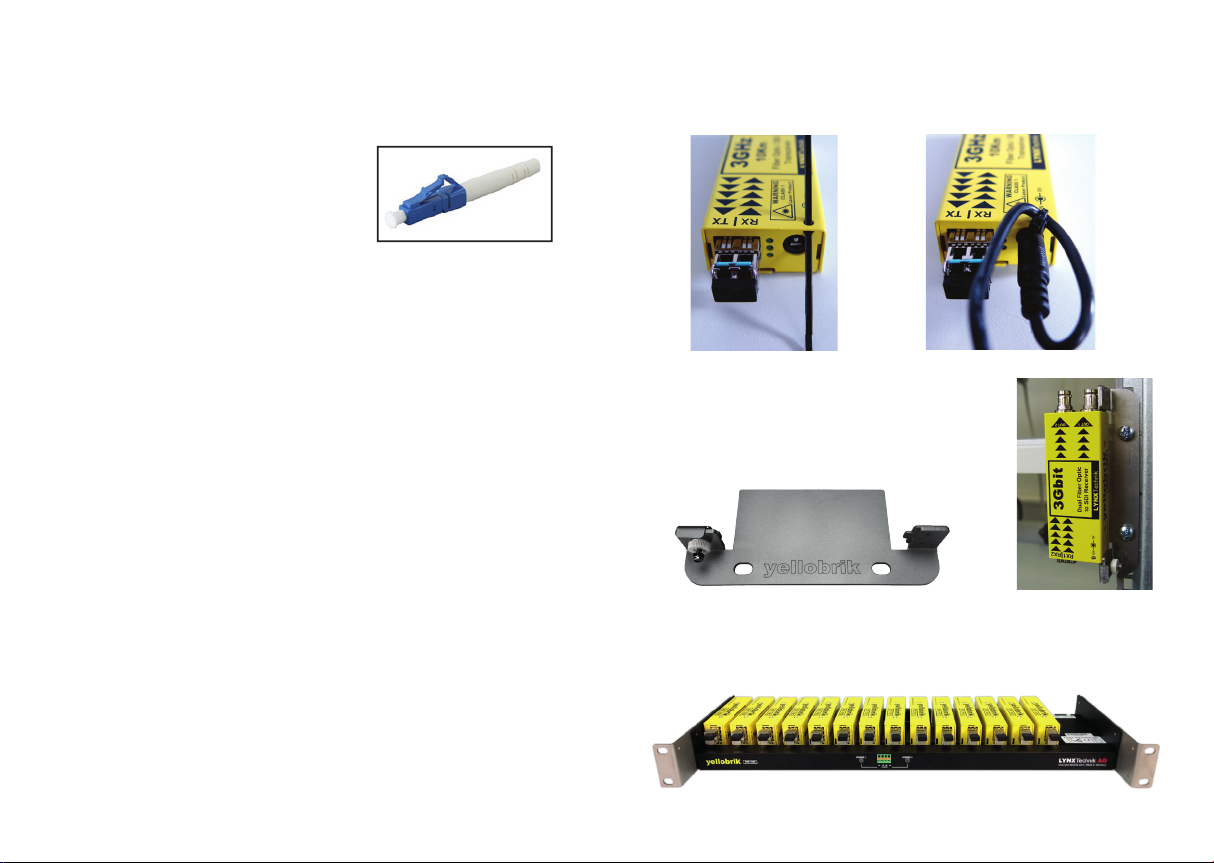

connector as indicated on the module. An example of an LC connector
shown below.
Use the included dust plug to protect the optical connection from dust.
Optional Mounting Brackets
The optional RFR 1001 mounting brackets can be
used to permanently mount the modules on any
at surface or on 19‘‘ rack rails.
Power Lead Strain Relief
The modules have a small hole in the case located above the power
connection to prevent the power lead being accidentally pulled out.
Use the supplied tie-wrap and secure the lead as shown below.
The optional RFR 1000-1 rack mount can be used to permanently
mount up to 14 yellobrik modules. In addition, the RFR 1000-1 can
provide full power redundancy for all mounted yellobriks.
Note: The module is designed for use with SMF
(Singlemode) ber cable.
Operation
The OBD 1410 supports any SDI video signal from 270Mbit/s to
12Gbit/s. The modules are supplied as pairs
(“Type A” and“Type B”
respectively) and must be used as a pair. This is a closed WDM applica-
tion using 1270nm or 1330nm wavelengths.
Data send and receive
activity is indicated by the LEDs located on the side of the module.
Operation is fully automatic. The ber input video rate is automatically
detected, reclocked and provided on the BNC output connector. No
user settings are provided for this module. The module supports hot
swapping and hot plugging of connections.
Note: The modules should be exclusively used in point to point applications and
never be used in a multiplexed CWDM system (Even if CWDM ports for
1270nm or 1330 nm are available)
Power
The module requires a clean 12V DC (7-24V DC) power source. An LED is
provided to conrm power is connected. A 12V DC power supply is
included with the module. If you are applying your own power source,
please provide a clean, 7-24V DC power source. Power consumption
information can be found in the technical specications table.
Power
Other Yellobrik Transceiver manuals
