Yellobrik OTR 1810-1 User manual

We are constantly adding additional yellobrik modules.
Please visit our website for the latest product updates.
www.lynx-technik.com
LYNXTechnik AG Broadcast Television Equipment
®
yellobrik Quick
Reference
yellobrik ®
®
TX
RX
3G
10km
12V 0V
О
Power
WARNING
CLASS 1
Laser Product
IN OUT
LYNXTechnik AG
Fiber Optic / SDI
Transceiver
OTR 1810-1 (MM)
3G SDI / Fiber Optic Transceiver
DC Power Input SDI Video Input
SDI Video Output
LC Singlemode
SFP Module
LC Multimode
SFP Module
Fiber input / output
The OTR 1810-1 has a 3G LC Singlemode SFP installed
The OTR 1810-1 MM has a 3G LC Multimode SFP installed
Technical Specications
SDI Video 1 x SDI video input on 75 Ohm BNC connectors
1 x SDI video output on 75 Ohm BNC connectors
SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
Multi-standard operation from 270Mbit/s to 3Gbit/s
Return Loss: > 15dB up to 1.5GHz ; > 10dB up to 3GHz
Automatic cable EQ (Belden 1694A cable)
250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s
Fiber Optic 1 x Fiber optic input (LC/PC Connection)
1 x Fiber optic output (LC/PC Connection)
SMPTE 297M - 2006
Singlemode Version: OTR 1810-1 LC
Transmitter: 1310nm (-5 dBm)
Receiver: 1260nm to 1620 nm (-16 dBm)
Max. distance 10km (6.2 miles) @ 3Gbit/s
Multimode Version: OTR 1810-1 MM
Transmitter: 850nm (-7 dBm to -2 dBm)
Receiver: 750nm to 880nm (-15 dBm)
TX, RX and Power LED on side of module
Power +12V DC @ 2.7W nominal - (power supply included)
(supports 7 - 24V DC input range)
Power LED on side of module
WARNING
CLASS 1M LASER PRODUCT
LASER RADIATION
Do not view directly with
optical instruments
TX Data
Present
RX Data
Present
Power

Connections
The SDI Video in- and outputs are connected to the corresponding 75
Ohm BNC connections provided.

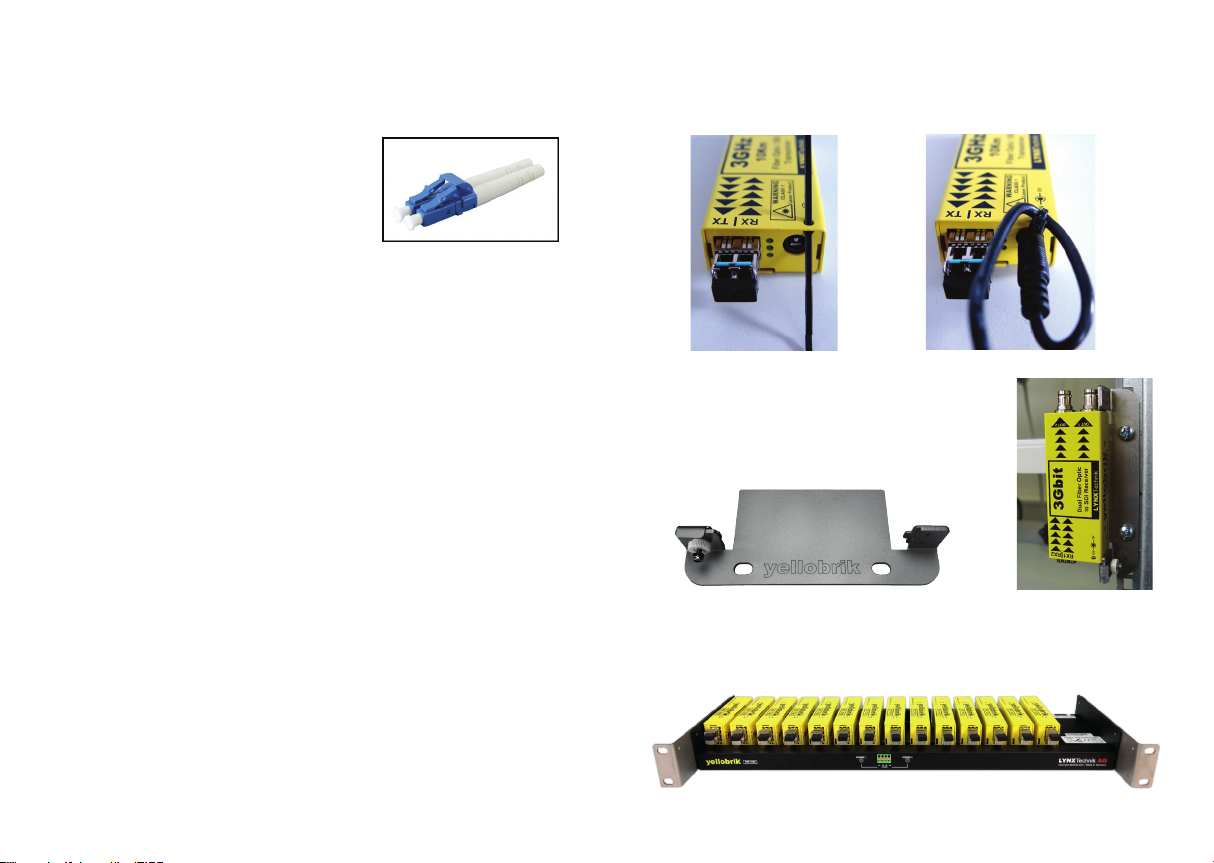

The ber connection is made to the LC
connector as indicated on the module. An example of a LC connector
shown below.
OTR 1810-1 LC (Singlemode) and MM (Multimode) both use a dual LC
connection. Please use the appropriate cable type for the module.
Use the included dust plug to protect the optical connection from dust.
Operation
The OTR 1810-1 supports any SDI video signal from 270Mbit/s to
3Gbit/s.
The ber input wavelength for the singlemode module is
1270nm - 1610nm and for multimode 760nm - 870nm.
Data reception
activity is indicated by the RX LEDs on the side of the module.
Operation is fully automatic. The ber input video rates are
automatically detected, reclocked and provided on the BNC output
connectors. No user settings are provided for this module. The module
supports hot swapping and hot plugging of connections.
Note: If TX LED is OFF this indicates no SDI input is present, or the input signal is
not valid. I
f RX LED is OFF this indicates no signal is present, signal to weak or is a
non a valid input.
Power
The module requires a clean 12V DC (7-24V DC) power source. An LED is
provided to conrm power is connected. A 12V DC power supply is
included with the module. If you are applying your own power source,
please provide a clean, 7-24V DC power source. Power consumption
information can be found in the technical specications table.
Note: The module is designed for use with
either single- or multimode ber cable.
Note: OTR 1810-1 is identical in terms of mounting and securing
Optional Mounting Brackets
The optional RFR 1001 mounting brackets can be
used to permanently mount the modules on any
at surface or on 19‘‘ rack rails.
Power Lead Strain Relief
The modules have a small hole in the case located above the power
connection to prevent the power lead being accidentally pulled out.
Use the supplied tie-wrap and secure the lead as shown below.
The optional RFR 1000-1 rack mount can be used to permanently
mount up to 14 yellobrik modules. In addition, the RFR 1000-1 can
provide full power redundancy for all mounted yellobriks.
