yellow jacket BJ-830008 User manual

OWNER’S MANUAL
3 TON SUPER-DUTY JACK
Item: BJ-830008
Questions, problems, missing parts? Before returning to your retailer, call our customer service department at
8001 800 833 , 8 a.m.- 5 p.m., PST, Monday-Friday.
Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure
to follow the safety rules and other basic safety precautions may result in serious personal injury.
Version 12162016

2
IMPORTANT
OWNER / USER RESPONSIBILITY
INTENDED USE
TECHNICAL SPECIFICATIONS
DO NOT OPERATE OR REPAIR THIS PRODUCT WITHOUT READING THIS MANUAL.
Read and follow the safety instructions. Keep Instructions readily available for operators. Make certain all
operators are properly trained and understand how to safely and correctly operate the product. By proceeding
you agree that you fully understand and comprehend the full contents of this manual. Failure to operate this
product as intended may cause injury or death. The manufacturer is not responsible for any damages or injury
caused by improper use or neglect. Allow product operation only with all parts in place and operating safely.
Use only genuine replacement parts. Service and maintain the product only with authorized or approved
replacement parts; negligence will make the product unsafe for use and will void the warranty. Carefully
inspect the product on a regular basis and perform all maintenance as required. Store these instructions
in a protected dry location. Keep all decals on the product clean and visible. Do not modify and/or use for
any application other than that for which this product was designed. If you have any questions relative to a
particular application, DO NOT use the product until you have rst contacted the distributor or manufacturer to
determine if it can or should be performed on the product.
For technical questions please call 800 800 8331 .
This heavy-duty jack has a single hydraulic pump piston that effortlessly raises the lift arm. Pump piston dust
shields and wiper seals protect the hydraulic system from contaminants. The jack features an overload valve
bypass system to prevent jack damage and user injury. Compact design allows use in conned spaces. Easily
ts under low vehicles. Meets ASME PASE safety standards.
Item Capacity Lifting Range
Min. (Inch)
Lifting Range
Max. (Inch)
Lifting Range
Min. m( m)
Lifting Range
Max. m( m)
3 TON 4 23 .101 6 .584 2
Before You Begin Register This Product.
For future reference, record the model name, model number, date of manufacture and purchase date of this
product. You can nd this information on the product.
Model Name
Model Number
Date of Manufacture
Date of Purchase
____________________________
____________________________
____________________________
____________________________
BJ-830008

3
GENERAL SAFETY RULES
GENERAL SAFETY RULES
IMPORTANT SAFETY CONSIDERATIONS
WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result
in serious injury.
WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot
cover all possible conditions or situations that could occur. It must be understood by the operator
that common sense and caution are factors that cannot be built into this product, but must be supplied by
the operator.
CAUTION: Do not allow persons to operate or assemble this jack until they have read this manual and
have developed a thorough understanding of how the jack works.
INSPECTION
DO NOT OPERATE OR REPAIR THIS EQUIPMENT WITHOUT READING THIS MANUAL.
To maintain the Service Jack and user safety, the responsibility of the owner is to read and follow these
instructions.
• Inspect the service jack for proper operation and function.
• Keep instructions readily available for equipment operators.
• Make certain all equipment operators are properly trained; understand how to safely and correctly operate
the unit.
• Allow unit operation only with all parts in place and operating properly.
• Use only genuine replacement parts.
• Service and maintain the unit only with authorized or approved replacement parts; negligence will make the
jack unsafe for use and void the warranty.
• Carefully inspect the unit on a regular basis and perform all maintenance as required.
• Store these instructions in the handle of your jack.
• Keep all decals on the unit clean and visible.
• Inspect the jack carefully before each use. Ensure the jack is not damaged, excessively worn, or missing
parts.
• Do not use the jack unless it is properly lubricated.
• Using a jack that is not in good clean working condition or properly lubricated may cause serious injury.
• Inspect the work area before each use. Make sure it is free and clear of any potential hazards.

4
SAFETY
SAFETY MARKINGS
Always follow safety precautions when installing and operating this jack. Keep all decals on the unit clean and
visible. Before proceeding ensure that you fully understand and comprehend the full contents of this manual.
Failure to operate this equipment as directed may cause injury or death. The distributor is not responsible for
any damages or injury caused by improper use or neglect.
Always use Jack Stands!
DO NOT USE wood blocks or any other non-approved load sustaining devices. The manufacturer only
warrants loads to be sustained by jack stands that meet current S/NZA standards.
DO NOT USE wood blocks or any other non-approved lifting devices for a means of lifting with the jack and or
load being raised. Failure to head these warnings may cause injury or death.
1. Study, understand, and follow all instructions before operating this device.
2. Do not exceed rated capacity.
3. Use only on hard, level surfaces, with less than 3 degrees of slope.
4. Lifting device only. Immediately after lifting, support the vehicle with appropriate means.
5. Do not move or dolly the vehicle while on the jack.
6. Lift only on areas of the vehicle as specied by the vehicle manufacturer.
7. No alterations shall be made to this product.
8. Only attachments and/or adapters supplied by the manufacturer shall be used.
9. Do not get under or allow anyone under the vehicle until it has been supported by jack stands.
10. Center load on saddle prior to lifting.
11. Use wheel chocks or other blocking device on opposing wheels before using jack.
12. Never use on a lawn mower or lawn tractor.
13. Do not use this jack for any use other than the manufacturer specied usage.
14. Do not rock the vehicle while working on or around equipment.
15. The following are not recommended for supporting on this equipment: Foundations, Homes, Mobile
Homes, Trailers, RV’s, Campers, nor Fifth Wheels, etc...
16. Failure to heed these markings may result in personal injury and/or property damage.
THIS IS A LIFTING DEVICE ONLY!
• This jack is designed only for lifting part of the total vehicle.
• Do not move or dolly the vehicle while on the jack.
• The vehicle must be supported after lifting immediately by appropriately rated jack stands.
• NEVER go under a vehicle that is not supported with appropriately rated jacks stands.
• Use wheel chocks or other blocking device on opposing wheels before using jack stands.
WARNING!
WARNING!

5
GENERAL SAFETY INSTRUCTIONS
Position the Jack
Position the jack to only lift on the areas of the vehicle as specied by the vehicle manufacturer.
Always Use Jack Stands
After lifting the vehicle always support the load with appropriately rated vehicle Jacks stands before working
on the vehicle.
Do Not Overload Jack
Do not overload this jack beyond its rated capacity. Overloading this jack beyond its rated capacity can cause
damage to or failure of the jack.
Always Use on Hard Level Surfaces
This jack is designed only for use on hard level surfaces capable of sustaining the load. Use on unstable or
other possible loss of load.
Chock and Block (Stabilize)
Apply parking brake in vehicle before operating jack.
A chock is a wedge for steadying an object and holding it motionless, or for preventing the movement of a
wheel Chock the wheel opposite the end being lifted.
When you block a load, you secure and support a load that is being lifted. The block(s) or stabilizer(s) should
have a weight capacity that is greater than the weight of the load which is being lifted.
Center Load on Jack Saddle
Center load on jack saddle before lifting vehicle.
Off-center loads and loads lifted when the jack is not level can cause loss of load or damage to the jack.
Do not raise or lower the vehicle unless tools, materials and people are clear.
When the lift is being lowered, make sure everyone is standing at least six feet away. Be sure there are no
tools or equipment left under or around the jack before lowering.
Always lower the jack slowly.
DO NOT USE THE JACK TO SUPPORT OR STABILIZE A LOAD.
Using the jack to support or stabilize a load may result in unexpected movement and result in serious injury,
being crushed and death. Always securely chock and block (stabilize) the load to be lifted. Never place any
part of the body under a raised load without properly chocking and supporting the load.
Never use the jack on curved or tubular vehicle
Bumpers, this will result in the vehicle slipping off the jack and falling, causing serious injury or death. Use a
bumper lift to lift most vehicles with curved bumpers or plastic bumpers.
Wear ANSI-approved safety glasses and heavy-duty work gloves during use.
Do not adjust the safety valve.
Do not move or dolly vehicle while jack is in use.
Stay alert. Use caution and common sense when operating jack. Do not use a jack when tired,
incoherent, dizzy, under the use or drugs or alcohol.
Training
Read this manual before use. Do not allow anyone who has not read this manual, and/or does not understand
the requirements, to use the jack.
Spectators
Do not allow bystanders around the jack or under the load supported only by the jack. -Do not allow anyone in
the vehicle while the jack is in use. Keep all bystanders away from vehicle when in use.
Inspection
Inspect the jack carefully before each use. Ensure the jack is not damaged, excessively worn, or missing
parts. -Do not use the jack unless it is properly lubricated. -Using a jack that is not in good clean working
condition or properly lubricated may cause serious injury.
Additional Notes:
Save the receipt, warranty and these instructions.
Do not modify the jack in any way. Unauthorized modication may impair the function and/or safety and
could affect the life of the equipment. There are specic applications for which the jack was designed.
Always check for damaged or worn out parts before using the jack. Broken parts will affect the
equipment operation. Replace or repair damaged or worn parts immediately.
When jack is not in use, store it in a secure place out of the reach of children. Inspect it for good working
condition prior to storage and before re-use.

6
Clip
ASSEMBLY
1. Familiarize yourself with the jack.
Lifting Arm
Saddle
Front Wheel
Rear Swivel Casters Pump Plungers
2. Prior to assembly, carefully remove the retaining
clip attached to the handle socket.
CAUTION: The socket will tend to spring upward
when the clip is removed. To prevent possible
injury, place one hand on the top of handle socket
to control the upward motion of the handle socket
retaining clip, and then carefully remove the retaining
clip. After removed slowly allow handle socket to rise
back into resting position.
Once retaining clip is removed,
SLOWLY allow handle socket to rise
back into resting position. Use
CAUTION when removing retaining
clip, handle socket will spring forward
rapidly.
WARNING!
4. Unfasten the screw located in the Handle Socket
to insert the assembled handle.
5. Line up the square hole located at the bottom of
the handle over the square bolt inside the Handle
Socket.
6. Secure the handle in place by tightening the
screw in the Handle Socket Without any vehicle
on the jack. Cycle the lift up and down several
times to insure the hydraulic system is operating
properly. (Perform to the Air Purge Procedure
before rst use.)
Handle
Pc. 2
Handle
Pc. 1 Quick
Disconnect
Handle Socket
Screw
WARNING: Do not lift or carry jack by handle.
Handle could dislodge and jack may fall,
resulting in possible injury or property damage.
3. Refer to handle image when performing this
step. Press Quick Disconnect on handle piece
2, this will allow slide handle pieces 1 and 2
connect, align the holes on both sections to allow
quick disconnect to trigger. Quick disconnect
will automatically pop out when hole position is
correct.

7

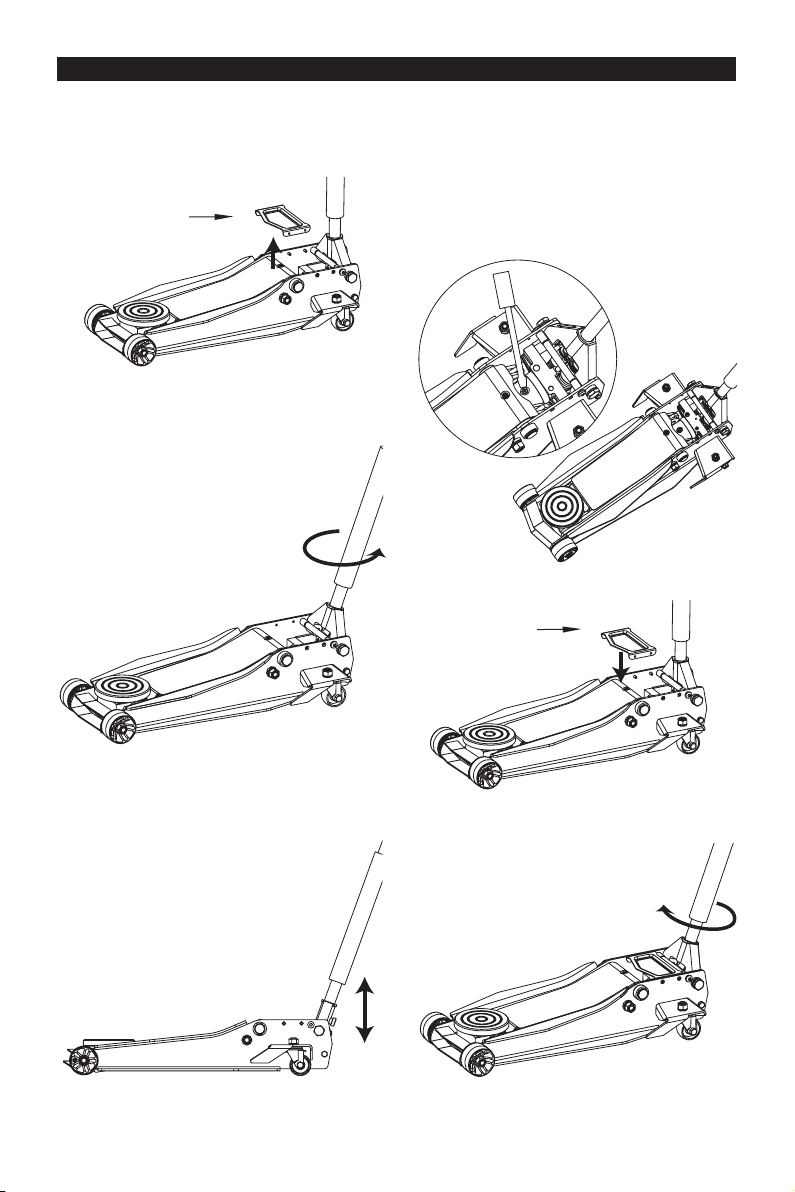

SYSTEM AIR PURGE PROCEDURE
IMPORTANT: BEFORE FIRST USE
Perform the following Air Purge Procedure to remove any air that may have been introduced into the hydraulic
system as a result of product shipment and handling. This step is to be completed without any weight on the
jack.
2. Turn release valve counter-clockwise on full turn
to the open position.
4. With a at blade screwdriver, unscrew the oil ll
plug slightly to purge trapped air from system. (For
RUBBER OIL PLUGS Use caution not to tear or
puncture the oil plug.)
3. Rapidly pump the handle 6-8 times. Leave handle
in down position to expose oil ll plug. 6. Turn release valve clockwise to the closed
position.
7. Jack is now ready for use. Check for proper pump
action. (Repeat steps if neccessary).
Cover plate
Cover plate
1. Remove cover plate.
5. Replace Cover Plate.

8
BEFORE USE
1. Before using this product, read the owner's manual completely and familiarize yourself thoroughly with the
product and the hazards associated with its improper use.
2. Perform the air purge procedure. (See System Purge Procedure.)
3. Check and that the pump operates smoothly before putting into service.
4. Inspect before each use. Do not use if bent, broken or cracked components are noted.

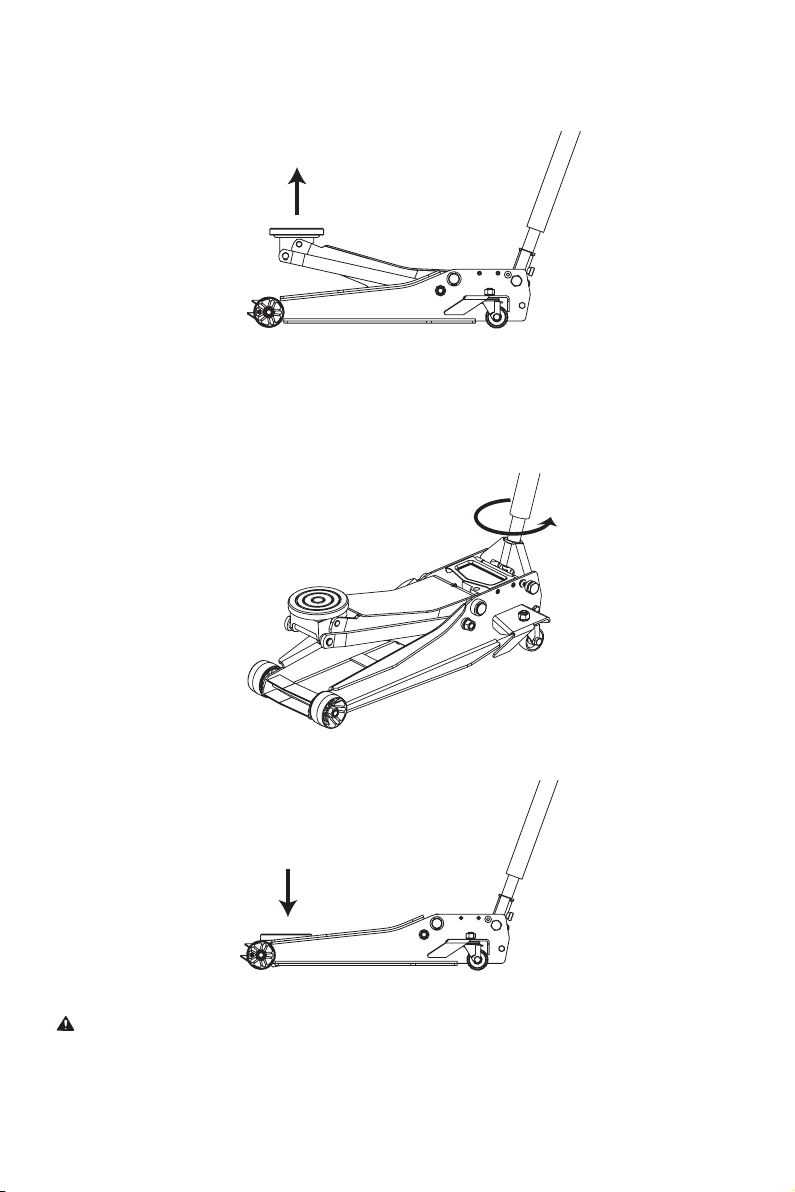

OPERATION
RAISING THE JACK
CAUTION: NEVER WIRE, CLAMP OR
OTHERWISE DISABLE THE LIFT CONTROL
VALVE TO FUCTION BY ANY MEANS
OTHER THAN BY USING THE OPERATOR'S
HAND. USE THE HANDLE PROVIDED WITH
THIS PRODUCT OR AN AUTHORIZED
REPLACEMENT HANDLE TO ENSURE
PROPER RELEASE VALVE OPERATION. DO
NOT USE EXTENSIONS ON THE OPERATING
HANDLE.
1. Block the vehicle’s wheels for lifting stability.
Secure the load to prevent inadvertent shifting
and movement
2. Position the jack near desired lift point.
3. Set the Parking Brake in the vehicle.
4. Refer to the vehicle manufacturer owner’s manual
to locate approved lifting points on the vehicle.
Position the jack so that the saddle is centered
and will contact the load lifting point rmly.
5. Assemble the handle; ensure to align with slots.
6. Close the release valve by turning it clockwise
until it is rmly closed.
7. Before raising the vehicle double check and verify
the saddle is centered and also has full contact
with the lifting point.
8. Pump handle to lift until saddle contacts load.
Continue to pump the jack handle to lift the
vehicle to the desired height. After lifting, support
the load with appropriately rated vehicle support
stands before working on the vehicle.

9
LOWERING THE JACK
1. Raise load high enough to allow clearance for the jack stands to be removed, then carefully remove jack
stands.
2. Remove support stands.
3. Grasp the handle rmly with both hands. Securely hold on to the jack handle so your hands do not slip and
ensure the release valve does not rapidly lower.
4. Carefully open the Release Valve by slowly turning the handle counter-clockwise. (Do not allow bystanders
around the jack or under the load when lowering the jack.
WARNING: WARNING: USE EXTREME CAUTION WHEN LOWERING THE JACK. THE JACK HANDLE
MAY TURN RAPIDLY. OPENING THE RELEASE VALVE TOO FAST CAN CAUSE THE JACK TO
LOWER RAPIDLY. FAILURE TO HEAD THESE WARNINGS COULD CAUSE SERIOUS INJURY OR
DEATH.
5. After removing jack from under the load, keep jack in the lowered position to reduce exposure to rust and
contamination.

10
MAINTENANCE INSTRUCTIONS
If you use and maintain your equipment properly, it will give you many years of service. Follow the
maintenance instructions carefully to keep your equipment in good working condition. Never perform any
maintenance on the equipment while it is under a load.
Inspection
You should inspect the product for damage, wear, broken or missing parts (e.g.: pins) and that all components
function before each use. Follow lubrication and storage instructions for optimum product performance.
Binding
If the product binds while under a load, use equipment with equal or a larger load capacity to lower the load
safely to the ground. After un-binding; clean, lubricate and test that equipment is working properly. Rusty
components, dirt, or worn parts can be causes of binding Clean and lubricate the equipment as indicated in
the lubrication section. Test the equipment by lifting without a load. If the binding continues contact Customer
Service.
Cleaning
If the moving parts of the equipment are obstructed, use cleaning solvent or another good degreaser to clean
the equipment. Remove any existing rust, with a penetrating lubricant.
Lubrication
This equipment will not operate safely without proper lubrication. Using the equipment without proper
lubrication will result in poor performance and damage to the equipment. Some parts in this equipment are not
self-lubricating inspect the equipment before use and lubricate when necessary. After cleaning, lubricate the
equipment using light penetrating oil, lubricating spray.
• Use a good lubricant on all moving parts.
• For light duty use lubrication once a month.
• For heavy and constant use lubrication recommended every week.
• NEVER USE SANDPAPER OR ABRASIVE MATERIAL ON THESE SURFACES!
Rust Prevention:
Check rams and pump plungers on the power unit assemblies daily for any signs of rust or corrosion.
Without a load lift the equipment as high as it goes and look under and behind the lifting points. If signs of rust
are visible clean as needed.
Grease Fittings
Some models contain grease ttings the will regularly need to be greased and lubricated.
This jack includes (5) Zerk ttings in total. (1) Each front wheel; (1) On the lift arm; (2) On the rear handle
socket.
How the Jack Operates
With release valve closed, an upward stroke of the jack handle draws oil from the reservoir tank into the
plunger cavity. Hydraulic pressure holds the valve closed, which keeps the oil in the plunger cavity. A
downward stroke of the jack handle releases oil into the cylinder, which forces the ram out. This raises the
saddle. When the ram reaches maximum extension, oil is bypassed back into the reservoir to prevent an over
extended ram stroke and possible damage to the jack. Opening the release valve allows oil to ow back into
reservoir. This releases hydraulic pressure on the ram, which results in lowering the saddle.
Storing the Jack
1. Lower the Lifting Arm.
2. Place the handle in the upright position.
3. Store in a dry location, recommended indoors.
Note: If the jack is stored outdoors, be sure to lubricate all parts before and after use to ensure the jack stays
in good working condition. Always store jack in the fully retracted postion when stored in outdoor or caustic
enviroments that can cause corrosion and/or rust.

11
TO ADD JACK OIL
TO REPLACE JACK OIL
1. Position the jack on level ground and lower the
saddle.
1. Position the jack on level ground and lower the
saddle.
3. Remove the oil plug.
4. Fill the oil case until oil level is just beneath the
lower rim of the oil ll hole.
5. Replace oil plug.
2. Open release valve by turning handle counter-
clockwise.
2. Remove cover plate. 6.Replace coverplate and perform the Air Purge
Procedure.
Cover plate
Cover plate

12
5. Turn the jack on its side to drain old oil from the
oil ll hole. • DO NOT USE MOTOR OIL IN THE JACK.
• ONLY USE ANTI-FOAMING JACK OIL.
• ALWAYS USE A GOOD GRADE HYDRAULIC
JACK OIL.
• DO NOT USE HYDRAULIC BRAKE FLUID,
ALCOHOL, GLYCERINE, DETERGENT, MOTOR
OIL OR DIRTY OIL.
• USE OF A NON-RECOMMENDED FLUID
CANCAUSE DAMAGE TO A JACK.
• AVOID MIXING DIFFERENT TYPES OF FLUID
AND NEVER USE BRAKE FLUID, TURBINE
OIL, TRANSMISSION FLUID, MOTOR OIL OR
GLYCERIN. IMPROPER FLUID CAN CAUSE
PREMATURE FAILURE OF THE JACK AND THE
POTENTIAL FOR SUDDEN AND IMMEDIATE
LOSS OF LOAD.
• DISPOSE OF HYDRAULIC FLUID IN
ACCORDANCE WITH LOCAL REGULATIONS.
ADDITIONAL LUBRICATION:
1. Periodically check the pump piston and ram for
signs of rust or corrosion. As needed thoroughly
wipe with a clean non-scratching oil soluble
cloth. NEVER USE SANDPAPER OR ABRASIVE
MATERIAL ON THESE SURFACES!
2. When not in use, store the jack with pump piston
and ram fully retracted.
ADDITIONAL WARNINGS:
6. Position the jack on level ground and keep saddle
in the lowered position. Fill the oil case until oil
level is just beneath the lower rim. Keep dirt and
other foreign materials clear when pouring.
7. Replace oil plug.
3. Remove cover plate.
Cover plate
4. Remove the oil ll plug.
8.Replace coverplate and perform the Air Purge
Procedure.
Cover plate

13
ASSEMBLY DIAGRAM

14
REF# PART# DESCRIPTION QTY
1 T830008.5 Power unit assembly 1
2 T830008.5.1(ASM) Universal joint assembly 1
3 GB308-6 Steel ball bearing Ø6mm 1
4 T815016L.3-13(ASM) Oil plug 1
5 Cotter pin Ø4X60mm 1
6 Coupling connector 1
7 C-clip Ø30mm 2
8 GB1152-M6 Oil cup M6 5
9 T830021-3 Saddle pad 1
10 T83508-10 Pin for saddle 1
11 T830008-7 Saddle 1
12 Lifting arm assembly 1
13 GB894.1-18 C-clip Ø18mm 2
14 Frame assembly 1
15 T830008-8 Front wheel 2
16 GB97.1-16 Washer M16 2
17 GB889-M16 Locknut M16 2
18 Washer M16 2
19 GB859-16 Spring washer M16 6
20 GB6170-M16 Nut M16 4
21 Supporting shaft 1
22 C-clip Ø28mm 2
23 T830008.4(ASM) Rear caster assembly M16 2
24 Socket head cap screw M16X25mm 2
25 Back shaft 1
26 Spring washer M10 4
27 Hex head screw M10X16mm 2
28 Position shaft for handle socket 1
29 T830008-11 Plastic sleeve 2
30 Pan head combination drive machine screw
M10X20mm
2
31 Washer M18 2
32 Spring washer M18 2
33 Shoulder bolt M18X65mm 2
34 T830008.2-4 Handle socket screw M10X23.5mm 1
35 Handle socket 1
36 GB894.1 C-clip Ø12mm 1
37 T830008.2-3 Contact roller 1
38 T830008.2-2 Pin for roller 1
39 T83508-9 Protective foam pad 1
40 T83508.5-4 Handle lock pin 1
41 T83508.5 Handle assembly 1
42 Connecting bar pintle 2
43 T830008-5 Cover plate 1
44 T830008-10 Magnetic plate 1
45 GB70.3-M6X16 Hex drive at head screw M6X16mm 4
46 Return spring 2
47 T830008.MF Seal kit 1

15
TROUBLESHOOTING
JACK
WILL
NOT
LIFT
LOAD
JACK
WILL
NOT
HOLD
LOAD
JACK
WILL
NOT
LOWER
POOR
JACK
LIFTING
WILL NOT
LIFT TO
FULL
EXTENSION
CAUSES AND SOLUTIONS
Release valve is not completely closed
(Turn handle clockwise).
Weight Capacity Exceeded.
Air is in the hydraulics.
Purge air from system.
Low oil level. Add oil as required.
Oil reservoir is overlled.
Drain excessive oil.
Lubricate moving parts.
Jack is binding or foreign obstruction
Power unit malfunctioning.
Replace the power unit.
X XX
X
X X
X X XX
X X X
X
X
Safe Operating Temperature is between 40°F – 105°F (4°C - 41°C)
This service jack is covered under a 2-year limited warranty when used as recommended. Only those
items listed with a Part # are available for purchase. For assistance with the operation or the availability of
replacement parts, contact our Service arrantyW and Department at 1800 800 833 .
Please have available a copy of your receipt, the model number of the product, serial number, and specic
regarding details your question.
Not all equipment components are available for replacement; illustrations provided are a convenient
reference of location and position in the assembly sequence.
The manufacturer reserves the rights to make design changes and or improvements to product
lines and manuals without notice.
WARRANTY NOTICE
We want to know If you have any concerns with our products. If so, please call toll-free for Immediate
assistance. For additional web customer support help inquiries visit the Customer Service section at:
http://www jacks.torin au.com.
WARRANTY INFORMATION

TM
Contact Torin® Customer Service directly by telephone 1800 at: 800 833
8:00am – 5:00pm WST Time, Monday – Friday
Torin Australasia
www jacks.torin .au.com
Made in China
