Yetter 2968-050 User manual

ROW UNIT MID-MOUNT
FERTILIZER INJECTION OPENER
MODELS 2968-050 & 2968-052 –SINGLE WHEEL
MODELS 2968-051 & 2968-053 –DUAL WHEEL
CNH ROW UNITS
SET UP & PARTS MANUAL
2565-960-REV_A –01/2020
YETTER MANUFACTURING CO.
FOUNDED 1930
Colchester, IL 62326-0358
Toll free: 800/447-5777
309/776-3222 (Fax)
Website: www.yetterco.com
E-mail: [e-mail]

2
TABLE OF CONTENTS
FOREWORD ………………………………………………….......…............... 3
SAFETY …………………………………………………………...….................. 4
PICTORIAL PART LIST …………………...……………..................... 5 –9
INSTALLATION …………………………………………………........... 10 –16
OPERATION .....………..……..…...…………........................... 17 –18
MAINTENANCE ………......…..…………......………................. 19 –21
PARTS IDENTIFICATION…...………………....……...…............ 22 –32
TROUBLESHOOTING…...………………....……...…........................ 33
BOLT TORQUE
Important: Over-tightening hardware can cause just as much damage as under-tightening.
Tightening hardware beyond the recommended range can reduce its shock load capacity.
All hardware is either Grade 5 unless otherwise noted. Grade 5 cap screws are marked with three radial
lines on the head. Grade 8 cap screws are marked with six radial lines on the head. If hardware must be
replaced, be sure to replace it with hardware of equal size, strength and thread type. Refer to the torque
values chart when tightening hardware.
The chart below is a guide for proper torque. Use it unless a specified torque is called out elsewhere in
the manual. Torque is the force applied to the end of the handle or cheater bar, times the length of the
handle or bar. Tightening hardware beyond the recommended range can reduce its shock load capacity.
Use a torque wrench wherever possible

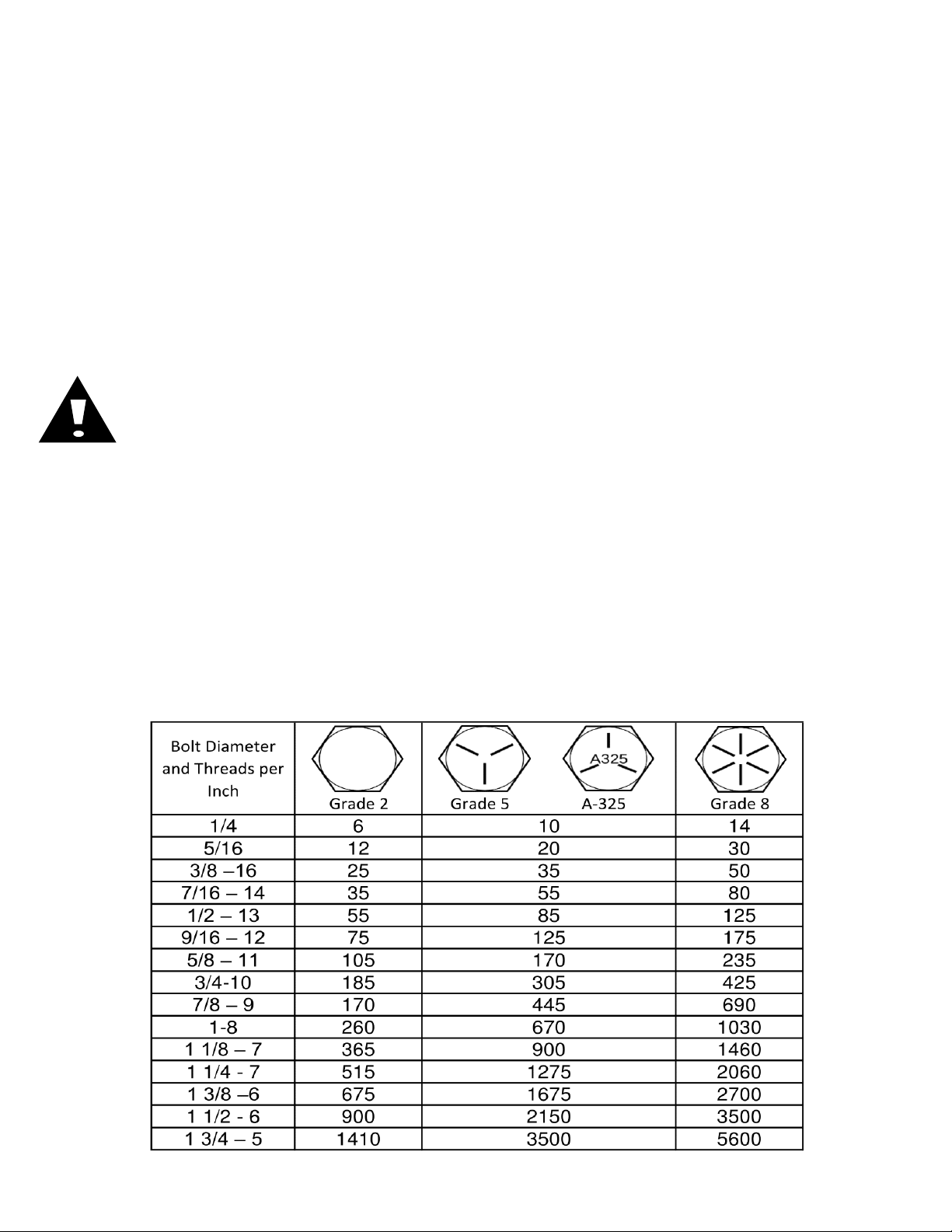

The following table shows torque in ft.-lbs. for coarse thread hardware.

3
FOREWORD
You’ve just joined an exclusive but rapidly
growing club.
For our part, we want to welcome you to the
group and thank you for buying a Yetter product.
We hope your new Yetter products will help you
achieve both goals-increase your productivity and
increase your efficiency so that you may generate
more profit.
This operator’s manual has been designed into
four major sections: Foreword, Safety
Precautions, Installation Instructions and Parts
Breakdown.
This SAFETY ALERT SYMBOL indicates
important safety messages in the manual.
When you see this symbol, be alert to the
possibility of PERSONAL INJURY and
carefully read the message that follows.
The word NOTE is used to convey information
that is out of context with the manual text. It
contains special information such as
specifications, techniques and reference
information of a supplementary nature.
The word IMPORTANT is used in the text when
immediate damage will occur to the machine due
to improper technique or operation.
Important will apply to the same information as
specified by note only of an immediate and
urgent nature.
It is the responsibility of the user to read the
operator’s manual and comply with the safe and
correct operating procedure and to lubricate and
maintain the product according to the
maintenance schedule in the operator’s manual.
The user is responsible for inspecting his
machine and for having parts repaired or
replaced when continued use of the product
would cause damage or excessive wear to the
other parts.
It is the user’s responsibility to deliver his
machine to the Yetter dealer who sold him the
product for service or replacement of defective
parts, which are covered by the warranty policy.
If you are unable to understand or follow the
instructions provided in this publication, consult
your local Yetter dealer or contact:
YETTER MANUFACTURING CO.
309/776-4111
800/447-5777
309/776-3222 (FAX)
Website: www.yetterco.com
E-mail: [e-mail]
WARRANTY
Yetter Manufacturing warrants all products manufactured and sold by it against defects in material.
This warranty being expressly limited to replacement at the factory of such parts or products as shall
appear to be defective after inspection. This warranty does not obligate the Company to bear cost
of labor in replacement of parts. It is the policy of the Company to make improvements without
incurring obligations to add them to any unit already sold. No warranty is made or authorized to be
made, other than herein set forth. This warranty is in effect for one year after purchase.
DEALER: ________________________________________
Yetter Manufacturing warrants its own products only and cannot be responsible for damages
to equipment on which mounted.

4
BE ALERT!
YOUR SAFETY IS INVOLVED
WATCH FOR THIS SYMBOL. IT POINTS OUT IMPORTANT SAFETY
PRECAUTIONS. IT MEANS “ATTENTION – BE ALERT!”
It is your responsibility as an owner, operator, or supervision to know and instruct
everyone using this machine at the time of initial assignment and at least annually
thereafter, of the proper operation, precautions, and work hazards which exist in the
operation of the machine in accordance with OSHA regulations.
Safety Is No Accident
The following safety instructions, combined with
common sense, will save your equipment from needless
damage and the operator from unnecessary exposure
to personal hazard. Pay special attention to the
caution notes in the text. Review this manual at least once a year with all
operators.
1. Read and understand the operator’s manual before operating this machine. Failure to do so is
considered a misuse of the equipment.
2. Make sure equipment is secure before operating.
3. Always keep children away from equipment when operating.
4. Make sure everyone that is not directly involved with the operation is out of the work area before
beginning operation.
5. Make sure all safety devices, shields, and guards are in place and functional before beginning
operation
6. Shut off all power to adjust, service, or clean.
7. Keep hands, feet, and clothing away from moving parts. It is a good idea to remove all jewelry
before operating.
8. Inspect the machine periodically during operation for signs of excessive wear, loose fasteners,
and unusual noises.

5

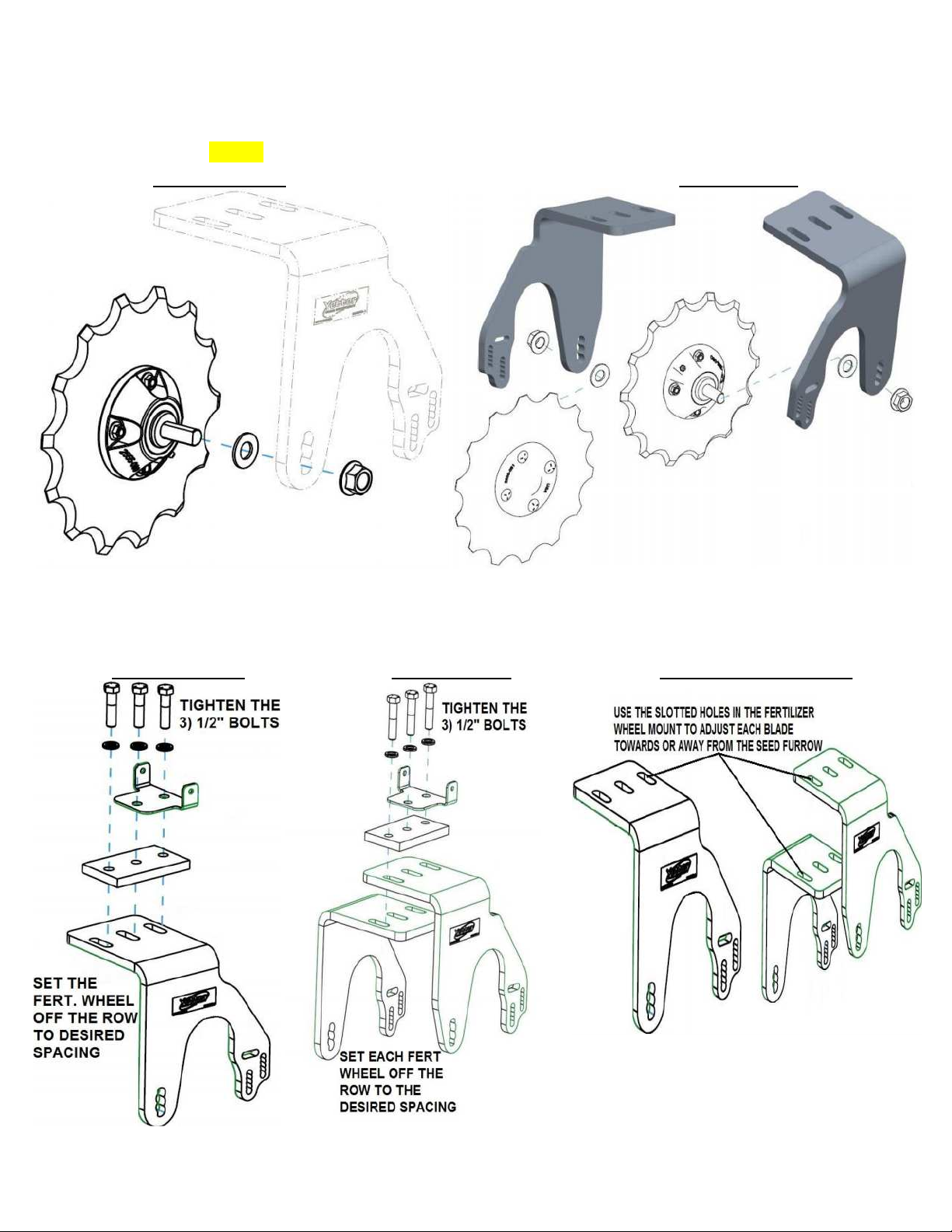

2968-050 Pictorial Parts List
For CNH 2000 Row Units, Single Disc, Left or Right Hand
2968-051-L & 2968-051-R Pictorial Parts List
For CNH 2000 Row Units, Dual Disc
2968-052 Pictorial Parts List
For CNH 1200 Row Units, Single Disc, Left or Right Hand
2968-053-L Pictorial Parts List
For CNH 1200 Row Units, Dual Disc, LH Lead
2968-150
QTY 1
Bolt Bag
2968-227
QTY 1
Close Wheel Mount
ONLY IF –LH ORDERED
2968-472-LH –QTY 1
Tall Fert. Wheel Mount, LH
ONLY IF –RH ORDERED
2968-472-RH –QTY 1
Tall Fert. Wheel Mount, RH
2968-149
QTY 1
Bolt Bag
2968-227
QTY 1
Close Wheel Mount
ONLY IF –L ORDERED
2968-472-LH –QTY 1
Tall Fert.
Wheel Mount, LH
ONLY IF –L ORDERED
2968-473-RH –QTY 1
Short Fert.
Wheel Mount, RH
2968-113
QTY 1
Bolt Bag
2968-230 –QTY 1
Close Wheel Mount
ONLY IF –L ORDERED
2968-403-LH –QTY 1
TALL CNH 1200 LHL ARM
ONLY IF –R ORDERED
2968-403-RH –QTY 1
TALL CNH 1200 RHL ARM
2968-114
QTY 1
Bolt Bag
2968-230 –QTY 1
Close Wheel Mount
2968-403-LH –QTY 1
TALL CNH 1200 LHL ARM
2968-404-RH –QTY 1
RH CNH 1200 SHORT ARM
ONLY IF –R ORDERED
2968-472-RH –QTY 1
Tall Fert.
Wheel Mount, RH
ONLY IF –R ORDERED
2968-473-LH –QTY 1
Short Fert.
Wheel Mount, LH

6
2968-053-R Pictorial Parts List
For CNH 1200 Row Units, Dual Disc, RH Lead
2968-054 Pictorial Parts List
Box Mount Kit For CNH 2100 Row Units
2968-132 Pictorial Parts List
10” Fertilizer Wheel Assembly
2502-807 –QTY 8
M16X2X80 Bolt
2520-477 –QTY 4
M16X2 Hex Nut
2968-374 –QTY 2
Box Mount Bracket
2968-375 –QTY 4
Box Mount Spacer
2505-207 –QTY 4
5/16 X 1 ¼
Carriage Bolt
2520-206 –QTY 4
5/16 Flange
Lock Nut
2570-740 –QTY 1
Flanged D-Bolt
5/8 X 2.812 GR 8
2965-128 –QTY 1
Hub & Bearing
Assembly, 4 bolt
2965-352 –QTY 1
Hub Cap Casting
2968-320 –QTY 1
10”Notched Blade
2968-114 –QTY 1
Bolt Bag
2968-230 –QTY 1
Close Wheel Mount
2968-403-RH –QTY 1
TALL CNH 1200 RHL ARM
2968-404-LH –QTY 1
LH CNH 1200 SHORT ARM

7
2968-090A-L & 2968-090A-R Pictorial Parts List
● = ONLY INCLUDED IN 2968-090A-L KIT + = ONLY INCLUDED IN 2960-090A-R KIT
2968-091 INJECTOR KIT, ONE SIDE
2502-251 - 3/8-16 X 3 HHCS GR 8 ZP – QTY 2
2502-252 - 3/8-16 X 1 1/2 HHCS GR 2 ZP – QTY 1
2520-251 - 3/8-16 HEX NUT GR 2 ZP – QTY 3
2525-251 - 3/8 LOCK WASHER ZP – QTY 3
2526-253 - 3/8 FLAT WASHER ZP – QTY 4
2570-727 - 3/8 HOSE P-CLIP W/ VINYL CUSHION – QTY 1
●2968-229-L – KNIFE/TUBE W.A. – LH – QTY 1
●2968-396-L – TORSION SPRING – LH WOUND – QTY 1
2968-401 – STEPPED BUSHING – QTY 1
2968-402 – STOP BUSHING – QTY 1
+2968-229-R – KNIFE/TUBE W.A. – RH – QTY 1
+2968-396-R – TORSION SPRING – RH WOUND – QTY 1
2515-846 -MALE CONNECTOR - 3/8 X 1/4 NPTF– QTY 1
2520-253 -3/8-16 JAM HEX NUT, GR 2, ZP– QTY 2
2525-251 - 3/8 LOCK WASHER ZP – QTY 1
2526-253 - 3/8 FLAT WASHER ZP – QTY 2
2968-218 - INJECTOR HOLDER W.A. – QTY 2

8
2968-113 Pictorial Parts List
Bolt Bag for 2968-052
2968-114 Pictorial Parts List
Bolt Bag for 2968-053
2505-207 –5/16 – 18 X 1 ¼ CARRIAGE BOLT – QTY 4
2505-208 –5/16 – 18 X 1 ½ CARRIAGE BOLT – QTY 4
2505-345 –½ – 13 X 2 CARRIAGE BOLT – QTY 3
2520-206 –5/16 FLANGE LOCK NUT – QTY 8
2968-383 – TRIANGULAR MOUNT SPACER ZP – QTY 4
2968-386 – TRIANGULAR MOUNT – QTY 2
2984-497 – AIR CYLINDER ROD PIN – QTY 1
2570-448 - .120 BOWTIE LOCKING COTTER ZP – QTY 1
2526-454 - 5/8 SAE FLATWASHER HRD'ND ZP – QTY 1
2526-355 – ½ FLAT WASHER HRD'ND ZP – QTY 3
2520-464 -5/8-11 WHIZLOCK ZP, GR 8– QTY 1
2520-357 1/2-13 LOCK HEX NUT, GR A, ZP– QTY 3
2505-207 –5/16 – 18 X 1 ¾ CARRIAGE BOLT – QTY 4
2505-208 –5/16 – 18 X 1 ½ CARRIAGE BOLT – QTY 4
2520-206 –5/16 FLANGE LOCK NUT – QTY 8
2968-383 – TRIANGULAR MOUNT SPACER ZP – QTY 4
2968-386 – TRIANGULAR MOUNT – QTY 2
2984-497 – AIR CYLINDER ROD PIN – QTY 1
2570-448 - .120 BOWTIE LOCKING COTTER ZP – QTY - 1
2526-454 - 5/8SAE FLATWASHER HRD'ND ZP – QTY 2
2526-355 – ½ FLAT WASHER HRD'ND ZP – QTY 3
2520-464 -5/8-11 WHIZLOCK ZP, GR 8– QTY 2
2520-357 1/2-13 LOCK HEX NUT, GR A, ZP– QTY 3
2505-343 –½ – 13 X 2 ½ CARRIAGE BOLT – QTY 3

9
2968-149 Pictorial Parts List
Bolt Bag for 2968-051
2968-150 Pictorial Parts List
Bolt Bag for 2968-050
2502-314 – 1/2-13 X 2-1/4" HHCS GR 5 ZYD – QTY 3
2502-333 –5/8 – 11 X 9 HHCS GR 5 ZP – QTY 1
2502-373 – ½ – 13 X 6 HHCS GR 5 ZP – QTY 1
2502-808 – M16 X 40MM SERRATED HEX FLANGE ZP – QTY 4
2520-357 1/2-13 LOCK HEX NUT, GR A, ZP– QTY 4
2520-459 5/8 – 11 LOCK HEX NUT GR A ZP – QTY – 1
2526-451 - 5/8 STANDARD FLATWASHER ZP – QTY 2
2967-567 – PIVOT BUSHING – QTY – 2
2526-454 - 5/8SAE FLATWASHER HRD'ND ZP – QTY 2
2526-355 – ½ FLAT WASHER HRD'ND ZP – QTY 5
2520-464 -5/8-11 WHIZLOCK ZP, GR 8– QTY 2
2502-317 – 1/2-13 X 1 ¾" HHCS GR 5 ZYD – QTY 3
2502-333 –5/8 – 11 X 9 HHCS GR 5 ZP – QTY 1
2502-373 – ½ – 13 X 6 HHCS GR 5 ZP – QTY 1
2502-808 – M16 X 40MM SERRATED HEX FLANGE ZP – QTY 4
2520-357 1/2-13 LOCK HEX NUT, GR A, ZP– QTY 4
2520-459 5/8 – 11 LOCK HEX NUT GR A ZP – QTY – 1
2526-451 - 5/8 STANDARD FLATWASHER ZP – QTY 2
2967-567 – PIVOT BUSHING – QTY – 2
2526-454 - 5/8SAE FLATWASHER HRD'ND ZP – QTY 1
2526-355 – ½ FLAT WASHER HRD'ND ZP – QTY 5
2520-464 -5/8-11 WHIZLOCK ZP, GR 8– QTY 1

10
INSTALLATION INSTRUCTIONS
Step 1: Remove the items listed below that are part of the closing wheel assembly on the seeding unit. The closing
discs will remain in the same location directly behind the gauge wheels. On 1200 row units, mark the set of holes
on each side of the row unit that the disc scrapers (Item 2 in photo below) were mounted to.
1200 SERIES ROW UNIT
1 –SPRING PIN & CLIP
2 –HARDWARE FOR THE DISC SCRAPER
3 –HARDWARE THAT ATTACHES THE SPRING HOLDER
4 –HARDWARE FOR THE PRESS WHEEL BRACKET
5 –HARDWARE FOR THE PRESS WHEEL
OPTIONAL –EACH GAUGE WHEEL
2100 SERIES ROW UNIT
1 –HARDWARE FOR THE PRESS WHEEL BRACKET
2 –HARDWARE THAT ATTACHES THE PRESS WHEEL SPRING HOLDER

11
INSTALLATION INSTRUCTIONS
1200 SERIES ROW UNIT
Step 2: Attach the front of the Main Mount Bracket to the planter row unit by using the same set of holes that the scrapers were mounted
in using 4) 5/16 X 1 ¼ carriage bolts & 4) 5/16 flange lock nuts. Attach the triangular mounts & triangular mount spacers to the row unit using
4) 5/16 X 1 ½ carriage bolts & 4) 5/16 flange lock nuts. Attach the rear firming wheel & compression spring to the rear of the main mount
bracket using all original parts & hardware with the exception of the spring pin & hairpin cotter. DO NOT attach the closing wheel spring &
spring holder to the Main Mount Bracket until after the fertilizer wheel mounts are installed in step 3.
2100 SERIES ROW UNIT
Step 2: Attach the front of the Main Mount Bracket to each planter row unit using the 4) M16 X 40 bolts. Attach the rear firming wheel
using 1) 5/8 X 9 bolt, 2) 5/8 flat washers, & 1) 5/8 lock nut. Attach the compression spring to the rear of the main mount bracket using 1) ½
X 6 bolt, 2) ½ flat washers, & 1) ½ lock nut.

12
2968-050 & 2968-052 INSTALLATION INSTRUCTIONS
SINGLE DISC PLACEMENT
Step 3: 2000 Series Row Unit
Install the fertilizer wheel mount to the main mount bracket using 3) ½ X 1 ¾ bolts, 3) ½ flat washers, & 3) ½ lock nuts,
DO NOT tighten hardware until Step 5!
5000-050-L 5000-050-R
Step 3: 1200 Series Row Unit
Install the fertilizer wheel mount to the main mount bracket using 3) ½ X 2 carriage bolts, 3) ½ flat washers, & 3) ½ lock nuts,
DO NOT tighten hardware until Step 5! Attach the closing wheel springs to the Main Mount Bracket at this time by inserting the spring
& spring holder thru the hole on the Main Mount Bracket & installing the original clamp assembly. (SEE PAGE 11 FOR PHOTO REFERENCE)
5000-052-L 5000-052-R

13
2968-051 & 2968-053 INSTALLATION INSTRUCTIONS
DUAL DISC PLACEMENT
Step 3: 2000 Series Row Units
Install the fertilizer wheel mounts to the main mount bracket using 3) ½ X 2 ¼ bolts, 3) ½ flat washers, & 3) ½ lock nuts,
DO NOT tighten hardware until Step 5! On the seeding units where the left closing wheel is leading, install a 2968-051-L.
On the seeding units where the right closing wheel is leading, install a 2968-051-R.
2968-051-L 2968-051-R
Step 3: 1200 Series Row Units
Install the fertilizer wheel mounts to the main mount bracket using 3) ½ X 2 ¼ bolts, 3) ½ flat washers, & 3) ½ lock nuts, DO NOT tighten
hardware until Step 5! On the seeding units where the left closing wheel is leading, install a 2968-051-L. On the seeding units where the
right closing wheel is leading, install a 2968-051-R. Attach the closing wheel springs to the Main Mount Bracket at this time by inserting the
spring & spring holder thru hole on Main Mount Bracket & installing the original clamp assembly. (SEE PAGE 11 FOR PHOTO REFERENCE)
2968-053-L 2968-053-R

14
INSTALLATION INSTRUCTIONS
Step 4: Fertilizer Wheel Assembly
Place 1) 5/8”flat washer over the D-bolt & install the Fertilizer Wheel Assembly to Fertilizer Wheel Mount Plate & tighten 5/8”
flange whiz lock nut. See page 17 to determine which D-bolt hole to install the wheel assembly to achieve your desired depth.
SINGLE WHEEL (LH Shown) DUAL WHEEL
Step 5: Set the Fertilizer Wheel Assembly Width
Set each Fertilizer Wheel Assembly to the desired spacing off the row (2” – 3”) & then tighten the 3) ½” bolts from STEP 3.
SINGLE WHEEL DUAL WHEEL WHEEL ADJUSTMENT

15
INSTALLATION INSTRUCTIONS
STEP 6: P-Clip Installation
Install each P-Clip to the Formed Hose Holder using ¼” X ½” bolts, ¼” lock washers, & ¼” hex nuts. A P-Clip should be placed on
the side with blade for single wheel placement & on both sides for dual wheel placement.
SINGLE WHEEL (LEFT SIDE SHOWN) DUAL WHEEL
STEP 7A: INJECTOR INSTALLATION
Install each Injector Holder behind each blade. Thread a 3/8” hex jam nut on the threaded rod roughly 2”, place a 3/8” flat
washer over the threaded rod against the hex jam nut. Slide the threaded rod thru the horizontal slotted hole on the fertilizer
wheel mount so that the threaded rod end is on the outside of the fertilizer wheel mount. Place a 3/8” flat washer & 3/8” lock
washer over the end, & thread another 3/8” hex jam nut. Before tightening, center the coupler behind the blade & point the
bottom of the coupler slightly forward. Install the push connect fitting on the top side of the coupler if you wish to use it.
Assemble nozzle tip (not supplied) to each 2968-218 injector holder. Injector tips can be ordered through fertilizer equipment dealer.
Calibrate the fertilizer pump and tips to maximum recommended pressure of 30PSI and minimum 20PSI at the tip. Attach the fertilizer
hose to the top side of each coupler.

16
INSTALLATION INSTRUCTIONS
STEP 7B: REAR KNIFE INSTALLATION
Assemble the 3/8 Hose P Clip to the horizontally slotted hole by placing the P Clip over the bolt threads, insert the 3/8” bolt thru
the slotted hole, place a 3/8” flat washer & 3/8” lock washer over the bolt, & install a 3/8 hex nut. Insert 1) 3/8” X 3” bolt thru
the stop bushing & insert the bolt thru 1 of the rear set of vertical holes that matches the blade. (If blade is in the 2nd hole from
the bottom, the stop bolt/bushing needs to be in the 2nd hole from bottom) Place a 3/8” flat washer & lock washer over the bolt
on the outside of the mount plate & hand tighten the 3/8” nut. Insert the hook on the spring onto the notch on the knife & place
the stepped bushing thru the spring. Place 1) 3/8” flat washer over the remaining 3/8” X 3” bolt, insert bolt thru knife/stepped
bushing, & insert bolt thru 1 of the front set of vertical holes that match the stop bolt/bushing. Make sure the spring wire stop is
on the back side of the stop bushing. Once the bolt is in position, place a 3/8” flat washer & lock washer over the bolt & hand
tighten the 3/8” nut. Make sure the stepped bushing goes thru the knife & then tighten all the hardware down from this step.
LH KNIFE ASSEMBLY RH KNIFE ASSEMBLY
MAKE SURE THE
SPRING ROD IS ON
THE BOTTOM SIDE
OF THE SPRING
STOP!

17
OPERATION
-On dual fertilizer placement, the wheels are staggered front to back to keep the soil from heaving.
-Fertilizer can be placed 2” – 3” off the seed furrow. Please see your agronomist to determine best spacing on
the rate that’s being applied.
-Calibrate the fertilizer pump and tips to maximum pressure of 30PSI and minimum 20PSI at the tip.
- Residue managers are recommended if residue is present in planting conditions to eliminate hair pinning.
-Blade replacement is necessary when the depth cannot be achieved or the blade struggles to penetrate the soil.
- If there is buildup of damp soil on the planter gauge wheels or opener disks, then conditions are less than ideal
& some problems may also be encountered with the fertilizer wheel.
-Seed depth will need rechecked after fertilizer unit installation.
-More row unit down force will be needed to maintain fertilizer wheel depth.
-The knife hole positions are ¼” shallower than the blade. For example, if using a 10” blade, the bottom hole
setting on the blade will be ¼” deeper than bottom hole setting for the knife.
-When the knife/spring is assembled correctly, the knife should have tension to keep it against the down stop.
BLADE DEPTH SETTINGS KNIFE DEPTH SETTINGS
POSITION
KNIFE DEPTH
1
3/8” BELOW DOUBLE DISC OPENERS
2
1/8” BELOW DOUBLE DISC OPENERS
3
1/8” ABOVE DOUBLE DISC OPENERS
4
3/8” ABOVE DOUBLE DISC OPENERS
5
5/8”ABOVE DOUBLE DISC OPENERS
POSITION
DEPTH (USING 10” NOTCHED BLADE)
1
5/8” BELOW DOUBLE DISC OPENERS
2
3/8” BELOW DOUBLE DISC OPENERS
3
1/8” BELOW DOUBLE DISC OPENERS
4
1/8” ABOVE DOUBLE DISC OPENERS
5
3/8” ABOVE DOUBLE DISC OPENERS

18
OPERATION
LIQUID FERTILIZER APPLICATION RATE & PRESSURE CHART –TABLES BASED ON 30” NOZZLE SPACING
TIP #
LIQUID
PRESSURE IN PSI
CAPACITY 1 NOZZLE
IN GPM
4 MPH
H2O
5 MPH
H20
5.5 MPH
H2O
6 MPH
H2O
7 MPH
H2O
8MPH
H2O
#00015
20
25
30
40
50
60
0.11
0.12
0.13
0.15
0.17
0.18
5.45
5.94
6.44
7.43
8.42
8.91
4.36
4.75
5.15
5.94
6.73
7.13
3.96
4.32
4.68
5.40
6.12
6.48
3.63
3.96
4.29
4.95
5.61
5.94
3.11
3.39
3.68
4.24
4.81
5.09
2.72
2.97
3.22
3.71
4.21
4.46
#0002
20
25
30
40
50
60
0.14
0.16
0.17
0.20
0.23
0.25
6.93
7.92
8.42
9.90
11.39
12.38
5.54
6.34
6.73
7.92
9.11
9.90
5.04
5.76
6.12
7.20
8.28
9.00
4.62
5.28
5.61
6.60
7.59
8.25
3.96
4.53
4.81
5.66
6.51
7.07
3.47
3.96
4.21
4.95
5.69
6.19
#0003
20
25
30
40
50
60
0.21
0.24
0.26
0.30
0.34
0.37
10.40
11.88
12.87
14.85
16.83
18.32
8.32
9.50
10.30
11.88
13.46
14.65
7.56
8.64
9.36
10.80
12.24
13.32
6.93
7.92
8.58
9.90
11.22
12.21
5.94
6.79
7.35
8.49
9.62
10.47
5.20
5.94
6.44
7.43
8.42
9.16
#0004
20
25
30
40
50
60
0.28
0.32
0.35
0.40
0.45
0.49
13.86
15.84
17.33
19.80
22.28
24.26
11.09
12.67
13.86
15.84
17.82
19.40
10.08
11.52
12.60
14.40
16.20
17.64
9.24
10.56
11.55
13.20
14.85
16.17
7.92
9.05
9.90
11.31
12.73
13.86
6.93
7.92
8.66
9.90
11.14
12.13
#0005
20
25
30
40
50
60
0.35
0.40
0.43
0.50
0.56
0.61
17.33
19.80
21.29
24.75
27.72
30.20
13.86
15.84
17.03
19.80
22.18
24.16
12.60
14.40
15.48
18.00
20.16
21.96
11.55
13.20
14.19
16.50
18.48
20.13
9.90
11.31
12.16
14.14
15.84
17.25
8.66
9.90
10.64
12.38
13.86
15.10
#0006
20
25
30
40
50
60
0.42
0.47
0.52
0.60
0.67
0.74
20.79
23.27
25.74
29.70
33.17
36.63
16.63
18.61
20.59
23.76
26.53
29.30
15.12
16.92
18.72
21.60
24.12
26364
13.86
15.51
17.16
19.80
22.11
24.42
11.88
13.29
14.71
16.97
18.95
20.93
10.40
11.63
12.87
14.85
16.58
18.32
#0008
20
25
30
40
50
60
0.57
0.63
0.69
0.80
0.89
0.98
28.22
31.19
34.16
39.60
44.06
48.51
22.57
24.95
27.32
31.68
35.24
38.81
20.52
22.68
24.84
28.80
32.04
35.28
18.81
20.79
22.77
26.40
29.37
32.34
16.12
17.82
19.52
22.63
25.17
27.72
14.11
15.59
17.08
19.80
22.03
24.26
#0010
20
25
30
40
50
60
0.71
0.79
087
1.00
1.12
1.23
35.15
39.11
43.07
49.50
55.44
60.89
28.12
31.28
34.45
39.60
44.35
48.71
25.56
28.44
31.32
36.00
40.32
44.28
23.43
26.07
28.71
33.00
36.96
40.59
20.08
22.35
24.61
28.29
31.68
34.79
17.57
19.55
21.53
24.75
27.72
30.44
#0015
20
25
30
40
50
60
1.06
1.19
1.30
1.50
1.68
1.81
52.47
58.91
64.35
74.25
83.16
89.60
41.98
47.12
51.48
59.40
66.53
71.68
38.16
42.84
46.80
54.00
60.48
65.16
34.98
39.27
42.90
49.50
55.44
59.73
29.98
33.66
36.77
42.43
47.52
51.20
26.24
29.45
32.18
37.13
41.58
44.80
Row Spacing Multiplier
10” X 3.3
15” X 2.0
20” X 1.5
36” X .83
38” X .79
40” X .75
GALLONS PER ACRE (USING WATER)

19
MAINTENANCE
IMPORTANT: If seal is removed from hub/bearing assembly, grease bearing
Every 50 hours. If seal is left assembled, 2-3 pumps of grease twice a year,
depending on acres, is sufficient.
IMPORTANT: For proper operation, the planter frame must operate level
(fore, aft & side to side) and at the correct height, typically 20”-22”.

20
MAINTENANCE
NOTE: BE CERTAIN TO ALIGN THE GREASE FITTING WITH THE SLOT IN THE WHEEL & HUBCAP SO THAT THE GREASE
CAN FLOW FREELY.
Grease must fill this
Hubcap cavity.
