5000 SERIES

STALK

DEVASTATOR

CORN STALK ROLLER

*PATENTED*

5000-022B Lexion C512-30 / Capello

5000-033A Lexion C508-30 / Capello

OPERATOR’S MANUAL

PART IDENTIFICATION

2565-783_REV_C – 09/2019

YETTER MANUFACTURING CO.

FOUNDED 1930

Colchester, IL 62326-0358

Toll free: 800/447-5777

309/776-3222 (Fax)

Website: www.yetterco.com

E-mail: info@yetterco.com

FOREWORD

You’ve just joined an exclusive but rapidly

growing club.

For our part, we want to welcome you to the

group and thank you for buying a Yetter product.

We hope your new Yetter products will help you

achieve both goals-increase your productivity and

increase your efficiency so that you may generate

more profit.

This operator’s manual has been designed into

four major sections: Foreword, Safety

Precautions, Installation Instructions and Parts

Breakdown.

This SAFETY ALERT SYMBOL

indicates important safety messages in

the manual. When you see this

symbol, be alert to the possibility of

PERSONAL INJURY and carefully

read the message that follows.

The word NOTE is used to convey information

that is out of context with the manual text. It

contains special information such as

specifications, techniques and reference

information of a supplementary nature.

The word IMPORTANT is used in the text when

immediate damage will occur to the machine due

to improper technique or operation. Important will

apply to the same information as specified by

note only of an immediate and urgent nature.

It is the responsibility of the user to read the

operator’s manual and comply with the safe and

correct operating procedure and to lubricate and

maintain the product according to the

maintenance schedule in the operator’s manual.

The user is responsible for inspecting his

machine and for having parts repaired or

replaced when continued use of the product

would cause damage or excessive wear to the

other parts.

It is the user’s responsibility to deliver his

machine to the Yetter dealer who sold him the

product for service or replacement of defective

parts, which are covered by the warranty policy.

If you are unable to understand or follow the

instructions provided in this publication, consult

your local Yetter dealer or contact:

YETTER MANUFACTURING CO.

309/776-4111

800/447-5777

309/776-3222 (FAX)

Website: www.yetterco.com

E-mail: info@yetterco.com

WARRANTY

Yetter Manufacturing warrants all products manufactured and sold by it against defects in material. This

warranty being expressly limited to replacement at the factory of such parts or products as shall appear to

be defective after inspection. This warranty does not obligate the Company to bear cost of labor in

replacement of parts. It is the policy of the Company to make improvements without incurring obligations to

add them to any unit already sold. No warranty is made or authorized to be made, other than herein set

forth. This warranty is in effect for one year after purchase.

DEALER: ________________________________________

Yetter Manufacturing warrants its own products only and cannot be responsible for damages to

equipment on which mounted.

BE ALERT!

YOUR SAFETY IS INVOLVED.

WATCH FOR THIS SYMBOL. IT POINTS OUT IMPORTANT SAFETY

PRECAUTIONS. IT MEANS “ATTENTION---BECOME ALERT!”

It is your responsibility as an owner, operator, or supervisor to know and instruct everyone using this

machine at the time of initial assignment and at least annually thereafter, of the proper operation,

precautions, and work hazards which exist in the operation of the machine in accordance with OSHA

regulations.

Safety Is No Accident

The following safety instructions, combined with common sense, will save your equipment from

needless damage and the operator from unnecessary exposure to personal hazard. Pay special

attention to the caution notes in the text. Review this manual at least once each year with new

and/or experienced operators.

1. Read and understand the operator’s manual before operating this machine. Failure to do

so is considered a misuse of the equipment.

2. Make sure equipment is secure before operating.

3. Always keep children away from equipment when operating.

4. Make sure everyone that is not directly involved with the operation is out of the work area

before beginning the operation.

5. Make sure all safety devices, shields, and guards are in place and are functional before

beginning the operation.

6. Shut off power to adjust, service, or clean.

7. Keep hands, feet, and clothing away from moving parts. It is a good idea to remove all

jewelry before starting the operation.

Visually inspect the machine periodically during operation for signs of excessive vibration,

loose fasteners, and unusual noises.

PLEASE READ, VERY IMPORTANT

SECURE CORN HEADER AGAINST

UNWANTED LOWERING BY APPLYING

THE LOCKING MECHANISM ON THE

HYDRAULIC CYLINDERS!

1. ATTACH HEAD TO COMBINE, LOCK HEAD TO COMBINE

2. RAISE THE HEAD OFF THE GROUND AND ENGAGE THE SAFETY

STOP ON THE FEEDER HOUSE CYLINDER.

3. TURN OFF COMBINE ENGINE AND REMOVE KEY.

FOLLOW THE INSTRUCTIONS OF THE COMBINE

MANUFACTURER.

PLEASE READ, VERY IMPORTANT

Subject to the size and weight of the corn header, one or two additional

hydraulic cylinders may be required.

The combine manufacturer generally keeps the corresponding kits readily

available for the dealer.

Subject to the design of the corn header and carrying capacity of the

different combines, the steering axle may require the fitting of additional

weights and the rear tires might need to be filled with ballast.

FOLLOW THE INSTRUCTIONS OF THE COMBINE

MANUFACTURER.

TABLE OF CONTENTS

INTRODUCTION ….…………………………………….............2

WARRANTY ……………………….………………………….....2

SAFETY INFORMATION ...….....…………………...…......3 – 5

TABLE OF CONTENTS / TORQUE / TOOLS NEEDED........6

PART PICTORIAL LIST / BILL OF MATERIALS...........

7 – 9

ASSEMBLY INSTRUCTIONS

5000-022A ..………………….........……..................10 – 14

5000-033A .....…………..........................................15 – 19

OPERATION / STORAGE / LOCK UP.……......…………….20

PARTS IDENTIFICATON

5000-022A ..……………………………....……..…..........21 – 22

5000-033A .....…………………………....………...…......23 – 24

TROUBLESHOOTING..........................................................25

BOLT TORQUE

Important: Over-tightening hardware can cause just as much damage as under-tightening.

Tightening hardware beyond the recommended range can reduce its shock load capacity.

All hardware on the 5000 Devastator is either Grade 5 or Grade 8, unless otherwise noted. Grade 5 cap screws are marked

with three radial lines on the head. Grade 8 cap screws are marked with six radial lines on the head. If hardware must be

replaced, be sure to replace it with hardware of equal size, strength & thread type. Refer to the torque values chart when

tightening hardware.

The chart below is a guide for proper torque. Use it unless a specified torque is called out elsewhere in the manual.

Torque is the force applied to the end of the handle or cheater bar, times the length of the handle or bar.

Use a torque wrench wherever possible

The following table shows torque in ft.-lbs. for coarse thread hardware.

INSTALLATION TOOLS REQUIRED:

- Pneumatic or electric impact driver

- ¾ & 15/16 size sockets

- 10” impact driver extension

- Ratchet

- ¾, 15/16, & 1 1/8 size wrenches

- 5/16 Allen Wrench

- Torque Wrench

PICTORIAL PART LIST

BEFORE INSTALLATION BEGINS, PLEASE CHECK THAT ALL PARTS WERE

RECEIVED BY GOING THROUGH THE CRATE AND SORTING THE PARTS!!!

5000-022B for Lexion C512-30 / Capello Parts List 8) 5000-136, 8) 5000-137, 8) 5000-138, 1) 5000-177,

4) 5000-211B, 8) 5000-250, 4) 5000-254, 4) 5000-256, 4) 5000-259, 8) 5000-355

5000-033A for Lexion C508-30 / Capello Parts List – 6) 5000-136, 6) 5000-137, 6) 5000-138, 1) 5000-177,

1) 5000-203B, 2) 5000-211B, 6) 5000-250, 2) 5000-254, 1) 5000-255, 3) 5000-256, 3) 5000-259, 6) 5000-355

5000-080 5” Extension Kit Parts List (Optional) – 2) 2502-363 – ½” X 4 ½” GR 5 Bolts, 2) 2502-365 – ½”-

13 X 3 ¾” GR 5 Bolts, 6) 2520-357 – ½” Lock Nuts, 2) 5000-378 Spacer Bushings, 2) 5000-393 5” Extension

Plates, & 2) 5000-394 Short Spacers, 1) 2565-961 Manual

5000

203A

48”

5000

76”

5000

254

–

80”

5000

255

52”

5000

256 (LH)

5000

259 (RH)

5000

355

5000

136

2550

059

5000

500

138

5000

080

OPTIONAL

PICTORIAL PART LIST

5000-136 Hardware Bag



2502

325

5/8

11 X 3 HHCS GR 5 ZP

–

QTY 1

2502

353

–

13 x 2 , HHCS, GR8, ZP

–

QTY 3





2510

121

5/8 DIA. SHLDR, 2

1/4 L SHLDR,

QTY 1

2520

357

1/2

13 LOCK HEX NUT, GR A, ZP

–

QTY 3





2520

364

1/2

13 HEX LOCKNUT, JAM, GR 2

–

QTY 1

2520

459

5/8

11 LOCK HEX NUT, GR 5, ZP

–

QTY 1





2520

515

3/4

10 LOCK HEX NUT, GR A, ZP

–

QTY 1

2526

449

5/8FLATWASHER1/4+

.010 THK, ZP

–

QTY 2





2550

709

1/2 WIRE 2

1/2 OD X 1

1/2 ID X 7

1/4 COMP SP

RING

–

QTY 1

2570

126

3/4 X 10 EYEBOLT, ZP

–

QTY 1





2975

302

2975 SPRING BUSHING, PAINTED

–

QTY 1

5000

318

PIVOT BUSHING

–

QTY 1





5000

322

SHIM WASHER ZP

–

QTY 1

PICTORIAL PART LIST

5000-137 Hardware Bag

5000-138 Hardware Bag



2502

396

5/8

11 X 7

HHCS GRADE 8 ZP

–

QTY 4

2505

345

1/2

13 X 2 CAR BLT GR5 ZP

–

QTY 2





2520

361

1/2

13FLAN

GE WHZLCK HXNT, GR 5, ZP

QTY 2

2570

465

7 GA. HAIRPIN COTTER ZP

–

QTY 2



2520

459

5/8

11 LOCK HEX NUT, GR A, ZP

–

QTY 4





5000

309

SUPPORT STRAP

–

QTY 2



5000

MOUNT STRAP 3“

–

QTY 2

5000

323

LOCK UP PIN ZP

–

QTY 1





2502

365

1/2

13 X 3

3/4 HHCS GR5 YD

–

QTY 2

2520

357

1/2

13 LOCK HEX NUT, GR A, ZP

–

QTY 2





5000

378

SPACER BUSHING

–

QTY 2



252

5/8

STD FLAT WASHER ZP

–

QTY 4

5000-022B ASSEMBLY INSTRUCTIONS

(LEXION C512-30 / CAPELLO)

Note: Before starting installation, clean the corn head of debris, remove the guards, & lift the snouts.

Step 1: Attach the 5000-250 mount brackets to the frame using the 4) 5/8 x 7” bolts, mounting straps, & 5/8 lock hex nuts.

Mounting Brackets will be located under the snouts between rows 1 & 2, 2 & 3, 4 & 5, 5 & 6, 7 & 8, 8 & 9, 10 & 11, and

11 & 12. Slide the mount bracket up so the deck plate adjustment rod is located in the cut out of the mount bracket.

Note: Do not fully tighten hardware until Step 6 after all of the pivot arms & springs are installed.

Arrows indicate 5000-250 mount bracket locations

NOTE: NOTCHES NEED CUT IN THE GUARDS TO ALLOW THE MOUNTING BOLTS TO BE USED. CUT

THESE NOTCHES AFTER THE COMPLETION OF THE DEVASTATOR INSTALLATION. IN SOME

SITUATIONS, A HOLE MAY NEED DRILLED IN THE MOUNTING TAB FOR THE GUARDS. POSITION THE

DECK PLATE ADJUSTER VERTICALLY TO HAVE CLEARANCE IN THE DEVASTATOR MOUNT OPENING.

5000-022B ASSEMBLY INSTRUCTIONS

Step 2: Attach the 5000-309 support straps using the ½” x 2” carriage bolts & ½ flange lock nuts, tighten.

Step 3: Install the 5000-323 lock-up pin in the storage location on the mount brackets. Secure with the

hairpin clips.

STORAGE LOCATION PINNED UP LOCATION

5000-022B ASSEMBLY INSTRUCTIONS

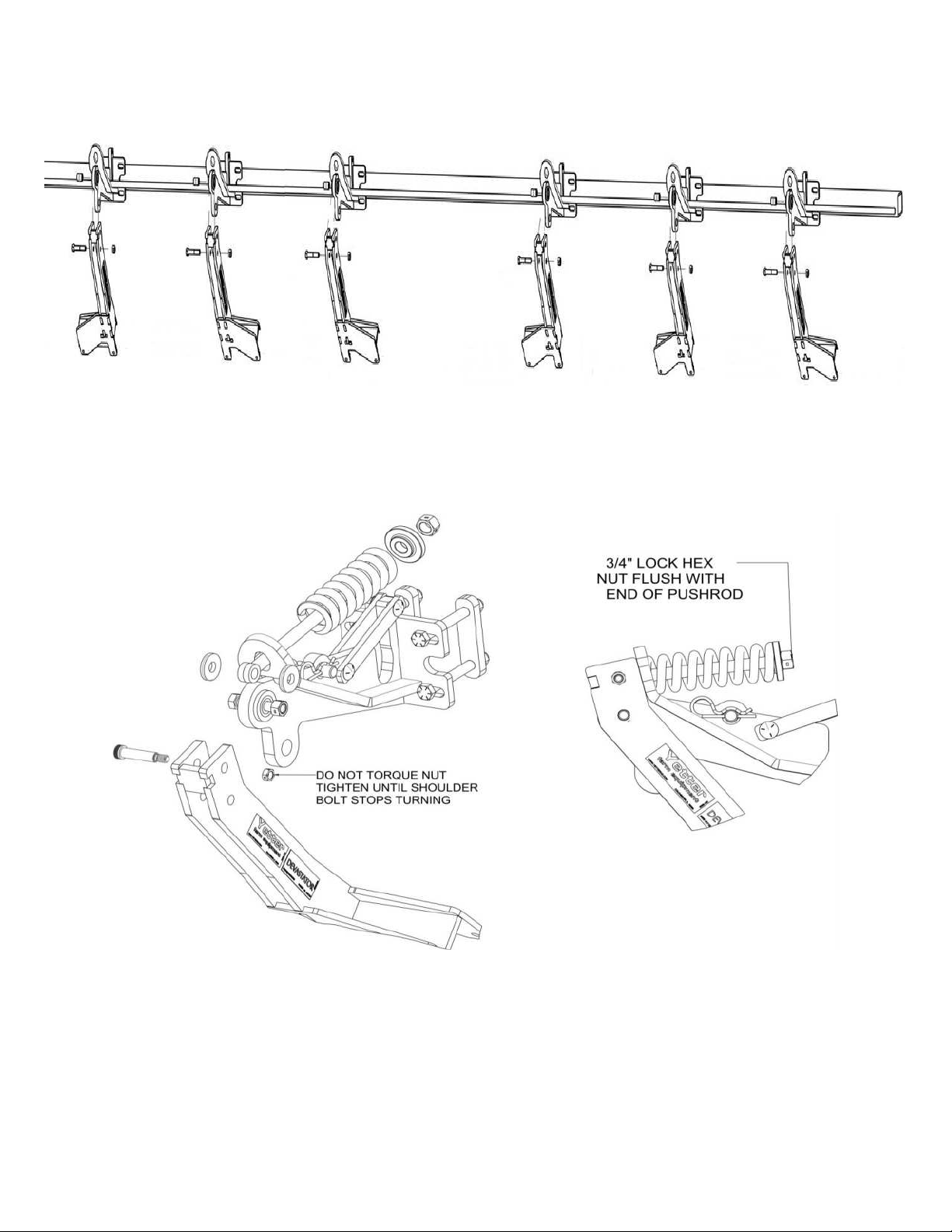

Step 4: Attach the pivot arms, using the lower of the 2 holes, to the mount brackets using

the 5/8” X 3 bolts, pivot bushings, and lock hex nuts. Tighten this hardware.

Step 5: Install the push rods into the mount brackets then attach to the pivot arms with

the 5/8” shoulder bolts, washers, and ½” jam lock nuts.

Note: The washers are installed on each side of the “eye” of the push rod.

Now install the compression spring, spring bushing, and ¾” lock hex nuts. Tighten the

hardware from Step 5 to the specification in the diagram below.

NOTE: Tightening the nut on the spring bushing more will result in added

down pressure. However, DO NOT tighten the nut on the spring bushing

down so far that spring compression limits pivot arm travel. This will cause

the spring to break, especially if spring is compression all off-season.

5000-022B ASSEMBLY INSTRUCTIONS

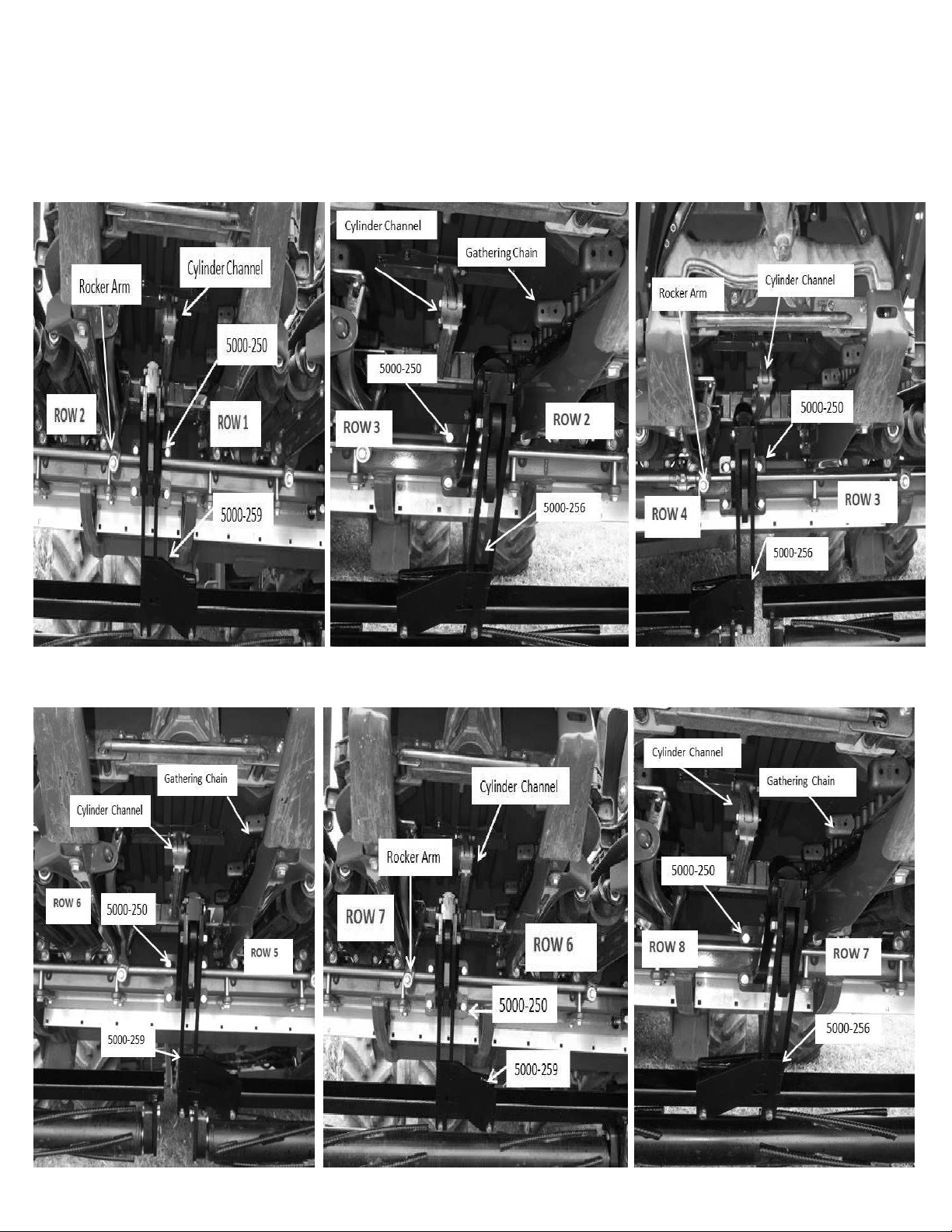

Step 6: Secure the mounting bracket installed in Step 1 at this time by tightening the 5/8 X 7” bolts & 5/8

lock nuts. Make sure the compression spring clears the cylinder channel, gathering chains, & deck plate

adjustment. The offset pivot arm clamp should be under the snout, not directly under the row.

Row 1 & 2 Row 2 & 3 Row 4 & 5

Row 5 & 6 Row 7 & 8 Row 8 & 9

Row 10 & 11 Row 11 & 12

5000-022B ASSEMBLY INSTRUCTIONS

Step 7: Install the Roller Arm Mount Tube inside the clamp channel of the pivot arms using the 5000-

138 bolt bag. Do not tighten this hardware until after the rollers have been installed in Step 8.

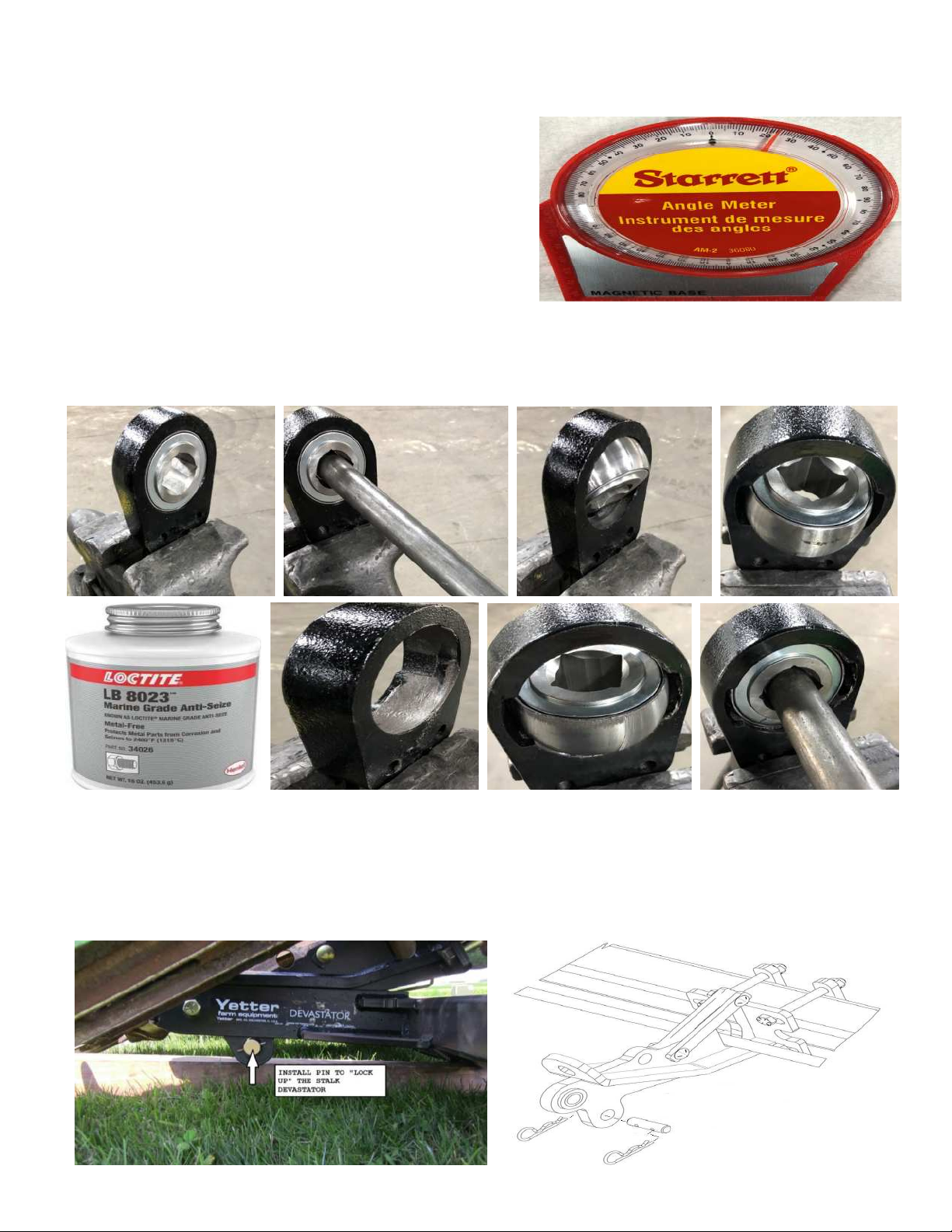

Step 8: Insert the shim washer over the shaft on each end of the roller. Install the bearing over the shaft

on each end of the roller so that the side of the casting that has the bearing protruding past the housing

surface is towards the roller barrel & shim washer. Lift each roller into place so that the bolt holes on the

cast housing of the bearing line up with the holes on the mounting tabs on the roller arm mount tube. Install

the ½” X 2 ½” bolts & tighten the ½” lock nuts. Once the roller & bearing hardware is fastened, spin the

roller to ensure the bearing was installed correctly. If the roller was installed incorrectly, the roller will not

spin or will have drag. Slide the roller mount tube to gain clearance on each end of the corn head & then

tighten the hardware from Step 7. The traction bars DO NOT have to be directly centered under the row.

5000-033A ASSEMBLY INSTRUCTIONS

(LEXION C508-30 / CAPELLO)

Note: Before starting installation, clean the corn head of debris, remove the guards, & lift the snouts.

Step 1: Attach the 5000-250 mount brackets to the frame using the 5/8 x 7” bolts, mounting straps, & lock hex nuts. Mounting

Brackets will be located under the snouts between rows 1 & 2, 2 & 3, 3 & 4, 5 & 6, 6 & 7, and 7 & 8. Slide the mount bracket up

so the deck plate adjustment rod is located in the cut out of the mount bracket.

Note: Do not fully tighten hardware until Step 6 after all of the pivot arms & springs are installed.

Arrows indicate 5000-250 mount bracket locations

NOTE: NOTCHES NEED CUT IN THE GUARDS TO ALLOW THE MOUNTING BOLTS TO BE USED. CUT

THESE NOTCHES AFTER THE COMPLETION OF THE DEVASTATOR INSTALLATION. IN SOME

SITUATIONS, A HOLE MAY NEED DRILLED IN THE MOUNTING TAB FOR THE GUARDS. POSITION THE

DECK PLATE ADJUSTER VERTICALLY TO HAVE CLEARANCE IN THE DEVASTATOR MOUNT OPENING.

5000-033A ASSEMBLY INSTRUCTIONS

Step 2: Attach the 5000-309 support straps using the ½” x 2” carriage bolts & flange lock nuts, tighten.

Step 3: Install the 5000-323 lock-up pin in the storage location on the mount brackets. Secure with the

hairpin clips.

STORAGE LOCATION PINNED UP LOCATION

5000-033A ASSEMBLY INSTRUCTIONS

Step 4: Attach the pivot arms, using the lower of the 2 holes, to the mount brackets using

the 5/8” X 3 bolts, pivot bushings, & lock hex nuts. Tighten this hardware.

Step 5: Install the push rods into the mount brackets then attach to the pivot arms with

the 5/8” shoulder bolts, washers, and ½” jam lock nuts.

Note: The washers are installed on each side of the “eye” of the push rod.

Now install the compression spring, spring bushing, and ¾” lock hex nuts. Tighten the

hardware from Step 5 to the specification in the diagram below.

NOTE: Tightening the nut on the spring bushing more will result in added

down pressure. However, DO NOT tighten the nut on the spring bushing

down so far that spring compression limits pivot arm travel. This will cause

the spring to break, especially if spring is compressed all off-season.

5000-033A ASSEMBLY INSTRUCTIONS

Step 6: Secure the mounting bracket installed in Step 1 at this time by tightening the 5/8 X 7” bolts & 5/8

lock nuts. Make sure the compression spring clears the cylinder channel, gathering chains, & deck plate

adjustment. The offset pivot arm clamp should be under the snout, not directly under the row.

Row 1 & 2 Row 2 & 3 Row 3 & 4

Row 5 & 6 Row 6 & 7 Row 7 & 8
