Yetter TITAN Series User manual

TITANTM SERIES
2967-029A / 2967-029A-PP SHORT U.N.T.TM
2967-097A SHORT U.N.T.TM CNH
RESIDUE MANAGER
Owner’s Manual
Part Identification
2565-696_Rev_J - 12/2019
YETTER MANUFACTURING CO.
Founded 1930
Colchester, IL 62326
Toll Free: [phone]
Fax: [phone]
Website: yetterco.com
E-mail: [e-mail]

2
Table of Contents
Foreword.....................................................................................................3
Warranty......................................................................................................3
Safety...........................................................................................................4
Bolt Torque .................................................................................................5
Operation.....................................................................................................6
Planter Adjustment..................................................................................7-8
Installation Instructions ........................................................................9-11
Maintenance.........................................................................................12-16
Part Identification ................................................................................17-19
2967-186 Floater Wheel
LH Assembly Shown
(2) Required Per Row
Optional Equipment

3
FOREWORD
You’ve just joined an exclusive but rapidly
growing club.
For our part, we want to welcome you to the
group and thank you for buying a Yetter product.
We hope your new Yetter products will help you
achieve both goals-increase your productivity
and increase your efficiency so that you may
generate more profit.
This operator’s manual has been designed into
four major sections: Foreword, Safety
Precautions, Installation Instructions and Parts
Breakdown.
This SAFETY ALERT SYMBOL
indicates important safety messages
in the manual. When you see this
symbol, be alert to the possibility of
PERSONAL INJURY and
carefully read the message that follows.
The word NOTE is used to convey information
that is out of context with the manual text. It
contains special information such as
specifications, techniques and reference
information of a supplementary nature.
The word IMPORTANT is used in the text when
immediate damage will occur to the machine
due to improper technique or operation.
Important will apply to the same information as
specified by note only of an immediate and
urgent nature.
It is the responsibility of the user to read the
operator’s manual and comply with the safe and
correct operating procedure and to lubricate and
maintain the product according to the
maintenance schedule in the operator’s manual.
The user is responsible for inspecting his
machine and for having parts repaired or
replaced when continued use of the product
would cause damage or excessive wear to the
other parts.
It is the user’s responsibility to deliver his
machine to the Yetter dealer who sold him the
product for service or replacement of defective
parts, which are covered by the warranty policy.
If you are unable to understand or follow the
instructions provided in this publication, consult
your local Yetter dealer or contact:
YETTER MANUFACTURING CO.
309/776-4111
800/447-5777
309/776-3222 (FAX)
Website: www.yetterco.com
E-mail: i[email protected]
WARRANTY
Yetter Manufacturing warrants all products manufactured and sold by it against defects in material.
This warranty being expressly limited to replacement at the factory of such parts or products as shall
appear to be defective after inspection. This warranty does not obligate the Company to bear cost
of labor in replacement of parts. It is the policy of the Company to make improvements without
incurring obligations to add them to any unit already sold. No warranty is made or authorized to be
made, other than herein set forth. This warranty is in effect for one year after purchase.
DEALER: ________________________________________
Yetter Manufacturing warrants its own products only and cannot be responsible for damages
to equipment on which mounted.

BE ALERT!
YOUR SAFETY IS INVOLVED
WATCH FOR THIS SYMBOL. IT POINTS OUT IMPORTANT
SAFETY PRECAUTIONS. IT MEANS “ATTENTION – BE
ALERT!”
It is your responsibility as an owner, operator, or supervision to know and instruct
everyone using this machine at the time of initial assignment and at least annually
thereafter, of the proper operation, precautions, and work hazards which exist in the
operation of the machine in accordance with OSHA regulations.
Safety Is No Accident
The following safety instructions, combined with common sense, will save your
equipment from needless damage and the operator from unnecessary exposure
to personal hazard. Pay special attention to the caution notes in the text. Review
this manual at least once a year with all operators.
1. Read and understand the operator’s manual before operating this machine.
Failure to do so is considered a misuse of the equipment.
2. Make sure equipment is secure before operating.
3. Always keep children away from equipment when operating.
4. Make sure everyone that is not directly involved with the operation is out of the
work area before beginning operation.
5. Make sure all safety devices, shields, and guards are in place and functional
before beginning operation
6. Shut off all power to adjust, service, or clean.
7. Keep hands, feet, and clothing away from moving parts. It is a good idea to
remove all jewelry before operating.
8. Inspect the machine periodically during operation for signs of excessive wear,
loose fasteners, and unusual noises.
Lubricate all bearings and moving parts as assembled. Make certain that they work
freely.
Warning: Never work around the toolbar/implement while in a raised position
without using safety lockups.
Caution: The TitanTM Residue Manager and its attachments are very heavy. Pay
extra attention to lifting techniques while handling or maneuvering the system
during assembly. Failure to do so may lead to personal injury.
4

5
BOLT TORQUE
Important: Over-tightening hardware can cause just as much
damage as under-tightening. Tightening hardware beyond the
recommended range can reduce its shock load capacity.
All hardware on the TitanTM Residue Manager is Grade 5 or Grade 8,
unless otherwise noted. Grade 5 cap screws are marked with three radial
lines on the head. Grade 8 cap screws are marked with six radial lines on
the head. If hardware must be replaced, be sure to replace it with hardware
of equal size, strength and thread type. Refer to the torque values chart
when tightening hardware.
The chart below is a guide for proper torque. Use it unless a specified
torque is called out elsewhere in the manual.
Torque is the force applied to the end of the handle or cheater bar, times
the length of the handle or bar.
Use a torque wrench wherever possible.

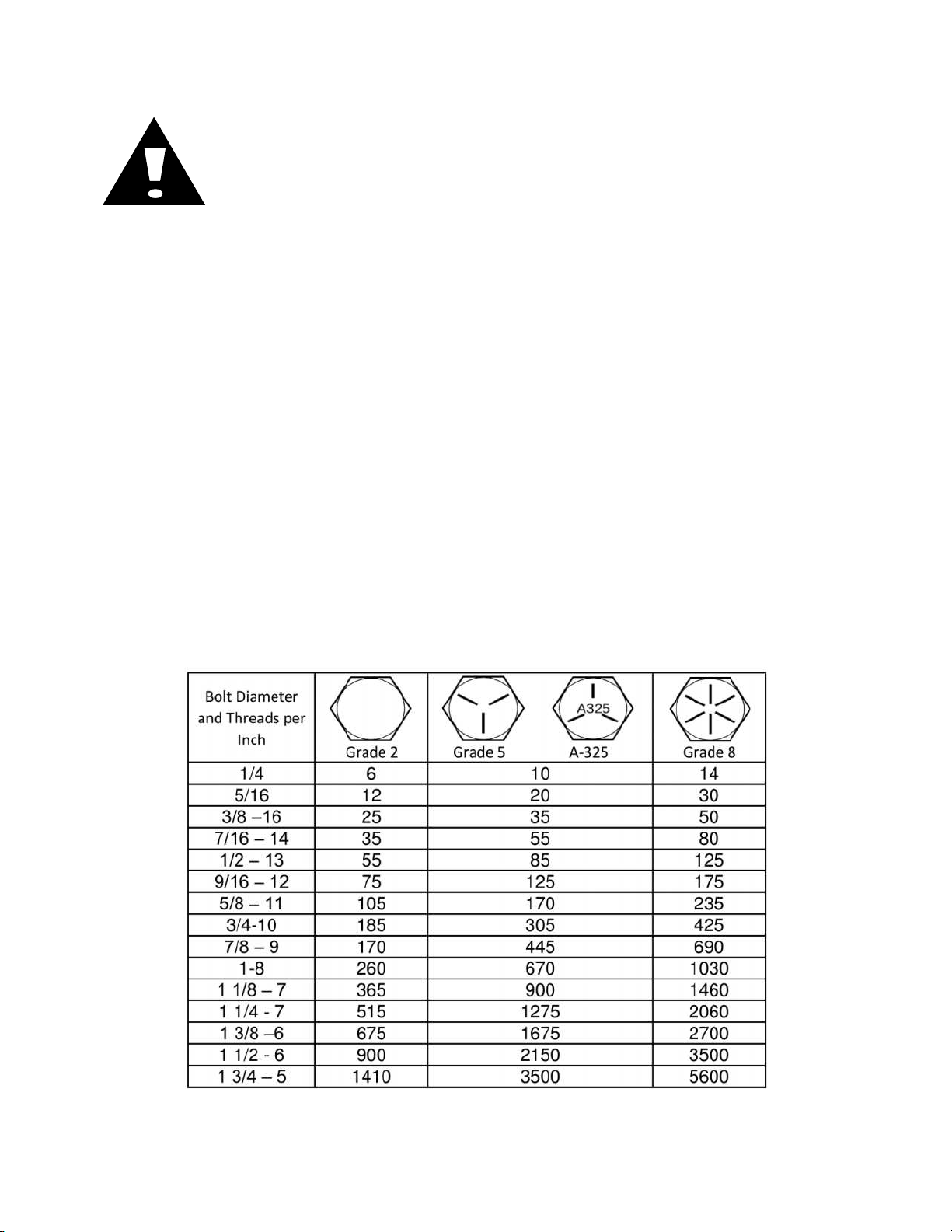

The following table shows torque in ft-lbs for coarse thread hardware.

6
OPERATION
Where rocks are present, the residue manager should be set to
float. The system can be damaged if a rigid setting is used.
Adjust the residue manager to move crop residue aside and not to move soil.
Adjustments to the residue manager may have to be made with changing field
conditions and the type and/or amount of residue. Use the handle for leverage when
changing depth settings.
Float Settings
Install the adjustment pin below the combo arm.
To raise the wheels, lift the combo arm and move the adjustment pin up.
To lower the wheels, lift the combo arm and move the adjustment pin down.
Rigid Settings
Install the adjustment pin through the combo arm.
To raise wheels, lift the combo arm to the desired position and insert the pin.
To lower wheels, lower the combo arm to the desired position and insert the pin.
Residue Manger Do’s and Don’ts
1. DO NOT move soil; Residue Managers are designed to move crop residue
only.
2. DO NOT operate planter at slow speeds, ground speed affects how
aggressive the spoke wheels are. Operate at sufficient speed (4-6 mph) to
maintain good residue flow.
3. DO NOT expect 100% of crop residue to be cleared. It is not necessary and
would necessitate engaging the soil. The width of the cleared path depends
on ground conditions, depth setting, and ground speed.
4. DO expect to see wheels occasionally quit turning. This indicates ideal
(shallow) setting which is not moving soil.
5. DO adjust toolbar frame height 20”-22” and drawbar to level correctly. This is
very important to ensure planter opener will follow ground contours properly.

7
STOP
Read this before using the Yetter product.
IMPORTANT: failure to properly set the planter frame height and
levelness can result in less than successful operation of the planter
and the Yetter product and may result in damaged equipment. All
operators should read and thoroughly understand the instructions
given prior to using the Yetter product.
NOTE: DO NOT use this product if the planter is not adjusted properly!
Leveling the planter:
With the planter lowered to proper operating height (Usually 20”-22”).
Read the planter operator’s manual for recommended setting. Check
to be sure the toolbar and row unit parallel arms are level fore and aft. Re-
check when the planter is in the field and has been fully loaded with
seed, fertilizer, granular chemicals, etc. Also, a field check with a bubble
level on the frame should be made of the hitch height to ensure level
operation front to back.
It is important for the planter to operate level laterally. Tire pressure must
be maintained at pressures specified by the manufacturer.
Field and actual planting conditions change and will dictate planter frame
heights. You must ensure that the row unit parallel arms are
approximately parallel with the ground.
IMPORTANT: For proper operation of the planter attachments and row
units, it is imperative that the planter toolbars and row unit parallel arms be
level side-to-side and front-to-rear. The toolbar frame should operate at a
20”-22” height from the planting surface. Check the manufacturer’s
operator’s manual for instructions on how to adjust the frame height and
levelness.

8
PLANTER ADJUSTMENT

9
INSTALLATION INSTRUCTIONS
Step 1: Attach the 2966-290 mount bracket to the planter unit using (3) ½”
bolts and lock nuts.
Step 1A: Attach the 2966-293 adapter to the CIH row unit using the ½” x
3-1/2” bolts and lock nuts. Then, install the 2966-290 mount bracket to the
adapter using the ½” x 1-1/2” carriage bolts and flanged lock nuts.
INSERT 1/2” X 1” BOLT THROUGH
THE LOWER RIGHT HOLE IN ROW
UNIT FROM REAR AND THREAD
INTO THE MOUNT BRACKET
INSERT 1/2” X 1” BOLT
THROUGH THE LOWER LEFT
HOLE IN ROW UNIT FROM THE
REAR AND THREAD INTO THE
MOUNT BRACKET

10
INSTALLATION INSTRUCTIONS

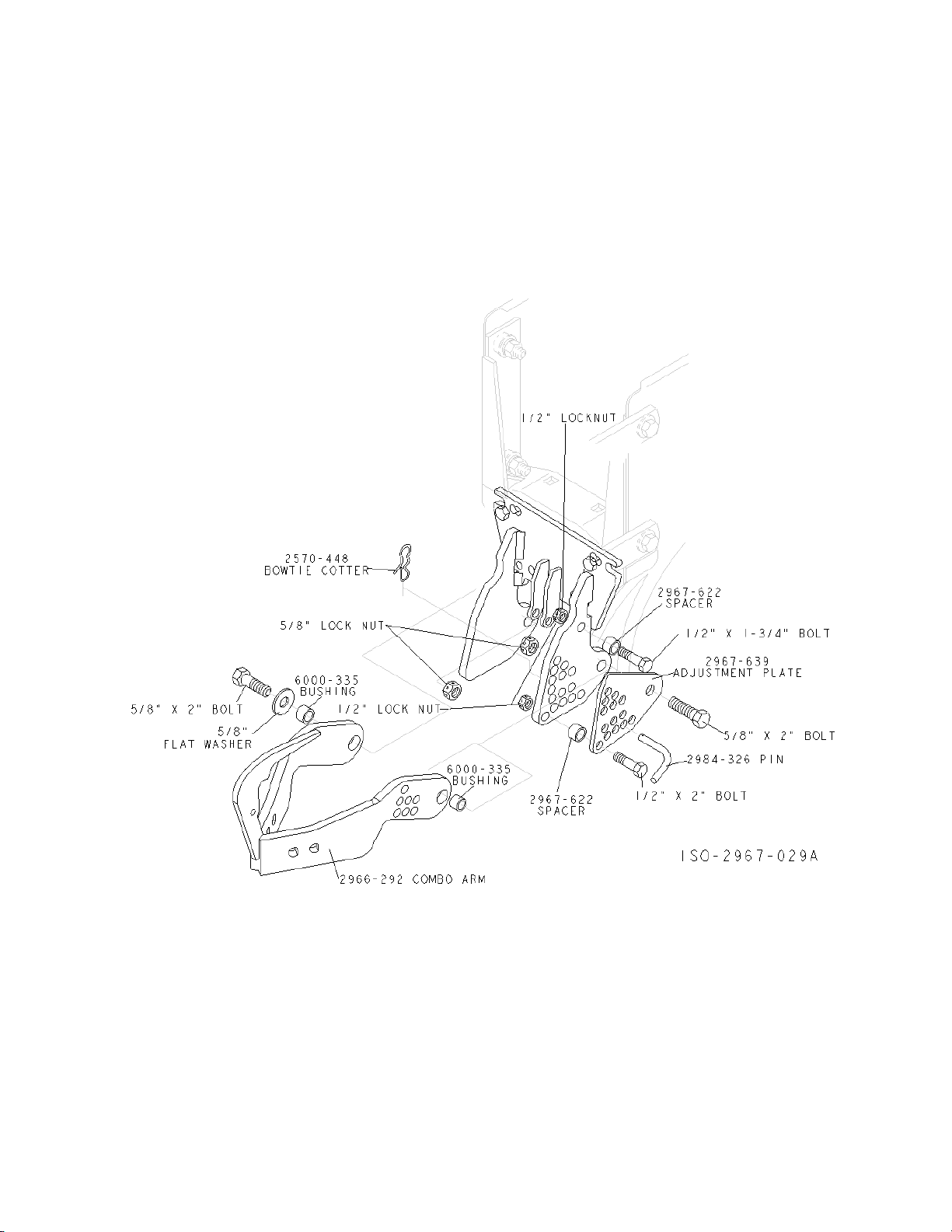

Step 2: Install the arm up-stop using the ½” x 1-3/4” bolt, 2967-622 spacer,
and lock nut. Attach the 2966-292 arm to the mount bracket on the left
using a 5/8” x 2” bolt, 6000-335 bushing, 2967-639 adjustment plate, and
lock nut. Install the ½” x 2” bolt, 2967-622 spacer, and lock nut on the left to
secure the adjustment plate. Insert the 2984-326 pin in the adjustment holts
and install the 2570-448 hairpin clip.

11
INSTALLATION INSTRUCTIONS

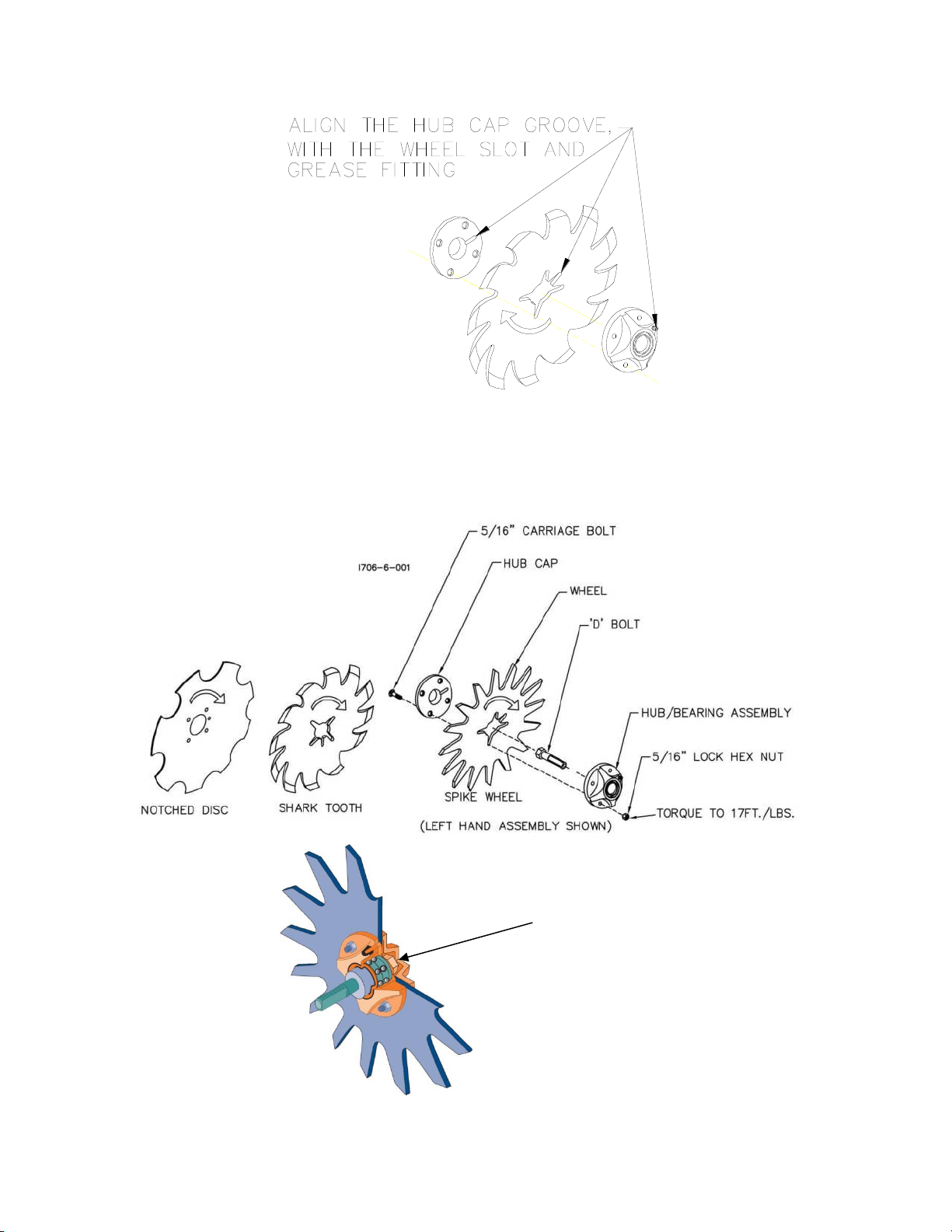

Step 3: Fill the hub and bearing assembly with general-purpose polyurea
grease.

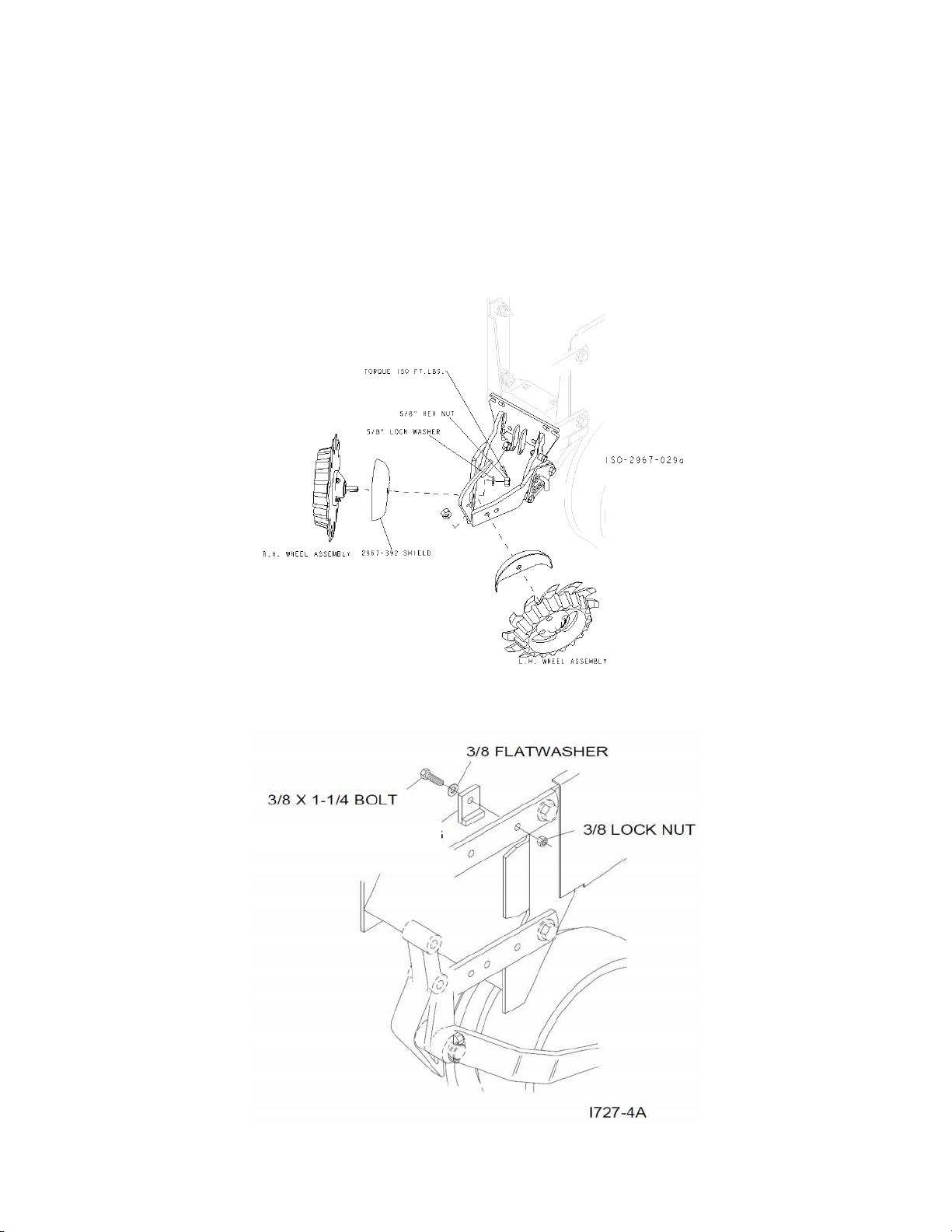

Step 4: Choose the hole in which to attach the RM wheel assemblies.
Attach the RM wheel/hub assemblies to the combo arm using 5/8” lock
washers and hex nuts. Adjust the bearing shield to top dead center then,
rotate slightly forward. Torque to 150 ft-lbs.
Step 5: ONLY FOR 2967-097A MOUNTING ON CNH RU
Attach the up-stop to the planter row unit parallel arms using the 3/8”
hardware.
UP-STOP

12
MAINTENANCE
Regularly inspect the residue manager for loose or worn parts. Repair and
replace as needed.

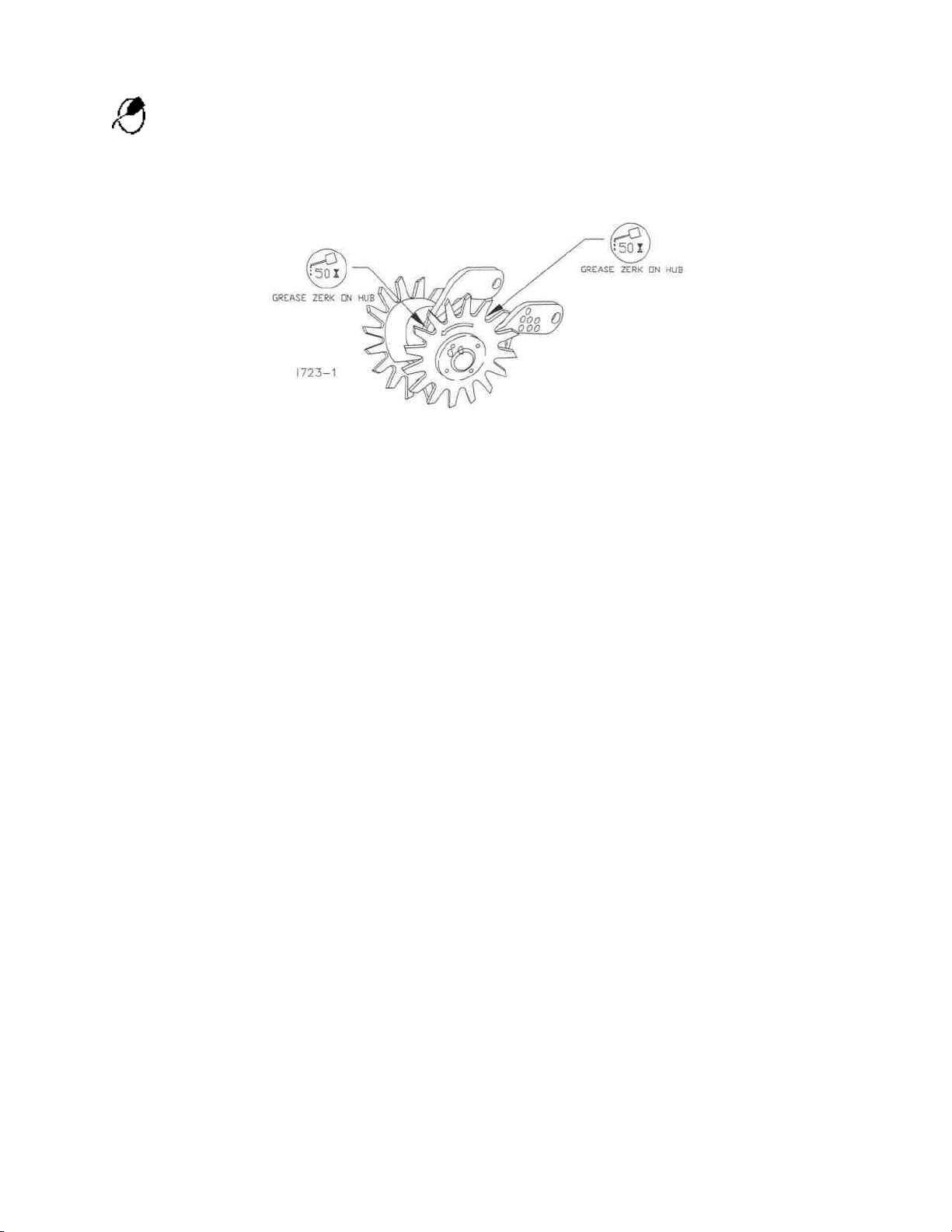

BEARING ASSEMBLY AND LUBRICATION
Practice Safety
Understand and practice safe service procedures before doing work. Follow ALL the
operating, maintenance and safety information in the equipment operator manual. Clear
the area of bystanders, especially small children, when performing any maintenance or
adjustments. Keep work area clean and dry. Use adequate lighting for the job. Use only
tools, jacks and hoists of sufficient capacity for the job.
Never lubricate, service, or adjust machine while it is moving. Keep hands, feet, and
clothing from power-driven moving and rotating parts. Disengage all power and operate
controls to relieve pressure. Lower equipment to the ground and stop the engine.
Remove the key. Wait for all moving parts to stop before servicing, adjusting, repairing
or unplugging.
Securely support any machine elements with blocks or safety stands that must be
raised for service work.
Keep all parts in good condition and properly installed. Fix damaged equipment
immediately. Replace worn or broken parts. Remove any buildup of grease, oil, or
debris.
Make sure all guards are in place and properly secured when maintenance work is
completed.

13
MAINTENANCE
NOTE: Be certain to align the grease fitting with the slot in the wheel and
hubcap so grease can flow freely.
Grease must fill this
Hubcap cavity.

14
MAINTENANCE
CAUTION: To help prevent serious injury or death to you or other caused by
unexpected movement, service machine on a level surface. Lower machine
to ground or sufficiently lock or block raised machine before servicing. If
machine is connected to a tractor, engage parking brake, place transmission in
PARK, shut off engine, and remove the key. If machine is detached from a tractor,
block wheel and use shop stands to prevent movement.
CAUTION: Do not clean, lubricate, or adjust a machine while in motion.
Use grease based on NLGI consistency number and the expected air temperature
range during the service interval.
Use a multi-purpose polyurea, water resistant, moderate speed, and NLGI grade
#2 grease.
Other greases may be used if they meet the NLGI Performance Classification: GC-
LB
Important: Some types of grease thickener are not compatible with others.
Consult your grease supplier before mixing different types of grease.
Conditions in certain geographical areas may require special lubricants and lubrication
practices which do not appear in the operator’s manual. If there are any questions,
consult Yetter Manufacturing Co. to obtain the latest information and recommendation.
Part #
Description
Ounces of
Grease
2967-404
13” Taper Tooth RM Wheel
1.12 Oz
2967-602
13” SharkTooth RM Wheel
1.12 Oz
2967-186
Floater Wheel Kit w/ RM Wheel
2.08 Oz
6200-350
6200-351
Bevel RM Wheel w/ Floater Wheel Kit
2.40 Oz
Storing Lubricants
Your machine can operate at peak efficiency only if clean lubricants are
used. Use clean containers to handle all lubricants. Store them in an area
protected from dust, moisture, and other contaminants.

15
MAINTENANCE
Lubricate with grease at hourly interval indicated on symbol.
Lubrication Intervals
Important: The recommended service intervals are based on normal
operating conditions; severe or unusual conditions may require more
frequent lubrication.
Perform each lubrication and service procedure at the beginning and end of
each season.
Clean grease fittings before using grease gun to avoid injecting dirt and grit
into the bearing. Replace and lost or broken fittings immediately. If a fitting
fails to take grease, remove and clean thoroughly. Replace if necessary.
Also check for failure of adjoining parts.
Bearing Replacement Installation
1. When assembling the spoke wheels, bearing assembly and hubcap,
be sure to align the grease transfer hole in the spoke wheel with the
groove in the hubcap and hole in the hub to allow grease passage.
2. Assemble the wheels, hubs, and caps.
3. Grease the wheel/hub/bearing assembly.

16
MAINTENANCE
Storing the Equipment
Store the machine in an area away from human activity.
Store the machine in a RAISED position.
Install service locks on all wheel cylinders.
At the end of the season, the machine should be thoroughly inspected and
prepared for storage. Repair or replace any worn or damaged components
to prevent down time at the start of the next season. Store the machine
under cover with all parts in operating condition.
Clean machine thoroughly to remove all dirt, debris, and crop residue
which would hold moisture and cause rusting.
Inspect machine for worn or broken parts. See your Yetter Farm
Equipment dealer during the off-season so that parts or service can
be acquired when the machine is not needed in the field.
Lubricate all bearings as outlined in the lubrication section.
Paint all parts which are chipped or worn.
Store machine in a clean, dry place that is out of the sun.
If the machine cannot be stored inside, cover with a waterproof
tarpaulin and tie securely in place.
Do not allow children to play on or around the machine.

17
PART IDENTIFICATION
2967-029A
ITEM
PART #
DESCRIPTION
QTY
1
2502-294
1/2 -13 X 1-1/2 HHCS GRADE 5
3
2502-351
1/2 -13 X 2 HHCS GRADE 5 (WHITE 9000)
3
2
2502-317
1/2 -13 X 1-3/4 HHCS GRADE 5
1
3
2502-351
1/2 -13 X 2 HHCS GRADE 5
1
4
2502-391
5/8 -11 X 2 HHCS GRADE 5
2
5
2505-209
5/16 -18 X 1-3/4 CARRIAGE BOLT GRADE 5 (FLOATER)
8
2505-207
5/16 -18 X 1-1/4 CARRIAGE BOLT GRADE 5 (SHARK)
8
2505-208
5/16 -18 X 1-1/2 CARRIAGE BOLT GRADE 5 (BEVELED)
8
6
2520-357
1/2 -13 LOCK HEX NUT
5
7
2520-452
5/8 -11 HEX NUT
2
8
2520-459
5/8 -11 LOCK HEX NUT
2
9
2525-451
5/8 LOCK WASHER
2
10
2526-355
1/2 FLAT WASHER HARDENED
3
11
2526-453
5/8 SAE FLAT WASHER
1
12
2550-069
SEAL
2
13
2570-448
HAIRPIN COTTER
1
14
2570-594
BEARING
2
15
2570-715
INSERT
2
16
2570-740
D-BOLT 5/8 -11 X 2.812 GRADE 8
2
17
2965-128
HUB AND BEARING ASSEMBLY
2
18
2965-351
HUB
2
19
2965-352
CAP
2
20
2966-141-ST-FW
SHARK WHEEL ASSEMBLY LH FLOATER (SHOWN)
1
2966-140-ST-FW
SHARK WHEEL ASSEMBLY RH FLOATER
1
21
2966-290
MOUNT BRACKET
1
22
2966-292
ARM WIDE
1
23
2967-392
SHIELD
2
24
2967-555
FLOATER WHEEL (OPTION)
2
25
2967-602
13” SHARK WHEEL (SHOWN)
2
2967-404
13” TAPER TOOTH (OPTION)
2
6200-350
13” BEVELED WHEEL LH (OPTION)
1
6200-351
13” BEVELED WHEEL RH (OPTION)
1
26
2967-622
9/16” SPACER
2
27
2967-639
ADJUSTMENT PLATE
1
28
2984-326
PIN
1
29
6000-335
9/16” BUSHING
2
30
2520-206
5/16 -18 SERRATED FLANGE HEX NUT
8

18
PARTS IDENTIFICATION
2967-029A-PP

19
PART IDENTIFICATION
2967-097A
ITEM
PART #
DESCRIPTION
QTY
ITEM
PART #
DESCRIPTION
QTY
1
2502-244
3/8 -16 X 1-1/4 HHCS GRADE 5
2
20
2960-223
UP-STOP
2
2
2502-316
1/2 -13 X 3-1/2 HHCS GRADE 5
2
21
2965-128
BEARING HUB ASSEMBLY
2
3
2502-317
1/2 -13 X 1-3/4 HHCS GRADE 5
1
22
2965-351
HUB
2
4
2502-351
1/2 -13 X 2 HHCS GRADE 5
1
23
2965-352
CAP
2
5
2502-391
5/8 -11 X 2 HHCS GRADE 5
2
24
2966-140-ST-
FW
SHARK WHEEL ASSEMBLY RH
1
6
2505-209
5/16-18 X 1-3/4 CARRIAGE BOLT
GRADE5(FLOATER)
8
25
2966-141-ST-
FW
SHARK WHEEL ASSEMBLY LH
1
2505-207
5/16-18 X 1-1/4 CARRIAGE BOLT
GRADE 5(SHARK)
8
26
2966-290
MOUNT BRACKET
1
2505-208
5/16-18 X 1-1/2 CARRIAGE BOLT
GRADE5(BEVEL)
8
27
2966-292
ARM
1
7
2505-339
1/2 -13 X 1-1/2 CARRIAGE BOLT
GRADE 5
3
28
2966-293
ADAPTER CIH
1
8
2520-255
3/8 -16 LOCK HEX NUT
2
29
2967-392
SHIELD
2
9
2520-357
1/2 -13 LOCK HEX NUT
4
30
2967-555
FLOATER WHEEL (OPTION)
2
10
2520-361
1/2 -13 FLANGE HEX NUT
3
31
2967-602
13” SHARK WHEEL (SHOWN)
2
11
2520-452
5/8 -11 HEX NUT
2
2967-404
13” TAPER TOOTH (OPTION)
2
12
2520-459
5/8 -11 LOCK HEX NUT
2
6200-350
13” BEVELED WHEEL LH (OPTION)
2
13
2525-451
5/8 LOCK WASHER
2
6200-351
13” BEVELED WHEEL RH
(OPTION)
2
14
2526-453
5/8 SAE FLAT WASHER
1
32
2967-622
9/16” SPACER
2
15
2550-069
SEAL
2
33
2967-639
ADJUSTMENT PLATE
1
16
2570-448
HAIR PIN COTTER
1
34
2984-326
PIN
1
17
2570-594
BEARING
2
35
6000-335
9/16” BUSHING
2
18
2570-715
INSERT
2
36
2520-206
5/16-18 SERRATED FLANGE HEX
NUT
8
19
2570-740
D-BOLT FLANGED 5/8 -11 X 2.812
GRADE 8
2

20
PART IDENTIFICATION
UP-STOP
ITEM
PART #
DESCRIPTION
QTY
1
2502-244
3/8-16 x 1-1/4 HHCS GR 5
2
2
2960-223
UP-STOP
2
3
2520-255
3/8-16 HEX LOCK NUT
2
4
2526-253
3/8 SAE FLATWASHER
2
