Yolco RSX6 User manual

ATTENTION!
Please read this manual carefully before starting the device. Keep these instructions. The manufacturer is not liable for
damages resulting from improper use or incorrect operation.
Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur.
It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your appliance.
Safety information
Do not disassemble or puncture the outer device casing.
Do not hit, squeeze or throw the device into fire.
Do not expose the device to temperatures lower than -10°C (14°F) or higher than 65°C (149°F).
It is forbidden to use the device if it shows visible signs of damage.
Charge the device only with a power supply that complies with the technical specifications (power supply not included).
The device should be disconnected from the power supply after each charging process or before cleaning/maintenance.
When the device is not in use, it should be turned off.
Repairs may only be carried out by qualified persons. Self-repairs may result in serious health or life hazards.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
Protect the device from adverse weather conditions such as rain. The device is not waterproof. A device exposed to water should be
immediately disconnected from the power supply.
Usage notes
• The device can be used as a power source for portable refrigerators, devices powered from the 12V cigarette lighter socket and other
devices powered from USB-A/USB-C ports.
• USB-A Fast Charge ports support fast charging up to two devices at the same time - max 2x18W
• The USB-C (PD3.0) input/output port supports the Power Delivery 3.0 charging protocol - max 80W
• The device has protection against overheating, overcharging and total discharge of the battery.
• The battery will naturally degrade over the life of the device. Expected battery life - minimum 80% of rated capacity after 300 charging
cycles.
• Battery life is affected by unfavorable weather conditions such as too high or too low ambient temperature, high humidity or exposure to
water.
• The device should not be fully discharged.
Instructions for use
Turning the device on/off
To turn the device on/off, press and hold the power button for 3 seconds. The LED charge indicator is on or off, respectively, when the
device is turned on/off.
Charging the device
Attention! Do not connect any external device to the output socket while charging.
• To charge the device, connect the power source (in accordance with the technical specification) to the charging socket or to the USB-C
(PD3.0) port. Battery charging time: up to 9 hours
• The flickering of the LED diodes in the first phase of charging is caused by checking the compliance of the charger voltage.
• The charging socket is compatible with power supplies and photovoltaic panels equipped with a DC5521 plug.
• The device's charge level is indicated by a four-stage LED indicator. Disconnect the power cord immediately after the charging process
is complete.
• To check the device's charge level, press the power button once.
power
bank
RSX6
USER MANUAL

The crossed out wheeled bin symbol means that this product should not be disposed of with other household waste. Waste electrical and electronic equipment should
be sent for recycling and recycling with environmental protection regulations in force in a given country regarding waste management. Selective waste collection
contributes to reducing their potential negative impact on human health and the resulting environment from the presence in the equipment of dangerous substances,
mixtures and components.
Power cord for portable refrigerators
Power cord with cigarette lighter socket
Manufacturer: ARKAS Sp. z o.o.
ul. Kuziennicza 4, 59-400 Jawor, Poland
www.arkas.pl • www.yolco.pl
71/NAX/23

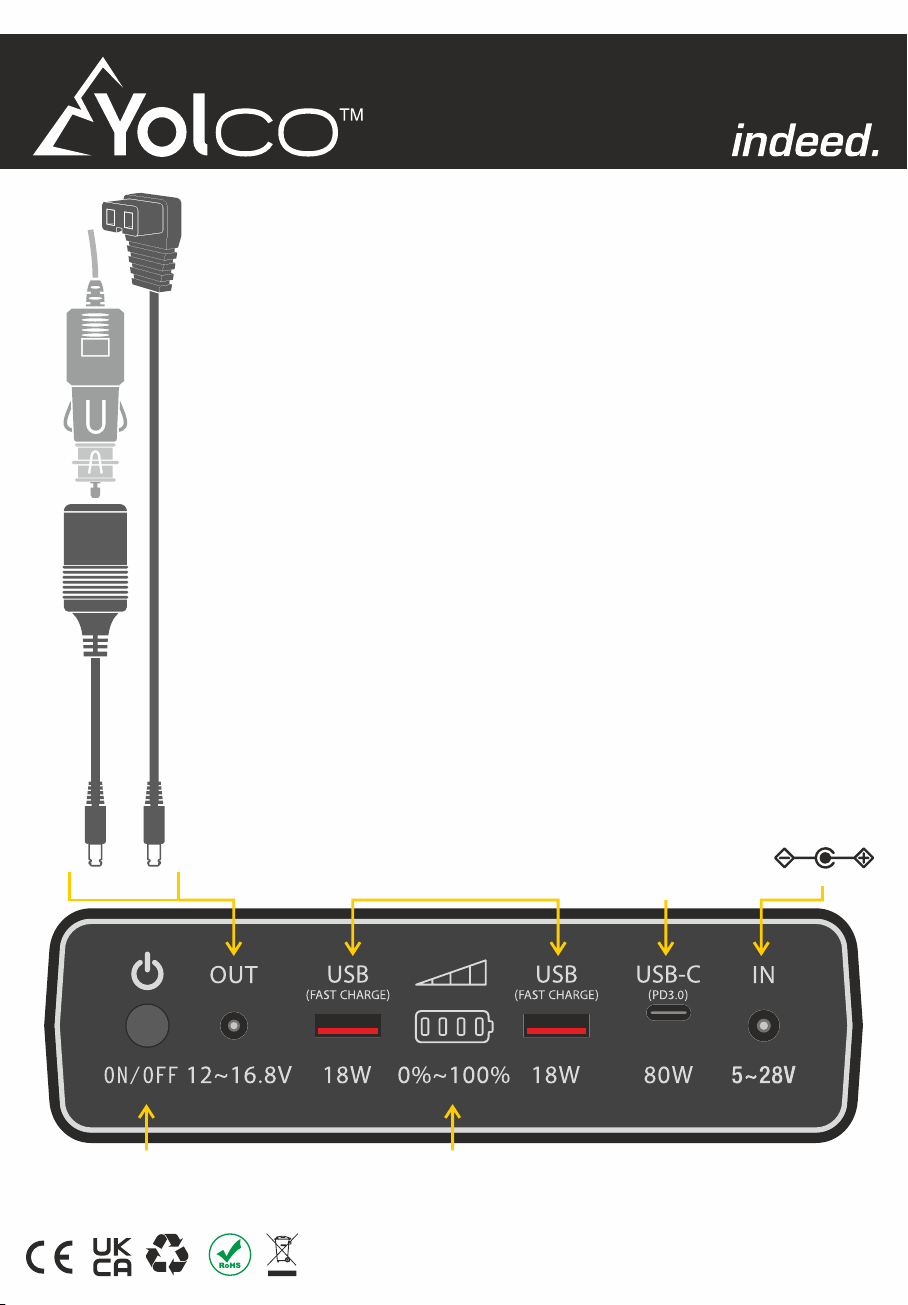

OUTPUT PORT
POWER BUTTON LED CHARGE INDICATOR
CHARGING SOCKET
USB-A FAST CHARGE
OUTPUT PORTS
USB-C Power Delivery 3.0
INPUT/OUTPUT PORT
Powering external devices via the output socket
To power the external device, connect it with a power cable for portable refrigerators, or a cable with a
cigarette lighter socket (in the case of other devices powered from a 12V car cigarette lighter socket).
Powering external devices via the USB-A/USB-C port
To power an external device powered from the USB-A/USB-C port, connect it with a USB cable (not
included).
Cleaning/maintenance
Attention! Before each cleaning, turn off the device and disconnect it from the power source.
• Do not clean the device under running water.
• Do not use aggressive cleaning agents for cleaning.
• Clean the outside of the device with a soft cloth, excluding the power section.
Technical Specifications:
• Battery type: Lithium Ion (Li-Ion)
• Rated capacity: 20000mAh (288Wh)
• Rated voltage : 14.4V
• DC charging voltage: 5-28V
• Maximum DC charging current: 4.0A
• USB-C (PD3.0) charging voltage: 5-20V
• Maximum USB-C (PD3.0) charging current: 4.0A
• Power consumption: max 80W
• Shutdown voltage: 12.0V
• Output port: 12-16.8V/10A (120W max)
• USB-C (PD3.0) output port: 5-20V/4.0A (80W max)
• 2xUSB-A Fast Charge output port: 5V/2.1A, 9V/2.0A, 12V/1.5A (2x 18W max)
• Device dimensions (W x H x D): 157 x 45 x 194mm
• Net weight: 1.78 kg
• Battery life: minimum 80% of rated capacity after 300 charge cycles.
• Operating ambient temperature: -10°C ~ 65°C (14°F ~ 149°F)
• Ambient temperature during charging: 0°C ~ 50°C (32°F ~ 122°F)
• Storage ambient temperature: 0°C ~ 45°C (32°F ~ 113°F)
• Storage humidity: 45% ~ 85% RH
Contents of the package:
Powerbank
Power cord for portable refrigerators
Power cord with cigarette lighter socket
User manual
