Yolink YS7704-UC User manual

Door Sensor
User Guide
YS7704-UC

Contents
Introduction························································1
Features·········································· ········ 2········· ·
Product Requirements···········································2
Set Up Door Sensor ···············································3
Using YoLink App with Door Sensor·····························8
Maintaining the Door Sensor····································13
Specifications······················································15
Installation···························································7
YoLink Control·····················································10
Customer Service & Warranty··································18
Troubleshooting··················································16

Introduction
YoLink Door Sensor will detect opening and closing of your door and send alert or trigger
action. This device can also be applied to windows, drawers, boxes or other stuff which
you want to monitor on and off or trigger certain action.
1
SET BUTTON
Red Once
Alert.
Blinking Green
Connecting to cloud.
Fast Blinking Green
Set up connection with devices.
Fast Blinking Red
Remove connection with devices.
Blinking Red and Green
Factory resetting.
Slow Blinking Green
Updating.
SENSOR
MAGNET

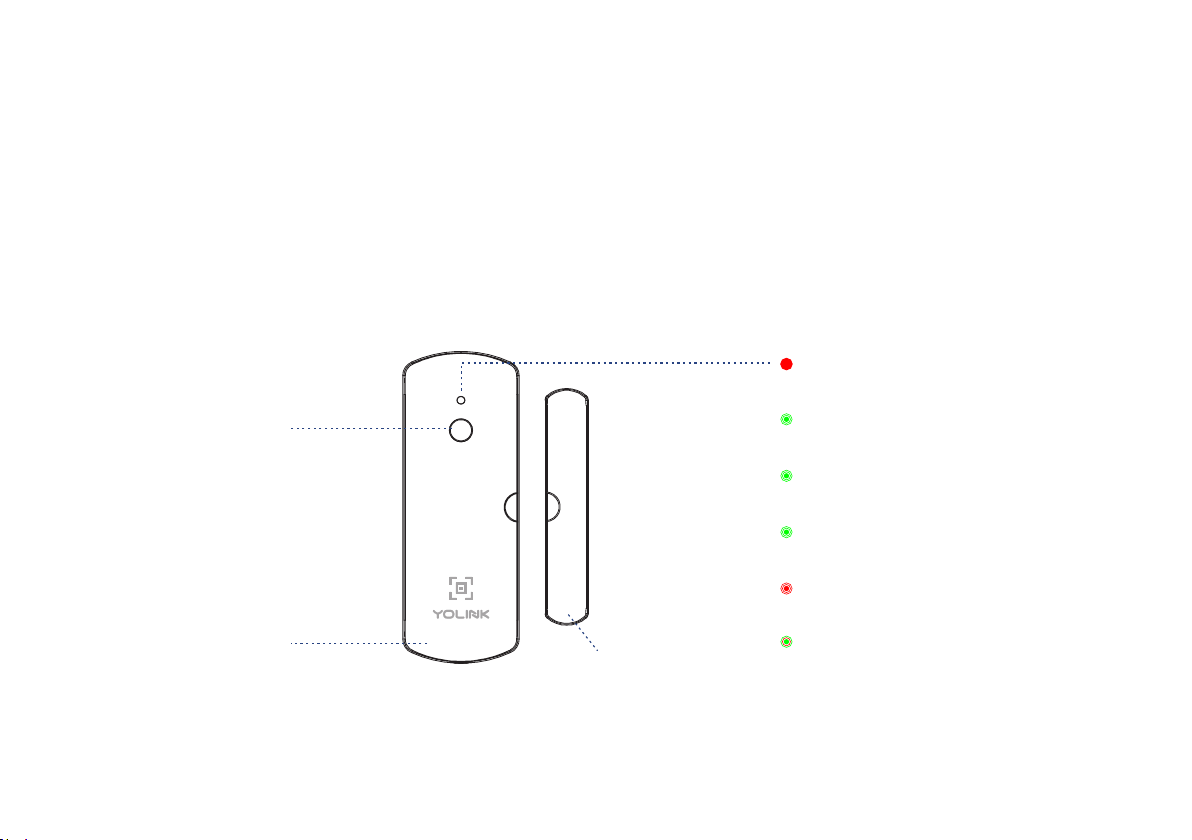

LED light can show you the current status. See the explanation below:s

Features
Real-time Status - Monitor the real-time state of door via YoLink App.
Open Remind - Remind you while the door is open for a set up time.
Battery Status - Update battery level and send low battery alert.
YoLink Control - Trigger an action of certain YoLink devices without internet.
Automation - Set up rules for “If this then that” function.
2
Product Requirements
1. A YoLink Hub.
2. A smartphone or tablet running iOS 9 or higher; Android 4.4 or higher.

3
Set Up Door Sensor
Follow the steps below to set up your door sensor via YoLink App.
Step 1: Set up YoLink App
Get the YoLink App from the Apple App Store or Google Play.

If you don’t have a YoLink account, tap Sign up for an account and follow the steps
to sign up an account.
Open the App. Use your YoLink account to log in.
Step 2: Log in or sign up with YoLink account
4

Step 3: Add device to YoLink App
Tap the “ ” in YoLink App. Scan the QR Code on the device.
b. Room - Choose a room for Door Sensor.
a. Name - Name Door Sensor.
c. Favourite - Click “ ” icon to add/remove from Favourite.
You can customize the name, set the room, add to/remove from favourite.
Tap the “Bind Device” to add the device to your YoLink account.
a
b
c
5

Step 4: Connect to the cloud
6
Note
Make sure you hub is connected to internet.
Press the SET button once and your device will connect to the cloud automatically.
SET BUTTON
Cloud
Internet

Installation
Please keep the default distance between sensor and magnet within 18mm when closed.
Please use the double side tape to stick the sensor and magnet to wherever you want to
monitor.
Note
Please add door sensor to YoLink App before you install it.
While installing, try to stick the sensor to the fixed part of your door or window.
Please align the half circle on sensor with the half circle on magnet.

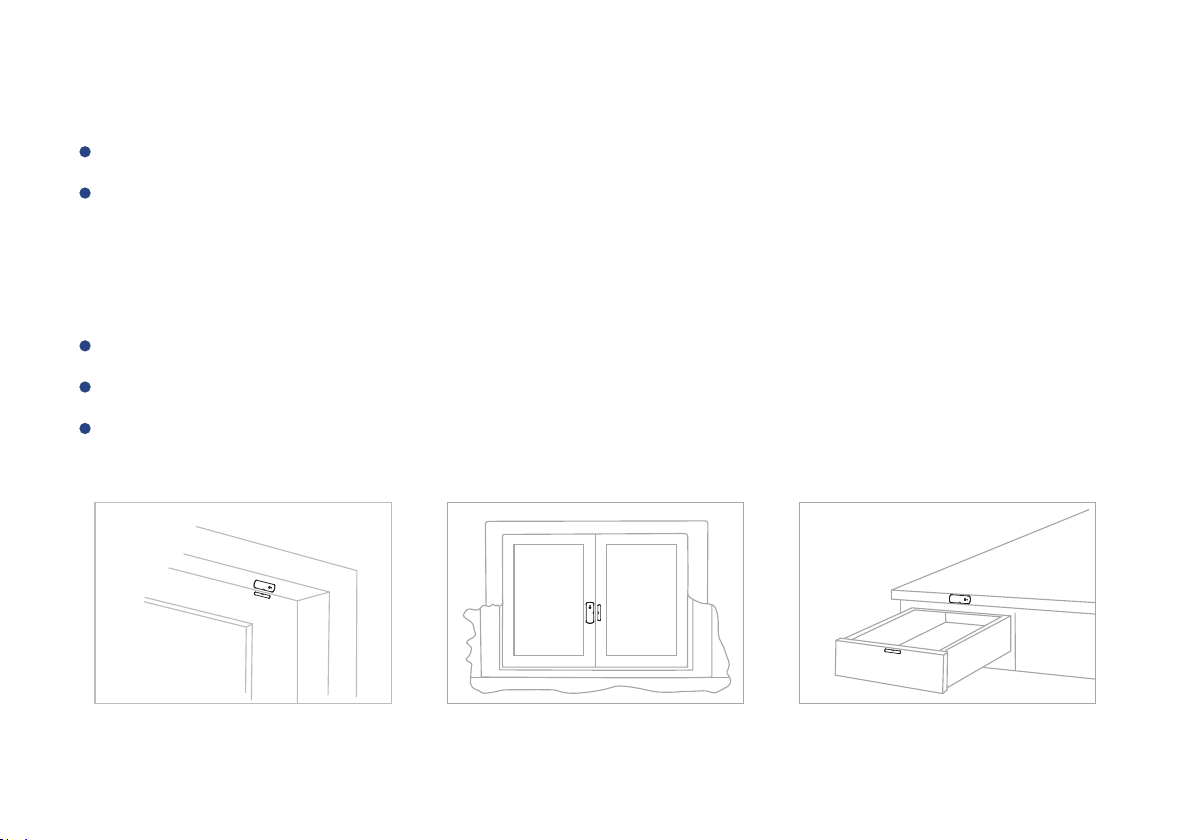

Door Window Drawer
7

Using YoLink App with Door Sensor
Tap the “Door Sensor” in App to go to its controls.
Tap the icon for each of the setting you want to
personalize.
Tap “ ” icon at the top-right corner.the
a
b
c
d
e
g
f
Details
You can customize the name, set the room, set the open alert, add to/ remove from favourite,
check device history.
a. Name - Name Door Sensor.
b. Room - Choose a room for Door Sensor.
g. Delete - The device will be removed from your
account.
f. Open Alert - Set a time which you will able to receive
an alert once your door has been open for that long.
e. Alert - Enable or disable alert for Door Sensor.
d. History - Check the history log for the door.
c. Favourite - Click “ ” icon to add/remove from
Favourite.
8

Automation
Automation allows you to set up “If This Then That” rules so the devices could act
automatically.
Tap “Smart” to switch to Smart screen and tap
“Automation”.
To set an Automation, you will need to set a
trigger time, local weather condition, or choose a
device with certain stage as a triggered condition.
Then set one or more devices, scenes to be
executed.
Tap “ ” to create an automation.
9

YoLink Control
YoLink Control is our unique “device to device” control technology. Under YoLink Control,
the devices can be controlled without internet or Hub. Devices which send out command is
called controller(Master). Devices which receive command and act accordingly is called
responder(Receiver).
You will need to set it up physically.

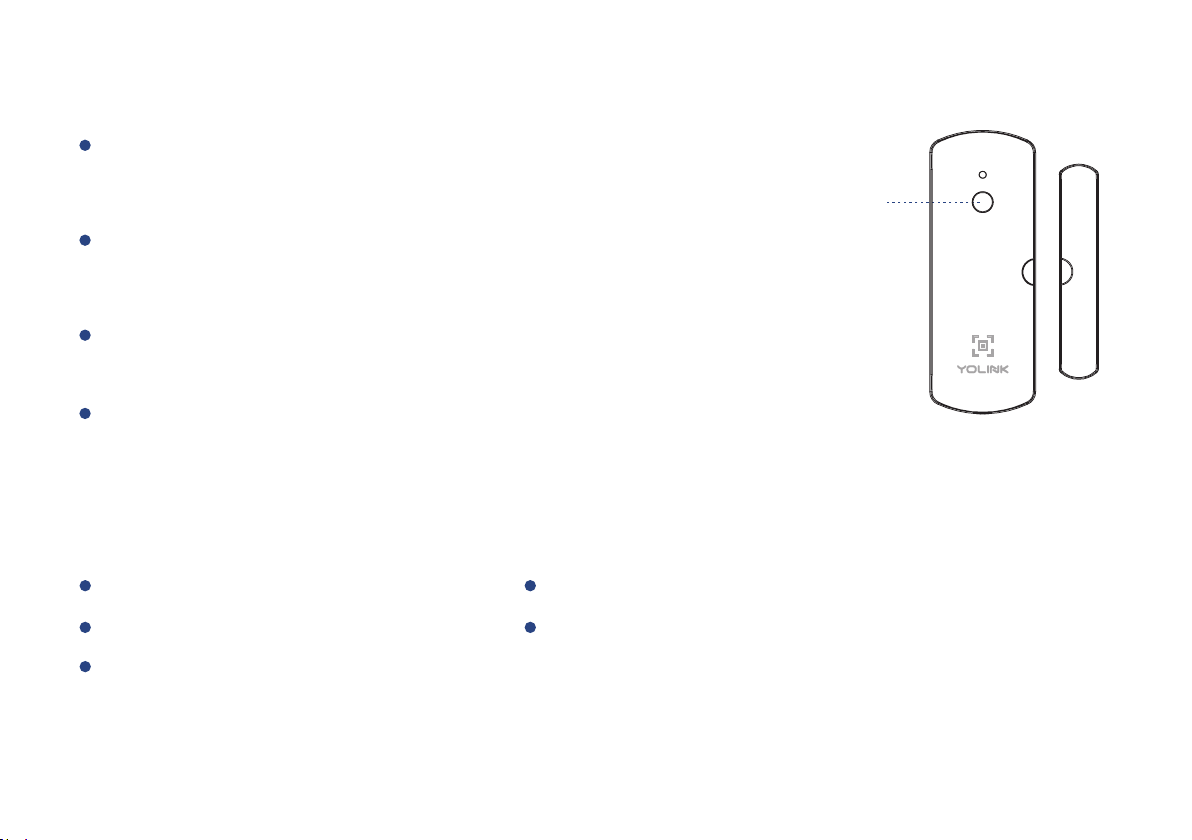

Find a door sensor as controller(Master). Hold
the set button for 5-10 seconds, the light will
flash green quickly.
After pairing succeed, the light will stop flashing.
Find an action device as responder(Receiver).
Hold the set button for 5-10 seconds, the device
will enter pairing mode.
Wh en t he d oor is d ete cte d to be open ed, the
re spo nde r wi ll b e tu rne d on as w ell .
Pairing
SET BUTTON
10

Unpairing
Find the controller(Master) door sensor. Hold
the set button for 10-15 seconds, the light will
flash red quickly.
The above two devices will unpair by themselves
and the light stops flashing.
Find the responder(Receiver) action device.
Hold the set button for 10-15 seconds, the
device will enter unpairing mode.
When the door is dete cted t o be op ened, the
respond er wil l no lo nger t urn on .
YS6602-UC YoLink Plug
Responder List
YS6604-UC YoLink Plug Mini
YS5705-UC In-wall Switch
YS6704-UC In-wall Outlet
Continuously ..updating
YS6801-UC YoLink Power Strip
SET BUTTON
11

YoLink Control Diagram
Paired
opened
turn onturn off
closed
Unpaired
turn offturn off
opened
closed
12

Maintaining the Door Sensor
Note
Only the Door Sensor that is currently reachable
and has an available update will be shown in the
Details screen.

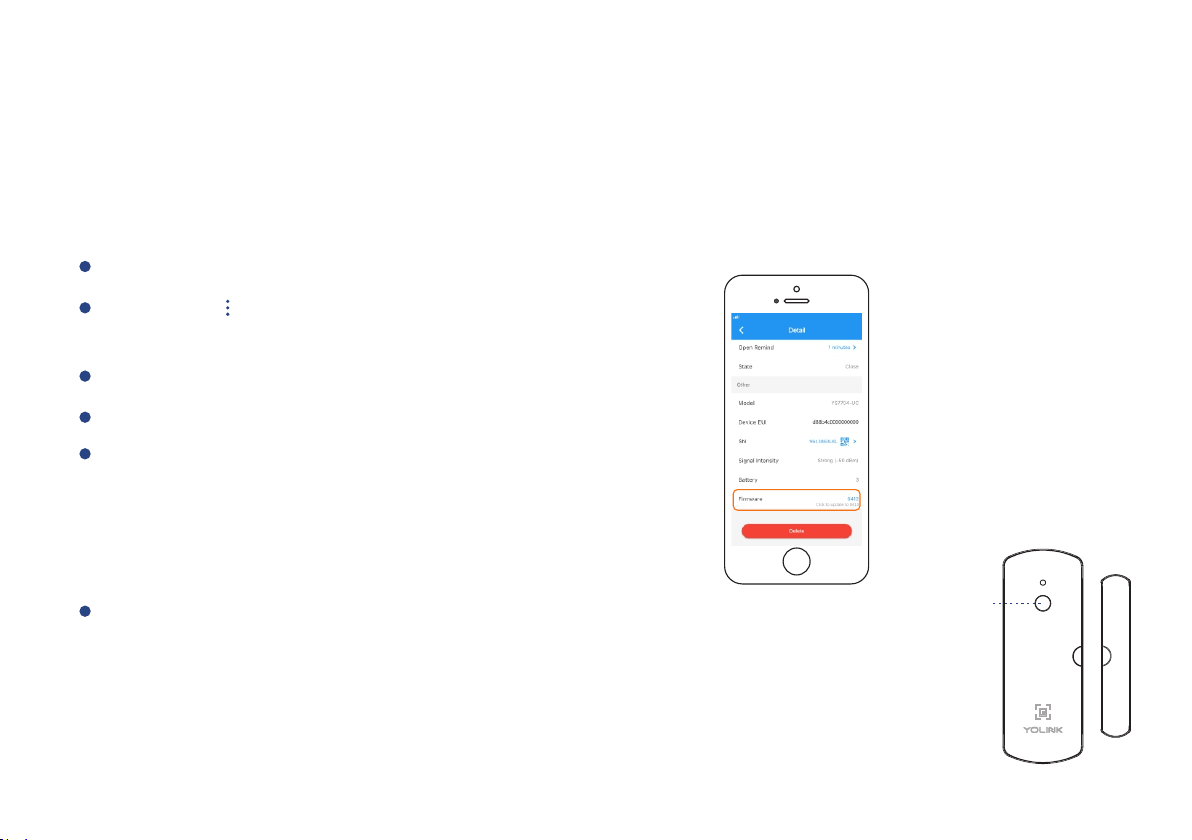

Firmware Update
Ensu r e o u r c u s t om e r h a ve t he b es t user expe r i e n c e . H ig h ly r ec o mm e nd y ou c ou ld
upda t e o u r n e w e st v er s io n fi r m wa re .
The light will be slowly blinking green during the
update and stop blinking when the update done.
Tap “Firmware”.
Tap the “ ” icon at the top-right corner to
go to details.
Tap the “Door Sensor” in App to go to its controls.
Press SET button once.
SET BUTTON
13

Factory Reset
Factory reset will erase all your settings and bring it back to default. After the factory reset,
your device will still in your Yolink account.
Hold the set button for 20-25 seconds until the LED blinks red and green alternately.
Factory reset will be done when the light stops flashing.
SET BUTTON
14

Specifications
Trigger Distance: 18-25mm
Environment: Working Temperature: 0°C~40°C (32°F~104°F)
Working Humidity: 10%~90% non-condensing
Voltage: 3V DC (2 - AAA battery)
15

Troubleshooting
Possible reason: Battery died.
No alert or light.
Solution: Please replace the battery. If it is still not working please contact customer
service.
Device is offline.
Possible reason 1: Hub is offline.
Solution: Please reconnect your hub to the Internet and press the set button of door
sensor once.
Possible reason 2: Hub is powered off.
Solution: . Please power on the hub again and press the set button of door sensor once
Possible reason 3: Device is battery died.
Solution: Please replace the battery.
Possible reason 4: Device malfunction.
Solution: Please contact customer service.
16

Possible reason: Notification has been turned off in YoLink App.
LED blinking, no alert.
Solution: Please turn notification on in the setting page of YoLink App.
Possible reason: Product defective.
Alert received in App but no LED blinking.
Solution: Please contact our customer service.
Other problems.
Solution: Please contact our customer service.
17

If you are unable to get your door sensor working
Please contact Our Customer Service during business hours
US Live Tech Support: 1-844-292-1947 M-F 9am - 5pm PST
Email: [e-mail]
YoSmart Inc. 17165 Von Karman Avenue, Suite 105, Irvine, CA 92614
WARRANTY 2 Year Limited Electrical Warranty
18
YoSmart warrants to the original residential user of this product that it will be free from defects in materials
and workmanship, under normal use, for 1 year from the date of purchase. User must provide a copy of
original purchase receipt. This warranty Does Not Cover abuse or misused products or products used in
commercial applications. This warranty does not apply to door sensors that have been improperly installed,
modified, put to a use other than designed, or subjected to acts of God (such as floods, lightning,
earthquakes, etc.). This warranty is limited to repairing or replacing of this door sensor only at YoSmart's
sole discretion. YoSmart will NOT be liable for the cost of installing, removing, nor reinstalling this product,
nor direct, indirect, or consequential damages to persons or property resulting from the use of this product.
This warranty only covers the cost of replacement parts or replacement units, it does not cover
shipping & handling fees.
To implement this warranty please give us a call during business hours at 1-844-292-1947, or visit
www.yosmart.com.
REV1.1 Copyright 2019. YoSmart, Inc. All rights reserved.
