Yongnuo YN216 II User manual

摄 像 灯
Pro LED Video Light
使用说明书
User Manual 中文
English
YN216 II

-1- -2-
16.5*14*16.5厘米
24瓦
DC 12V 2A,接口尺寸φ5.5*2.1mm
一个NP-F系列电池供电或8个AA电池(需另购买)
前言
感谢您使用YN216 II摄像灯，在使用产品前，请认真阅
读使用说明书。

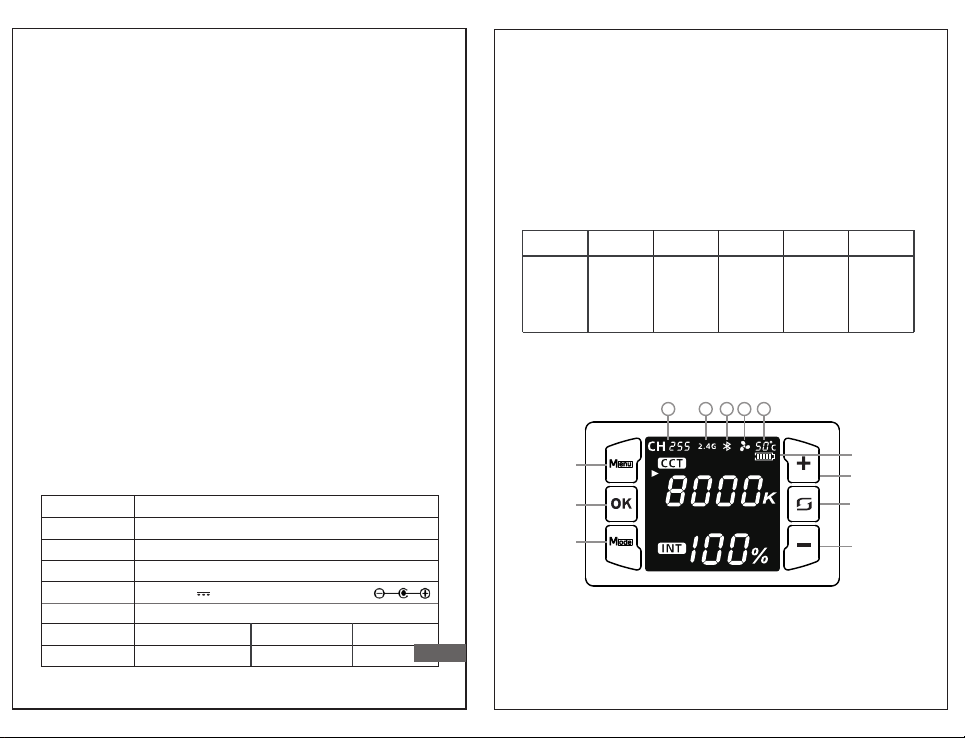

产品规格
光源
色温
输出功率
外接电池
外接电源
摄像灯尺寸
蓝牙遥控
平均寿命
332颗LED灯珠
2700K-8000K
55°
50000小时 光照角度
≤100米
≤50米2.4G无线控制
注意事项
1.请保管好本产品，请勿让儿童接触，勿放置在儿童活动之处。
2.在使用产品前，请确认电源电压和本产品所标识的电压是否符合。
3.产品运行时，请勿遮挡散热孔，以免散热效果差从而损坏产品。
4.产品运行时，强光源照射，切勿直视灯珠，以免引起眼睛不适。
5.产品运行时，灯珠会处于发热状态，切勿触摸，以免造成烫伤。
6.产品应保持干燥环境下使用，产品没有防水防火性能，避免在高温、
雨天、潮湿、多尘等恶劣环境下使用。
7.请勿在化学品、可燃性气体、易燃易爆的环境下使用产品。
8.建议使用永诺提供的原厂线缆或出售的配件。
9.产品接通电源线时，请妥当放置电源线，避免绊倒人员或拉扯
造成断电，勿放置在高温或潮湿表面。
10.产品存放前，请关机断电，拔出电源线,等待产品完全冷却后，
存放置便携包或干燥环境。
11.在清洁产品前，确保断电状态，请使用干软布进行清洁。
12.产品不防摔，请小心使用，避免掉落或承受重击。
13.当产品出现高温报警时，请检查风扇是否出现故障。
14.请勿使用已损坏的电源线,以及摔落出现开裂的产品。
15.请勿私自拆卸产品，如出现故障须本公司或授权维修人员处理。

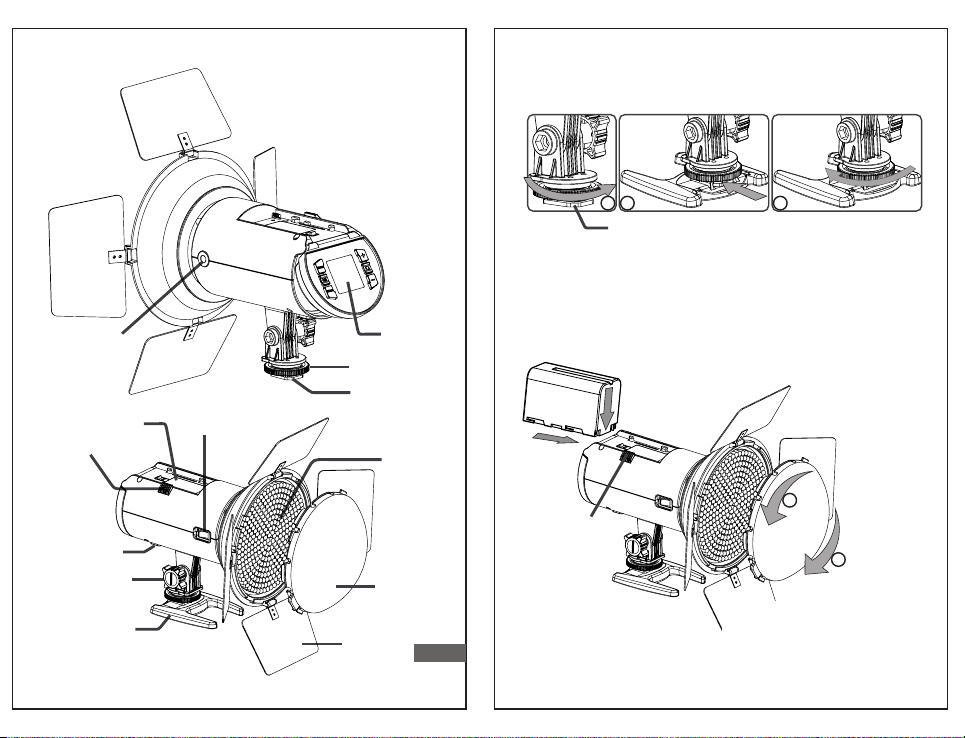

产品结构
亮度测试数据表
*以上测试为平均值，不同灯的亮度有微小差异。
所含物品：摄像灯（1）、柔光罩（ ）、微型底座（ ）、1 1
说明书（1）。
注:如有缺失请与经销商联系。
物料清单
菜单键
确认键
模式键
增键
电量显示
切换键
减键

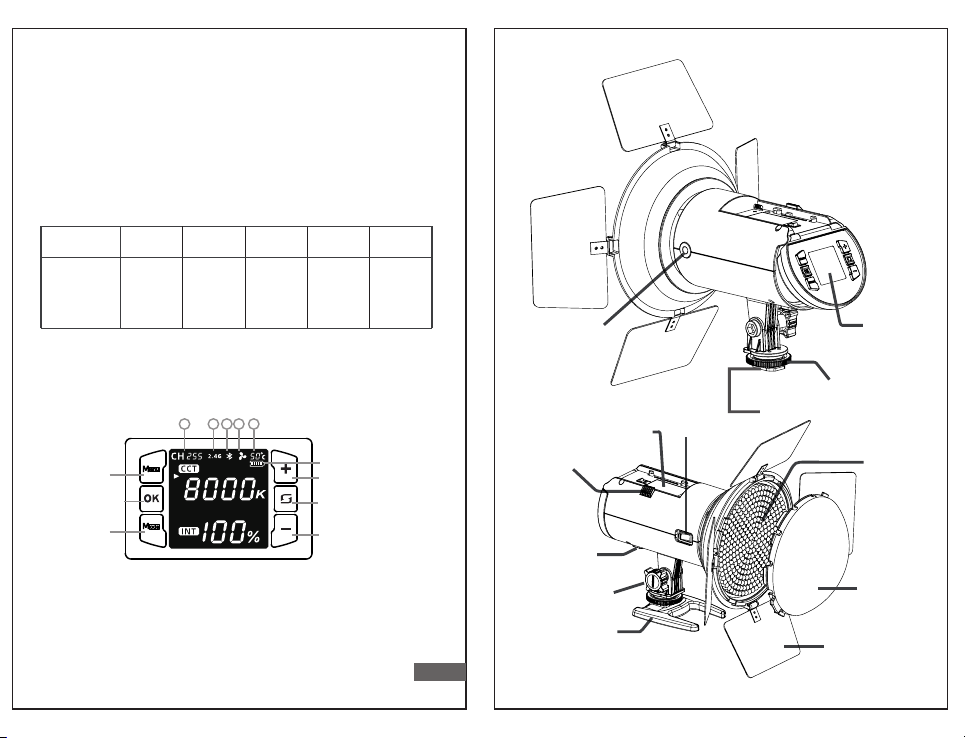

1：频道显示
2：2.4G（开启显示）
3：蓝牙（连接显示）
4：风扇（开启显示）
5：灯珠温度显示
1705lux 2130lux 2910lux
2700K
裸灯(1米)
双色温 3200K 4400K 5600K
2630lux 2265lux
6500K
12345

-3- -4-
反光板
灯珠
柔光罩
电源开关
NP-F电池仓锁扣
NP-F电池仓
微型底座
热靴固定旋钮
Dc电源接口
固定旋钮
金属热靴底座
AA电池仓锁扣
显示屏幕
2、供电模式。
1
2
安装：按箭头方向安装NP-F系列电池。
卸下：按住电池锁扣,朝箭头反向取下电池。
NP-F电池仓锁扣
安装：按箭头1方向安装柔光罩。
卸下：按箭头2方向取下柔光罩。
安装：按箭头1方向安装柔光罩。
卸下：按箭头2方向取下柔光罩。
注：倒角朝外按图 箭头方向安装②。
① ，.将热靴固定旋钮
按箭头方向旋转到顶部。
② ，.将灯脚金属热靴按箭
头方向推入微型底座。
③ ，.按箭头方向将热
靴固定旋钮拧紧。
安装与使用
1、安装微型底座放置在桌面或者其他平面上使用。
*不含NP-F系列电池。
1 2 3
(1).安装NP-F电池/安装柔光罩。

-5- -6-
AA电池仓
AA电池盒
AA电池仓锁扣

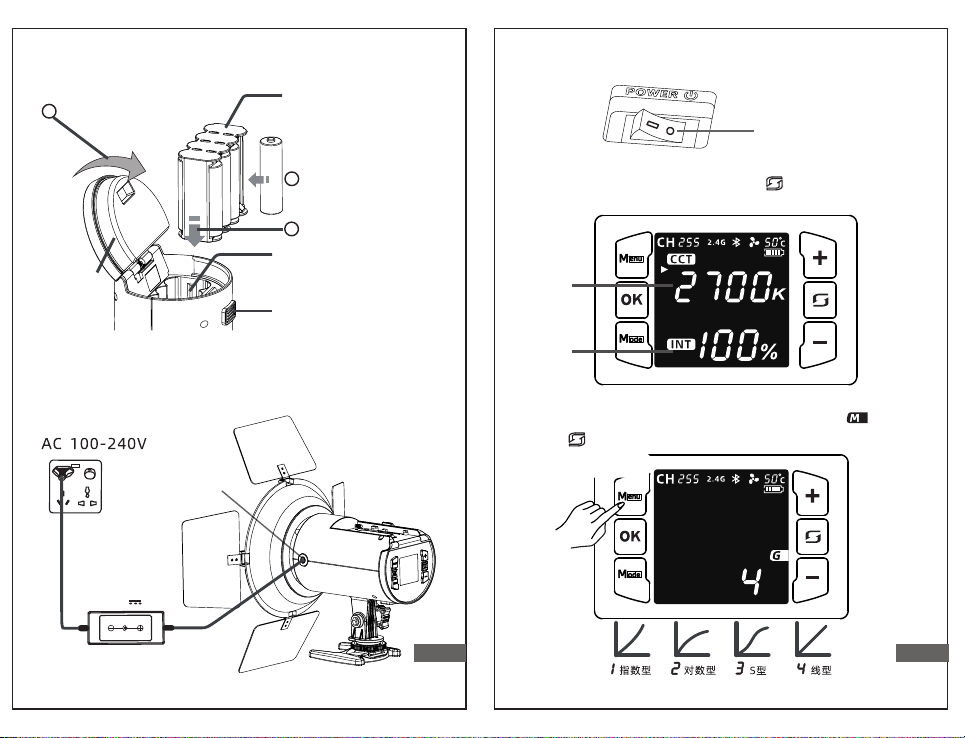

(2).安装AA电池。
按箭头方向合上AA电池盖
安装AA电池在电池盒
1
2
3
按箭头方向放入AA电池仓
AA电池盖
( ).使用电源适配器供电。3
*不含电源适配器。
*不含AA电池。
（取出电池盒时，按下锁扣电池盖自动弹开，
此时倾斜倒出电池盒即可。）
电源适配器
DC12V 2A
DC电源接口
5、4种专业级调光曲线模型。
色温显示
亮度显示
按下<Mode>进入色温界面，按 键切换色温< >
与亮度调节选项，按 或 键调节参数。<+ -> < >
━：开机。
：关机。○
3、开机与关机。
4、色温与亮度调节。
按下 键进入菜单设置，按 键调至 闪烁，<Menu> <+>
按下 键停止闪烁，按 或 键调节曲线模型，< > < > < >+ -
按 键返回。<OK>

-7- -8-
7、特效模式。
按下<Mode>按钮进入特效模式，按< >键切换特效、
速度、亮度选项、按< >或< >键调节参数，再按下+ -
<Mode>切换到色温模式。
频率显示
特效显示
亮度显示
6、切换频道。
按下 键进入菜单模式，选择[ ]频道，按下< >Menu CH
< > < > < > < >键，再按 或 键调节所需频道，按下+ -
键完成设置，按 键返回。<OK>
CH 0
CH 255
8、设置风扇开关。
按下<Menu>键进入菜单设置，选择风扇图标，按下
< >键选择开关，再按下<OK>键返回。
On：风扇开起时功率 瓦。24
OFF：风扇关闭时功率降至 瓦。10

-9-
2.4G2.4G
9、手机APP与遥控器的使用 。
1) .按下<Menu>键进入菜单模式，选择蓝牙< >图标,
按下< >键开启蓝牙;此时打开手机APP就可
以自动连接摄像灯实现无线控制。
2).2.4G无线控制模式可选择开启或关闭。
3) .APP可以从永诺官网下载或通过扫描彩盒二维码
点击下载。
蓝牙 OFF 蓝牙 ON 2.4G OFF 2.4G ON
本手册中的功能是依据本公司的测试条件获得，设计
和规格如有变更，恕不另行通知。
制造商：深圳市永诺电器有限公司
制造商地址：深圳市坪山区坑梓街道秀新社区锦绣东路
14号A1栋209A座A2栋2-5楼
电话:(86)0755-33001023
售后电话:400-001-3888
网址:www.hkyongnuo.com

-10- -11-
Introduction
Thank you for using YN216 II Video light.Please
read the manual carefully before you use it.
Precautions
1.Please keep product away from children, do
not place it in the children's activity area.
2. Before use, please check whether the power
voltage fits the voltage marked on the product.
3.When the product runs, please do not cover the
dissipation hole to avoid product damage due to
poor dissipation performance.
4.When the product runs, do not look straight at the
lamp beads to avoid eyes discomfort due to strong
lights.
5.When the product runs, lamp beads are at the
heating state, do not touch it to avoid burning.
6.The product should be used in a dry environment.
It has no waterproof and fireproof performance,
please avoid using it in high temperature, rainy day,
dusty and other harsh environment.
7.Do not use this product near chemicals, flammable
gases,inflammables and explosives.
8.It is recommended to use the original cables or
accessories provided or sold by YONGNUO.
9.When the power cord is connected,please place it
properly to avoid tripping people or blackout,
and do not place it on the hot or damp surface.
10.Before storing the product,please turn off the
power, unplug the power cord, wait for the product
to cool down completely, and store it in a portable
bag or a dry environment.
11.Before cleaning the product, please ensure that
the power is turned off, and please use a dry soft
cloth for cleaning.
12.This product is not fall-proof, please use it
carefully to avoid falling down or getting heavy hit.
13.When high-temperature warning occurs, please
check whether the fan is faulty.
14.Please do not use the damaged power cord or the
cracked product caused by falling off.
15.Please do not disassemble the product by yourself.
In case of failure, problems shall be handled by the
company or authorized maintenance personnel .
Product specification
2700K-8000K
16.5*14*16.5CM
DC 12V 2A、Interface size,
∅5.5*2.1mm
2.4G wireless control
≤50m
≤100m
55°
Powered by one NP-F series
battery or 8 AA batteries.
(Need to be purchased separately.)
Light Source
Color temperature
version
Output power
Compatible
batteries
Bluetooth control
Average Service Life
External power
source
Product Net Size
Luminance Angle
50000H
332LED beads
24W

-12- -13-
Contents:Video light(1), Diffuser(1)，Mini Base(1)，
User Manua(1).
Check list
Note:Please contact your dealer if anything missing.
* This is an averaged result,the number might be slightly different on each light.
Photometrics
Reflector
LED
Diffuser
Power
NP-F battery
compartment lock
NP-F battery
compartment
Mini Base
Hot shoe fastening knob
DC Power
Supply Port
Bracket knob
Metal hot shoe base
AA battery
compartment lock
LCD
12345
Menu key
Confirm key
Mode key
Increase button
Power Display
Switching key
Decrease button
1: Channel Display.
2:2.4G(Switch Display).
3:Bluetooth (Connection Display).
4. Fan(Switch Display).
5.Lamp Bead Temperature Display.
Product structure
Single light
（1M）
Bi-color
temperature
version
1705lux 2130lux 2910lux
2700K 3200K 4400K 5600K
2630lux 2265lux
6500K

-14- -15-
AA battery compartment lock
AA battery compartment
AA battery compartment
(2).Install AA batteries.
Close the AA battery
cover in the direction
of the arrow
Install AA batteries in the
battery compartment.
1
2
3
Insert the AA battery
compartment according
to the direction of the arrow.
Battery cover
( ).Powered by power adapter.3
*not include
AA batteries.
Power adapter
DC12V 2A
(When taking out the battery box, press the
lock and the battery cover will automatically
pop open. At this time, tilt out the battery box.)
*not contain power adapter.
DC Power
Supply Port
2.Power Supply Mode.
(1). Installation of NP-F battery / installation of diffuser.
1
2
Installation: Install the NP-F series battery in the direction
of the arrow.
Remove: Press and hold the battery lock and reverse the
arrow to remove the battery.
安装：按箭头1方向安装柔光罩。
卸下：按箭头2方向取下柔光罩。
Installation: Install the diffuser in
the direction of arrow 1.
Remove: Remove the diffuser in the
direction of arrow 2.
Note: Install with the chamfer facing outward in
the direction of the arrow in Figure .②
①.Rotate the hot-shoe
lock knob to the top in
the direction of the arrow.
②.Push the metal hot-shoe
on the lamp foot in the
miniature stand in the
direction of the arrow.
③.Screw up the hot-
shoe lock knob in the
direction of the arrow.
Installation and use
1. Install the minibase to be placed on the table
or other flat surface for use.
1 2 3
*not contain NP-F series batteries.
NP-F battery
compartment lock

-16- -17-
Brightness
Display
Special Effects
Dispaly
Frequency
Display
CH 0
CH 255
6.Switch channels.
Press <Menu> key to enter menu mode, select
[CH] channel, press < > key, then press <+> or
<-> key to adjustto the required channel, press
< > key to finish setting, press <OK> key to
return.
7.Special effect mode.
Press the <Mode> button to enter effects mode,
press < > to switch effects, speed, brightness
options, press <+> or <-> to adjust parameters,
then press <Mode> to switch to color temperature
mode.
Press <Mode> to enter the color temperature
interface, press < > to switch the color
temperature and brightness adjustment options,
and press <+> or <-> to adjust the parameters.
5.4 professional light adjustment curve models.
Color Temperature
Display
Brightness Display
4.Color temperature and brightness adjustment.
━：ON
：OFF○
3.Power ON or OFF.
Press <Menu> to enter the menu setting, press <+>
to blink, press < > to stop blinking, press <+>
or <-> to adjust the curve model, press <OK> to
return.
Exponential
Logarithmic
S-shaped
Linear

9.Use via mobile APP and remote control for
wireless control.
1) .Press the <Menu> key to enter the menu mode,
select the Bluetooth < > icon, and press the
button < >to turn on Bluetooth; At this time,
please open the mobile APP to connect the
light automatically to achieve wireless control.
2).2.4G wireless control mode can be selected to
turn on or off.
3).The APP can be downloaded from the
YONGNUO official website or scanning the QR
code on the gift box.
2.4G2.4G
The functions in this manual are based on the test
conditions our company.Further notice will not be
given if the design and specifications change.
Bluetooth
OFF Bluetooth ON 2.4G OFF 2.4G ON
On：The power is 24W when the fan is on.
OFF：The power is reduced to 10Watts when the fan is off.
Simulated
lightning
Film screen
reflection Paparazzi
Strobe
The bad
light bulb
Sunrise
Yellow
breathing
light
Temperature
cycle
SOS White
breathing
light
The explosion Fireworks
8.Fans Switch Setting.
Press <Menu> to enter the menu setting, select
the fan icon, press < > to select the switch, then
press <OK> to return.
