York YKFE12BXEXBH-RX Installation instructions

0150518127 D
Read this manual before installation and operation
Make sure that it is well kept for later reference
YKFE12BXEXBH-RX YKFE(18-36)BXEXBH-RX
YKFE(36-55)BXOXBH-RX
YKFE(12-36)BYEXBHO-X
YKFE36BYOXBHO-X
YKFE48BYOXBHS-X
YKFE55BYOXBHS-X
SINSTALLATION AND OWNER' ANUAL
M

Contents Pages
Important Safety Information 1
Safety Awareness 2
Air Conditioner Operation Conditions 3
Remote Control Operation 3
Remote Controller 4
Key Functions 5
Installation Notice 6
Installation Place 7
General Installation Guideline 8
Preparation of Installing Parts and Tools 9
Installation Procedure 10
Piping Procedure 13
Installation of the Outdoor Unit 16
Install Outdoor Pipes and Cables 18
Connection of Outdoor Pipesand Cables 19
Electrical Wiring 20
Purge and Vacuum 21
Test Operation 22
Troubleshooting 23

1

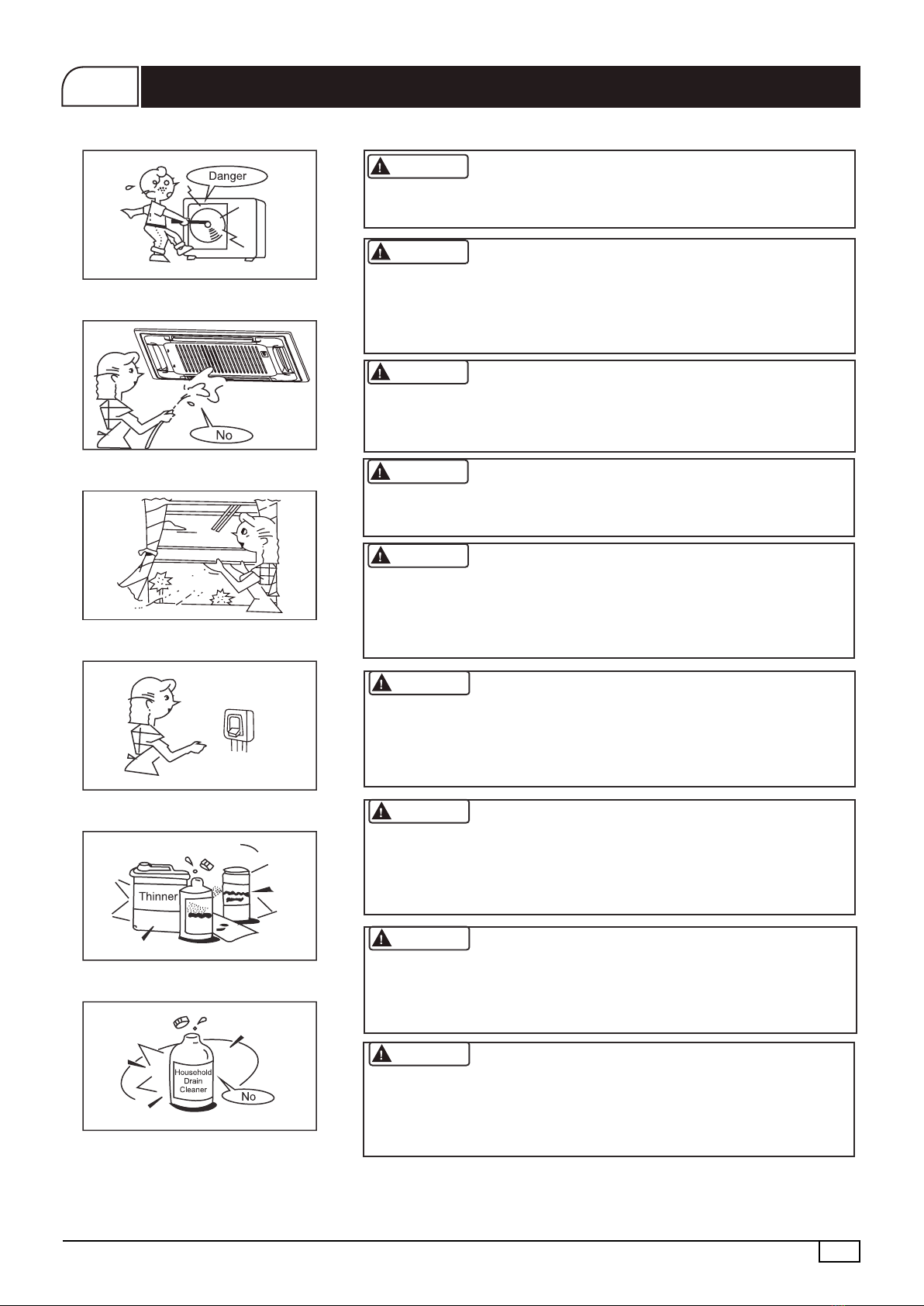

Important Safety Information
CAUTION
CAUTION
DANGER
DANGER
DANGER
WARNING
WARNING
WARNING
NOTE
Do not attempt to install this unit by yourself. This unit requires
installation by qualied persons
Do not attempt to service the unit yourself. This unit has no user
serviceable components. Opening or removing the cover will expose
you to dangerous voltage. Tuning off the power supply will not
prevent potential electric shock.
Never put hands or objects into the Air Outlet of indoor or outdoor
unites. These units are installed with a fan running at high speed.
To touch the moving fan will cause serious injury.
To avoid the risk of serious electrical shock, Never sprinkle or spill
water or liquid on unit.
Ventilate the room regularly while the air conditioner is in use,
especially if there is also a gas appliance in use in this room, Failure
to follow these directions may result in a loss of oxygen in the room.
To prevent electric shock, turn off the power or disconnect the
power supply plug before beginning any cleaning or other routine
maintenance. Follow the directions for cleaning in the Owner's
Manual.
Do not use liquid cleaners or aerosol cleaners, use a soft and dry
cloth for cleaning the unit. To avoid electric shock, never attempt to
clean the units by sprinkling water.
Do not use caustic household drain cleaners in the unit. Drain
cleaners can quickly destroy the unit components (drain pan and heat
exchanger coil, etc).
For proper performance, operate the unit in temperature and humidity
ranges indicated in this owner's manual. If the unit is operated beyond
these conditions, it may cause malfunctions of the unit or dew dripping
from the unit.

2
Important!
Please read before starting
The air conditioning system meets strict safety and operating and operating standards. As the installer or service
person, it is an important part of your job to install or service the system so it operates safely and efciently.
For safe installation and trouble-free operation, you must:
□Read this instruction booklet carefully before beginning.
□Follow each instruction or repair step exactly as shown.
□Observe all local, state, and national electrical codes.
□Pay close attention to all danger, warning and caution notices given in this manual.
Symbols alert
Electrical
Safety/Alert
If necessary, get help
These instructions are all you need for most installation sites and maintenance conditions. If you require help for a
special problem, contact our sales/service outline or your certied dealer for additional instructions.
In case of improper installation
The manufacturer shall in no way be responsible for improper installation or maintenance service, including failure
to follow the instructions in the document.
Electrical shock can cause severe personal injury or death. Only a qualied, experienced electrician
should attempt to wire this system.
□Do not supply power to the unit until all wiring and tubing are completed or reconnected and checked.
□Highly dangerous electrical voltages are used in this system. Carefully refer to the wiring diagram and these
instructions when wiring. Improper connections and inadequate grounding can cause accidental injury or death.
□Ground the unit following electrical cades.
□ Connect all wiring tightly. Loose wiring may cause overheating at connection points and a possible re hazard.
□This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
□Plug used should be in accordance with the electrical regulation/wiring rules of the country where the unit is
installed and should comply with IEC 60083 and/or with plug conguration being adapted by countries where the
appliance is put into operation.
□ A disconnection provision from the supply mains must be incorporated in the xed wiring.
SPECIAL PRECAUTIONS WHEN WIRING

3
For proper performance, run the air conditioner under the following temperature conditions:
Cooling operation
Outdoor temperature: 18 to 43°C
Room temperature: 16 to 30°C
CAUTION
Room relative humidity less than 80%. If the air conditioner operates in excess of this
gure, the surface of the air conditioner may attract condensation.
Dry operation Outdoor temperature: 18 to 43°C
Room temperature: 16 to 30°C
If air conditioner is used beyond the above conditions, safety protection features may come into operation.
PRECAUTIONS
■Curtain, door or the like objects will prevent the remote signal from being received by air conditioner.
■Do not get the interior of remote controller wet. It is forbidden to expose to direct sunlight or locate it in the
place with high temp.
■Malfunction may occur if infrared signal receiver on air conditioner is exposed to sunlight, please shelter the
signal receiver from sunlight with curtain.
■Please remove the nearby electronic device for they may affect the performance of remote controller. If
necessary, contact the local authorized service centre or technical support centre.
■Do not put the used or different batteries into the remote controller, otherwise remote controller will fail to
send signal.
■Please remove the batteries before long period unused, otherwise the remote controller may be damaged.
■If display disappeared while pressing the button of remote controller which indicates low battery, please
replace the batteries.
■ If no receiving sound is heard from indoor unit or remote controller does not flash, please replace the
batteries.
■Effective transmitting distance of remote controller is 7m, please aim the signal sending part to the receiver
on air conditioner.

4
Remote Controller
Appearance and LCD Screen Display
Dry mode
Cool mode
Auto mode
Health model-Ionizer
Sleep mode
Louver selection
(YCK3F10/15/18AAS-W not available)
Louver indicator
Fan speed
Timer
Turbo mode
Fan mode
Quiet mode
Code
Keypad Lock
Function not available
Temperature indicator
Clock
ON/OFF button
TEMPERATURE +/-
FAN SPEED button
SWING
HEALTH button
SWING button
SLEEP button
SET button
TIME +/-
RESET button
CODE button
CLOCK button
LOCK button
TIMER button
LIGHT button
HEALTH AIRFLOW
OPERATION MODE
LOUVER SELECTION button
TURBO/QUIET button
Mode is sequentially changed
AUTO→ COOL→ DRY→ FAN
Sequentially changed All→ 1
→2 → 3 → 4
Functioning appears in lower angle
TURBO provides a quicker cooling
QUIET reduces airflow noise in cool
mode
Set the actual time (hour and
minute)
Pre-set the on/off time
Indicate on/off light for LCD
panel display
(YCK3F10/15/18AAS-W not available)
Lock the keypad
Temperature is set within
the range of 16-30°C
Fan speed is sequentially
changed
Low Medium High Auto
Start or stop the swing louver
Active Ionizer
Not available
Intelligent mode to ensure
constant and comfort sleep
Conrmation
Adjust clock and timer
Recover to the default setting
Not available

5
Low Medium High Auto
Key Functions
Indicator
1
24
3
1
2
43
5
1. Auto Mode:
Press the MODE button when indicates.
The mode of operation, COOL or FAN, will be
automatically determined by room temperature.
2. Cool Mode:
The air conditioner is designed for cooling when
ambient temperature is 18-43°C.
Press the MODE button when indicates.
Set the desired temperature with the TEMP+/-.
AUTO FAN SPEED is automatically determined
HIGH, MEDIUM or LOW speed according to the
difference between room and pre-set temperature.
3. FAN SPEED Mode:
(1) In modes other than Fan, the air speed can be
adjusted in order: Low, Medium, High and Auto.
(2) In FAN mode, the "Auto" is disabled.
4. Dry Mode:
Press the MODE button when indicates. The Fan
speed is pre-set at auto speed.
5. Louver Selection:
(2) When you rstly press , the icons of four air
deflectors simultaneously flash. Press the button
again to switch the display of air deflector icon.
Circulation mode of the four icons: All→1→2→3→4.
(3) When selected louver , flashes,press swing
to adjust the angle of the louver. The icon will stop
flashing in ve seconds, the setting is conrmed.
(4) Angle of up-down swing.
6. TURBO/QUIET
(1) Press "TURBO/QUIET", the LCD displays
TURBO Mode is set.
Press "TURBO/QUIET" again, the controller LCD
displays the Quiet Mode is set. Press"TURBO/
QUIET" again to exit the setting of TURBO/QUIET.
Resume set air speed.
(2) This function is only enabled in Cool mode.
7. TIMER
Timer
Timer On
Press TIMER, the ON blinking.
Press TIME+/TIME- to
select the desirable time.
Press SET to conrm.
Timer Off
Press TIMER, the OFF blinking.
PressTIME+/TIME- to
select the desirable time.
Press SET to conrm.
Timer
On → Off
On ← Off
Intelligent TIMER for setting both
ON-OFF times at one time.
Press TIMER, the ON blinking.
Press TIME+/TIME- to
select the desirable start time.
Press TIMER, the ON blinking.
Press TIME+/TIME- to
select the desirable stop time.
Press SET to conrm.
EXIT Press TIMER button again to
cancel timer setting and exit.
8. High rise Mode
(When the indoor unit installation is with high
ceiling)
To enable High Rise option, set temperature at
30°C under Cooling at high Fan speed, then press
the Sleep button 5 times within 2 seconds. The
High Rise mode is enabled. Temperature and fan
speed can now be adjusted back to desired setting.
To cancel the High Rise mode, set temperature
at 30°C under Cooling at High Fan Speed, press
Sleep button 5 times within 2 seconds. The High
Rise mode is cancelled.

6
Installation Notice
Location:
● During cooling operation, the air conditioner will dry the room air, so please x a pipe to drain all the water away
from the air conditioner.
●Please let the indoor unit more than one meter away from the TV set and the radio in order to avoid the picture
and noise interference.
●Powerful radio transmitters or any other devices radiating high frequency radio waves can cause the air
conditioner to malfunction. Please consult the dealer where you purchased the air conditioner before installing it.
● Don't x the unit in the dangerous region with combustible gas or volatile matter.
● If the air conditioner operates in an atmosphere containing oils (machine oil), salt (near a coastal area), sulde
gas (near a hot spring), etc., such substances may lead to failure of the air conditioner.
Be careful of noise or vibrations
● Please x the unit in the stable place to avoid the noise or vibrations.
●The noise near the air outlet of the outdoor unit may enter the air exit.
●Locate the outdoor unit where noise emitted by it or hot air from its air outlet will not cause nuisance to your
neighbours.
●If the air conditioner sounds abnormal during operation, contact the dealer where you purchased the air
conditioner.
Wire
●To avoid the electric shock, please link the air conditioner with the ground. The plug in the air conditioner has
joined the ground wiring, please don't simply change it.
● The power socket is used as the air conditioner specically.
●Don't pull the power wiring hard.
●When linking the air conditioner with the ground, observe the local rules.
●If necessary use the power fuse or the circuit, breaker or the corresponding scale ampere.
●If you want to change the power wiring, please contact the centre service of the local MD electric appliance.
Relocation
If you move out or if it is desired to relocate the air conditioner, consult your dealer, because special skills to
withdraw refrigerant, purge air and perform other operations are required.

7
■The Indoor Unit
To make sure
●There is enough room for installation and maintenance (Refer to Fig.1 and Fig.2 ).
● The ceiling is horizontal, and its structure can endure the weight of the indoor unit.
● The air outlet and the air inlet are not impeded, and the influence of external air is the least.
● The air flow can reach throughout the room.
●The connecting pipe and drainpipe could be extracted out easily.
●There is no direct radiation from heaters.
Model H
YCK3F (10-18) AAS-W 150
YCK3F (20-60) AAS-W 108

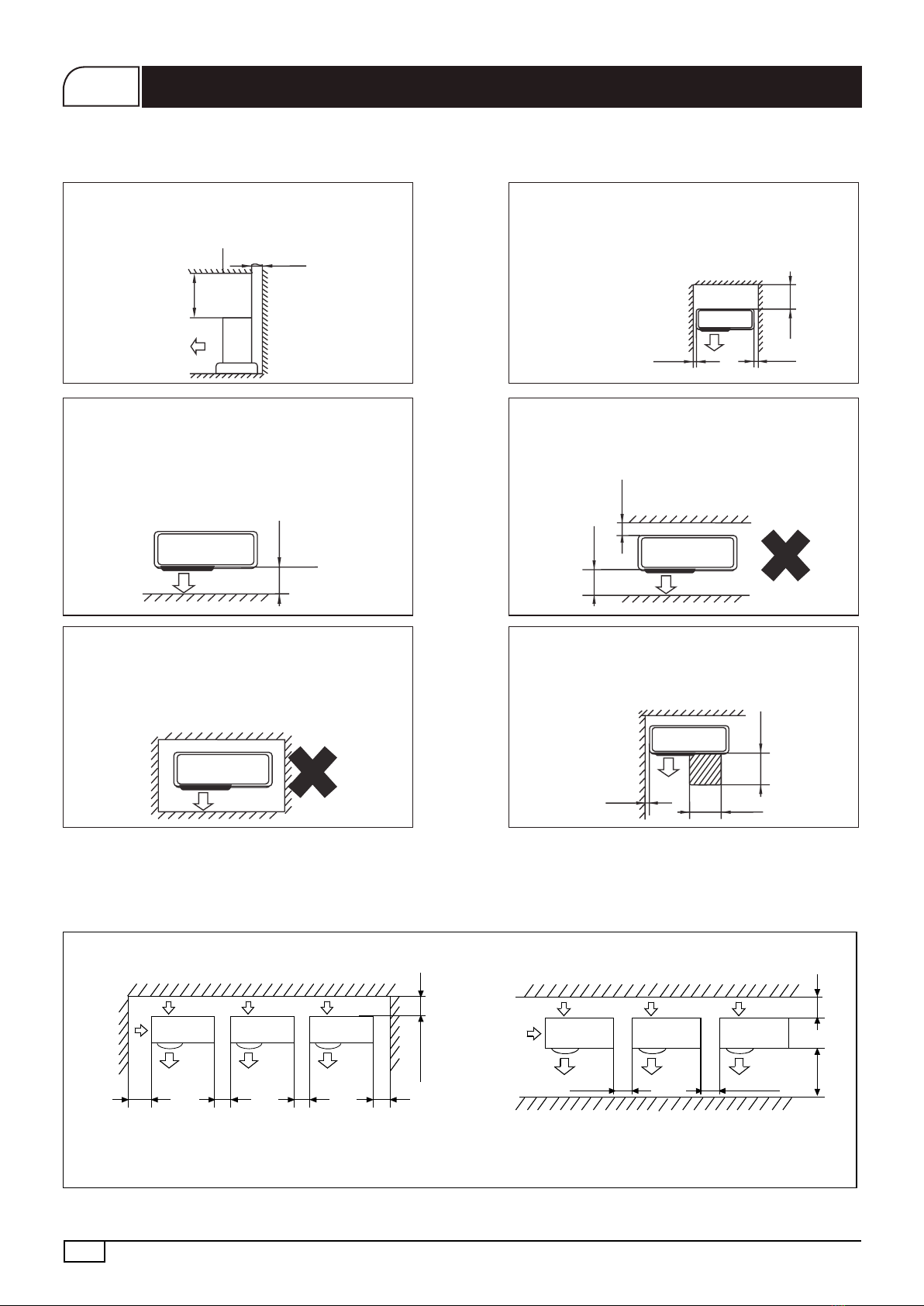

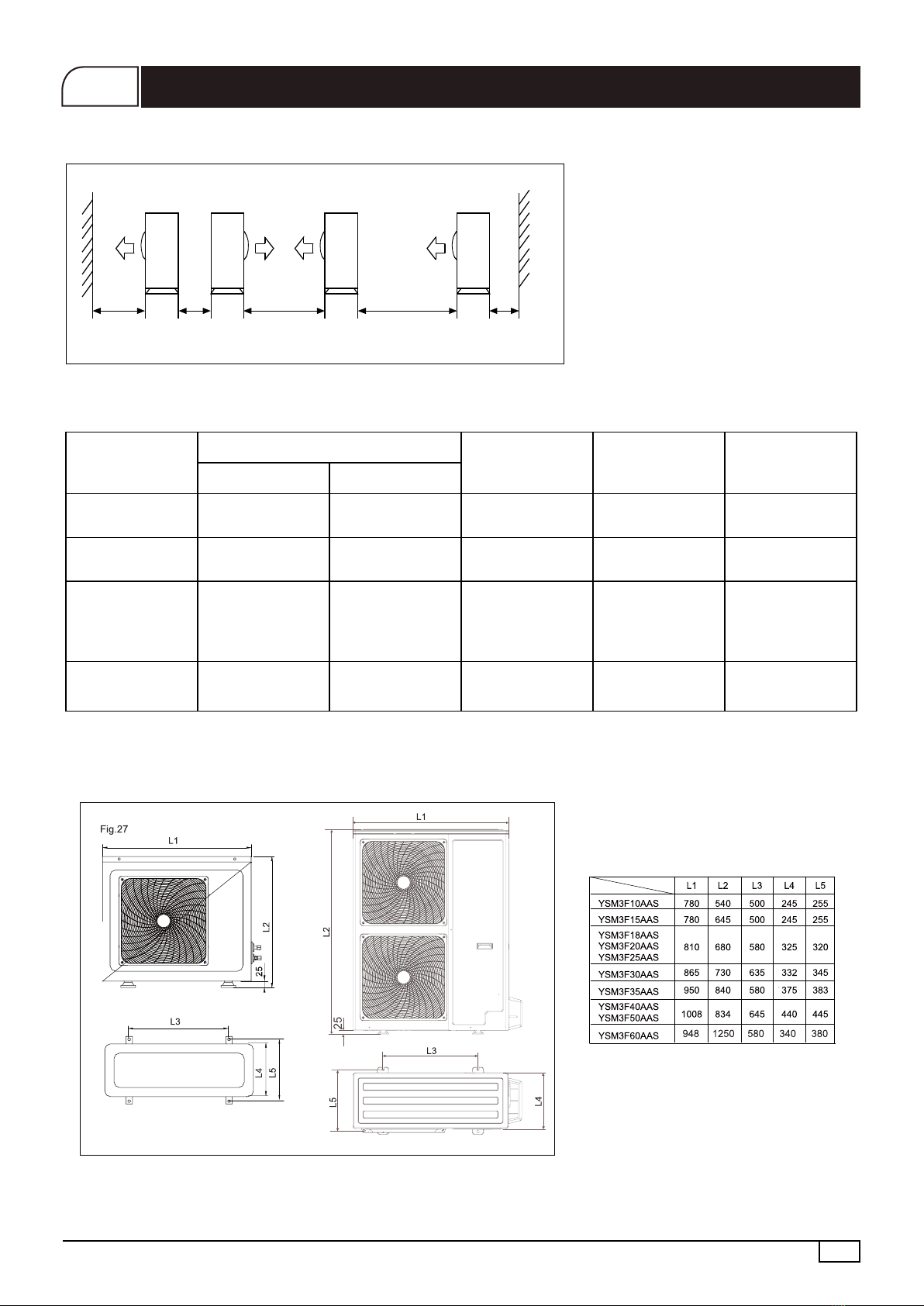

■The Outdoor Unit
To make sure
●There is enough room for installation and maintenance.
●The air outlet and the air inlet are not impeded, and can not be reached by strong wind.
●The place is dry and ventilative.
● The support is flat and horizontal and can stand the weight of the outdoor unit. And no additional noise or
vibration.
●Your neighborhood will not feel uncomfortable with the noise or expelled air.
●There is no leakage of combustible gas.
●It is easy to install the connecting pipe or cables.
● When 2 or more outdoor units are installed at the same zone, there must be adequate space between units for
avoiding short air cycle.
!Cautions
Location in the following places may cause malfunction of the machine.
(If unavoidable, please consult your local dealer.)
a. There exists petrolatum.
b. There is salty air surrounding (near the coast).
c. There is caustic gas (the sulde, for example) existing in the air (near a hot spring).
d. The bolt vibrates violently (in the factories).
e. In buses or cabinets.
f. In kitchen where it is full of oily gas.
g. There is strong electromagnetic wave existing.
h. There are inflammable materials or gas.
i. There is acid or alkaline liquid evaporating.
j Other special conditions.
■Notes Before Installation
1. Select the correct carry-in path.
2. Move this unit as originally packaged as possible.
3. If the air conditioner is installed on a metal part of the building, it must be electrically insulated according
to the relevant standards to electrical appliances.

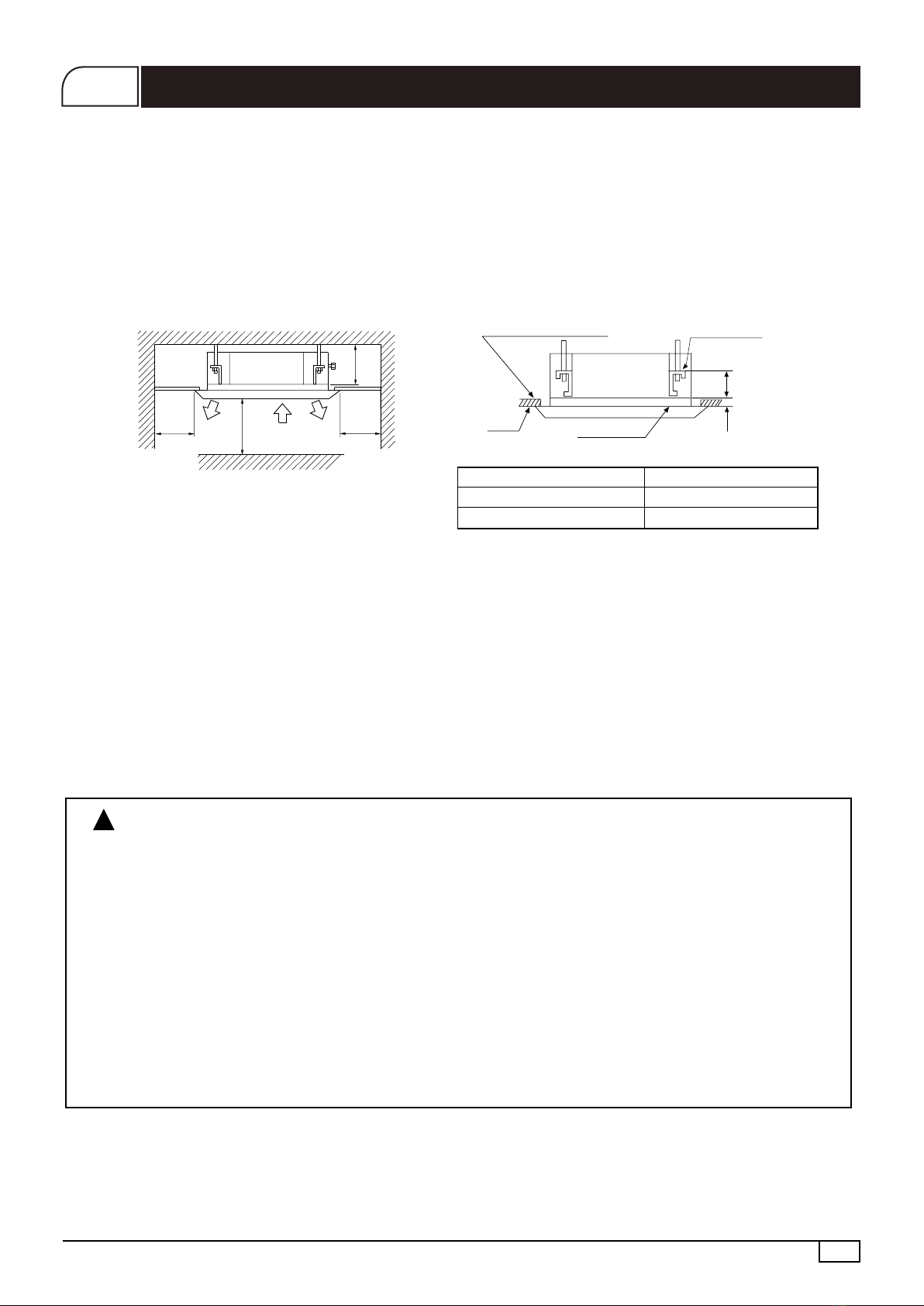

Installation Place
Fig. 1
Fig. 2
(unit: mm)
Installation space(unit: mm)
1500 Over
2500~3000
1500 Over
Air outlet
Air outlet
Air inlet
320
Overlap between ceiling and
ornament panel shall be 25mm
Ceiling
Suspending bolts
Ornament panel
H30

8
No. Installation works Descriptions
1Preparation of tools and
installation parts Preparation of installation
2 Flaring the pipes To insert the flare nuts, mounted on the connection parts of both indoor
and outdoor unit, onto the copper pipes
3 Pipe bending
4Connection of installation parts
(elbows, socket etc) Connection of long piping
5Tighten the flare nut (outdoor) Connecting the pipings of the outdoor unit
6 Blowing the pipings To remove dust and scale in working
7Tighten the flare nut (indoor) Connecting the pipings of the indoor unit
8 Check a gas-leakage of the
connecting part of the pipings
9 Air purging and vacuuming of the
piping and indoor unit
The air which contains moisture and which remains in the refrigeration
cycle may cause a malfunction on the compressor
10 Open the liquid side and gas side
valves
11 Form the pipings To prevent heat loss and sweat
12 Checking the drainage (indoor
unit) To ensure if water flow drain hose of indoor unit
13 Connecting the cable between
outdoor and indoor unit
Preparation for operation
14 Connecting the main cable to
indoor unit
15
Cooling operation (Use the remote
control or display of the indoor
unit)

9
Preparation of Installing Parts and Tools
No. Installation parts,Tools Use
1Flaring tool (Φ6,35-Φ19,05) Flaring the pipes
2 Reamer Remove burrs from cut edges of pipes
3 Pipe cutter (MAX 35mm Copper pipe) Cutting the pipings
4Allen Key
(H5-1/4", 1/2", 5/8" & H8-3/4") To open the service valve
5 Pipe bender Bending the pipings
6 Leak detector Check a gas-leakage of connecting part of the pipings
7 Manifold gauge To measure the pressure, to charge the refrigerant
8 Charge nipple To connect the refrigerant vessel
9 Vacuum pump To remove the air in the pipe
10 Charge cylinder balance To measure the refrigerant amount
11 Refrigerant vessel
(Refrigerant R22 or R410A)
Gas charge
Air purge
Cleaning the pipe
12 Spanner
To tighten the connecting parts of the pipings
13 Monkey spanner
14 Driver ( , )
15 Pliers (150mm) Cutting the wires
16 Tapeline To measure the length
17 Core drill To make holes through the concrete wall and blocks
18 Voltmeter, Ammeter, Clamp meter To measure the current and voltage
19 Insulation resistance tester To measure the insulation resistance
20 Glass thermometer To measure the intake and outlet air temperature of the indoor unit.
21 Copper tubes To use the connecting pipings
22 Insulation material To cover the connecting pipings
23 Tape To nish the connecting pipings
24 Electrical leakage breaker To shut off the main power
25 Cable To connect the cable from outdoor unit to indoor unit
26 Drain hose sockets, elbows To remove the condensing water

10
mm
WARNING
□ Install the air conditioner in a location which can withstand a load at least ve times the weight of air conditioner
and which will not amplify sound or vibration. If the installation location is not strong enough, the indoor unit may
fall and cause injuries.
□If the job is done with the panel frame only, there is risk that the unit will come loose. Please take care.

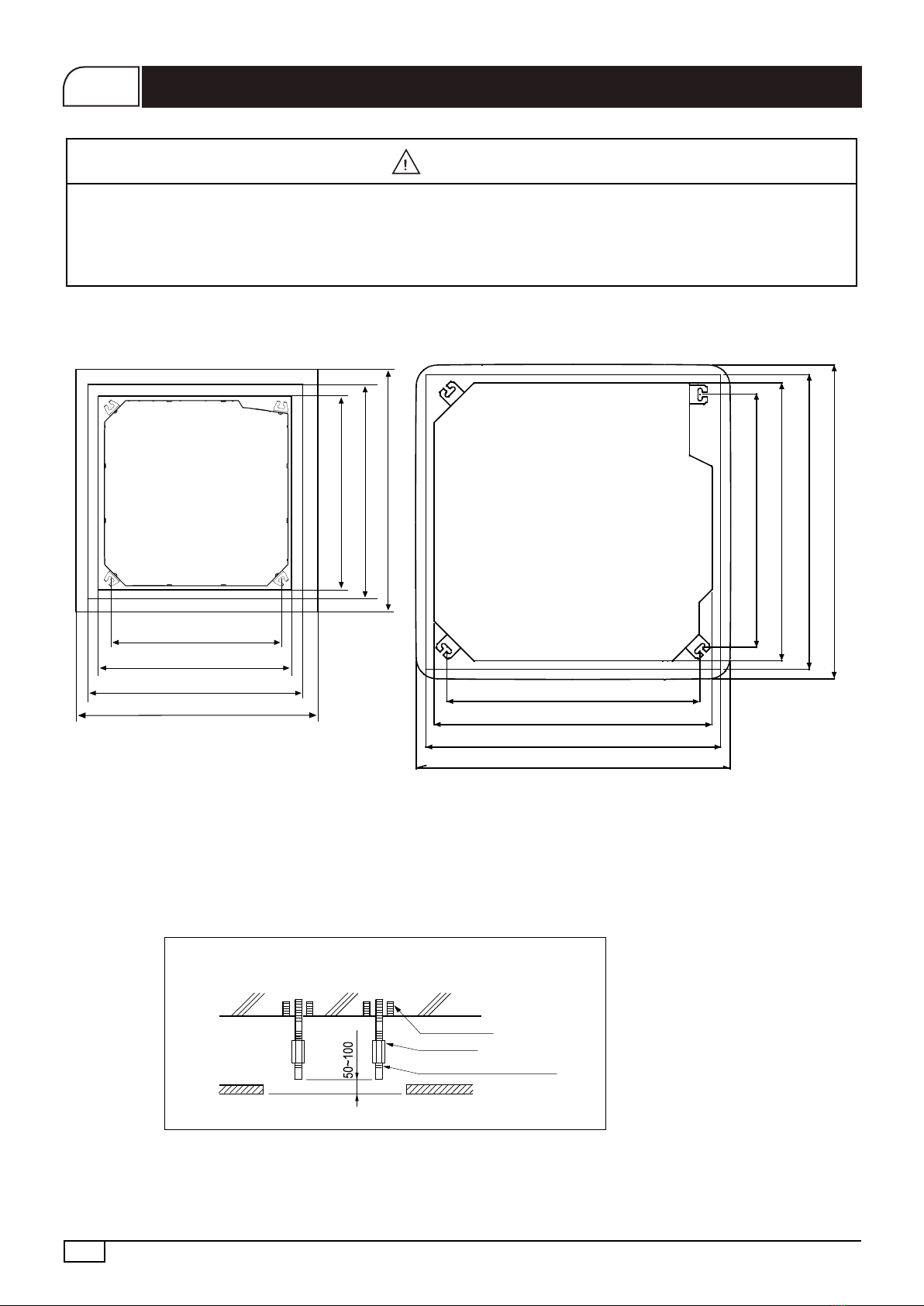

1. Position the ceiling hole and hanging bolts (unit: mm)
535 (Spacing of hanging screw)
570 (Indoor unit)
570 (Indoor unit)
650 (Ceiling opening)
650 (Ceiling opening)
700 (Trim panel)
700 (Trim panel)
YCK3F (10-18) AAS-W
765 (Spacing of hanging screw)
765 (Spacing of hanging screw)
850 (Indoor unit)
850 (Indoor unit)
890 (Ceiling opening)
890 (Ceiling opening)
950 (Trim panel)
950 (Trim panel)
YCK3F (20-60)AAS-W
2. Hanging preparations
□Firmly fasten the hanging bolts (Refer to Fig. 3)
□Install the hanging bolts at a place where they would be capable of holding a weight of at least 50kgf per bolt.
Roof
Installation example
Anchor bolt
Long nut
Suspending bolt (M10)
Ceiling
Installation Procedure
Fig. 3

11
After installing the body
tighten the nuts.
Ceiling
Special nut B
Hanging bolt
Special nut A
30mm(1-3/16°) or
more
3. Body Installation
1) Install nut A, then nut B onto the hanging bolt.
2) Raise the body and mount its hooks onto the hanging bolt between the special nuts.
3) Turn nut B to adjust the height of body.
4) Leveling using a level to ne adjust the body for proper positioning.
Hook
Fig. 4
4. Panel Installation
1) Connect plugs of water pump and swing motor.
2) Fix panel with screws.
Refrigerant pipe
Indoor unit
Drain pipe
Housing
2×U-shaped
hooks
Trim panel
4×Bolts (M5*25)
(including gaskets)
Fig. 5
Installation Procedure

12
1.5 to 2.0m (5 to 6.5 ft)
5. Fix the Intake Grille and Panel
1) Slide the intake grille push buttons (two places).
2) Close the intake grille.
General precautions:
a) The inlet and outlet ports should not be obstructed; the air should be able to blow all over the room.
b) Leave the space required to service the air conditioner.
c) Install the unit where noise and vibrations are not amplied.
d) The panel will not be xed when its direction is wrong.
6. Installing Drain Pipe
CAUTION
Install the drain pipe in accordance with the instructions in this sheet and keep the
area warm enough to prevent condensation. Problems with the piping may lead to
water leaks and serious interior damage.
Note: Install the drain pipe.
□Install the drain pipe with downgrade gradient (1/50 to 1/100) and so there are no rises or traps in the pipe.
□ The bending angle of the drain pipe in the plastic bag should not exceed 45°, glue cannot flow into the pipe.
□Use general hard polyvinyl chloride pipe and connect it with adhesive so that there is no water leakage.
□Tighten the pipe with clamp as picture.
□when the pipe is long, support them with hangers.
□Always insulate the drain pipe till it leaves the indoor section.
Supporter
Rise
Trap
150mm (6”) or less
Max. 700mm (24 1/2”)
Air bleeding
Clamp
Tape (White) Self-provided stiff pipe
7. Drainage test
●Check whether the drain pipe is unhindered.
●New built house should have this test done before paving the ceiling.
Installation Procedure
Fig. 6 Fig. 7
Fig. 8

13

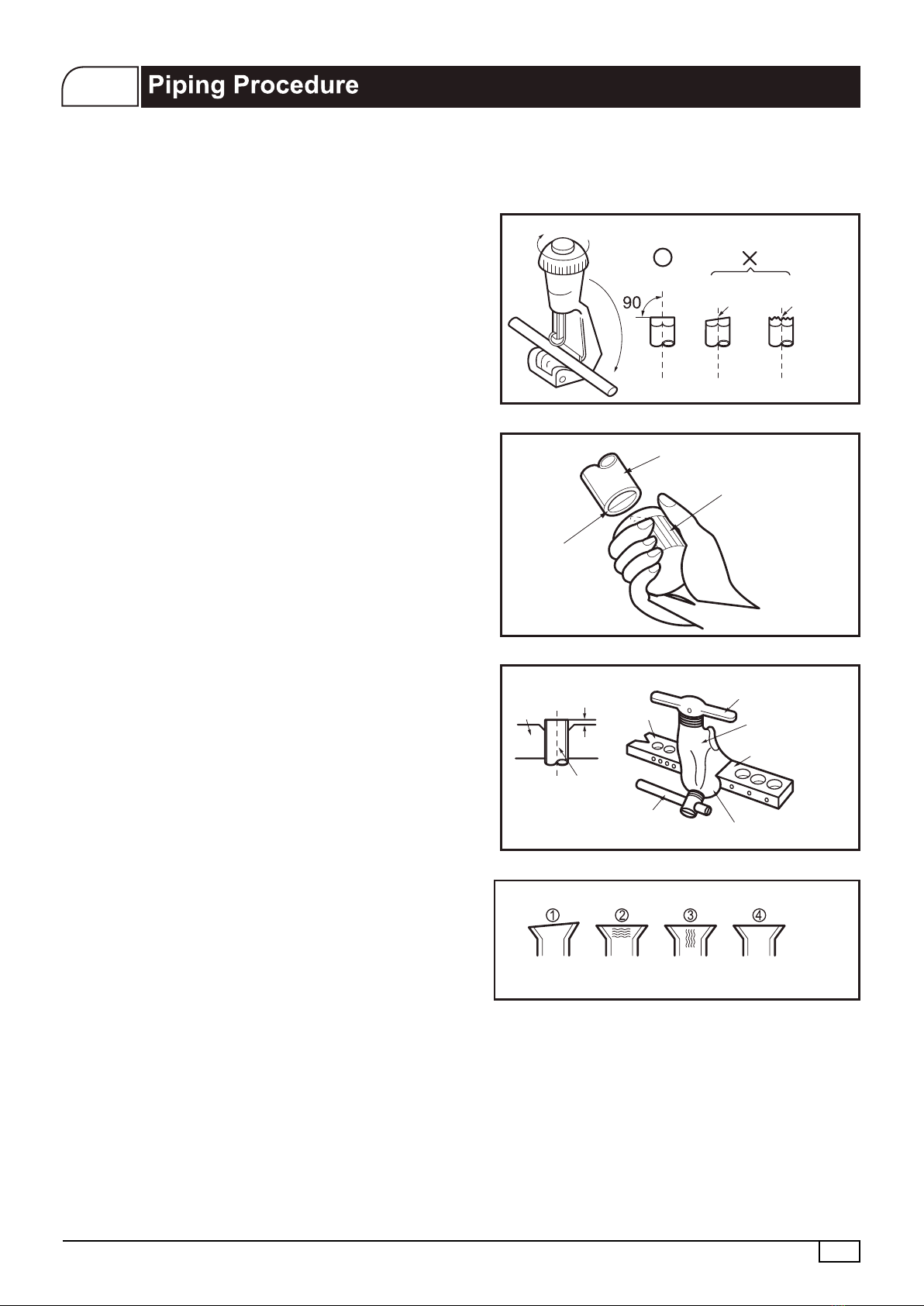

1. Preparation of piping
1) Cut the pipes and the cable
□Use the accessory piping kit or the pipes purchased
locally, conforming to refrigeration grade.
□Measure the distance between the indoor and the
outdoor unit.
□Cut the pipes a little longer than measured distance.
□Cut the cable 1.5m longer than the pipe length.
2) Remove burrs
□Remove burrs from cut edges of pipes.
□Turn the pipe end down to avoid the metal powder
entering the pipe.
Caution:
If burrs are not removed, they may cause a gas leakage.
3) Flaring the pipes
□ Insert the flare nuts, mounted on the connection ports
of both indoor and outdoor unit, onto the copper pipes.
Some refrigerant gas may leak, when the flare nuts are
removed from the indoor unit, as some gas is charged
to prevent the inside of the pipe from rusting.
□ Fit the copper pipe end into the Bar of flare tool about
0~0.5mm higher. (See illustration)
□Flare the pipe ends.
4) Tape the flaring part to protect it from
dust or damages.
Pipe cutter
Slanted Rough
Pipe
Reamer
Point down
Fig. 10
Fig. 11
Fig. 9
Bar
0~0.5mm
Copper pipe
Bar
Handle
Yoke
Cone
Clamp handle Red arrow mark
= Improper flaring =
Uneven
thickness
CrackedSurface
damage
Inclined
Fig. 12

14
Piping Procedure
2. From the piping
Wrap the connecting port of indoor unit with the
insulation material and secure it with two Plastic
Bands (for the right Piping).
□If you connect an additional drain hose, the end of
the drain-outlet should be water, and x it on the
wall to avoid swinging in the wind.
Tape the Piping, and Connecting Cable from down
to up.
From the Piping gathered by taping along the
exterior wall x it on the wall by saddle or
equivalent.
Tape the Piping, and Connecting Cable from down
to up.
In order to prevent water from entering the room,
tape the piping from a trap.
Fix the piping onto the wall with saddle or bracket.
In case the ourdoor unit is installed below position
of the indoor unit
In case the ourdoor unit is installed upper position
of the indoor unit
1)
1)
2)
2)
3)
3)
Gas side
pipiing
Main cable
Connection
cable
Liquid side
piping
Trap is required to prevent the electrical parts
from enteroing the water.
Seal a small opening around the
piping with gum type sealer.
Trap
Trap
Fig. 14
Fig. 13

15
Piping Procedure
3. Connection of piping
Move the indoor tubing and drain hose to the hole.
□Remove tubing holder and pull the tubing out of the chassis.
Replace the tubing holder into original position.
Route the tubing and the drain hose straight backwards.
Insert the xonnecting cable into the indoor unit through the hole.
□Do not connecting the cable to the indoor unit.
□Make a small loop with the cable for easy connection later.
Tape the tubing and the connecting cable.
Indoor unit installation.
Connecting the pipings to the indoor unit.
□ Align the center of the pipings and sufciently tighten the flare nut
with ngers.
Finally, tighten the flare nut with torque wrench until the wrench
clicks.
□ When tightening the flare nut with torque wrench, ensure the
direction for tightening follows the arrow on the wrench.
Pipe
size Tighten torque A (mm) Flare shape
ø6.35 1420~1720N.cm
(144~176kgf.cm) 8.3~8.7
R0.4~0.8
90°±0.5°
A
45°±2°
ø9.52 3270~3990N.cm
(333~407kgf.cm) 12.0~12.4
ø12.7 4950~6030N.cm
(490~500kgf.cm) 12.4~16.6
ø15.88 6180~7540N.cm
(630~770kgf.cm) 18.6~19.0
ø19.05 9720~11860N.cm
(990~1210kgf.cm) 22.9~23.3
If it is necessary (locally purchased) to bend or stretch the
tubing, use the spring which is attached to the tubing instead of
pipe bender.
□Please make a careful notice to make a smooth line.
□Hold the tubing with your two hands closely and then bend or
stretch it slowly not to make any crack.
□Remember that the radius (R) should exceed 70mm. (Refer to
Fig.16)
Do not repeat the bending process to prevent the tubing from
cracking or crushing.
Keep in mind that the bending part should not be cracked and
make the radius (R) as long as possible. (Refer to Fig.17)
Indoor unit tubing
Torque wrenchSpanner
Spanner
R70mm
Fig. 15
Fig. 16
Fig. 17
Flare nut Pipings
1)
2)
3)
4)
5)
6)
7)
1)
2)
3)
4. Precautions in bending

16
Above 150mm
Above 500mm
Above 500mm
Above 200mm
Above 300mm
Above 150mm
Above 300mm
Above 150mm
Above 150mm Above 500mm
Above 300mm
Fig. 18
Above 150mm
Above 300mm
Back and side
Height of bariers is below that of outdoor unit.
Above 300mm
Above 300mm
Above 200mm
Above 300mm Above 300mm
Fig. 19
3. If there is obstruction at front side and obstruction
is lower than unit,the backside,top side and flank
sides shall be kept open.
5. When there is obstruction in all four directions
Even if the top side is open,the unit can not be
installed there.
2. When the front side (air outlet) is open and
obstruction is lower than unit, if we can keep the
space as shown in the gure, this position is still
feasible even if there is obstruction in other three
sides. (The top side is open.)
4. When there is obstruction at both front side
and backside, plaese don't choose the following
location.
6. While installing the outdoor unit,enough
maintenance space shall be prepared,as shown in
the following gure.
1. Single unit mounting
2. Multi-unit installation (unit: mm)
Installation of the Outdoor Unit
1. When there is obstruction above the unit ,if we
can keep the space as shown in the gure,this
position is still feasible.

17
Fig. 20
Standard
Above 2000mmAbove 1500mmAbove 1000mm
Above 300mm Above 200mm
Fig. 21
The top and two side surfaces must be
exposed to open space, and barriers on
at least one side of the front and back
shall be lower than the outdoor unit.
3. Multi-unit installation in front and back (unit: mm)
4. Connection pipe requirement
5. Installation sketch of outdoor unit (unit: mm)
Model
Diameter
Maximum length
Maximum height
(between indoor and
outdoor)
Additional weight
Liquid side Gas side
YSM3F10AAS
YSM3F15AAS 6.35mm 12.7mm 20m 5m 30g/m
YSM3F18AAS
YSM3F20AAS 6.35mm 15.88mm 20m 5m 30g/m
YSM3F22AAS
YSM3F25AAS
YSM3F28AAS
YSM3F30AAS
YSM3F35AAS
9.52mm 15.88mm 30m 10m 50g/m
YSM3F40AAS
YSM3F50AAS
YSM3F60AAS
9.52mm 19.05mm 50m 20m 50g/m
When connecting pipes are longer than 5 meter, it is needed to charge additional refrigrant as table1.
Installation of the Outdoor Unit
Table 1
The min. length of connecting pipe is 3 meter.
