York YOCA-YOHA 12 User manual

Convertible Console
YOCA-YOHA 12 to 60
SERVICE MANUAL
YOCA-YOHA 12 · YOCA-YOHA 18 · YOCA-YOHA 24
YOCA-YOHA 36 · YOCA-YOHA 48 · YOCA-YOHA 60
SM-YOCA-YOHA-12-60GB 05-08

Ceiling & Floor Type
1. Features
2. Specification

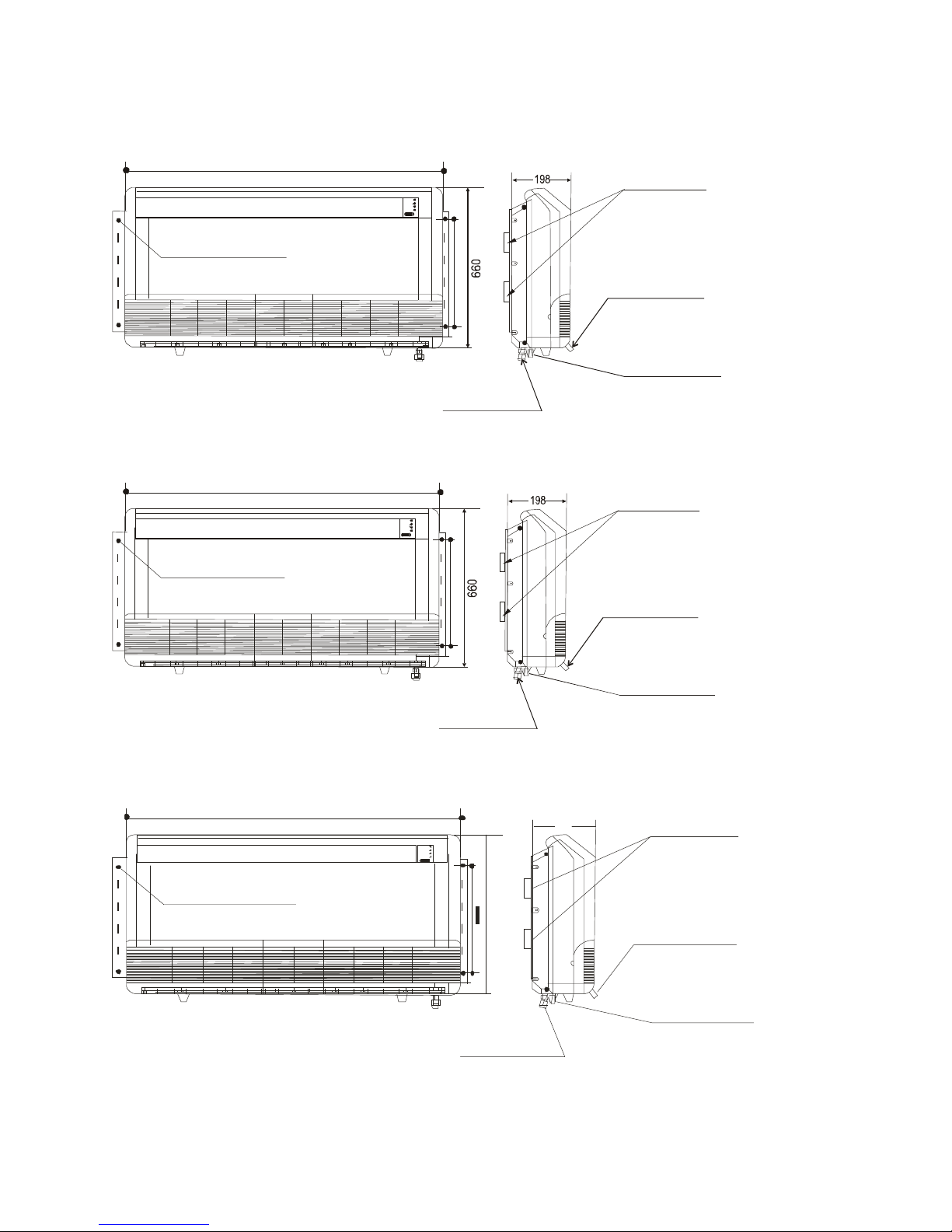

3. Dimensions
4. Piping Diagrams

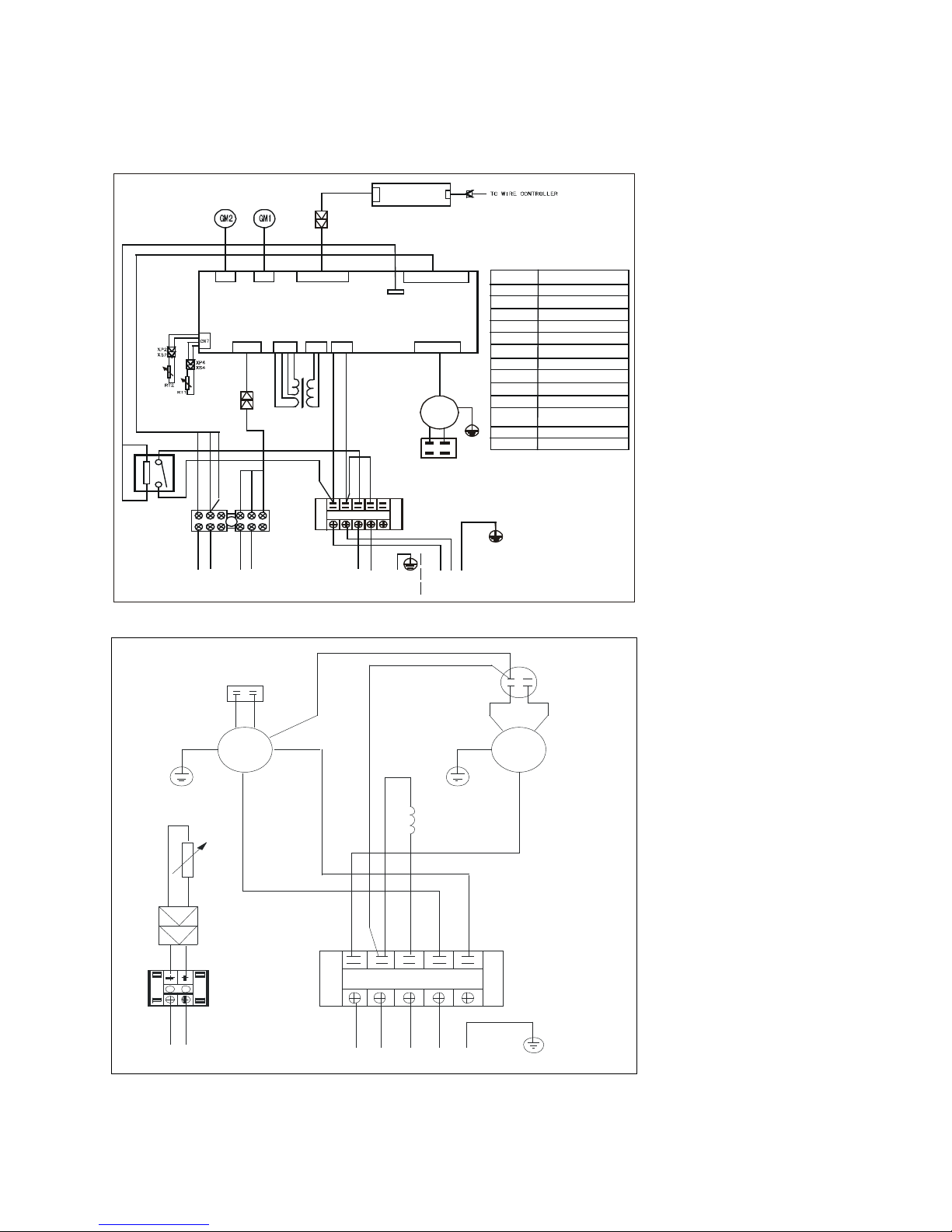

5. Wiring Diagrams
6. Capacity Tables
7. Air Velocity and Temperature Distributions (Reference Data)
8. Electric Characteristics
9. Sound Levels

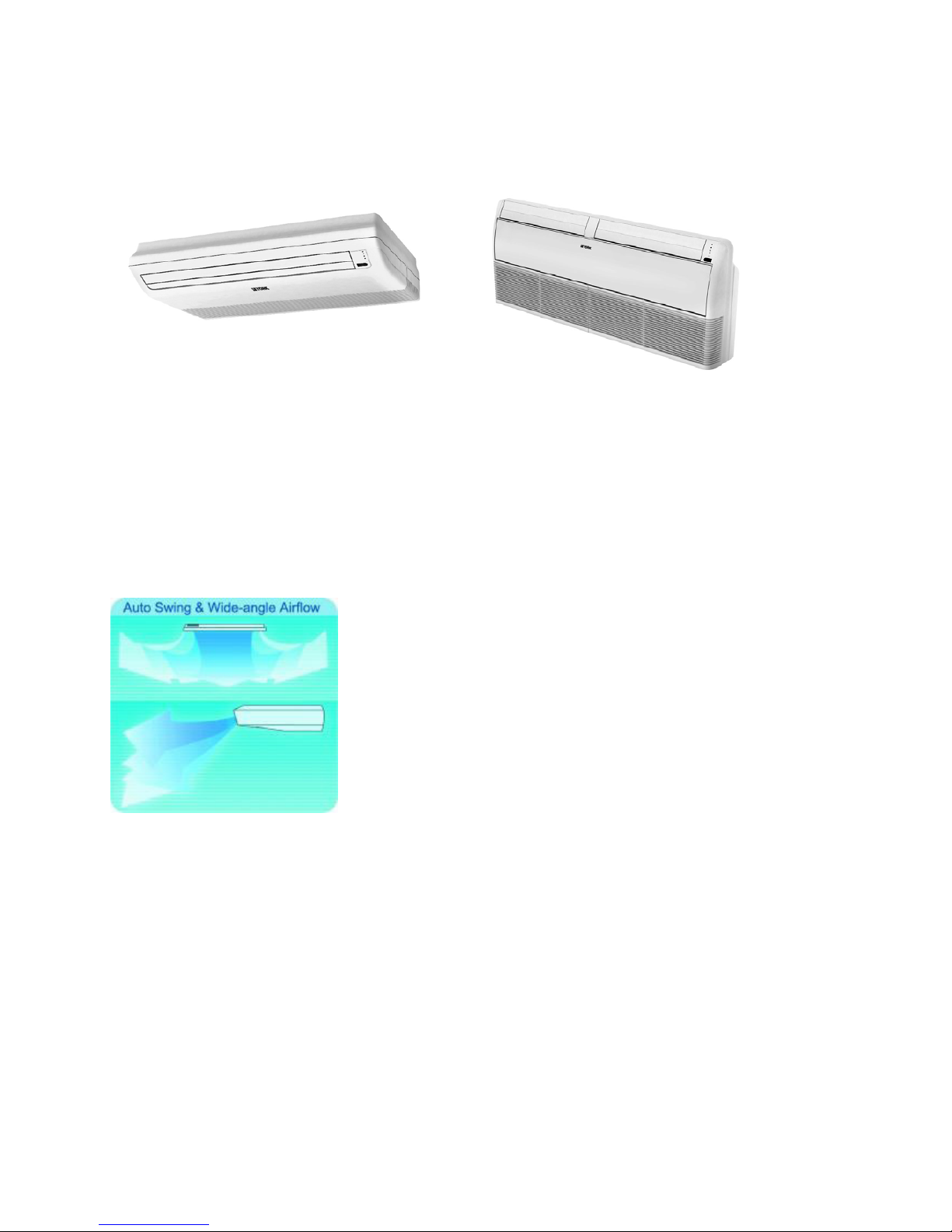

1. Features
1. New design, more modern and elegant appearance.
2. Convenient installation
--The ceiling type can be easily installed into a corner of the ceiling even if the ceiling is very narrow
--It is especially useful when installation of an air conditioner in the center of the ceiling is impossible due to
a structure such as one lighting.
3. Two direction auto swing (vertical & horizontal) and wide angle air flow,
--Air flow directional control minimizes the air resistance and produces wilder air flow to vertical direction.
--The range of horizontal air discharge is widened which secures wider air flow distribution to provide more
comfortable air circulation no matter where the unit is set up
4. Three level fan speed, more humanism design, meets different air-supply requirement.
5. Water proof by utilizing the absorbing plastic film on water collector
6. Easy operation. Auto-restart function, remote control and optional wire control method.
7. Low noise level plus compact size
--Shape of the blades has been improved to prevent noise caused by turbulence.

2. Specification
Model YOCA 12 YOHA 12
Power supply Ph-V-Hz 1,220-240V,50Hz 1,220-240V,50Hz
Capacity Btu/h 1200012000
Capacity kW 3.2 3.2
Input W 13801380
Rated current A 6.1 6.2
Cooling EER Btu/W.h 8.7 8.7
Capacity Btu/h —— 13000
Capacity kW —— 3.8
Input W —— 1350
Rated current A —— 6.8
Heating COP Btu/W.h —— 10.8
Moisture Removal L/h 1.2 1.2
Max. input consumption W 16301630
Max. current A 8.9 8.9
Starting current A 31 31
Model PH240X2C-8FTC 2K23S225BUA
Type ROTARY ROTARY
Brand MIDEA-TOSHIBA Panasonic
Supplier
MIDEA-TOSHIBA
(Guangdong) Panasonic (Guangdong)
Capacity Btu/h 1412514125
Input W 13351335
Rated current(RLA) A 6.2 6.2
Locked rotor Amp(LRA) A 31 31
Thermal protector INNER INNER
Capacitor uF 35 F/370V 35 F/370V
Compressor
Refrigerant oil ml (POE RB68) 680 (POE RB68) 680
Model YSK25-6L YSK25-6L
Input W 50 50
Capacitor uF 1.2uF/450V 1.2uF/450V
Indoor fan
motor Speed(hi /lo) r/min 1080/950/7701080/950/770
Number of rows 3 3
Tube pitch(a)x row pitch(b) mm 25.4×22 25.4×22
Fin spacing mm 1.7 1.7
Fin type (code) Hydrophilic aluminium Hydrophilic aluminium
Tube outer dia.and type mm Ф9.53 innergroove tube Ф9.53, Innergroove tube
Indoor coil Coil length x height x width mm 804×254×66 804×254×66
Indoor air flow (Hi/Lo) m3/h 600/480/400600/480/400

Indoor noise level (Hi/Lo) dB(A) 43/41/38 43/41/38
Dimension (W*H*D) mm 995×660×198995×660×199
Packing (W*H*D) mm 1089×744×2961089×744×296
Indoor unit Net/Gross weight kg 27/33 27/33
Model YDK24-6 YDK24-6
Input W 50 50
Capacitor uF 2.5 uF/450V 2.5uF/450V
Outdoor fan
motor Speed (hi/lo) r/min 800800
Number of rows 2 2
Tube pitch(a)x row pitch(b) mm 25.4×22 25.4×22
Fin spacing mm 1.7 1.7
Fin type Hydrophilic aluminium Hydrophilic aluminium
Tube outer dia.and type mm Ø9.53, Innergroove tube Ø9.53 innergroove tube
Coil length x height x width mm 775×660×44 775×660×44
Outdoor coil Number of circuits 3 3
Outdoor air flow m3/h 18001800
Outdoor noise level dB(A) 43 43
Dimension(W*H*D) mm 780×560×300780×560×300
Packing (W*H*D) mm 910×575×335910×575×335
Outdoor unit Net/Gross weight kg 34/39 36/41
Refrigerant recharge weight g 11501850
Design pressure MPa 2.6/1.2 2.8/1.2
Liquid side/ Gas side mm Ø 6.35/Ø12.7 Ø6.35/Ø12.7
Max. pipe length m 10 10
Refrigerant
piping Max. difference in level m 5 5
Draining pipe dimension mm DN20 DN20
Operation temp ºC 17~3017~30
Ambient temp ºC -7~45 -7~45
Application area m2 25~4525~45
Qty’per 20’/ 40’/40HQ Pieces 68/144/216 68/144/216
Notes:
1. Nominal cooling capacities are based on the following conditions:
Indoor temp: 27°CDB, 19°CWB; Outdoor temp: 35°CDB; Equivalent ref. Piping: 7.5m(horizontal)
2. Nominal heating capacities are based on the following conditions:
Indoor temp: 20°CDB; Outdoor temp: 7°CDB, 6°CWB; Equivalent ref. Piping: 7.5m(horizontal)
3. Actual noise level may differ, depending on the room structure, etc, since these noise values are from an
anechoic room.

Model
Power supply Ph-V-Hz 1,220-240V,50Hz 1,220-240V,50Hz
Capacity
Btu/h 1800018000
Capacity
kW 5.4 5.4
Input W 19001900
Rated current A 8.8 8.5
Cooling EER Btu/W.h 9.7 9.7
Capacity Btu/h —— 20000
Capacity
kW —— 6
Input W —— 1850
Rated current A —— 8
Heating COP Btu/W.h —— 10.8
Moisture Removal L/h 1.8 1.8
Max. input consumption W 29002900
Max. current A 11.7 11.7
Starting current A 36.8 36.8
Model PH330X2CS-8 PH330X2CS-8
Type ROTARY ROTARY
Brand MIDEA-TOSHIBA MIDEA-TOSHIBA
Supplier
MIDEA-TOSHIBA
(Guangdong)
MIDEA-TOSHIBA
(Guangdong)
Capacity Btu/h 1883418834
Input W 18701870
Rated current(RLA) A 8.75 8.75
Locked rotor Amp(LRA) A 36.8 36.8
Thermal protector INNER INNER
Capacitor uF 50/370 F/V 50/370 F/V
Compressor Refrigerant oil ml ESTER OIL VG74 750 ESTER OIL VG74 750
Model YSK55-4L YSK55-4L
Input W 110 110
Capacitor uF 2.5uF/450V 2.5 uF/450V
Indoor fan motor Speed(hi /lo) r/min 1280/ 1190/10001280/ 1190/1000
Number of rows 3 3
Tube pitch(a)x row pitch(b) mm 25.4×22 25.4×22
Fin spacing mm 1.7 1.7
Fin type (code) Hydrophilic aluminium Hydrophilic aluminium
Tube outer dia.and type mm Ф9.53 innergroove tube Ф9.53, Innergroove tube
Indoor coil Coil length x height x width mm 804×254×66 804×254×66
Indoor air flow (Hi/Lo) m3/h 800/600/500800/600/500
Indoor noise level (Hi/Lo) dB(A) 43/41/38 43/41/38
YOCA 18 YOHA 18

Dimension (W*H*D) mm 995×660×199995×660×199
Packing (W*H*D) mm 1089×744×2961089×744×296
Indoor unit Net/Gross weight kg 27/33 27/33
Model YDK53-6GC YDK53-6GC
Input W 110/104/98 110/104/98
Capacitor uF 2.5 uF/450V 2.5uF/450V
Outdoor fan
motor Speed (hi/lo) r/min 750750
Number of rows 2 2
Tube pitch(a)x row pitch(b) mm 25.4×22 25.4×22
Fin spacing mm 1.7 1.7
Fin type Hydrophilic aluminium Hydrophilic aluminium
Tube outer dia.and type mm Ф9.53, Innergroove tube Ф9.53 innergroove tube
Coil length x height x width mm 775×660×44 775×660×44
Outdoor coil Number of circuits 3 3
Outdoor air flow m3/h 24002400
Outdoor noise level dB(A) 48 48
Dimension(W*H*D) mm 845×695×335845×695×335
Packing (W*H*D) mm 970X770X395970X770X395
Outdoor unit Net/Gross weight kg 52/56 53/57
Refrigerant recharge weight g 11501850
Design pressure MPa 2.6/1.2 2.8/1.2
Liquid side/ Gas side mm Ø6.35/Ø12.7 Ø6.35/Ø12.7
Max. pipe length m 20 20
Refrigerant
piping M
ax. difference in level
m 10 10
Draining pipe dimension mm DN20 DN20
Operation temp ºC 17~3017~30
Ambient temp ºC -7~45 -7~45
Application area m2 25~4525~45
Qty’per 20’/ 40’/40HQ Pieces 54/108/126 54/108/126
Notes:
1. Nominal cooling capacities are based on the following conditions:
Indoor temp: 27°CDB, 19°CWB; Outdoor temp: 35°CDB; Equivalent ref. Piping: 7.5m(horizontal)
2. Nominal heating capacities are based on the following conditions:
Indoor temp: 20°CDB; Outdoor temp: 7°CDB, 6°CWB; Equivalent ref. Piping: 7.5m(horizontal)
3. Actual noise level may differ, depending on the room structure, etc, since these noise values are from an
anechoic room.

Model
Power supply Ph-V-Hz 220-240V~, 50Hz 1,220-240V,50Hz
Capacity
Btu/h 2400024000
Capacity
kW 7 7.1
Input W 31002800
Rated current A 12.1 12.1
Cooling EER Btu/W.h 8.2 8.6
Capacity Btu/h —— 27800
Capacity
kW —— 8
Input W —— 2890
Rated current A —— 13.6
Heating COP Btu/W.h —— 9.6
Moisture Removal L/h 2.4 2.4
Max. input consumption W 37003700
Max. current A 16.4 16.4
Starting current A 46.2 46.2
Model THU33WC6-U THU33WC6-U
Type Rotary ROTARY
Brand HITACHI Hitachi
Supplier SHANGHAI HITACHI Hitachi(shanghai)
Capacity Btu/h 2849028490
Input W 26502650
Rated current(RLA) A 12.6 12.6
Locked rotor Amp(LRA) A 62 62
Thermal protector Internal INNER
Capacitor uF
60 F/400V(220V)
60 F/450V(240V)
60 F/400V(220V)
60 F/450V(240V)
Compressor Refrigerant oil ml SUNISO-4GSI 1050 SUNISO-4GSI 1050
Model YSK55-4L YSK55-4L
Input W 110 110
Capacitor uF 2.5uF/450V 2.5 F/450V
Indoor fan
motor Speed(hi /lo) r/min 1280/1190/10001280/1190/1000
Number of rows 3 3
Tube pitch(a)x row pitch(b) mm 25.4×22 25.4X22
Fin spacing mm 1.7 1.7
Fin type (code) hydrophilic aluminium Hydrophilic aluminium
Tube outer dia.and type mm φ9.52 groove tube Ф9.53 innergroove tube
Indoor coil Coil length x height x width mm 804×254×66 804×254×66
Indoor air flow (Hi/Lo) m3/h 1200/900/7001200/900/700
Indoor noise level (Hi/Lo) dB(A) 45/43/40 45/43/40
YOCA 24 YOHA 24

Dimension (W*H*D) mm 995×660×199995×660×199
Packing (W*H*D) mm 1089×744×2961089×744×296
Indoor unit Net/Gross weight kg 29/34 29/34
Model YDK53-6H YDK53-6H
Input W 110/104/97 110/104/98
Capacitor uF 2.5uF/450V 2.5uF/450VOutdoor fan
motor Speed (hi/lo) r/min 800800
Number of rows 2 2
Tube pitch(a)x row pitch(b) mm 25.4X22 25.4×22
Fin spacing mm 1.7 1.7
Fin type Unhydrophilic aluminium Hydrophilic aluminium
Tube outer dia.and type mm Ø9.53, innergroove tube Ø9.53 innergroove tube
Coil length x height x width mm 776X810X44 770X810X44
Outdoor coil Number of circuits 2 2
Outdoor air flow m3/h 30003000
Outdoor noise level dB(A) 52 52
Dimension(W*H*D) mm 895X860X330895X860X330
Packing (W*H*D) mm 1043X915X3951043X915X395
Outdoor unit Net/Gross weight kg 62/64 64/66
Refrigerant recharge weight g 16002600
Design pressure MPa 2.6/1.2 2.8/1.2
Liquid side/ Gas side mm Ø9.53/Ø16.0 Ø9.53/Ø16.0
Max. pipe length m 20 20Refrigerant
piping Max. difference in level m 10 10
Draining pipe dimension mm DN20 DN20
Operation temp ºC 17~3017~30
Ambient temp ºC -7~45 -7~45
Application area m2 30-50 30-50
Qty’per 20’/ 40’/40HQ Pieces 46/93/108 46/93/108
Notes:
1. Nominal cooling capacities are based on the following conditions:
Indoor temp: 27°CDB, 19°CWB; Outdoor temp: 35°CDB; Equivalent ref. Piping: 7.5m(horizontal)
2. Nominal heating capacities are based on the following conditions:
Indoor temp: 20°CDB; Outdoor temp: 7°CDB, 6°CWB; Equivalent ref. Piping: 7.5m(horizontal)
3. Actual noise level may differ, depending on the room structure, etc, since these noise values are from an
anechoic room.

Model
Power supply Ph-V-Hz 1,220-240V,50Hz 1,220-240V,50Hz
Capacity
Btu/h 3600036000
Capacity
kW 10.5 10.5
Input W 40503700
Rated current A 21 21
Cooling EER Btu/W.h 8.9 9.7
Capacity Btu/h —— 39000
Capacity
kW —— 11.4
Input W —— 3350
Rated current A —— 20.5
Heating COP Btu/W.h —— 11.6
Moisture Removal L/h 3.6 3.6
Max. input consumption W 61004620
Max. current A 28 28
Starting current A 73 73
Model ZR47K3-PFJ-522 ZR47K3-PFJ-522
Type SCROLL SCROLL
Brand Copeland Copeland
Supplier Copeland(Suzhou) Copeland(Suzhou)
Capacity Btu/h 3900039000
Input W 35103510
Rated current(RLA) A 16.8 16.8
Locked rotor Amp(LRA) A 264264
Thermal protector INNER INNER
Capacitor uF / /
Compressor Refrigerant oil ml SONTEX 200 LT 1242 SONTEX 200 LT 1242
Model YSK80-4A YSK80-4A
Input W 134134
Capacitor uF 3.5uF/450V 3.5UF/450V
Indoor fan
motor Speed(hi /lo) r/min 1310/1200/10001310/1200/1000
Number of rows 33
Tube pitch(a)x row pitch(b)
mm 25.4×22 25.4X22
Fin spacing mm 1.7 1.7
Fin type (code) hydrophilic aluminium Unhydrophilic aluminium
Tube outer dia.and type mm Ø 9.52 groove tube Ø9.53 innergroove tube
Indoor coil
Coil length x height x width
mm 905×203×66 905×203×66
Indoor air flow (Hi/Lo) m3/h 1600/1200/10001600/1200/1000
Indoor noise level (Hi/Lo) dB(A) 45/43/40 45/43/40
Indoor unit Dimension (W*H*D) mm 1285×660×1981285×660×198
YOCA 36 YOHA 36

Packing (W*H*D) mm 1379×744×2961379×744×296
Net/Gross weight kg 35/40 35/40
Model YDK250-6D YDK250-6D
Input W 296296
Capacitor uF 10 uF/450V 10 uF/450V
Outdoor fan
motor Speed (hi/lo) r/min 750750
Number of rows 2 2
Tube pitch(a)x row pitch(b)
mm 25.4X22 25.4×22
Fin spacing
mm 1.3 1.7
Fin type Unhydrophilic aluminium Unhydrophilic aluminium
Tube outer dia.and type mm Ø9.53, innergroove tube Ø9.53, inner groove tube
Coil length x height x width
mm 988X914X44 988X914X44
Outdoor coil Number of circuits 4 4
Outdoor air flow m3/h 50004900
Outdoor noise level dB(A) 57 55
Dimension(W*H*D) mm 990X960X360990X960X360
Packing (W*H*D) mm 1120X1090X4351120X1090X435Outdoor
unit Net/Gross weight kg 90/95 100/106
Refrigerant recharge weight
g17003100
Design pressure MPa 2.6/1.2 2.8/1.2
Liquid side/ Gas side mm Ø12.7(1/2”)/Ø19(3/4”) Ø12.7(1/2”)/Ø19(3/4”)
Max. pipe length m 25 25
Refrigerant
piping
Max. difference in level
m 10 10
Draining pipe dimension mm DN20 DN20
Operation temp ºC 17~3017~30
Ambient temp ºC -7~45 -7~45
Application area m2 60-85 60-85
Qty’per 20’/ 40’/40HQ Pieces 34/69/76 34/69/76
Notes:
1. Nominal cooling capacities are based on the following conditions:
Indoor temp: 27°CDB, 19°CWB; Outdoor temp: 35°CDB; Equivalent ref. Piping: 7.5m(horizontal)
2. Nominal heating capacities are based on the following conditions:
Indoor temp: 20°CDB; Outdoor temp: 7°CDB, 6°CWB; Equivalent ref. Piping: 7.5m(horizontal)
3. Actual noise level may differ, depending on the room structure, etc, since these noise values are from an
anechoic room.

Model
Power supply Ph-V-Hz 3N,380V ~, 50Hz 3,380V,50Hz
Capacity
Btu/h 3600036000
Capacity
kW 10.5 10.5
Input W 40503700
Rated current A 7.1 6.5
Cooling EER Btu/W.h 8.9 9.7
Capacity Btu/h —— 39000
Capacity
kW —— 11.4
Input W —— 3350
Rated current A —— 5.8
Heating COP Btu/W.h —— 11.6
Max. input consumption W 46204620
Max. current A 8.5 8.5
Starting current A 58 59
Model C-SB303H8A C-SB303H8A
Type SCROLL SCROLL
Brand Sanyo Sanyo
Supplier Sanyo(dalian) Sanyo(dalian)
Capacity Btu/h 4026240262
Input W 36503650
Rated current(RLA) A 6.5 6.5
Locked rotor Amp(LRA) A 42 42
Thermal protector Internal INNER
Capacitor uF —— /
Compressor Refrigerant oil ml 3GS 1360 3GS 1360
Model YSK80-4A YSK80-4A
Input W 134134
Capacitor uF 3.5uF/450V 3.5uF/450VIndoor fan
motor Speed(hi /lo) r/min 1310/1200/10001310/1200/1000
Number of rows 3 3
Tube pitch(a)x row pitch(b)
mm 25.4×22 25.4X22
Fin spacing
mm 1.7 1.7
Fin type (code) hydrophilic aluminium Unhydrophilic aluminium
Tube outer dia.and type mm Ø 9.52 groove tube Ø9.53 innergroove tube
Indoor coil
Coil length x height x width
mm 905×203×66 905×203×66
Indoor air flow (Hi/Lo) m3/h 1600/1200/10001600/1200/1000
Indoor noise level (Hi/Lo) dB(A) 45/43/40 45/43/40
Dimension (W*H*D) mm 1285×660×1981285×660×198
Packing (W*H*D) mm 1379×744×2961379×744×296
Indoor unit Net/Gross weight kg 35/40 35/40
YOCA 36 YOHA 36

Model YDK250-6D YDK250-6D
Input W 296296
Capacitor uF 10 uF/450V 3.5uF/450V
Outdoor fan
motor Speed (hi/lo) r/min 800800
Number of rows 2 2
Tube pitch(a)x row pitch(b)
mm 25.4X22 25.4×22
Fin spacing
mm 1.3 1.7
Fin type Unhydrophilic aluminium Unhydrophilic aluminium
Tube outer dia.and type mm Ø9.53, innergroove tube Ø9.53, inner groove tube
Coil length x height x width
mm 888X1220X44 888X1220X44
Outdoor coil Number of circuits 4 4
Outdoor air flow m3/h 49004900
Outdoor noise level dB(A) 57 55
Dimension(W*H*D) mm 990X960X360990X960X360
Packing (W*H*D) mm 1120X1090X4351120X1090X435Outdoor
unit Net/Gross weight kg 90/95 100/106
Refrigerant recharge weight
g17003100
Design pressure MPa 2.6/1.2 2.8/1.2
Liquid side/ Gas side mm Ø12.7(1/2”)/Ø19(3/4”) Ø12.7(1/2”)/Ø19(3/4”)
Max. pipe length m 25 25Refrigerant
piping
Max. difference in level
m 10 10
Draining pipe dimension mm DN20 DN20
Operation temp ºC 17~3017~30
Ambient temp ºC -7~45 -7~45
Application area m2 60-85 60-85
Qty’per 20’/ 40’/40HQ Pieces 34/69/76 34/69/76
Notes:
1. Nominal cooling capacities are based on the following conditions:
Indoor temp: 27°CDB, 19°CWB; Outdoor temp: 35°CDB; Equivalent ref. Piping: 7.5m(horizontal)
2. Nominal heating capacities are based on the following conditions:
Indoor temp: 20°CDB; Outdoor temp: 7°CDB, 6°CWB; Equivalent ref. Piping: 7.5m(horizontal)
3. Actual noise level may differ, depending on the room structure, etc, since these noise values are from an
anechoic room.

Model
Power supply Ph-V-Hz 3N,380V ~, 50H 3,380V,50Hz
Capacity
Btu/h 4800048000
Capacity
kW 14 14
Input W 55004700
Rated current A 9 8.2
Cooling EER Btu/W.h 8.7 10.2
Capacity Btu/h —— 52000
Capacity
kW —— 15.2
Input W —— 4900
Rated current A —— 8.6
Heating COP Btu/W.h —— 10.6
Moisture Removal L/h 4.8
Max. input consumption W 64005870
Max. current A 11.2 10.7
Starting current A 58 59
Model VR61KF-TFP-542 VR61KF-TFP-542
Type SCROLL SCROLL
Brand Copeland Copeland
Supplier Copeland(Suzhou) Copeland(Suzhou)
Capacity Btu/h 5100051000
Input W 46364636
Rated current(RLA) A 9.4 9.4
Locked rotor Amp(LRA) A 61 61
Thermal protector Internal INNER
Capacitor uF / /
Compressor Refrigerant oil ml 3GS 1360 3GS 1360
Model YSK59-4D YSK59-4D
Input W 248296
Capacitor uF 2.5x2 uF/450V TUV/VDE 2.5x2 uF/450V TUV/VDE
Indoor fan
motor Speed(hi /lo) r/min 820/695/620820/695/620
Number of rows 3 3
Tube pitch(a)x row pitch(b
)
mm 25.4×22 25.4X22
Fin spacing
mm 1.7 1.7
Fin type (code) hydrophilic aluminium Unhydrophilic aluminium
Tube outer dia.and type mm Ø 9.52 groove tube Ø9.53 innergroove tube
Indoor coil
Coil length x height x width
mm 1150×254×66 1150×254×66
Indoor air flow (Hi/Lo) m3/h 2000/1800/16002000/1800/1600
Indoor noise level (Hi/Lo) dB(A) 47/46/44 47/46/44
Indoor unit Dimension (W*H*D) mm 1670×680×2401670×680×240
YOCA 48 YOHA 48

Packing (W*H*D) mm 1764×760×3301764×760×330
Net/Gross weight kg 52/59 52/59
Model YDK250-6D YDK250-6D
Input W 296296
Capacitor uF 10 uF/450V 10 uF/450VOutdoor fan
motor Speed (hi/lo) r/min 750750
Number of rows 2 2
Tube pitch(a)x row pitch(b)
mm 25.4X22 25.4X22
Fin spacing
mm 1.3 1.7
Fin type Unhydrophilic aluminium Hydrophilic aluminum
Tube outer dia.and type mm Ø9.53, innergroove tube Ø9.53, inner groove tube
Coil length x height x width
mm 888X1220X44 888X1220X44
Outdoor coil Number of circuits 4 4
Outdoor air flow m3/h 50005400
Outdoor noise level dB(A) 57 55
Dimension(W*H*D) mm 990X960X360990X960X360
Packing (W*H*D) mm 1120X1090X4351120X1090X435Outdoor
unit Net/Gross weight kg 88/100100/106
Refrigerant recharge weight
g17003100
Design pressure MPa 2.6/1.2 2.8/1.2
Liquid side/ Gas side mm Ø12.7(1/2”)/Ø19(3/4”) Ø12.7(1/2”)/Ø19(3/4”)
Max. pipe length m 25 25Refrigerant
piping
Max. difference in level
m 10 10
Draining pipe dimension mm DN20 DN20
Operation temp ºC 17~3017~30
Ambient temp ºC -7~45 -7~45
Application area m2 80~10580~105
Qty’per 20’/ 40’/40HQ Pieces 31/62/70 31/62/70
Notes:
1. Nominal cooling capacities are based on the following conditions:
Indoor temp: 27°CDB, 19°CWB; Outdoor temp: 35°CDB; Equivalent ref. Piping: 7.5m(horizontal)
2. Nominal heating capacities are based on the following conditions:
Indoor temp: 20°CDB; Outdoor temp: 7°CDB, 6°CWB; Equivalent ref. Piping: 7.5m(horizontal)
3. Actual noise level may differ, depending on the room structure, etc, since these noise values are from an
anechoic room.

Model
Power supply Ph-V-Hz 3N,380V ~, 50H 3,380V,50Hz
Capacity
Btu/h 60000 60,000
Capacity
kW 17.6 17
Input W 65706570
Rated current A 10 10
Cooling EER Btu/W.h 9.1 9.1
Capacity Btu/h —— 65000
Capacity
kW —— 19.1
Input W —— 6900
Rated current A —— 10.5
Heating COP Btu/W.h —— 9.4
Moisture Removal L/h 6 8550
Max. input consumption W 74507450
Max. current A 13 13
Starting current A 69 67
Model C-SB453H8A ZR72KC-TFD-522
Type Scroll SCROLL
Brand SANYO Copeland
Supplier SANYO(Dalian) Copeland(Suzhou)
Capacity Btu/h 6056360100
Input W 54305270
Rated current(RLA) A 10 10
Locked rotor Amp(LRA) A 66 67
Thermal protector Internal INNER
Capacitor uF —— /
Compressor Refrigerant oil ml FV68S 1700 SONTEX 200 LT 1774
Model YSK59-4D YSK59-4D
Input W 148+148148+148
Capacitor uF 2.5x2 uF/450V 2.5x2 uF/450VIndoor fan
motor Speed(hi /lo) r/min 820/695/620820/695/620
Number of rows 3 3
Tube pitch(a)x row pitch(b)
mm 25.4×22 25.4X22
Fin spacing
mm 1.7 1.5
Fin type (code) hydrophilic aluminium UnHydrophilic aluminium
Tube outer dia.and type mm Ø 9.52 groove tube Ø9.53 innergroove tube
Indoor coil
Coil length x height x width
mm 1150×254×66 1150×254×66
Indoor air flow (Hi/Lo) m3/h 2200/1800/16002200/1800/1600
Indoor noise level (Hi/Lo) dB(A) 47/46/44 47/46/44
Indoor unit Dimension (W*H*D) mm 1670×680×2401670×680×240
YOCA 60 YOHA 60

Packing (W*H*D) mm 1764×760×3301764×760×330
Net/Gross weight kg 52/59 52/59
Model YDK65-6F(YDK65-6F-WL) YDK65-6F(YDK65-6F-WL)
Input W 148+148 118/108/101
Capacitor uF 3.5x2 uF/450V 2.5uF/450VOutdoor fan
motor Speed (hi/lo) r/min 800800
Number of rows 2 2
Tube pitch(a)x row pitch(b)
mm 25.4X22 25.4X22
Fin spacing
mm 1.5 1.7
Fin type UnHydrophilic aluminium Hydrophilic aluminum
Tube outer dia.and type mm Ø9.53, innergroove tube Ø9.53, inner groove tube
Coil length x height x width
mm 897*1220*44 897×1220×44
Outdoor coil Number of circuits 4 4
Outdoor air flow m3/h 60006000
Outdoor noise level dB(A) 65 62
Dimension(W*H*D) mm 940*1245*340940*1245*340
Packing (W*H*D) mm 1058*1370*4351058*1370*435
Outdoor unit Net/Gross weight kg 110/125 114/135
Refriger
ant recharge weight
g44005000
Design pressure MPa 2.6/1.2 2.8/1.2
Liquid side/ Gas side mm 12Ø Ø Ø Ø.7(1/2")- 19(3/4") 12.7(1/2")- 19(3/4")
Max. pipe length m 30 30Refrigerant
piping
Max. difference in level
m 15 15
Draining pipe dimension mm DN20 DN20
Operation temp ºC 17~3017~30
Ambient temp ºC -7~45 -7~45
Application area m2 95~12095~120
Qty’per 20’/ 40’/40HQ Pieces 27/55/55 27/55/55
Notes:
1. Nominal cooling capacities are based on the following conditions:
Indoor temp: 27°CDB, 19°CWB; Outdoor temp: 35°CDB; Equivalent ref. Piping: 7.5m(horizontal)
2. Nominal heating capacities are based on the following conditions:
Indoor temp: 20°CDB; Outdoor temp: 7°CDB, 6°CWB; Equivalent ref. Piping: 7.5m(horizontal)
3. Actual noise level may differ, depending on the room structure, etc, since these noise values are from an
anechoic room.

3. Dimensions
1. YOCA-YOHA 12 · YOCA-YOHA 18 · YOCA-YOHA 24
4-12 18 Overhanging hole )
Connecting point of
refrigerant pipe
(gas side)
Drain point
Connecting point of
refrigerant pipe
(Liquid side)
4
0
2
Strengthener
980
995
2. YOCA-YOHA 36
4-12 18 Overhanging hole )
Connecting point of
refrigerant pipe
(gas side)
Drain point
Connecting point of
refrigerant pipe
(Liquid side)
4
0
2
Strengthener
980
1285
3. YOCA-YOHA 48 · YOCA-YOHA 60
4-12 18 Overhan g ing hole )
Connectingpoint of
refrigeran t pipe
(gas side)
Dra in point
Connecti ng point of
refrigerant pipe
(Liquid si de)
240
660
9 80
1610
Strengthener

4. Piping diagram
Heat pump
T1
T2
T3
T4
Indoor units
Outdoor unit
T5
stop valve
room temp. sensor
evaporator temp. sensor
4-way valve
compressor
low-pressure accumulator
condenser temp. sensor
ambient temp. sensor
High pressure switch
Discharge temp. sensor
Muffle
stop valve
Throttle capiliary
Check valve
filter
Cooling Only
T1
T2
T3
T4
Indoor units
Outdoor unit
T5
stop valve
room temp. sensor
evaporator temp. sensor
Throttle capiliary
compressor
condenser temp. sensor
ambient temp. sensor
Discharge temp. sensor
stop valve
filter
Remark:
1. For YOJA 12 and YOJA 18 , accumulator is not included.
2. For YOJA 36 and YOJA 48 , YOJA 60 , check valve and auxiliary capillary is not included.
3. For YODA 60, accumulator is standard.

5. Wiring diagram
YOHA 12 · YOHA 18
Indoor unit:
XT1
RT2
XT1
XT2
RT1
XP1~4
XS1~4
CAP1
FAN1
CN1 -C N24
T4
XT2
KM1
GM1
FAN1
DI SPLAY
BOARD
CAP1
T4
MAIN CONTROL BOARD
CN15
CN10
CN16
CN1
CN2
CN3
CN5
( WHI TE)
XP1
XS1
XS3
XP3
TO OUTDOOR UNIT
Y/G
POWER
WHI TE
TO OUTDOOR UNIT
IN DOOR
WIRI NG DI AGRAM
CONNECTORS
PI PE T EMP. SENSO R
ROOMT EMP. SENSOR
5- WAY TERMI NAL
P. C.B OARD SOCKETS
TRANSFORMER
RL8
REL AY FOR
COMPRESSOR
Y/G
CN12
LEVEL SWIN G MOTOR
KM1
CODE
I NDOOR FAN
I NDOOR FAN CAP
PART NAME
B
LA
C
K(H
I)
R
E
D
B
LA
C
K
BLU
E
(S.V)
B
LA
C
K(C
)
R
ED
W
H
IT
E
BLAC
K
W
H
ITE(T3)
BLA
C
K
(E)
R
E
D
(LO
)
BLAC
K(L)
BLU
E
(N
)
CN13
WHI TE
4
35
(RED)
Y/G
L N 1 2( N)
CONNECTORS
6- WAY TERMI NAL
PLUMB SWING MOTOR
GM2
Outdoor unit:
RED( C)
TO I NDOOR U NIT
4- WAY VAL VE
TO I NDOOR UNI T
X T1XT2
T3 E
BROWN
WHI TE
FAN
MOTOR
TEMP. S ENSOR
OF CONDENSAT OR
XS1
XP1
WHI TE
1 3 4
BLUE(S. V)
BL UE( N)
BL UE
FA N
CAP AC IT OR
BLACK
Y/G
COMPRES SO R
C
BLUE( R)
Y/G
R
WHI TE( S)
S
COMPRESSO R
C APACI TOR
WI RI NG DI AGRAM
( OUTDOO R UN IT )
GRE EN
N
