York YOHC 12 User manual

Convertible Console
YOHC 12 to 60
SERVICE MANUAL
YOHC 12 · YOHC 18 · YOHC 24
YOHC 36 · YOHC 48 · YOHC 60
SM-YOHC-12-60GB 03-07

Contents
Part 1 General information………………………………………………….
Part 2 Indoor units……………………………………………………………
Part 3 Outdoor units………………………………………………………..
Part 4 Installation…………………...………………………………………
Part 5 Control………………………………………………………………..

Part 1
General Information
1. Model names of Indoor/Outdoor Units……………………………………
2. External Appearance………………………………………………………...
3. Nomenclature…………………………………………………………………
4. Features………………………………………………………………………..

Model Names of Indoor/ Outdoor Units
Model Names of Indoor Units:
YOKC-12 YOKC-18 YOKC-24 YOKC-30
YOKC-36 YOKC-48 YOKC-60
Model Names of Outdoor Units:
YOJC-12 YOJC-18 YOJC-24 YOJC-30
YOJC-36 YOJC-48 YOJC-60
1. External Appearance
1.1 Indoor units
1.2 Outdoor units

2. Nomenclature
How to read the model?
Y O H C 24 F S B A A R
Range:
F = Floor standing
H = High wall
M = Master range
P = Portable
Y = YORK
R = Everest front
Refrigerant type:
A = R22
B = R407C
C = R410A
Capacity Btu/h
Generation:
A = First
R = New remote
Voltages:
A = (Out) 220-240/1/50 - (In) 220-240/1/50
C = (Out) 380/3/50 - (In) 220-240/1/50
Indoor options:
A = Standard
J = Bio Screen filter
** Omit for outdoor units
Outdoor options:
A = Standard
B = Low Ambient Kit
C = Power outdoor
* Omit for indoor units
Indoors:
A = Free matching multi
S = Single
T = Duct High Static
U = Duct standard case
Compressor type:
A = AC Inverter
D = DC Inverter
F = Fixed
M = Multi
* * *
Family:
A = Efficiency Ultra
E = Eco Ultra
H = Alps
J = Atlas
K = Cassette
L = Ultra
M = Multi Ultra
R = Multi Inverter
V = Inverter Ultra
U = Ducted unit
O = Floor / Ceiling
Type:
C = Set - Cooling only
D = Outdoor - Cooling only
E = Indoor - Cooling only
H = Set - Heat pump
J = Outdoor Heat pump
K = Indoor Heat pump
M = Multi Ultra
R = Multi Inverter
V = Inverter Ultra
U = Ducted unit
O = Floor / Ceiling

3. Features
4.1. New design, more modern and elegant appearance;
4.2. Convenient installation;
4.3. Two direction auto swing (vertical & horizontal) and wide angle air flow;
4.4. Three level fan speed, more humanism design, meets different air-supply requirement;
4.5. Water proof by utilizing the absorbing plastic film on water collector;
4.6. Easy operation. Auto-restart function, remote control and optional wire control method;
4.7. Low noise level plus compact size;
4.8. Universal outdoor design.

Part 2
Indoor units
Ceiling & Floor Type…………………………………………………………

Ceiling & Floor Type
1. Features……………………………………………………………………………………………..
2. Specification………………………………………………………………………………………..
3. Dimensions………………………………………………………………………………………..

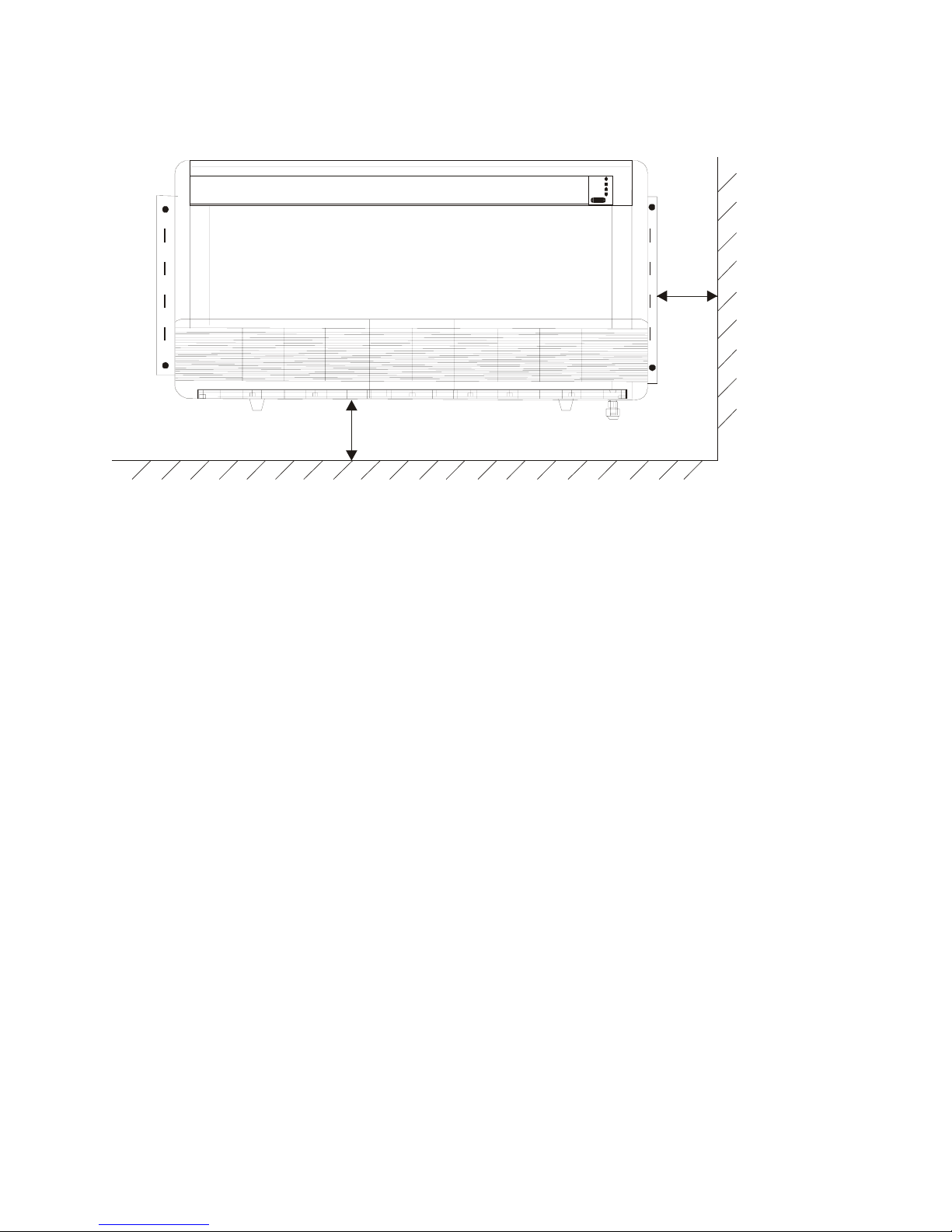

4. Service space……………………………………………………………………………………..
5. Piping diagrams…………………………………………………………………………………..
6. Wiring diagrams…………………………………………………………………………………..
7. Capacity Tables…………………………………………………………………………………...
8. Air Velocity and Temperature Distributions………………………………………………….
9. Electric Characteristics………………………………………………………………………….
10.Sound Levels……………………………………………………………………………………...
11.Exploded view…………………………………………………………………………………….

1. Features
1.1. New design, more modern and elegant appearance.
1.2. Convenient installation
--The ceiling type can be easily installed into a corner of the ceiling even if the ceiling is very narrow
--It is especially useful when installation of an air conditioner in the center of the ceiling is impossible due to
a structure such as one lighting
1.3. Two direction auto swing (vertical & horizontal) and wide angle air flow
--Air flow directional control minimizes the air resistance and produces wilder air flow to vertical direction.
--The range of horizontal air discharge is widened which secures wider air flow distribution to provide more
comfortable air circulation no matter where the unit is set up
1.4. Three level fan speed, more humanism design, meets different air-supply requirement.
1.5. Water proof by utilizing the absorbing plastic film on water collector
1.6. Easy operation. Auto-restart function, remote control and optional wire control method.
1.7. Low noise level plus compact size
--Shape of the blades has been improved to prevent noise caused by turbulence.

2. Specification
Model YOHC -12 YOHC -18 YOHC -24
Power supply Ph-V-Hz 1,220-240V,50Hz 1,220-240V,50Hz 1,220-240V,50Hz
Capacity Btu/h 12000 18000 24000
Capacity kW 3.5 5.4 7.1
Input W 1200 1900 2700
Rated current A 6.0 8.5 12.0
Cooling
EER Btu/W.h 10.0 9.7 8.9
Capacity Btu/h 13500 20000 26000
Capacity kW 4 5.9 7.7
Input W 1130 1850 2800
Rated current A 5.0 8.0 12.5
Heating
COP Btu/W.h 12.0 10.9 9.3
MoistureRemoval L/h 1.2 1.8 2.4
Max. input consumption W 1500 2400 3300
Max.current A 7.0 11.5 14.5
Startingcurrent A 26 36.8 61
Model PA140X2C-4FT PA225X2CS-4KU PA290X3CS-4MU1
Type ROTARY ROTARY ROTARY
Brand MIDEA-TOSHIBA MIDEA-TOSHIBA MIDEA- TOSHIBA
Supplier MIDEA-TOSHIBA MIDEA-TOSHIBA MIDEA-TOSHIBA
Capacity Btu/h 11567 18834 24498
Input W 1145 1870 2430
Rated current(RLA) A 5.3 8.75 11.4
Locked rotor Amp(LRA) A 26 36.8 61
Thermal protector INNER INNER INNER
Capacitor uF 35/370 µF/V 50/370 µF/V 50/400 µF/V
Compressor
Refrigerant oil ml RB68AF/T68/Α68tf 480 ESTER OIL VG74 750 ESTER OIL CG74 950
Model YSK25-6L YSK55-4L YSK55-4L
Input W 33.4/31.1/29.5 115/95/78 115/95/78
Capacitor uF 1.2uF/450V 2.5uF/450V 2.5uF/450V
Indoor fan
motor
Speed(hi/lo) r/min 756/666/592 1310/ 1190/1040 1310/ 1190/1040
Number of rows 2 3 3
Tube pitch(a)x row pitch(b) mm 25.4×22 25.4×22 25.4×22
Fin spacing mm 1.8 1.8 1.8
Fin type Hydrophilic aluminum Hydrophilic aluminum Hydrophilic aluminum
Tube outside dia. and type mm Ф9.53 innergroove tube Ф9.53 innergroove tube Ф9.53 innergroove tube
Indoor coil
Coil length x height x width mm 804×254×44 804×254×66 804×254×66
Indoor air flow(Hi/Mid/Lo) m3/h 600/480/400 800/600/500 1200/900/700
Indoor noise level (Hi/Mid/Lo) dB(A) 43/41/38 43/41/38 45/43/40

Dimension (W*H*D)(body) mm 995×660×198 995×660×198 995×660×198
Packing (W*H*D)(body) mm 1089×744×296 1089×744×296 1089×744×296
Indoor unit
Net/Gross weight(body) kg 27/33 27/33 27/33
Model YDK24-6F YDK53-6K YDK53-6H
Input W 56 130 138
Capacitor uF 2.5uF/450V 3uF/450V 3µF/450V
Outdoor fan
motor
Speed r/min 800 750 800
Number of rows 2 2 2
Tube pitch(a)x row pitch(b) mm 21x13.37 25.4×22 25.4×22
Finspacing mm 1.5 1.7 1.5
Fin type Unhydrophilic aluminum Hydrophilic aluminum Hydrophilic aluminum
Tube outside dia. and type mm Φ7,Innergroove tube Ф9.53,Innergroove tube Ф9.53,innergroove tube
Coil length x height x width mm 651x559x26.7 775×660×44 850×810×44
Outdoor coil
Number of circuits 2 3 4
Outdoor air flow m3/h 2100 2400 3000
Outdoor noise level dB(A) 43 48 55
Dimension(W*H*D) mm
760×590×285 845×695×335 895×860×330
Packing (W*H*D) mm 887x655x355 970X770X395 1043X915X395
Outdoor
unit
Net/ Gross weight kg 44/48 52/56 68/70
Refrigeranttype/Quantity g R410A/1120 R410A/2050 R410A/2600
Design pressure (high side/low side) MPa 4.2/2.5 4.2/2.5 4.2/2.5
Liquid side mm(inch) 6.35 (1/4) 6.35 (1/4) 9.53 (3/8)
Gas side mm(inch) 12.7 (1/2) 12.7 (1/2) 16 (5/8)
Max. pipe length m 25 25 30
Refrigerant
piping
Max. difference in level m 15 15 15
Operation temp ºC 17~30 17~30 17~30
Ambient temp ºC -7~45 -7~45 -7~45
Applicationarea m
218~26 34~49 40~56
Qty’per 20’& 40’Fcl Pieces 63/138/155 49/104/126 44/94/101

Model YOHC -30 YOHC -30 YOHC -36
Power supply Ph-V-Hz 3,380V,50Hz 1,220-240V,50Hz 1,220-240V,50Hz
Capacity Btu/h 30000 30000 36,000
Capacity kW 9.2 9.2 10.5
Input W 3750 3750 3750
Rated current A 6.3 16.3 16.3
Cooling
EER Btu/W.h 8.0 8.0 9.6
Capacity Btu/h 32000 32000 39000
Capacity kW 9.4 9.4 11.4
Input W 3500 3500 3500
Rated current A 5.2 15.2 15.2
Heating
COP Btu/W.h 9.2 9.2 11.2
MoistureRemoval L/h 3 3 3.6
Max. input consumption W 4620 4620 4620
Max.current A 7.1 21 21
Startingcurrent A 61 97 97
Model C-SBN303H8D C-SBN301H5D C-SBN301H5D
Type SCROLL SCROLL SCROLL
Brand SANYO SANYO SANYO
Supplier SANYO(Dalian) SANYO SANYO
Capacity Btu/h 33438 33438 33438
Input W 3650 3650 3650
Rated current(RLA) A 6.58 17.65 17.65
Locked rotor Amp(LRA) A 61 97 97
Thermal protector INNER INNER INNER
Capacitor uF / 60uF/440V 60uF/440V
Compressor
Refrigerant oil ml DAPHNE FV68S 1700 FV68S 1700 FV68S 1700
Model YSK80-4A YSK80-4A YSK80-4A
Input W 142/134/132 142/134/132 142/134/132
Capacitor uF 3.5uF/450V 3.5uF/450V 3.5uF/450V
Indoor fan
motor
Speed(hi/lo) r/min 1310/1200/1000 1310/1200/1000 1310/1200/1000
Number of rows 3 3 3
Tubepitch(a)x row pitch(b) mm 25.4×22 25.4×22 25.4×22
Fin spacing mm 1.7 1.7 1.7
Fin type Hydrophilic aluminum Hydrophilic aluminum Hydrophilic aluminum
Tube outside dia.and type mm Ф9.53, inner groove tube Ф9.53, inner groove tube Ф9.53, inner groove tube
Indoor coil
Coil length x height x width mm 905×203×66 905×203×66 905×203×66
Indoor air flow(Hi/Mid/Lo) m3/h 1200/1000/800 1400/1200/1000 1400/1200/1000
Indoor noise level (Hi/Mid/Lo) dB(A) 45/43/40 45/43/40 45/43/40

Dimension (W*H*D)(body) mm 1285×660×198 1285×660×198 1285×660×198
Packing (W*H*D)(body) mm 1365×744×278 1365×744×278 1365×744×278
Indoor unit
Net/Gross weight(body) kg 34/42 34/42 34/42
Model YDK250-6D YDK250-6D YDK250-6D
Input W 307 307 307
Capacitor uF 10µF/450V 10 uF/450V 10 uF/450V
Outdoor fan
motor
Speed r/min 740 740 740
Number of rows 2 2 2
Tube pitch(a)x row pitch(b) mm 25.4×22 25.4×22 25.4×22
Finspacing mm 1.7 1.7 1.7
Fin type Unhydrophilic aluminium unhydrophilic aluminium unhydrophilic aluminium
Tube outside dia.and type mm Ф9.53,innergroove tube Ф9.53, inner groove tube Ф9.53, inner groove tube
Coil length x height x width mm 955×915×44 955×915×44 955×915×44
Outdoor coil
Number of circuits 8 8 8
Outdoor air flow m3/h 5000 5000 5000
Outdoor noise level dB(A) 57 57 57
Dimension(W*H*D) mm 990×960×360 990×960×360 990×960×360
Packing (W*H*D) mm 1120X1090X435 1120X1090X435 1120X1090X435
Outdoor unit
Net/ Gross weight kg 90/102 90/102 90/102
Refrigeranttype/Quantity g R410A/3100 R410A 3450 R410A 3450
Design pressure (high side/low side) MPa 4.2/2.5 4.2/2.5 4.2/2.5
Liquid side mm(inch) 12.7 (1/2) 12.7 (1/2) 12.7 (1/2)
Gas side mm(inch) 19 (3/4) 19 (3/4) 19 (3/4)
Max. pipe length m 30 30 30
Refrigerant
piping
Max. difference in level m 20 20 20
Operation temp ºC 17~30 17~30 17~30
Ambient temp ºC -7~45 -7~45 -7~45
Applicationarea m
250~75 60~85 60~85
Qty’per 20’& 40’Fcl Pieces 27/55/62 27/55/62 27/55/62

Model YOHC -36 YOHC -48 YOHC -60
Power supply Ph-V-Hz 3,380V,50Hz 3,380V,50Hz 3,380V,50Hz
Capacity Btu/h 36000 48000 60,000
Capacity kW 10.5 14 17
Input W 3750 4700 6000
Rated current A 6.6 8.2 9.8
Cooling
EER Btu/W.h 9.6 10.2 10.0
Capacity Btu/h 39000 52000 68,000
Capacity kW 11.4 15.2 20
Input W 3700 4900 6000
Rated current A 6.5 8.6 9.8
Heating
COP Btu/W.h 10.6 10.6 11.4
MoistureRemoval L/h 3.8 4.8 6
Max. input consumption W 4400 5870 7500
Max.current A 8.0 10.7 12.8
Startingcurrent A 61 66 67
Model C-SBN303H8D C-SBN373H8D C-SBN453H8D
Type SCROLL SCROLL SCROLL
Brand SANYO SANYO SANYO
Supplier SANYO(Dalian) SANYO(Dalian) SANYO(Dalian)
Capacity Btu/h 33438 48109 55957
Input W 3650 4750 5750
Rated current(RLA) A 6.58 8.22 9.77
Locked rotor Amp(LRA) A 61 66 67
Thermal protector INNER INNER INNER
Capacitor uF / / /
Compressor
Refrigerant oil ml DAPHNE FV68S 1700 DAPHNE FV68S 1700 DAPHNE FV68S 1700
Model YSK80-4A YSK59-4A YSK59-4A
Input W 142/134/132 118/108/101 118/108/101
Capacitor uF 3.5uF/450V 2.5uF/450V 2.5uF/450V
Indoor fan
motor
Speed(hi/lo) r/min 1310/1200/1000 820/695/620 820/695/620
Number of rows 3 3 3
Tube pitch(a)x row pitch(b) mm 25.4×22 25.4X22 25.4X22
Fin spacing mm 1.7 1.7 1.7
Fin type Hydrophilic aluminum Hydrophilic aluminum Hydrophilic aluminum
Tube outside dia. and type
mm
Ф9.53, inner groove tube Ф9.53, inner groove tube
Ф9.53, inner groove
tube
Indoor coil
Coil length x height x width mm 905×203×66 1150x254x66 1150x254x66
Indoor air flow(Hi/Mid/Lo) m3/h 1400/1200/1000 2000/1800/1600 2000/1800/1600
Indoor noise level (Hi/Mid/Lo) dB(A) 45/43/40 47/45/42 47/45/42

Dimension (W*H*D)(body) mm 1285×660×198 1670×680×240 1670×680×240
Packing (W*H*D)(body) mm 1365×744×278 1764×760×329 1764×760×329
Indoor unit
Net/Gross weight(body) kg 34/42 52/62 52/62
Model YDK250-6D YDK65-6; YDK65-6F YDK65-6F; YDK65-6F
Input W 307 138+156 138+156
Capacitor uF 10 uF/450V 3.5×2 uF/450V 3.5×2 uF/450V
Outdoor fan
motor
Speed r/min 740 800 800
Number of rows 2 2 2
Tube pitch(a)x row pitch(b) mm 25.4×22 25.4×22 25.4×22
Finspacing mm 1.7 1.8 1.8
Fin type unhydrophilic aluminum Hydrophilic aluminum Hydrophilic aluminum
Tube outside dia. and type
mm
Ф9.53, inner groove tube Ф9.53, inner groove tube
Ф9.53, inner groove
tube
Coil length x height x width mm 955×915×44 715×1220×44 715×1220×44
Outdoor coil
Number of circuits 8 4 4
Outdoor air flow m3/h 5000 6000 6000
Outdoor noise level dB(A) 57 58 58
Dimension(W*H*D) mm 990×960×360 940×1245×340 940×1245×340
Packing (W*H*D) mm 1120X1090X435 1058X1380X435 1058X1380X435
Outdoor unit
Net/ Gross weight kg 90/102 112/127 112/127
Refrigeranttype/Quantity g R410A/3100 R410A/4000 R410A/4200
Design pressure (high side/low side) MPa 4.2/2.5 4.2/2.5 4.2/2.5
Liquid side mm(inch) 12.7 (1/2) 12.7 (1/2) 12.7 (1/2)
Gas side mm(inch) 19 (3/4) 19 (3/4) 19 (3/4)
Max. pipe length m 30 50 50
Refrigerant
piping
Max. difference in level m 20 30 30
Operation temp  17~30 17~30 17~30
Ambient temp  -7~45 -7~45 -7~45
Applicationarea m
260~85 80~105 95~120
Qty’per 20’& 40’Fcl Pieces 27/55/62 25/50/54 25/50/54
Notes: 1. Nominal cooling capacities are based on the following conditions:
Indoor temp: 27°CDB, 19°CWB; Outdoor temp: 35°CDB;
2. Nominal heating capacities are based on the following conditions:
Indoor temp: 20°CDB; Outdoor temp: 7°CDB, 6°CWB;
3. Actual noise level may differ, depending on the room structure, etc, since these noise values are from
an anechoic room.

3. Dimensions
3.1. YOKC-12 YOKC-18 YOKC-24
4-12 18 Overhanging hole ¡ Á
Connecting point of
refrigerant pipe
(gas side)
Drain point
Connecting point of
refrigerant pipe
(Liquid side)
402
Strengthener
980
995
3.2. YOKC-30 YOKC-36
4-12 18 Overhanging hole ¡ Á
Connecting point of
refrigerant pipe
(gas side)
Drain point
Connecting point of
refrigerant pipe
(Liquid side)
402
Strengthener
980
1285
3.3. YOKC-48 YOKC-60
4-12 18 Overhanging hole ¡ Á
Connecting point of
refrigerant pipe
(gas side)
Drain point
Connecting point of
refrigerant pipe
(Liquid side)
402
Strengthener
980
1670

4. Service space
>600mm
>600mm

5. Piping Diagrams
Remark: 1. For YOJC-12 and YOJC-18, accumulator is not included.
2. For YOJC-30, YOJC-36 and YOJC-48, check valve and auxiliary capillary is not included.

6. Wiring Diagrams
6.1 Cooling & Heating
6.1.1 YOKC-12
XT1
RT2
XT1
XT2
RT1
XP1~4
XS1~4
CAP1
FAN1
CN1-CN24
T4
XT2
KM1
GM1
FAN1
DISPLAY
BOARD
CAP1
T4
MAI N CONTROL BOARD
CN15
CN10
CN16
CN1
CN2
CN3
CN5
(WHITE)
XP1
XS1
XS3
XP3
TOOUTDOORUNI T
Y/ G
POWER
WHI TE
TOOUTDOORUNI T
I NDOOR
WI RI NGDI AGRAM
CONNECTORS
PI PE TEMP. SENSOR
ROOMTEMP. SENSOR
5-WAY TERMI NAL
P. C. BOARD SOCKETS
TRANSFORMER
RL8
RELAY FOR
COMPRESSOR
Y/ G
CN12
LEVEL SWI NG MOTOR
KM1
CODE
I NDOOR FAN
I NDOOR FAN CAP
PART NAME
B
LA
C
K
(H
I)
R
E
D
B
LA
C
K
B
LU
E
(S
.V
)
B
LA
C
K
(C
)
R
E
D
W
H
IT
E
B
LA
C
K
W
H
ITE
(T3)
B
LA
C
K
(E
)
R
E
D
(LO
)
B
LA
C
K
(L)
B
LU
E
(N
)
CN13
WHI TE
4
35
(RED)
Y/ G
L N 1 2(N)
CONNECTORS
6-WAY TERMI NAL
PLUMB SWI NG MOTORGM2
6.1.2. YOKC -18
XT1
RT2
XT1
XT2
RT1
XP1~4
XS1~4
CAP1
FAN1
CN1-CN24
T4
XT2
KM1
GM1
FAN1
DISPLAY
BOARD
CAP1
T4
MAI N CONTROL BOARD
CN15
CN10
CN16
CN1
CN2
CN3
CN5
(WHITE)
XP1
XS1
XS3
XP3
TOOUTDOORUNI T
Y/ G
POWER
WHI TE
TOOUTDOORUNI T
I NDOOR
WI RI NGDI AGRAM
CONNECTORS
PI PE TEMP. SENSOR
ROOMTEMP. SENSOR
5-WAY TERMI NAL
P. C. BOARD SOCKETS
TRANSFORMER
RL8
RELAY FOR
COMPRESSOR
Y/ G
CN12
LEVEL SWI NG MOTOR
KM1
CODE
I NDOOR FAN
I NDOOR FAN CAP
PART NAME
B
LA
C
K
(H
I)
R
E
D
B
LA
C
K
B
LU
E
(S
.V
)
B
LA
C
K
(C
)
R
E
D
W
H
IT
E
B
LA
C
K
W
H
ITE
(T3)
B
LA
C
K
(E
)
R
E
D
(LO
)
B
LA
C
K
(L)
B
LU
E
(N
)
CN13
WHI TE
4
35
(RED)
Y/ G
L N 1 2(N)
CONNECTORS
6-WAY TERMI NAL
PLUMB SWI NG MOTORGM2

6.1.3. YOKC -24
6.1.4. YOKC -30
