York MHC-MHH/BOC-BOH 07 User manual

YORK MINISPLIT HIGH WALL (EN)
MINISPLIT
HIGHWALL
AIR CONDITIONER
MODELS
MHC-MHH/BOC-BOH 07
MHC-MHH/BOC-BOH 09
MHC-MHH/BOC-BOH 12
MHC-MHH/BOC-BOH 18
MHC-MHH/BOC-BOH 25
035T79000-000
Owner’s Manual
01_MHC/BOH 07-25.p65 18/3/02, 16:121

2 HIGH WALL
YORK MINISPLIT HIGH WALLYORK MINISPLIT HIGH WALL 035T79001-000 (EN)
Please read this owner manual carefully
before using the air conditioner. It will tell
you how to use the unit properly and
help you if any trouble occurs.
CONTENTS
Safety Precautions .................................... 3
Installation .................................................. 5
Installation site .................................................... 5
Consider nuisance to your neighbours
from noises ......................................................... 5
Electrical work..................................................... 5
System relocation ............................................... 5
Name of Parts............................................. 6
Indoor unit ............................................................6
Outdoor unit ........................................................ 6
Remote control ................................................... 7
Use ofWireless Remote Control .............. 11
Operation Procedure ................................. 12
Maintenance ............................................... 17
Before maintenance............................................ 17
Cleaning the unit................................................. 17
Cleaning the air filter........................................... 18
Replacement of air purifying filter....................... 18
Before Calling for Service......................... 19
QUALITY POLICY
We will continuously strive to satisfy our customers with consistent reliability in
product, service and support.
02_MHC/BOH 07-25.p65 18/3/02, 16:132

YORK MINISPLIT HIGH WALL 035T79001-000 (EN)
HIGH WALL 3

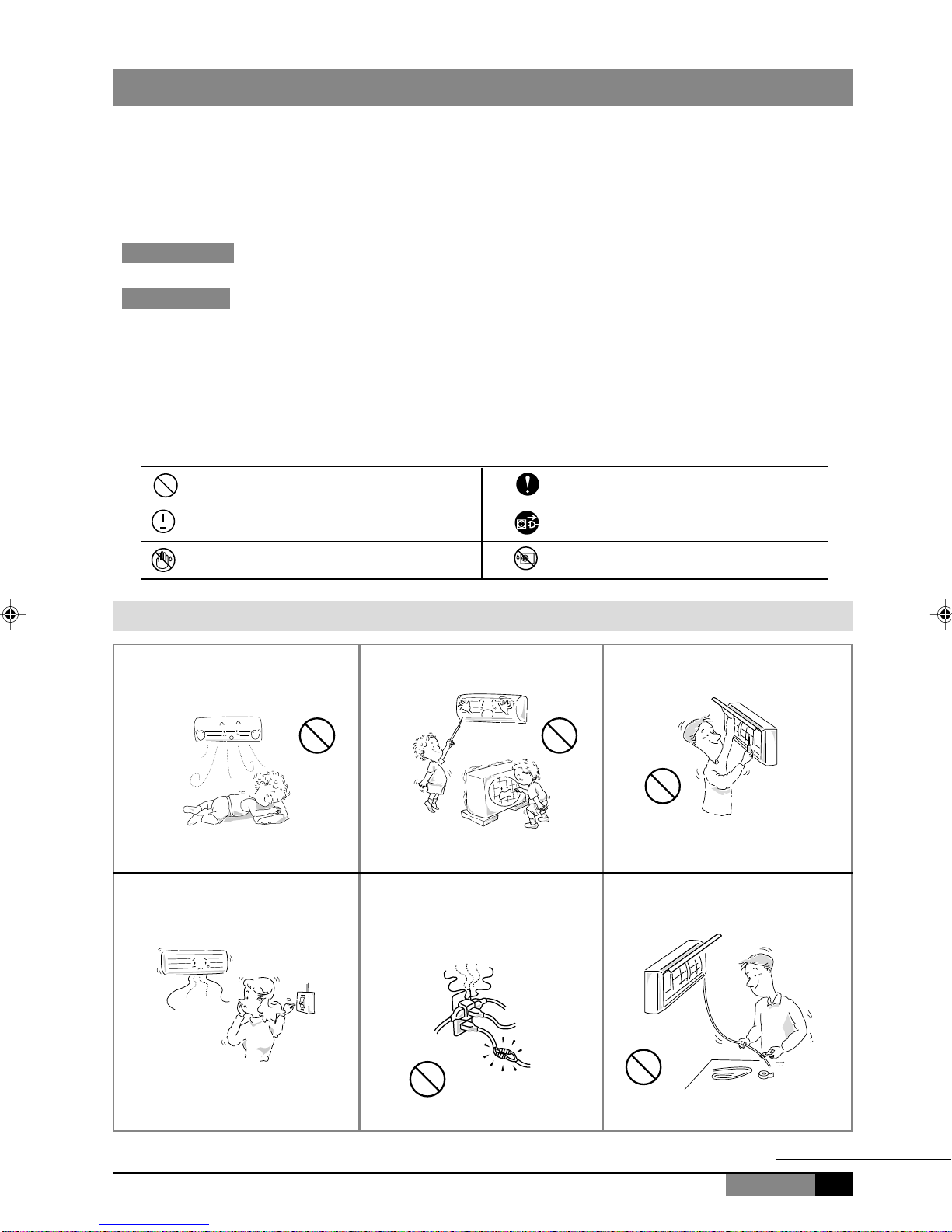

SAFETY PRECAUTIONS
•Please read the following warnings and cautions carefully before operating the system and use it correctly.
•Installation and maintenance of this air conditioning system should only be carried out by trained and qualified
personnel.
•This manual contains information which explains the functions, operation procedure and precautions for operating
the air condition system.
•This manual classifies precautions into two categories.They are all important to ensure safe and reliable operation.
__
__
_WARNING
Failure to follow a warning may result in death or serious injury.
__
__
_CAUTION
Failure to follow a caution may result in serious injury or property damage, and in certain conditions, may result in
a grave consequence
■Electrical connections
All electrical wiring and connections must comply with local codes and standards. Power supply cord and
interconnection cord used must not be lighter than Polychloroprene sheated cord (245 IEC 57 or H05RN-F).
Disconnecting device must have a contact separation of at least 3 mm.
■The following symbols are often used in this manual.
__
__
_WARNING
Do not expose your body directly to
the cool (or hot) air for prolonged
period; do not cool (or hot) the room
too much.
This could effect your physical condition and
cause health problems.
Do not put a finger, a rod or other
objects into the air outlet or inlet.
As a fan is rotating at a high speed, it will
cause injury.
Do not attempt to repair, relocate,
modify or reinstall the air conditioner
by yourself.
Incorrect work will cause electric shocks, fire
etc. For repairs and reinstallation, consult the
shop where you bought the air conditioner.
If anything abnormal such as a
burning smell occurs, stop the
operation immediately and turn the
breaker off.
Continued abnormal operation will cause
troubles, electric shocks, fire etc. If anything
is abnormal consult the shop where you
bought the air conditioner.
Do not attempt to extend the power
cord by joining it to another cord, or
by using an extension cord. Do not
put any other loads on the power
supply socket.
Do not damage or attempt to modify
the power cord. Do not use the cord in
a damaged state or tie in a bundle.
Be sure to follow the instructions.
Be sure to disconnect the power plug.
Do not cause the air conditioner (including the
remote controller) to get wet.
Strictly prohibited.
Be sure to earth the air conditioner.
Do not touch the air conditioner with a
wet hand.
(continued)
02_MHC/BOH 07-25.p65 18/3/02, 16:133

4 HIGH WALL
YORK MINISPLIT HIGH WALLYORK MINISPLIT HIGH WALL 035T79001-000 (EN)
__
__
_CAUTION
Safety Precautions (continued)
Before cleaning, be sure to stop the operation and turn the
breaker off.
As the fan is rotating at a high speed, cleaning during operation
may cause injury.
Do not operate the air conditioner with a wet hand.
It may cause an electric shock.
Safety Precautions (continued)
Do not connect the air conditioner to a
power supply different form the
specification.
It may cause trouble or fire.
After a long use, check the unit fixing
for damage. Do not wash the unit with water.
Do not place a vessel containing water
on the unit.
Do not stand or sit on the outdoor
unit, do not place any object on the
unit.
Do not place a burning appliance in a
place exposed to the air flow form the
unit or under the indoor unit.
Ventilate the room from time to time.
Be careful especially when using a burning appliance in the same
room. Insufficient ventilation may cause shortage of oxygen.
Do not use the air conditioner for food preservation
purpose.
Do not block air inlets or outlets.
Do not expose plants or animals
directly to the air flow.
Do not place anything under the indoor
or outdoor unit which must be kept
away from moisture.
02_MHC/BOH 07-25.p65 18/3/02, 16:134

YORK MINISPLIT HIGH WALL 035T79001-000 (EN)
HIGH WALL 5
INSTALLATION
__
__
_CAUTION
INSTALLATION SITE
■To install the air conditioner in the following types of environments,consult
the shop.
•Places with an oily ambient or where steam or soot occurs.
•Salty or corrosive environments such as coastal areas.
•Places where sulfide gas occurs such as hot springs.
The drain from the outdoor unit must be discharged to a place of good drainage.
CONSIDER NUISANCE TO YOUR NEIGHBOURS FROM NOISES
■For installation choose a place as
described below.
•A place solid enough to bear the weight of the unit and
which does not amplify the operation noise or vibration.
•A place from where the air discharged from the outdoor
unit or the operation noise will not annoy your
neighbours.
ELECTRICAL WORK
•For power supply, be sure to use a separate power circuit dedicated to the air conditioner.
SYSTEM RELOCATION
•Relocating the air conditioner requires specialized knowledge and skills.Please consult the shop where you bought
the air conditioner if relocation is necessary for moving or remodelling.
__
__
_WARNING
The air conditioner must be earthed
in accordance with the local codes. Do not install the air conditioner in
places where flammable gas may
leak.
Incomplete earthing may result in electric
shock.Do not connect the earth line to a
gas pipe, lightening rod or a telephone
earth line.
If leaked gas should accumulate near
the unit, fire may occur.
Depending on the environment and
local codes, an earth leakage breaker
must be installed.
Incomplete drainage may cause wetting
of the building, furniture etc.
Arrange the drain hose to ensure
smooth drainage.
Do not attempt to install the air conditioner
yourself.
Consult the service shop or qualified
technician. Incorrect installation will result in
water leakage, electric shock or fire.For
installation, consult the service shop where
you bought the unit or a qualified technician.
A place with
good
ventilation.
Air
Outlet Air
Inlet
To prevent
interference,
place at least
1m away.
Radio
Inverter-type
fluorescent
lamp.
TV
OFF
ON
02_MHC/BOH 07-25.p65 18/3/02, 16:135

6 HIGH WALL
YORK MINISPLIT HIGH WALLYORK MINISPLIT HIGH WALL 035T79001-000 (EN)
NAME OF PARTS
INDOOR UNIT
AFront Grille
BAir Purifying Filter
CIndicator Lamps
DFlap Vertical Blades
OUTDOOR UNIT
AAir Outlet
BAir Inlet
CRefrigerant gas piping
EAir Outlet
FAir Filter
GAir Inlet
HLouver Horizontal Blades
DRefrigerant liquid piping
EAdditional drain hose
FConnecting Cable
B
A
F
E
D
C
POWER
ON
OFF
POWER
ON
OFF
POWER
ON
OFF
POWER
ON
OFF
POWER
ON
OFF
EMERGENCY
OPERATION
A
B
C
D
E
F
G
H
02_MHC/BOH 07-25.p65 18/3/02, 16:136

YORK MINISPLIT HIGH WALL 035T79001-000 (EN)
HIGH WALL 7

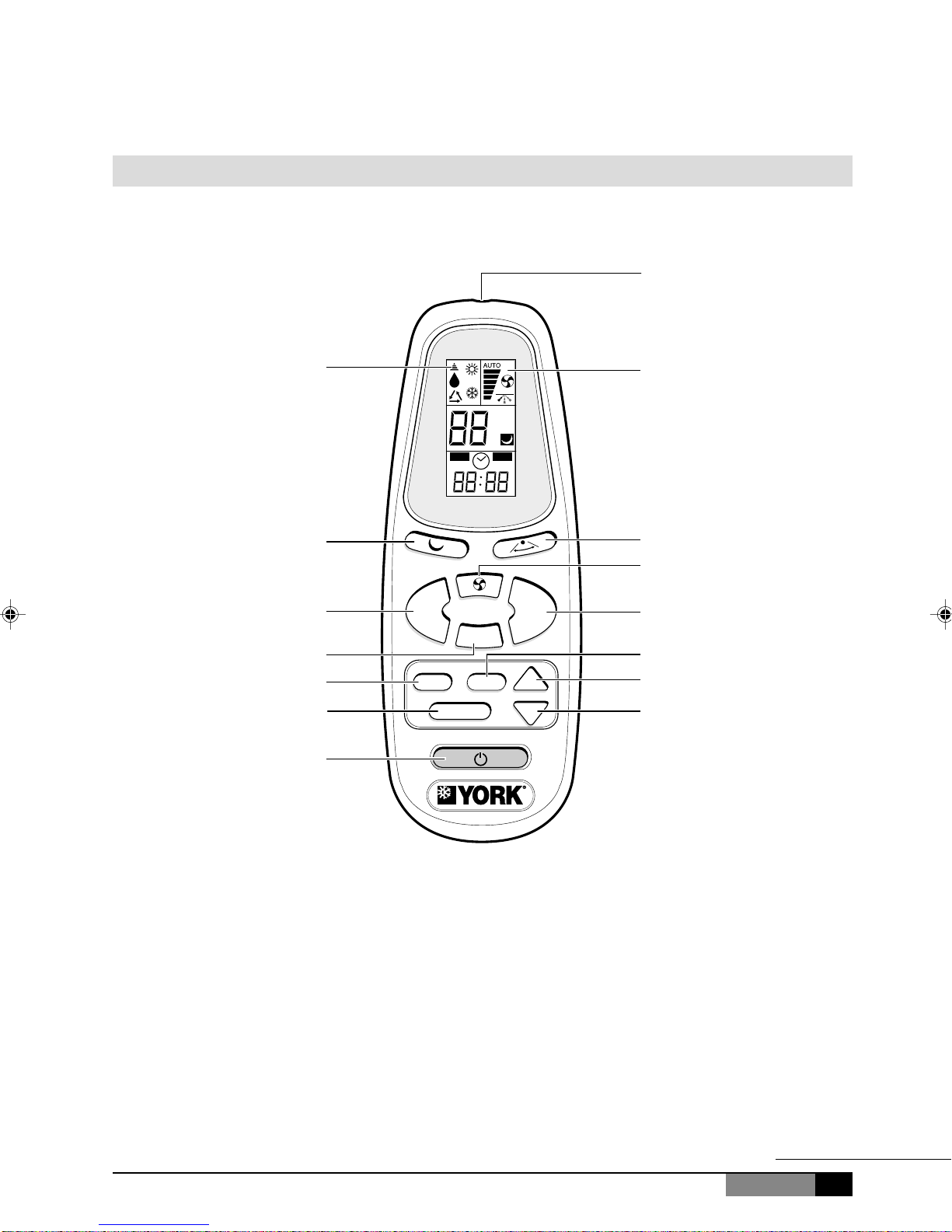

REMOTE CONTROL
■LCD Display
AInfrared signal transmitter
BLCD operation display
CAutomatic vertical air swing
DFAN SPEED and AUTO FAN button
ERoom temperature UP button
FTIMER CLEAR button
GTIMER UP button
HTIMER DOWN button
ISTART/STOP button
JTIMER button
KTIMER SET button
LOperation MODE selection button
- COOLING
- HEATING
- AUTO COOL/HEAT
-DRY
-FAN
MRoom temperature DOWN button
NSLEEP button
OTransmission sign
— TEMP —
OFFON
MODE
+
—
˚C ˚C
˚C
SET CLEAR
TIMER
+
—
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
(continued)
02_MHC/BOH 07-25.p65 18/3/02, 16:137

8 HIGH WALL
YORK MINISPLIT HIGH WALLYORK MINISPLIT HIGH WALL 035T79001-000 (EN)
Name of Part (continued)
■OPERATION MODES, FUNCTIONS AND FEATURES
COOL
Cools, dehumidifies and filters the room air. Maintains the desired
room temperature.
HEAT
Heats and filters the room air. Maintains the desired room
temperature.
AUTO
Automatically switches from COOLING to HEATING or from
HEATING to COOLING, maintaining the desired temperature
according to the room conditions.
DRY
Dehumidifies and softly cools the room In DRY Mode, the air
conditioner operates at an increased dehumidifying power. This
function is recommended to be used when temperature is rather
low but the humidity is high.
FAN
Recirculates and filters the room air. Maintains constant air
movement.
AUTO FAN
The air conditioner automatically selects the FAN speed in
accordance with the room temperature. At the start, the unit
operates at high fan speed. As the room air approaches to the
desired temperature, the fan switches to a lower speed for quieter
operation.
HOT KEEP
In HEATING and in AUTO FAN, the fan will be turned off when the compressor is not in operation and
will not be restarted, unless the indoor coil reaches adequate temperature. This HOT KEEP feature
prevents uncomfortable cold air drafts. Use of AUTO FAN is, therefore, recommended when the air
conditioner is in HEATING mode.
AUTO
02_MHC/BOH 07-25.p65 18/3/02, 16:138

YORK MINISPLIT HIGH WALL 035T79001-000 (EN)
HIGH WALL 9
(continued)

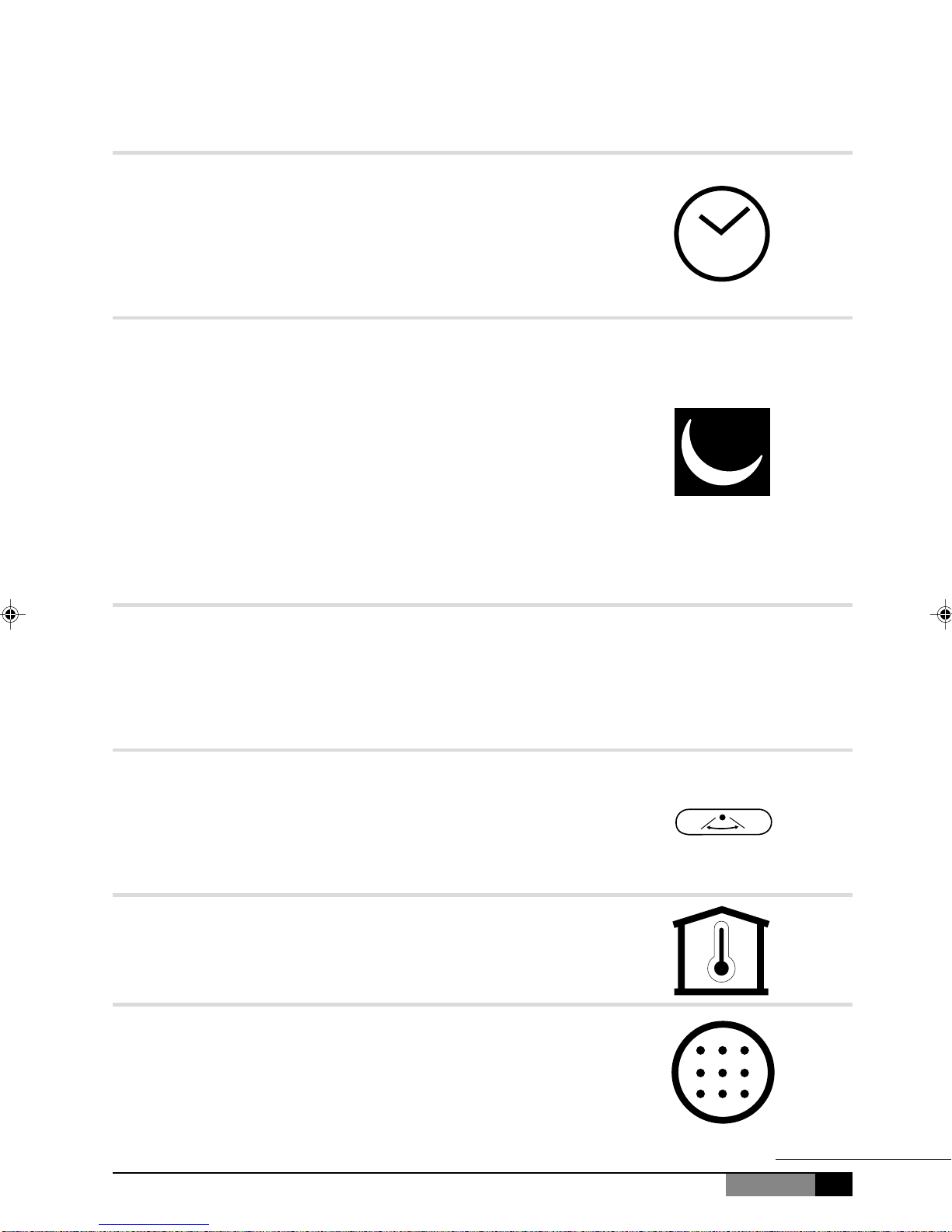

TIMER
Real time control and display,automatically turns the air conditioner
ON and OFF according to the time of day setting,ensuring comfort
conditions before returning home, without wasting electricity. It
turns the air conditioner off automatically when sleeping.
SLEEP
Designed to create comfortable sleeping conditions. When in
COOLING mode, the temperature rises one degree centigrade
every hour, for three hours, from the start of the mode. The
temperature rise prevents the feeling of over-cooling while sleeping
(when your body is at rest). In HEATING mode the reverse occurs;
the air conditioner lowers its temperature one degree every hour.
When in SLEEP mode, the air conditioner will be automatically
turned off after seven hours.The result is a more comfortable and
invigorating sleep, which leaves you feeling fresh and energetic in
the morning.
AUTO LOUVER
The air louver is automatically positioned for the most suitable blow-out angle, when COOL, HEAT,
DRY or FAN modes are selected.When the air conditioner is turned off, the louver will close automatically
providing an aesthetic appearance.
VERTICAL AIR SWING
Automatic swing of supply air in vertical direction.The louver moves
automatically in upward and downward direction spread the
conditioned air evenly throughout the room.
ROOMTEMPERATURE
Measures and displays room temperature.
FILTER INDICATION
Filter indicator on the indoor unit display is turned on when the
filter requires cleaning. After cleaning and reinstalling the filter,
the system should be reset.
02_MHC/BOH 07-25.p65 18/3/02, 16:139

10 HIGH WALL
YORK MINISPLIT HIGH WALL 035T79001-000 (EN)
Name of Part (continued)
BUZZER
A soft buzzer will sound from the indoor unit display to indicate
that a command sent by the remote control has been accepted and
stored in the unit’s memory. This feature may be easily canceled
by the user from the display panel.
ON UNIT OPERATION
The air conditioner can be turned ON for COOLING or HEATING or be turned OFF directly from the
indoor unit display panel without the use of the remote control.
3-MIN. DELAYED RUN
The compressor is protected by a three-minute delayed restart.
MEMORY
The microprocessor retains the last data entry whether or not the unit is plugged in.Therefore, when
the unit restarts after a power distruption or failure, it will resume operating in the same mode as
before the power was disrupted.
LOCK
Freezes the last operation setting on the remote control.When LOCK is activated, the remote control
will not be able to control the air-conditioner.
SETTING STORED
The air conditioner will store all the settings of the MODE button in COOL, HEAT, AUTO, DRY and
FAN.
03_MHC/BOH 07-25.p65 18/3/02, 16:1410

HIGH WALL 11
YORK MINISPLIT HIGH WALL 035T79001-000 (EN)
USE OF WIRELESS REMOTE CONTROL
PRIOR TO OPERATION
Prior to operating your air conditioner, make sure
that:
•The indoor unit is properly plugged into the electrical
socket. (Except for multisplit models).
•STAND-BY indicator on the unit’s display is lit, meaning
that the air conditioner is ready to accept your remote
control commands.
•The red tab protecting the remote control batteries has
been removed.
•For clock setting see page 16.
Attention:
•Aim at the infrared signal receiver on the room air conditioner when operating.
•The remote control signal can be received at a distance of up to about 8 m.
•Be sure that there is nothing between the remote control and the signal receptor.
•Do not drop or throw the remote control.
•Do not place the remote control in a location exposed to direct sunlight, or next to a heating unit,
and/or other heat source.
•Do not expose the air conditioner signal receiver to a strong light such as fluorescent lamp or sunlight.
REMOTE CONTROL BATTERY CHANGE
•Remove the batteries from the remotecontrolasshown.
•Use two 1.5 volt size AAA batteries
•PerformresetoperationbypressingTIMERUP buttons,
TIMER DOWN button, TIMER SET button and TIMER
CLEAR button.
REMOTE CONTROL HOLDER (DESKTYPE)
Use the remote control holder when unit is not in
use. Remote control can be slipped in or out its
holder.
WIRELESS REMOTE CONTROL
PUTS ALL FUNCTIONS ATYOUR
FINGERTIPS
—TEMP—
MODE+
—
˚C ˚C
˚C
SETCLEAR
TIMER
+
—
—TEMP —
MODE
+
—
˚C˚C
˚C
SET CLEAR
TIMER
+
—
03_MHC/BOH 07-25.p65 18/3/02, 16:1411

12 HIGH WALL
YORK MINISPLIT HIGH WALL 035T79001-000 (EN)
OPERATION PROCEDURE
TURNING ONTHE AIR CONDITIONER
Press STAR/STOP button to turn the air
conditioner on. OPERATION Indicator on the air
conditioner will light up, indicating that the unit
is in operation. Note that the LCD operation
display will always show the last mode of
operation and previous function used.
Follow the instructions if you choose to change
the control settings;otherwise,the air conditioner
will start and operate in the same mode and
functions prior to being turned off.
VENTILATING OPERATION
Select the ventilating mode by pressing MODE
button. Switch to the desired fan speed by
pressing FAN SPEED button.
COOLING OPERATION
Select the COOLING mode by pressing MODE
button. Switch to the desired FAN SPEED or to
AUTO FAN by pressing button. Select suitable
temperature setting. By selecting the COOLING
mode, the air flap will move automatically to air
delivery position, optimal for cooling.
COOLING OPERATION WITH AUTO FAN MODE
This operation starts with the highest air flow in
order to quickly lower the room temperature. It
will then automatically switch to the low air flow
to quietly maintain the selected temperature.
—TEMP —
MODE
+
—
˚C˚C
SET CLEAR
TIMER
+
—
˚C
—TEMP —
MODE
+
—
˚C˚C
SET CLEAR
TIMER
+
—
˚C
—TEMP —
MODE
+
—
˚C˚C
SET CLEAR
TIMER
+
—
˚C
—TEMP —
MODE
+
—
˚C˚C
SET CLEAR
TIMER
+
—
˚C
MODE
button
FAN SPEED
button
STAR/STOP
button
FAN
SPEED
button
Room
temperature
button
FAN SPEED
button
MODE
button
MODE
button
03_MHC/BOH 07-25.p65 18/3/02, 16:1412

HIGH WALL 13
YORK MINISPLIT HIGH WALL 035T79001-000 (EN)
HEATING OPERATION
Select the HEATING mode by pressing MODE
button. Switch to the desired FAN SPEED or to
AUTO FAN by pressing FAN button.Select suitable
temperature setting. By selecting the HEATING
mode, the air flap will move automatically to air
delivery position, optimal for heating.
HEATING OPERATION WITH AUTO FAN MODE
This operation starts with the highest air flow in
order to quickly raise the room temperature.It will
then automatically switch to a lower air flow to
quietly maintain the selected temperature.
HEATING with AUTO FAN will automatically
provide the user with the HOT KEEP function.The
fan will be turned off when the indoor coil
temperature is not sufficiently hot to prevent
uncomfortable cold air drafts.
AUTO COOLING/HEATING OPERATION
Select the AUTO mode by pressing MODE button.
Switch to the desired FAN SPEED or to AUTO FAN
by pressing button. Select suitable temperature
setting. The air flap will automatically move to
either horizontal air delivery for cooling or to
vertical air delivery for heating. At start, the air
conditioner will select its mode of operation
according to the room temperature and the
termperature setting.
DRY OPERATION
Select the DRY mode by pressing MODE button.
Select the suitable temperature setting. While in
DRY mode, the air conditioner will operate at low
fan speed, regardless of the fan setting on the
LCD operation display. Fan might terminate
operation from time to time to prevent from over
cooling. By selecting the mode, the air flap will
move automatically to optimal horizontal air
delivery position.
(continued)
˚C
—TEMP —
MODE
+
—
˚C˚C
SET CLEAR
TIMER
+
—
—TEMP —
MODE
+
—
˚C˚C
SET CLEAR
TIMER
+
—
˚C
˚C
—TEMP —
MODE
+
—
˚C˚C
SET CLEAR
TIMER
+
—
—TEMP —
MODE
+
—
˚C˚C
SET CLEAR
TIMER
+
—
˚C
MODE
button
FAN
SPEED
button
Room
temperature
button
FAN SPEED
button
MODE
button
MODE
button
FAN
SPEED
button
Room
temperature
button
MODE
button
03_MHC/BOH 07-25.p65 18/3/02, 16:1513

14 HIGH WALL
YORK MINISPLIT HIGH WALL 035T79001-000 (EN)
Operation Procedure (continued)
SELECTINGTHE TEMPERATURE
Press TEMP buttons UP or DOWN to change the
temperature setting in the LCD operation display.
The temperature setting is shown in degrees
centigrade. A higher number indicates a higher
room temperature. A lower number indicates a
lower room temperature.
SLEEP FUNCTION
Press the SLEEP button to select the SLEEP
function.When the sleep function is activated the
air conditioner will be automatically turned OFF
after seven hours. If at the same time TIMER is
activated,as well, the air conditioner will be turned
ON and OFF according to theTIMER setting.
To cancel the SLEEP function press on one of the
following:
•START/STOP button
•SLEEP button
TIMER OPERATION
Press TIMER button to activate the timed
operation mode. Each time the TIMER button is
pressed, one of the following four types of
operation modes will appear on the LCD display.
The operation modes are sequenced in the
direction of arrow. TIMER indicator on the air
conditioner will light up duringTIMER operation.
Note
After power failure when the unit is in timer modeTIMER
indicatorwill be blinking andtheunit will beautomatically
turned to stand-by mode and the timer operation will be
cancelled. To resume the timer wait 30 sec. before
reprogramming.Follow the instructions above.
˚C
—TEMP —
MODE
+
—
˚C˚C
SET CLEAR
TIMER
+
—
—TEMP —
MODE
+
—
˚C˚C
SET CLEAR
TIMER
+
—
˚C
—TEMP —
MODE
+
—
˚C˚C
SET CLEAR
TIMER
+
—
OFFON
˚C
SLEEP
button
Room
temperature
button
START/
STOP
button
TIMER
button
TIMER
SET
button
03_MHC/BOH 07-25.p65 18/3/02, 16:1514

HIGH WALL 15
YORK MINISPLIT HIGH WALL 035T79001-000 (EN)
TIMER OPERATING MODES
I.TIMER ON
This mode enables you to set a start operating time
Press the TIMER button till the ON sign blinks. Start
time can be adjusted using up and down buttons
respectively. Press SET button to activate the timer.
Example: Operation is restored at 10:30.
(continued)
II.TIMER OFF
This mode enables you to set the stop time of operation.
Press the TIMER button till the OFF sign blinks.Time
can be adjusted using up and down button respectively.
Press SET button to activate the timer.
Example: Operation stops at 18:00
IV. CLEAR
Use this mode to cancel timer operation.Press CLEAR
button, timer operation will terminate and the LCD
display will be cleared for each timer mode.
Note: If TIMER button is selected and neither time adjust, SET, or
CLEAR buttons are pressed within 15 seconds, the timer
operation will be cancelled and the last set-up will be
displayed.
III.TIMER ON AND OFF
This mode enables you to set the start and stop time of
operation.Press theTIMERbuttontilltheON sign blinks.
By pressing again the OFF sign blinks. Time can be
adjustedbyusing the upanddownbuttons, respectively.
Press SET button to activate the timer.The LCD display
will show the current time.
Example: Operation is restored at 10:30 and stops at 18:00
OFFON
OFFON
Note:
After pressing SET button the LCD will display the current time.
03_MHC/BOH 07-25.p65 18/3/02, 16:1515

16 HIGH WALL
YORK MINISPLIT HIGH WALL 035T79001-000 (EN)
Operation Procedure (continued)
AUTOMATIC VERTICAL AIR SWING
Press Automatic vertical air swing button to
activate the auto air swing.By Pressing Automatic
vertical air swing button again you can stop the
auto swing and position the air flap at any desired
angle.
TURNING OFFTHE AIR CONDITIONER
Press START/STOP button to turn off the air
conditioner. OPERATION indicator on the air
conditioner will be turned off.STAND-BY indicator
will stay lit, indicating that the air conditioner is
in STAND-BY mode and ready to accept any new
command from the remote control. The remote
control LCD will display the clock time. The last
operating set-up will be kept for the next operation.
CURRENT CLOCKTIME SET
Clock setting is performed when batteries are
inserted.The remote control displays the setting
and the clock display will blink “0:00”or “12:00”
AM (AM sign will blink, too) till a new time is set.
For clock setting, use TIMER UP buttons and
TIMER DOWN buttons for setting the hours and
minutes, respectively, and then pressTIMER SET
button.The clock setting can be also performed
by pressingTIMER SET button for 5 seconds.The
clock display will blink, for new setting follow the
steps described above.
—TEMP —
MODE
+
—
˚C˚C
SET CLEAR
TIMER
+
—
˚C
—TEMP —
MODE
+
—
˚C˚C
SET CLEAR
TIMER
+
—
˚C
—TEMP —
MODE
+
—
˚C˚C
SET CLEAR
TIMER
+
—
˚C
Automatic
vertical air
swing button
START/
STOP
button
TIMER UP/
DOWN
button
TIMER
SET
button
03_MHC/BOH 07-25.p65 18/3/02, 16:1516

HIGH WALL 17
YORK MINISPLIT HIGH WALL 035T79001-000 (EN)
Maintenance operations Recommended Frequency
Air filter Clean Every month or more often if
necessary
Air Purifying filter Change/Replace a new set Every 4 months
Unit casing Clean Every month or more often if
necessary
Drain pan and evacuation piping Clean and check for obstructions Each season before start up*
Indoor/outdoor coils Clean Each season before start up*
Compressor No need
MAINTENANCE
The units are designed to operate for long periods of time with a minimum of maintenance. However, the following
operation must be performed regularly.
BEFORE MAINTENANCE
__
__
_Turn off the main breaker or disconnect the
main power supply.
Notes
•Don’t spill water :There is a danger of electric shock.
•Don’t used petrol, paint thinner, benzene or polishing agents :They may deform or scratch the unit.
CLEANING THE UNIT
Wipe the unit with a soft dry cloth only. If the unit is very
dirty, wipe it with a cloth soaked in warm water (Not more
than 40 °C).
* This operation must be carried out by qualified personnel only.
(continued)
Not more than
40 °C
03_MHC/BOH 07-25.p65 18/3/02, 16:1517

18 HIGH WALL
YORK MINISPLIT HIGH WALL 035T79001-000 (EN)
Maintenance (continued)
REPLACEMENT OF AIR PURIFYING
FILTER
1 Remove the filter.
POWER
ON
OFF
POWER
ON
OFF
POWER
ON
OFF
POWER
ON
OFF
POWER
ON
OFF
EMERGENCY
OPERATION
2 Remove the air purifying filter.
POWER
ON
OFF
POWER
ON
OFF
POWER
ON
OFF
POWER
ON
OFF
POWER
ON
OFF
EMERGENCY
OPERATION
3 Install a new air purifying filter.
POWER
ON
OFF
POWER
ON
OFF
POWER
ON
OFF
POWER
ON
OFF
POWER
ON
OFF
EMERGENCY
OPERATION
4 Reinstall the air filter and securely close the
front panel.
POWER
ON
OFF
POWER
ON
OFF
POWER
ON
OFF
POWER
ON
OFF
POWER
ON
OFF
EMERGENCY
OPERATION
■Air purifying filter
•If the air purifying filter is clogged, it may lower the
unit’s capacity or cause condensation at air outlet.
•The air purifying filter is disposable. The standard
usable interval is about 4 mounts.However, if the color
of the filter turns dark brown, replace it at once.
CLEANING THE AIR FILTER
1 Remove the air filter.
Lightly hold the knobs at both sides and lift a little
to remove the filter to this side.
POWER
ON
OFF
POWER
ON
OFF
POWER
ON
OFF
POWER
ON
OFF
POWER
ON
OFF
EMERGENCY
OPERATION
2 Cleaning.
Ifthe filter isvery dirty, clean itwith water (approx.
30°C), and dry it thoroughly.
3 Reinstall the air filter.
POWER
ON
OFF
POWER
ON
OFF
POWER
ON
OFF
POWER
ON
OFF
POWER
ON
OFF
EMERGENCY
OPERATION
push
pull down
push
pull up
03_MHC/BOH 07-25.p65 18/3/02, 16:1518

HIGH WALL 19
YORK MINISPLIT HIGH WALL 035T79001-000 (EN)
BEFORE CALLING FOR SERVICE
Before calling for service, please check the following common malfunctions and correct as needed.
Problem Cause Remedy
A. Unit does not operate, Stand-by 1. Unit not connected to power 1. Plug in the power cord
indicator does not light up 2. Power failure 2. Check main fuse
B. Unit does not operate. Stand-by 1. Remote control malfunctions 1. Check remote control batteries.
indicator lights. 2. Try to operate from a closer
distance
3. Start form on-unit controls
4. Perform reset operation by
pressingbutton:TIMERUP button,
TIMERDOWNbutton,TIMERSET
button, TIMER CLEAR button for
5 sec.
1. The remote control is locked 1. Unlock the remote control
C. Unit does not respond properly 1. Infra Red signal does not 1. Check for obstruction
to remote control command reach unit between unit and remote control.
Clear if needed.
2. Distance between remote 2. Get closer to unit
control and unit too large or
aimed at form improper angle
3. Infra Red receiver on-unit 3. Dimlights,fluorescents especially
exposed to strong light source
D. Air does not blow out from 1. De-icing protection mode is 1. Normal operation in HEATING
indoor unit activated mode
2. Unit in AUTO FAN mode 2. Normal operation in DRY mode
3. Over cooling in DRY
E. COOLING, DRY or HEATING 1. 3-min.compressor delayed 1. Normal operation for these
does not start immediately start modes
F. Unit functions but does not 1. Improper temperature setting 1. Reset temperature
perform sufficiently 2. Unit capacity insufficient for 2. Consult your dealer
load or room size
G. Filter indicator light up 1. Air filter needs cleaning. 1. Clean filter, reinstall and reset
indicator
03_MHC/BOH 07-25.p65 18/3/02, 16:1519

YORK®International Corporation
DE - COMMISSIONING DISMANTLING & DISPOSAL
This product contains refrigerant under pressure, rotating parts, and electrical connections which may be a
danger and cause injury!
All work must only be carried out by competent persons using suitable protective clothing and safety precautions.
Read the Manual Risk of electric shock Unit is remotely controlled and
may start without warning
1. Isolate all sources of electrical supply to the unit including any control system supplies switched by the unit. Ensure
thatallpoints of electricalandgas isolation aresecuredinthe OFFposition.Thesupply cables andgaspipework may
then be disconnected and removed. For points of connection refer to unit installation instructions.
2. Removeallrefrigerantfromeachsystemoftheunitintoasuitablecontainerusingarefrigerantreclaimorrecoveryunit.
This refrigerant may then be re-used, if appropriate, or returned to the manufacturer for disposal. Under No
circumstancesshouldrefrigerantbe ventedtoatmosphere.Whereappropriate,draintherefrigerantoilfromeach
system into a suitable container and dispose of according to local laws and regulations governing disposal of oily
wastes.
3. Packaged unit can generally be removed in one piece after disconnection as above. Any fixing down bolts should be
removed and then unit lifted from position using the points provided and equipment of adequate lifting capacity.
Reference MUST be made to the unit installation instructions for unit weight and correct methods of lifting. Note that
any residual or spilt refrigerant oil should be mopped up and disposed of as described above.
4. After removal from position the unit parts may be disposed of according to local laws and regulations.
03_MHC/BOH 07-25.p65 18/3/02, 16:1520
