York YCWL Series User manual

MODEL YCWL
WATER-COOLED SCROLL LIQUID CHILLER
STYLE A
50 – 200 TONS
175kW – 700 kW
60Hz
FORM 150.26-EG1 (116)

JOHNSON CONTROLS
FORM 150.26-EG1 (116)
2
Nomenclature
Products are produced at a
facility whose quality-
management systems are
ISO9001 certified.
Approvals
• ASME Boiler and Pressure Vessel Code –Section Vlll Division 1
• AHRI Standard 550/590 and 551/591
• c/U.L. – Underwriters Laboratory
• ASHRAE 15 – Safety Code for Mechanical Refrigeration
• ASHRAE Guideline 3 – Reducing Emission of Halogenated Refrigerants in Refrigeration and Air Conditioning
Equipment and Systems
• N.E.C. – National Electrical Code
• OSHA – Occupational Safety and Health Act
Performance data provided in this document was created in accordance with Johnson Controls software: YORKworks version
14.03 and DXCHILL version 6.13.
VOLTAGE CODE
17 = 200/3/60
28 = 230/3/60
46 = 380/3/60
50 = 380-415/3/50
58 = 575/3/60
YCWL 0084 S E 46 X A A
STARTER
X = Across The Line Start
REFRIGERANT
R-410A
DESIGN
SERIES
DEVELOPMENT
LEVEL
Development Level A
UNIT DESIGNATOR
H = High Efficiency
S = Standard Efficiency
MODEL #
0056
0064
0074
0084
0094
0096
0104
0118
0127
0132
0157
0177
0198
UNIT TYPE
YORK Water Cooled
Scroll Compressor

FORM 150.26-EG1 (116)
JOHNSON CONTROLS 3
Table of Contents
EQUIPMENT OVERVIEW........................................................................................................................................ 5
MICROPROCESSOR CONTROLS ......................................................................................................................... 8
ACCESSORIES AND OPTIONS ........................................................................................................................... 11

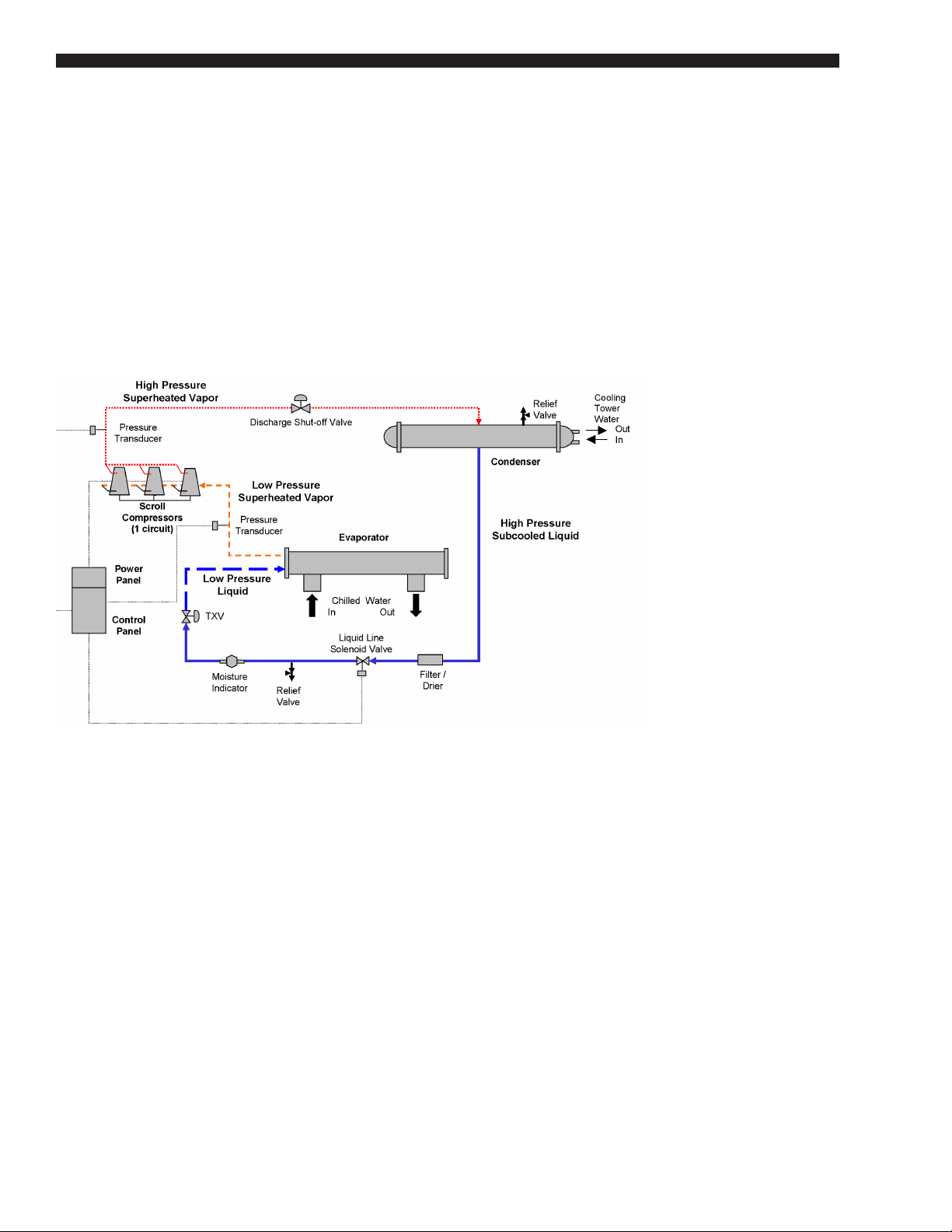

REFRIGERANT FLOW DIAGRAM........................................................................................................................ 14
DESIGN PARAMETERS ....................................................................................................................................... 15
PRESSURE DROP CURVES ................................................................................................................................ 16
SELECTION DATA................................................................................................................................................. 18
APPLICATION DATA............................................................................................................................................. 22
RATINGS................................................................................................................................................................ 24
PART LOAD RATINGS.......................................................................................................................................... 30
PHYSICAL DATA................................................................................................................................................... 32
ISOLATOR SELECTION DATA ............................................................................................................................. 36
ISOLATOR INFORMATION ................................................................................................................................... 37
SOUND DATA ........................................................................................................................................................ 40
UNIT DIMENSIONS - FOUR COMPRESSOR....................................................................................................... 42
SINGLE POINT ELECTRICAL DATA .................................................................................................................... 50
ELECTRICAL NOTES ........................................................................................................................................... 62
GROUND WIRE SIZING ........................................................................................................................................ 63
TYPICAL CONTROL PANEL WIRING .................................................................................................................. 64
CUSTOMER WIRING INFORMATION .................................................................................................................. 68
GUIDE SPECIFICATIONS ..................................................................................................................................... 70
SI METRIC CONVERSION .................................................................................................................................... 77

JOHNSON CONTROLS
FORM 150.26-EG1 (116)
4
THIS PAGE INTENTIONALLY LEFT BLANK.

FORM 150.26-EG1 (116)
JOHNSON CONTROLS 5
YORK YCWL Water-Cooled chillers provide chilled water for all air conditioning applica-
tions that use central station air handling or terminal units. They are completely self-
contained and are designed for indoor (new or retrofit) installation. Each unit includes
hermetic scroll compressors, a liquid evaporator, water cooled condenser, and a user-
friendly, Microcomputer Control Center mounted on a rugged steel base. The units are
produced at an ISO 9001 registered facility. The YCWL chillers are rated in accordance
with AHRI Standard 550/590.
The chiller will be completely assembled with all interconnecting refrigerant piping and
internal wiring, ready for field installation.
The unit will be pressure-tested, evacuated, and charged with Refrigerant-410A, and York
‘V’ (POE) synthetic oil. There will be an operational test, with water flowing through the
evaporator, to check that each control device operates correctly.
The unit can be covered with an optional overspray coat of Caribbean Blue enamel. Units
are designed in accordance with NFPA 70 (National Electric Code), ASHRAE/ANSI 15
Safety Code for Mechanical Refrigeration. All units are produced at an ISO 9001 regis-
tered facility. All YCWL chillers are rated in accordance with AHRI Standard 550/590 at
AHRI conditions.
COMPRESSORS
The chiller has suction-gas cooled, hermetic, scroll compressors. The YCWL compres-
sors incorporate a compliant scroll design in both the axial and radial direction. All rotating
parts are statically and dynamically balanced. A large internal volume provides greater
liquid tolerance. Compressor crankcase heaters are also included for extra protection
against liquid migration. All compressors are mounted on isolator pads to reduce trans-
mission of vibration to the rest of the unit.
EVAPORATOR
The dual-circuit evaporator will be the direct-expansion type, with refrigerant in the tubes
and chilled liquid flowing through the baffled shell. The design working pressure of the
shell (liquid) side will be 150 PSIG (10.3 bar), and 400 PSIG (27.6 bar) for the tube (re-
frigerant) side.
The evaporator will be constructed and tested in accordance with the applicable sections
of the ASME Pressure Vessel Code, Section VlII, Division (1). The water side will be ex-
empt per paragraph U-1, (C), (6).
The removable heads will allow access to the internally enhanced, seamless, copper
tubes. Vent and drain connections will be included. Nozzle connections are grooved to
accept ANSI/AWWA C-606 couplings.
The evaporator will be covered with 3/4” (19.1 mm) flexible, closed-cell, foam insulation
(K = 0.25).
Equipment Overview

JOHNSON CONTROLS
FORM 150.26-EG1 (116)
6
CONDENSER
The condenser is a cleanable thru-tube type with steel shell, copper tubes, removable
water heads, and includes integral subcooling. The design working pressure of the shell
(refrigerant) side will be 560 PSIG (38.6 bar) and 150 PSIG (10.3 bar) for the tube (liquid)
side. The shell will be constructed and tested in accordance with section Vll, division 1
of the ASME pressure-vessel code. The water side is exempt per paragraph U-1, (C), (6)
of section VlII, division 1 of the ASME pressure-vessel code. The condenser is equipped
with relief valves and will hold the full refrigerant charge for pumpdown. Water connec-
tions are grooved to accept ANSI/AWWA C-606 couplings. Vent and drain connections
are included.
REFRIGERANT CIRCUIT
Two independent refrigerant circuits will be furnished on each unit. All piping will be cop-
per with brazed joints. The liquid line will include: a shutoff valve with charging port; sight-
glass with moisture indicator; thermal expansion valve; solenoid valve; and high-absorp-
tion removable-core filter drier. The entire suction line and the liquid line between the
expansion valve and the cooler will be insulated with flexible, closed-cell, foam insulation.
AHRI CERTIFICATION PROGRAM
YORK YCWL chillers have been tested and certified by Air-Conditioning, Heating and Re-
frigeration Institute (AHRI) in accordance with the latest edition of AHRI Standard 550/590
(I-P). Under this Certification Program, chillers are regularly tested in strict compliance
with this Standard. This provides an independent, third-party verification of chiller perfor-
mance. Refer to the AHRI site at www.ahrinet.org/ for complete Program Scope, Inclu-
sions, and Exclusions as some options listed herein fall outside the scope of the AHRI
certification program. For verification of certification, go to the AHRI Directory at www.
ahridirectory.org.
Rated in accordance with the latest
issuance of AHRI Standard 550/590
and 551/591.
Equipment Overview (Cont'd)

FORM 150.26-EG1 (116)
JOHNSON CONTROLS 7
Equipment Overview (Cont'd)
POWER AND CONTROL PANELS
All controls and motor starting equipment necessary for unit operation shall be factory
wired and function tested. The panel enclosures shall be designed to NEMA 1 (IP 32) and
manufactured from powder-painted galvanized steel.
The Power and Control Panel shall be divided into a power section for each electrical
system, a common input section and a control section.
Each power panel shall contain:
• Compressor starting contactors
• Control-circuit serving compressor capacity control
• Compressor
• Contactor coils
• Compressor motor overloads
The compressor motor overloads contain current transformers which sense each phase,
as an input to the microprocessor, to protect the compressor motors from damage due to:
• Low input current
• High input current
• Unbalanced current
• Single phasing
• Phase reversal
• Compressor locked rotor
The common input section shall contain:
• Control supply transformer providing 115V
• Customer relay board
• Control circuit switch disconnect/emergency stop device

JOHNSON CONTROLS
FORM 150.26-EG1 (116)
8
MICROPROCESSOR CONTROLS
The control section shall contain:
• On/Off rocker switch
• Microcomputer keypad and display
• Microprocessor board
• I/O expansion board
• Relay boards
• 24V fused power-supply board
The control display shall include:
• Liquid Crystal Display with Light Emitting Diode backlighting for outdoor viewing
• Two display lines
• Twenty characters per line
Color coded 12-button non-tactile keypad with sections for display/print of typical informa-
tion:
• Chilled liquid temperatures
• System pressures (each circuit)
• Operating hours and starts (each compressor)
• Print calls up to the liquid crystal display
• Operating data for the systems
• History of fault shutdown data for up to the last six fault shutdown conditions
• An RS-232 port, in conjunction with this press-to-print button, is provided to permit
the capability of hard copy print-outs via a separate printer (by others)
Entry section to:
• ENTER setpoints or modify system values
Setpoints updating can be performed to:
• Chilled liquid temperature setpoint and range
• Remote reset temperature range
• Set daily schedule/holiday for start/stop
• Manual override for servicing
• Number of compressors
Microprocessor Controls

FORM 150.26-EG1 (116)
JOHNSON CONTROLS 9
• Low liquid temperature cutout
• Low suction pressure cutout
• High discharge pressure cutout
• Anti-recycle timer (compressor start cycle time)
• Anti-coincident timer (delay compressor starts)
Unit section to:
• Set time
• Set unit options
The microprocessor control center is capable of displaying the following:
• Return and leaving chilled liquid temperature
• Low leaving liquid temperature cutout setting
• English or Metric data
• Suction pressure cutout setting
• Each system suction pressure
• Discharge pressure
• Liquid Temperature Reset via a Building Automation System via one of the following:
• 0-20 VDC input, 0-10 VDC input or a 4-20mA input
• Anti-recycle timer status for each system
• Anti-coincident system start timer condition
• Compressor run status
• No cooling load condition
• Day, date and time
• Daily start/stop times
• Holiday status
• Automatic or manual system lead/lag control
• Lead system definition
• Compressor starts & operating hours (each compressor)
• Status of hot gas valves (if supplied)
• Run permissive status
• Number of compressors running
• Liquid solenoid valve status
• Load & unload timer status
Microprocessor Controls (Cont'd)

JOHNSON CONTROLS
FORM 150.26-EG1 (116)
10
The standard controls shall include: brine chilling, automatic pumpdown, run signal con-
tacts, demand load limit form external building automation system input, remote reset
liquid temperature reset input, unit alarm contacts, chilled liquid pump control, automatic
reset after power failure, and automatic system optimization to match operating condi-
tions. A non-reversing heat pump function (leaving condenser temperature control) is also
standard.
The operating program software shall be stored in nonvolatile memory (EPROM) to elimi-
nate chiller failure due to AC power failure. Programmed setpoints are retained in lithium
battery-backed regulated time clock (RTC) memory for 5 years minimum.
COMMUNICATIONS
• Native communication capability for BACnet (MS/TP) and Modbus
• Optional communciation available for N2 and LON via eLink option
Microprocessor Controls (Cont'd)

FORM 150.26-EG1 (116)
JOHNSON CONTROLS 11
Accessories and Options
All accessories and options are factory installed unless otherwise noted.
POWER OPTIONS
Single Point Supply Terminal Block - The standard power wiring connection on all mod-
els is a single point power connection to a factory provided terminal block. Components
included are the enclosure, terminal-block and interconnecting wiring to the compressors.
Separate external protection must be supplied, by others, in the incoming power wiring.
(Do not include this option if either the Single-Point Non-Fused Disconnect Switch or
Single-Point Circuit Breaker options have been included.)
Single Point Non-Fused Disconnect Switch - An optional unit-mounted disconnect switch
with external, lockable handle (in compliance with Article 440-14 of N.E.C.), can be supplied
to isolate the unit power voltage for servicing. Separate external fusing must be supplied,
by others in the power wiring, which must comply with the National Electrical Code and/or
local codes.
Single Point Circuit Breaker - An optional unit mounted circuit breaker with external, lock-
able handle (in compliance with N.E.C. Article 440-14), can be supplied to isolate the power
voltage for servicing.
Multiple Point Circuit Breaker – Optional multiple point supply with independent system
circuit breakers and locking external handles (in compliance with Article 440-14 of N.E.C)
can be factory supplied. Selecting this option also selects optional compressor external
overloads, for reduced MCA.
Control Transformer – Converts unit power voltage to 115-1-60 (0.5 or 1.0 KVA capacity).
Factory mounting includes primary and secondary wiring between the transformer and the
control panel.
Compressor External Overloads – Optional compressor motor overloads can be factory
mounted in the unit control/power panel. This option will reduce the chiller MCA (minimum
circuit ampacity) and allow for reduced wire sizing to the unit. This option is not available
for applications with Leaving Condenser Water Temperature (LCWT) greater than 110ºF
(43ºC).
CONTROLS OPTIONS
Language LCD And Keypad - Standard display language and keypad is in English. Span-
ish, French, German, and Italian are available as an option.
HEAT EXCHANGER OPTIONS
Flow Switch – An optional flow switch can be factory supplied for the evaporator. Vapor-
proof SPDT, NEMA 3R switch, 150 PSIG (10.3 bar) DWP, 20°F to 250°F (-29°C to 121°C)
with 1” NPT (IPS) connection for upright mounting in horizontal pipe. The flow switch or its
equivalent must be furnished with each unit. (Field mounted)

JOHNSON CONTROLS
FORM 150.26-EG1 (116)
12
Differential Pressure Switch - An alternative option to the paddle-type flow switch. 3-45
PSIG (0.2-3 bar) range with ¼” NPTE pressure connections. (Field Mounted)
Pressure Vessel Codes - Evaporators and condensers are be supplied (Standard) in con-
formance with the A.S.M.E. pressure codes.
Flanges (ANSI/AWWA C-606 Couplings Type) – consists of flange adapters for grooved
end pipe on evaporator and condenser (note: the 0064HE and 0094SE units do not
include evaporator flanges, and the 0056SE, 0064SE, and 0074SE units do not include
condenser flanges). Standard 150 psi (10.3 bar). (Field-mounted, matching pipe
flange by contractor).
Double Thick Insulation – Double Thick (1-1/2”) insulation provided on the evaporator.
CHILLER OPTIONS
Final Paint Overspray - Overspray painting of unit after assembly. (Factory Paint)
Service Isolation Valve - Service suction isolation valve added to unit per system in addi-
tion to the standard discharge service valve.
Hot Gas By-Pass – Permits continuous, stable operation at capacities below the mini-
mum step of compressor unloading to as low as 5% capacity (depending on both the unit
and operating conditions) by introducing an artificial load on the evaporator. Hot gas by-
pass is installed on only refrigerant system #2 on two-circuited units.
Chicago Code Relief Valves – Unit will be provided with relief valves to meet Chicago code
requirements.
Compressor Acoustic Sound Blanket – Each compressor is individually enclosed by
an acoustic sound blanket. The sound blankets are made with one layer of acoustical
absorbent textile fiber of 5/8” (15mm) thickness; one layer of anti-vibrating heavy mate-
rial thickness of 1/8” (3mm). Both are closed by two sheets of welded PVC, reinforced for
temperature and UV resistance.
Non Reversing Heat Pump – Unit configured for optional operating mode controlled by
leaving condenser water temperature. Temperature setpoint user adjustable from 86°F –
122°F (30°C – 50°C), default 122°F (50°C). While operating in this mode, chiller will stage
compressors to maintain heating setpoint provided there is sufficient cooling demand.
Unit can be changed from heat pump to chiller mode locally or through BAS. Unit leav-
ing evaporator water temperature will float based on heating output while in this mode,
making this option ideal for applications that do not require a constant evaporator leaving
temperature or for multiple (series) chiller installations. Option requires factory startup
and adds one day startup labor for field configuration. Requires evaporator leaving tem-
perature above 40°F (4°C) while heat pump is in operation.
Accessories and Options (Cont'd)

FORM 150.26-EG1 (116)
JOHNSON CONTROLS 13
VIBRATION ISOLATION
Elastomeric Isolation – Recommended for normal installations. Provides very good per-
formance in most applications for the least cost. (Field-Mounted)
1 Inch Spring Isolators – Level adjustable, spring and cage type isolators for mounting
under the unit base rails. 1” nominal deflection may vary slightly by application. (Field
-Mounted)
2 Inch Spring Isolators – Restrained spring-flex mountings incorporate a rugged welded
steel housing with vertical and horizontal limit stops. Housings designed to withstand a
minimum 1.0g accelerated force in all directions to 2”. Level adjustable, deflection may
vary slightly by application. (Field-Mounted)
Accessories and Options (Cont'd)

JOHNSON CONTROLS
FORM 150.26-EG1 (116)
14
Refrigerant Flow Diagram
Low-pressure liquid refrigerant enters the evaporator tubes and is evaporated and super-
heated by the heat energy absorbed from the chilled liquid passing through the evaporator
shell. Low-pressure vapor enters the compressor where pressure and superheat are in-
creased. High-pressure vapor is passed through the condenser where heat is rejected to
the condenser water passing through the tubes. The fully condensed and subcooled liquid
leaves the condenser and enters the expansion valve, where pressure reduction and fur-
ther cooling take place. The low pressure liquid refrigerant then returns to the evaporator.
LD18403

FORM 150.26-EG1 (116)
JOHNSON CONTROLS 15
Design Parameters
DESIGN PARAMETERS - STANDARD EFFICIENCY (SE)
YCWL
MODEL
EVAPORATOR
FLOW GPM (L/S)
CONDENSER
FLOW GPM (L/S)
LEAVING EVAP.
WATER TEMP.
°F (°C)
ENT. COND.
WATER TEMP.
°F (°C)
LVG. COND.
WATER TEMP.
°F (°C)
EQUIPMENT
ROOM TEMP
°F (°C)
MIN MAX MIN MAX MIN1 MAX2 MIN MAX MIN MAX
0056SE 60
(3.8)
285
(18)
90
(5.7)
360
(22.7)
40
(4.4)
50
(10)
65
(18)
130
(54)
40
(4.4)
115
(46)
0064SE 60
(3.8)
285
(18)
90
(5.7)
360
(22.7)
40
(4.4)
50
(10)
65
(18)
130
(54)
40
(4.4)
115
(46)
0074SE 60
(3.8)
285
(18)
90
(5.7)
360
(22.7)
40
(4.4)
50
(10)
65
(18)
130
(54)
40
(4.4)
115
(46)
0084SE 60
(3.8)
285
(18)
145
(9.1)
450
(28.4)
40
(4.4)
50
(10)
65
(18)
130
(54)
40
(4.4)
115
(46)
0094SE 100
(6.3)
355
(22.4)
145
(9.1)
450
(28.4)
40
(4.4)
50
(10)
65
(18)
130
(54)
40
(4.4)
115
(46)
0104SE 100
(6.3)
385
(24.3)
145
(9.1)
450
(28.4)
40
(4.4)
50
(10)
65
(18)
130
(54)
40
(4.4)
115
(46)
0118SE 100
(6.3)
385
(24.3)
145
(9.1)
450
(28.4)
40
(4.4)
50
(10)
65
(18)
130
(54)
40
(4.4)
115
(46)
0132SE 140
(8.8)
625
(39.4)
180
(11.4)
700
(44.2)
40
(4.4)
50
(10)
65
(18)
130
(54)
40
(4.4)
115
(46)
0157SE 150
(9.5)
625
(39.4)
225
(14.2)
700
(44.2)
40
(4.4)
50
(10)
65
(18)
130
(54)
40
(4.4)
115
(46)
0177SE 200
(12.6)
650
(41)
260
(16.4)
700
(44.2)
40
(4.4)
50
(10)
65
(18)
130
(54)
40
(4.4)
115
(46)
0198SE 200
(12.6)
650
(41)
260
(16.4)
700
(44.2)
40
(4.4)
50
(10)
65
(18)
130
(54)
40
(4.4)
115
(46)
DESIGN PARAMETERS - HIGH EFFICIENCY (HE)
YCWL
MODEL
EVAPORATOR
FLOW GPM (L/S)
CONDENSER
FLOW GPM (L/S)
LEAVING EVAP.
WATER TEMP.
°F (°C)
ENT. COND.
WATER TEMP.
°F (°C)
LVG. COND.
WATER TEMP.
°F (°C)
EQUIPMENT
ROOM TEMP
°F (°C)
MIN MAX MIN MAX MIN1 MAX2 MIN MAX MIN MAX
0064HE 100
(6.3)
355
(22.4)
145
(9.1)
450
(28.4)
40
(4.4)
50
(10)
65
(18)
130
(54)
40
(4.4)
115
(46)
0074HE 140
(8.8)
625
(39.4)
145
(9.1)
450
(28.4)
40
(4.4)
50
(10)
65
(18)
130
(54)
40
(4.4)
115
(46)
0084HE 140
(8.8)
625
(39.4)
145
(9.1)
450
(28.4)
40
(4.4)
50
(10)
65
(18)
130
(54)
40
(4.4)
115
(46)
0094HE 140
(8.8)
625
(39.4)
225
(14.2)
700
(44.2)
40
(4.4)
50
(10)
65
(18)
130
(54)
40
(4.4)
115
(46)
0096HE 150
(9.5)
625
(39.4)
225
(14.2)
700
(44.2)
40
(4.4)
50
(10)
65
(18)
130
(54)
40
(4.4)
115
(46)
0118HE 140
(8.8)
625
(39.4)
225
(14.2)
700
(44.2)
40
(4.4)
50
(10)
65
(18)
130
(54)
40
(4.4)
115
(46)
0127HE 200
(12.6)
650
(41)
225
(14.2)
700
(44.2)
40
(4.4)
50
(10)
65
(18)
130
(54)
40
(4.4)
115
(46)
0157HE 200
(12.6)
650
(41)
260
(16.4)
700
(44.2)
40
(4.4)
50
(10)
65
(18)
130
(54)
40
(4.4)
115
(46)
NOTES:
1. For leaving temperature below 40°F (4.4°C), optional brine chilling kit required. Minimum with kit is 15°F (-9.4°C).
2. For leaving water temperature higher than 50°F (10°C), contact the nearest Johnson Controls Ofce for application guidelines.

JOHNSON CONTROLS
FORM 150.26-EG1 (116)
16
Pressure Drop Curves
YCWL Evaporator Pressure Drop (English Units)
Pressure Drop (ft H2O)
Water Flow Rate (GPM)
10.0
LD18404
LD18405
Water Flow Rate (l/s)
100.0
Pressure Drop (kPa)
YCWL Evaporator Pressure Drop (SI Units)
EVAPORATOR YCWL MODEL NUMBER
A0056SE, 0064SE, 0074SE, 0084SE
B0064HE, 0094SE
C0104SE, 0118SE
D0074HE, 0084HE, 0094HE, 0118HE, 0132SE
E0096HE, 0157SE
F0127HE, 0157HE, 0198SE

FORM 150.26-EG1 (116)
JOHNSON CONTROLS 17
LD18406
100.0
10.0
1.0
10 100 1000
YCWL Condenser Pressure Drop (English Units)
Water Flow Rate (GPM)
Pressure Drop (ft H20)
ACE
BD
F
YCWL Condenser Pressure Drop (SI Units)
Water Flow Rate (l/s)
Pressure Drop (kPa)
LD18407
ACE
B D
F
Pressure Drop Curves (Cont'd)
EVAPORATOR YCWL MODEL NUMBER
A0056SE, 0064SE, 0074SE, 0084SE
B0064HE, 0094SE
C0104SE, 0118SE
D0074HE, 0084HE, 0094HE, 0118HE, 0132SE
E0096HE, 0157SE
F0127HE, 0157HE, 0198SE

JOHNSON CONTROLS
FORM 150.26-EG1 (116)
18
GUIDE TO SELECTION
Complete water chilling capacity ratings for YORK YCWL chillers are shown on the follow-
ing pages to cover the majority of job requirements. For any application beyond the scope
of this Engineering Guide, consult your nearest Johnson Controls office.
Selection Rules
1. Ratings - All YCWL ratings are in accordance with AHRI Standard 550/590, at the
AHRI standard conditions. Ratings not at standard AHRI conditions are rated in accor-
dance with AHRI rating procedures. These ratings may be interpolated but should not
be extrapolated.
Cond. GPM =
MBH x 2
Cond. Water Range (ºF)
EVAPORATOR CORRECTION FACTORS
FF=TEMP SPLIT 0.00010 0.00025
TONS COMPR KW TONS COMPR KW
60.976 0.996 0.969 0.997
80.990 0.999 0.960 0.996
10 1.000 1.000 0.991 0.999
12 1.009 1.001 0.999 1.000
14 1.017 1.002 1.007 1.001
2. Cooling Water Quantity - Ratings are based on 10ºF chilled water range with the
evaporator at sea level. Use the chilled water correction factors (below) for other
ranges except as limited by water pressure drop, minimum or maximum water ows
for the evaporator.
CONDENSER CORRECTION FACTORS
FF=TEMP SPLIT 0.00025 0.00050
TONS COMPR KW TONS COMPR KW
61.020 0.963 1.014 0.974
81.010 0.982 1.019 0.990
10 1.000 1.000 0.995 1.010
12 0.990 1.019 0.985 1.029
14 0.980 1.040 0.975 1.048
Note: Temperature split factors @ 85ºF Entering Condenser Water Temp (ECWT)
3. Condenser Water Quantity – Ratings are applicable from 2 to 4 GPM/Ton. Use
the condenser water correction factors (below) for different ranges except as limited
by water pressure drop or minimum or maximum water ows for the condenser. Us-
ing the heat rejection (MBH), the Condenser GPM is calculated as follows:
4. FOULING FACTORS – Ratings are based on 0.0001 evaporator and 0.00025 con-
denser fouling factor. For other fouling factors, consult the table below or contact
your Johnson Controls representative.
Selection Data

FORM 150.26-EG1 (116)
JOHNSON CONTROLS 19
5. ETHYLENE GLYCOL CORRECTION FACTORS – The following factors are to be
applied to the standard ratings for units cooling ethylene glycol.
ETHYLENE GLYCOL
%WEIGHT TONS COMPR KW GPM PRESS
DROP
FREEZE
POINT
10 0.993 1.002 1.029 1.095 26
20 0.980 1.004 1.040 1.191 18
30 0.964 1.007 1.055 1.302 7
40 0.945 1.009 1.071 1.435 -8
50 0.922 1.013 1.091 1.599 -29
6. PROPYLENE GLYCOL CORRECTION FACTORS – The following factors are to be
applied to the standard ratings for units cooling propylene glycol.
PROPYLENE GLYCOL
%WEIGHT TONS COMPR KW GPM PRESS
DROP
FREEZE
POINT
10 0.985 1.002 1.003 1.078 28
20 0.968 1.005 1.000 1.157 19
30 0.937 1.008 0.992 1.288 9
40 0.898 1.012 0.982 1.414 <I
50 0.862 1.019 0.985 1.605 -28
METHOD OF SELECTION
If the duty requires a 10ºF range on both the evaporator and condenser, see “Ratings”.
For water ranges other than 10ºF, use the following procedure.
1. Determine capacity required from the following formula.
Capacity (Tons) =
GPM x Chilled Water Range (ºF)
24
2. After applying any fouling factor corrections, the actual condenser heat rejection
may be determined as follows:
Heat Rejection (MBH) =
Heat Rejection (Btuh)
1000
= (Tons x 12) = (kW x 3.415)
3. Determine condensing water requirements for water cooled models as follows:
Selection Data (Cont'd)
Condenser Tons =
Heat Rejection (MBH) x 1000
15,000

JOHNSON CONTROLS
FORM 150.26-EG1 (116)
20
Or combine the two formulas:
Cond. Water GPM =
Condenser Tons x 30
Condenser Water Range (ºF)
SAMPLE SELECTION
Water Cooled Chiller (YCWL)
GIVEN – Chill 200 GPM of water from 56ºF to 44ºF and 0.0001 evaporator fouling factor
with 85ºF to 95ºF condensing water available. The fouling factor is 0.0005 for the con-
denser.
FIND – The required unit size capacity, kW, EER, and water pressure drop.
SOLUTION:
1. Chilled water range = 56ºF - 44ºF = 12ºF and correction factors are 1.009 for Tons
and 1.001 for kW for the evaporator.
Capacity (Tons) =
GPM x Chilled Water Range
24
=
200 x 12
24
= 100TR
2. From the rating, a model YCWL01180SE has a capacity range required. For the
evaporator leaving water temperature of 44ºF and a condenser leaving water tem-
perature of 95ºF, the unit capacity rating table indicates:
Tons = 108.4
KW = 83.5
EER = 15.6
Correcting for the 12ºF chilled water range and the 0.0005 condenser-fouling fac
tor (Correction factors for the condenser are 0.995 for Tons and 1.010 for kW):
Tons = 108.4 x 1.009 x 0.995 = 108.8TR
KW = 83.5 x 1.001 x 1.010 = 84.4 kW
Selection Data (Cont'd)
