Yoshitake Trap Star TSF-13 User manual

EPDT-348a
■EPDT-348a■
PRODUCT MANUAL .
Thank you very much for choosing the Yoshitake’s product. To ensure the correct and safe use of the product,
please read this manual before use. This manual shall be kept with care for future references.
The symbols used in this manual have the following meanings.
Warning
This symbol indicates a potentially hazardous situation that, if not avoided,
could result in death or serious injury.
Caution
This symbol indicates a hazardous situation that, if not avoided, may result in
minor or moderate injury or may result in only property damage.
Table of Contents
1. Specifications····························································1
2. Dimensions and Weights·············································2
3. Operation·································································3
4. Maximum Continuous Discharge Capacity·······················4
5. Installation
5.1 Piping example·················································5-6
5.2 Precaution for installation····································7-8
6. Operating Procedure
6.1 Precaution for operating procedure ··························9
7. Maintenance
7.1 Precaution for maintenance····································9
7.2 Daily and periodic inspections·······························10
7.3 Troubleshooting·················································11
7.4 Exploded drawing ··············································12
7.5 Disassembly·················································13-14
7.6 Reassembly··················································15-17
7.7 Parts replacement procedure································17
8. TSF-13, 13F with Steam Lock Release (SLR) ···············18
Warranty Information
STEAM TRAP
M O D E L T S F - 13，13F

1■EPDT-348a■
1. Specifications
* For installation posture, see 3 of “5.2 Precaution for installation“ .
*Install a strainer (recommended: 80 mesh) at the inlet side to protect TSF-13 from scale or other foreign
substances. Due to the double-port structure, foreign substances stuck on the valve and valve seat may cause
significant steam leakage.
Caution
1. Depending on application, specification of the product shall be selected. Refer
to Technical material, e.g. Operating instruction, Technical guidebook, and
drawing, and select suitable specification. Regarding technical material like
drawing, contact our sales office.
2. Please confirm that the indications on the product correspond with the
specifications of the ordered product model before use.
* If they are different, do not use the product and contact us.
Model
TSF-13
TSF-13F
Nominal size
40A,50A
Application
Steam condensate
Max. pressure
1.6MPa
1.0MPa
1.6MPa
Maximum working
differential pressure
(ΔPMX)
TSF-13-5: 0.5 MPa
TSF-13-10:1.0 MPa
TSF-13-14:1.4 MPa
TSF-13F-5: 0.5MPa
TSF-13F-10: 1.0 MPa
TSF-13F-5: 0.5MPa
TSF-13F-10: 1.0MPa
TSF-13F-14: 1.4 MPa
Minimum working
differential pressure
0.01MPa
Max. temperature
220°C
Material
Body
Ductile cast iron
Float
Stainless steel
Valve,
valve seat
Stainless steel
Connection
JIS Rc screwed
NPT screwed
JIS10KRF
ASME150 LB
JIS20KRF
EN PN16／25
ASME300 LB

2 ■EPDT-348a■
2. Dimensions and Weights
(mm)
Model
Nominal
size
Connection
d
L
A
A１
H
Weight
（kg）
TSF-13
40A
JIS Rc
NPT
1 1/2
270
313
281
290
19.0
50A
2
300
328
291
290
20.0
(mm)
Model
Nominal
size
Connection
d
L
A
A１
H
Weight
（kg）
TSF-13F
40A
JIS10KRF/20KRF
40
228
423
353
290
24.0
EN PN16/25
40
230
428
353
290
24.5
ASME150LB
40
221
416
353
290
23.0
ASME300 LB
40
221
431
353
290
25.7
50A
JIS10KRF/20KRF
50
239
436
358
290
25.0
EN PN16/25
50
230
441
358
290
25.3
ASME150 LB
50
220
433
358
290
24.5
ASME300 LB
50
239
441
358
290
26.8

3 ■EPDT-348a■
3. Operation
At start-up, since the ⑮float is down, the ⑦valve set is closed. In this state, air in the system and
piping is discharged out through the ⑯air vent which is opened.
When condensate flows into the product, the ⑮float lifts up and opens the ⑦valve set, and then
discharges condensate. Air is continuously discharged out from the ⑯air vent. When steam flows into
the product, internal pressure of the ⑯air vent rises by steam temperature, and the ⑯air vent closes.
According to the amount of condensate inflow, the ⑮float position moves up and down changing the
opening degree of the ⑦valve set, and thus condensate is continuously discharged.

4 ■EPDT-348a■
4. Maximum Continuous Discharge Capacity
1. Discharging capacity of the steam trap differs by working differential pressure, that is, difference
between inlet pressure and outlet pressure (back pressure). In selecting discharge capacity,
consider outlet pressure. If inlet pressure is 0.5 MPa and outlet pressure is 0.2 MPa, discharge
capacity is of working differential pressure of 0.3 MPa.
2. The discharge capacity shown in the charts below is the maximum value. In designing a system, select a
steam trap with a sufficient safety factor (at least twice). That is, for example, if a discharge capacity of 2000
kg/h is required, select a steam trap capable of discharging more than 4000 kg/h (maximum discharge).
Maximum Continuous Discharge Capacity of TSF-13 40A
Maximum Continuous Discharge Capacity of TSF-13 50A

5 ■EPDT-348a■
Steam main
Steam main
Drip leg
Trap
Stop
valve
Trap
5. Installation
5.1 Piping example
*Pipe size of the outlet side of the product should be large enough so that the discharged condensate flows
without any resistance.
Description
Correct
Incorrect
If the product is installed close
to a regulating valve, make
sure to install the product at
the inlet side of the regulating
valve.
To discharge condensate from
the steam main, be sure to
install the product on piping
taken from the lower part of
drip leg.
Install the product below a
device which generates
condensate.
Regulating
valve
Regulating
valve

6 ■EPDT-348a■
Low
pressure
High pressure
Low pressure
High pressure
Stop
valve
Stop
valve
By-pass valve
Stop
valve
Trap
Trap
Stop
valve
By-pass valve
Description
Correct
Incorrect
Install the products for each
device independently.
The diameter of collecting pipe
shall be more than summation
of sectional areas of discharge
pipes.
In addition, install check valves
for back flow prevention.
For condensate recovery,
connect the discharge pipe to
the upper part of collecting
pipe.
For traps of different pressure
lines, install collecting pipes
individually for each pressure.
In addition, install check valves
for back flow prevention.
* Re-evaporated steam in high
pressure line increases the back
pressure of low pressure trap.
End portion of discharge pipe
shall be off the water surface in
the pit.
* If the discharge pipe is in contact
with the water, it absorbs dirty
water in the pit and causes
malfunction of the product.
Provide a by-pass line around
the product, and install stop
valves at the outlet side of the
product.

7 ■EPDT-348a■
5.2 Precaution for installation
Warning
1. In order to discharge condensate to the atmosphere, lead the outlet to a safe place where there is no
possibility of physical damage even if condensate blows out.
* There are risks of scalding or injury when the condensate blows out.
Caution
1. Before connecting the product to piping, remove foreign substances and scale from the piping.
* Failure to follow this notice may prevent the product from functioning properly.
* To plumb the product, be careful to keep seal materials from entering into the product.
2. To install the product, check the direction of the product so that the fluid flowing and the arrow mark on
the product are in the same direction.
* Setting the product in wrong directions prevents it from functioning properly.
3. The mounting position of the product is horizontal piping. Do not tilt the product during use.
* Do not install in vertical piping．
* Wrong posture hampers proper operation.
* Allowable tilt from horizontal line is within ±5°.
* Support the product cover when it is necessary.
4. Make sure to support the piping immovably.
* If an excessive piping stress is applied, there are cases when the product will not open or close.
5. Do not disassemble the product unless it is necessary.
*Unnecessary disassembly may prevent the product from functioning properly.
UP
DOWN

8 ■EPDT-348a■
6. Secure enough space for maintenance, inspections and repair as shown below.
* Failure to follow this notice prevents maintenance, inspection and repair.
*Common to 40A and 50A
7. Slope the piping and place the product at as a low position as possible in order to make condensate
flow into the product by its own weight.
8. To install the product in a main steam pipe, provide a drip leg at the inlet side of the product.
9. Install a strainer (mesh size of 80 or more is recommended) at the inlet side of the product.
10. Install the product in a way it is not subjected to the shock of water hammer. Do not install a quick
operating valve before and/or after the product.
* Failure to follow this notice may result in malfunction due to damage to the ⑮float or ⑯air vent, or may
result in scalds or injury due to blow off when the product is subjected to an excessive shock and damaged.
11. Install a bypass line.
* The system has to stop operation while inspection and maintenance of the product if the bypass line is not
installed.
12. Pipe size of the outlet side of the product should be large enough so that the discharged condensate flows
without any resistance.
* If the outlet piping causes resistance, the specified discharge amount may not be obtained.

9 ■EPDT-348a■
6. Operating Procedure
6.1 Precaution for operating procedure
Warning
1. Before leading fluid, make sure that the product is securely connected to piping and that there is no
loose.
* There are risks of scalding or injury when the steam or condensate blows out.
2. Do not touch the product with bare hands while the product operates.
* There are risks of scalding.
3. Do not stand in front of the outlet opening of the product while the product operates.
* There are risks of scalding or injury due to blow off.
Caution
1. Slowly open each stop valve to prevent water hammer.
* When opening stop valves quickly, there are cases when the equipment will be damaged due to
hunting or water hammer.
7. Maintenance
7.1 Precaution for maintenance
Warning
1. Do not touch the product with bare hands.
* There are risks of scalding.
2. Completely discharge internal pressure of the product, piping and equipment, and cool down the
product prior to disassembly or maintenance.
* There are risks of scalding or injury due to residual pressure.
Caution
1. Conduct daily inspection in order to maintain the optimal performance of the product.
* Failure to follow this notice may prevent the product from functioning properly.
* See “7.3 Troubleshooting” on Page12 if trouble is observed.
2. After leaving the product not operated for a long period, perform inspection before start-up of
operation.
* Failure to follow this notice may cause malfunction due to rust inside of the product and piping.
3. Put a container under the product at disassembly since condensate may flow out.
* Failure to follow this notice may result in making the surroundings dirty.
4. Be careful not to drop the parts at the time of disassembly. The disassembled parts should be placed
on soft cloth in order to avoid scratches and damage.
* Damage on the parts may cause malfunction and affect the optimal performance.
Caution
5. To assemble, connect all the parts securely and tighten the bolts uniformly in diagonal order.
* Failure to follow this notice may cause malfunction or outside leakage.
6. When repairing, do not use the parts other than the dedicated parts manufactured by Yoshitake. Do
not modify the product.
* Failure to follow this notice may cause damage to the product, or may result in scalds or injury due to
blow-off or malfunction.
7. In case of problems due to foreign substances or scale, the product needs repair or part replacement.
Please contact us for details.
(Please note that any repair due to foreign substances or scale in the product is subject to a charge
even during the warranty period.)

10 ■EPDT-348a■
7.2 Daily and periodic inspections
Conduct daily and periodic inspections in order to maintain the optimal performance of the product.
See ”7.3 Troubleshooting” on Page 13 for the remedies if trouble is observed.
⚫Daily inspection (once a day)
Conduct daily inspection during operation of the product.
Items
Standards for Inspection
Discharge condition
of condensate
Condensate is discharged smoothly.
Outside leakage
No outside leakage of condensate or steam.
⚫Periodic inspection (once a year)
Conduct disassembly inspection periodically.
Items
Standards for Inspection
Seat surfaces of the
valve and valve seat
No scratch or foreign substances on seat surfaces.
*See Procedure 3, “7.5 Disassembly” on Page 15.
Shape of float
No deformation or damage on the ⑮float
*See Procedure 1~2, “7.5 Disassembly” on Page 15.
See Procedure 3~5, “7.6 Reassembly” on Page 19.

11 ■EPDT-348a■
7.3 Troubleshooting
Trouble
Cause
Remedy
Condensate is not
discharged.
1. Blockage of foreign substances
in the valve seat.
1. Clean the ⑦valve set.
*See Procedure 3, “7.5 Disassembly”
on Page 15.
2. ⑮Float is broken
2. Change it into new one.
3. Breakage as a result of
abnormal pressure rising due to
freezing or water hammer, etc.
3. Replace the product with new one.
*See Procedure 1~2, “7.5 Disassembly” on
Page 15.
*See Procedure 3~5, “7.6 Reassembly”
on Page 19.
4. Steam locking.
4. Change the piping system layout.
5. Product is in wrong posture.
5. Install it correctly.
*See Caution No. 3,“5.2 Precaution for
Installation” on Page 7.
Trouble
Cause
Remedy
Continuous
blowout.
1. Foreign substances stuck on
valve or valve seat.
1. Clean the valve set.
*See Procedure 3, “7.5 Disassembly” on
Page 15.
2. scratches on the valve or valve
seat.
2. Replace the ⑦valve set.
*See Procedure 1~2,4
“7.5 Disassembly” on Page 15~16.
*See Procedure 1~5,
“7.6 Reassembly” on Page 17~19.
3. Insufficient capacity of the
product.
3. Replace the product with another
model of sufficient capacity.
4. Product is in wrong position.
4. Install it correctly
*See Caution No. 3,“5.2 Precaution for
Installation” on Page 6.
Steam leakage.
1. Leakage due to loosening of the
⑤nut fixing the ①body and ②
cover, or damage due to
deterioration of ③body
gasket．
1. Replace the ③body gasket with new
one, and retighten the ⑤nut.
*See Procedure 1,
“7.5 Disassembly” on Page 15.
*See Procedure 4~5,
“7.6 Reassembly” on Page 19.
2. Leakage as a result of abnormal
pressure rising due to freezing
or water hammer, etc.
2. Replace the product with new one.

12 ■EPDT-348a■
7.4 Exploded drawing
40A Exploded drawing
50A Exploded drawing
*The parts shown in the rectangle boxes are available as consumable supply.
*The ⑯air vent cannot be removed from the ②cover.
*⑦Valve Set can not be disassembled.

13 ■EPDT-348a■
7.5 Disassembly
⚫Tools to be used
Name of tool
Size (Nominal size)
Spanner
Width across flat:10 mm*1, 13 mm*2, 17mm, 19mm
*1For 40A *2For 50A
[Procedure 1] Remove the ⑤nut that secures the ①body with a spanner (19 mm
widthacross flats), and remove the ①body and the ③body gasket from
the ②cover.
[Procedure 2] Remove the ⑮float from the float arm with a wrench (width across flats
17mm).
[Procedure 3] Clean the upper and lower valve and valve seat of the ⑦valve set with a
cleaning agent (recommended: parts cleaner).
*⑦Valve Set can not be disassembled.
Lower
valve and valve seat
Upper
valve and valve seat
parts cleaner

14 ■EPDT-348a■
[Procedure 4] Remove the ⑦valve set from the ②cover.
40A :Remove the ⑭hexagon bolt with a spanner (width across flats: 10 mm).
Remove the ⑩float protector and remove the ⑦valve set from the ②cover.
50A :Remove the ⑬nut with a spanner (13 mm width across flats) and remove
the ⑩float protector.
Remove the ⑨spacer and remove the ⑦valve set from the ②cover.

15 ■EPDT-348a■
7.6 Reassembly
⚫Tools to be used
Name of tool
Size (Nominal size)
Torque Wrench
Tightenable with torque of 70N・m
Width across flat: 19 mm
Torque Wrench
*1 Tightenable with torque of 9 N・m, Open-head type
Width across flat: 10 mm
Torque Wrench
*2 Tightenable with torque of 15 N・m
Width across flat: 13 mm
*1For 40A *2For 50A

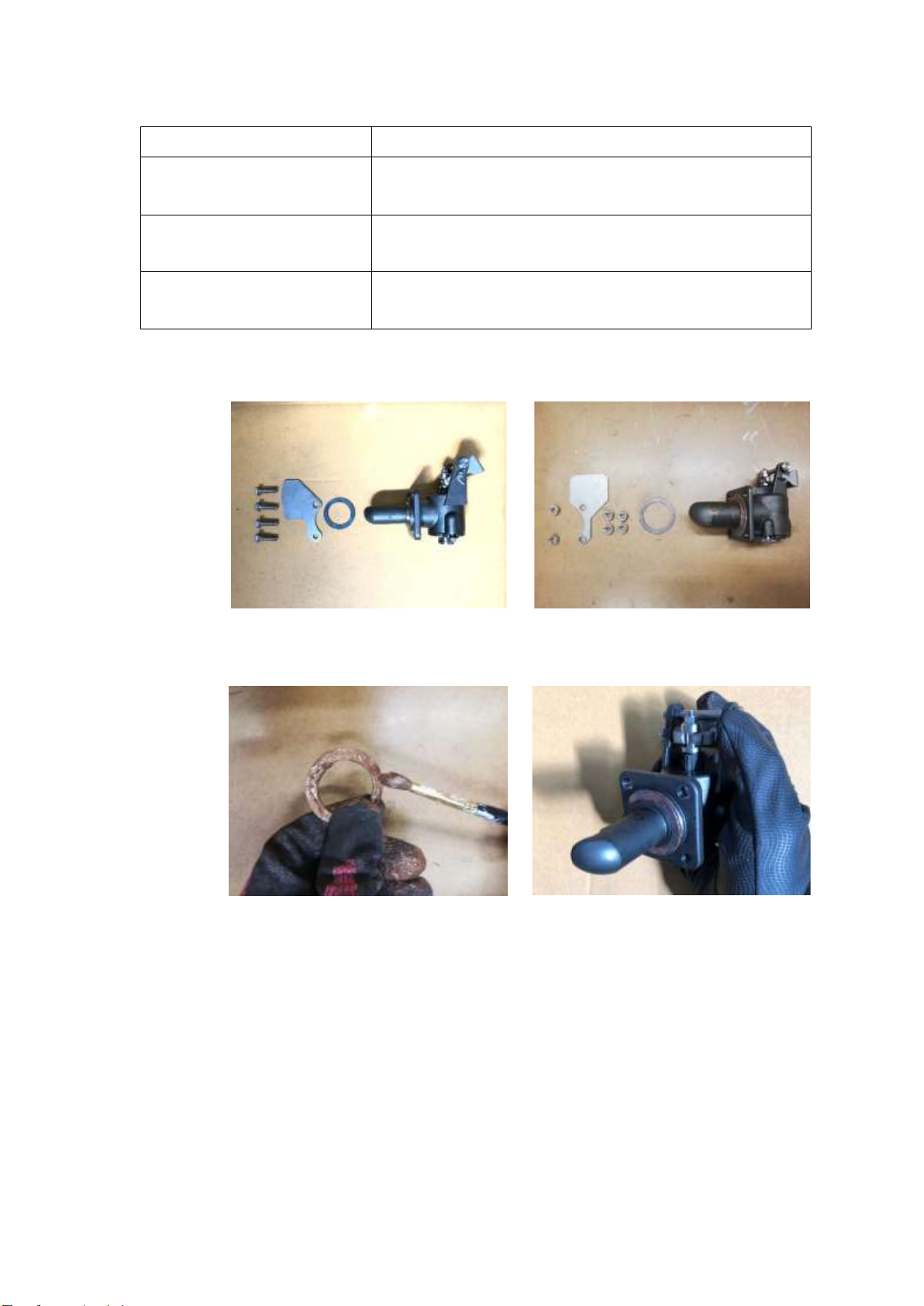

[Procedure 1] Check that the following set is complete.
Apply a paste-like lubricant (recommended: STT Inc, SOLVEST No. 110) to
the ⑧valve gasket, and attach it to the ⑦valve set.

16 ■EPDT-348a■

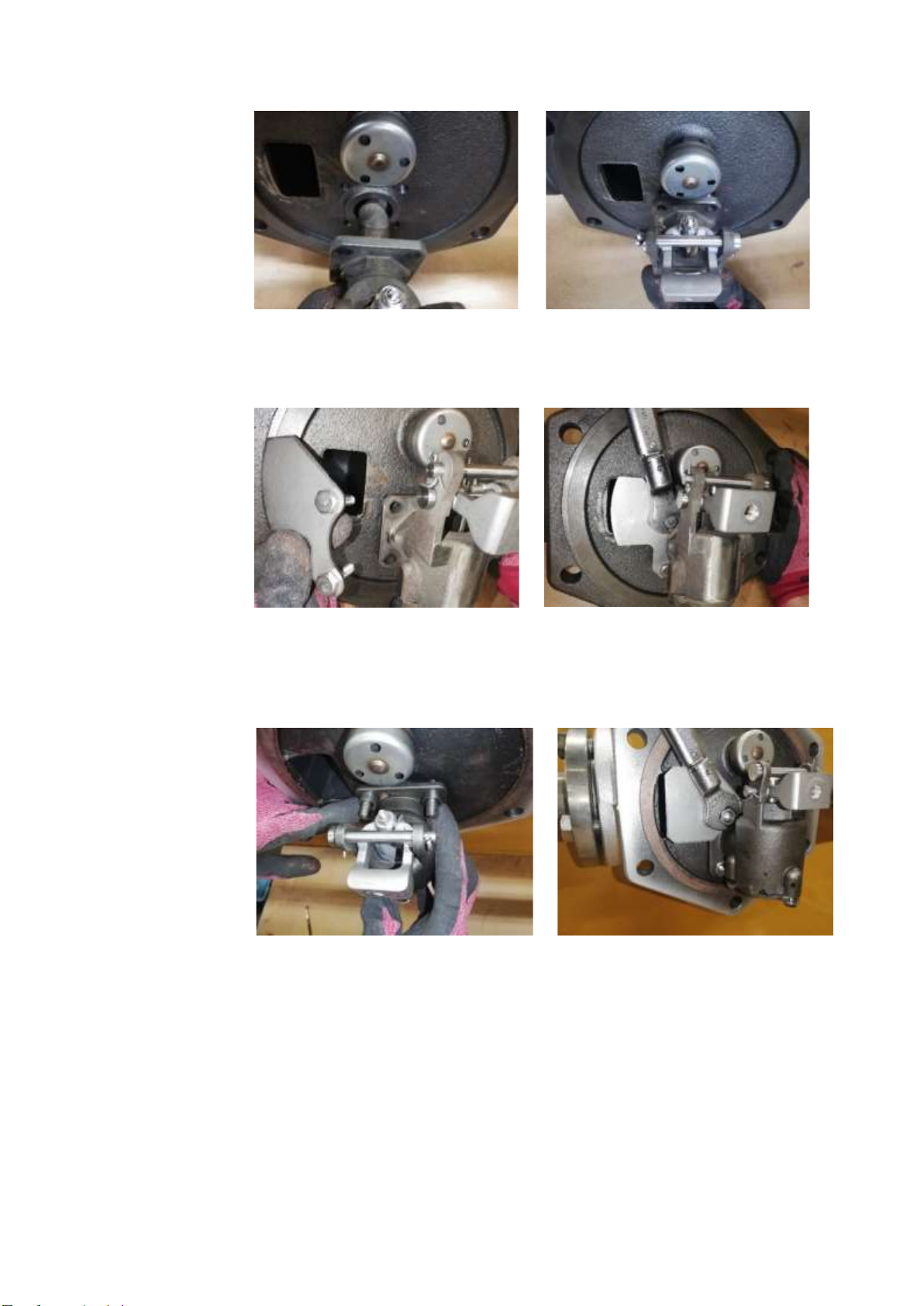

[Procedure 2] Attach the ⑦valve set to the ②cover.
40A: Attach the ⑩float protector and tighten the ⑭hexagon bolt with a wrench
(width across flats: 10 mm) to a torque of 9 Nm. Also, tighten the ⑭hexagon
bolts of each part uniformly so that they are not one-sided.
50A:Attach the ⑩float protector and ⑨spacer, and tighten the ⑬nut with a torque
wrench to a torque of 15 Nm. Also, tighten the ⑬nuts of each part uniformly
so that they are not completely tightened. If the ⑪⑫stud bolt is loose, use a
double nut and tighten with a spanner (width across flats 13 mm).

17 ■EPDT-348a■
[Procedure 3] Apply adhesive (Henkel LOCTITE 272 recommended) to the threads of the
⑮float. Then attach the ⑮float to the float arm using a spanner (width
across flats 17mm).
[Procedure 4] Apply paste-like lubricant (recommended: STT Inc, SOLVEST No.110) to
the ③body gasket, and attach it to the ①body. If the ④stud bolt is loose,
use a double nut and tighten with a spanner (width across flats 19 mm).
[Procedure 5] Attach the ②cover to the ①body and use a ⑤nut with a torque wrench (19
mm width across flats) at a torque of 70 Nm. Also, tighten the ⑤nuts of each
part uniformly so that they are not completely tightened.
7.7 Parts replacement procedure
Part name
Disassembly
(See 7.5.)
Reassembly
(See 7.6.)
③Body gasket
Procedure 1
Procedures 4 to 5
⑮Float
Procedures 1 to 2
Procedures 3 to 5
⑦Valve Set
Procedures 1 to 2 & 4
Procedures 1 to 5

18 ■EPDT-348a■
8．TSF-13,13F with Steam Lock Release（SLR）
8.1 What is SLR
If you need the product with ⑱Steam Lock Release (SLR), please let us know when you purchase. It
cannot be attached to the standard product later.
Steam locking occurs when the pipe to the trap is filled with steam and the steam prevents
condensate from flowing into the trap. The ⑱SLR bypasses the ⑯Air Vent to discharge steam and
prevent steam locking.
8.2 Dimensions and Weights
（mm）
Model
Nominal
size
Connection
d
L
A
A１
H
Weight
（kg）
TSF-13
40A
JIS Rc
NPT
1 1/2
270
355
281
290
19.0
50A
2
300
355
291
290
20.0
（mm）
Model
Nominal
size
Connection
d
L
A
A１
H
Weight
（kg）
TSF-13F
40A
JIS10KRF/20KRF
40
228
423
353
290
24.0
EN PN16/25
40
230
428
353
290
24.5
ASME150LB
40
221
416
353
290
23.0
ASME300 LB
40
221
431
353
290
25.7
50A
JIS10KRF/20KRF
50
239
436
358
290
25.0
EN PN16/25
50
230
441
358
290
25.3
ASME150 LB
50
220
433
358
290
24.5
ASME300 LB
50
239
441
358
290
26.8

19 ■EPDT-348a■
8.3 How to use SLR
(１) To open the ⑯Air Vent
Turn the slotted head of ⑱SLR in the direction of A by a flathead screwdriver. The more you screw in, the
more the ⑯Air Vent opens. However, do not screw in beyond E ring stopper. If you turn it any further, the
⑯Air Vent may be damaged.
(2) To use the ⑯Air Vent normally
Turn the slotted head of ⑱SLR in the direction of B until it stops. At the time of product shipment, the ⑱
SLR is in this state.
※Be careful not to strip the slotted head when you turn it.
※Do not turn Gland Holder or Gland Bolt, or outside leakage may occur.
8.4 Troubleshooting
Trouble
Cause
Remedy
Steam leakage
１． Leakage due to loosening of the
⑱SLR fixing the ②Cover, or
damage due to deterioration of ⑲
SLR Gasket.
１．Replace the ⑲SLR Gasket with
new one.
*See “8.5 How to replace SLR”
２． Leakage due to loosening of the
Gland Bolt on the ⑱SLR.
２． Tighten the gland bolt to a torque
of 6 Nm.
３．⑱ Leakage due to deterioration of
the Gland Packing inside the SLR.
３．Replace the ⑱SLR、⑲SLR
Gasket with new one.
*See “8.5 How to replace SLR”
