Z-TEC LITE COMPACT
TRI-WALKER
USER MANUAL
Please ensure that this manual is read and understood
before using the walker
Z-Tec Mobility
Unit 1B Albion Works, Moor Street, Brierley Hill, West Midlands D 5 3SZ
Available Models:
RED
BLUE
FROST
M o b i l i t y F o r L i f e
• Height Adjustable Handles
• Maximum User Weight: 120kg
• Net Weight: Walker only. 4.29kg
• Gross Weight: (Incl. all
accessories & packaging) 6.60kg
• Frame Extends for normal use.
Specifications
Aug 2011)
• Locking Arthritic Loop Brakes
• Shopping Bag
• 3 Solid 19cm Wheels
• Available in 3 colours
Compact position shown for storage only.
NOT to be used in this position for normal use
Frame fully extended & setup for normal use
Model may vary to that shown

Product Description
The Z-Tec walkers have been designed to be used by a range of clients whose mobility has
been reduced by a disability or chronic illness. Suitability of these walkers can vary from a
permanent disability such as arthritis or a stroke, to a chronic illness such as polio or a spi-
nal chord injury. The design incorporates a 3 wheeled walker, with the intention of it being
used as a walking aid to enhance the mobility of a person with a maximum mass of 120kg,
where mobility is impaired. The design ergonomically accommodates a wide range of dis-
abilities for all ages of user.
Suitability is dependant upon the degree and nature of disability and where possible should
be determined through a thorough risk assessment carried out by a qualified medical profes-
sional. This walker is suitable for assisting in rehabilitation, restoring independence and in
some instances long term alleviation of disabilities and chronic illnesses.
Consideration must be given at point of prescription to required usage with regard to the
capabilities of the user and the environment and terrain on which the product will be used.
The Z-Tec walker, manufactured by Z-Tec Mobility is placed on the EU market, CE
marked, as Class 1 Medical Device and complies with the Essential Requirements of the
Medical Devices Directive 93/42/EEC.
PLEASE ENSURE THAT THIS MANUAL IS READ AND
UNDERSTOOD BEFORE USING THE WALKER
Specification
Z-Tec Lite Compact Tri-Walker
• In Compact format ( for Storage ): Length: 52cm. Width: 24cm. Height: 73cm
• Length Open: 65cm Folded: 56cm
• Width: Open: 67cm Folded: 30cm
• Height: Open: 82.5cm Min - 93.5cm Max
• Maximum User Weight: 120kg
• Net Weight 4.29kg
• Net Weight (Inc. bag) 5.80kg
• Net Weight (Inc. bag, basket & tray) 6.50kg
• Solid Castor Wheels 19cm
• Shopping Bag Max Load: 5kg

Parts Description
Brake Mechanism
Storage Bag
Locking Parking Brake
Height Adjustable Handles
Solid Castors
Basket
Tray
Frame Extends for Normal
Use
Frame Loc Knob
Frame
Release / Locking
Button
Ergonomic Handgrips

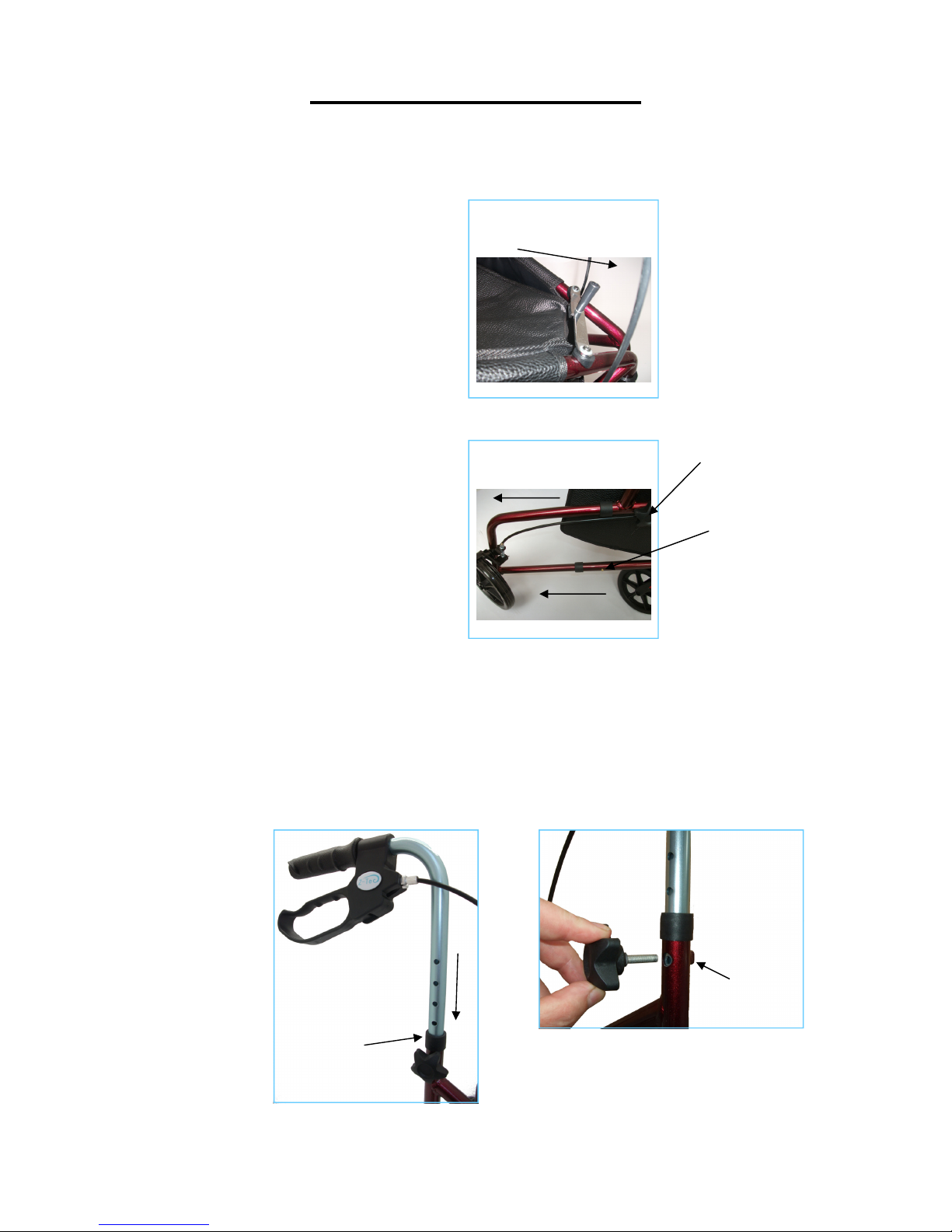

Assembling the Walker
2.
1.
NOTE: The brakes are factory set & may not require initial adjustment. For technical assistance on the brakes, contact your local Z-
Tec dealer.
1. Remove all packaging from the walker.
2. Extend Frame ready for normal use.
Release Star Loc Knob then pull frame out
until Locking Button is engaged, then
re-tighten Star Knob.
To Close, release Star Knob and press
Release / Locking Button, then push
frame in, then re-tighten Star Knob.
Frame Extends for Normal Use
Unfold Walker & Press Locking Bar
3. Insert the handles as shown by A into the down tube B until the required height of the handles is reached, then locate the
black star knob into the fixed threaded section, see C & securely fasten turning the knob clock wise. Be careful to line up correctly
before tightening to avoid damage to the threads.
A
B.
Release / Locking Button
CAUTION: DO NOT USE UNTIL
FRAME HAS BEEN EXTENDED &
LOCKED INTO PLACE
Star Loc Knob
CAUTION: ENSURE BOTH HANDLES
ARE SAME HEIGHT BEFORE USE.
3.
C.

4.

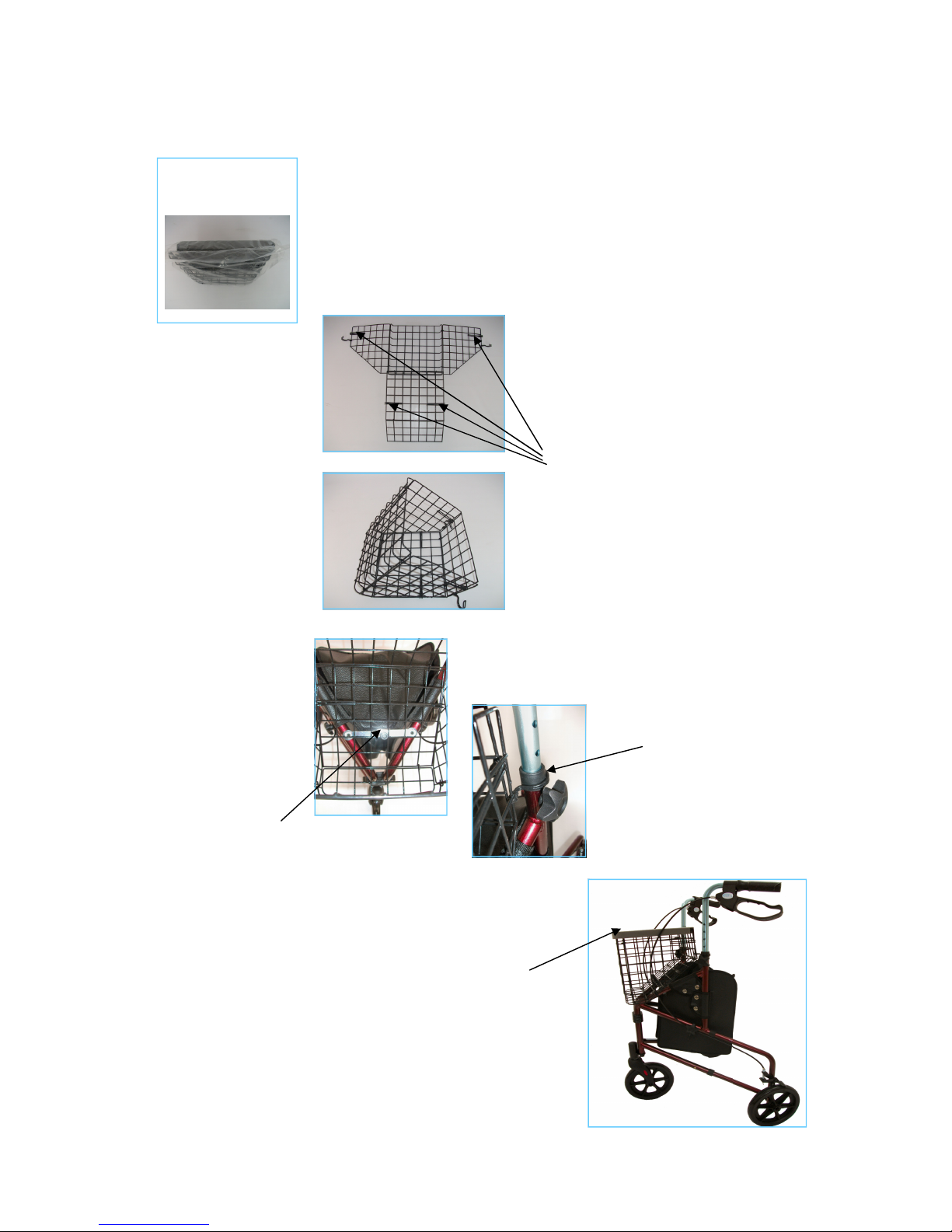

Basket laid flat after
unpacking.
Locating tabs to clip basket
together when assembling.
Correct location on walker
3rd space up centrally positioned
Fully assembled basket
Securing hook located on walker
This will assist in reducing any
movement in the basket during normal
use.
Tray fitted onto basket
4. Make up Basket & Fit Tray. Place Basket & Tray onto Walker
Unpack Basket & Tray

n.b. The brakes are preset and adjustment should only be necessary if the brakes become
loose or no longer function correctly.
These levers are to be used by hand only.
These brakes are NOT to be used as a means of slowing the walker or bringing it to a stop, they are a parking
brake only.
Adjustment would be required as the brake lever, cable or wheel wears.

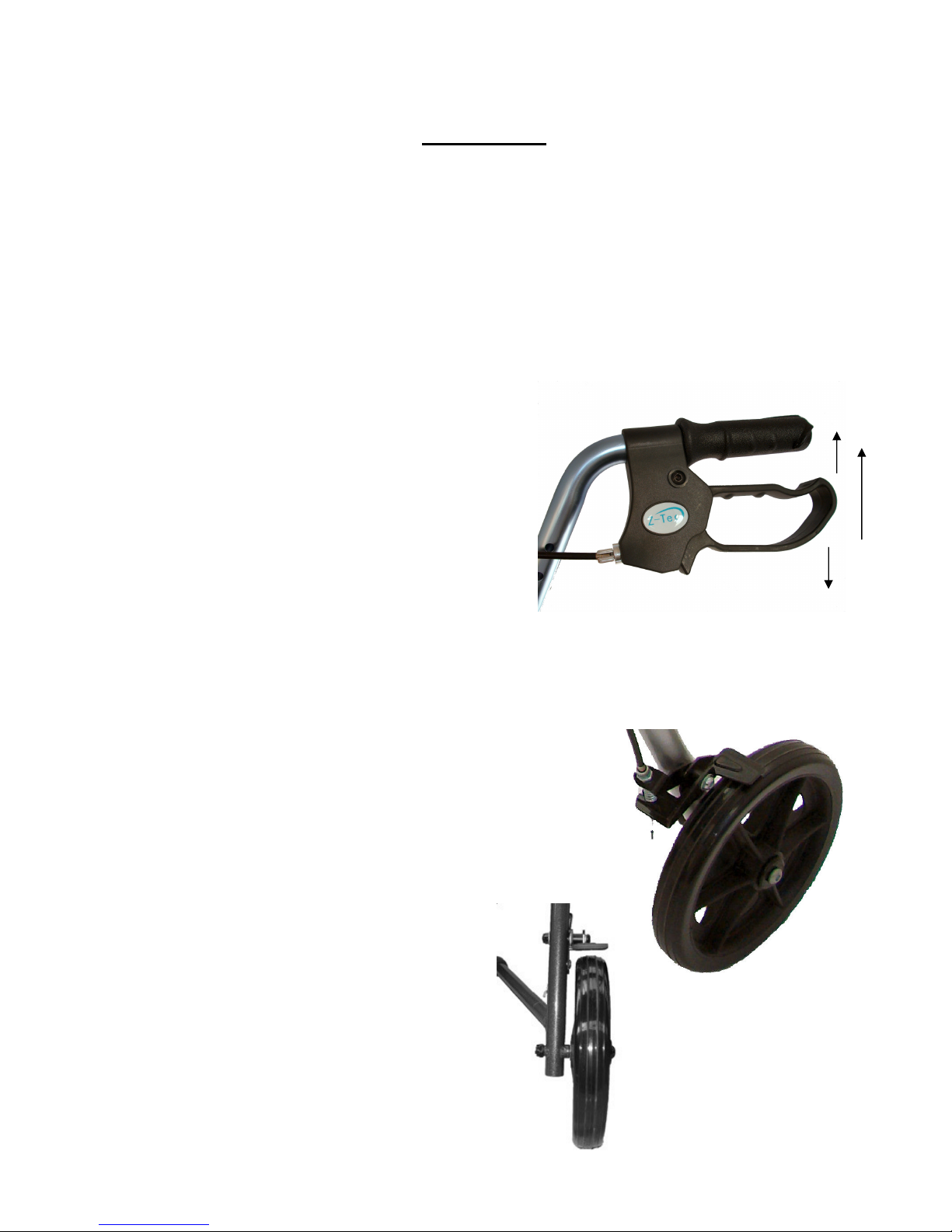

To operate the locking arthritic loop brakes
1. Squeeze the brake lever up to engage the brake (A in the upwards
direction as shown in the photo).
2. To lock the brakes, push down on the brake lever until it locks (B
downwards arrow).
3. To unlock the brakes, pull up on brake lever until
the lock disengages (see upwards arrow marked as (C )
Brakes
To adjust the braking system release the locking nut & screw out the cable ad-
juster (E.) until the brake arm (F) clears the wheel by approx. 2mm.
Retighten locking nut & repeat on other brake mechanism.
With both back wheels off the ground & the brakes disengaged check that they
spin freely & do not rub the brake arm (F).
E.
F.
C.
A.
B.

Care and Maintenance
• Tyre wear    
• Wheel bearings  
• Castors    
• Brakes    
• Folding mechanism.  
• Fixtures & Fittings    
Recommended Check / Service Interval Daily Weekly Monthly Annually
In order to get the most from your walker it is recommended to take care of it and carry out regular checks and
maintenance. Some simple daily and weekly checks can be carried out by a competent person. It may also be
required to make adjustments and carry out some minor maintenance on a monthly basis, again this can be
done by a competent person. At least once a year it is recommended to have your walker fully inspected and
serviced by one of Z-Tec’s approved dealers.
The walker should be kept clean and dust free by using a duster or damp cloth regularly with a mild detergent
added. Do NOT use any abrasive cleaners as they may damage your walker.
The walker should be stored in a clean and dry place away from direct sunlight and in the folded position.
Should any defects become apparent on your walker or if the brakes do not respond as well as expected cease
using the walker immediately, get it checked by a competent person or contact your Z-Tec mobility dealer for
inspection.
Product Lifespan
This walker has been designed and manufactured to a high standard and subject to regular care and
maintenance it is expected to last for 5 years.
It is important to keep yourself safe at all times when using your walker especially when walking on slopes,
inclines or while negotiating steps or kerbs. The following guidelines will help provide some information
regarding stability while using your walker.
It is also important to plan and select your route carefully to avoid uneven or soft ground and wherever possible
an alternative route should be used. Do not use on an incline if covered in snow, ice or a film of water or oil.
Do not use the walker on gradients of
10° / 18%
ou must not make any unauthorized adaptations or changes to your walker as this may cause your walker to
become instable.
ou must not exceed the maximum user capacity of 120kg for this walker.
If you are unsure of any details indicated here, please consult with a qualified person e.g. Authorised Z-Tec
Dealer
Ascending, Traversing Across & Descending Slopes, Steps, Inclines etc..

Warranty
Z-Tec products are guaranteed for 12 months from the date of purchase, this warranty is not transferable. Should
any part of the product require repair or full replacement as a result of a manufacturing or material defect within
the warranty period, parts will be supplied free of charge. The guarantee excludes tyres and all items that have
been subjected to undue wear and misuse. Under normal circumstances no responsibility will be accepted where
the product has not been maintained in accordance with the manufacturer’s recommendations. This does not
affect your statutory rights.
If any other issues arise that are not mentioned in this user manual please write to the address on the front of this
manual.
General Safety Tips
Before using the walker please read the safety information below:
Get to know your walker.
Be careful during your first use of this walker.
Do not exceed the maximum gradient of 10º (18%).
DO NOT operate on an incline if covered in ice or a film of water or oil.
DO NOT operate on roads or highways.
Practice using on level ground as well as going up and down hill.
While used indoors, get use to using on different floor surfaces.
Only one person to use the walker in normal use.
DO NOT stand on the frame of the walker.
Do not use escalators, use a suitable lift.
When moving be aware of potential hazards, such as steps, doorways, appliances, children's toys, cables, etc..
Always apply the parking brakes when left except when storing for long periods of time.
The walker brakes are not suitable for slowing the walker down only for parking.
In the event of damage or repair, please consult your service agent / dealer.
Unprofessional or incorrect adaptation or adjustment work could increase the risk of accidents.
Users may put themselves at risk by improperly using their walker.
DO NOT use in the Compact position, this is to assist in reducing space required for storage or transportation
use only.
Fully assemble your walker before normal use.
Product Disposal
If you wish to recycle or dispose of your walker please take it to your local municipal waste site.
Transportation
The user should transfer to a seat in the motor vehicle and the walker folded and stowed away as a piece of
luggage.
