ZeeVee 20103553 User manual

ZVconnectTM
WIRELESS PRESENTATION SYSTEM
User Guide
Updated November 2020

ZVconnect User Guide
Table of Contents
System Description!3"
Features!4"
Receiver Unit!4"
Transmitter Unit!5"
Operating Guide!6"
Receiver Installation!6"
Transmitter Installation!7"
Synchronization to specific Receiver!9"
Screen Mirroring!13"
Dual Screen Mirroring!14"
Dual Screen Mirroring Details (Long click button for Dual Screen mode)!15"
Screen Switching in Dual Screen Mode!16"
Dual Screen Mode from 3rd Device!17"
Battery Status!19"
Battery Charging!20"
Optional Charging Stand!21"
Specifications!22"
Transmitters!22"
Receiver!23"
Certifications and Warranty!23"
Part Numbers!24"
Frequently Asked Questions!25"
Disclaimers!27
Rev 20201105
Page of2 27

ZVconnect User Guide
System Description
The ZVconnect provides a simple, robust conference room video solution. The
transmitter plugs directly into your laptop’s video output, and the receiver into the
HDMI video input of your display. No drivers or software to install. No USB
limitations. No WiFi network required. Just plug the transmitter into the source
and you are ready to go.
A minimal system consists of:
•Video Source (Up to 1080p)
•ZVconnect transmitter
device
•Display with HDMI input
•ZVconnect receiver device!
!
Rev 20201105
Page of3 27

ZVconnect User Guide
Features
Receiver Unit
!
Rev 20201105
Page of4 27
HDMI Connector
Power LED
Status LED
USB Type-C Connector
for DC 5V power
Blue Flash (1s) : Ready to Play"
Blue Flash (100ms) : Setting mode
Setting Button

ZVconnect User Guide

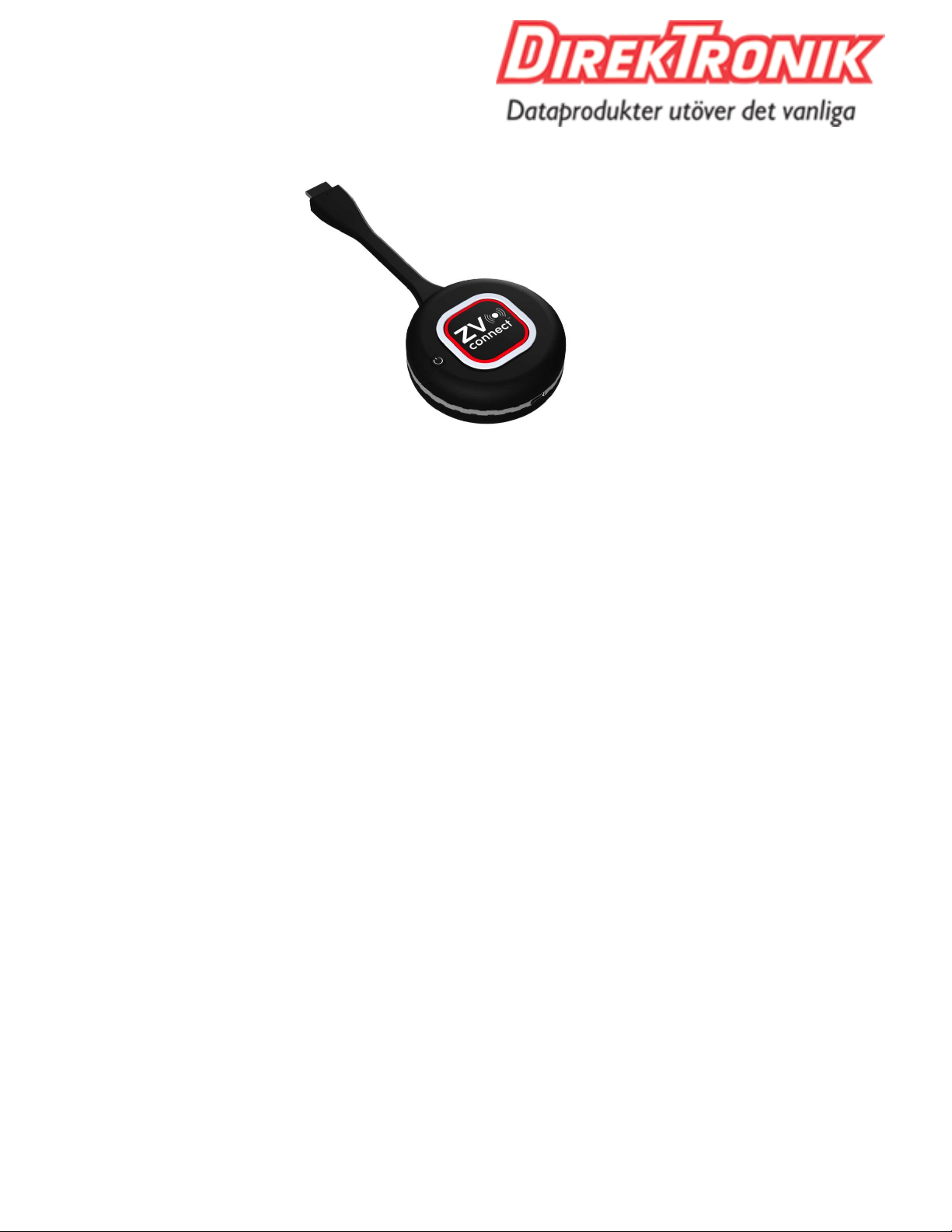

Transmitter Unit
#
Rev 20201105
Page of5 27
HDMI or USB-C
Connector
Status LED
USB Type-C Connector
for DC 5V power

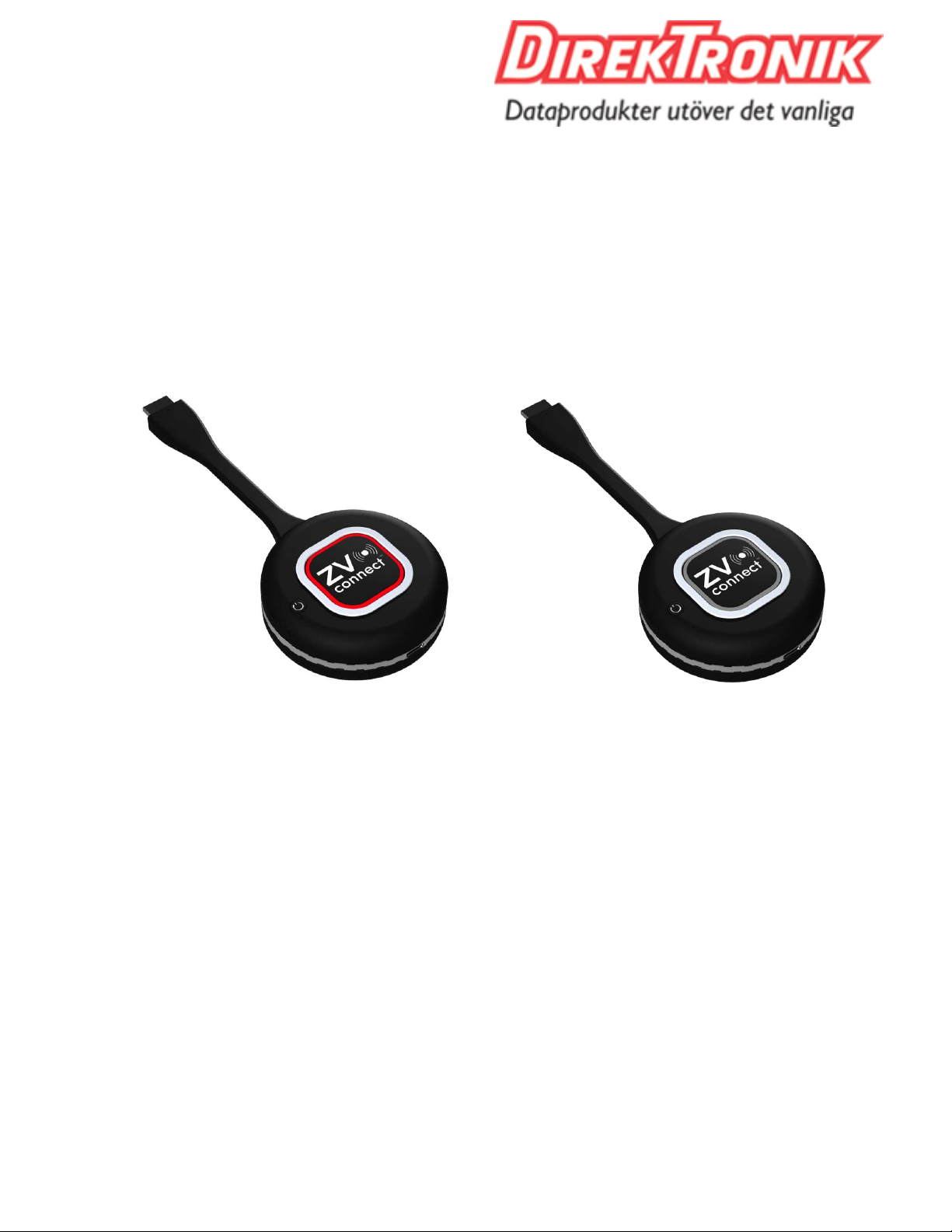

Purple: Booting"
Purple Flash: Factory Reset mode"
Blue: Ready to Play"
Blue Flash (1s) : Transmitting"
Blue Flash (100ms): Setting mode"
Red: no HDMI source"
Red Flash (300ms): Checking receiver connection
Setting /
Transmit Button
Power Button
Battery
Indicator
Note: Please see the Battery
Charging information on page 15 for
different Status LED information
