ZENEC Z-E4626 User manual

Z-E4626
DEVICE QUICK START GUIDE
EN

2 3
3
1
4
5
bl
8
9
1
2
6 7
ABOUT THIS MANUAL
This manual describes how to operate the device, vehicle-specific facts, and the most important basic
functions. In addition, the equipment variants and functions of the ZENEC system are described, as
well as optional equipment of the vehicle manufacturer that may not be included as standard in your
vehicle. This manual does not refer separately to such issues. Differences from this information,
features or functions cannot be used for any claims.
SAFETY INSTRUCTIONS
CAUTION
If the driver is distracted, this may cause an
accident or injury. Operating the ZENEC system
while driving can distract attention
from the general traffic situation!
NOTE
Use of the multifunction steering wheel and
other vehicle functions will require a vehicle-
specific CAN/Stalk interface. Further
information may be obtained from an
authorized ZENEC dealer.
OVERVIEW
BEFORE FIRST USE
✓Always follow all the safety instructions of the vehicle manufacturer, and the instructions given in
this manual.
✓Pay attention to the safety instructions of the ZENEC system.
✓Activate free navigation updates for 1 year (more information at the end of this manual).
CONTENTS
OBERVIEW
ABOUT THIS MANUAL .......................................................................................................................P. 0 2
SAFETY INSTRUCTIONS...................................................................................................................P. 0 2
BEFORE FIRST USE...........................................................................................................................P. 02
DEVICE OVERVIEW
ZENEC SYSTEM .................................................................................................................................P. 0 3
MULTIFUNCTION STEERING WHEEL ..............................................................................................P. 0 4
REMOTE CONTROL ...........................................................................................................................P. 0 5
BASIC OPER ATION
TURN ON/OFF ....................................................................................................................................P. 0 6
THEFT PROTECTION.........................................................................................................................P. 0 6
VOLUME CONTROL ........................................................................................................................... P. 07
SOUND SETTINGS......................................................................................................................P. 08 - 09
CAR
SETUP ................................................................................................................................................. P. 10
GENERAL
NAVIGATION UPDATE........................................................................................................................ P. 11
TECHNICAL SPECIFICATIONS/APPROVAL NUMBER .................................................................... P. 11
ZENEC SYSTEM
Fig. S/01
DEVICE OVERVIEW
Item Function

HOME - Press to open Main Menu.
- Hold to open Sound adjustment.
Device User Manual → Introduction →
Main Sources
TUNER Select radio source Device User Manual → Entertainment
→ Tuner
NAV Select navigation mode Nav User Manual
BT Select Bluetooth mode Device User Manual → Hands Free kit
CAM Select camera image
ALT Select preassigned source Device User Manual → Setup → Device
Setup → Misc
Rotary
knob - Rotate to adjust volume.
Push
button
- Press to turn on the device.
- Hold to turn off the device.
- Press to mute audio.
Internal microphone
Press to eject a CD/DVD.
CD/DVD slot
IR receiver for remote control
microSD slot, for navigation/Gracenote database use only.
Touchscreen display
Reset

4 5

MULTIFUNCTION STEERING WHEEL
Item Function
‒Reduce volume
+Increase volume
▲
Radio source Press to choose the next radio station.
Media source Press to choose the next track/title.
Press and hold to fast forward.
▼
Radio source Press to choose the previous radio station.
Media source Press to choose the previous track/title.
Press and hold to fast rewind.
Accept call
Reject/End call
Fig. S/02
NOTE
Use of the multifunction steering wheel and other vehicle functions will require a vehicle-specific
CAN/Stalk interface. Further information may be obtained from an authorized ZENEC dealer.
REMOTE CONTROL
Item Function
Change playback source
Play/Pause
LED
Turn on/off ZENEC system

Radio source Press to choose the next radio station.
Media source Press to choose the next track/title.
Press and hold to fast forward.
Increase volume
Mute
Reduce volume

Radio source Press to choose the previous radio station.
Media source Press to choose the previous next track/title.
Press and hold to fast rewind.
Turn on/off remote control
Fig. S/03











6 7
VOLUME CONTROL
ZENEC System
Multifunction steering wheel 1)
Function Button Operation
Increase volume Turn volume knob (fig. S/01 ) clockwise.
Reduce volume Turn volume knob (fig. S/01 ) counterclockwise.
Mute Short press the rotary knob on the left (fig. S/01 ). Pressing
the button again will cancel the muting.
Default settings
The default settings of the different sources can be set in
Setup.
Device User Manual → Setup → Audio
Function Button Operation
Increase volume +Press button (fig. S/02) to increase volume.
Reduce volume ‒Press button (fig. S/02) to reduce volume.
Remote Control
Function Button Operation
Increase volume Press button (fig. S/03 ) to increase volume.
Reduce volume Press button (fig. S/03 ) to reduce volume.
Mute
Briefly press button (fig. S/03 ).
Pressing the button again will cancel the muting.
NOTE
1) These functions can only be used when a multifunction steering wheel is installed in the vehicle,
and the ZENEC system is connected via a car specific CAN/Stalk interface.
TURN ON / OFF
Manual On / Off
Short press the rotary knob on the left, to turn the ZENEC system on, long press turn off
(fig. S/01 ).
Automatic On / Off
Vehicles without CAN bus:
The device automatically switches on/off by ignition signal.
Vehicles with CAN bus interface:
Switching on the ignition will activate the ZENEC system. The boot process can take up to 1.5 minutes.
This may result in some delay until the system is ready. The ZENEC system is shut down by switching
off the ignition, or removing the ignition key.
BASIC OPER ATION
The ZENEC system is equipped with an anti-theft protection function. If this is active, on restarting the
ZENEC system after interruption of the power supply you will be asked to enter your password.
To change the password:
Device User Manual → Setup → Device Setup → Help → Password
Z-E3726 5
GERÄTEBEDIENUNG –Z-E3726
GRUNDSÄTZLICHE BEDIENUNG
EIN-/AUSSCHALTEN
Manuelle Ein-/Ausschaltung
Drehregler links gedrückt halten, bis sich das ZENEC-System ein- oder ausschaltet
(Abb. S/01 )
Automatische Ein-/Ausschaltung
Fahrzeuge mit CAN-Bus Anbindung: Bei Einschalten der Zündung wird das ZENEC-System
aktiviert. Der Bootvorgang kann max. 1,5 Minuten in Anspruch nehmen. Dies kann zur Folge
haben, dass das System nur mit Verzögerung einsatzbereit ist. Das Ausschalten des ZENEC-
Systems wird durch das Ausschalten der Zündung oder Abziehen des Zündschlüssels aktiviert.
HINWEIS
Für eine Nutzung des Multifunktionslenkrads sowie weiterer Fahrzeugfunktionen wird ein
fahrzeugspezifisches CAN/Stalk Interface benötigt. Weitere Informationen erhalten Sie bei einem
autorisierten ZENEC-Fachhändler.
DIEBSTAHLSICHERUNG
Das ZENEC-System ist mit einer Diebstahlschutzfunktion ausgestattet. Ist diese aktiv, werden Sie nach
Trennung der Stromversorgung bei erneutem Einschalten des ZENEC-Systems aufgefordert, das von
Ihnen hinterlegte Password einzugeben.
Um das Passwort zu ändern:
Bedienungsanleitung  Einstellungen  Geräte Konfiguration  Help  Passwort
HINWEIS
Bewahren Sie das
Passwort sorgfältig auf.
Bei einem Verlust des
Passworts muss das
ZENEC-System ausgebaut
und zur Freischaltung des
Diebstahlschutzes an den
ZENEC-Service
eingesendet werden.
Dieser Dienst ist
kostenpflichtig!
NOTE
Use of the multifunction steering wheel and other vehicle functions will require a vehicle-specific
CAN/Stalk interface. Further information may be obtained from an authorized ZENEC dealer.
ANTI-THEFT PROTECTION
NOTE
Keep your password safe.
If the password is lost the
ZENEC system must be
uninstalled, and sent back in
to ZENEC Service to release
the anti-theft protection.
There is a charge for this
service!

8 9
SOUND SETTINGS
Function Icon Operation
BASS Touch to adjust the bass range from -6 to +6.
MID Touch to adjust the mid range from -6 to +6.
TRE Touch to adjust the treble range from -6 to +6.
Ultra bass Touch to add extra amplification to the bass output.
Loudness Touch to add extra amplification to the low and high output.
In this menu you can make the various sound settings. Tone control is available for each source
separately.
Fig. S/04 Fig. S/05
BALANCE/FADER
In this menu you can balance the volume between the speakers.
Function Icon Operation
Left / Right Touch to adjust speaker balance between left and right.
Front / Rear Touch to adjust speaker balance between front and rear.
Crosshairs
8 Z-E3726
GERÄTEBEDIENUNG –Z-E3726
BALANCE / FADER
ABB. S / 05
In diesem Menü können Sie die Lautstärkeverteilung der Lautsprecher vornehmen.
Funktion
Icon
Tätigkeit
Links/Rechts
Antippen, um Lautstärkeverteilung links –rechts einzustellen
Front/Heck
Antippen, um Lautstärkeverteilung vorne –hinten
einzustellen
Fadenkreuz
Antippen und verschieben auf die gewünschte Position
Touch and slide to the desired position.

10 11

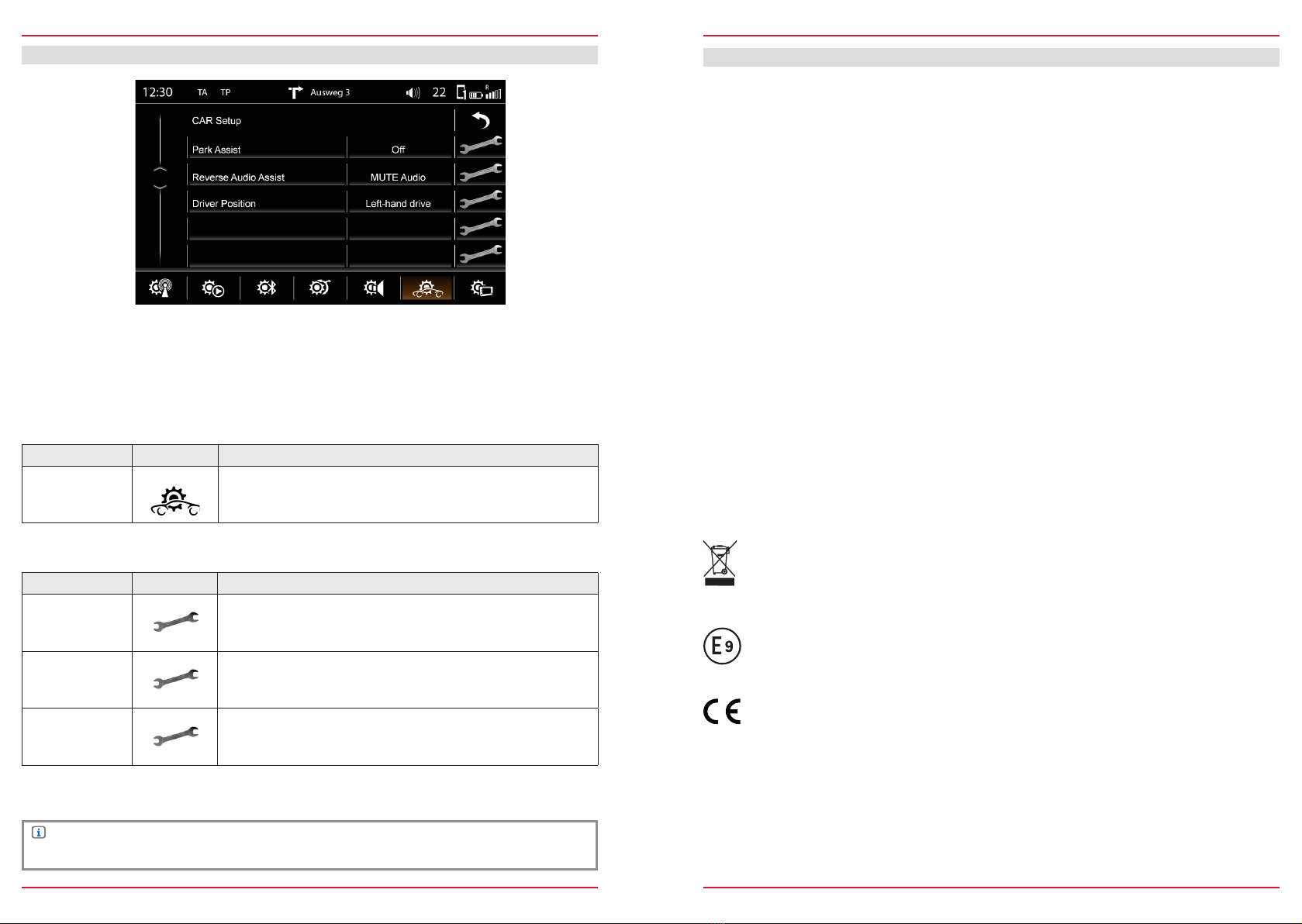

CAR
Function Icon Operation
CAR Setup Touch to get to this view.
Device User Manual → Setup → CAR Setup
In this menu you can make all the settings specific to the car. You will find an explanation of the
abbreviations at the end of the main manual.
Fig. S/06
SETUP
NOTE
1) These functions are only supported if a rear-view camera is connected to the ZENEC system.
Function Icon Operation
Park Assist 1) Touch to set the parking aid display source.
OFF / CAM
Reverse
Audio Assist 1)
Touch to set the muting function when parking aid is active.
OFF / Reduced Volume / CAM Audio / MUTE Audio
Driver Position Touch to choose if your vehicle is a left-hand or right-hand drive
vehicle. Some features are dependent on this adjustment.
NAVIGATION UPDATE
Activation of the free 12-month map software update period begins once the ZENEC system has been
switched on and running over a distance of >10 km.
Requirements
1. PC or notebook with a Windows XP (Service Pack 2) operating system or higher, an SD card
reader, together with broadband Internet access. Apple OS not supported.
2. An activated navigation map microSD card (set content)
3. Latest Naviextras Toolbox software, installed on your computer.
Download-Link: https://zenec.naviextras.com/shop/portal/downloads
To be able to update your ZENEC device with new maps, proceed as follows:
1. Go to https://zenec.naviextras.com/shop/portal and set up a user account with a password and
the personal data for your navigation device.
2. Download the Toolbox Software: Naviextras Toolbox Download. Read through the application
instructions before taking any further steps. The Toolbox is periodically updated. Therefore,
should you want to make a map update at a later time, always download the latest Toolbox
version. This will guarantee optimal compatibility of all data transfer functions.
TECHNICAL SPECIFICATIONS/APPROVAL NUMBER
This is a vehicle-specific multimedia system with DVD drive, hands-free system, navigation and radio.
This ZENEC system is designed for a 12 V DC vehicle electrical system. Detailed information can be
obtained from the ZENEC homepage:
www.zenec.com
If at any time in the future you should need to dispose this product, please note that waste
electrical products are not be disposed with the household waste. Please recycle where
facilities exist. Check with your local authority or retailer for recycling advice (Waste Electrical
and Electronic Equipment Directive).
GENERAL
10R-05 1776
Manufacturer: ACR Braendli + Voegeli AG · Bohrturmweg 1 · CH-5330 Bad Zurzach / Switzerland
EU Legal Representative: ACR S & V GmbH · Industriestr. 35 · D-79787 Lauchringen / Germany

© Copyright 2016
RevA / copy deadline: Q2-2016
