Zephyr Okeanito COK-E36SX Installation guide

Okeanito
CO K-E36SX
CO K-E42SX
CO K-E48SX
Use, Care, and Installation Guide
MAY07.0101
www.zephyronline.com
Model number:
Serial number:
Date of Purchase:
Sales Dealer:
©Zephyr Corporation.

www.zephyronline.com

Ta ble of C onte nts
1
SAFETY NOTICE ..............................................
LIST OF MATERIALS .......................................
INSTALLATION
Ducting Calculation Sheet ...............................
Mounting Height and Clearance .....................
Ducting ..................................................................
Specifications .......................................................
Internal Blower ....................................................
Preparing Hood for External Blower ..............
Mounting the Hood ............................................
FEATURES & CONTROLS
Controls Overview ..............................................
MAINTENANCE
Cleaning .................................................................
Lights .......................................................................
TROUBLE SHOOTING ......................................
LIST OF ACCESSORIES/PARTS .......................
2
3
4
5
6
7
8 - 9
10 - 11
12 - 14
15 - 16
17
18
19
20

www.zephyronline.com
Important safety Notice
2
TO REDUCETH E R IS K OF FIR E O R E LE C TR IC SHOC K, DO NOT USE TH IS FAN W ITH ANY S O LID-S TATE
SPE E D CONTROLDEVIC E.
TO RE DUCE THE R IS K O F FIR E, E LE C TR IC SH O C K, O R INJU RY TO P E R SON S, O B S E RVE TH E FO LLO W ING:
a. Use this unit only in the manner intendedby the manufacturer, If you have questions, contact the manufacturer.
b. Before servicing or cleaning unit, switch power o at service panel and lock the service disconnecting means to prevent power from being
switched on accidentally.
When the service disconnecting means cannot be locked, securely fasten a prominentwarning device, such as tag, to the service panel.
For General VentilatingUse Only. Do not Use to Exhaust Hazardous or Explosive Materials and Vapors.
TO RE DUC E TH E R IS K O F A RA NG E TO P GR EAS E FIR E:
a. Never leave surface units unattendedat high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low
or mediumsettings.
b. Always turn hood ON when cooking at high heat or when cooking ambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn
Beef Flambe)
c. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or lter.
d. Use proper pan size. Always use cookware appropriatefor the size of the surface element.
TO RE DU C E THE R IS K O F INJURY TO PERSON S IN TH E EV E NT O F A RA NG E TO P G R EAS E FIR E, O B S E RVE TH E FO LLOW ING :
a. SMOTHER F LA MES with a close-tting lid, cookie sheet, or metal tray, then turn o the burner. B E CARE FUL TO PR EV E NT BUR NS.
If the ames do not go out immediately ,E VAC UATE AN D CAL L TH E F IR E DE PARTME NT.
b. NEV E R PIC K UP A FLAMI NG PAN - You may be burned.
c. DO NOT US E WATE R, includingwet dishcloths or towels - a violent steam explosion will result.
d. Use an extinguisher ONLY if:
1. You know you have a class AB C extinguisher, and you already know how to operate it.
2. The re is small and contained in the area where it started.
3. The re departmentis being called.
4. You can ght the re with your back to an exit.
5. Based on “Kitchen Fire Sa fety Tips” published by NF PA.
TO R E DUC E THE R IS K OF FIR E, ELEC TR IC SHOCK OR INJURY TO PERSONS, OB S ERVE THE FOLLOW ING :
a. Installation Work and Electrical Wiring Must be Done by Qualied Person (s) In Accordance with all Applicable Codes and Standards,
IncludingFire-Rated Construction.
b. Sucient air is needed for proper combustion and exhausting of gases through the ue (chimney) of fuel burningequipmentto prevent back
drafting. Follow the heating equipmentmanufacturer’s guidelineand safety standards such as those published by the National Fire Protection
Association (N FPA), and the American S ociety for Heating, Refrigeration, and Air ConditioningEngineers (AS H R AE) and the local code authorities.
c. When cutting or drillinginto wall or ceiling, do not damage electrical wiring and other hidden utilities.
d. Ducted fans must always vent to the outdoors.
TO REDUC ETH E R IS K O F FIR E, US E O N LY METAL DUC TW O R K.
To reduce risk of re and to properly exhaust air, be sure to duct air outside - Do not vent exhaust air into spaces within walls or ceilings or into
attics, crawl spaces or garages.
To Reduce the Risk of Fire and Electric Shock, Install This Range Hood Only with Remote Blower Models CB E-1000 Rated
Maximum6.2 amp, 120 Vac 60Hz or Integral Blowers Manufactured by Zephyr Ventilation, Models CB I-600.
Take care when using cleaning agents or detergents.Suitable for use in household cooking area.
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
CAUTION
CAUTION
CAUTION
READ AND SAVE THESE INSTRUCTIONS

List of Materials
3
MODEL: COK-ExxS
1 - Hood
1 - Bae Filter (2 on 48” model)
2 - 50W 120V Halogen Light Bulbs GU-10
2 - 40W 120V Appliance Bulbs
1 - Utensil Rail
2 - Telescopic Duct Covers
1 - Ceiling Mounting Bracket (pre attached to duct cover)
1 - Wall Mounting Bracket
1-HARDWAREPACKET
7 - 2” Wood Screws
7 - Anchors
7 - 1/2” Washers
4 - 1/2” Screws 5x15mm
4 - 10mm Washers
1 - SMALL HARDWARE PACKET
1 - T ool
3 - Short Set Screws (4 on 48” Model)
1 - HARDWARE PACKET, EXTERNAL BLOWER KIT
1 - 8” Collar
1 - External Blower Wiring Box with Wires
10 - 1/2” Self Tapping Screws
10 - 4mm Internal Diameter Washers
NO DUCTING IS PROVIDED
EXTERNAL AND INTERNAL BLOWER SOLD SEPARATELY
Make sure to remove the protective lm o of the hood before installation in order to make removal of the lm
easier. Be careful not to scratch the stainless steel while installing.

www.zephyronline.com
4
Installation - Ductwork Calculation S heet
Duct pieces To t al
Equivalent number
length x used =
31/4”x10”
Rect.,
straight
1 Ft. x ( ) = Ft.
7” Round,
straight
1 Ft. x ( ) = Ft.
31/4”x10”
Rect. 90 0
elbow
15 Ft. x ( ) = Ft.
31/4”x10”
Rect. 45 0
elbow
9 Ft. x ( ) = Ft.
31/4”x10”
Rect. 90 0
at elbow
24 Ft. x ( ) = Ft.
31/4”x10”
Rect.
wall cap
with damper
30 Ft. x ( ) = Ft.
31/4”x10”
Rect. to
6” round
transition
5 Ft. x ( ) = Ft.
31/4”x10”
Rect. to
6” round
transition
90 0elbow
15 Ft. x ( ) = Ft.
6” Round,
90 0elbow
15 Ft. x ( ) = Ft.
6” Round,
45 0elbow
9 Ft. x ( ) = Ft.
Ft.
7” Round,
straight
1 Ft. x ( ) = Ft.
Subtotal column 1 =
Duct pieces To t al
Equivalent number
length x used =
6” Round
wall cap
with damper
30 Ft. x ( ) = Ft.
7” Round
wall cap
with damper
30 Ft. x ( ) = Ft.
7” Round,
900elbow
15 Ft. x ( ) = Ft.
7” Round,
45 0elbow
9 Ft. x ( ) = Ft.
Ft.
Ft.
Ft.
6” Round,
roof cap
30 Ft. x ( ) = Ft.
7” Round,
roof cap
30 Ft. x ( ) = Ft.
Subtotal column 2 =
Subtotal column 1 =
Total ductwork =
Maximum Duct Length: For satisfactory air movement,
the total duct length ofa31/4”x10”rectangular, 6” or 7”
diameter round ductshould not exceed 100 equivalent feet.
6” round to
31/4”x10”
rect.
transition
1 Ft. x ( ) = Ft.
6” round to
3 1/4” x 10”
rect.
transition
90 0elbow
16 Ft. x ( ) = Ft.
7” round to
31/4”x10”
rect.
transition
8 Ft. x ( ) = Ft.
7” round to
3 1/4” x 10”
rect.
transition
90 0elbow
15 Ft. x ( ) = Ft.

5

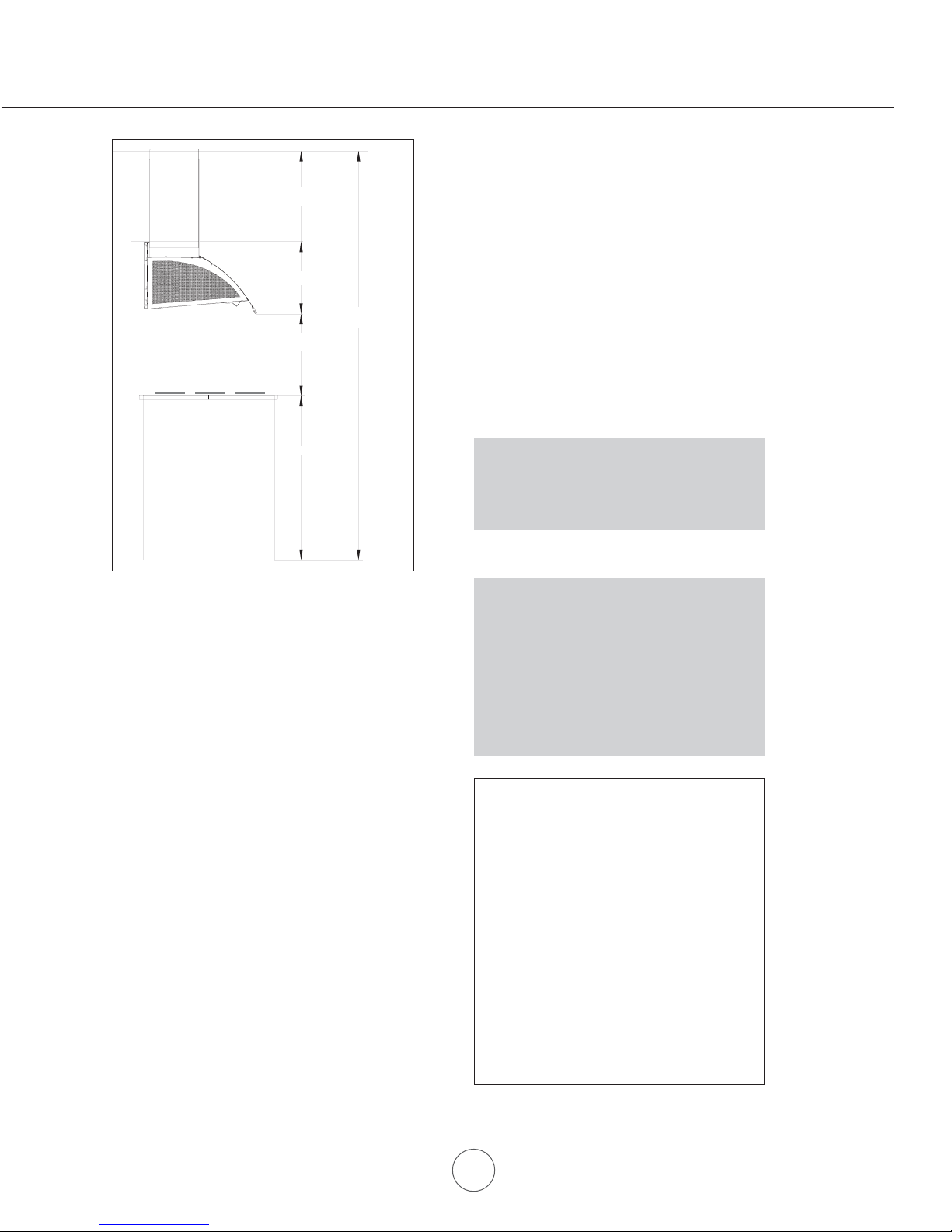

Installation - Mounting Height & Clearance
DUCT ING
36"
Min 96"-Max 124
”
Min 28"-Max 36"
Min 32"-Max 52"
14 1/2"
Minimum mount height between range top to hood bot-
tom should be no less than 28".
Maximum mount height should be no higher than 36".
It is important to install the hood at the proper mounting
height. Hoods mounted too low could result in heat
damage and re hazard; while hoods mounted too high
will be hard to reach and will loose its performance and
eciency.
If available, also refer to range manufacturer's height
clearance requirements and recommended hood
mounting height above range. Always check your local
codes for any differences.
A minimum of 6” round or 3-1/4 x 10"
rectangular duct work must be used to maintain
maximum air ow eciency with the 600 cfm
internal blower. A minimum of 10"to 8” round must be
used with the 1000 cfm external blower.
Always use rigid type metal duct work only.
Flexible ducts could restrict air ow by up
to 50%.
Use calculation worksheet to compute total
duct work.
ALWAYS, when possible, reduce the number
or transitions and turns. If a reducer is used,
install a long reducer instead of a pancake
reducer. Reduce duct size as far away from
opening as possible.
If turns or transitions are required:
Install as far away from opening and as far
apart, between 2, as possible.
Minimum Duct Size:
Round - 6” minimum at 600 cfm
Round - 10" to 8” minimum at 1000 cfm
Rect angular - 3 1/4” x 10” minimum only if
using internal blower at 600 cfm. Using
rectangular ductwork will require a transition
adapter (not provided, but readily available at
most hardware stores).
DAMAGE-SHIPMENT / INSTALLATION:
• Please fully inspect unit for damage
before installation.
•If the unit is damaged in shipment , return
the unit to the store in which it was bought
for repair or replacement.
•If the unit is damaged by the customer ,
repair or replacement is the responsibility
of the customer.
•If the unit is damaged by the installer (if
other than the customer), repair of replace
ment must be made by arrangement
between customer and installer.
*Minimum ceiling height of 96”. Hood
mounted at 28” above cooking surface.
** Maximum ceiling height of 124". Hood
mounted at 36" above cooking surface.

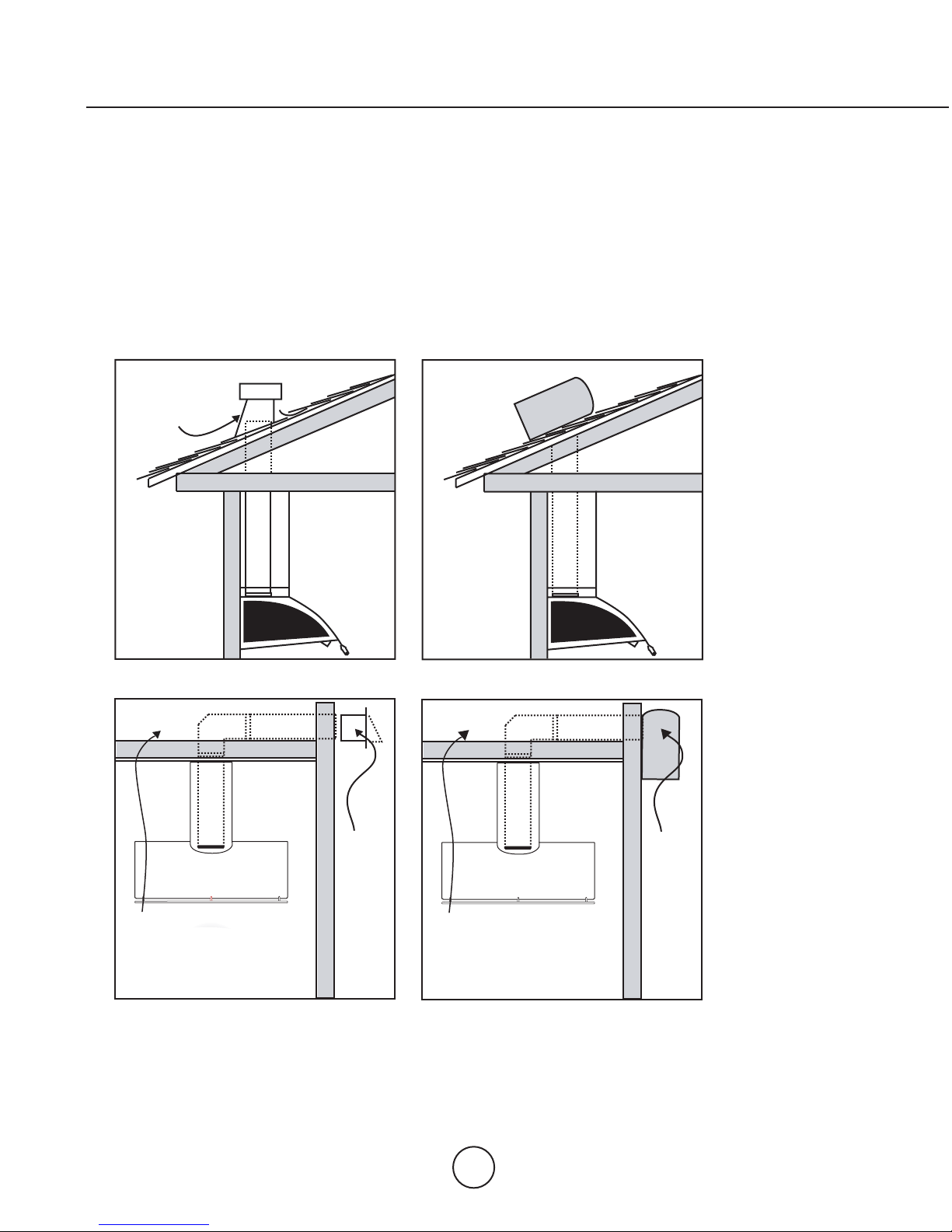

Installation - Ducting
www.zephyronline.com
side wall
cap with
gravity
damper
Soffit or crawl space
Roof Pitch w/
Flashing & Cap
6
Soffit or crawl space
External
Blower
External
Blower
WARNING FIRE HAZARD
NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics, or garages. All exhaust must
be ducted to the outside.
Use single wall rigid Metal ductwork only.
Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or DuctTape.
Some Ducting Options:

7

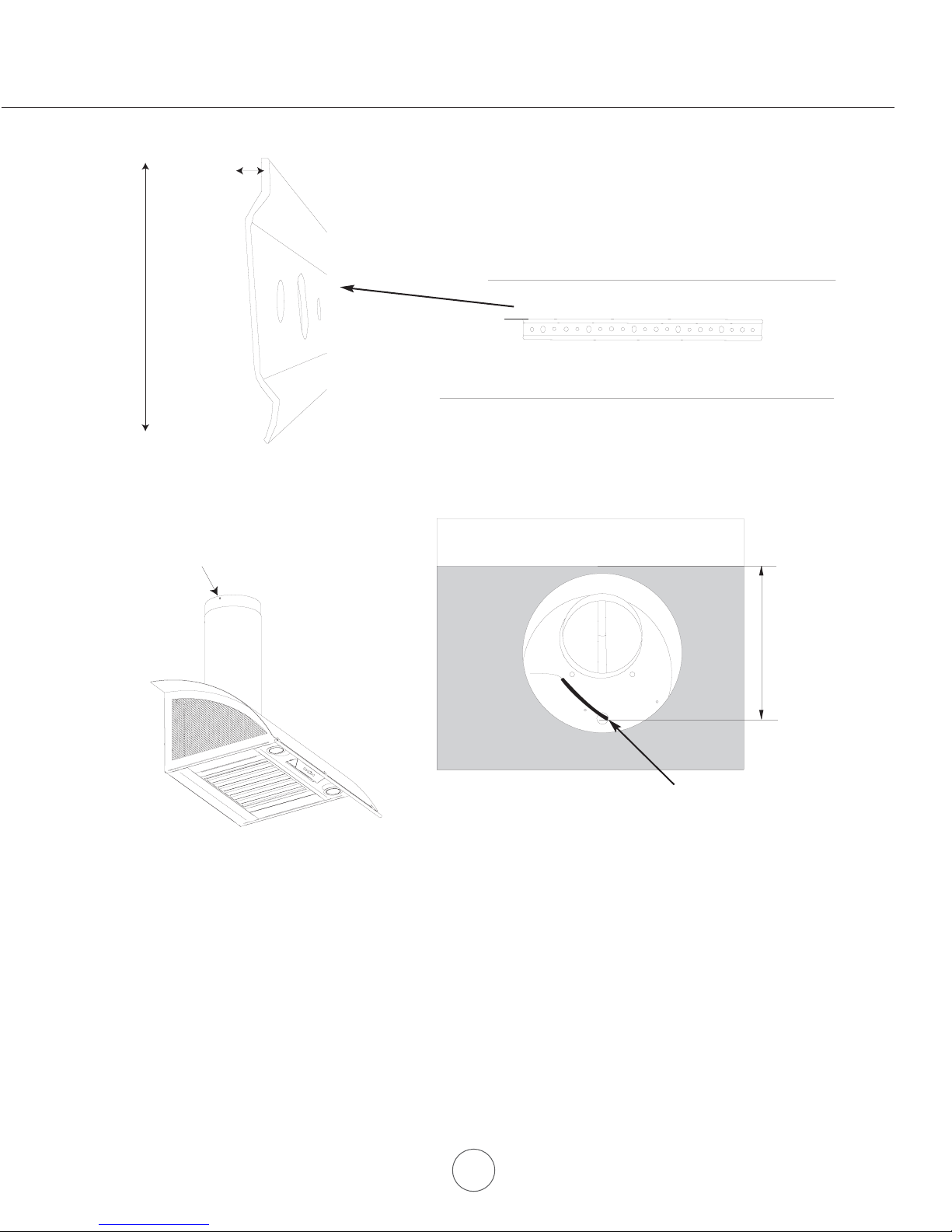

Installation - Specifications
RIHPEZYBNGISEDGNEHCOGOL
19 3/4”
19 3/4” 10”
36”,42”,48”
22 5/8”
11 7/8”
95°
16 5/8”
13 3/8” 14 1/2”
15”
5" - 36"
8"- 42"
31/2"-48"
6"
9 3/16”
”61/5
O
8 5/16”
”
8/
14
R
”
23
/
1
1
4
R
”
2
3
/
5
1
”8/37
“1
”
4/1

www.zephyronline.com

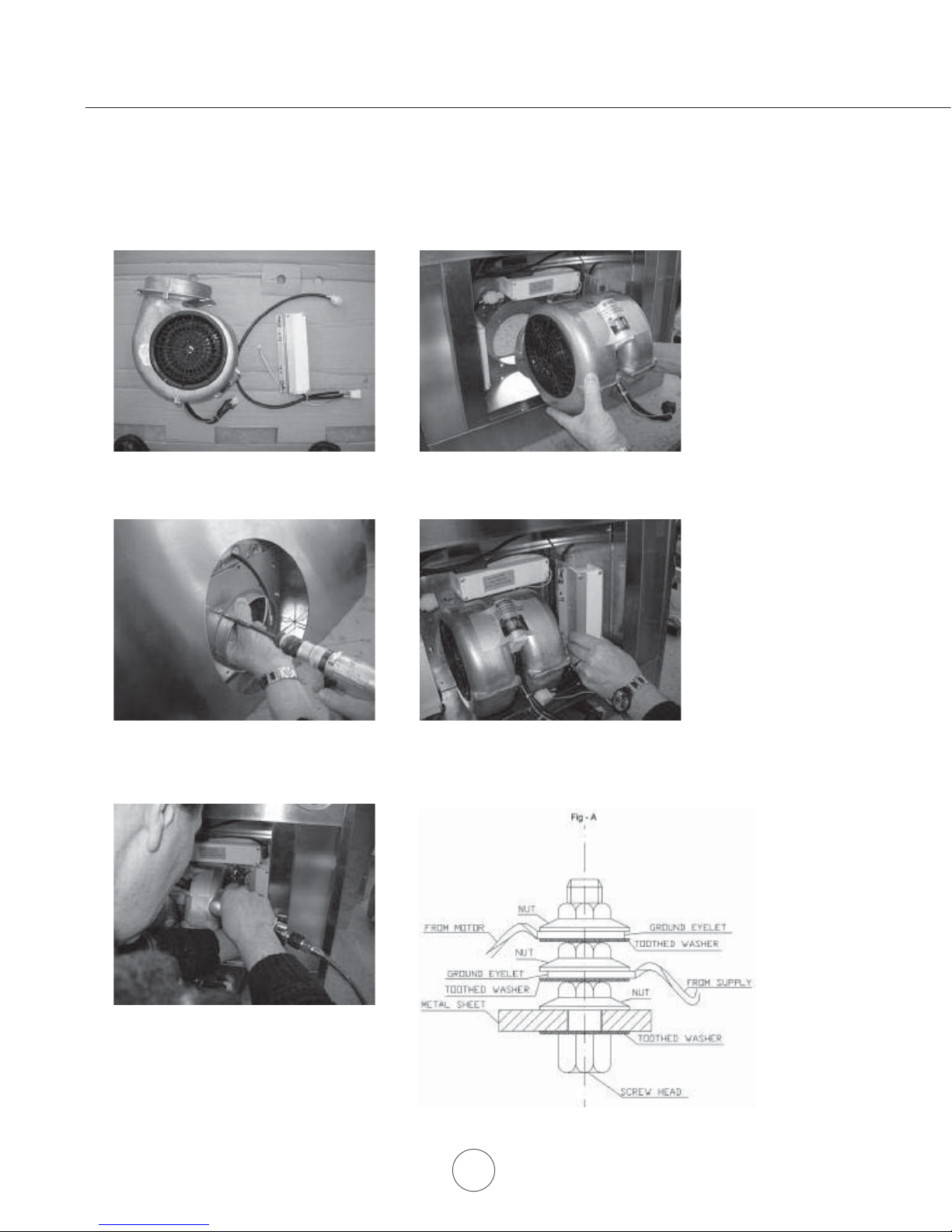

Installation - Internal Blower
8
The internal blower kit consists of the blower
and capacitor box with wiring.
1. Position blower as shown.
2. Att ach blower to ange as shown using
the provided 1/2” 5x15mm screws with
washers.
3. P osition capacitor box as shown.
4. Secure capacitor bo x to hood using the
provided 1/2” self tapping screws.
ATTENTION
The following are intructions for installing internal blower model CBI-600. For instructions on preparing for external
blower model CBE-1000 please turn to page “10”. Before installing, verify that motor spins freely.

Installation - Internal Blower
9
5. Remove existing grounding screw and
attach grounding wire from capacitor box.
6. Re-attach grounding screw to nish
installation of capacitor box. Refer to Fig-A on
previous page.
7. Attach short capacitor connector to blower
connector.
8. Att ach long capacitor connector to control
board connector.
9. Use plastic tie to hold wiring together. 10. Remove wood block
Final view of internal blower install.
Continue to page “12” for hood installation instructions.

www.zephyronline.com
10

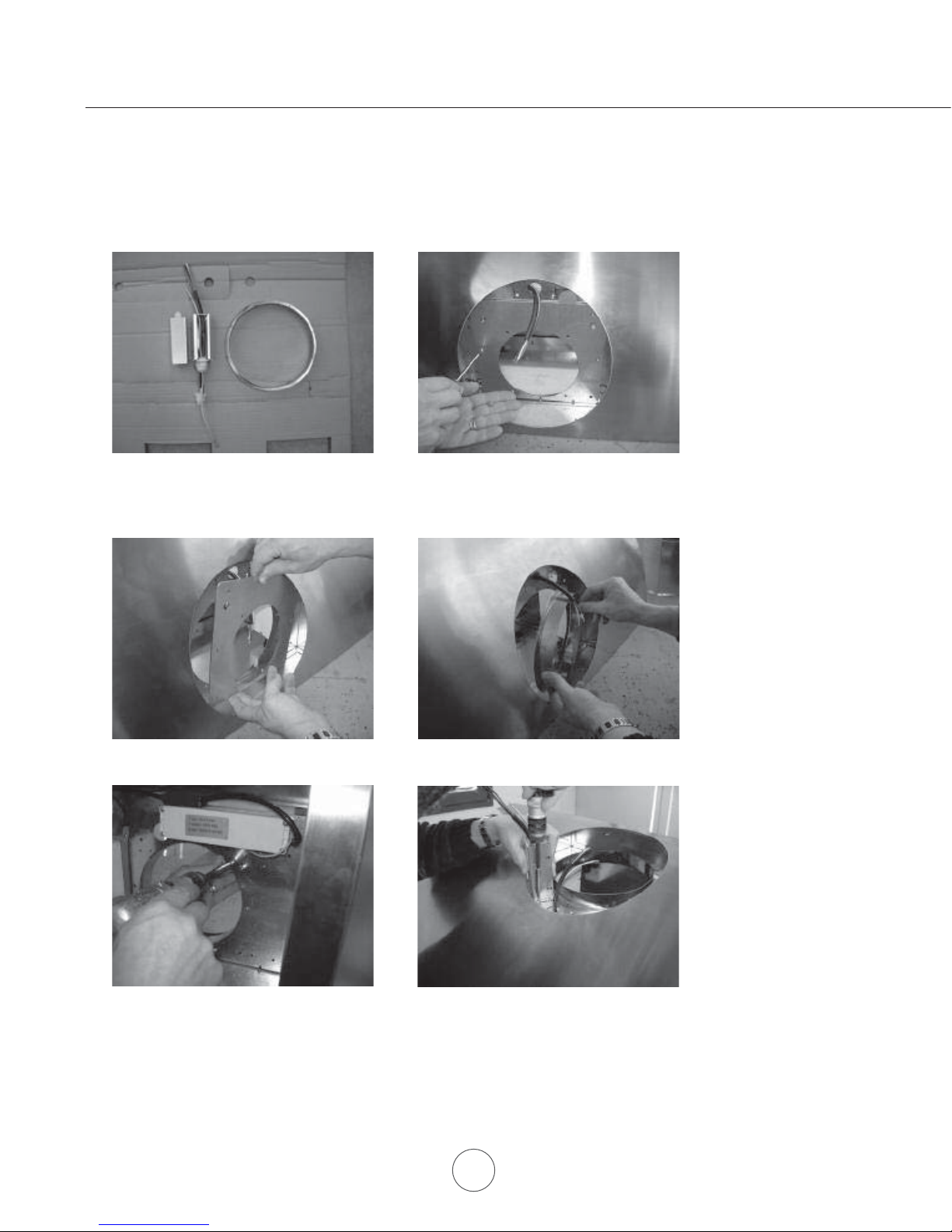

Installation - Preparing External Blower
The external blower kit consists of an 8”
collar, and external blower wiring box. The
external blower is purchased separately.
ATTENTION
The following are intructions on preparing your hood for installation with external blower model CBE-1000.
For instructions on installing internal blower model CBI-600 please turn to page “8”.
NOTE: Please refer to the CBE-1000 manual for external blower mounting instructions.
1. Remove screws from internal ange.
2. Remove internal ange from hood. 3. Position 8” collar as shown.
4. Att ach 8” collar to hood as shown using
provided 1/2” self t apping screws.
5. Attach external blower wiring box to top of
hood using provided 1/2” self t apping
screws.

11
6. Position cover onto external blower
wiring box.
7. Secure cover to box with provided screw.
8. Attach connector from external blower
wiring box to control board box connector
inside hood.
9. Attach grounding wire from external blower
wiring box to grounding screw of the junction
box. Refer on Fig-A in diagram below .
10. Final view of external blower preparation
Continue to page “12” for hood installation instructions.
For external blower installation please refer to the manual
included with the external blower.
Installation - Preparing External Blower

A
B
min 28”
max 36”
C/L
C/L
14 1/2”
Duct Cover
Ceiling Bracket
7 1/2”
Attach screws to
ceiling bracket
C/L
C21”
Duct Cover
Ceiling Bracket
www.zephyronline.com

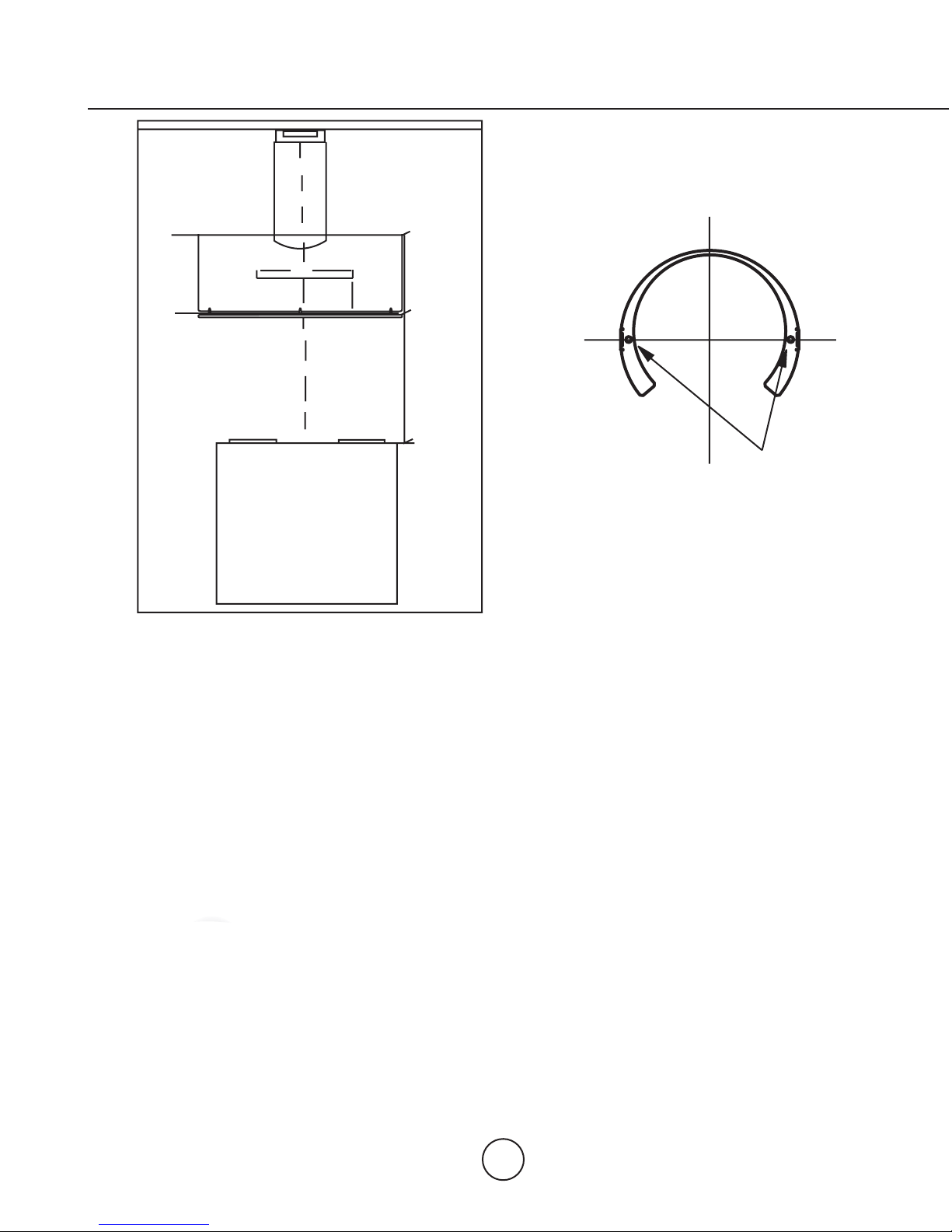

1. Measure from cooking surface to hood bottom, level and mark line A.
2. Plum and mark center line.
3. Mark mounting height, line B (14 1/2” from line A). This is the top of the hood.
4. Measure up, 7 1/2” from line A and mark mounting spread from C/L Line C. (21”)
5. Follow center line up to the ceiling, measure and mark 6” from the wall. Make sure the spot you mark is still
on the center line. This is where the
center of the duct cover ceiling bracket will mount.
6. Place duct cover ceiling bracket onto ceiling and mark the (2) holes where screws will be attached. If attaching
bracket to drywall only, drill and insert provided anchors into the marked holes. Cut out inside diameter of the
ceiling bracket to fit the 6” or 8” round duct work. Attach bracket to ceiling with (2) screws provided.
7. Prepare duct work and electrical.
All Electrical work must be performed by a qualified electrician or person with similiar
technical know and background.
For personal safety, remore house fuse or open circuit beaker before beginning installation.
Do not use extension cords or adapter plug with this appliance.
Follow National Electrical Codes or prevailing local codes and ordinances.
Electrical Supply:
This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly grounded branch
circuit, protected by a 15 or 20 ampere cicuit breaker or time delay fuse. Wiring must be 2 wire with ground.
Please refer to Electrical Diagram labeled on product.
GNINRAW-LACIRTCELE
-noitallatsnI dooHgniraperP
12

13
Installation - Mounting Hood
gap between
bracket and
wall
Top
Bottom
1. Place wall bracket on line C. Position top of wall bracket so it is even with the 21” mounting spread. Make
sure bracket is attached to wall as shown in the diagram. The top of the wall bracket should have a gap between
it and the wall. The bottomshould be ush against the wall. Use (3) 2” wood screws to attach bracket to wall. Use
anchors if not mountingto studs.
2. Lift hood onto wall bracket, there is a lip on the back of the hood which will rest on the wall bracket. Secure in
place by *screwing (2) screws with washers through hood into the wall. There are two holes at the bottominside
the hood in which to do this.
3. Place telescopic duct covers on top of hood and extend top duct cover to the ceiling bracket. Attach duct cover to
ceiling bracket with the providedscrews.
4. Run duct work down to top of motor. Attach electrical wiring from ceiling to wiring on top of motorhousing. (slide
duct cover up towards ceiling to gain access to the motor housing)
* Note:If installing onto drywall only with no wall studs present, attach E Z anchors (not provided) into the wall.
Please see page 15 for external blower installation instructions.
B
A
C
Attach screws to both
sides of the duct covers
and secure to ceilingbracket.
Electrical
10”

www.zephyronline.com
14
Installation - Attaching Utensil Rail
1. Attach utensil rail to hood canopy. A small hole has been pre-drilled into the canopy to provide a starting point
to attach the rst utensil rail post. After the rst post is lined up with the hole, gently slide the rest of the rail onto
the canopy. (note: be careful not to scratch the stainless steel when performing this step, this is why there is a
starter hole).
2. Attach a short set screw into eac h post in order to hold utensil rail onto canopy.
kcaBtnorF
Set
screw

15
2
3
4
6
1
5
The standard Baffle Filters are required to be cleaned frequently and as recommended in order to maintain
blower efficiency. If improperly maintained, residue from cooking will sift through filters and cause damage to
hood blowers and other sensitive components; and possibly clog duct work and create a fire hazard.
Blower On/Off Display (Speed level, Delay O Indicator, Filter Clean/Change)
Adjust 3 Speed Levels
15 Min Delay Off
Lights On/Off/Hold to Dim
Mood Light On/Off
Features & Controls - Touch Controls & Features
1. Blower On/Off
By pressing , the blower is switched On and Off.
2. Speed Selection
The 3 speed levels are selected by pressing to decrease and to increase speed level.
The display indicates level selected.
3. Delay Off
This is used for programmed shut down of blower and lights 15 minutes after the function is activated.
Press once, a dot flashes in the lower right hand side of display indicating the function is on.
The hood will completely shut down in 15 minutes.
4. Lights On/Off/Dim
Switch lights On and Off by pressing once. T
o
d
im li
g
hts
,
p
ress a
g
ain
.
5. Advance Display Functions
6. Mood Light On/Off
This switch turns the mood lights On and Off. Press IN to turn on, press again to turn OFF.
Filters Clean Reminder (Metal):
After every 30 hours of use, the display will start flashing an reminding you to clean the baffle
filters from residue and possible clogs.
www.zephyronline.com

16
Filter Clean Reminder (Standard Bae Filters tted):
A set of bae lters are tted by the factory. These Bae Filters are intended to lter out residue from cooking. They
need not be replaced on a regular basis but are required to be kept clean. The Filter Clean Reminder function in
the microprocessor will automatically indicate by a ashing when the metal lters need to be cleaned after
every 30 hrs. of use. Filters can be cleaned by hand with non-abrasive soap or in a dishwasher.
Filter Clean Reminder:
When ashes on display, the bae
lters installed are required to be cleaned.
This will occur after every 30 hours of use.
Re-setting Function:
Reset the Filter Clean Reminder timer when
lters are cleaned and re-installed (with
hood o). Press and hold for approx.
5 seconds, the display will appear; hold for
approximately 5 seconds until on dis-
play disappears . The Filter Clean
Reminder function is now re-set and a new
30 hours elapse cycle is initiated.
hold 5 secs. display from <C> to < >
display <A> flashes
Clean Filters
To Reset
Features & Controls - B affle F ilters Change Indicator

17
M
a
i
n
t
e
n
a
n
c
e
-
C
l
e
a
n
i
n
g
S
urface
M
aintenance
:
C
l
ean
p
eriodicall
y
w
i
t
hh
ot
s
oap
y
wate
r
a
n
d
c
l
ean
cotto
n
c
l
ot
h
.
Do
n
ot
use
co
rr
os
iv
e
o
r
ab
r
as
iv
e
deter
g
en
t
,
o
r
stee
l
woo
l
/scourin
g
p
a
ds
whi
c
i
i
h
will
s
cra
t
c
h
an
d
d
amag
e
surface
.
F
or
h
ea
vi
er
so
il
use
liquidde
g
reaser
.
A
fte
r
c
leanin
g,
y
o
u
ma
y
use
no
n-
ab
r
as
iv
e
sta
inl
ess
stee
l polish
/
c
leaners,
to
p
olish
a
n
d
bu
out
t
h
e
sta
inl
ess
l
uster
a
n
d
g
rain. Always
sc
r
ub
l
i
g
htl
y
y
y
wi
t
h
c
l
ean
cotto
n
c
loth
,
a
n
d
w
i
t
h
t
h
e
g
rain
.
D
o
not
use
an
y
p
roduc
t
c
ontainin
g
c
hl
o
rin
e
b
l
ea
c
h.
Do
n
ot
use
“oran
g
e”
c
l
ea
n
e
r
s.
B
ae
F
il
te
r
s
T
h
e
M
eta
l
Fi
l
ter
s
tted
by
t
he
f
actor
y
are
i
nten
d
e
d
to

l
te
r
out
r
es
i
due
a
n
d
g
rease
f
r
o
m cookin
g
.
T
he
y
n
eed
n
ot
be
re
pl
ace
d
on
a
r
e
g
u
l
ar
bas
i
s
but
are
re
q
uire
d
to
b
e
k
e
pt
c
l
ean
.
F
i
lte
r
s
should
be
clea
n
ed
a
f
te
r
e
v
er
y
3
0
hou
r
s
of
u
se.
U
s
e
th
eFi
l
ter
Cl
ea
n
R
emin
d
er function
on
th
e
contro
ls
t
o
d
etermin
e
wh
e
n
lters re
q
u
i
r
e
cl
eaning.
Re
m
o
v
e

l
ter
by
slidin
g
to
w
a
r
ds
yo
u
a
n
d
pu
ll
ing
d
own (Fig. 1).
Re
m
o
v
e
a
n
d
c
l
ean
b
y
ha
n
d
o
rin
d
i
s
hw
as
h
e
r
.
S
pra
y
d
egreasing
d
etergent
a
n
d
l
eav
e
to
s
oa
k
if
h
eavi
ly
soi
l
e
d.
D
r
y
lter
s
a
n
d
r
e-insta
ll
before us
i
n
g
h
oo
d
.
R
eplacin
g
B
a
e
Filte
r
s
Should
Should
lters
lters
wear
wear
out
out
due
due
to
to
age
age
and
and
prolonged
prolonged
use, contact Zep
hy
r to purc
h
ase rep
l
acements.
H
an
dl
es
www.zep
hy
ron
l
ine.co
m
1
2 3
/
4
”
”
15”
15”
(
Fi
g
. 1)

18
Replacing Light Bulbs:
CA UTION: Light bulbs become extremely hot when turned on. DO NOT touch bulbs until switched o
and cooled. Touching hot bulbs may cause serious burns.
Make sure all power is turned o and bulbs are not hot.
Remove bulb by pressing both ends of the metal retaining clip together, the light socket will now protudefrom the hood
allowingyou to remove the bulb.(B e careful when releasing retain clip as it is under pressure to hold it in place)
Replacement halogen bulbs are available at most stores which sell light bulbs. Purchase type GU-10, 120 V, 50 W.
To replace moodlightingbulb, remove bae lter from hood.Lift up the metal plate which is inside the hood on the left
and right sides. It is held on with two philips head screws. Unscrew mood lightingbulb counter-clockwise and replace
with a standard 40W, 125V-1 30V mediumbase bulb.
Press together
to release clip
HalogenBulb
MoodLightingBulb
MetalPlate
Maintenance - Lights
