Zephyr Siena ZSI-E30CS User manual

WWW.ZEPHYRONLINE.COM
MAR22.0101
Ai
rflow Control Te chnolo
gy
TM
C
Siena
ZSI-E30CS, ZSI-E36CS
EN Use, Care, and Installation Guide
FR Guide d’utilisation, d’entretien et d’installation

2Siena Use, Care, and Installation Guide
SIENA
WALL
CORE

3
Siena Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Contents
Page
Safety Information ............................................................................ 4-6
Types of Safety Warnings................................................................... 4
General Safety ..................................................................................4-5
Operation........................................................................................... 6
Electrical Requirements ...................................................................... 6
Federal Communication Commission Interface Statement................. 6
List of Materials................................................................................... 7
Installation Instructions.....................................................................8-18
Ducting Calculation Sheet.................................................................. 8
Mounting Height, Clearance, & Ducting ...........................................9-10
Ducting Options ................................................................................. 11
Hood Specifications............................................................................12
Electrical Supply.................................................................................13
Cable Lock .........................................................................................13
Mounting the Hood.......................................................................... 14-15
Horizontal Ducting Conversion ........................................................ 15-17
Ductless Recirculation ........................................................................17
Recirculating Kit Installation ...............................................................18
Features & Controls..........................................................................19-22
ICON Touch Controls.......................................................................19-20
Optional RF Remote Control............................................................21-22
Maintenance ................................................................................... 23-24
Hood & Filter Cleaning.....................................................................23-24
LumiLight LED ................................................................................... 24
ACT™ Conversion............................................................................ 25-26
Airflow Control Technology (ACT™) ................................................... 25
Enabling ACT™.................................................................................. 26
Wiring Diagram.................................................................................. 27
Troubleshooting............................................................................... 28-29
List of Parts & Accessories..................................................................30
Limited Warranty ............................................................................... 31
Product Registration...........................................................................32

4Siena Use, Care, and Installation Guide
SIENA
WALL
CORE
Safety Information
Your safety and the safety of others are very important.
We have provided many important safety messages in this
manual for your appliance. Always read and obey all safety
messages.
This is the Safety Alert Symbol. This symbol alerts you to
potential hazards that can cause severe bodily injury or death.
All safety messages will follow the Safety Alert Symbol and either
the words “DANGER” “WARNING” or “CAUTION”
DANGER
Danger means that failure to heed this safety statement may
result in severe injury or death.
READ AND SAVE THESE INSTRUCTIONS
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a) Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the manufacturer.
b) Before servicing or cleaning unit, switch power o at service
panel and lock the service disconnecting means to prevent
power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
General Safety
WARNING
Warning means that failure to heed this safety statement
may result in extensive product damage, serious personal
injury, or death.
CAUTION
Caution means that failure to heed this safety statement
may result in minor or moderate personal injury, property or
equipment damage.
WARNING
To reduce the risk of fire or electric shock, do not use this fan
with any solid-state control device.
WARNING
CAUTION
For General Ventilating Use Only. Do Not Use To Exhaust
Hazardous Or Explosive Materials And Vapors. Take care
when using cleaning agents or detergents. Suitable for use in
household cooking area.
WARNING
WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE
FIRE:
a) Never leave surface units unattended at high settings.
Boilovers cause smoking and greasy spillovers that may ignite.
Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or
when flambeing food. (i.e. Crepes Suzette, Cherries Jubilee,
Peppercorn Beef Flambe’).
c) Clean ventilating fans frequently. Grease should not be
allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate for
the size of the surface element.

5
Siena Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Safety Information
WARNING
READ AND SAVE THESE INSTRUCTIONS
WARNING - TO REDUCE THE RISK OF INJURY TO PERSONS
IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE
FOLLOWING:
a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or
metal tray, then turn o the burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN – You may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels – a
violent steam explosion will result.
d) Use an extinguisher ONLY if:
1) You know you have a Class ABC extinguisher, and you
already know how to operate it.
2) The fire is small and contained in the area where it
started.
3) The fire department is being called.
4) You can fight the fire with your back to an exit
Based on “Kitchen Firesafety Tips” published by NFPA.
WARNING
WARNING
TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
CAUTION
To reduce risk of fire and to properly exhaust air outside, do
not vent exhaust air into spaces within walls, ceilings, attics,
crawl spaces, or garages.
WARNING
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a) Installation work and electrical wiring must be done by
qualified person(s) in accordance with all applicable codes and
standards, including fire-rated construction.
b) Sucient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of fuel burning
equipment to prevent back drafting. Follow the heating
equipment manufacturer’s guideline and safety standards such
as those published by the National Fire Protection Association
(NFPA), and the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE), and the local code
authorities.
c) When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
d) Ducted fans must always be vented to the outdoors.
e) If this unit is to be installed over a tub or shower, it must be
marked as appropriate for the application and be connected
to a GFCI (Ground Fault Circuit Interrupter) - protected branch
circuit.
WARNING
Prop. 65 Warning for California Residents: This product may
contain chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.

6Siena Use, Care, and Installation Guide
SIENA
WALL
CORE
Safety Information
Operation
►Always leave safety grilles and filters in place. Without these components, operating blowers could catch onto hair, fingers and
loose clothing.
►The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation,
maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to negligence and
the warranty of the unit automatically expires due to improper maintenance.
NOTE: Please check www.zephyronline.com for revisions before doing any custom work.
Electrical Requirements
Important:
►Observe all governing codes and ordinances.
►It is the customer’s responsibility to be aware of these below:
►To contact a qualified electrical installer.
►To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 latest
edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local codes
and ordinances.
►If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path
is adequate.
►Do not ground to a gas pipe.
►Check with a qualified electrician if you are not sure the range hood is properly grounded.
►Do not have a fuse in the neutral or ground circuit.
►This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit protected
by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram
on product.
►A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and
install appropriate connector if necessary.
* National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269
** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575
Federal Communication Commission Interface Statement
►This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
►This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one of the following
measures:
►Reorient or relocate the receiving antenna.
►Increase the separation between the equipment and receiver.
►Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
►Consult the dealer or an experienced radio/TV technician for help.
READ AND SAVE THESE INSTRUCTIONS

7
Siena Use, Care, and Installation Guide
ZEPHYRONLINE.COM

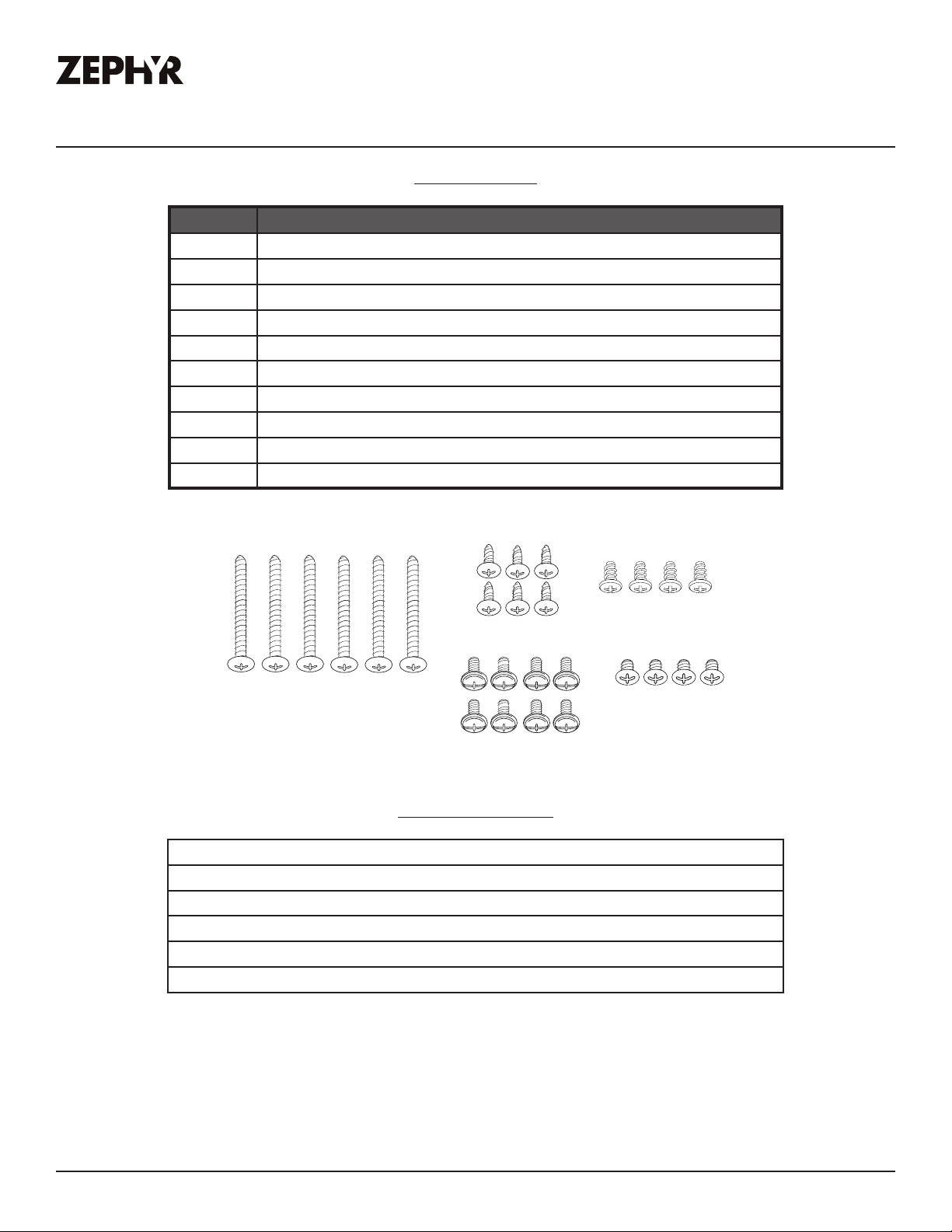

List of Materials
Parts Not Supplied
Ducting, conduit and all installation tools
Cable locking connector (if required by local codes)
Extension duct covers (Z1C-00SI)
Optional remote control (RC-0002)
Optional RF remote control (14000005)
Optional recirculating kit (ZRC-00SI)
Parts Supplied
Quantity Part
1 Hood with internal blower
2 Duct covers, 1 upper & 1 lower
1 Duct cover bracket
2 Bae filters
2 LumiLight LED, 6W (pre-installed)
1 8” round backdraft damper
1 3-1/4" x 10" rectangular collar (rear ducting only)
1 Rear ducting motor mount brackets
1 Top cover plate (rear ducting only)
1 Hardware package
(6) M4 x 38 (6) M4 x 8 (4) M4 x 8
(8) 3/16 x 3/8” (4) M4 x 6

8Siena Use, Care, and Installation Guide
SIENA
WALL
CORE
Installation Instructions
Duct pieces To tal
Equivalent number
length x used =
3- 1/ 4” x 10”
Rect.,
straight
1 Ft. x ( ) =Ft.
3- 1/ 4” x 10”
Rect. to
6” round
transition
5 Ft. x ( ) =Ft.
3- 1/ 4” x 10”
Rect. to
6” round
transition
900 elbow
20 Ft. x ( ) =Ft.
6”, 7”, 8”, 10”
Round,
900
15 Ft. x ( ) =Ft.
6”, 7”, 8”, 10”
Round,
450
9 Ft. x ( ) =Ft.
Ft.
6”, 7”, 8”, 10”
Round,
straight
1 Ft. x ( ) =Ft.
Subtotal column1 =
Duct pieces To tal
Equivalent number
length x used =
6”, 7”, 8”, 10”
Round, wall
cap with
damper
30 Ft. x ( ) =Ft.
Ft.
Ft.
Ft.
6”, 7”, 8”, 10”
Round
roof cap
30 Ft. x ( ) =Ft.
Subtotal column2 =
Subtotal column1 =
Total ductwork =
Maximum Duct Length: For satisfactory air movement,
the total duct length
should not exceed 150 equivalent feet.
6” round to
3- 1/ 4” x 10”
rect.
transition
1 Ft. x ( ) =Ft.
6” round to
3- 1/ 4” x 10”
rect.
transition
900 elbow
16 Ft. x ( ) =Ft.
7” round to
3 1/ 4” x 10”
rect.
transition
8 Ft. x ( ) =Ft.
7” round to
3- 1/ 4” x 10”
rect.
transition
900 elbow
23 Ft. x ( ) =Ft.
elbow
elbow
7” to 6” or
8” to 7” Round
tapered
reducer
25 Ft. x ( ) =Ft.
3- 1/ 4” x 10”
Rect. 900
elbow
15 Ft. x ( ) =Ft.
3- 1/ 4” x 10”
Rect. 450
elbow
9 Ft. x ( ) =Ft.
3- 1/ 4” x 10”
Rect. 900
flat elbow
24 Ft. x ( ) =Ft.
3- 1/ 4” x 10”
Rect.
wall cap
with damper
30 Ft. x ( ) =Ft.
Ft. x ( ) =Ft.
15
6”, 7“, 8”
Round
in-line
damper
Ducting Calculation Sheet

9
Siena Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions
Mounting Height, Clearance, & Ducting
24” min.
34” max.
min. A
max. C
min. D
max. F
Standard Extension
Hood Heights Duct Cover Duct Cover
minimum (A) 27-1/2” 46-1/2“
maximum (C) 42” 79”
Ceiling Heights
minimum (D) 87-1/2” (7’ 3-1/2”) 106-1/2“ (8‘ 10-1/2”)
maximum (F) 112” (9’ 4“ ) 149” (12’ 5”)
36”

10 Siena Use, Care, and Installation Guide
SIENA
WALL
CORE
Installation Instructions
Mounting Height, Clearance, & Ducting
A minimum of 8” round duct and 3-1/4" x 10" rectangular duct (horizontal rear ducting only) is
recommended to maintain maximum air flow eciency.
Always use rigid type metal ducts only. Flexible ducts could restrict air flow by up to 50%.
Also use the ducting calculation sheet (on page 8) to compute total available duct run when using
elbows, transitions and caps.
ALWAYS, when possible, reduce the number or transitions and turns. If long duct run is required,
increase duct size.
If turns or transitions are required; install as far away from hood duct output and as far apart,
between the two as possible.
Minimum mount height between range top to hood bottom should be no less than 24”.
Maximum mount height should be no higher than 34”.
It is important to install the hood at the proper mounting height. Hoods mounted too low could result
in heat damage and fire hazard; while hoods mounted too high will be hard to reach and will lose its
performance and eciency.
If available, also refer range manufacturer’s height clearance requirements and recommended hood
mounting height above range. Always check your local codes for any dierences.
For shipment and installation damages:
►Please fully inspect unit for damage before installation.
►If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or
replacement.
►If the unit is damaged by the customer, repair or replacement is the responsibility of the customer.
►If the unit is damaged by the installer (if other than the customer), repair of replacement must be
made by arrangement between customer and installer.

11
Siena Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions
Ducting Options
►Use single wall rigid metal ductwork only.
►Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct
Tape.
Fire Hazard: NEVER exhaust air or terminate ductwork into
spaces between walls, crawl spaces, ceilings, attics, or garages.
All exhaust must be ducted to the outside, unless using the
recirculating option.
WARNING
Sot or crawl space
Side wall cap w/
gravity damper
Side wall cap w/
gravity damper
Ductless
recirculating
Roof pitch w/
flashing & cap

12 Siena Use, Care, and Installation Guide
SIENA
WALL
CORE
Installation Instructions
Hood Specications
Top
SideFront
AC In
C/L
10-9/16”
(30”) 29-15/16”, (36“) 35-7/8”
12-3/8”
STANDARD
min. ducted - 27-1/2”
min. recirc. - 32”
max. - 42”
Z1C-00SI
min. ducted - 46-1/2”
min. recirc. - 50-1/2”
max. - 79”
8-9/16”
21-15/16”
1-9/16”
4-1/4”
7-3/4”
5/8”
4-3/8”
1-5/8”
5-3/8”
12-3/4”
Back

13
Siena Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions
Electrical Supply
Electrical wiring must be done by qualified person(s) in
accordance with all applicable codes and standards. Turn o
electrical power at service entrance before wiring.
WARNING
For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not
use extension cord or adapter plug with this appliance.
Follow national electrical codes or prevailing local codes and ordinances.
This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly
grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring
must be 2 wire w/ ground. Please also refer to the Electrical Diagram labeled on product.
Cable Lock
A cable locking connector (not supplied) might be required by local codes. Check with local
requirements and codes, purchase and install appropriate connector if necessary. (FIG. A)
Cable Lock
FIG. A

14 Siena Use, Care, and Installation Guide
SIENA
WALL
CORE
Installation Instructions
Mounting the Hood
1. Measure from range top to hood bottom and
mark line A. (24” minimum from range top).
2. Plum and mark center line.
Mark mounting height line B. (1-5/8” from line A)
Mark mounting height line C. (13-1/8” from line A)
Mark mounting spread from C/L on line B 12-3/4”
Mark mounting spread from C/L on line C 9-7/16”
3. Fasten (2) M4 x 38 screws into studs on line
C. Do not fasten screws all the way, leave
approximately 3/8” exposed.
NOTE: Wood blocking may need to be added
behind the drywall if no studs are present. Wall
anchors may also be used but check local codes
for compliance. Failure to use suitable wall
anchors and screws to hold the weight of the
hood could result in personal injury or damage to
cooking surface or counter.
4. Install 8” round duct collar with backdraft damper
to top of body of hood by (4) M4 x 8 flat screws.
5. If ducting hood through rear of hood body, cut
access hole in wall and prepare ducting.
6. Hang hood onto screws and hand tighten. (FIG.
B) Use the last M4 x 38 screws to further secure
the hood to the wall from inside the hood on line
B.
7. Center and attach duct cover bracket to wall
below ceiling or sot using (2) M4 x 38 screws.
8. Position electrical outlet within the space covered
by the telescopic duct covers and where it will not
interfere with the round duct. (FIG. C)
9. *Install duct work and duct tape.
10. Power up hood and check for leaks around duct
tape.
FIG. B
AB
C/L
13-1/8"
9-7/16"
C/L
24" min
Duct Cover
Bracket
C
12-3/4"
1-5/8"
C
B
24”
MAX.
HOOD
CENTERLINE
4¼”
MAX.
12”
FIG. C

15
Siena Use, Care, and Installation Guide
ZEPHYRONLINE.COM
11. Place telescopic duct covers onto hood and extend inner (top) duct cover upwards and secure to
duct cover bracket using (2) M4x8 screws.
*If using hood in recirculating mode you must secure air diverter plate onto wall before installing
duct work and duct covers. Turn to ductless recirculation section for more details.
Installation Instructions
Mounting the Hood
Horizontal Ducting Conversion
This range hood is equipped with a 8" round vertical duct option by default. To convert from 8" round
vertical to 8" round horizontal ducting or 3-1/4" x 10" rectangular horizontal ducting, please follow the
instructions below.
1. Remove (4) screws attaching
motor to hood body.
2. Remove knock out plates A & B for
rectangular ducting or knock out
plates B & C for round ducting.

16 Siena Use, Care, and Installation Guide
SIENA
WALL
CORE

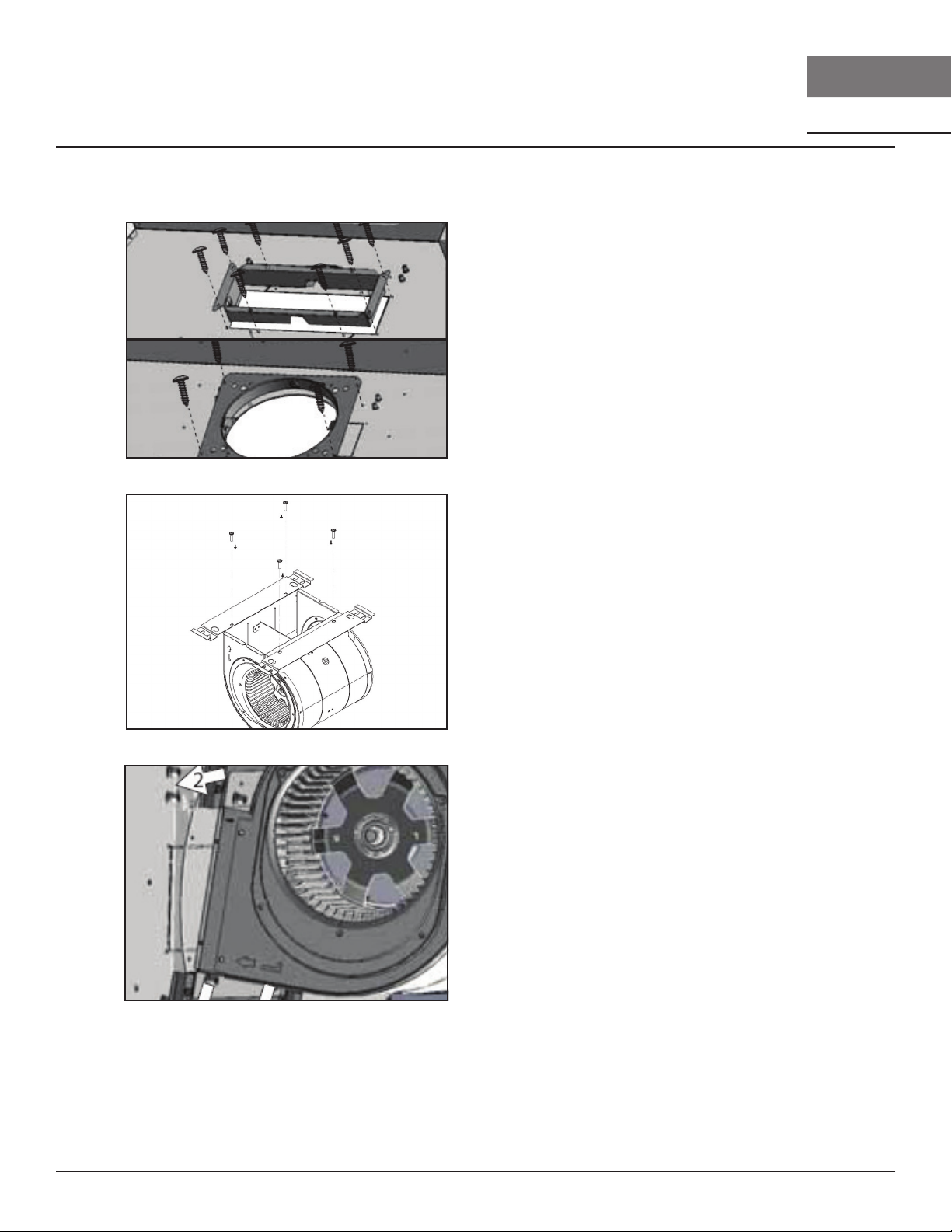

4. Attach rear ducting brackets to
motor by (4) screws.
5. Position blower with brackets as
shown. Be sure to tuck back of
blower bracket into tabs at back
of hood. Secure single blower
plate to back of hood using (4)
screws removed from step 2.
Installation Instructions
3. Attach rectangular or round duct
collar to interior of hood body by
(4) screws.
Horizontal Ducting Conversion

17
Siena Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions
Horizontal Ducting Conversion

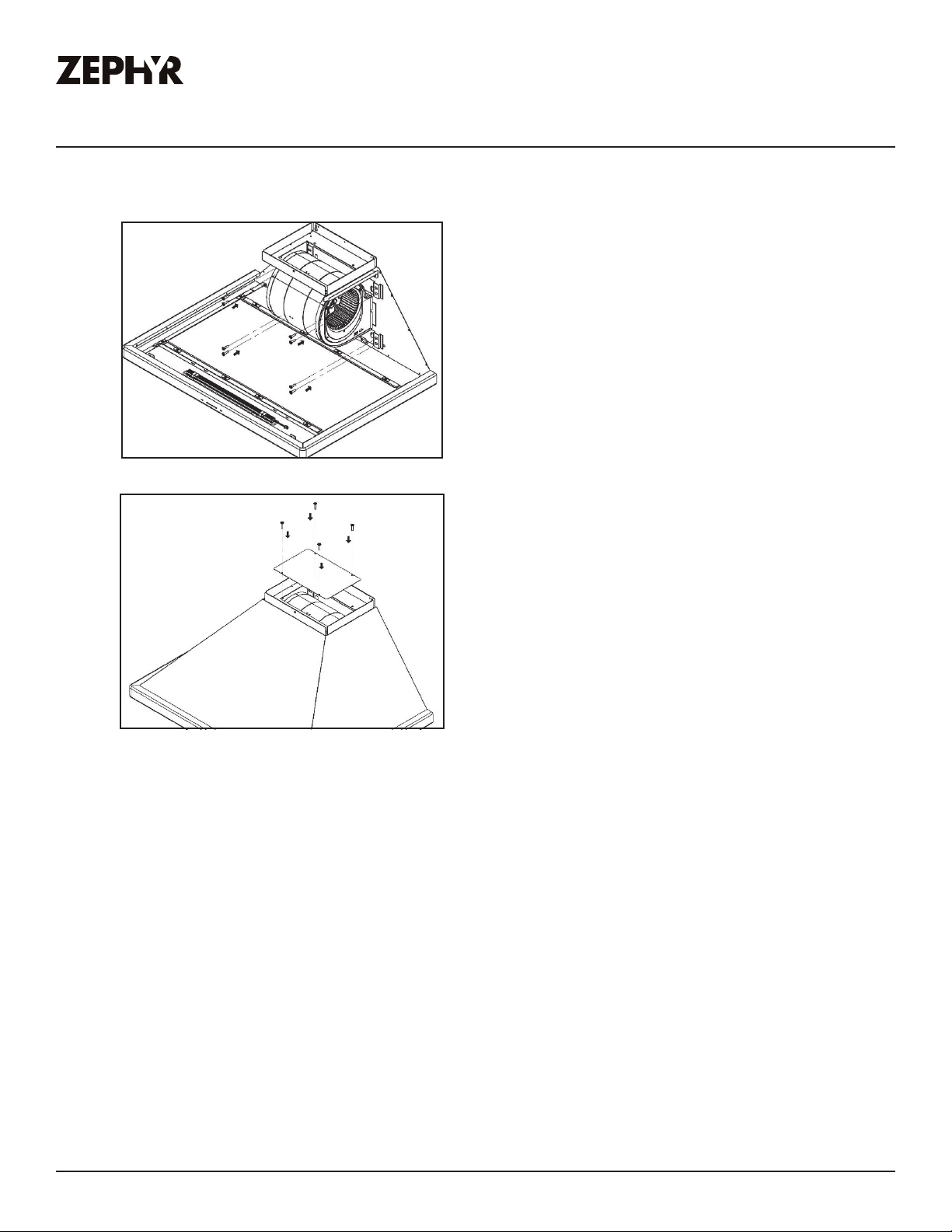

6. Attach motor to back of hood
body by (8) screws.
7. From outside hood body, attach
top cover plate to top of hood
body using (4) M4 x 8 screws.
Ductless Recirculation
Ductless recirculation is intended for applications where an exhaust duct work is not possible to be
installed. When converted, the hood functions as a recirculating hood rather than an exhaust hood.
Fumes and exhaust from cooking are drawn and filtered by a set of optional charcoal filters. The air is
then purified and re-circulated back within the home.
We recommend to ALWAYS exhaust air outside of the home by employing existing or installing new
duct work, if possible. The hood is most eective and ecient as an exhaust hood. Only when the
exhaust option is not possible should you recourse to converting the hood into a recirculating hood.
When converted to be a recirculating hood, a set of charcoal filters are required on top of its standard
Metal Filter set. Order according to its part number below. The standard mesh filters are intended to
capture residue from cooking, and the optional charcoal filters help to purify fumes exhausted from
cooking for recirculation.

18 Siena Use, Care, and Installation Guide
SIENA
WALL
CORE
Installation Instructions
Recirculating Kit Installation (required if no ducting is used)
For detailed installation instructions, please refer to the manual included with the recirculating kit.
The kit includes the charcoal filters, charcoal filter brackets, and air diverter plate.
Hood Model Recirculating Kit
Part Number
Filters in
Package
Charcoal Filter
Replacement Part
Number
Quantity to
Order
ZSI-E30CS ZRC-00SI 2 Z0F-C091 2
ZSI-E36CS ZRC-00SI 2 Z0F-C091 2
1. Secure air diverter plate to wall below duct cover
bracket, FIG. D
2. Remove bae filters from hood. Place charcoal
filter over the back side of bae filter.
3. Secure charcoal filters to back side of bae filters
by three brackets for each filter.
4. Re-install bae filters.
5. Charcoal filters must be replaced every 120 hours
of use (or approximately every 3 to 4 months based
on an average of 1 - 2 hours of daily cooking time).
DO NOT WASH CHARCOAL FILTERS. Charcoal filters
may need to be changed more often depending on
cooking habits.
FIG. D

19
Siena Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Features & Controls
Lights Low/High/O
Display (speed level, delay o, filter clean/change)
Adjust 5 Speed Levels
Power / Delay O
1 POWER / DELAY OFF BUTTON
Power Button Function
- Button will turn power on and o for entire hood (fan and lights).
- Hood will remember the last speed and light level it was turned o at.
(Example: Press Button to turn o hood when on fan speed 4 and high lights.
Press Button again and the hood will turn back on at speed 4 and high lights
level.)
Delay O Button Function
- With the fan on press and hold the Button for two seconds. The fan will change
to speed 1 and the 5 minute delay o timer will start.
+ LEDs will illuminate and slowly blink in accordance
with the time remaining until the fan and lights automatically turn o.
- Pressing Button while Delay O Function is enabled will turn the hood o and
cancel the Delay O Function.
ACT Verification
- Airflow Control Technology (ACT) allows the installer to set the maximum fan
CFM to align with local codes and regulations.
- To verify the maximum fan CFM:
- With hood o, hold the Button for two seconds. If all five fan speed
indicators illuminate = default maximum CFM. If four fan speed indicators
illuminate = 390 maximum CFM. If 3 fan speed indicators illuminate = 290
maximum CFM.
2 SPEED SELECTION BUTTON
Fan Speed Decrease Button
- Press this button to decrease fan speed. 5, 4, 3, 2, 1.
- If fan is On Speed 1 and this button is pressed, fan will power O.
Fan Speed Increase Button
- Press this button to increase fan speed. Fan On, 1, 2, 3, 4, 5.
- If hood is O and this button is pressed, fan will turn On Speed 1.
Act Enabled Speed Selections
- When ACT is enabled, the number of fan speeds will be reduced as follows:
- 390 CFM = Maximum 4 speeds
- 290 CFM = Maximum 3 speeds
ICON Touch Controls

20 Siena Use, Care, and Installation Guide
SIENA
WALL
CORE
Features & Controls
3 LIGHTS BUTTON
- Lights have two levels, Low and High.
- From o, press one time for Low. Press again for High. Press again to power lights
o.
4 DISPLAY INDICATORS
Mesh Filter Clean Reminder (always enabled)
- After 30 hours of fan usage, the button indicator will begin to slowly blink
indicating it is time to clean the mesh filters.
- To reset: With hood o: hold the button for three seconds. All LED indicators
will blink two times confirming the 30 hour timer has been reset.
Charcoal Filter Replace Indicator (disabled by default, must be enabled if
recirculating hood)
- To enable Charcoal Filter Replacement Reminder:
- With hood o, hold button and button simultaneously for two
seconds. All LED indicators will illuminate for three seconds confirming the
Charcoal Filter Replace Reminder is enabled.
- To disable Charcoal Filter Replacement Reminder:
- With hood o, hold button and button simultaneously for two
seconds. All LED indicators will blink two times confirming the Charcoal Filter
Replace Reminder is disabled.
- After 120 hours of fan usage the button will slowly blink indicating the char
coal filters need replacment.
- To reset: With hood o, hold the button for two seconds. All LED indicators will
blink two times confirming the 120 hour timer has been reset.
ICON Touch Controls
