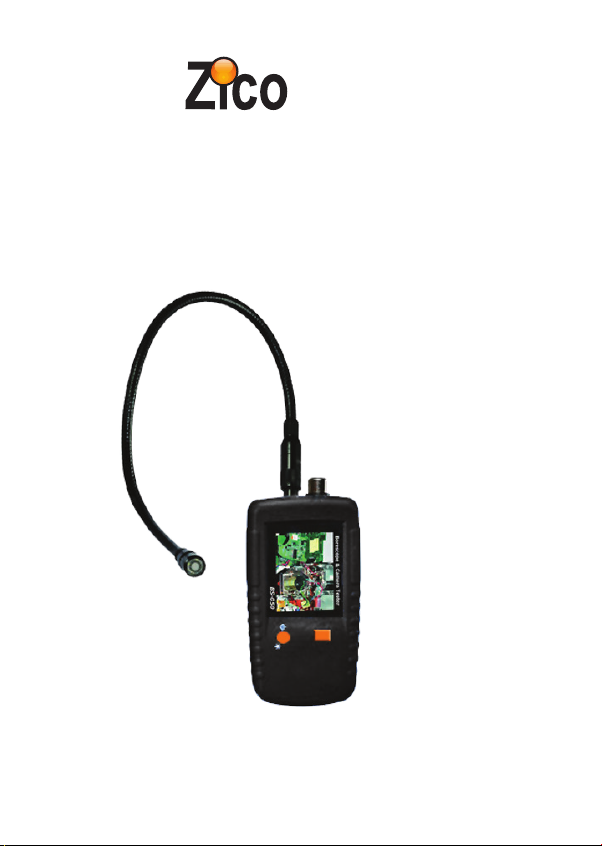

Zico Zi-9633 User manual

Please read this manual before switching the unit on.
Important safety information inside.
Camera Test &
Video Borescope
User’s Gaide
Zi-9633

2
Camera Test & Video Borescope
3
Contents
1.Warning
2.Introduction
3.Function Description
4.Specifications
5.standard configuration
6.Panel name and function description
7.Operation Instructions
8.Notes 11
..................................................................................
..............................................................................
...................................................................
...........................................................................
................................................................
..............................................
.................................................................
.......................................................................................
Page
4
4
5
6
7
7
8

1.Warning
Before using the instrument, please read all safety information and
specification of the Video borescope carefully.
Can be apply to detect the internal components of instruments working normally
or not(such as: cars or large machines)
Can check the objects underwater when put the camera into the water.
(Drainage works).
Can be used in some special monitor places, backsight of the cars.
Used for wild adventure and so on.
Repairing or maintenance should be carried out by professional person, the
user cannot proceed it just only according to the manual.
The camera cann’t be cleaned by any impregnant, eradicator and so on.
Please be careful when you see the attachment which has dangerous voltage
text, because this attachement possibly can cause the serious electric shock
accident.
Double insulation,accord with CE safety standards .
This instrument uses high-definition video borescope 2.4 "TFT LCD,
Resolution: 480 (W) X234 (H), application of H.264 video codec technology makes
images clear picture quality, detailed, and equipped with a meter long curved
comfortable waterproof goose-shaped tube , that can not be touched with the
naked eye can not detect objects in view, while access to AV video display, signal
system can input NTSC / PAL and automatically switch the signal format.
Safety Notes
Application places
Maintenance and Cleaning
Dangerous voltage
Safety symbols
Introduction
•
•
•
•
•
•
2.
Camera Test & Video Borescope
4

3.Function Description
Support the real-time view
Support AV input
Highlighted with LED,to support the operation of the dark places
Built-in 1400mAh lithium battery, support USB charging
Standby function to support the charge
NTSC/PAL auto switch
Camera Test & Video Borescope
5

4.Specifications
Camera
5
Sensor size
Sensor pixel
Maximum resolution
Maximum frame rate
Focusing method:
Gooseneck length
Camera diameter
Color TFT-LCD size:
Display resolution
Active area:
Highlight 4 LED
Adjustable light intensity level
NTSC/PAL
Standard automatic conversion
Battery:
Current work:
Standby current:
Low battery prompt:
Operating temperature:
Storage temperature
Relative humidity
TFT-LCD
Light Source
Video format
Power
temperature
1/4inch CMOS
300,000
640 x 480
30FPS/S
Fixed focus15cm~25cm(5.9”~9.8”)
1m(39”)
17mm(0.66”)
2.4 inch
480(W) x 234(H)
48mm x 35.6mm
6 Level
Lithium batteries 3.7V/1400mAh
MAX 400mA
MAX 5Ma
3
45
3. V
0 C---- C
-20 C----60 C
5% ----85%
°°
°°
Camera Test & Video Borescope
6

5.standard configuration
•
•
•
•
BS-050
17mm Imager
Hook,Magnet,Mirror Attachments
Lithium batteries

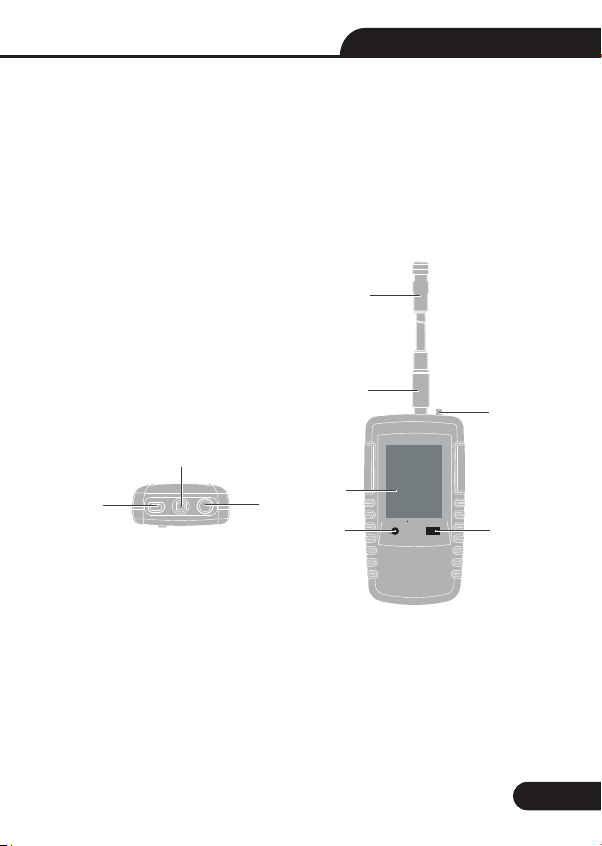

6.Panel name and function description
1.USB Charge
2.(Inside video)Camera
3.Power button/ Mode button
4.External AV input
5.Status Indicator
6.Goose-shaped
7.Light source level
8.Camera connectors
9.System reset
1
8
4
DC5V 500mA
VA
Borescope & Camera Tester
5
4
2
6
7
3
Camera Test & Video Borescope
7

Status Indicator
7.Operation Instructions
Power Switch: long press and hold the on/off button, Video borescope start,
and long press and hold the on/off button again to power off the Video borescope.
USB charging start: the system turned off, insert a USB charging, the system
will automatically switch on and displays the LOGO, and then enter the LED
charge indication states, TFT-LCD, Camera power supply will not be open,
TFT-LCD without any DR information display, In this condition, long press the
power switch 2 seconds, the system will wake up into the working state.
Open and closed systems
•
•
Illumination light source adjustment
Light Maximum adjustable levels are to 6 level, the default illumination
level is 3.
Press the power button once to increase the illumination level cyclely.
•
•
Light source indicator
Camera Test & Video Borescope
8

Image signal system
Signal path: there are two accesses of the image signal entering, one way
is for the image signal of inside camera and the other is for the external
AV signal.
Signal Switching: The meter’s signal access is default of inside camera,
on the TFT-LCD it display the illumination level indication, so when an
external signal comes, the unit will automatically to switch to external
access within 5 seconds, illumination level indication will disappear.
when the external signal is cancelled, the system automatically switch
to the internal access road within 2 seconds.
Signal format conversion: Internal signal format defaults to PAL, without
doing the signal format detection, external signal format can be converted
to NTSC / PAL automatically.
Auto Power off if no signal: When there isn’t any internal signals or external
signals to access, TFT-LCD displays NO SIGNAL, LED flashes green, and
the meter is in standby, so if there is signal now, it will wake up the meter
and make it enter into working mode. But if there isn’t signal within 1.5
seconds, the meter will automatically power off.
•
•
•
•

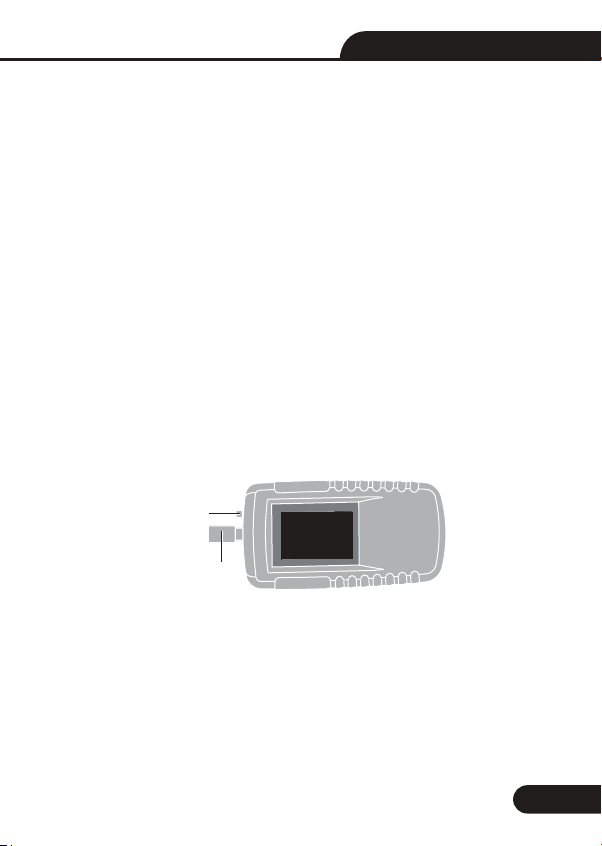

(Inside video)Camera
External AV input
NO SIGNAL
Camera Test & Video Borescope
9

•Signal format instructions: When the switch to the external signal,TFT-LCD
upper-left corner will indicate the current image signal format.
Power Supply Management
•
•
Power Supply Instructions:When the system battery voltage is greater than 4.1V
when the upper right corner of TFT-LCD display " the battery symbol, said
the power supply voltage is full, when the system battery voltage is greater than
3.9V when the upper right corner of TFT-LCD display " the battery symbol,
when the system 3.6V when the battery voltage is greater than the upper right
corner of TFT-LCD display " " the battery symbol, when the system battery
voltage is greater than 3.4V when the upper right corner of TFT-LCD display
" " the battery symbol, when the 1.corner displays " the battery symbol
Recharging: When the battery voltage is less than 4.1V , at the upper right corner
of TFT-LCD display, the charging indicator means the battery is charging.
Full: When the battery voltage is greater than 4.1V, at the upper right corner of
TFT-LCD display, the battery symbol will be full.
"
"
".
•
Charge Standby:
When the system turned off, insert a USB charging, the system automatically
opens and displays the LOGO, and then enter the LED charge indication states,
LED Status indication: When the battery voltage is greater than 4.1V when the
green LED long light, when the battery voltage is less than 4.1 V, the red LED
flashing slowly.
When the system boot into a state of USB charging, TFT-LCD displays the
charging indicator top right corner of the state.
•
•
9
Camera Test & Video Borescope
10

8.Notes
The non-professional persons should not open the machine cover
Put down with caution.
•
•
•
•
•
The camera is waterproof, but the scope body isn’t waterproof, so
please do not put the microscope instrument under rain or wet areas,
or operate it in moist location. Once the camera tester is wringing,
please immediately turn off the power supply, and have professional
persons to maintain it. It is very easy to damage camera tester and to
lead to electrical accidents.
Please do not aim the camera at the sunlight, regardless of indoors
and outdoors, do not operate the unit under the spotlight, strong light
and beside the reflector lamp.
Please operate the camera under the stated temperature, humidity
and power supply range. The stated environment is (0 ~ 50 )
and humidity below 85%, the power voltage, please refer to above
°°CC
