ZIEHL-ABEGG UNIcon CPG AVC Series User manual

UNIcon
CPG-..AVC
Sensor-control module for differential pressure
and volume ow
Operating Instructions
Keep for reference!
Software version: from Version 1.00
L-BAL-E286-GB 1904 Index 004 Part.-No. 00163471
english

Content
1 General notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1 Structure of the operating instructions . . . . . . . . . . . . . . . . . . . . 4
1.2 Exclusion of liability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3 Product overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.1 Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.2 Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.3 Disposal / recycling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4 Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5 Electrical installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5.1 EMC-compatible installation of control lines . . . . . . . . . . . . . . . . 7
5.2 Connection Voltage supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5.3 Output voltage 0...10 V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5.4 Digital input (D1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5.5 Relay outputs “K1” ................................... 9

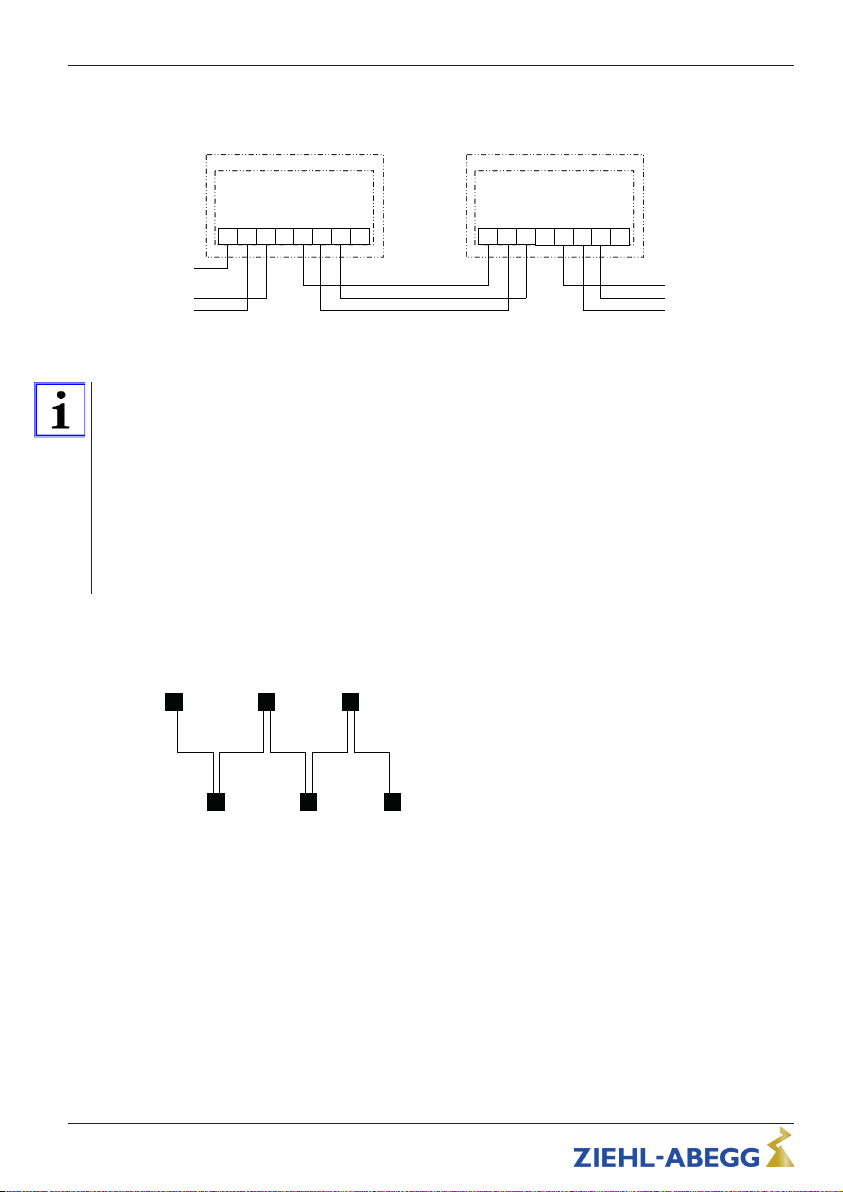

5.6 RS-485 interface for MODBUS . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.6.1 Automatic addressing . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.7 Input for outdoor temperature sensor . . . . . . . . . . . . . . . . . . . . . 13
6 Device construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

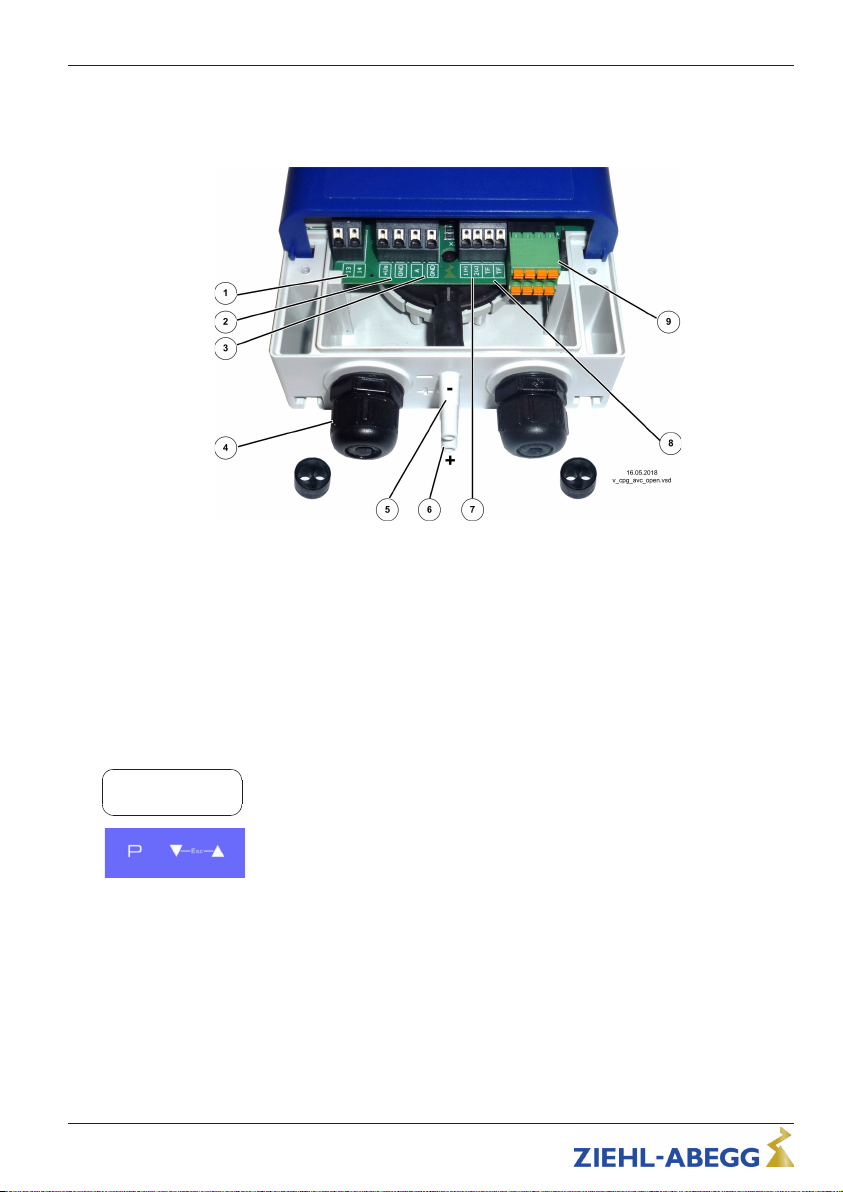

6.1 Connecting elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
6.2 Multipurpose LC display and keyboard . . . . . . . . . . . . . . . . . . . . 14
7 Modes/Start-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
7.1 Select operation mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
7.2 Start-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
7.3 Menu structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
8 Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
8.1 Pressure sensor 4.00 and pressure control 4.01 + 4.02 . . . . . 17
8.1.1 Base setup 4.00 ... 4.02 ......................... 17
8.1.2 Settings for operation 4.01 + 4.02 .................. 18
8.2 Volume sensor 5.00 and volume control 5.01 + 5.02 . . . . . . . 20
8.2.1 Base setup 5.00 ... 5.02 ......................... 20
Operating Instructions UNIcon CPG-..AVC
L-BAL-E286-GB 1904 Index 004 Part.-No. 00163471
2/44

8.2.2 Nozzle coefficient (K-Factor) . . . . . . . . . . . . . . . . . . . . . . 21
8.2.3 Setting for operation 5.01 and 5.02 . . . . . . . . . . . . . . . . . 22
8.3 Menu group "INFO" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
8.4 Menu group "IO SETUP" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
8.4.1 Allocation: virtual IOs/real IOs . . . . . . . . . . . . . . . . . . . . . 25
8.4.2 Analog outputs “AO” ............................ 26
8.4.3 Digital output “DO” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
8.4.4 Digital inputs “DI” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
8.4.4.1 Menu overview . . . . . . . . . . . . . . . . . . . . . . . 28
8.4.4.2 Enable ON/OFF, function | 1D | . . . . . . . . . . . . 29
8.4.4.3 External message, function
| 2D | . . . . . . . . . . . 30
8.4.4.4 Setpoint 1/2, function
| 5D | . . . . . . . . . . . . . . . 31
8.5 Menu group "LIMITS" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
8.5.1 Limit message modulation . . . . . . . . . . . . . . . . . . . . . . . . 32
8.5.2 Limit message actual value . . . . . . . . . . . . . . . . . . . . . . . 33
8.5.3 Limit message outdoor temperature . . . . . . . . . . . . . . . . . 34
8.6 Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8.7 MODBUS SLAVE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
8.7.1 Address and interface parameters . . . . . . . . . . . . . . . . . . 36
8.7.2 MODBUS Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
8.7.2.1 Holding register . . . . . . . . . . . . . . . . . . . . . . . 38
8.7.2.2 Input register . . . . . . . . . . . . . . . . . . . . . . . . 40
9 Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
9.1 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
9.2 Connection diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
9.3 Dimensions [mm] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
9.4 Manufacturer reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
9.5 Service information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Operating Instructions UNIcon CPG-..AVC
L-BAL-E286-GB 1904 Index 004 Part.-No. 00163471
3/44

1 General notes
Compliance with the following instructions is mandatory to ensure the functionality and
safety of the product. If the following instructions given especially but not limited for
general safety, transport, storage, mounting, operating conditions, start-up, mainte-
nance, repair, cleaning and disposal / recycling are not observed, the product may not
operate safely and may cause a hazard to the life and limb of users and third parties.
Deviations from the following requirements may therefore lead both to the loss of the
statutory material defect liability rights and to the liability of the buyer for the product that
has become unsafe due to the deviation from the specifications.
1.1 Structure of the operating instructions
Before installation and start-up, read this manual carefully to ensure correct use!
We emphasize that these operating instructions apply to specific units only, and are in
no way valid for the complete system!
Use these operating instructions to work safely with and on the device. They contain
safety instructions that must be complied with as well as information that is required for
failure-free operation of the device.
Keep these operating instructions together with the device. It must be ensured that all
persons that are to work on the device can refer to the operating instructions at any time.
1.2 Exclusion of liability
To allow for future developments, construction methods and technical data given are
subject to alteration. We do not accept any liability for possible errors or omissions in the
information contained in data, illustrations or drawings provided.
We accept no liability for damage caused by misuse, incorrect use, improper use or as a
consequence of unauthorized repairs or modifications.
Operating Instructions UNIcon CPG-..AVC General notes
L-BAL-E286-GB 1904 Index 004 Part.-No. 00163471
4/44

2 Safety instructions
Attention!
•Mounting, electrical connection, and start-up operation may only be carried out by an
electrical specialist in accordance with electrotechnical regulations (e.g. DIN EN 50110
or DIN EN 60204)!
•Persons entrusted with the planning, installation, commissioning and maintenance
and servicing in connection with the device must have the corresponding
qualifications and skills for these jobs. In addition, they must be knowledgeable about
the safety regulations, EU directives, rules for the prevention of accidents and the
corresponding national as well as regional and in-house regulations.
•It is strictly forbidden for work to be carried out on any components while they are
connected to live voltage.
•The safe isolation from the supply must be checked using a two-pole voltage detector.
•The owner is obliged to ensure that the device is operated in perfect working order
only.
•Electrical equipment must be checked regularly: Loose connections are to be re-
tightened and damaged lines or cables must be replaced immediately.
•Never clean electrical equipment with water or similar liquids.
•A separate fault and performance monitoring-system with an alarm signal function is
necessary in order to prevent personal injuries and material damages during
malfunctions and in case the device fails. Substitute operation must be taken into
consideration!
Intended use
These devices are intended exclusively for measured value acquisition of differential
pressures (non-aggressive gases). Their operation is only permitted under observance
of the specifications in these operating instructions.
Any other use above and beyond this will be considered as improper use. The manufac-
turer will not be liable for any damage resulting from this. The company using it bears the
sole risk.
Operating Instructions UNIcon CPG-..AVC Safety instructions
L-BAL-E286-GB 1904 Index 004 Part.-No. 00163471
5/44

3 Product overview
3.1 Function
Sensor-control module with differential-pressure sensors in proven ceramic-cantilever
technology for climate and clean-room application.
The pressure range from 0 to 6000 Pa (24 in.wg) is covered with 3 types of device. With
each type four measuring ranges are programmable.
Function when the pressure at the “Plus”- connection exceeds the pressure at the
“Minus”- connection.
Depending on the programmed Mode the device can be used as sensor or as a
control module for pressure or volume flow.
•For operation as pressure sensor the device supplies an output signal (0...10 V)
proportional to the measuring range.
•For operation as volume flow sensor the device supplies an output signal (0..10 V)
proportional to the air volume measuring range (
INFO / Range qV). Function in
combination with centrifugal fans and measuring device in the inlet ring. The controller
calculates the volume flow of the fan from the “K-Factor” and pressure differential
between the suction side and the inlet duct.
•For operation as control module for pressure or volume flow the purpose of the device
is to reach and maintain the target value set. To accomplish this, the measured actual
value (sensor value) is compared with the adjusted target value, and the controlled
value is deduced from this. Controlled output (0...10 V) e.g. for activating a speed
controller for fans or an EC-fan directly.
The extended CPG-..AVC type version provides the following additional functions:
•Integrated real-time clock with timer function.
•Operating modes with setpoint adjustment based on outdoor temperature and input
for outdoor temperature sensor.
•RS-485 interface for MODBUS RTU.
•Signal relay that can be assigned different functions.
3.2 Storage
•The device must be stored in its original packaging in a dry and weather-proof room.
•Avoid exposure to extreme heat and cold.
•Avoid over-long storage periods (we recommend a maximum of one year).
3.3 Disposal / recycling
Disposal must be carried out professionally and in an environmentally friendly way in
accordance with the respective national legal stipulations.
"Separate the materials by type and in an environmentally friendly way.
"If necessary, commission a specialist company with the waste disposal.
Operating Instructions UNIcon CPG-..AVC Product overview
L-BAL-E286-GB 1904 Index 004 Part.-No. 00163471
6/44

4 Mounting
•Before installation remove the device from the packing and check for any possible
shipping damage!
•Assemble the device on a clean and stable base. Do not distort during assembly! Use
the appropriate mounting devices for proper installation of the unit!
•Use the templates printed on the device packing to mark the fastening bore holes.
•The pressure measuring depends on position, therefore the mounting must be made
vertical and as possible on a vibration-free place (cable inlet and pressure connec-
tions down).
•The pressure line´s connection should be with plastic-hose (in building), inside diam-
eter 4 / 5 mm. For a firm hold of the hose, its inside diameter must be 1 mm smaller
than the outside diameter of the hose nozzle (step spigot 5 / 6 mm).
•Remove the connection cover for mounting, electrical connection and setting of the
measuring range. Close the lid again carefully before start-up (tightening torque of the
lid screws 1.1 Nm).
•Two lines may only be fed through one cable screw-type gland with a sealing for two
lines.
Vertical mounting
Gehäuse
housing
111 mm
Gehäuse / housing
106 mm
11 mm
83 mm
91 mm
Schraube
max 4,5 mm
screw max
4,5 mm
Bohrschablone
drilling template
Drilling template on packing
5 Electrical installation
5.1 EMC-compatible installation of control lines
Pay attention to maintain sufficient distance from powerlines and motor wires to prevent
interferences.
When using a shielded cable the shield must be connected (as short and with as low an
induction as possible!) to the PE conductor on one side at the signal input (of the
evaluation unit).
Operating Instructions UNIcon CPG-..AVC Mounting
L-BAL-E286-GB 1904 Index 004 Part.-No. 00163471
7/44

5.2 Connection Voltage supply
Connection Voltage supply at terminals: “+U
S
” and “GND”. Here, it must be strictly
observedt hat the mains voltage lies within the llowable olerance pecifications (see
Technical data and nameplate affixed to the side).
Danger due to electric current
Only PELV current sources which ensure safe electrical isolation of the operating voltage
in accordance with IEC/DIN EN 60204-1 must be used.
There is no potential isolation between supply voltage and output signal.
5.3 Output voltage 0...10 V
Connection to terminals “A” and “GND” (I
max
see Technical data).
Parallel control of several speed controllers / EC-fans
The maximum possible number of speed controllers / EC fans with 0...10 V input that
can be controlled parallel depends on their input resistance and on the maximum
admissible load of the 0...10 V output.
Example:
•Supply voltage CPG / CTG: 10 V > I
max
for 0...10 V output 0.3 mA (see Technical
data or connection diagram).
•ECblue motor size B: Input resistance R
i
> 100 kΩ (Assembly instuctions fan
seeTechnical data or connection diagram).
•The current consumption for one fan is max. 0.1 mA (I U / R 10 V / 100 kΩ)
✓Result:
A maximum of three ECblue motor size B can be operated in parallel at one CPG /
CTG (total current consumption ≤ I
max
0...10 V output CPG / CTG).
Attention!
•It is not permissible to connect outputs of several devices to each other!
•In case of failure of the control module or interruption of the 0...10 V specification
signal, all parallel connected EC fans/speed controllers are no longer controlled. This
means that all fans stop!
Operating Instructions UNIcon CPG-..AVC Electrical installation
L-BAL-E286-GB 1904 Index 004 Part.-No. 00163471
8/44

5.4 Digital input (D1)
Different functions can be assigned to the digital input D1(see IO SETUP).
A voltage at terminals “1” and “2” (10...24 V DC) activates the programmed function
(note polarity - see connection diagram).
5.5 Relay outputs “K1”
The relay output “K1”can have different functions assigned to it, see IO SETUP. Max.
contact rating see technical data and connection diagram.
Function fault indication (factory setting) for “K1”:
•For operation the relay is energized, connections “13” and “14” are bridged. For fault
the relay is de-energized.
•When switching off via enable (see IO SETUP/Digital inputs "DI"), the relay remains
energized.
Operating Instructions UNIcon CPG-..AVC Electrical installation
L-BAL-E286-GB 1904 Index 004 Part.-No. 00163471
9/44

5.6 RS-485 interface for MODBUS
The device comes equipped with a RS-485 interface for networking via MODBUS.
Conntection at: “A (D+)”, “B (D-)” and “GND”.
11.03.2014
v_am_modbus_connect.vsd
ID1 GND A
(D+)
B
(D-) ID2GND A (D+)
B
(D-)
B
(D-) ID1 GND A (D+)
B
(D-) ID2GND A (D+)
MODBUS
(RS-485)
MODBUS
(RS-485)
Addressing Addressing
MODBUS
(RS-485)
MODBUS
(RS-485)
Addressing Addressing
The connections for MODBUS “A (D+)”, “B (D-)” are available double on the module and are
connected with each other internally.
Information
•You must ensure correct connection; i.e. “A (D+)” must also be connected on the
following devices to “A (D+)”. The same applies to “B (D-)”.
•In addition, a "GND" connection must be established, as dissimilar potential (over 10
V!) will lead to the destruction of the RS-485 interface (e.g. lightning).
•Except the data link “A (D+)”, “B (D-)” and “GND” (for automatic addressing additional
“ID1” - “ID2” see following chapter) no further cable cores of the data line may be used.
•Pay attention to sufficient distance from powerlines and motor wires (min. 20 cm).
•A maximum of 64 participants can be directly connected to one another, and another
64 participants via a repeater.
Example for MODBUS connection
MODBUS
26.02.2007
v_modbus_verbindung.vsd
The data line must be conducted from one device
to the next. No other type of wiring is allowed!
Always use only two wires of one lead (twisted
pair) for the connection.
Operating Instructions UNIcon CPG-..AVC Electrical installation
L-BAL-E286-GB 1904 Index 004 Part.-No. 00163471
10/44

Recommended wire types
1. CAT5 / CAT7 cables
2. J-Y (St) 2x2x0.6 (telephone cable)
3. AWG22 (2x2 twisted pair)
Max allowed wire length 1000 m (CAT5/7 500 m).
Shielding
The use of shielded cables is normally not needed but offers high protection against
electromagnetic interferences, especially high frequencies. However, the effectiveness
of the shield depends on careful installation of the line.
If shielded cables are used, the shield should be placed at “PE” on at least one side
(preferably on the master connection). The occurrence of compensating currents may
have to be considered if the shield is contacted on both sides.
Shield connection correct Shield connection incorrect
When using telephone cable with four cable cores, we recommend the following
allocation:
•A (D+) red
•B (D-) black
•ID1 - ID2 yellow (for automatic addressing)
•GND white
Default interface parameter
•Baudrate 19200
•Bits 8
•Parity Even
•Stop bits 1
•Handshake none
Information
•Addressing is performed depending on version by display, an external terminal or a
PC with the appropriate software (automatic addressing following chapter).
•The MODBUS register description and the information sheet “Network structure of
MODBUS” can be requested from our Support Department V-STE for control systems
- ventilation.
Operating Instructions UNIcon CPG-..AVC Electrical installation
L-BAL-E286-GB 1904 Index 004 Part.-No. 00163471
11/44

5.6.1 Automatic addressing
Automatic addressing can be started when the connections “ID1” and “ID2” for “Address-
ing” are connected with each other additionally next to the bus connection. I. e. it is no
longer necessary to address every user manually in the network.
16.05.2018
v_modbus_autoadr_ctg_cpg_c.vsd
A
(D+)
B
(D-)
GND
MODBUS
(RS-485)
A-G-247NW
ID1 GND A
(D+)
B
(D-) ID2GND A (D+)
B
(D-)
B
(D-) ID1 GND A (D+)
B
(D-) ID2GND A (D+)
MODBUS
(RS-485)
MODBUS
(RS-485)
Addressing Addressing
MODBUS
(RS-485)
MODBUS
(RS-485)
Addressing Addressing
Connection at MODBUS Master via the terminals: A (1D+), B (1D-), ID and GND
Connection of the Slave members via the terminals: A (D+), B (D-), GND and ID1 / ID2
Information
•Except the data link “A (D+)”, “B (D-)” the “ID1 - ID2” and the “GND” connection may no
further cable cores of the data line be used.
•The connections for the automatic addressing “ID1” and “ID2” are not directly
connected with each other. These may not be bridged; any order of connection is
possible.
•If a repeater is necessary and automatic addressing should be carried out, only the
repeater of the Z-G-1NE type can be used, only it can relay the addressing signal.
•For automatic addressing with hand held terminal type A-G-247 max. 63 members.
On the first user that is connected directly to a terminal, MODBUS Master or PC, “GND”
and “ID1” or “ID2” must be bridged. This is recognised as a result and occupied by
address 1.
For the following users the connection “ID1” or “ID2” of a user respectively is connected
with connection “ID1” or “ID2” of the next user.
The automatic addressing of other users is initiated by the previous user via this
connection.
Operating Instructions UNIcon CPG-..AVC Electrical installation
L-BAL-E286-GB 1904 Index 004 Part.-No. 00163471
12/44

5.7 Input for outdoor temperature sensor
For 4.02 and 5.02 operating modes with setpoint adjustment depending on outdoor
temperature, the outdoor temperature sensor is connected at the “TF” terminals. You can
connect passive temperature sensors TF... (KTY81-210) or PT1000, and the polarity is
not relevant.
For a high interference immunity a capacitor must be connected directly to the sensor (1
nF parallel). With temperature sensors type TF.. (KTY81-210) a capacitor is integrated.
Danger due to electric current
Never apply line voltage to analog inputs!
Operating Instructions UNIcon CPG-..AVC Electrical installation
L-BAL-E286-GB 1904 Index 004 Part.-No. 00163471
13/44

6 Device construction
6.1 Connecting elements
1 Signal relay (terminals: 13, 14)
2 Supply voltage (terminals: U
S
, GND)
3 Output signal 0...10 V (terminals: A, GND)
4 Cable gland M16 + seal insert with two holes (5 mm)
5 "Minus"- connection in area with lower pressure
6 "Plus"- connection in area with higher pressure
7 Digital input D1 (terminals: 1, 2)
8 Input outdoor temperature sensor (terminals: TF, TF)
9 MODBUS interface (terminals: GND, A, B, ID1, ID2 and jumper J1)
6.2 Multipurpose LC display and keyboard
100 Pa
Δp
Line 1: 16 figures for actual and desired values
Line 2: 16 figures for menu text
PProgram key and open menu
▼Menu selection, reduce value
▲Menu selection, increase value
▼ + ▲ESC-key combination, Escape leave menu
Operating Instructions UNIcon CPG-..AVC Device construction
L-BAL-E286-GB 1904 Index 004 Part.-No. 00163471
14/44

Messages on the display
OFF No enable
!Exceeding measuring range
Moon symbol Adjustment for Setpoint 2 active
Hourerglass symbol Timer function active
External error External fault alarm
Limit Uout Limit: Modulation
Limit Pressure Limit: Pressure
Limit AirVolume Limit: volume flow
Limit Temp. Limit: Temperature
Check Temp Sens Failure: Check temperature sensor
Check Press Sens Failure: Check pressure sensor
7 Modes/Start-up
7.1 Select operation mode
Information
Simple installation is possible through the selection of the preprogrammed mode of
operation.
This determines the basic function of the device, factory set 4.01 .
Mode Function
4.00 Pressure sensor: output 0...10 V proportional to measuring range
4.01 Pressure control (PID): output 0...10 V depending on adjusted setpoint and measured
actual value
4.02 Pressure control (PID) with outdoor temperature compensation: output 0...10 V de-
pending on adjusted setpoint, outdoor temperature and measured actual value.
5.00 Volume flow sensor: Output 0...10 V propotional to measuring range (depending on
setting for K-Factor)
5.01 Volume flow control (PID): Output 0...10 V depending on adjusted setpoint and
measured actual value
5.02 Volume flow control (PID) with outdoor temperature compensation: output 0...10 V
depending on adjusted setpoint, outdoor temperature and measured actual value.
Operating Instructions UNIcon CPG-..AVC Modes/Start-up
L-BAL-E286-GB 1904 Index 004 Part.-No. 00163471
15/44

7.2 Start-up
Procedure
1. You must mount and connect the device in accordance with the operating instruc-
tions.
2. Double check that all connections are correct.
3. The supply voltage must match the information on the rating plate.
4. Set the mode, unit and measuring range and adjust the sensor in the BASE
SETUP.
5. Set the parameters for control operation for the modes 4.01 , 4.02 , 5.01 , 5.02
unter "SETTING".
7.3 Menu structure
100 Pa
Δp
Display after turning on the voltage supply.
Switch over between actual value display and “INFO” with
the key shortcut for Escape (Esc ▼ + ▲).
INFO
Selection of the menu group (e.g. BASE SETUP) to the right through the ▼-key, to the
left through the ▲-key.
Youcangotothemenuitemsinthemenugroups (e.g. mode) by using the P key. Use the
arrow keys to move up and down within the menu group.
To make adjustments, press the P key after selecting the menu item. If the previously set
value starts to flash, it can be adjusted with the ▼ + ▲ keys and then saved with the P
key. To exit the menu without making any changes, use the “Esc” short-key, i.e., the
originally set values remain.
Example for Mode 4.01 (Factory setting)
INFO
▼
▲SETTING
▼
▲BASE SETUP
P↓ ↑ Esc P↓ ↑ Esc P↓ ↑ Esc
100 Pa
Δp
100 Pa
Setpoint 1
4.01
Mode
▲ ▼ ▲ ▼ ▲ ▼
100 Pa
Setpoint 1
100 Pa
Setpoint 2
1: metric
Units
▲ ▼ ▲ ▼ ▲ ▼
Operating Instructions UNIcon CPG-..AVC Modes/Start-up
L-BAL-E286-GB 1904 Index 004 Part.-No. 00163471
16/44

Reprogramming Mode 4.01 to 5.00 in “BASE SETUP”
1 2 3 4 5 6 7
4.01
Mode P
«4.01»
Mode ▲
«5.00»
Mode P5.00
Mode
8 Programming
8.1 Pressure sensor 4.00 and pressure control 4.01 + 4.02
8.1.1 Base setup 4.00 ... 4.02
BASE SETUP
4.01
Mode
4.00 : Pressure sensor
4.01 : Pressure control (factory setting)
4.02 : Pressure control with outdoor temperature compensation
metric
Units
Display in SI units "metric" (factory setting) or Imperial units (US) "inch".
Conversion factors:
Pressure: 1.0 in.wg 254 Pa
Temperature ( 4.02 ) t / °F 1.8 x t °C + 32
Settings for temperature differences (with SI units in K) are also made for
Imperial units (US) in °F ( Δ 1.8 °F
Δ 1 K ).
KTY81-210
Temp. Sensor
Temperature sensor for recording the outdoor temperature in 4.02 operating
mode. Sensor type: KTY 81-210 (factory fitted) or PT 1000.
0...6000 Pa
Measuring range
1: 0...200 Pa (0...0.8 in.wg))
2: 0...150 Pa (0...0.6 in.wg)
3: 0...100 Pa (0...0.4 in.wg)
4: 0...50 Pa (0...0.2 in.wg)
CPG-200AVC
Adjustable measuring range
1: 0...1000 Pa (0...4.0 in.wg)
2: 0...500 Pa (0...2.0 in.wg)
3: 0...300 Pa (0...1.2 in.wg)
4: 0...200 Pa (0...0.8 in.wg)
CPG-1000AVC
Adjustable measuring range
1: 0...6000 Pa (0...24.0 in.wg)
2: 0...4000 Pa (0...16.0 in.wg)
3: 0...3000 Pa (0...12.0 in.wg)
4: 0...2000 Pa (0...8.0 in.wg)
CPG-6000AVC
Adjustable measuring range
OFF
Autozero
If the actual value is not “0 Pa Δp” in pressureless state a zero-point adjust-
ment is possible with fuction “Autozero”.
This may be necessary, for example, in case of heavy thermal fluctuations in
the sensor environment or non-vertical mounting.
Operating Instructions UNIcon CPG-..AVC Programming
L-BAL-E286-GB 1904 Index 004 Part.-No. 00163471
17/44

Proceed as follows:
1. Pull off the pressurised hoses.
2. Switch function “Autozero” to “ON”.
3. The display switches to the actual value display and the value “0” is
displayed after zero point calibration has taken place.
4. The necessary difference up to“0” is displayed in the BASE SETUP
under “Offset”.
0 Pa
(0.000 in.wg)
Offset
Alternatively to the automatic zero point calibration, the offset value can also
be set manually.
Setting range: +/ - 1000 Pa (+/- 4.000 in.wg)
0.0 K
(0.0 °F)
Offset
Offset temperature sensor for mode 4.02 .
Setting range: -20.0...20.0 °C (-36.0...36.0 °F)
Factory setting: 0.0 K (0.0 °F)
OFF
Factory Setting
Attention!
ON > restore factory setting delivery status
(xxx) Values for Imperial units (US)
8.1.2 Settings for operation 4.01 + 4.02
SETTING
3000 Pa
(12.0 in.wg)
Setpoint 1
Setpoint1
Setting range: in measuring range of sensor
Factory setting: 50 % of selected measuring range
3000 Pa
(12.0 in.wg)
Setpoint 1
Set Internal2
Setting range: in measuring range of sensor
Factory setting: 50 % of selected measuring range
3000 Pa
(12.0 in.wg)
Pband
Pband
Narrow control range Short control times
Wide control range Longer control times and more stable control
Setting range: in measuring range of sensor
Factory setting: 50 % of selected measuring range
0.0 V
Min. Uout
Minimal output voltage
Setting range: 0...10 V (priority over "Max. Uout")
Factory setting: 0 V
10.0 V
Max. Uout
Maximal output voltage
Setting range: 10...0 V
Factory setting: 10 V
Operating Instructions UNIcon CPG-..AVC Programming
L-BAL-E286-GB 1904 Index 004 Part.-No. 00163471
18/44

Additional menu item for mode 4.02 with outside-temperature dependent target-
setpoint
Outside-temperature dependent target-setpoint
AT
P-min.
-15 °C
T-min.
30 °C
T-Start
S1
18.09.2014
v_pressure_set_dep_outtemp.vsd
[Pa]
S2
T-Band
S1 Setpoint1
S2 Set Internal2
P-min. Min. Setpoint
T-min Min. temperature
T-Start Setpoint reducing will start below this outside
temperature
T-band Temperature range
AT Outdoor temperature
An outside temperature compensation can
be activated (sensor connection terminals
"TF-"TF") when being operated as a pres-
sure control device.
This function automatically changes the set
and active “Setpoint 1” or “Setpoint 2” pro-
portional to the measured outdoor temper-
ature (see INFO: SETPOINT CONTROL).
30.0 K
(54.0 °F)
T-Band SA
Temperature range setpoint lowering
Temperature range in which the setpoint change continiously with outdoor
temperature.
Setting range: 0.0...100.0 K (0.0...180.0 °F)
Factory setting: 30.0 K (54.0 °F)
15.0 °C
(59.0°F)
T-Start SA
Start temperature for setpoint lowering
Setpoint reducing will start below this outside temperature.
Setting range: -10.0...40.0 °C (14.0...104.0 °F)
Factory setting: 15.0 °C (59.0 °F)
70 Pa
Min. Setpoint
(0.275 in.wg)
Minimum setpoint
Minimum pressure for very low outside temperature.
Setting range: in measuring range of sensor
Factory setting: 70 Pa (0.275 in.wg)
(xxx) Values for Imperial units (US)
Operating Instructions UNIcon CPG-..AVC Programming
L-BAL-E286-GB 1904 Index 004 Part.-No. 00163471
19/44

8.2 Volume sensor 5.00 and volume control 5.01 + 5.02
8.2.1 Base setup 5.00 ... 5.02
BASE SETUP
5.01
Mode
5.00 : Volume flow sensor
5.01 : Volume flow control
5.02 : Volume flow control with outdoor temperature compensation
metric
Units
Display in SI units "metric" (factory setting) or Imperial units (US) "inch".
Conversion factors:
Pressure: 1.0 in.wg 254 Pa
Volume flow: 1.0 cfm 0.5885 m
3
/h (inlet ring: K-Faktor US 9.3 x K-Factor
SI)
Temperature ( 4.02 ) t / °F 1.8 x t °C + 32
Settings for temperature differences (with SI units in K) are also made for
Imperial units (US) in °F ( Δ 1.8 °F
Δ 1 K ).
KTY81-210
Temp. Sensor
Temperature sensor for recording the outdoor temperature in 5.02 operating
mode. Sensor type: KTY 81-210 (factory fitted) or PT 1000.
0...6000 Pa
Measuring range
1: 0...200 Pa (0...0.8 in.wg))
2: 0...150 Pa (0...0.6 in.wg)
3: 0...100 Pa (0...0.4 in.wg)
4: 0...50 Pa (0...0.2 in.wg)
CPG-200AVC
Adjustable measuring range
1: 0...1000 Pa (0...4.0 in.wg)
2: 0...500 Pa (0...2.0 in.wg)
3: 0...300 Pa (0...1.2 in.wg)
4: 0...200 Pa (0...0.8 in.wg)
CPG-1000AVC
Adjustable measuring range
1: 0...6000 Pa (0...24.0 in.wg)
2: 0...4000 Pa (0...16.0 in.wg)
3: 0...3000 Pa (0...12.0 in.wg)
4: 0...2000 Pa (0...8.0 in.wg)
CPG-6000AVC
Adjustable measuring range
75
K-Factor
(697 US)
K-Factor US
Nozzle coefficient (K-Factor)
following table
Operating Instructions UNIcon CPG-..AVC Programming
L-BAL-E286-GB 1904 Index 004 Part.-No. 00163471
20/44
