Zks ZKS-MW1 User manual

Glass Dog-Smart Fingerprint
Glass Door Lock
ZKS-M1/MW1/G1/GW1
User Manual

ZKS Group Company Limit
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ZKS Group Company Limited
Address: No 552 Dong Zhou Road, Shanghai China
TEL: [phone] FAX: [phone]
www.zksgroup.com
2
ZKS Fingerprint Glass Door Lock
User Manual
ZKS Group Company Limited
1.0.0
Notice
Thank you for using ZKS fingerprint glass door lock, please read this user manual
carefully before installation, and also pay attention to the following points:
1. Please do not install the lock under the sunlight to avoid identification problem.
2. As the lock needs the admin identification when add user, so the system may create an
admin with default password 111111 automatically after initialization, every lock has
initialized when leaving factory, you can use this default password to open the door,
please setup new admin to make default password invalid for security after
installation.
3. Please keep your finger clean and humidification when use this lock, if the finger is too
dry, or too wet, this may effect identification.
4. This lock supports voltage-checking function, when the voltage is lower than alarm
valve, the lock will give alert when you open the door at every time, at this time, you
still can open and close the door for so many times, but different battery has different
capacity, so the times to open the door is also different. The bad situation is that you
can”t open the door when the lock just gives alert. To avoid this things happening, we
suggest you to use higher quality battery, and also change the battery in time when
the lock gives alert.
5. After using this lock for a long time, you will find some dirty covered fingerprint sensor,
please clean these dirty in time, otherwise this may effect identification.
6. There is a film covered on fingerprint sensor window, if this film is too dirty or damaged,
please change a new one at once.
7. This lock doesn”t support waterproof, please don”t use too wet towel to clean the

ZKS Group Company Limit
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ZKS Group Company Limited
Address: No 552 Dong Zhou Road, Shanghai China
TEL: [phone] FAX: [phone]
www.zksgroup.com
3
sensor, and don”t use water to wash the sensor.
8. Please don”t use the corrosion material to clean this lock panel and sensor window,
this may damage the panel and lock spare parts.
9. This lock has anti-lock function, when the lock is in anti-lock mode, the users can”t
open the door by normal way, it needs to use the certain operation to cancel anti-lock
to open the door.
10. When users open the door by fingerprint or password, the lock will lockup temporary
automatically after wrong identification for few times, at this time you can”t press
fingerprint or input password.

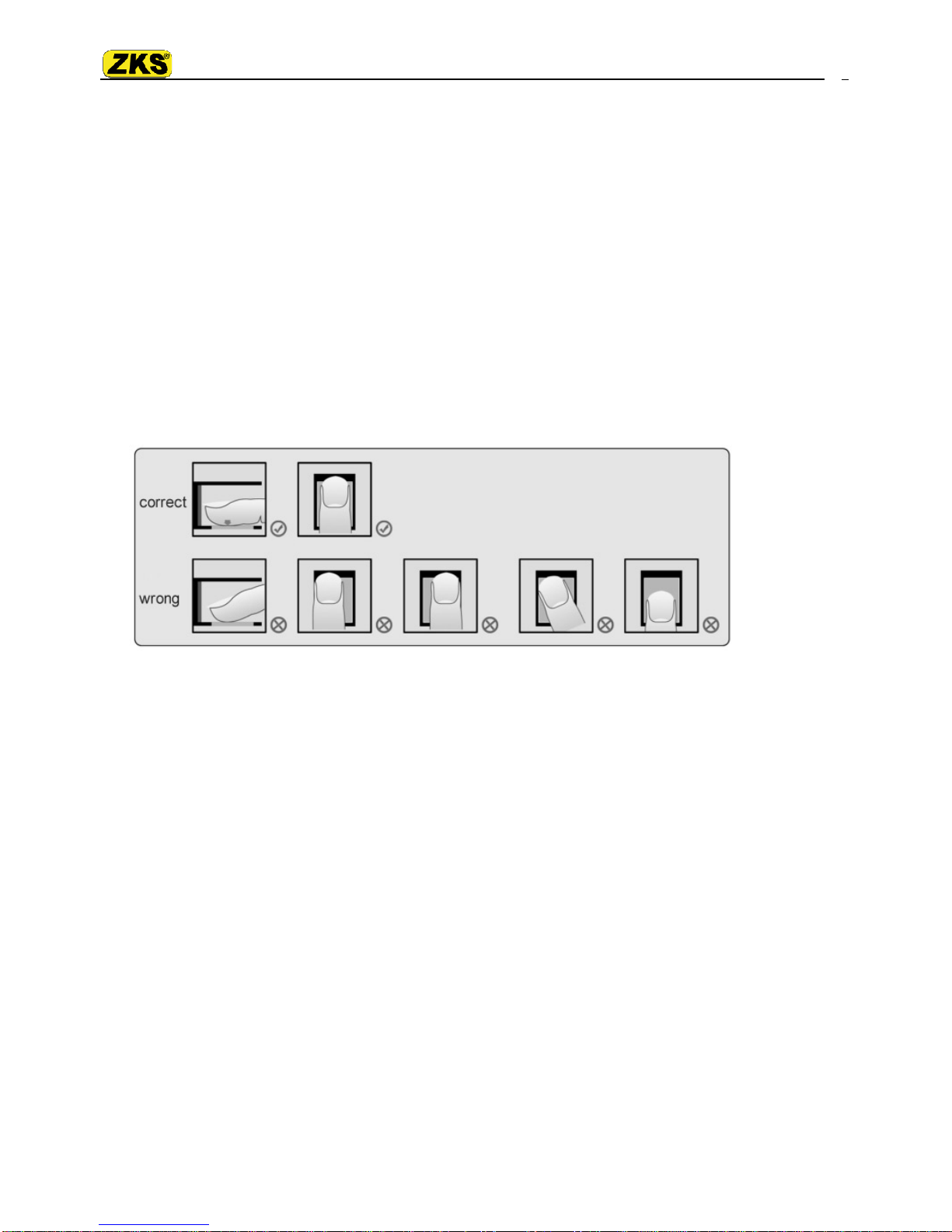

11. The following picture shows you to use fingerprint correctly, our company doesn”t
undertake any responsibility that cause by wrong operation.
Remarks
④ Please keep your finger clean when you register your fingerprint, and also try to
register at least each finger from right hand and left hand.
⑤ If your finger is too dry, you can moist your finger at first, for example, you can use
your finger to wipe on your head to moist; For the users with dry finger, we suggest
you to register 2 times when in summer and in winter.

ZKS Group Company Limit
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ZKS Group Company Limited
Address: No 552 Dong Zhou Road, Shanghai China
TEL: [phone] FAX: [phone]
www.zksgroup.com
4
Catalogue
Chapter1 Introduction .............................................................5
1.1 Brief Introduction................................................................................................................................5
1.2 Structure ..............................................................................................................................................5
1.3 Technical Parameters ..........................................................................................................................6
1.4 Spare Parts List....................................................................................................................................7
1.5 Voice.....................................................................................................................................................7
Chapter2 Function .................................................................8
2.1 By Fingerprint......................................................................................................................................8
2.2 Anti-lockup..........................................................................................................................................8
2.3 Cancel Anti-Lockup.............................................................................................................................9
2.4 Normal Open.......................................................................................................................................9
2.5 Cancel Normal Open ..........................................................................................................................9
2.6 Lower Voltage Prompt........................................................................................................................9
2.7 Force Lockup .......................................................................................................................................9
2.8 Prompt Sound Collecting...................................................................................................................9
Chapter3 Operation ..............................................................10
3.1 Setup System Time ...........................................................................................................................10
3.2 Initialization.......................................................................................................................................10
3.3 Add User............................................................................................................................................11
3.3.1 Add User Fingerprint...........................................................................................................................11
3.3.2 Add User Card.......................................................................................................................................11
3.3.3 Add User Password..............................................................................................................................12
3.3.4 Add Admin Fingerprint.......................................................................................................................12
3.3.5 Add Admin Card...................................................................................................................................13
3.3.6 Add Admin Password..........................................................................................................................13
3.4 Delete User ........................................................................................................................................13
3.4.1 Delete User ............................................................................................................................................13
3.4.2 Delete All Users ....................................................................................................................................14
3.5 USB Download ..................................................................................................................................14
3.6 Clear Admin By U-Disk.....................................................................................................................15
3.7 User Data Storage.............................................................................................................................15
3.8 Usage Notice .....................................................................................................................................16
Chapter 4 Installation.............................................................17
4.1 Assembling Chart..............................................................................................................................17
4.2 Installation Notice.............................................................................................................................17
4.3 Appendix 1 Maintenance .................................................................................................................18
4.4 Appendix 2 Problems & Solution....................................................................................................18



ZKS Group Company Limit
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ZKS Group Company Limited
Address: No 552 Dong Zhou Road, Shanghai China
TEL: [phone] FAX: [phone]
www.zksgroup.com
5
Chapter1 Introduction
1.1 Brief Introduction
Along with technology development, our glass door and windows market have
shaped a certain scope, but mainly concentrate on Beijing and Shanghai one or two grade
city. Whatever high streets and back lanes, shops, supermarkets, conference, bank or
commerce building, 95% places are used glass door as decoration. Glass door decoration
is increasing gradually, but this glass lock security risk did not reduce. Since 1995, ZKS has
been concentrating on fingerprint door lock researching all the times, and established in
door lock researching, designing and producing, and have accumulated the abundant
experiences of producing door locks. This patent glass door lock is integrated with more
field technology, such as computer, communication technology, biometric, mechanical
engineer etc. This lock is adopted international advanced fingerprint identification
algorithm, with highest identification rate, LED light screen, 360 degree against theft,
higher security, more stable, which makes your work and life fashionable.
1.2 Structure
Front Side
FP Senso
r
Time
Power Key
Lock Body

ZKS Group Company Limit
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ZKS Group Company Limited
Address: No 552 Dong Zhou Road, Shanghai China
TEL: [phone] FAX: [phone]
www.zksgroup.com
6
Back Side
1.3 Technical Parameters
Item Technical Parameters
Resolution Ratio 450DPI
Fingerprint Capacity 200 fingerprints
Response Time <1 seconds
Prompt Voice, Buzzer
Temperature -10₤ ’50₤
Humidity 20%-80%
Dynamic Voltage DC6V
Alarm Voltage DC4.8V
Dynamic Current <130ma
Static Current <20ua
Glass Thickness <12mm
Identification Mode Fingerprint
Outside Size Front shell＞94*95*31
Back Shell＞94*95*27
Lock Slot＞61*95*51
Power Supply DC 5V*4 cells AA battery
Transaction Records 10000

ZKS Group Company Limit
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ZKS Group Company Limited
Address: No 552 Dong Zhou Road, Shanghai China
TEL: [phone] FAX: [phone]
www.zksgroup.com
7
Display Clock, ID Number
Input\output Connector USB
1.4 Spare Parts List
Screws 8 pcs User Manual 1 copy
Installation Chart 1 copy Warranty Card 1 copy
Screw Tools 1 pcs Batteries 1 pair
Glass Cloth 1 piece Single Door Buckle 1 piece
USB Converter 1 pcs
1.5 Voice
No Voice Contents
0 Please press your fingerprint
1 Please remove your fingerprint
2 Please change a new fingerprint
3 Succeed
4 Failed
5 Thank you
6 DI，Sound when press fingerprint－

ZKS Group Company Limit
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ZKS Group Company Limited
Address: No 552 Dong Zhou Road, Shanghai China
TEL: [phone] FAX: [phone]
www.zksgroup.com
8
Chapter 2 Function
Features
1. More convenient, no need to use a string of key to try.
2. Open the door through advanced optical fingerprint module.
3. More modernization, no hole design against thief.
4. Action status prompt, such ‡ Please close the door• , ‡ Closed• , ‡ Opened• ,
5. The 4
th generation fingerprint identification technology, it identify living body, then
scan fingerprint grain, the door will open automatically along with music after press
your fingerprint.
6. Adopt Dezhou core chips, lower power consumption, more reliability.
7. Zinc alloy for higher quality, first grade standard against fire, key parts with SUS304
stainless steel.
8. LED liquid crystal display time and ID number.
9. 5V USB external power and data download, you can recharge the battery through
charger if no power, you also can download user data to U disk flash.
2.1 By Fingerprint
The following steps show you how to use fingerprint to open the door:
④Press Power button at front panel to make the fingerprint sensor light turn on.
⑤Put registered fingerprint on fingerprint sensor.
⑥The lock will read and match the fingerprint, if succeed, you can hear ‡ Di┈┈• once.
⑦The electronic engine move and enable lock body to open the door.
⑧If failed to identify the fingerprint at first time, the sensor light will shine again after
prompt, please put your fingerprint on sensor again to identify.
⑨If failed to read the fingerprint for 2 times, the sensor light will turn off, you can press
power button to restart the lock again.
2.2 Anti-lockup
Press down【 】button for 3 seconds at the back of lock panel, you will hear Di from
the lock, the lock has anti-lockup already.
Remarks: It is effective after the core lock is extended. After the lock is lockup, the
common users can”t open the door through fingerprint, card and password,

ZKS Group Company Limit
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ZKS Group Company Limited
Address: No 552 Dong Zhou Road, Shanghai China
TEL: [phone] FAX: [phone]
www.zksgroup.com
9
only the admin can open the door. The red and green light will shine alternately
to hint you if the lock is lockup.
2.3 Cancel Anti-Lockup
Press down【 】【 】at the same time for 3 seconds at the back lock panel, you will hear
Di from lock, this means anti-lock has cancelled.
2.4 Normal Open
Open the door by fingerprint, card or password, the green light on lock panel will turn
on, after you hear ‡ Di┈┈Di┈┈ • from the lock, please press【 】button at the back panel
for more than 3 seconds, then you will hear ‡ Di┈┈Di┈┈• from the lock, at this time the
lock has entered into normal open mode.
2.5 Cancel Normal Open
Press down【 】【 】at the same time for 3 seconds at the back of lock panel, you will
hear• Di┈┈• from lock, this means Normal Open has cancelled already.
2.6 Lower Voltage Prompt
When you open the door at every time, the lock give the rapid ‡ Di┈┈Di┈┈Di┈┈•
short ring to you, this hints you to change a new battery.
2.7 Force Lockup
Press down【 】button at the lock of back panel, after you will hear ‡ Di┈┈Di┈┈• from
this lock, Force lockup function has enabled already.
2.8 Prompt Sound Collecting
When you operate the door lock, you will hear some voice prompt, such as following:
1. Correct or valid prompt: a short prompt ‡ Di┈┈Di┈┈• .
2. Wrong or invalid prompt: 2 times long prompt ‡ Di┈┈Di┈┈•
3. Open the door successfully: a long prompt, then a short prompt, ‡ Di┈┈Di┈┈• .
4. Close the door: a short prompt, then a long prompt, ‡ Di┈┈Di┈┈•
5. Give alarm: long ringing from lower to higher for 4 times repeatedly, similar as police
car alarm.
6. Low Voltage: 3 times rapid short sound ‡ Di┈┈Di┈┈Di┈┈• .
7. Waiting: 2 times short sound• Di┈┈Di┈┈• .
8. Exit: 2 short prompt, then a long prompt, ‡ Di┈┈Di┈┈Di┈┈• .

ZKS Group Company Limit
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ZKS Group Company Limited
Address: No 552 Dong Zhou Road, Shanghai China
TEL: [phone] FAX: [phone]
www.zksgroup.com
10
Chapter3 Operation
3.1 Setup System Time
Admin can setup the door lock system time, such as following steps:
1. Press【0】for 3 seconds, then release the button if you hear DiDi prompt sound.
2. Input admin default password 111111 or press registered admin fingerprint, the screen
show Success, while the lock gives Di┈┈Di┈┈Di┈┈• (Press【】button after input admin
password 11111④. If screen shows Failed, while the lock gives• Di┈┈Di┈┈• , your
fingerprint is failed to verify.
3. Press【0】within 3 seconds to enter time setting mode, LED screen will turn on after you
hear ‡ Di┈┈Di┈┈• from the lock, at the same time year and month are shinning to
enter setting condition.
4. Press【1】means to plus 1, press【2】means to divide 2, press【3】means to switch to
numbers setting.
5. Press【 】means to save the setting and exit, when you hear DiDi from the lock, you have
setup the system time successfully.
3.2 Initialization
Initialization also can call default setup, means to clear all fingerprint, password that
saved in door lock, and make the door lock all parameters in default setup when leaving
factory. Initialization can make sure higher security and reliability for this lock. You need
to initialize the door lock after installation; Please initialize the door lock at first if you
meet the following situation:
a. First installation
b. After replacement fingerprint module
c. Users changing so fast
Following steps to initialize the lock
1. Press number【0】&【3】at the same time, and keep 3 seconds, then release the buttons
when you hear DiDi from the lock.
2. Please input original admin password 111111 or identify your registered admin
fingerprint, the screen shows Success, while the lock gives ‡ Di┈┈Di┈┈Di┈┈• (Press【 】

ZKS Group Company Limit
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ZKS Group Company Limited
Address: No 552 Dong Zhou Road, Shanghai China
TEL: [phone] FAX: [phone]
www.zksgroup.com
11
button after input admin password 11111④. If the screen shows Failed, while the lock
gives ‡ Di┈┈Di┈┈• , your fingerprint is failed to verify.
3. Press【 】button within 3 seconds, then release the button after you hear DiDi from the
lock.
4. The screen shows Success, while the lock give ‡ Di┈┈Di┈┈Di┈┈• , at this time the door
has initialized successfully.
3.3 Add User
There have 2 kinds of users: admin and user, when you want to add user, you can
select fingerprint or card. After you add admin, the original admin is invalid.
3.3.1 Add User Fingerprint
④Press【1】button for 3 seconds, please release the button to enter user enrollment when
you hear ‡ Di┈┈Di┈┈• .
⑤ Please input original admin password 111111 or identify your registered admin
fingerprint, the screen shows Success, while the lock gives ‡ Di┈┈Di┈┈Di┈┈• (Press【 】
button after input admin password 11111④. If the screen shows Failed, while the lock
gives ‡ Di┈┈Di┈┈• , your fingerprint is failed to verify.
⑥Press【1】button to enter to register user condition after you hear DiDi from the lock.
⑦Press【1】button again to register fingerprint for users.
⑧After you hear DiDi from the lock, please select user ID number,【1】button to add 1, 【2】
to reduce 1, then put your fingerprint on the sensor for a while, then remove it
when you hear ‡ Di┈┈• , please repeat this action for 3 times, and the LCD screen
shows Success while hint ‡ Di┈┈Di┈┈Di┈┈• , means the user fingerprint has registered
successfully.
⑨If the sensor window light is still on, you can continue to register fingerprint for the
users, you only need to repeat the above 5th step.
⑩After register successfully, please wait for 3 seconds, LCD will show Failed while hint
‡ Di┈┈Di┈┈• , the system will exit the user enrollment automatically.
3.3.2 Add User Card
Please see the following steps:
④Press down【1】button for 3 seconds, you will hear DiDi, please release the button to

ZKS Group Company Limit
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ZKS Group Company Limited
Address: No 552 Dong Zhou Road, Shanghai China
TEL: [phone] FAX: [phone]
www.zksgroup.com
12
enter into enrollment status.
⑤ Please input original admin password 111111 or identify your registered admin
fingerprint, the screen shows Success, while the lock hint ‡ Di┈┈Di┈┈Di┈┈• (Press【 】
button after input admin password 11111④. If shows failed, then the lock may give
‡ Di┈┈Di┈┈• to you, at this time, your fingerprint is failed to verify.
⑥Press【1】button, then enter into adding users status after you hear DiDi from the lock.
⑦Select the user ID number through value button,【1】button means to add 1,【2】means
to reduce 1,【 】button to confirm.
⑧Press【2】button again, and begin to register card for the users.
⑨After you hear Di from the lock, please show the card that you want to register in card
induction area, please remove the card if hear Di. If the screen show success, while hint
‡ Di┈┈Di┈┈Di┈┈• , means the card has registered successfully.
Remarks: Please register admin at first before adding users, otherwise the system will
show wrong operation.
3.3.3 Add User Password
No related information provided.
3.3.4 Add Admin Fingerprint
Please see the following steps:
④Press down【1】button for 3 seconds, you will hear• Di┈┈Di┈┈• , please release the
button to enter into enrollment status.
⑤Input original admin password 111111 or identify your registered admin fingerprint,the
screen shows Success, while the lock hint ‡ Di┈┈Di┈┈Di┈┈• (Press【】button after
input admin password 11111④. If shows failed, then the lock may give ‡ Di┈┈Di┈┈•
to you, at this time, your fingerprint is failed to verify.
⑥Press down【2】button, you will hear• Di┈┈Di┈┈• , and enter into enrollment status.
⑦Press down【1】button to enroll fingerprint.
⑧After you hear• Di┈┈Di┈┈• , please select Admin ID number,【1】button means to add
1,【2】means to reduce 1, then put your fingerprint on sensor for a while, then remove
if after you hear ‡ Di┈┈• , please repeat this same action for 3 times. If screen shows
Success, while hint ‡ Di┈┈Di┈┈Di┈┈• , means the admin fingerprint has registered
successfully.

ZKS Group Company Limit
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ZKS Group Company Limited
Address: No 552 Dong Zhou Road, Shanghai China
TEL: [phone] FAX: [phone]
www.zksgroup.com
13
⑨If the sensor window light is still on, you also continue to register fingerprint, at this
time, you only need to repeat the 5th step.
⑩After register successfully, please wait for 3 seconds, screen shows failed, while hint•
Di┈┈Di┈┈• , at this time the system will exit admin enrollment automatically.
3.3.5 Add Admin Card
Please see the following steps:
④Press down【1】button for 3 seconds, you will hear ‡ Di┈┈Di┈┈• , please release the
button to enter into enrollment status.
⑤Input original admin password 111111 or identify your registered admin fingerprint,
you will hear success, At the same time, ZKS Logo on front panel will show green light
once. If you hear Failed, means failed to verify admin fingerprint. If failed to verify
finger for 2 times continuously, the system may exit admin verification automatically,
you need to repeat this step.
⑥Press down【2】button, you will hear ‡ Di┈┈• , and enter into admin enrollment status.
⑦Select ID number by value button,【1】button means to add 1,【2】means to reduce 1,
【】means to confirm.
⑧Press down【2】again to register card for admin.
⑨After you hear• Di┈┈• , please show card that you want to register on card induction
area, please remove the card after you hear Di. If the screen shows Success, while hins
‡ Di┈┈Di┈┈Di┈┈• from the lock, the admin card has registered successfully.
3.3.6 Add Admin Password
No related information provided.
3.4 Delete User
You can select to delete certain user fingerprint, card, password, or delete all users.
3.4.1 Delete User
Please see the following steps:
④Press down【2】button for 3 seconds, you will hear• Di┈┈Di┈┈• from the lock, please
release the button to enter into Delete mode.
⑤Input original admin password 111111 or identify your registered admin fingerprint,
the screen shows Success, while the lock hint ‡ Di┈┈Di┈┈Di┈┈• (Press【】button after

ZKS Group Company Limit
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ZKS Group Company Limited
Address: No 552 Dong Zhou Road, Shanghai China
TEL: [phone] FAX: [phone]
www.zksgroup.com
14
input admin password 11111④. If shows failed, the lock may give• Di┈┈Di┈┈• , at
this time, your fingerprint is failed to verify.
⑥Press【1】button, if you hear ‡ Di┈┈Di┈┈• , then enter into Delete User condition.
⑦Select ID number by value button, 【1】button means to add 1,【2】means to reduce 1,
【】button to hear ‡ Di┈┈Di┈┈• .
⑧The screen shows Success, while hear ‡ Di┈┈Di┈┈• , means you have deleted a user
successfully.
⑨After delete the user, please wait for 3 seconds, the system will exit the menu
automatically.
Remarks: This method is used to delete a certain user fingerprint, card, password
information under certain ID number, but the user records are still saved in the
lock.
3.4.2 Delete All Users
Please see the following steps:
④Press down【2】button for 3 seconds, you will hear ‡ Di┈┈Di┈┈• , please release the
button to enter into Delete status.
⑤Input original admin password 111111 or identify your registered admin fingerprint,
the screen show Success, while hear ‡ Di┈┈Di┈┈Di┈┈• (press【 】after input original
password 11111④. If screen shows failed, while hear ‡ Di┈┈Di┈┈• , means failed to
identify fingerprint.
⑥Press【0】button, if you hear ‡ Di┈┈Di┈┈• , then enter into Delete All Users condition.
⑦Press【 】button for 3 seconds again, then release the button after you hear DiDi from
the lock.
⑧If the screen shows Success, and hear ‡ Di┈┈Di┈┈• , means all users have deleted
successfully.
⑨After delete all users, please wait for 3 seconds, the system will exit automatically.
Remarks: This method is used to delete all users fingerprint, card, password information
that saved in the lock, but the users records are still saved in the lock.
3.5 USB Download
You can download all users IN records from the lock to U disk flash, please see the

ZKS Group Company Limit
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ZKS Group Company Limited
Address: No 552 Dong Zhou Road, Shanghai China
TEL: [phone] FAX: [phone]
www.zksgroup.com
15
following steps:
1. Insert U disk flash with USB converter to the lock USB port.
2. Press down【0】for 3 seconds, you will hear ‡ Di┈┈Di┈┈• from the lock, then release the
button to enter into U disk flash operation condition.
3. Input original admin password 111111 or identify your registered admin fingerprint,
the screen show Success, and ZKS Logo on front panel will shine green light once. If
hear failed voice, means your fingerprint is failed to verify. If failed to identify for 2
times continuously, the system may exit the menu automatically, you need to repeat
this step.
4. Press down【1】button, and enter into Download condition after you hear DiDi.
5. If screen shows success, while hear ‡ Di┈┈Di┈┈• from the lock, means the data has
downloaded successfully.
6. The lock system may exit automatically after finishing downloading.
3.6 Clear Admin By U-Disk
When admin resigned or lost the admin card, and can”t enter the lock management,
you can use U disk flash to clear the admin, please see the following steps:
1、Copy the file that provided by manufacture to a blank U disk flash.
2. Please insert U disk flash with converter to the lock USB port.
3. Press【3】button for 3 seconds, after you hear ‡ Di┈┈Di┈┈• , please release the button
to enter U disk operation condition.
4. Input original admin password 111111 or identify your registered admin fingerprint,
the screen show Success, while hear ‡ Di┈┈Di┈┈Di┈┈• from the lock (press【 】after
input original password 11111④. If screen shows failed, while hear ‡ Di┈┈Di┈┈• from
the lock, means your fingerprint is failed to verify.
5. Press【2】button, when you hear ‡ Di┈┈• from the lock, then you can enter into clear
admin mode.
6. After you hear Success voice, means clearing admin successfully.
7. The lock system may exit the menu automatically after clearing admin.
3.7 User Data Storage

ZKS Group Company Limit
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ZKS Group Company Limited
Address: No 552 Dong Zhou Road, Shanghai China
TEL: [phone] FAX: [phone]
www.zksgroup.com
16
To make sure the lock higher security, the lock may create a piece of record when
every user identifies their fingerprint to open the door, every record may include the
following contents:
Serial No, ID number, Date & Time, Verification mode (Fingerprint or Card or Password)
3.8 Usage Notice
Please pay more attention to the following points:
1. Avoid the lock by unprofessional dismantling.
2. Fingerprint lock is a high technology electronic products, its inside structure is very
complicated. If you are not familiar with its structure, it is better for you not to
dismantle the lock. If you must do like that, please read the user manual at first, or
consult the manufacture, we have professional service person to help you.
3. Avoid the lock to touch with water directly.
4. It is better to select 5 AA wearable batteries.
5. After you purchased fingerprint lock, the manufacture may provide batteries for you,
normally the batteries can use one year. When the battery is used up, you need to
change new battery, it is better for you to use one brand battery, and pay more
attention to the battery anode and cathode. If there is no battery, and can”t open the
door, you can connect with external battery for urgent purpose.
6. Before using this fingerprint lock, it is better for you to read this user manual carefully,
including installation, some parameter setting etc, this will be easier for you to
understand this lock completely.

ZKS Group Company Limit
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ZKS Group Company Limited
Address: No 552 Dong Zhou Road, Shanghai China
TEL: [phone] FAX: [phone]
www.zksgroup.com
17
Chapter 4 Installation
4.1 Assembling Chart
4.2 Installation Notice
1. Fingerprint door lock is a kind of high technology products, the lock environment
is playing an important part for its normal usage, especially in heavy dusty or in high
corrosion environment, this will effect with the lock normal usage, so we suggest you
to install the lock after decoration the room, this has the advantage for the lock normal
usage and prolonging the lock lifetime.
2. After install and debug the lock, please register the admin as soon as possible. To make
you use this lock more conveniently, we suggest you to register one backup fingerprint
to avoid unexpected fingerprint damage and can not to open the door.
3. If the lock installation is not good, this may affect the lock normal usage and lifetime,
we suggest you to ask the experienced person to install the lock according to our
installation standard strictly.
4. Fingerprint lock is the perfect integration with world top biometric technology and
tradition electronic door lock, to make you feel this lock convenient and advance,

ZKS Group Company Limit
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ZKS Group Company Limited
Address: No 552 Dong Zhou Road, Shanghai China
TEL: [phone] FAX: [phone]
www.zksgroup.com
18
please read the operation user manual carefully before using it. If any doubt, you can
call ZKS after sale service department directly for help, our professional technical
person will solve all your questions in time.
4.3 Appendix 1 Maintenance
1. Fingerprint lock is made of precise mechanism and electronic chips, we should avoid
the lock to touch corrosion material or use in higher temperature environment.
2. After open the door, please don”t popup the lock tongue, this may hit the door frame
or destroy the lock body.
3. Fingerprint sensor should avoid hard material (including fingernail) to scratch, after
using it for some time, there may have some dirty covered on the sensor surface,
please use dry soft cloth to clean this dirty.
4. Don”t hit the lock body seriously, otherwise this may affect the lock structure, and
reduce the lock flexibility.
5. If the lock body can”t move well, or can”t return to the correct position, please add
some mechanism lubrication oil to the lock body.
6. If the battery is not enough to give lower voltage alarm, please change new battery at
once, and pay attention to the battery anode and cathode to avoid not to wake up the
lock system.
4.4 Appendix 2 Problems & Solution
Problems Reason Solution
Put the finger on sensor,
LED light show red color
for 4 times at every 1
seconds alternately
1.Illegal fingerprint
2.Fingerprint has
deleted from the
lock.
Use valid fingerprint
Press valid fingerprint,
LCD show red light 4
times at every second
alternately
1.Finger damaged
2.Fingerprint
deviation
Press your fingerprint almost
same as the position when you
enrollment

ZKS Group Company Limit
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ZKS Group Company Limited
Address: No 552 Dong Zhou Road, Shanghai China
TEL: [phone] FAX: [phone]
www.zksgroup.com
19
Press the fingerprint,
green and red light shine
alternately
Door has anti-lockup,
only admin can open
the door
Cancel anti-lock setting
Press valid fingerprint,
LCD show red light 5
times at every second
alternately, sensor light
also turn off.
Lockup 5 minutes
automatically if failed
to identify fingerprint
for 5 times
Waiting for enough time to
make the lock exit to lockup
status
Identify fingerprint to
open the door, green
and red light shine
alternately
Lower battery voltage
prompt
Change new battery at once
Can”t add fingerprint 1. First authenticated
users doesn”t have
administrative
privileges.
2.Fingerprint capacity
has reached.
1. Input valid fingerprint with
administrative privileges.
2.Clear some useless
fingerprints.
Always failed to identify
fingerprint
1.Finger too dirty
2.Finger too dry
3.Finger too wet
4.Too dirty sensor
5.Too strong light
6. Put finger wrongly
1.Clean finger
2.Moist finger
3.Wipe finger
4.Clean sensor window
5.Move or resist strong light
6.Use correct way to press
fingerprint

Glass Dog-Smart Fingerprint
Glass Door Lock
