PCIeCANFD-200U/100U is a CANFD high-performance interface card
with PIC Express x1 specifications. The PC can be connected to the
CAN through the PCI-E interface, which constitutes data collection and
data processing in the CAN network fields such as laboratories,
industrial control, and smart communities.
Product User Manual
PCIeCANFD-200U/100U
PCIeCANFD Series CANFD Interface Cards
User Manual
UM01010101 V1.00 Date: 2019/03/12
©2021 Guangzhou ZLG Electronics Cor.,Ltd.

PCIeCANFD-200U/100U
PCIeCANFD Series CANFD Interface Card User Manual
©2021 Guangzhou ZLG Electronics Corp.,Ltd.
ii
User Manual
Revision History
Version
Date
Description
V0.90
2018/01/16
Created
V1.00
2018/04/10
Released
V1.01
2019/03/12
Updated the document header and footer, and "Sales and Service Network" content and added the
"Disclaimer" content

PCIeCANFD-200U/100U
PCIeCANFD Series CANFD Interface Card User Manual
©2021 Guangzhou ZLG Electronics Corp.,Ltd.
1
User Manual
Contents
1. Product Introduction.....................................................................................................................1
1.1 Product Overview.........................................................................................................................................1
1.2 Functions......................................................................................................................................................1
1.3 Product Specifications..................................................................................................................................2
1.3.1 Electrical Specifications.....................................................................................................................2
1.3.2 Operating Temperature......................................................................................................................2
1.4 Typical Applications......................................................................................................................................2
2. Hardware Interfaces.....................................................................................................................3
2.1 CAN Communication Interface ....................................................................................................................3
2.2 Terminal Resistance.....................................................................................................................................3
2.3 System Connections....................................................................................................................................4
3. Driver Installation.........................................................................................................................6
3.1 Installing the Driver under Windows............................................................................................................6
4. Inspection and Maintenance........................................................................................................8
5. Packing List..................................................................................................................................9
6. Quick User Guide.......................................................................................................................10
6.1 Introduction to ZCANPRO Software..........................................................................................................10
6.2 Using USBCANFD on ZCANPRO .............................................................................................................10
7. Disclaimer.................................................................................................................................. 11

PCIeCANFD-200U/100U
PCIeCANFD Series CANFD Interface Card User Manual
©2021 Guangzhou ZLG Electronics Corp.,Ltd.
1
User Manual
1. Product Introduction
1.1 Product Overview
ZLG Electronics PCIeCANFD-200U/100U is a dual-port PCIe-CANFD communication interface card that
meet PCI Express r1.0a specifications. PCIeCANFD-200U is a dual CAN interface, while PCIeCANFD-100U is a
single CAN interface. The interface card supports the peripheral controller x1 interface for PCI Express
multi-function devices, which allows the PC to be easily connected to the CAN bus. The plug and play function
facilitates installation. Figure 1.1 shows the PCIeCANFD-200U appearance.
PCIeCANFD-200U provides two completely independent CAN channels, conforms to CAN2.0B specification
(compatible with CAN 2.0A), supports higher rate CANFD, which enables convenient and flexible applications. To
improve system performance, PCIeCANFD-200U communication card provides various functions, supports a
high transmission rate of 5 Mbps, and integrates 3,500 VDC electrical isolation protection, which protects the
computer from the influence of ground circulation and enhances the system reliability in harsh environments.
Note: PCIeCANFD-200U and PCIeCANFD-100U are collectively referred to as PCIeCANFD interface cards below.

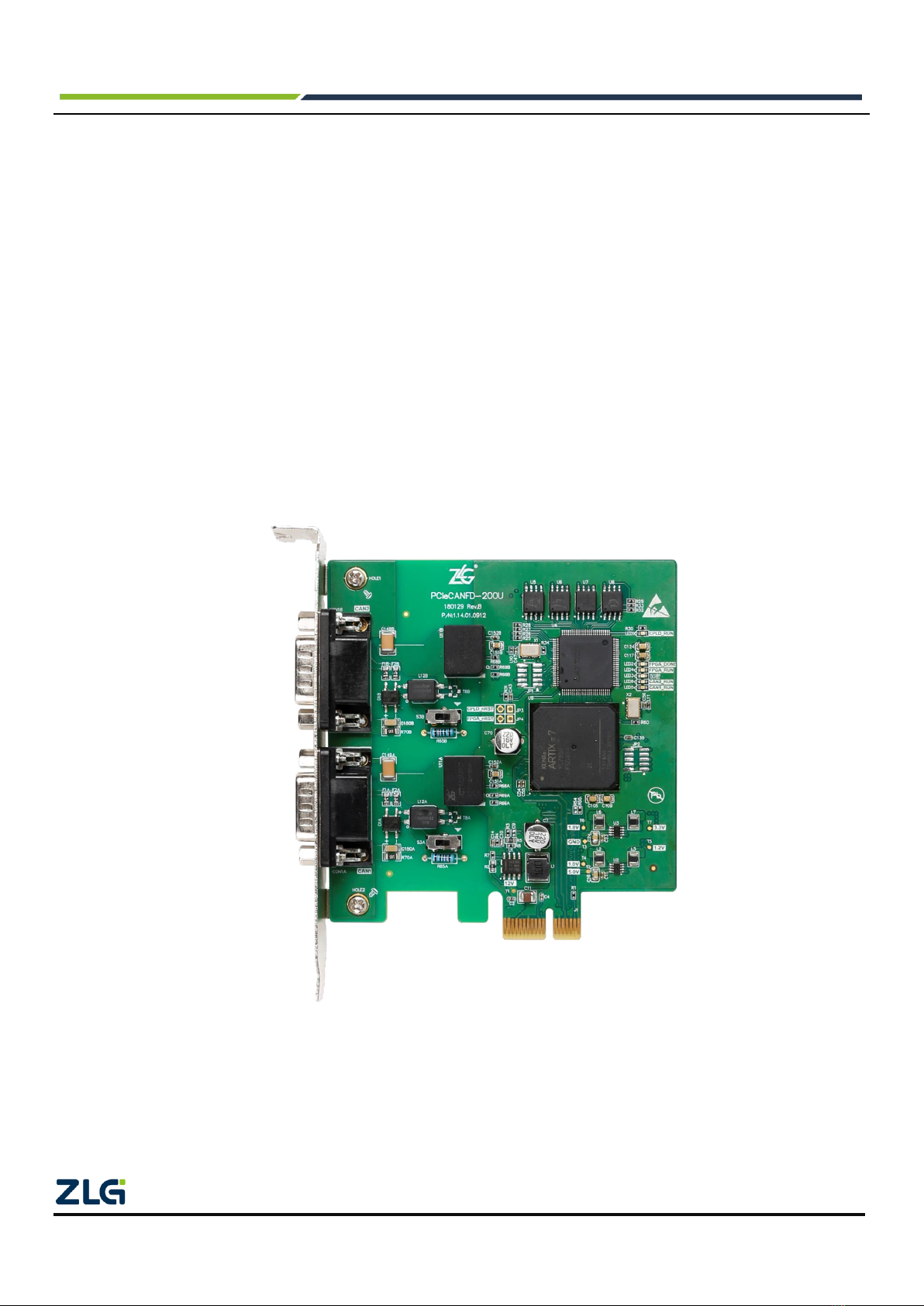

Figure 1.1 PCIeCANFD-200U
1.2 Functions
⚫PC interface: high-speed PCIe interface, PCI Express x1 specification, compatible with x8, x16 and other PCI
Express slots;

PCIeCANFD-200U/100U
PCIeCANFD Series CANFD Interface Card User Manual
©2021 Guangzhou ZLG Electronics Corp.,Ltd.
2
User Manual
⚫Support CAN2.0A and B protocol and comply with ISO11898-1 specification;
⚫Compatible with high-speed CAN and CANFD;
⚫The CAN interface is electrically isolated from 3,500 V DC;
⚫The CAN communication baud rate can be arbitrarily programmable between 4 Kbps and 1 Mbps;
⚫The CANFD baud rate can be arbitrarily programmable between 1 Mbps and 5 Mbps;
⚫Maximum data flow for single channel transmission: 4,000 frames per second (remote frame, single frame
transmission);
⚫The highest data flow rate received by a single channel: 10,000 frames per second (remote frame);
⚫Built-in 120 ohm terminal resistance, which can control access and disconnection;
⚫Support ZCANPRO test software (support Windows 7 and Windows 10);
⚫Operating temperature: 0°C to 80°C;
⚫Storage temperature: -20°C to +70°C;
⚫Length, width and height: 102.6 mm x 120.02 mm x 21.59 mm.
1.3 Product Specifications
1.3.1 Electrical Specifications
The PCIeCANFD interface card needs an electrical environment to work safely and stably. Table 1.1 lists the
electrical parameters of the interface card. Exceeding the parameters listed in the table may cause the product to
work unstable and fail, or even burn the module.
Table 1.1 Electrical specifications of PCIeCANFD interface card
Item
Test Conditions
Minimum
Typical Value
Maximum
Unit
Working
voltage
PCIe interface power
supply 12V
Two CAN transceivers
11
12
13
V
Operating
current
External input DC power
supply
VIN=12V
--
85
--
mA
CAN interface
Bus pin withstand voltage
CANH, CAHL
-42
--
42
V
Terminal resistance
Enable terminal
resistance
--
120
--
Ω
Isolation withstand voltage
Leakage current less
than 1 mA
--
3500
--
VDC
1.3.2 Operating Temperature
The applicable operating temperature range of PCIeCANFD interface card: 0°C to +80°C. Using the interface
card in too low or too high ambient temperature will make it work abnormally and shorten its service life.
1.4 Typical Applications
⚫CAN(FD)-Bus network diagnosis and test
⚫Electric power communication network
⚫Industrial control equipment
⚫High-speed, large data volume communication

PCIeCANFD-200U/100U
PCIeCANFD Series CANFD Interface Card User Manual
©2021 Guangzhou ZLG Electronics Corp.,Ltd.
3
User Manual
2. Hardware Interfaces
2.1 CAN Communication Interface
The CAN communication interface of the PCIeCANFD interface card uses a DB9 connector, and the signal
definition of the interface pins meets the requirements of the CiA standard. Table 2.1 lists the signal definition of
the DB9 pin.

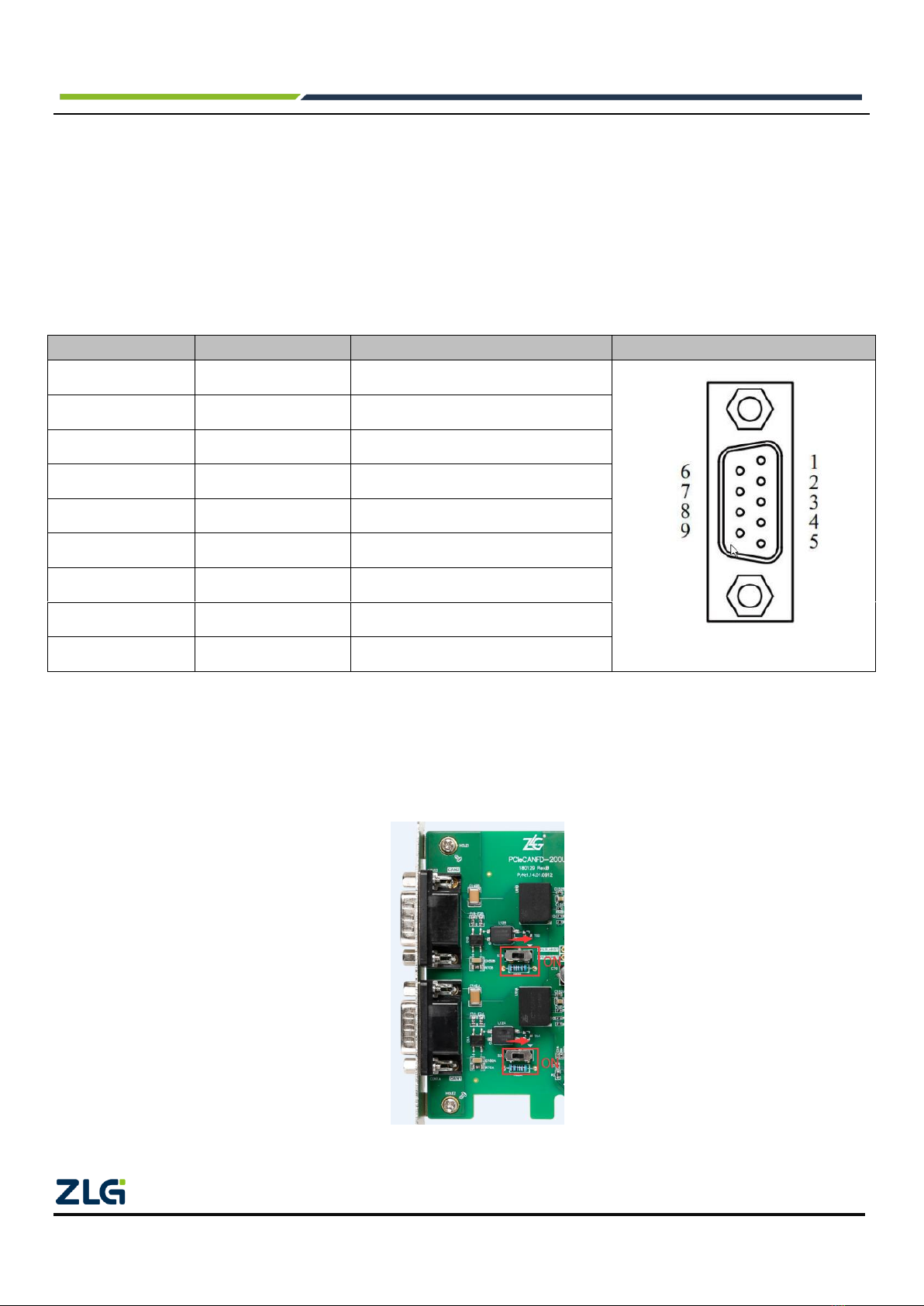

Table 2.1 DB9 pin signal definition
Pin
Signal
Description
Figure
1
--
Reserved
2
CAN_L
CAN bus dominance is low
3
CAN_GND
CAN reference ground
4
--
Reserved
5
CAN_SHLD
CAN shield ground
6
CAN_GND
CAN reference ground
7
CAN_H
CAN bus is highly dominant
8
--
Reserved
9
--
Reserved
2.2 Terminal Resistance
Each CAN channel of PCIeCANFD interface card has built-in 120 ohm terminal resistance. The interface
card connects or disconnects the terminal resistance through a DIP switch. Figure 2.1 shows the position of the
DIP switch. Before product delivery, the terminal resistance is connected by default. The terminal resistance can
be flexibly configured in the actual CAN network.
Figure 2.1 Terminal resistance settings

PCIeCANFD-200U/100U
PCIeCANFD Series CANFD Interface Card User Manual
©2021 Guangzhou ZLG Electronics Corp.,Ltd.
4
User Manual
2.3 System Connections
When the PCIeCANFD interface card is connected to the CAN-bus bus, you need only to connect CAN_L to
CAN_L and CAN_H to CAN_H signals. The CAN-bus network adopts a linear topology, and the two terminals of
the bus need to be installed with a 120 ohm terminal resistor; if the number of nodes is greater than 2, the 120
ohm terminal resistor is not required for the intermediate node. For branch connections, the length should not
exceed 3 m. Figure 2.2 shows the CAN-bus bus connection.

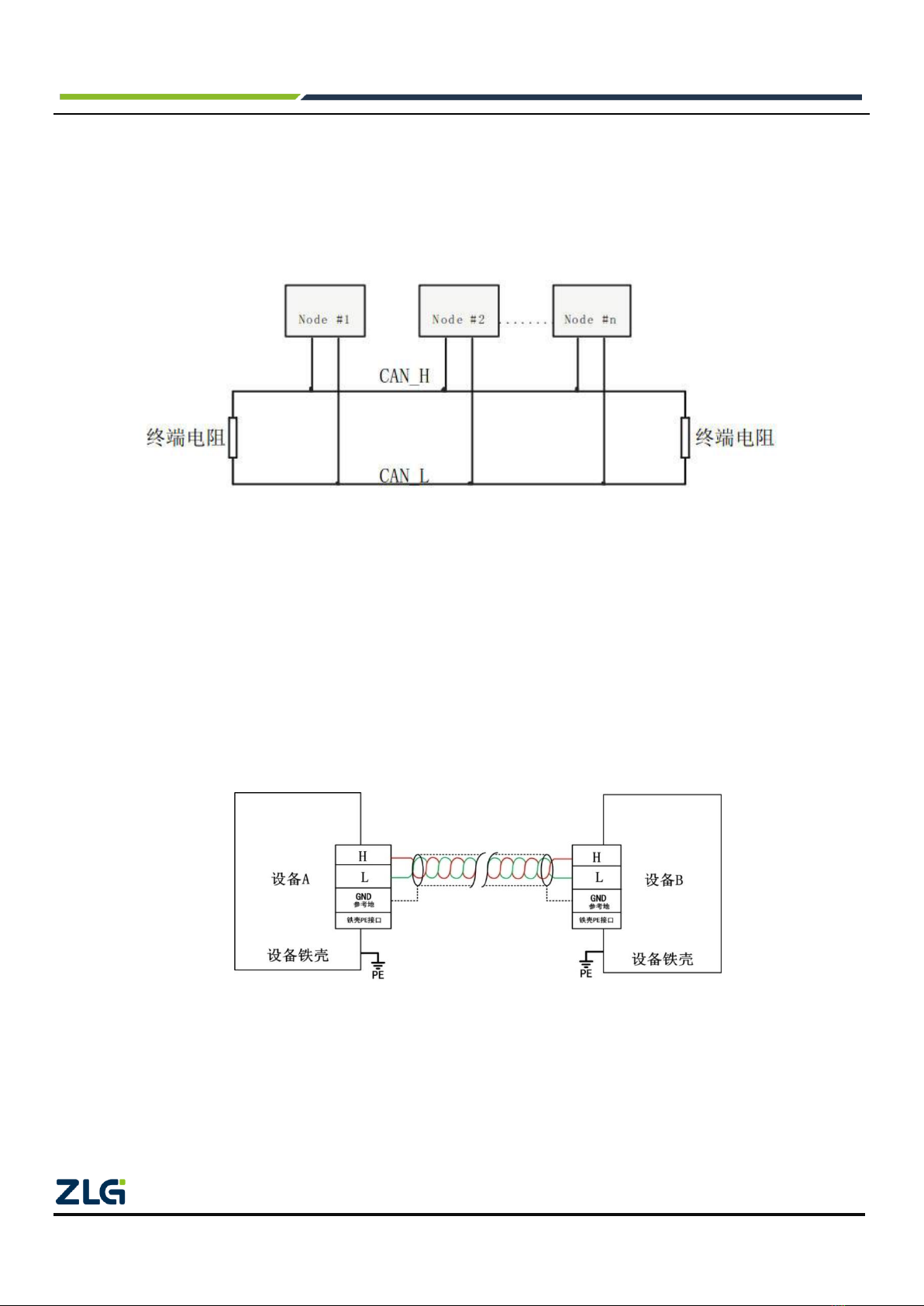

Figure 2.2 Linear topology of the CAN-bus network
In the CAN-bus network, shielded cables are often used for interconnection, so as to enhance the
anti-interference ability. However, there are many types of shielded cables and field wiring is complicated.
Therefore, the wiring diagrams of different types of cables in application are shown below, including the
connection diagrams of double-core single-layer shielded cables, double-core double-layer shielded cable, and
three-core single-layer shielded cable (The "equipment iron shell" in the pictures refers to the outer shell of the
device, which is grounded by default). Regardless of the type of cable, reasonable changes must be made
according to the complexity of the field wiring. Ensure reliable grounding of the single point of the shielded cable
or ground wire at any time, and carry out on-site wiring in strict accordance with the wiring specifications, so as to
minimize communication errors and exceptions and improve the communication quality and service life of the
bus.
Figure 2.3 Double-core single-layer shielded cable connection

PCIeCANFD-200U/100U
PCIeCANFD Series CANFD Interface Card User Manual
©2021 Guangzhou ZLG Electronics Corp.,Ltd.
5
User Manual
Figure 2.4 Double-core double-layer shielded cable connection
Figure 2.5 Three-core single-layer shielded cable connection

PCIeCANFD-200U/100U
PCIeCANFD Series CANFD Interface Card User Manual
©2021 Guangzhou ZLG Electronics Corp.,Ltd.
6
User Manual
3. Driver Installation
This document uses a PC running Windows 7 as an example to describe how to install the
PCIeCANFD-200U (100U) driver.
3.1 Installing the Driver under Windows
When the computer is shut down, insert the PCIeCANFD interface card into the PCIe card slot of the
computer, and start the computer.
Click the official driver installation application pcie-canfd-x00u-install.exe to display the driver software
interface, as shown in Figure 3.1.

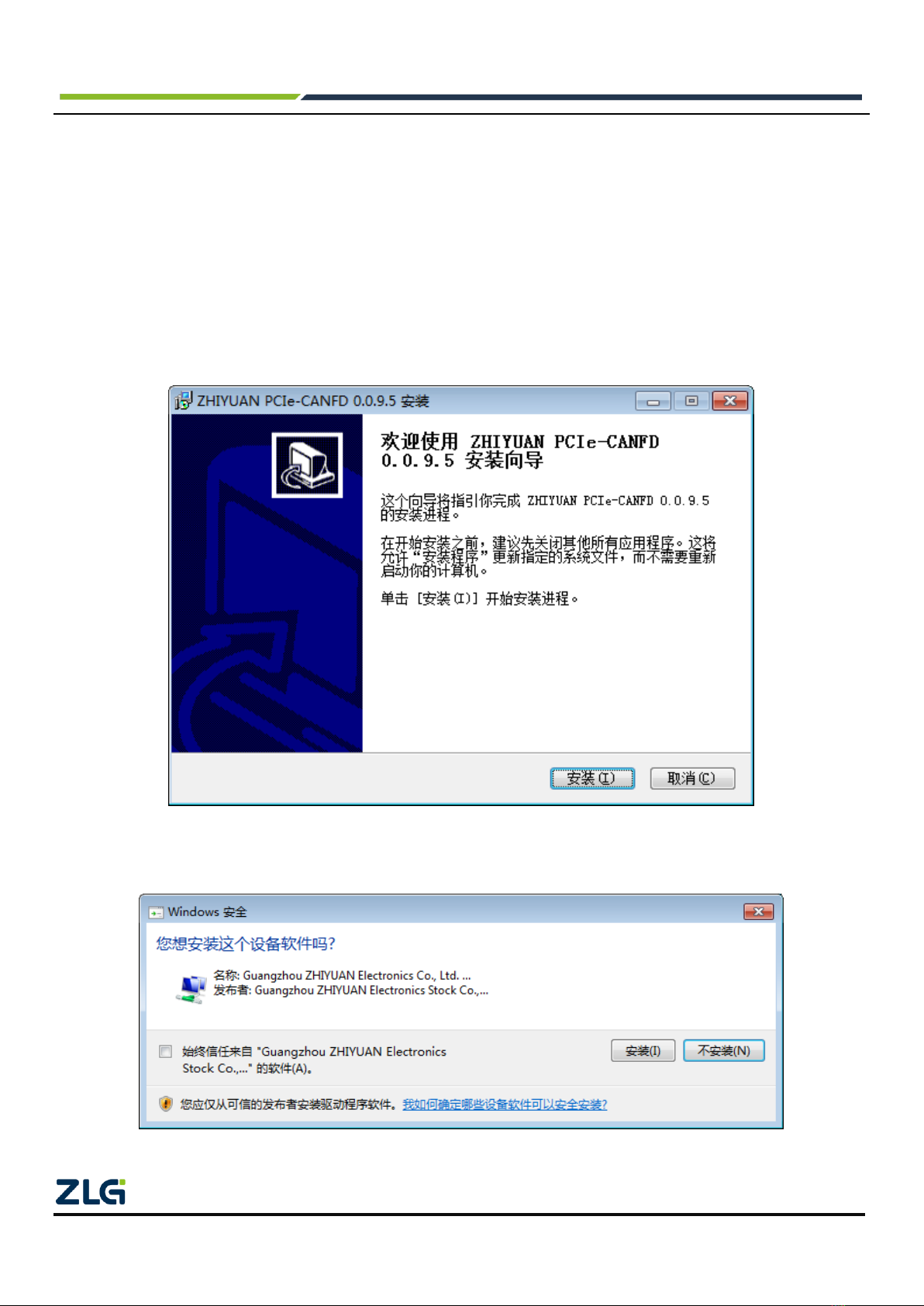

Figure 3.1 Driver software
As shown in Figure 3.2, click [Install] and wait until the driver is installed.
Figure 3.2 Installing the driver

PCIeCANFD-200U/100U
PCIeCANFD Series CANFD Interface Card User Manual
©2021 Guangzhou ZLG Electronics Corp.,Ltd.
7
User Manual
After the installation is complete, the "Completing" dialog box appears. Click the [Finish] button to complete
the installation, as shown in Figure 3.3.
Figure 3.3 Driver installation complete
After the driver is installed, if the PCIeCANFD interface card is normal,
appears in the device manager, indicating that the driver is installed correctly and a PCIeCANFD interface card is
inserted. In this case, the CANFD card has been connected to the PC, and the host computer software can be
used to send and receive CAN (FD) messages. It is recommended to use the ZCANPRO software provided by
ZLG Electronics as the host computer software. Users can also develop their own host computer software by
using the provided secondary development function library.

PCIeCANFD-200U/100U
PCIeCANFD Series CANFD Interface Card User Manual
©2021 Guangzhou ZLG Electronics Corp.,Ltd.
8
User Manual
4. Inspection and Maintenance
The main electrical components of the PCIeCANFD interface card are semiconductor components.Although
it has a long life, it may also age quickly under inappropriate conditions. Carry out periodic inspections to ensure
that the required conditions are maintained. It is recommended to check at least once every 6 months to a year.
More frequent inspections should be carried out in unfavorable environmental conditions, .
If you encounter a problem during the maintenance, see table 4.1 to identify the fault cause. If the fault
persists, please contact Guangzhou ZLG Electronics Co., Ltd.
Table 4.1 Inspection and maintenance
No.
Item
Inspection
Standard
Action
1
Power supply
Check computer voltage fluctuations
PCIe card slot power
supply 12V±8%
Check the computer power
supply. Take necessary
measures to keep the voltage
fluctuation within the range
2
Surrounding
environment
Check the ambient temperature
(including the internal temperature
of the enclosed environment)
0°C to 80°C
Use a thermometer to check
the temperature and ensure
that the ambient temperature
is kept within the allowable
range
Check the ambient humidity
(including the internal humidity of
the enclosed environment)
The relative humidity
must be between 10%
and 90% when there
is no air conditioner
Use a hygrometer to check
the humidity and ensure that
the ambient humidity is kept
within the allowable range
Check for dust, powder, salt, metal
chips
No accumulation
Clean and protect equipment
Check that water, oil or chemical
spray should not hit the equipment
No spray hits the
device
To clean and protect the
equipment
Check for corrosive or flammable
gases in the equipment area
No corrosive or
flammable gas
Check by smelling or using a
sensor
Check vibration and shock levels
Vibration and shock
are within the
specified range
If necessary, install gaskets
or other shock absorbers
Check the noise source near the
equipment
No significant noise
signal source
Isolate the device from the
noise source or protect the
device
3
Installation and
Wiring
Check that each unit is securely
connected and has been safely
locked with the next unit
No looseness
Press the connectors
together completely and lock
them with the slider

PCIeCANFD-200U/100U
PCIeCANFD Series CANFD Interface Card User Manual
©2021 Guangzhou ZLG Electronics Corp.,Ltd.
9
User Manual
5. Packing List
Table 5.1 PCIeCANFD-200U Packing List V1.00
No.
Name
Quantity
Unit
Remarks
1
PCIeCANFD-200U interface card
1
Piece
2
Product CD-ROM
1
Piece
3
After-sales Service Guide
1
Pcs
4
Certificate of Conformity
1
Piece

PCIeCANFD-200U/100U
PCIeCANFD Series CANFD Interface Card User Manual
©2021 Guangzhou ZLG Electronics Corp.,Ltd.
10
User Manual
6. Quick User Guide
6.1 Introduction to ZCANPRO Software
ZCANPRO is the supporting software for CAN/CANFD series products produced by Guangzhou ZLG
Electronics Co., Ltd.,
which can perform operations such as raw data transmission and reception, data playback, and high-level
protocol analysis. The software is easy to operate and powerful, and it is a good helper for CAN bus testing,
monitoring, diagnosis, and development.
ZCANPRO software can be downloaded from the ZLG Electronics official website http://www.zlg.cn.
6.2 Using USBCANFD on ZCANPRO
After the device driver and ZCANPRO are installed, you can use USBCANFD on the ZCANPRO software.
For details about how to use USBCANFD on ZCANPRO, click in the upper right corner of the software
main interface and select [Quick Use Guide] in the drop-down box (as shown in Figure 4.1). For detailed
instructions for the ZCANPRO software, see [User Manual].
Figure 4.1 Opening the Quick Guide

PCIeCANFD-200U/100U
PCIeCANFD Series CANFD Interface Card User Manual
©2021 Guangzhou ZLG Electronics Corp.,Ltd.
11
User Manual
7. Disclaimer
Based on the principle of providing better service for users, Guangzhou ZLG Electronics Co., Ltd. ("ZLG
Electronics") will try to present detailed and accurate product information to users in this manual. However, due to
the effectiveness of this manual within a particular period of time, ZLG Electronics does not guarantee the
applicability of this document at any time. ZLG Electronics shall reserve the right to update this manual without
prior notice. To get the latest version, please visit the official website of ZLG Electronics regularly or contact ZLG
Electronics. Thank you!
Right to modify the document
Guangzhou ZLG Electronics Co., Ltd. shall reserve the right to modify related documents of PCIeCANFD
interface card series products at any time without prior declaration.
ESD protection
The PCIeCANFD interface card series products have electrostatic protection capabilities to ensure the stable
operation of the products. When using PCIeCANFD interface card series products, first discharge the static
electricity on the body. For example, wear a reliable grounding static ring, or touch a water pipe connected to the
earth.

PCIeCANFD-200U/100U
PCIeCANFD Series CANFD Interface Card User Manual
©2021 Guangzhou ZLG Electronics Corp.,Ltd.
12
User Manual
Dreams come true with professionalism and dedication.
Guangzhou ZLG
Electronics Co., Ltd.
For more details, please visit
www.zlg.cn
Welcome to call the national service hotline
400-888-4005
This manual suits for next models
2
Table of contents
Other ZLG Recording Equipment manuals
Popular Recording Equipment manuals by other brands

Thorsis Technologies
Thorsis Technologies isDNet USB user manual

Mitsubishi Electric
Mitsubishi Electric MAC-399IF-E installation manual

Eaton
Eaton Cutler Hammer MN05001002E installation manual

Alternate Mode
Alternate Mode malletKAT PRO quick start guide

Extron electronics
Extron electronics RGB 326 user manual

MRMC
MRMC MRMC-2179-00 quick start guide
