1. Product Introduction
1.1 Product Overview
USBCANFD-100U-mini is a portable, high-performance CANFD interface card developed by Guangzhou
ZLG Electronics. It is compatible with the USB2.0 bus specification, integrates one CANFD interface. The CAN
channel integrates an independent electrical isolation protection circuit. The interface card connects the PC to the
CAN(FD) network over the USB port to form a CAN(FD)-bus control node.
The USBCANFD-100U-mini high-performance CANFD interface card is a powerful tool for CAN(FD)-bus
product development and CAN(FD)-bus data analysis; the USBCANFD-100U-mini interface card has its own
electrical isolation module, which prevents the interface card from being damaged due to ground circulation and
enhances the system reliability in harsh environments. The USBCANFD-100U-mini high-performance CAN
interface card supports operating systems such as Windows 7/Windows 10.
1.2 Product Appearance

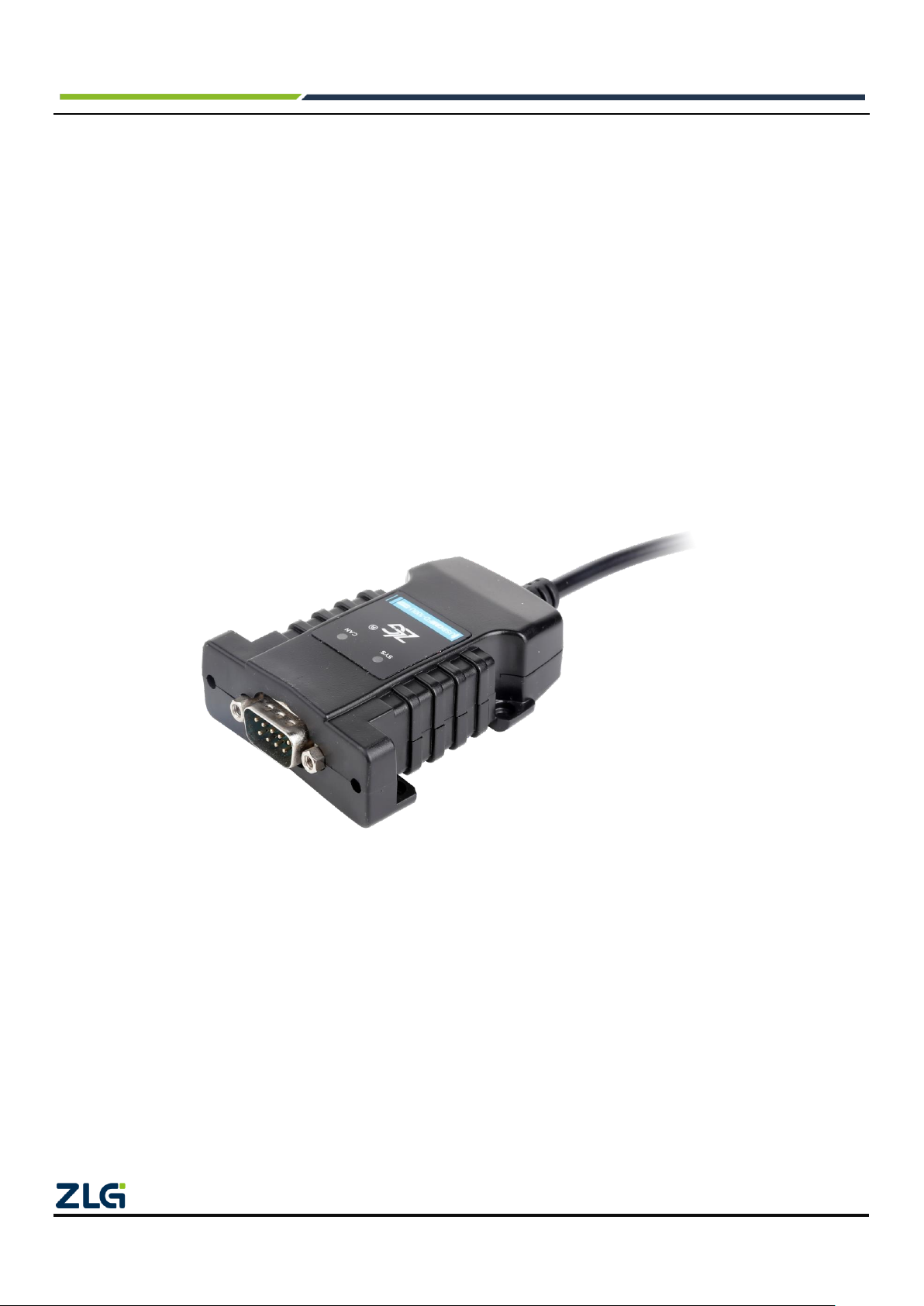

Figure 1.1 Product appearance
1.3 Functions
⚫The USB interface complies with the USB2.0 high-speed specification;
⚫Support CAN2.0A and B protocol and comply with ISO11898-1 specification;
⚫Integrates one CANFD interface;
⚫Compatible with high-speed CAN and CANFD;
⚫CANFD supports ISO standards and non-ISO standards.
⚫The CAN communication baud rate can be arbitrarily programmable between 4 Kbps and 1 Mbps;
⚫The CANFD baud rate can be arbitrarily programmable between 1 Mbps and 5 Mbps;
⚫Maximum data flow for single channel transmission: 3,000 frames per second (remote frame, single frame

USBCANFD-100U-mini
USBCANFD Series CANFD Interface Card User Manual
©2021 Guangzhou ZLG Electronics Technology Corp.,Ltd.
2
User Manual
transmission);
⚫The highest data flow rate received by a single channel: 10,000 frames per second (remote frame);
⚫Each channel supports a maximum of 64 ID filters;
⚫Each channel supports a maximum of 100 timing sending messages. The timing accuracy can reach 500 us;
⚫Built-in 120 ohm terminal resistance, which can be connected and disconnected by software control;
⚫Support USB bus power supply;
⚫Support ZCANPRO software (support Windows 7 and Windows 10);
⚫Provide the host computer secondary development interface function.
1.4 Product Specifications
1.4.1 Electrical Specifications
USBCANFD-100U-mini needs a certain electrical environment to work safely and stably. Table 1.1 lists the
electrical specifications of the interface card. Exceeding the specifications listed in the table may cause the
product to work unstable and fail, or even burn the module.
Table 1.1 USBCANFD-100U-mini electrical specifications
Item
Test Conditions
Minimum
Typical value
Maximum
Unit
Operating
voltage
USB powered
Two CAN transceivers
4.75
5
5.25
V
Operating
current
USB powered
VBUS=5V
--
76mA
--
mA
CAN interface
Bus pin withstand voltage
CANH, CAHL
-42
--
42
V
Terminal resistance
Enable terminal
resistance
--
120
--
Ohm
Isolation withstand voltage
Leakage current less
than 1 mA
2500
--
--
VDC
1.4.2 Operating Temperature
USBCANFD-100U-mini meets the requirements of industrial grade products, and its applicable operating
temperature range is –40°C to +85°C. Using the interface card in too low or too high ambient temperature will
shorten its service life.
1.5 Mechanical Installation Dimensions
Figure 1.2 shows the external dimensions of USBCANFD-100U-mini.

USBCANFD-100U-mini
USBCANFD Series CANFD Interface Card User Manual
©2021 Guangzhou ZLG Electronics Technology Corp.,Ltd.
3
User Manual

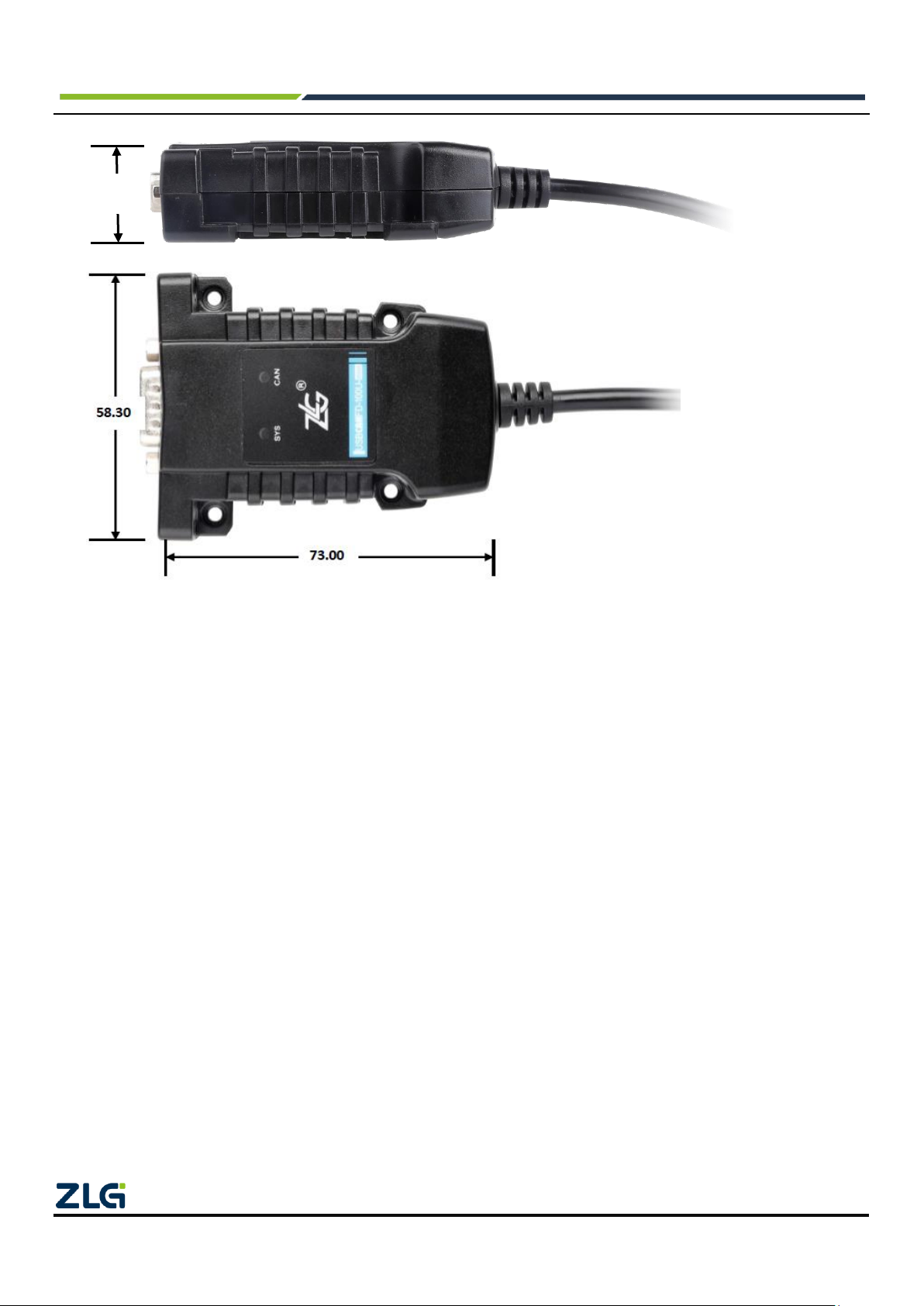

Figure 1.2 USBCANFD-100U-mini dimensions
Note: The unit is mm
1.6 Typical Applications
⚫CAN(FD)-Bus network diagnosis and test
⚫Automotive electronics applications
⚫Electric power communication network
⚫Industrial control equipment
⚫High-speed, large data volume communication
22.0
0

USBCANFD-100U-mini
USBCANFD Series CANFD Interface Card User Manual
©2021 Guangzhou ZLG Electronics Technology Corp.,Ltd.
4
User Manual
2. Hardware Interfaces
2.1 USB Interface
USBCANFD-100U-mini adopts USB power supply mode (no external power interface). The USB cable is
directly connected to the board before delivery, as shown in Figure 2.1.
Figure 2.1 USBCANFD-100U-mini
2.2 CAN Communication Interface
The USBCANFD-100U-mini CAN communication interface uses a DB9 connector. The signal definition of the
interface pins meets the requirements of the CiA standard. Table 2.1 lists the pin signal definition of DB9, and
Figure 2.2 shows the interface.
Table 2.1 DB9 pin signal definition
Pin
Signal
Description
Figure
1
--
Reserved
2
CAN_L
CAN bus dominance is low
3
CAN_GND
CAN reference ground
4
--
Reserved
5
CAN_SHLD
CAN shield ground
6
CAN_GND
CAN reference ground

USBCANFD-100U-mini
USBCANFD Series CANFD Interface Card User Manual
©2021 Guangzhou ZLG Electronics Technology Corp.,Ltd.
5
User Manual
Continued
Pin
Signal
Description
Figure
7
CAN_H
CAN bus is highly dominant
8
--
Reserved
9
--
Reserved
Figure 2.2 CAN interface
2.3 Signal Indicators
USBCANFD-100U-mini has a two-color SYS indicator and a two-color CAN channel indicator that indicate
the operating status of the CAN channel. Figure 2.1 shows the indicator locations, and Table 2.2 describes the
indicators.
Table 2.2 Description of USBCANFD-100U-mini interface card indicators
Indicator
Status
Indication status
SYS
Red
The USB driver is not installed properly
Green
The USB driver is installed
Green flashing
The USB is communicating with the device
Flash in red
USB and device communication error
CAN
Off
The CAN channel is not open
Green
The CAN channel is open
Green flashing
The CAN channel is transmitting messages
Flash in red
CAN channel bus error
2.4 System Connections
When USBCANFD-100U-mini is connected to the CAN-bus, you only need to connect CAN_L to CAN_L and
CAN_H to CAN_H signal. The CAN-bus network adopts a linear topology, and the two terminals of the bus need
to be installed with 120 ohm terminal resistors; if the number of nodes is greater than 2, the intermediate nodes
do not need to install 120 ohm terminal resistors. For branch connections, the length should not exceed 3 meters.
Figure 2.3 shows the connection of CAN-bus bus.

USBCANFD-100U-mini
USBCANFD Series CANFD Interface Card User Manual
©2021 Guangzhou ZLG Electronics Technology Corp.,Ltd.
6
User Manual
Figure 2.3 Linear topology of the CAN-bus network
In the CAN-bus network, shielded wires are often used for interconnection, so as to enhance the
anti-interference ability. However, there are many types of shielded wires and field wiring is complicated.
Therefore, the wiring diagrams of different types of cables in application are shown below, including the
connection diagrams of double-core single-layer shielded wire, double-core double-layer shielded wire, and
three-core single-layer shielded wire (The "equipment iron shell" in the pictures refers to the outer shell of the
device, which is grounded by default). Regardless of the type of cable, reasonable changes must be made
according to the complexity of the field wiring. Ensure the reliable grounding of the single point of the shielded
wire or ground wire at any time, and carry out on-site wiring in strict accordance with the wiring specifications to
minimize communication errors and abnormalities, and improve the communication quality and service life of the
bus.
Figure 2.4 Double-core single-layer shielded cable connection
Figure 2.5 Double-core double-layer shielded cable connection

USBCANFD-100U-mini
USBCANFD Series CANFD Interface Card User Manual
©2021 Guangzhou ZLG Electronics Technology Corp.,Ltd.
7
User Manual

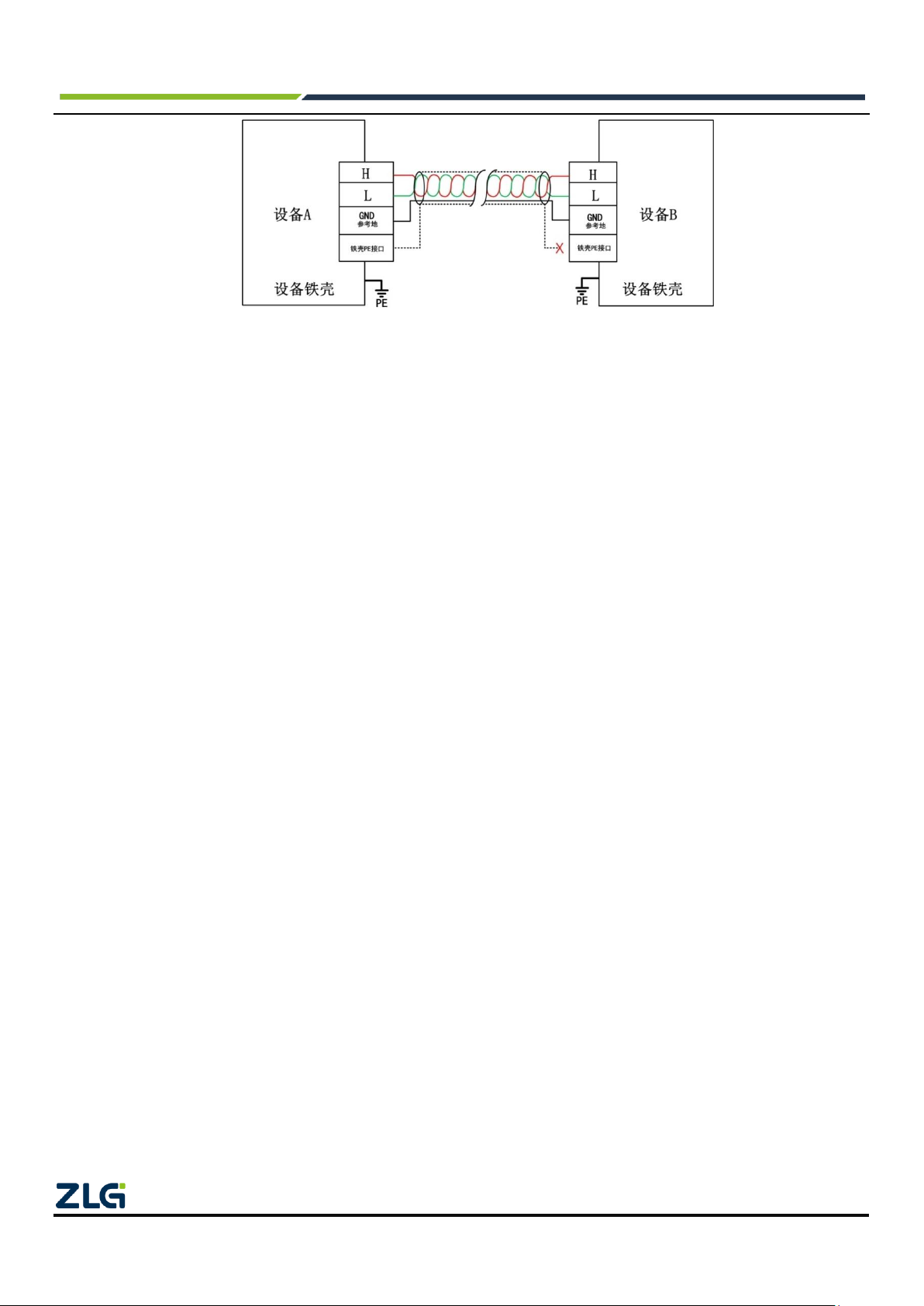

Figure 2.6 Three-core single-layer shielded cable connection

USBCANFD-100U-mini
USBCANFD Series CANFD Interface Card User Manual
©2021 Guangzhou ZLG Electronics Technology Corp.,Ltd.
8
User Manual
3. Driver Installation
This document uses a PC running Windows 7 as an example to describe how to install the
USBCANFD-100U-mini driver.
3.1 Installing the Driver Under Windows
Connect the USBCANFD-100U-mini interface card to the computer with a USB cable to ensure that the
device is powered properly.
Right-click [Computer] and choose [Properties] (as shown in Figure 3.1) to open the Device Manager. Before
the driver is installed, the device manager is displayed, as shown in Figure 3.2.At this time, if the device manager
does not display the message, check whether the USB cable is connected correctly, whether the USB port of the
computer is disabled, and whether the device indicator SYS is on (red indicator at this time).
Figure 3 Starting the computer device manager
Figure 3.2 Starting the computer device manager

USBCANFD-100U-mini
USBCANFD Series CANFD Interface Card User Manual
©2021 Guangzhou ZLG Electronics Technology Corp.,Ltd.
9
User Manual
Right-click [USBCANFD] and choose [Update Driver Software]. The update driver software interface appears,
as shown in Figure 3.3.
Figure 3.3 Browsing the computer to find the driver software
As shown in Figure 3.4, click [Browse], select the official USBCANFD driver folder, click [Next], and wait until
the driver is installed.
Figure 3.4 Finding the driver and install it

USBCANFD-100U-mini
USBCANFD Series CANFD Interface Card User Manual
©2021 Guangzhou ZLG Electronics Technology Corp.,Ltd.
10
User Manual
After the installation is complete, the message "The driver file has been successfully updated" appears. Click
the [Close] button to complete the installation, as shown in Figure 3.5.

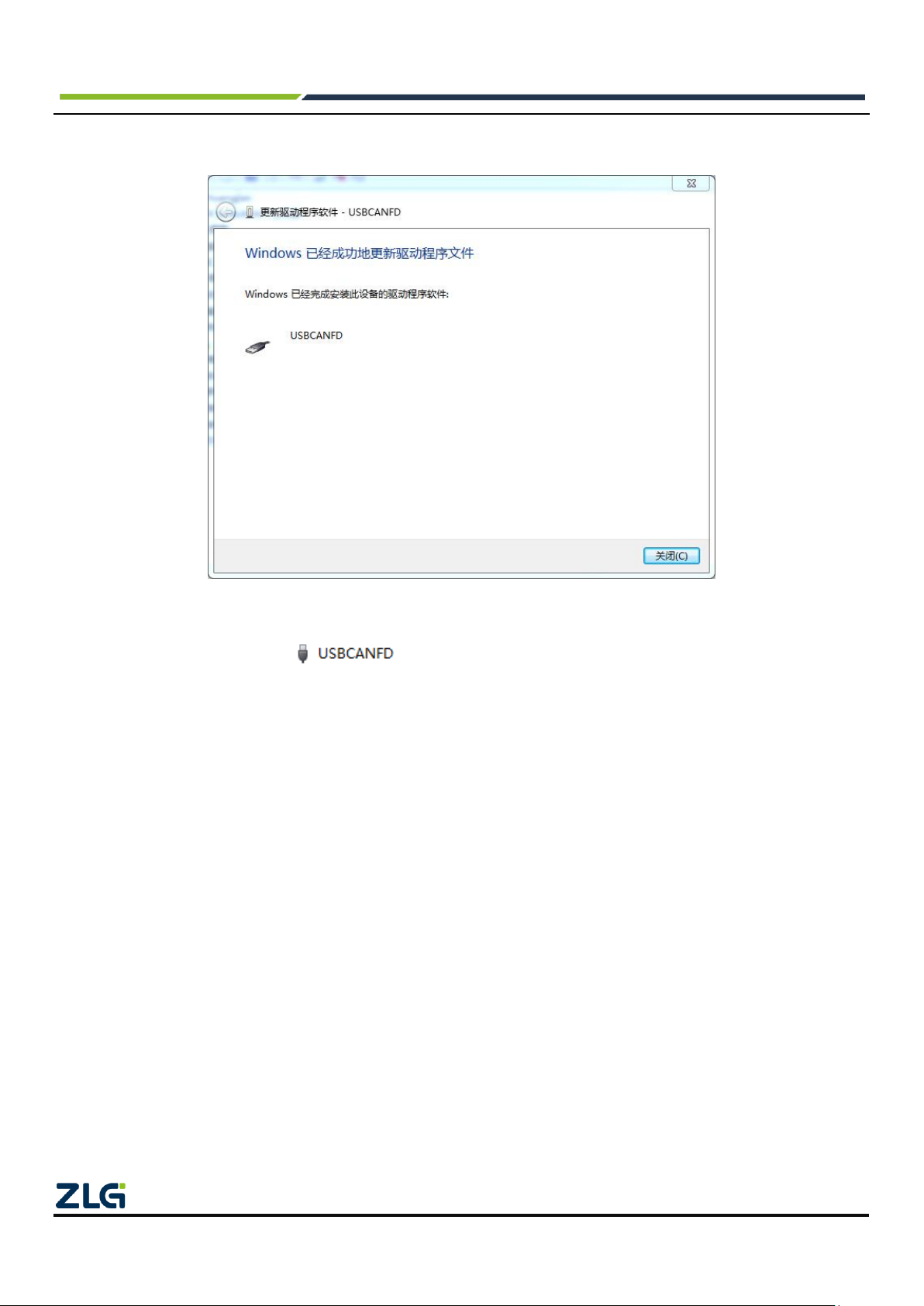

Figure 3.5 Finding the driver and install it
After the driver is installed, is displayed in the device manager, indicating that the driver is
installed correctly. The device SYS indicator turns from red to green. In this case, the CANFD card has been
connected to the PC, and the host computer software can be used to send and receive CAN (FD) messages. It is
recommended to use the ZCANPRO software provided by ZLG Electronics as the host computer software. Users
can also develop their own host computer software by using the provided secondary development function library.

USBCANFD-100U-mini
USBCANFD Series CANFD Interface Card User Manual
©2021 Guangzhou ZLG Electronics Technology Corp.,Ltd.
11
User Manual
4. Inspection and Maintenance
The main electrical components of USBCANFD-100U-mini are semiconductor components. Although it has a
long service life, it may also age fast under incorrect conditions. Periodic inspections should be carried out to
ensure that the required conditions are maintained. It is recommended to check at least once every 6 months to a
year. Under unfavorable environmental conditions, more frequent inspections should be carried out.
If you encounter a problem during the maintenance, see Table 4.1 to identify the fault cause. If the fault
persists, contact Guangzhou ZLG Electronics Co., Ltd.
Table 4.1 Inspection and maintenance
No.
Item
Inspection
Standard
Action
1
Power supply
Check for voltage fluctuations at the
power supply side
USB port power +5V
DC
Use a voltmeter to check the
power supply at the power
input. Take necessary
measures to keep the voltage
fluctuation within the range
2
Surrounding
environment
Check the ambient temperature
(including the internal temperature
of the enclosed environment)
-40°C ~ +85°C
Use a thermometer to check
the temperature and ensure
that the ambient temperature
is kept within the allowable
range
Check the ambient humidity
(including the internal humidity of
the enclosed environment)
The relative humidity
must be between 10%
and 90% when there
is no air conditioner
Use a hygrometer to check
the humidity and ensure that
the ambient humidity is kept
within the allowable range
Check for dust, powder, salt, metal
chips
No accumulation
Clean and protect the
equipment
Check that water, oil or chemical
spray should not touch the
equipment
No spray touches the
device
To clean and protect the
equipment
Check for corrosive or flammable
gases in the equipment area
No corrosive or
flammable gas
Check by smelling or using a
sensor
Check vibration and shock levels
Vibration and shock
are within the
specified range
If necessary, install gaskets
or other shock absorbers
Check the noise source near the
equipment
No significant noise
signal source
Isolate the device from the
noise source or protect the
device
3
Installation and
Wiring
Check that each unit is securely
connected and has been safely
locked with the next unit
No looseness
Press the connectors
together completely and lock
them with the slider

USBCANFD-100U-mini
USBCANFD Series CANFD Interface Card User Manual
©2021 Guangzhou ZLG Electronics Technology Corp.,Ltd.
12
User Manual
5. Packing List
Table 5.1 USBCANFD-100U-mini Packing List V1.00
No.
Name
Quantity
Unit
Remarks
1
USB to CANFD interface card
1
Piece
2
After-sales Service Guide
1
Pcs
3
Certificate of Conformity
1
Piece
4
DB9 to OPEN4 adapter
1
Piece
5

USBCANFD-100U-mini
USBCANFD Series CANFD Interface Card User Manual
©2021 Guangzhou ZLG Electronics Technology Corp.,Ltd.
13
User Manual
6. ZCANPRO Software User Guide
6.1 Introduction to ZCANPRO Software
ZCANPRO is the supporting software for CAN/CANFD series products produced by Guangzhou ZLG
Electronics Co., Ltd.,
which can perform operations such as raw data transmission and reception, data playback, and high-level
protocol analysis. The software is easy to operate and powerful, and it is a good helper for you to carry out CAN
bus testing, monitoring, diagnosis, and development.
ZCANPRO software can be downloaded from the ZLG Electronics official website http://www.zlg.cn.
6.2 Using USBCANFD on ZCANPRO
After the device driver and ZCANPRO are installed, you can use USBCANFD on the ZCANPRO software.
For details about how to use USBCANFD on ZCANPRO, click in the upper right corner of the software
main interface and select [Quick User Guide] in the drop-down box (as shown in Figure 4.1). For detailed
instructions for the ZCANPRO software, see [User Manual].
Figure 4.1 Opening the Quick User Guide

USBCANFD-100U-mini
USBCANFD Series CANFD Interface Card User Manual
©2021 Guangzhou ZLG Electronics Technology Corp.,Ltd.
14
User Manual
7. Disclaimer
Based on the principle of providing better service for users, Guangzhou ZLG Electronics Co., Ltd. ("ZLG
Electronics") will try to present detailed and accurate product information to users in this manual. However, due to
the effectiveness of this manual within a particular period of time, ZLG Electronics does not guarantee the
applicability of this document at any time. ZLG Electronics shall reserve the right to update this manual without
prior notice. To get the latest version, please visit the official website of ZLG Electronics regularly or contact ZLG
Electronics. Thank you!
Right to modify the document
Guangzhou ZLG Electronics Co., Ltd. shall reserve the right to modify related documents of USBCANFD
interface card series products at any time without prior declaration.

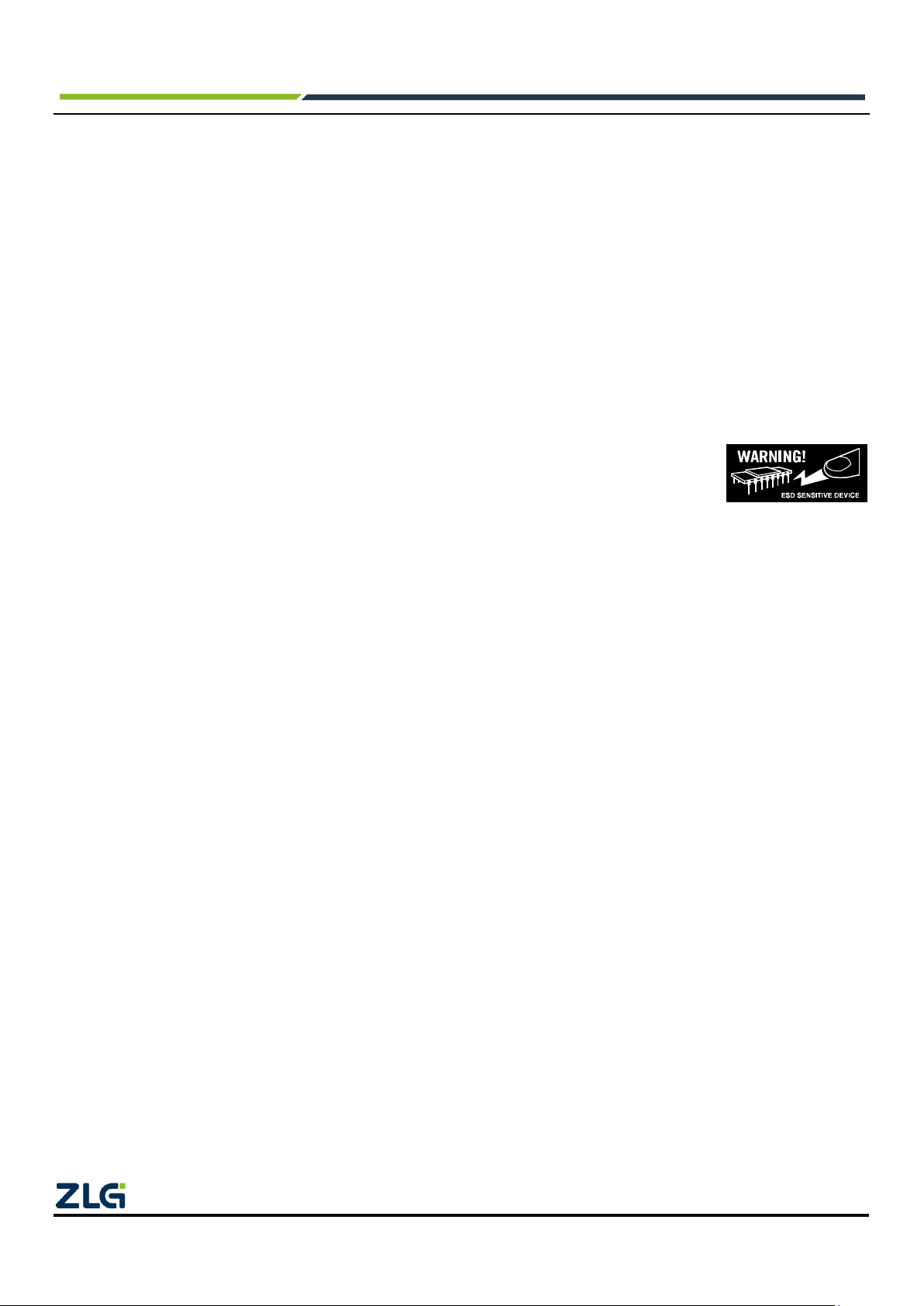

ESD protection
The USBCANFD interface card series products have electrostatic protection
capabilities to ensure the stable operation of the products. When using USBCANFD
interface card series products, first discharge the static electricity on the body. For example,
wear a reliable grounding static ring, or touch a water pipe connected to the earth.
Remarks: It is recommended to use shielded twisted pair cables as the USBCANFD interface card series
transmission cables. If these cables are not used in harsh environments, communication may be
unstable.

USBCANFD-100U-mini
USBCANFD Series CANFD Interface Card User Manual
©2021 Guangzhou ZLG Electronics Technology Corp.,Ltd.
15
User Manual
Dreams come true with professionalism and dedication.
Guangzhou ZLG
Electronics Co., Ltd.
For more details, please visit
www.zlg.cn
Welcome to call the national service hotline
400-888-4005

USBCANFD-100U-mini
USBCANFD Series CANFD Interface Card User Manual
©2021 Guangzhou ZLG Electronics Technology Corp.,Ltd.
16
User Manual
